איסוף יומנים של Corelight Sensor

גרסת מנתח הנתונים: 17.0

נתמך ב:

Google secops SIEM

במאמר הזה מוסבר איך אפשר לאסוף יומנים של Corelight Sensor באמצעות הגדרה של Corelight Sensor ושל מעביר ל-Google Security Operations. במסמך הזה מפורטים גם סוגי היומנים הנתמכים שנוצרים על ידי Corelight Sensor והגרסאות הנתמכות של Corelight.

מידע נוסף זמין במאמר בנושא העברת נתונים אל Google Security Operations.

לפני שמתחילים

• בודקים את הגרסה של Corelight Sensor. הכלי Corelight Google SecOps parser תוכנן לגרסה 27.13 ולגרסאות קודמות. יכול להיות שלגרסאות מאוחרות יותר של Corelight Sensor יהיו יומנים נוספים שהכלי לניתוח לא יזהה, והניתוח של השדות ביומנים האלה יהיה מוגבל או שלא יתבצע בכלל. עם זאת, התוכן ביומן עדיין יהיה זמין בפורמט היומן הגולמי ב-Google SecOps.
• מוודאים שכל המערכות בארכיטקטורת הפריסה מוגדרות עם אזור הזמן UTC.
• ודאו שיש לכם את פרטי הכניסה לתיעוד של Corelight.

שיטות פריסה והעברה של יומנים

בתרשים ארכיטקטורת הפריסה הבא מוצגת דיאגרמת ארכיטקטורה שממחישה איך חיישן Corelight מוגדר לשליחת יומנים אל Google Security Operations באמצעות שתי ארכיטקטורות שונות של הטמעת נתונים. חשוב לציין שכל פריסה של לקוח עשויה להיות שונה מהייצוג הזה, ויכולה להיות מורכבת יותר.

תווית הטמעה מזהה את מנתח הנתונים שמנרמל נתוני יומן גולמיים לפורמט UDM מובנה. המידע במסמך הזה רלוונטי למנתח התוכן עם תווית ההטמעה CORELIGHT.

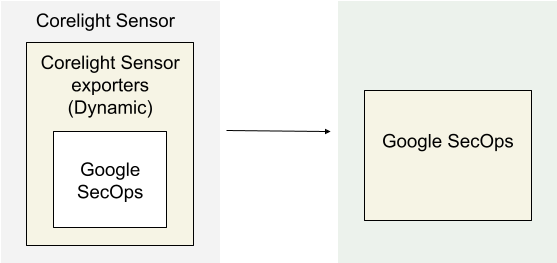

הטמעת יומנים ב-Google SecOps באמצעות Corelight Exporters

דיאגרמת הארכיטקטורה מציגה את הרכיבים הבאים:

• Corelight Sensor: המערכת שמריצה את Corelight Sensor .

• כלי ייצוא של Corelight Sensor: כלי הייצוא של Corelight Sensor אוסף נתוני יומן מהחיישן ומעביר אותם ל-Google Security Operations.

• ‫Google Security Operations: מערכת Google Security Operations שומרת ומנתחת את היומנים מ-Corelight Sensor.

הגדרת כלי הייצוא של Google SecOps ב-Corelight

משתמשים בממשק האינטרנט של Sensor או Fleet Manager כדי להגדיר את כלי הייצוא של Google SecOps. ההגדרה הזו משתמשת בפרטי הכניסה של ה-API ממופע Google SecOps שלכם כדי ליצור את החיבור המאובטח.

1. מתחברים לממשק האינטרנט של Fleet Manager או Sensor של Corelight Sensor כאדמינים.

2. עוברים לאזור ההגדרות של הכלי לייצוא:

   • מרכז ניהול הצי: עוברים אל 'מדיניות', בוחרים מדיניות ולוחצים על הכרטיסייה 'ייצוא'.
   • חיישן עצמאי: עוברים אל Configuration (הגדרה) | Export (ייצוא) | Export Configuration (ייצוא הגדרה).

3. בקטע Create Exporter (יצירת כלי לייצוא), לוחצים על Google SecOps.

4. מגדירים את פרמטרי הקלט הבאים:

   • שם*: שם ייחודי למופע הזה של כלי הייצוא (לדוגמה, SecOps).
   • מספר הלקוח ב-Google SecOps*: המזהה הייחודי של הלקוח ש-Google מספקת.
   • מרחב שמות של Google SecOps: מרחב השמות הלוגי של יומני החיישנים ב-Google SecOps.
   • פרטי כניסה*: פרטי הכניסה לחשבון השירות של Google SecOps (JSON). (מדביקים את תוכן ה-JSON המלא).
   • תוויות Google SecOps: תוויות שהמשתמש מגדיר כדי לזהות את דומיין הנתונים.
   • אזור*: שם האזור ב-GCP שבו נעשה שימוש ב-Google SecOps.
   • Batch Max Events: גודל האצווה המקסימלי.
   • ‫Batch Timeout Seconds (זמן קצוב לתפוגה של קבוצת פריטים): הגיל המקסימלי של קבוצת פריטים.
   • כתובת ה-URL של שרת ה-Proxy: כתובת ה-URL של שרת ה-Proxy של הרשת, אם נדרש.
   • מסנן יומן של כלי הייצוא: בוחרים מסנן להחלה על מופע כלי הייצוא הזה.
   • מסנן סוג יומן: הכללה או החרגה של קובצי יומן ספציפיים לפי שם.
     • החרגה: הסרת יומנים ספציפיים. סוגים חדשים של יומנים (לדוגמה, מחבילות) עדיין ייוצאו.
     • הכללה: ייצוא רק של היומנים שצוינו. סוגי יומנים חדשים לא ייוצאו אלא אם הם יתווספו באופן ידני.

5. לוחצים על סיום.

6. לוחצים על החלת השינויים.

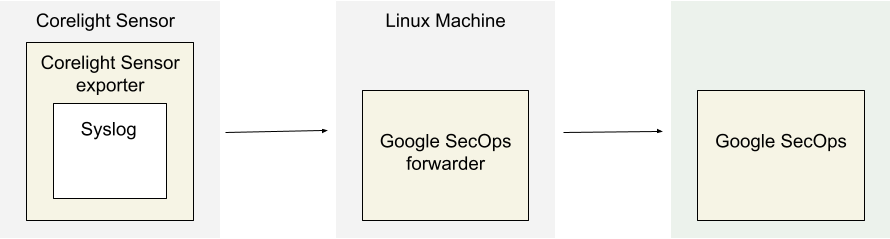

הטמעת יומנים ב-Google SecOps באמצעות כלי להעברת נתונים

דיאגרמת הארכיטקטורה מציגה את הרכיבים הבאים:

• Corelight Sensor: המערכת שמריצה את Corelight Sensor .

• ‫Corelight Sensor exporter: ‏Corelight Sensor exporter אוסף נתוני יומן מהחיישן ומעביר אותם ל-Google Security Operations forwarder.

• מעביר נתונים של Google Security Operations: מעביר הנתונים של Google Security Operations הוא רכיב תוכנה קל משקל שמוטמע ברשת של הלקוח ותומך ב-syslog. הכלי להעברת נתונים של Google Security Operations מעביר את היומנים אל Google Security Operations.

• ‫Google Security Operations: מערכת Google Security Operations שומרת ומנתחת את היומנים מ-Corelight Sensor.

הגדרת מעביר הנתונים של Google Security Operations

כדי להגדיר את מעביר הנתונים של Google Security Operations:

1. מגדירים מעביר נתונים של Google Security Operations. איך מתקינים ומגדירים את המעביר ב-Linux

2. מגדירים את מעביר היומנים של Google Security Operations לשליחת יומנים אל Google Security Operations.

   ‫

     collectors:
       - syslog:
           common:
             enabled: true
             data_type:  CORELIGHT
             data_hint:
             batch_n_seconds: 10
             batch_n_bytes: 1048576
           tcp_address: <Chronicle forwarder listening IP:Port>
           tcp_buffer_size: 524288
           udp_address: <Chronicle forwarder listening IP:Port>
           connection_timeout_sec: 60


   הערה: ‏ Corelight לא תומך ב-syslog באמצעות Transport Layer Security ‏(TLS).

הגדרת כלי הייצוא Corelight Sensor

1. נכנסים ל-Corelight Sensor כאדמינים.
2. לוחצים על הכרטיסייה ייצוא.
3. מחפשים את האפשרות ייצוא ל-Syslog ומפעילים אותה.
4. בקטע EXPORT TO SYSLOG (ייצוא ל-Syslog), מגדירים את השדות הבאים:
   • ‫SYSLOG SERVER: מציינים את כתובת ה-IP והיציאה של מאזין ה-syslog של המעביר של Google Security Operations.
   • עוברים אל הגדרות מתקדמות > פורמט SYSLOG ומשנים את ההגדרה לLegacy (גרסה קודמת).
5. לוחצים על החלת השינויים.

סוגי יומנים נתמכים של Corelight

המנתח של Corelight תומך בסוגי היומנים הבאים שנוצרים על ידי Corelight Sensor.

Log Type

• conn
• conn_long
• conn_red
• dce_rpc
• dns
• dns_red
• files
• files_red
• http
• http2
• http_red
• intel
• irc
• notice
• rdp
• sip
• smb_files
• smb_mapping
• smtp
• smtp_links
• ssh
• ssl
• ssl_red
• suricata_corelight
• bacnet
• cip
• corelight_burst
• corelight_overall_capture_loss
• corelight_profiling
• datared
• dga
• dhcp
• dnp3
• dpd
• encrypted_dns
• enip
• enip_debug
• enip_list_identity
• etc_viz
• ftp
• generic_dns_tunnels
• generic_icmp_tunnels
• icmp_specific_tunnels
• ipsec
• iso_cotp
• kerberos
• known_certs
• known_devices
• known_domains
• known_hosts
• known_names
• known_remotes
• known_services
• known_users
• ldap
• ldap_search
• local_subnets
• local_subnets_dj
• local_subnets_graphs
• log4shell
• modbus
• mqtt_connect
• mqtt_publish
• mqtt_subscribe
• mysql
• napatech_shunting
• ntlm
• ntp
• pe
• profinet
• profinet_dce_rpc
• profinet_debug
• radius
• reporter
• rfb
• s7comm
• smartpcap
• snmp
• socks
• software
• specific_dns_tunnels
• stepping
• stun
• stun_nat
• suricata_eve
• suricata_stats
• syslog
• tds
• tds_rpc
• tds_sql_batch
• traceroute
• tunnel
• unknown-smartpcap
• vpn
• weird
• weird_red
• wireguard
• x509
• x509_red
• conn_agg
• dns_agg
• files_agg
• http_agg
• ssl_agg
• weird_agg
• analyzer
• anomaly
• ssdp
• telnet
• websocket
• first_seen

הפניה למיפוי שדות

בקטע הזה מוסבר איך מנתח התוכן (parser) של Google Security Operations ממפה שדות של Corelight לשדות של Unified Data Model ‏(UDM) של Google Security Operations.

הפניה למיפוי שדות: CORELIGHT – שדות נפוצים

בטבלה הבאה מפורטים שדות נפוצים ביומן CORELIGHT והשדות התואמים להם ב-UDM.

Log field	UDM mapping	Logic
	metadata.vendor_name	The metadata.vendor_name UDM field is set to Corelight.
_path (string)	metadata.product_event_type
_system_name (string)	observer.hostname
ts (time)	metadata.event_timestamp
uid (string)	about.labels [uid], network.session_id
id.orig_h (string - addr)	principal.ip
id.orig_p (integer - port)	principal.port
id.resp_h (string - addr)	target.ip
id.resp_p (integer - port)	target.port
_write_ts	metadata.collected_timestamp
id.vlan (integer - int)	additional.fields [id_vlan]
id.vlan_inner (integer - int)	additional.fields [id_vlan_inner]
id.orig_ep_cid (string)	additional.fields [id_orig_ep_cid]
id.orig_ep_source (string)	additional.fields [id_orig_ep_source]
id.orig_ep_status (string)	additional.fields [id_orig_ep_status]
id.orig_ep_uid (string)	additional.fields [id_orig_ep_uid]
id.resp_ep_cid (string)	additional.fields [id_resp_ep_cid]
id.resp_ep_source (string)	additional.fields [id_resp_ep_source]
id.resp_ep_status (string)	additional.fields [id_resp_ep_status]
id.resp_ep_uid (string)	additional.fields [id_resp_ep_uid]
uids (array[string] - vector of string)	additional.fields [uid]
count (integer - int)	additional.fields [count]
ts_last	additional.fields [ts_last]

הפניה למיפוי שדות: CORELIGHT - conn, conn_red, conn_long, conn_agg

בטבלה הבאה מפורטים שדות היומן של סוג היומן conn, conn_red, conn_long, conn_agg והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
proto (string - enum)	network.ip_protocol
service (string)	network.application_protocol
duration (number - interval)	network.session_duration
orig_bytes (integer - count)	network.sent_bytes
resp_bytes (integer - count)	network.received_bytes
conn_state (string)	metadata.description	If the conn_state log field value is equal to S0, then the metadata.description UDM field is set to S0: Connection attempt seen, no reply. Else, if the conn_state log field value is equal to S1, then the metadata.description UDM field is set to S1: Connection established, not terminated. Else, if the conn_state log field value is equal to S2, then the metadata.description UDM field is set to S2: Connection established and close attempt by originator seen (but no reply from responder). Else, if the conn_state log field value is equal to S3, then the metadata.description UDM field is set to S3: Connection established and close attempt by responder seen (but no reply from originator). Else, if the conn_state log field value is equal to SF, then the metadata.description UDM field is set to SF: Normal SYN/FIN completion. Else, if the conn_state log field value is equal to REJ, then the metadata.description UDM field is set to REJ: Connection attempt rejected. Else, if the conn_state log field value is equal to RSTO, then the metadata.description UDM field is set to RSTO: Connection established, originator aborted (sent a RST). Else, if the conn_state log field value is equal to RSTOS0, then the metadata.description UDM field is set to RSTOS0: Originator sent a SYN followed by a RST, we never saw a SYN-ACK from the responder. Else, if the conn_state log field value is equal to RSTOSH, then the metadata.description UDM field is set to RSTOSH: Responder sent a SYN ACK followed by a RST, we never saw a SYN from the (purported) originator. Else, if the conn_state log field value is equal to RSTR, then the metadata.description UDM field is set to RSTR: Established, responder aborted. Else, if the conn_state log field value is equal to SH, then the metadata.description UDM field is set to SH: Originator sent a SYN followed by a FIN, we never saw a SYN ACK from the responder (hence the connection was "half" open). Else, if the conn_state log field value is equal to SHR, then the metadata.description UDM field is set to SHR: Responder sent a SYN ACK followed by a FIN, we never saw a SYN from the originator. Else, if the conn_state log field value is equal to OTH, then the metadata.description UDM field is set to OTH: No SYN seen, just midstream traffic (a partial connection that was not later closed).
local_orig (boolean - bool)	about.labels [local_orig]
local_resp (boolean - bool)	about.labels [local_resp]
missed_bytes (integer - count)	about.labels [missed_bytes]
history (string)	about.labels [history]
orig_pkts (integer - count)	network.sent_packets
orig_ip_bytes (integer - count)	principal.labels [orig_ip_bytes]
resp_pkts (integer - count)	network.received_packets
resp_ip_bytes (integer - count)	target.labels [resp_ip_bytes]
tunnel_parents (array[string] - set[string])	intermediary.labels [tunnel_parent]
orig_cc (string)	principal.ip_geo_artifact.location.country_or_region
resp_cc (string)	target.ip_geo_artifact.location.country_or_region
suri_ids (array[string] - set[string])	security_result.rule_id
spcap.url (string)	security_result.url_back_to_product
spcap.rule (integer - count)	security_result.rule_labels [spcap_rule]
spcap.trigger (string)	security_result.detection_fields [spcap_trigger]
app (array[string] - vector of string)	about.application
corelight_shunted (boolean - bool)	about.labels [corelight_shunted]
orig_shunted_pkts (integer - count)	principal.labels [orig_shunted_pkts]
orig_shunted_bytes (integer - count)	principal.labels [orig_shunted_bytes]
resp_shunted_pkts (integer - count)	target.labels [resp_shunted_pkts]
resp_shunted_bytes (integer - count)	target.labels [resp_shunted_bytes]
orig_l2_addr (string)	principal.mac
resp_l2_addr (string)	target.mac
id_orig_h_n.src (string)	principal.labels [id_orig_h_n_src]
id_orig_h_n.vals (array[string] - set[string])	principal.labels [id_orig_h_n_val]
id_resp_h_n.src (string)	target.labels [id_resp_h_n_src]
id_resp_h_n.vals (array[string] - set[string])	target.labels [id_resp_h_n_val]
vlan (integer - int)	intermediary.labels [vlan]
inner_vlan (integer - int)	intermediary.labels [inner_vlan]
community_id (string)	network.community_id
	security_result.severity	The security_result.severity UDM field is set to INFORMATIONAL.
service (string)	about.labels [service]
orig_ep_cid (string)	additional.fields [orig_ep_cid]
orig_ep_source (string)	additional.fields [orig_ep_source]
orig_ep_status (string)	additional.fields [orig_ep_status]
orig_ep_uid (string)	additional.fields [orig_ep_uid]
resp_ep_cid (string)	additional.fields [resp_ep_cid]
resp_ep_source (string)	additional.fields [resp_ep_source]
resp_ep_status (string)	additional.fields [resp_ep_status]
resp_ep_uid (string)	additional.fields [resp_ep_uid]
id_orig_h_n	principal.ip
id_resp_h_n	target.ip
netskope_site_ids	additional.fields[netskope_site_ids]	Iterate through log field netskope_site_ids, then netskope_site_id_%{index} log field is mapped to the additional.fields.key UDM field and netskope_site_id log field is mapped to the additional.fields.value UDM field.
netskope_user_ids	additional.fields[netskope_user_ids]	Iterate through log field netskope_user_ids, then netskope_user_id_%{index} log field is mapped to the additional.fields.key UDM field and netskope_user_id log field is mapped to the additional.fields.value UDM field.
write_ts	additional.fields[write_ts]
spcap.urls (array[string] - vector of string)	security_result.url_back_to_product	Iterate through log field spcap.urls, then spcap.urls log field is mapped to the security_result.url_back_to_product UDM field.
community_ids (array[string] - vector of string)	network.community_id	Iterate through log field community_ids, then if index is equal to 0 then, community_id log field is mapped to the network.community_id UDM field. Else, community_id_%{index} log field is mapped to the additional.fields.key UDM field and community_id log field is mapped to the additional.fields.value UDM field.
capture_metadata.vpc.version	about.resource.attribute.labels[vpc_version]
capture_metadata.vpc.vpc_id	about.resource.product_object_id
	about.resource.resource_type	If capture_metadata.vpc.vpc_id is present, then about.resource.resource_type UDM field is set to VPC_NETWORK.
capture_source	about.resource.attribute.labels[capture_source]
orig_inst.az	principal.location.name
orig_inst.id	principal.resource.product_object_id
orig_inst.name	principal.resource.name
orig_inst.org_id	principal.resource.attribute.labels[org_id]
orig_inst.sg_ids	principal.resource.attribute.labels[sg_id]
orig_inst.subnet_id	principal.resource.attribute.labels[subnet_id]
orig_inst.vpc_id	principal.resource.attribute.labels[vpc_id]
	principal.resource.resource_type	If orig_inst.vpc_id is present, then principal.resource.resource_type UDM field is set to VPC_NETWORK.
orig_inst.profile	principal.resource.attribute.labels[profile]
resp_inst.az	target.location.name
resp_inst.id	target.resource.product_object_id
resp_inst.name	target.resource.name
resp_inst.org_id	target.resource.attribute.labels[org_id]
resp_inst.sg_ids	target.resource.attribute.labels[sg_id]
resp_inst.subnet_id	target.resource.attribute.labels[subnet_id]
resp_inst.vpc_id	target.resource.attribute.labels[vpc_id]
	target.resource.resource_type	If resp_inst.vpc_id is present, then target.resource.resource_type UDM field is set to VPC_NETWORK.
resp_inst.profile	target.resource.attribute.labels[profile]
local_orig and local_resp	additional.fields[direction]	If the local_orig log field value is equal to true and local_resp log field value is equal to true, then the additional.fields[direction] UDM field is set to internal. Else, if the local_orig log field value is equal to true and local_resp log field value is equal to false, then the additional.fields[direction] UDM field is set to outbound. Else, if the local_orig log field value is equal to false and local_resp log field value is equal to false, then the additional.fields[direction] UDM field is set to external. Else, if the local_orig log field value is equal to false and local_resp log field value is equal to true, then the additional.fields[direction] UDM field is set to inbound.

הפניה למיפוי שדות: CORELIGHT – dce_rpc

בטבלה הבאה מפורטים שדות היומן של סוג היומן dce_rpc והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
rtt (number - interval)	network.session_duration
named_pipe (string)	intermediary.resource.name
	intermediary.resource.resource_type	If the named_pipe log field value is not empty, then the intermediary.resource.resource_type UDM field is set to PIPE.
endpoint (string)	target.labels [endpoint]
operation (string)	target.labels [operation]
	network.application_protocol	The network.application_protocol UDM field is set to DCERPC.
	security_result.severity	The security_result.severity UDM field is set to INFORMATIONAL.
operation, endpoint, named_pipe (string)	metadata.description	The metadata.description UDM field is set with operation, endpoint, named_pipe log fields as "operation operation on endpoint using named pipe named_pipe".
	network.ip_protocol	The network.ip_protocol UDM field is set to TCP.

חומרי עזר למיפוי שדות: CORELIGHT – dns, dns_red, dns_agg

בטבלה הבאה מפורטים שדות היומן של סוג היומן dns, dns_red, dns_agg והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_DNS.
	network.application_protocol	The network.application_protocol UDM field is set to DNS.
proto (string - enum)	network.ip_protocol
trans_id (integer - count)	network.dns.id
rtt (number - interval)	network.session_duration
query (string)	network.dns.questions.name
qclass (integer - count)	network.dns.questions.class
qclass_name (string)	about.labels [qclass_name]
qtype (integer - count)	network.dns.questions.type
qtype_name (string)	about.labels [qtype_name]
rcode (integer - count)	network.dns.response_code
rcode (integer - count)	network.dns.response	If the rcode log field value is not empty, then the network.dns.response UDM field is set to true.
rcode_name (string)	about.labels [rcode_name]
AA (boolean - bool)	network.dns.authoritative
TC (boolean - bool)	network.dns.truncated
RD (boolean - bool)	network.dns.recursion_desired
RA (boolean - bool)	network.dns.recursion_available
Z (integer - count)	about.labels [Z]
answers (array[string] - vector of string)	network.dns.answers.name
TTLs (array[number] - vector of interval)	network.dns.answers.ttl
rejected (boolean - bool)	about.labels [rejected]
is_trusted_domain (string)	about.labels [is_trusted_domain]
icann_host_subdomain (string)	about.labels [icann_host_subdomain]
icann_domain (string)	network.dns_domain
icann_tld (string)	about.labels [icann_tld]
num (integer - count)	security_result.detection_fields [num]

הפניה למיפוי שדות: CORELIGHT – http, ‏ http_red, ‏ http2, ‏ http_agg

בטבלה הבאה מפורטים שדות היומן של סוג היומן http, http_red, http2, http_agg והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_HTTP.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
trans_depth (integer - count)	about.labels [trans_depth]
method (string)	network.http.method
host (string)	target.hostname
uri (string)	target.url
referrer (string)	network.http.referral_url
version (string)	network.application_protocol_version
user_agent (string)	network.http.user_agent
origin (string)	principal.hostname
request_body_len (integer - count)	network.sent_bytes
response_body_len (integer - count)	network.received_bytes
status_code (integer - count)	network.http.response_code
status_msg (string)	about.labels [status_msg]
info_code (integer - count)	about.labels [info_code]
info_msg (string)	about.labels [info_msg]
tags (array[string] - set[enum])	about.labels [tags]
username (string)	principal.user.user_display_name
password (string)	extensions.auth.auth_details
proxied (array[string] - set[string])	intermediary.hostname
orig_fuids (array[string] - vector of string)	about.labels [orig_fuid]
orig_filenames (array[string] - vector of string)	src.file.names	The orig_filenames log field is mapped to src.file.names UDM field when index value in orig_filenames is equal to 0. For every other index value, orig_filenames log field is mapped to the about.file.names.
orig_mime_types (array[string] - vector of string)	src.file.mime_type	The orig_mime_types log field is mapped to src.file.mime_type UDM field when index value in orig_mime_types is equal to 0. For every other index value, orig_mime_types log field is mapped to the about.file.mime_type.
resp_fuids (array[string] - vector of string)	about.labels [resp_fuid]
resp_filenames (array[string] - vector of string)	target.file.names	The resp_filenames log field is mapped to target.file.names UDM field when index value in resp_filenames is equal to 0. For every other index value, resp_filenames log field is mapped to the about.file.names.
resp_mime_types (array[string] - vector of string)	target.file.mime_type	The resp_mime_types log field is mapped to target.file.mime_type UDM field when index value in resp_mime_types is equal to 0. For every other index value, resp_mime_types log field is mapped to the about.file.mime_type.
post_body (string)	about.labels [post_body]
stream_id (integer - count)	about.labels [stream_id]
encoding (string)	about.labels [encoding]
push (boolean - bool)	about.labels [push]
versions (array[float] - vector of float)	network.application_protocol_version	Iterate through log field versions, then if index is equal to 0 then, version log field is mapped to the network.application_protocol_version UDM field. Else, version_%{index} log field is mapped to the additional.fields.key UDM field and version log field is mapped to the additional.fields.value UDM field.
user_agents (array[string] - vector of string)	network.http.user_agent	Iterate through log field user_agents, then if index is equal to 0 then, user_agent log field is mapped to the network.http.user_agent UDM field. Else, user_agent_%{index} log field is mapped to the additional.fields.key UDM field and user_agent log field is mapped to the additional.fields.value UDM field.

הפניה למיפוי שדות: CORELIGHT - smtp_links

בטבלה הבאה מפורטים שדות היומן של סוג היומן smtp_links והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_SMTP.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to SMTP.
fuid (string)	about.labels [fuid]
link (string)	about.url
domain (string)	about.domain.name

הפניה למיפוי שדות: CORELIGHT - irc

בטבלה הבאה מפורטים שדות היומן של סוג היומן irc והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
nick (string)	principal.user.user_display_name
user (string)	principal.user.userid	If the user log field value is less than or equal to 255, then the user log field is mapped to the principal.user.userid UDM field. Else, the user log field is mapped to the about.labels UDM field.
command, value, addl	principal.process.command_line
dcc_file_name (string)	src.file.names
dcc_file_size (integer - count)	src.file.size
dcc_mime_type (string)	src.file.mime_type
fuid (string)	about.labels [fuid]

הפניה למיפוי שדות: CORELIGHT – files, files_red, files_agg

בטבלה הבאה מפורטים שדות היומן של סוג היומן files, files_red, files_agg והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
fuid (string)	about.labels [fuid]
tx_hosts (array[string] - set[addr])	principal.ip
rx_hosts (array[string] - set[addr])	target.ip
conn_uids (array[string] - set[string])	about.labels [conn_uid]
source (string)	about.labels [source]
depth (integer - count)	about.labels [depth]
analyzers (array[string] - set[string])	about.labels [analyzer]
mime_type (string)	about.file.mime_type
filename (string)	about.file.names
duration (number - interval)	about.labels [duration]
local_orig (boolean - bool)	about.labels [local_orig]
is_orig (boolean - bool)	about.labels [is_orig]
seen_bytes (integer - count)	about.file.size
total_bytes (integer - count)	about.labels [total_bytes]
missing_bytes (integer - count)	about.labels [missing_bytes]
overflow_bytes (integer - count)	about.labels [overflow_bytes]
timedout (boolean - bool)	about.labels [timedout]
parent_fuid (string)	about.labels [parent_fuid]
md5 (string)	about.file.md5
sha1 (string)	about.file.sha1
sha256 (string)	about.file.sha256
md5 (string)	network.tls.client.certificate.md5	If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-user-cert and the _path log field value is equal to files, then the network.tls.client.certificate.md5 UDM field is set to md5.
sha1 (string)	network.tls.client.certificate.sha1	If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-user-cert and the _path log field value is equal to files, then the network.tls.client.certificate.sha1 UDM field is set to sha1.
sha256 (string)	network.tls.client.certificate.sha256	If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-user-cert and the _path log field value is equal to files, then the network.tls.client.certificate.sha256 UDM field is set to sha256.
md5 (string)	network.tls.server.certificate.md5	If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-ca-cert and the _path log field value is equal to files, then the network.tls.server.certificate.md5 UDM field is set to md5.
sha1 (string)	network.tls.server.certificate.sha1	If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-ca-cert and the _path log field value is equal to files, then the network.tls.server.certificate.sha1 UDM field is set to sha1.
sha256 (string)	network.tls.server.certificate.sha256	If the source log field value is equal to ssl and the mime_type log field value is equal to application/x-x509-ca-cert and the _path log field value is equal to files, then the network.tls.server.certificate.sha256 UDM field is set to sha256.
extracted (array[string] - set[string])	about.file.names
extracted_cutoff (boolean - bool)	about.labels [extracted_cutoff]
extracted_size (integer - count)	about.labels [extracted_size]
num (integer - count)	about.labels [num]
vlan (integer - int)	additional.fields [vlan]
vlan_inner (integer - int)	additional.fields [vlan_inner]
mime_types (array[string] - vector of string)	target.file.mime_type	Iterate through log field mime_type, then if index is equal to 0 then, mime_type log field is mapped to the target.file.mime_type UDM field. Else, mime_type_%{index} log field is mapped to the additional.fields.key UDM field and mime_type log field is mapped to the additional.fields.value UDM field.
timedouts (array[boolean] - vector of bool)	additional.fields[timedouts]	Iterate through log field timedouts, then timedout_%{index} log field is mapped to the additional.fields.key UDM field and timedouts log field is mapped to the additional.fields.value UDM field.

הפניה למיפוי שדות: CORELIGHT – הודעה

בטבלה הבאה מפורטים שדות היומן של סוג היומן notice והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
fuid (string)	about.labels [fuid]
file_mime_type (string)	target.file.mime_type
file_desc (string)	about.labels [file_desc]
proto (string - enum)	network.ip_protocol
note (string - enum)	security_result.description
msg (string)	metadata.description
sub (string)	about.labels [sub]
src (string - addr)	principal.ip
dst (string - addr)	target.ip
p (integer - port)	about.port
n (integer - count)	about.labels [n]
peer_descr (string)	about.labels [peer_descr]
	security_result.action	The security_result.action UDM field is set to ALLOW.
actions (array[string] - set[enum])	security_result.action_details
suppress_for (number - interval)	about.labels [suppress_for]
remote_location.country_code (string)	about.location.country_or_region	The about.location.country_or_region UDM field is set with remote_location.country_code, remote_location.region log fields as "remote_location.country_code: remote_location.region".
remote_location.region (string)	about.location.country_or_region	The about.location.country_or_region UDM field is set with remote_location.country_code, remote_location.region log fields as "remote_location.country_code: remote_location.region".
remote_location.city (string)	about.location.city
remote_location.latitude (number - double)	about.location.region_coordinates.latitude
remote_location.longitude (number - double)	about.location.region_coordinates.longitude
	security_result.severity	If the severity.level log field value contain one of the following values 0 1 then, the security_result.severity UDM field is set to HIGH. Else, If severity.level log field value is equal to 2 then, the security_result.severity UDM field is set to CRITICAL. Else, If severity.level log field value is equal to 3 then, the security_result.severity UDM field is set to ERROR. Else, If severity.level log field value contain one of the following values 4 5 6 then, the security_result.severity UDM field is set to INFORMATIONAL. Else, If severity.level log field value is equal to 7 then, the security_result.severity UDM field is set to LOW. Else The security_result.severity UDM field is set to UNKNOWN_SEVERITY.
severity.name	security_result.severity_details
severity.level	security_result.detection_fields [severity_level]
resp_vulnerable_host.criticality (string)	target.asset.vulnerabilities.severity	If the resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Critical" or the resp_vulnerable_host.criticality log field value is equal to "4 " then, the "target.asset.vulnerabilities.severity" UDM field is set to CRITICAL. Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)High" or the resp_vulnerable_host.criticality log field value is equal to "3 " then, the "target.asset.vulnerabilities.severity" UDM field is set to HIGH. Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Low" or the resp_vulnerable_host.criticality log field value is equal to "1 " then, the "target.asset.vulnerabilities.severity" UDM field is set to LOW. Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Medium" or the resp_vulnerable_host.criticality log field value is equal to "2 " then, the "target.asset.vulnerabilities.severity" UDM field is set to MEDIUM. Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Unknown_Severity" or the resp_vulnerable_host.criticality log field value is equal to "0 " then, the "target.asset.vulnerabilities.severity" UDM field is set to UNKNOWN_SEVERITY.
resp_vulnerable_host.criticality (string)	target.asset.vulnerabilities.severity_details
resp_vulnerable_host.cve (string)	target.asset.vulnerabilities.cve_id
resp_vulnerable_host.host_uid (string)	additional.fields [resp_vulnerable_host_uid]
resp_vulnerable_host.hostname (string)	target.asset.hostname
resp_vulnerable_host.machine_domain (string)	target.asset.network_domain
resp_vulnerable_host.os_version (string)	target.asset.platform_software.platform_version
resp_vulnerable_host.source (string)	target.asset.vulnerabilities.cve_description
orig_vulnerable_host.criticality (string)	principal.asset.vulnerabilities.severity	If the orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Critical" or the orig_vulnerable_host.criticality log field value is equal to "4 " then, the "principal.asset.vulnerabilities.severity" UDM field is set to CRITICAL. Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)High" or the orig_vulnerable_host.criticality log field value is equal to "3 " then, the "principal.asset.vulnerabilities.severity" UDM field is set to HIGH. Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Low" or the orig_vulnerable_host.criticality log field value is equal to "1 " then, the "principal.asset.vulnerabilities.severity" UDM field is set to LOW. Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Medium" or the orig_vulnerable_host.criticality log field value is equal to "2 " then, the "principal.asset.vulnerabilities.severity" UDM field is set to MEDIUM. Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Unknown_Severity" or the orig_vulnerable_host.criticality log field value is equal to "0 " then, the "principal.asset.vulnerabilities.severity" UDM field is set to UNKNOWN_SEVERITY.
orig_vulnerable_host.criticality (string)	principal.asset.vulnerabilities.severity_details
orig_vulnerable_host.cve (array[string] - vector of string)	principal.asset.vulnerabilities.cve_id
orig_vulnerable_host.host_uid (string)	additional.fields [orig_vulnerable_host_uid]
orig_vulnerable_host.hostname (string)	principal.asset.hostname
orig_vulnerable_host.machine_domain (string)	principal.asset.network_domain
orig_vulnerable_host.os_version (string)	principal.asset.platform_software.platform_version
orig_vulnerable_host.source (string)	principal.asset.vulnerabilities.cve_description

הפניה למיפוי שדות: CORELIGHT - smb_files

בטבלה הבאה מפורטים שדות היומן של סוג היומן smb_files והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	If the action log field value is equal to SMB::FILE_READ, then the metadata.event_type UDM field is set to FILE_READ. Else, if the action log field value is equal to SMB::FILE_WRITE, then the metadata.event_type UDM field is set to FILE_MODIFICATION. Else, if the action log field value is equal to SMB::FILE_OPEN, then the metadata.event_type UDM field is set to FILE_OPEN. Else, if the action log field value is equal to SMB::FILE_CLOSE, then the metadata.event_type UDM field is set to FILE_UNCATEGORIZED. Else, if the action log field value is equal to SMB::FILE_DELETE, then the metadata.event_type UDM field is set to FILE_DELETION. Else, if the action log field value is equal to SMB::FILE_RENAME, then the metadata.event_type UDM field is set to FILE_MOVE. Else, if the action log field value is equal to SMB::FILE_SET_ATTRIBUTE, then the metadata.event_type UDM field is set to FILE_UNCATEGORIZED. Else, the metadata.event_type UDM field is set to FILE_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to SMB.
	network.ip_protocol	The network.ip_protocol UDM field is set to TCP.
action, name	metadata.description	The metadata.description UDM field is set with action, name log fields as "action: action on: name".
	security_result.severity	The security_result.severity UDM field is set to INFORMATIONAL.
	security_result.action	The security_result.action UDM field is set to ALLOW.
fuid (string)	about.labels [fuid]
action (string - enum)	target.labels [action]
path (string)	target.file.full_path
name (string)	target.file.names
size (integer - count)	target.file.size
prev_name (string)	src.file.names
times.modified (time)	target.file.last_modification_time
times.accessed (time)	target.file.last_seen_time
times.created (time)	target.file.first_seen_time
times.changed (time)	target.labels [times_changed]
data_offset_req (integer - count)	target.labels [data_offset_req]
data_len_req (integer - count)	target.labels [data_len_req]
data_len_rsp (integer - count)	target.labels [data_len_rsp]

הפניה למיפוי שדות: CORELIGHT - smb_mapping

בטבלה הבאה מפורטים שדות היומן של סוג היומן smb_mapping והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to SMB.
	network.ip_protocol	The network.ip_protocol UDM field is set to TCP.
	security_result.severity	The security_result.severity UDM field is set to INFORMATIONAL.
	security_result.action	The security_result.action UDM field is set to ALLOW.
path (string)	target.resource.attribute.labels [path]
service (string)	target.application
native_file_system (string)	target.resource.attribute.labels [native_file_system]
share_type (string)	target.resource.resource_type	If the share_type log field value is equal to DISK, then the target.resource.resource_type UDM field is set to STORAGE_OBJECT. Else, if the share_type log field value is equal to PIPE, then the target.resource.resource_type UDM field is set to PIPE. Else, the target.resource.resource_type UDM field is set to UNSPECIFIED.
share_type (string)	target.resource.resource_subtype

הפניה למיפוי שדות: CORELIGHT – ssl, ‏ ssl_red, ‏ ssl_agg

בטבלה הבאה מפורטים שדות היומן של סוג היומן ssl, ssl_red, ssl_agg והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to HTTPS.
	network.ip_protocol	The network.ip_protocol UDM field is set to TCP.
	security_result.severity	The security_result.severity UDM field is set to INFORMATIONAL.
	security_result.action	The security_result.action UDM field is set to ALLOW.
version (string)	network.tls.version
cipher (string)	network.tls.cipher
curve (string)	network.tls.curve
server_name (string)	network.tls.client.server_name
resumed (boolean - bool)	network.tls.resumed
last_alert (string)	security_result.description
next_protocol (string)	network.tls.next_protocol
established (boolean - bool)	network.tls.established
ssl_history (string)	about.labels [ssl_history]
cert_chain_fps (array[string] - vector of string)	target.labels [cert_chain_fps]
client_cert_chain_fps (array[string] - vector of string)	principal.labels [client_cert_chain_fps]
sni_matches_cert (boolean - bool)	about.labels [sni_matches_cert]
validation_status (string)	security_result.description
ja3 (string)	network.tls.client.ja3
ja3s (string)	network.tls.server.ja3s

הפניה למיפוי שדות: CORELIGHT - rdp

בטבלה הבאה מפורטים שדות היומן של סוג היומן rdp והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
cookie (string)	principal.user.userid
result (string)	about.labels [result]
security_protocol (string)	target.labels [security_protocol]
client_channels (array[string] - vector of string)	intermediary.labels [client_channels]
keyboard_layout (string)	principal.labels [keyboard_layout]
client_build (string)	principal.asset.software.version
client_name (string)	principal.hostname
client_dig_product_id (string)	principal.asset.product_object_id
desktop_width (integer - count)	principal.labels [desktop_width]
desktop_height (integer - count)	principal.labels [desktop_height]
requested_color_depth (string)	principal.labels [requested_color_depth]
cert_type (string)	about.labels [cert_type]
cert_count (integer - count)	about.labels [cert_count]
cert_permanent (boolean - bool)	about.labels [cert_permanent ]
encryption_level (string)	about.labels [encryption_level]
encryption_method (string)	about.labels [encryption_method]
auth_success (boolean - bool)	security_result.action	If the auth_success log field value is equal to true then, the security_result.action UDM field is set to ALLOW. Else, the security_result.action UDM field is set to FAIL.
channels_joined (integer - int)	intermediary.labels [channels_joined]
inferences (array[string] - set[string])	about.labels [inferences]
rdpeudp_uid (string)	about.labels [rdpeudp_uid]
	network.ip_protocol	The network.ip_protocol UDM field is set to TCP.
rdfp_string (string)	principal.labels [rdfp_string]
rdfp_hash (string)	principal.labels [rdfp_hash]
result, security_protocol	security_result.description	The security_result.description UDM field is set with result, security_protocol log fields as "result connection with security protocol security_protocol".
	security_result.severity	The security_result.severity UDM field is set to INFORMATIONAL.

הפניה למיפוי שדות: CORELIGHT - sip

בטבלה הבאה מפורטים שדות היומן של סוג היומן sip והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to SIP.
trans_depth (integer - count)	about.labels [trans_depth]
method (string)	about.labels [method]
uri (string)	target.url
date (string)	about.labels [date]
request_from (string)	principal.labels [request_from]
request_to (string)	target.labels [request_to]
response_from	principal.labels [response_from]
response_to (string)	target.labels [response_to]
reply_to (string)	about.labels [reply_to]
call_id (string)	about.labels[call_id]
seq (string)	about.labels [seq]
subject (string)	about.labels [subject]
request_path (array[string] - vector of string)	about.labels [request_path]
response_path (array[string] - vector of string)	about.labels [response_path]
user_agent (string)	about.labels [user_agent]
status_code (integer - count)	about.labels [status_code]
status_msg (string)	security_result.description
warning (string)	security_result.summary
request_body_len (integer - count)	network.sent_bytes
response_body_len (integer - count)	network.received_bytes
content_type (string)	about.labels [content_type]

הפניה למיפוי שדות: CORELIGHT – intel

בטבלה הבאה מפורטים שדות היומן של סוג היומן intel והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to SCAN_NETWORK.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
seen.indicator_type (string - enum)	entity.metadata.entity_type	If the indicator.type log field value is equal to Intel::ADDR, then the metadata.entity_type UDM field is set to IP_ADDRESS. Else, if the indicator.type log field value is equal to Intel::SUBNET or Intel::SOFTWARE or Intel::CERT_HASH or Intel::PUBKEY_HASH, then the metadata.entity_type UDM field is set to RESOURCE. Else, if the indicator.type log field value is equal to Intel::URL, then the metadata.entity_type UDM field is set to URL. Else, if the indicator.type log field value is equal to the Intel::EMAIL or Intel::USER_NAME, then the metadata.entity_type UDM field is set to USER. Else, if the indicator.type log field value is equal to Intel::DOMAIN, then the metadata.entity_type UDM field is set to DOMAIN_NAME. Else, if the indicator.type log field value is equal to the Intel::FILE_HASH or Intel::FILE_NAME, then the metadata.entity_type UDM field is set to FILE. Else, the metadata.entity_type UDM field is set to RESOURCE.
seen.indicator (string)	entity.ip	If the indicator.type log field value is equal to Intel::ADDR, then the seen.indicator log field is mapped to the entity.ip UDM field.
seen.indicator (string)	entity.url	If the indicator.type log field value is equal to Intel::URL, then the seen.indicator log field is mapped to the entity.url UDM field.
seen.indicator (string)	entity.domain.name	If the indicator.type log field value is equal to Intel::DOMAIN, then the seen.indicator log field is mapped to the entity.domain.name UDM field.
seen.indicator (string)	entity.user.email_address	If the indicator.type log field value is equal to Intel::USER_NAME or Intel::EMAIL, then the seen.indicator log field is mapped to the entity.user.email_address UDM field.
seen.indicator (string)	entity.file.names	If the indicator.type log field value is equal to Intel::FILE_HASH or Intel::FILE_NAME, then the seen.indicator log field is mapped to the entity.file.full_path UDM field.
seen.indicator (string)	entity.resource.name	If the metadata.entity_type log field value is equal to RESOURCE, then the seen.indicator log field is mapped to the entity.resource.name UDM field.
	entity.resource.resource_type	If the indicator.type log field value is equal to Intel::SUBNET, then the entity.resource.resource_name UDM field is set to VPC_NETWORK.
seen.indicator_type (string - enum)	entity.resource.resource_sub_type	If the metadata.entity_type log field value is equal to RESOURCE, then the seen.indicator_type log field is mapped to the entity.resource.resource_sub_type UDM field.
seen.where (string - enum)	entity.metadata.source_labels [seen_where]
matched (array[string] - set[enum])	entity.labels [matched]
sources (array[string] - set[string])	entity.metadata.source_labels [source]
fuid (string)	about.labels [fuid]
file_mime_type (string)	entity.file.mime_type
file_desc (string)	metadata.threat.detection_fields [file_desc]
desc (array[string] - set[string])	ioc.description	The desc log field is mapped to ioc.description UDM field when index value in desc is equal to 0. For every other index value, entity.labels.key UDM field is set to desc and desc log field is mapped to the entity.labels.value.
url (array[string] - set[string])	metadata.threat.url_back_to_product
confidence (array[number] - set[double])	ioc.confidence_score	The confidence log field is mapped to ioc.confidence_score UDM field when index value in confidence is equal to 0. For every other index value, entity.labels.key UDM field is set to confidence and confidence log field is mapped to the entity.labels.value.
firstseen (array[string] - set[string])	ioc.active_timerange.start	The firstseen log field is mapped to ioc.active_timerange.start UDM field when index value in firstseen is equal to 0. For every other index value, entity.labels.key UDM field is set to firstseen and firstseen log field is mapped to the entity.labels.value.
lastseen (array[string] - set[string])	ioc.active_timerange.end	The lastseen log field is mapped to ioc.active_timerange.end UDM field when index value in lastseen is equal to 0. For every other index value, entity.labels.key UDM field is set to lastseen and lastseen log field is mapped to the entity.labels.value.
associated (array[string] - set[string])	entity.labels [associated]
category (array[string] - set[string])	ioc.categorization	The category log field is mapped to ioc.categorization UDM field when index value in category is equal to 0. For every other index value, entity.labels.key UDM field is set to category and category log field is mapped to the entity.labels.value.
campaigns (array[string] - set[string])	entity.labels [campaign]
reports (array[string] - set[string])	entity.labels [report]
seen.indicator (string)	about.labels [indicator]
seen.indicator_type (string - enum)	about.labels [indicator_type]
seen.where (string - enum)	about.labels [where]
sources (array[string] - set[string])	about.labels [sources]
confidence (array[number] - set[double])	about.labels [confidence]
category (array[string] - set[string])	about.labels [category]
threat_score (array[number] - set[double])	entity.security_result.detection_fields[threat_score]
verdict (array[string] - set[string])	entity.security_result.verdict_info.verdict_response	Iterate through verdict, If the verdict log field value matches the regular expression pattern "(?i)Malicious" or the verdict log field value is equal to "1" then, the "entity.security_result.verdict_info.verdict_response" UDM field is set to MALICIOUS. Else, If verdict log field value matches the regular expression pattern "(?i)Benign" or the verdict log field value is equal to "2" then, the "entity.security_result.verdict_info.verdict_response" UDM field is set to BENIGN. Else The "entity.security_result.verdict_info.verdict_response" UDM field is set to VERDICT_RESPONSE_UNSPECIFIED.
verdict_source (array[string] - set[string])	entity.security_result.verdict_info.source_provider	Iterate through verdict_source, verdict_source log field is mapped to the entity.security_result.VerdictInfo.source_provider UDM field.

הפניה למיפוי שדות: CORELIGHT - smtp

בטבלה הבאה מפורטים שדות היומן של סוג היומן smtp והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_SMTP.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to SMTP.
trans_depth (integer - count)	about.labels [trans_depth]
helo (string)	network.smtp.helo
mailfrom (string)	network.smtp.mail_from
rcptto (array[string] - set[string])	network.smtp.rcpt_to
date (string)	about.labels [date]
from (string)	network.email.from
to (array[string] - set[string])	network.email.to
cc (array[string] - set[string])	network.email.cc
reply_to (string)	network.email.reply_to
msg_id (string)	network.email.mail_id
in_reply_to (string)	about.labels [in_reply_to]
subject (string)	network.email.subject
x_originating_ip (string - addr)	principal.ip
first_received (string)	about.labels [first_received]
second_received (string)	about.labels [second_received]
last_reply (string)	network.smtp.server_response
path (array[string] - vector of addr)	network.smtp.message_path	Iterate through log field path, then if the index value is equal to 0 then, path log field is mapped to the network.smtp.message_path UDM field. Else, path log field is mapped to the intermediary.ip UDM field.
user_agent (string)	principal.application
tls (boolean - bool)	network.smtp.is_tls
fuids (array[string] - vector of string)	about.labels [fuid]
is_webmail (boolean - bool)	network.smtp.is_webmail
urls (array[string] - set[string])	about.url
domains (array[string] - set[string])	about.domain.name

הפניה למיפוי שדות: CORELIGHT - ssh

בטבלה הבאה מפורטים שדות היומן של סוג היומן ssh והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to SSH.
version (integer - count)	network.application_protocol_version	The network.application_protocol_version UDM field is set with version log field as "SSH version".
auth_success (boolean - bool)	security_result.action_details
auth_success (boolean - bool)	security_result.action	If the auth_success log field value is not equal to true, then the security_result.action UDM field is set to ALLOW. Else, the security_result.action UDM field is set to BLOCK.
auth_attempts (integer - count)	extensions.auth.auth_details	The extensions.auth.auth_details UDM field is set with auth_attempts log field as "auth_attempts: auth_attempts".
direction (string - enum)	network.direction	If the direction log field value is equal to INBOUND, then the network.direction UDM field is set to INBOUND. Else, if the direction log field value is equal to OUTBOUND, then the network.direction UDM field is set to OUTBOUND.
client (string)	principal.asset.software.version
server (string)	target.asset.software.version
cipher_alg (string)	network.tls.cipher
mac_alg (string)	security_result.detection_fields [mac_alg]
compression_alg (string)	security_result.detection_fields [compression_alg]
kex_alg (string)	security_result.detection_fields [kex_alg]
host_key_alg (string)	network.tls.server.certificate.version
host_key (string)	network.tls.server.certificate.sha256
remote_location.country_code (string)	target.location.country_or_region
remote_location.region (string)	target.location.country_or_region
remote_location.city (string)	target.location.city
remote_location.latitude (number - double)	target.location.region_coordinates.latitude
remote_location.longitude (number - double)	target.location.region_coordinates.longitude
hasshVersion (string)	about.labels [hassh_version]
hassh (string)	principal.labels [hassh]
hasshServer (string)	target.labels [hassh_server]
cshka (string)	about.labels [cshka]
hasshAlgorithms (string)	about.labels [hassh_algorithms]
sshka (string)	about.labels [sshka]
hasshServerAlgorithms (string)	about.labels [hassh_server_algorithms]
inferences (array[string] - set[string])	security_result.summary, security_result.description, security_result.detection_fields[inferences]	If the inferences log field value is equal to ABP, then the security_result.summary UDM field is set to Client Authentication Bypass and the security_result.description UDM field is set to A client wasn't adhering to expectations of SSH either through server exploit or by the client and server switching to a protocol other than SSH after encryption begins. If the inferences log field value is equal to AFR, then the security_result.summary UDM field is set to SSH Agent Forwarding Requested and the security_result.description UDM field is set to Agent Forwarding is requested by the Client. If the inferences log field value is equal to APWA, then the security_result.summary UDM field is set to Automated Password Authentication and the security_result.description UDM field is set to The client authenticated with an automated password tool (like sshpass). If the inferences log field value is equal to AUTO, then the security_result.summary UDM field is set to Automated Interaction and the security_result.description UDM field is set to The client is a script automated utility and not driven by a user. If the inferences log field value is equal to BAN, then the security_result.summary UDM field is set to Server Banner and the security_result.description UDM field is set to The server sent the client a pre-authentication banner, likely for legal reasons. If the inferences log field value is equal to BF, then the security_result.summary UDM field is set to Client Brute Force Guessing and the security_result.description UDM field is set to A client made a number of authentication attempts that exceeded some configured, pre-connection threshold. If the inferences log field value is equal to BFS, then the security_result.summary UDM field is set to Client Brute Force Success and the security_result.description UDM field is set to A client made a number of authentication attempts that exceeded some configured, pre-connection threshold. If the inferences log field value is equal to CTS, then the security_result.summary UDM field is set to Client Trusted Server and the security_result.description UDM field is set to The client already has an entry in its known_hosts file for this server. If the inferences log field value is equal to CUS, then the security_result.summary UDM field is set to Client Untrusted Server and the security_result.description UDM field is set to The client did not have an entry in its known_hosts file for this server. If the inferences log field value is equal to IPWA, then the security_result.summary UDM field is set to Interactive Password Authentication and the security_result.description UDM field is set to The client interactively typed their password to authenticate. If the inferences log field value is equal to KS, then the security_result.summary UDM field is set to Keystrokes and the security_result.description UDM field is set to An interactive session occurred in which the client set user-driven keystrokes to the server. If the inferences log field value is equal to LFD, then the security_result.summary UDM field is set to Large Client File Download and the security_result.description UDM field is set to A file transfer occurred in which the server sent a sequence of bytes to the client. If the inferences log field value is equal to LFU, then the security_result.summary UDM field is set to Large Client File Upload and the security_result.description UDM field is set to A file transfer occurred in which the client sent a sequence of bytes to the server. Large file are identified dynamically based on trains of MTU-sized packets. If the inferences log field value is equal to MFA, then the security_result.summary UDM field is set to Multifactor Authentication and the security_result.description UDM field is set to The server required a second form of authentication (a code) after password or public key was accepted, and the client successfully provided it. If the inferences log field value is equal to NA, then the security_result.summary UDM field is set to None Authentication and the security_result.description UDM field is set to The client successfully authenticated using the None method. If the inferences log field value is equal to NRC, then the security_result.summary UDM field is set to No Remote Command and the security_result.description UDM field is set to The -N flag was used in SSH authentication. If the inferences log field value is equal to PKA, then the security_result.summary UDM field is set to Public Key Authentication and the security_result.description UDM field is set to The client automatically authenticated using pubkey authentication. If the inferences log field value is equal to RSI, then the security_result.summary UDM field is set to Reverse SSH Initiated and the security_result.description UDM field is set to The Reverse session is initiated from the server back to the client. If the inferences log field value is equal to RSIA, then the security_result.summary UDM field is set to Reverse SSH Initiated Automated and the security_result.description UDM field is set to The inititation of the Reverse session happened very early in the packet stream, indicating automation. If the inferences log field value is equal to RSK, then the security_result.summary UDM field is set to Reverse SSH Keystrokes and the security_result.description UDM field is set to Keystrokes are detected within the Reverse tunnel. If the inferences log field value is equal to RSL, then the security_result.summary UDM field is set to Reverse SSH Logged In and the security_result.description UDM field is set to The Reverse Tunnel login has succeeded. If the inferences log field value is equal to RSP, then the security_result.summary UDM field is set to Reverse SSH Provisioned and the security_result.description UDM field is set to The client connected with -R flag, which provisions the port to be used for a Reverse Session set up at any future time. If the inferences log field value is equal to SA, then the security_result.summary UDM field is set to Authentication Scanning and the security_result.description UDM field is set to The client scanned authentication method with the server and then disconnected. If the inferences log field value is equal to SC, then the security_result.summary UDM field is set to Capabilities Scanning and the security_result.description UDM field is set to The client exchanged capabilities with the server and then disconnected. If the inferences log field value is equal to SFD, then the security_result.summary UDM field is set to Small Client File Download and the security_result.description UDM field is set to A file transfer occurred in which the server sent a sequence of bytes to the client. If the inferences log field value is equal to SFU, then the security_result.summary UDM field is set to Small Client File Upload and the security_result.description UDM field is set to A file transfer occurred in which the client sent a sequence of bytes to the server. If the inferences log field value is equal to SP, then the security_result.summary UDM field is set to Other Scanning and the security_result.description UDM field is set to A client and server didn't exchange encrypted packets but the client wasn't a version or capabilities scanner. If the inferences log field value is equal to SV, then the security_result.summary UDM field is set to Version Scanning and the security_result.description UDM field is set to A client exchanged version strings with the server and than disconnected. If the inferences log field value is equal to UA, then the security_result.summary UDM field is set to Unknown Authentication and the security_result.description UDM field is set to The authentication method is not determinated or is unknown.

הפניה למיפוי שדות: CORELIGHT – suricata_corelight

בטבלה הבאה מפורטים שדות היומן של סוג היומן suricata_corelight והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to SCAN_NETWORK.
	metadata.product_name	The metadata.product_name UDM field is set to Suricata.
id.vlan (integer - count)	intermediary.labels [id_vlan]
id.vlan_inner (integer - count)	intermediary.labels [id_vlan_inner]
icmp_type (integer - count)	about.labels [icmp_type]
icmp_code (integer - count)	about.labels [icmp_code]
suri_id (string)	metadata.product_log_id
service (string)	network.application_protocol
flow_id (integer - count)	about.labels[flow_id]
tx_id (integer - count)	about.labels [tx_id]
pcap_cnt (integer - count)	about.labels [pcap_cnt]
alert.action (string)	security_result.action_details
alert.gid (integer - count)	security_result.detection_fields [alert_gid]
alert.signature_id (integer - count)	security_result.rule_id
alert.rev (integer - count)	security_result.rule_version
alert.signature (string)	security_result.summary
alert.signature (string)	security_result.rule_name
alert.category (string)	security_result.category_details
alert.severity (integer - count)	security_result.severity_details
alert.metadata (array[string] - vector of string)	security_result.rule_labels[alert_metadata]
community_id (string)	network.community_id
payload (string)	about.labels [payload]
payload (string)	about.labels [payload_decoded]
packet (string)	about.labels [packet]
packet (string)	about.labels [packet_decoded]
metadata (array[string] - vector of string)	security_result.rule_labels[metadata]
orig_cve (string)	extensions.vulns.vulnerabilities.cve_id
resp_cve (string)	extensions.vulns.vulnerabilities.cve_id
signature_severity	security_result.severity	If alert.rule log field value matches the grok pattern signature_severity (?Critical|Major|Minor|Informational) then If the signature_severity extracted field value is equal to Critical then, the security_result.severity UDM field is set to CRITICAL and signature_severity extracted field is mapped to the security_result.severity_details UDM field. Else, If signature_severity extracted field value is equal to Major then, the security_result.severity UDM field is set to MEDIUM and signature_severity extracted field is mapped to the security_result.severity_details UDM field. Else, If signature_severity extracted field value is equal to Minor then, the security_result.severity UDM field is set to LOW and signature_severity extracted field is mapped to the security_result.severity_details UDM field. Else, If signature_severity extracted field value is equal to Informational then, the security_result.severity UDM field is set to INFORMATIONAL and signature_severity extracted field is mapped to the security_result.severity_details UDM field.
orig_vulnerable_host.cve (array[string] - vector of string)	principal.asset.vulnerabilities.cve_id
orig_vulnerable_host.hostname(string)	principal.asset.hostname
orig_vulnerable_host.host_uid(string)	about.labels [orig_vulnerable_host_uid]
orig_vulnerable_host.machine_domain(string)	principal.asset.network_domain
orig_vulnerable_host.os_version(string)	principal.asset.platform_software.platform_version
orig_vulnerable_host.source(string)	principal.asset.vulnerabilities.cve_description
resp_vulnerable_host.cve(string)	target.asset.vulnerabilities.cve_id
resp_vulnerable_host.hostname(string)	target.asset.hostname
resp_vulnerable_host.host_uid(string)	about.labels [resp_vulnerable_host_uid]
resp_vulnerable_host.machine_domain(string)	target.asset.network_domain
resp_vulnerable_host.os_version(string)	target.asset.platform_software.platform_version
resp_vulnerable_host.source(string)	target.asset.vulnerabilities.cve_description
service (string)	about.labels [service]
alert.rule (string)	security_result.description
alert.references (array[string] - vector of string)	security_result.detection_fields[alert_references]	iterate through alert.references, alert.references log field is mapped to the security_result.detection_fields.alert_references UDM field.
payload_printable (string)	security_result.detection_fields[payload_printable]
references (array[string] - vector of string)	security_result.detection_fields[references]	iterate through references, references log field is mapped to the security_result.detection_fields.references UDM field.
orig_vulnerable_host.criticality (string)	principal.asset.vulnerabilities.severity	If the orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Critical" or the orig_vulnerable_host.criticality log field value is equal to "4" then, the "principal.asset.vulnerabilities.severity" UDM field is set to CRITICAL. Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)High" or the orig_vulnerable_host.criticality log field value is equal to "3" then, the "principal.asset.vulnerabilities.severity" UDM field is set to HIGH. Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Low" or the orig_vulnerable_host.criticality log field value is equal to "1" then, the "principal.asset.vulnerabilities.severity" UDM field is set to LOW. Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Medium" or the orig_vulnerable_host.criticality log field value is equal to "2" then, the "principal.asset.vulnerabilities.severity" UDM field is set to MEDIUM. Else, If orig_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Unknown_Severity" or the orig_vulnerable_host.criticality log field value is equal to "0" then, the "principal.asset.vulnerabilities.severity" UDM field is set to UNKNOWN_SEVERITY.
orig_vulnerable_host.criticality (string)	principal.asset.vulnerabilities.severity_details
resp_vulnerable_host.criticality (string)	target.asset.vulnerabilities.severity	If the resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Critical" or the resp_vulnerable_host.criticality log field value is equal to "4 " then, the "target.asset.vulnerabilities.severity" UDM field is set to CRITICAL. Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)High" or the resp_vulnerable_host.criticality log field value is equal to "3 " then, the "target.asset.vulnerabilities.severity" UDM field is set to HIGH. Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Low" or the resp_vulnerable_host.criticality log field value is equal to "1 " then, the "target.asset.vulnerabilities.severity" UDM field is set to LOW. Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Medium" or the resp_vulnerable_host.criticality log field value is equal to "2 " then, the "target.asset.vulnerabilities.severity" UDM field is set to MEDIUM. Else, If resp_vulnerable_host.criticality log field value matches the regular expression pattern "(?i)Unknown_Severity" or the resp_vulnerable_host.criticality log field value is equal to "0 " then, the "target.asset.vulnerabilities.severity" UDM field is set to UNKNOWN_SEVERITY.
resp_vulnerable_host.criticality (string)	target.asset.vulnerabilities.severity_details
rule_content	security_result.detection_fields[alert_rule_content]	If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}content:\\"%{GREEDYDATA:rule_content}\\" then, the rule_content extracted field is mapped to security_result.detection_fields [alert_rule_content] UDM field.
rule_classtype	security_result.detection_fields [alert_rule_classtype]	If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}classtype:%{DATA:rule_classtype}; then, the rule_classtype extracted field is mapped to security_result.detection_fields [alert_rule_classtype] UDM field.
reference_url	security_result.detection_fields[alert_rule_reference_url]	If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}reference:url,%{DATA:reference_url}; then, the reference_url extracted field is mapped to security_result.detection_fields [alert_rule_reference_url] UDM field.
attack_target	security_result.detection_fields[alert_rule_attack_target]	If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}metadata:%{DATA:rule_metadata}; and, The attack_target is extracted from rule_metadata using kv filter then the extracted attack_target field is mapped to security_result.detection_fields [alert_rule_attack_target] UDM field.
created_at	security_result.detection_fields[alert_rule_created_at]	If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}metadata:%{DATA:rule_metadata}; and, The created_at is extracted from rule_metadata using kv filter then the extracted created_at field is mapped to security_result.detection_fields [alert_rule_created_at] UDM field.
deployment	security_result.detection_fields[alert_rule_deployment]	If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}metadata:%{DATA:rule_metadata}; and, The deployment is extracted from rule_metadata using kv filter then the extracted deployment field is mapped to security_result.detection_fields [alert_rule_deployment] UDM field.
performance_impact	security_result.detection_fields[alert_rule_performance_impact]	If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}metadata:%{DATA:rule_metadata}; and, The performance_impact is extracted from rule_metadata using kv filter then the extracted performance_impact field is mapped to security_result.detection_fields [alert_rule_performance_impact] UDM field.
updated_at	security_result.detection_fields[alert_rule_updated_at]	If alert.rule log field value matches the grok pattern %{GREEDYDATA:_}metadata:%{DATA:rule_metadata}; and, The updated_at is extracted from rule_metadata using kv filter then the extracted updated_at field is mapped to security_result.detection_fields [alert_rule_updated_at] UDM field.
uri	target.url	If the payload_printable log field is not empty then, If payload_printable log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the uri extracted field is mapped to target.url UDM field. Else If the payload log field is not empty then, If payload log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the uri extracted field is mapped to target.url UDM field.
http_method	network.http.method	If the payload_printable log field is not empty then, If payload_printable log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the http_method extracted field is mapped to network.http.method UDM field. Else If the payload log field is not empty then, If payload log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the http_method extracted field is mapped to network.http.method UDM field.
proto_version	network.application_protocol_version	If the payload_printable log field is not empty then, If payload_printable log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the proto_version extracted field is mapped to network.application_protocol_version UDM field. Else If the payload log field is not empty then, If payload log field value matches the grok pattern %{WORD:http_method} %{NOTSPACE:uri} HTTP/%{NOTSPACE:proto_version} then, the proto_version extracted field is mapped to network.application_protocol_version UDM field.
user_agent	target.http.useragent	If the payload_printable log field is not empty then, If payload_printable log field value matches the grok pattern ^User-Agent: %{GREEDYDATA:user_agent} then, the user_agent extracted field is mapped to target.http.useragent UDM field. Else If the payload log field is not empty then, If payload log field value matches the grok pattern ^User-Agent: %{GREEDYDATA:user_agent} then, the user_agent extracted field is mapped to target.http.useragent UDM field.
hostname	target.hostname	If the payload_printable log field is not empty then, If payload_printable log field value matches the grok pattern ^Host: %{IPORHOST:hostname} then, the hostname extracted field is mapped to target.hostname UDM field. Else If the payload log field is not empty then, If payload log field value matches the grok pattern ^Host: %{IPORHOST:hostname} then, the hostname extracted field is mapped to target.hostname UDM field.
meta (array[string] - vector of string)	additional.fields [meta]

הפניה למיפוי שדות: CORELIGHT - bacnet

בטבלה הבאה מפורטים שדות היומן של סוג היומן bacnet והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
bvlc_function (string)	about.labels [bvlc_function]
bvlc_len (integer - count)	about.labels [bvlc_len]
apdu_type (string)	about.labels [apdu_type]
service_choice (string)	about.labels [service_choice]
data (array[string] - vector of string)	about.labels [data]
invoke_id (integer - count)	additional.fields [invoke_id]
is_orig (boolean - bool)	additional.fields [is_orig]
pdu_service (string)	additional.fields [pdu_service]
pdu_type (string)	additional.fields [pdu_type]
result_code (string)	additional.fields [result_code]

הפניה למיפוי שדות: CORELIGHT - cip

בטבלה הבאה מפורטים שדות היומן של סוג היומן cip והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
service (string)	about.labels [service]
status (string)	about.labels [status]
tags (string)	about.labels [tag]
attribute_id (string)	additional.fields [attribute_id]
cip_extended_status (string)	additional.fields [cip_extended_status]
cip_extended_status_code (string)	additional.fields [cip_extended_status_code]
cip_sequence_count (integer - count)	additional.fields [cip_sequence_count]
cip_service (string)	additional.fields [cip_service]
cip_service_code (string)	additional.fields [cip_service_code]
cip_status (string)	security_result.description
cip_status_code (string)	additional.fields [cip_status_code]
class_id (string)	additional.fields [class_id]
class_name (string)	additional.fields [class_name]
direction (string)	network.direction	If the direction log field value is equal to INBOUND, then the network.direction UDM field is set to INBOUND. Else, if the direction log field value is equal to OUTBOUND, then the network.direction UDM field is set to OUTBOUND Else, direction log field is mapped to the additional.fields.key UDM field and direction log field is mapped to the additional.fields.value UDM field.
instance_id (string)	additional.fields [instance_id]
is_orig (boolean - bool)	additional.fields [is_orig]

הפניה למיפוי שדות: CORELIGHT - corelight_burst

בטבלה הבאה מפורטים שדות היומן של סוג היומן corelight_burst והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to SCAN_NETWORK.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
proto (string - enum)	network.ip_protocol
orig_size (integer - count)	network.sent_bytes
resp_size (integer - count)	network.received_bytes
mbps (number - double)	about.labels [mbps]
age_of_conn (number - interval)	about.labels [age_of_conn]

הפניה למיפוי שדות: CORELIGHT - corelight_overall_capture_loss

בטבלה הבאה מפורטים שדות היומן של סוג היומן corelight_overall_capture_loss והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
gaps (number - double)	security_result.detection_fields [gaps]
acks (number - double)	security_result.detection_fields [acks]
percent_lost (number - double)	security_result.detection_fields [percent_lost]
	metadata.description	The metadata.description UDM field is set with _system_name, percent_lost, ts. log fields as "node _system_name experienced percent_lost% packet loss at ts.".

הפניה למיפוי שדות: CORELIGHT - corelight_profiling

בטבלה הבאה מפורטים שדות היומן של סוג היומן corelight_profiling והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to SCAN_NETWORK.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
node (string)	principal.hostname
prof.core_stack (string)	about.labels [prof_core_stack]
prof.script_stack (string)	about.labels [prof_script_stack]
prof.sched_wait_ns (integer - count)	about.labels [prof_sched_wait_ns]

הפניה למיפוי שדות: CORELIGHT - datared

בטבלה הבאה מפורטים שדות היומן של סוג היומן datared והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
conn_red (integer - count)	about.labels [conn_red]
conn_total (integer - count)	about.labels [conn_total]
dns_red (integer - count)	about.labels [dns_red]
dns_total (integer - count)	about.labels [dns_total]
dns_coal_miss (integer - count)	about.labels [dns_coal_miss]
files_red (integer - count)	about.labels [files_red]
files_total (integer - count)	about.labels [files_total]
files_coal_miss (integer - count)	about.labels [files_coal_miss]
http_red (integer - count)	about.labels [http_red]
http_total (integer - count)	about.labels [http_total]
ssl_red (integer - count)	about.labels [ssl_red]
ssl_total (integer - count)	about.labels [ssl_total]
ssl_coal_miss (integer - count)	about.labels [ssl_coal_miss]
weird_red (integer - count)	about.labels [weird_red]
weird_total (integer - count)	about.labels [weird_total]
x509_red (integer - count)	about.labels [x509_red]
x509_total (integer - count)	about.labels [x509_total]
x509_coal_miss (integer - count)	about.labels [x509_coal_miss]

הפניה למיפוי שדות: CORELIGHT - dhcp

בטבלה הבאה מפורטים שדות היומן של סוג היומן dhcp והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_DHCP.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to DHCP.
uids (array[string] - set[string])	about.labels [uid]
client_addr (string - addr)	network.dhcp.ciaddr
server_addr (string - addr)	network.dhcp.siaddr
mac (string)	network.dhcp.chaddr
host_name (string)	network.dhcp.client_hostname
client_fqdn (string)	principal.domain.name
domain (string)	target.domain.name
requested_addr (string - addr)	network.dhcp.requested_address
assigned_addr (string - addr)	network.dhcp.yiaddr
lease_time (number - interval)	network.dhcp.lease_time_seconds
client_message (string)	security_result.description
server_message (string)	security_result.description
msg_types (array[string] - vector of string)	network.dhcp.type	The msg_types log field is mapped to network.dhcp.type UDM field when index value in msg_types is equal to 0. For every other index value, about.labels.key UDM field is set to msg_types and msg_types log field is mapped to the about.labels.value.
duration (number - interval)	about.labels [duration]

הפניה למיפוי שדות: CORELIGHT - dga

בטבלה הבאה מפורטים שדות היומן של סוג היומן dga והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_DNS.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to DNS.
query (string)	network.dns.questions.name
family (string)	about.labels [family]
qtype_name (string)	about.labels [qtype_name]
rcode (integer - count)	network.dns.response_code
is_collision_heavy (boolean - bool)	security_result.detection_fields [is_collision_heavy]
ruse (boolean - bool)	about.labels [ruse]

הפניה למיפוי שדות: CORELIGHT - dnp3

בטבלה הבאה מפורטים שדות היומן של סוג היומן dnp3 והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
fc_request (string)	about.labels [fc_request]
fc_reply (string)	about.labels [fc_reply]
iin (integer - count)	about.labels [iin]

הפניה למיפוי שדות: CORELIGHT - iso_cotp

בטבלה הבאה מפורטים שדות היומן של סוג היומן iso_cotp והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
pdu_type (string)	about.labels [pdu_type]

הפניה למיפוי שדות: CORELIGHT – kerberos

בטבלה הבאה מפורטים שדות היומן של סוג היומן kerberos והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to KRB5.
request_type (string)	extensions.auth.auth_details
client (string)	principal.hostname
service (string)	target.application
success (boolean - bool)	security_result.action	If the success log field value is equal to true, then the security_result.action UDM field is set to ALLOW. Else, the security_result.action UDM field is set to FAIL.
error_msg (string)	security_result.description
from (time)	about.labels [from]
till (time)	about.labels [till]
cipher (string)	about.labels [cipher]
forwardable (boolean - bool)	about.labels [forwardable]
renewable (boolean - bool)	about.labels [renewable]
client_cert_subject (string)	about.labels [client_cert_subject]
client_cert_fuid (string)	about.labels [client_cert_fuid]
server_cert_subject (string)	about.labels [server_cert_subject]
server_cert_fuid (string)	about.labels [server_cert_fuid]

הפניה למיפוי שדות: CORELIGHT – ldap

בטבלה הבאה מפורטים שדות היומן של סוג היומן ldap והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to LDAP.
proto (string)	about.labels [proto]
message_id (integer - int)	about.labels [message_id]
version (integer - int)	network.application_protocol_version
opcode (array[string] - set[string])	security_result.detection_fields [opcode]
result (array[string] - set[string])	security_result.detection_fields [result], security_result.action	Iterate through log field result, then if the result log field value contain one of the following values ALLOW ALLOW_WITH_MODIFICATION BLOCK CHALLENGE FAIL QUARANTINE UNKNOWN_ACTION then, result log field is mapped to the security_result.action UDM field.
diagnostic_message (array[string] - vector of string)	security_result.description
object (array[string] - vector of string)	target.resource.name, about.labels [object]	Iterate through log field object, then if the index value is equal to 0 then, object log field is mapped to the target.resource.name UDM field. Else, the about.labels.key UDM field is set to object and %{object} log field is mapped to the about.labels.value UDM field.
argument (array[string] - vector of string)	about.labels [argument]

הפניה למיפוי שדות: CORELIGHT – ldap_search

בטבלה הבאה מפורטים שדות היומן של סוג היומן ldap_search והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to LDAP.
proto (string)	about.labels [proto]
message_id (integer - int)	about.labels [message_id]
scope (array[string] - set[string])	about.labels [scope]
deref (array[string] - set[string])	about.labels [deref]
base_object (array[string] - vector of string)	about.labels [base_object]
result_count (integer - count)	security_result.detection_fields [result_count]
result (array[string] - set[string])	security_result.detection_fields [result]
diagnostic_message (array[string] - vector of string)	security_result.description
filter (string)	about.labels [filter]
attributes (array[string] - vector of string)	about.labels [attributes]

הפניה למיפוי שדות: CORELIGHT - local_subnets

בטבלה הבאה מפורטים שדות היומן של סוג היומן local_subnets והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
round (integer - count)	about.labels [round]
ip_version (integer - count)	about.labels [ip_version]
subnets (array[string] - set[subnet])	about.labels [subnet]
component_ids (array[integer] - set[count])	about.labels [component_id]
size_of_component (integer - count)	about.labels [size_of_component]
bipartite (boolean - bool)	about.labels [bipartite]
inferred_site (boolean - bool)	about.labels [inferred_site]
other_ips (array[string] - set[addr])	about.ip

הפניה למיפוי שדות: CORELIGHT - local_subnets_dj

בטבלה הבאה מפורטים שדות היומן של סוג היומן local_subnets_dj והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
ip_version (integer - count)	about.labels [ip_version]
v (string - addr)	about.ip
side (string)	about.labels [side]
component_id (integer - count)	additional.fields [component_id]
round (integer - count)	additional.fields [round]

הפניה למיפוי שדות: CORELIGHT - local_subnets_graphs

בטבלה הבאה מפורטים שדות היומן של סוג היומן local_subnets_graphs והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
ip_version (integer - count)	about.labels [ip_version]
v1 (string - addr)	about.ip
v2 (string - addr)	about.ip

הפניה למיפוי שדות: CORELIGHT – syslog

בטבלה הבאה מפורטים שדות היומן של סוג היומן syslog והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.event_type	The metadata.event_type UDM field is set to STATUS_UPDATE.
proto (string - enum)	network.ip_protocol
facility (string)	about.labels [facility]
severity (string)	security_result.severity, security_result.severity_details	If the severity log field value contain one of the following values CRITICAL ERROR HIGH INFORMATIONAL LOW MEDIUM then, severity log field is mapped to the security_result.severity UDM field.
message (string)	metadata.description

הפניה למיפוי שדות: CORELIGHT - tds

בטבלה הבאה מפורטים שדות היומן של סוג היומן tds והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
command (string)	principal.process.command_line

הפניה למיפוי שדות: CORELIGHT – tds_rpc

בטבלה הבאה מפורטים שדות היומן של סוג היומן tds_rpc והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
procedure_name (string)	about.labels [procedure_name]
parameters (array[string] - vector of string)	about.labels [parameter]

הפניה למיפוי שדות: CORELIGHT – tds_sql_batch

בטבלה הבאה מפורטים שדות היומן של סוג היומן tds_sql_batch והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.event_type	The metadata.event_type UDM field is set to STATUS_UPDATE.
	target.resource.resource_type	The target.resource.resource_type UDM field is set to DATABASE.
header_type (string)	target.resource.attribute.labels [header_type]
query (string)	target.resource.attribute.labels [query]

הפניה למיפוי שדות: CORELIGHT - traceroute

בטבלה הבאה מפורטים שדות היומן של סוג היומן traceroute והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
src (string - addr)	principal.ip
dst (string - addr)	target.ip
proto (string)	network.ip_protocol

הפניה למיפוי שדות: CORELIGHT – מנהרה

בטבלה הבאה מפורטים שדות היומן של סוג היומן tunnel והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
tunnel_type (string - enum)	intermediary.labels [tunnel_type]
action (string - enum)	security_result.action_details
	security_result.description	The security_result.description UDM field is set with action, tunnel_type log fields as "action action on tunnel type tunnel_type".

הפניה למיפוי שדות: CORELIGHT - weird, weird_red, weird_agg

בטבלה הבאה מפורטים שדות היומן של סוג היומן weird, weird_red, weird_agg והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
name (string)	metadata.product_event_type
addl (string)	metadata.description
notice (boolean - bool)	about.labels [notice]
source (string)	metadata.product_name
peer (string)	observer.hostname

הפניה למיפוי שדות: CORELIGHT - wireguard

בטבלה הבאה מפורטים שדות היומן של סוג היומן wireguard והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
established (boolean - bool)	about.labels [established]
initiations (integer - count)	about.labels [initiations]
responses (integer - count)	about.labels [responses]

הפניה למיפוי שדות: CORELIGHT - vpn

בטבלה הבאה מפורטים שדות היומן של סוג היומן vpn והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
proto (string - enum)	network.ip_protocol
vpn_type (string - enum)	about.labels [vpn_type]
service (string)	target.application
inferences (array[string] - set[string])	metadata.description, about.labels [inference]	Iterate through log field inferences, then if the index value is equal to 0 then, inferences log field is mapped to the metadata.description UDM field.
server_name (string)	network.tls.client.server_name
client_info (string)	network.http.user_agent
duration (number - interval)	network.session_duration
orig_bytes (integer - count)	network.sent_bytes
resp_bytes (integer - count)	network.received_bytes
orig_cc (string)	principal.location.country_or_region
orig_region (string)	principal.location.country_or_region
orig_city (string)	principal.location.city
resp_cc (string)	target.location.country_or_region
resp_region (string)	target.location.country_or_region
resp_city (string)	target.location.city
subject (string)	network.tls.client.certificate.subject
issuer (string)	network.tls.client.certificate.issuer
ja3 (string)	network.tls.client.ja3
ja3s (string)	network.tls.server.ja3s

חומרי עזר למיפוי שדות: CORELIGHT – x509, ‏ x509_red

בטבלה הבאה מפורטים שדות היומן של סוג היומן x509, x509_red והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
fingerprint (string)	about.domain.last_https_certificate.thumbprint
certificate.version (integer - count)	about.domain.last_https_certificate.version
certificate.serial (string)	about.domain.last_https_certificate.serial_number
certificate.subject (string)	about.domain.last_https_certificate.subject
certificate.issuer (string)	about.domain.last_https_certificate.issuer	If certificate.issuer log field value matches the grok pattern CN=%{GREEDYDATA:common_name},OU=%{GREEDYDATA:organizational_unit},O=%{GREEDYDATA:organization},C=%{DATA:country}$ then the extracted common_name, organizational_unit, organization and country fields are mapped to about.domain.last_https_certificate.issuer.common_name, about.domain.last_https_certificate.issuer.organizational_unit, about.domain.last_https_certificate.issuer.organization, and about.domain.last_https_certificate.issuer.country_name UDM fields respectively.
certificate.not_valid_before (time)	about.domain.last_https_certificate.validity.issue_time
certificate.not_valid_after (time)	about.domain.last_https_certificate.validity.expiry_time
certificate.key_alg (string)	about.labels [public_key_algorithm]
certificate.sig_alg (string)	about.domain.last_https_certificate.signature_algorithm
certificate.key_type (string)	about.domain.last_https_certificate.public_key.algorithm
certificate.key_length (integer - count)	about.domain.last_https_certificate.public_key.rsa.key_size
certificate.exponent (string)	about.domain.last_https_certificate.public_key.rsa.exponent
certificate.curve (string)	about.domain.last_https_certificate.ec.oid
san.dns (array[string] - vector of string)	about.domain.last_https_certificate.extension.subject_alternative_name
san.uri (array[string] - vector of string)	about.url
san.email (array[string] - vector of string)	about.labels [san_email]
san.ip (array[string] - vector of addr)	about.ip
basic_constraints.ca (boolean - bool)	about.domain.last_https_certificate.extension.ca
basic_constraints.path_len (integer - count)	about.labels [basic_constraints_path_len]
host_cert (boolean - bool)	about.labels [host_cert]
client_cert (boolean - bool)	about.labels [client_cert]
vlan (integer - int)	additional.fields [vlan]
vlan_inner (integer - int)	additional.fields [vlan_inner]

הפניה למיפוי שדות: CORELIGHT - unknown-smartpcap

בטבלה הבאה מפורטים שדות היומן של סוג היומן unknown-smartpcap והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Smartpcap.
tid (string)	about.labels [tid]
pkts (integer - count)	about.labels [pkts]
url (string)	security_result.url_back_to_product

הפניה למיפוי שדות: CORELIGHT – mysql

בטבלה הבאה מפורטים שדות היומן של סוג היומן mysql והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to USER_RESOURCE_ACCESS.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
cmd (string)	target.resource.attribute.labels [cmd]
arg (string)	principal.process.command_line
success (boolean - bool)	target.resource.attribute.labels [success]
rows (integer - count)	target.resource.attribute.labels [rows]
response (string)	target.resource.attribute.labels [response]
	target.resource.resource_type	The target.resource.resource_type UDM field is set to DATABASE.

הפניה למיפוי שדות: CORELIGHT - napatech_shunting

בטבלה הבאה מפורטים שדות היומן של סוג היומן napatech_shunting והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
peer (string)	about.labels [peer]
terminated_flows (integer - count)	about.labels [terminated_flows]
shunted_flows (integer - count)	security_result.detection_fields [shunted_flows]

הפניה למיפוי שדות: CORELIGHT - ntlm

בטבלה הבאה מפורטים שדות היומן של סוג היומן ntlm והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to USER_LOGIN.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
username (string)	target.user.userid
hostname (string)	principal.hostname
domainname (string)	principal.domain.name
server_nb_computer_name (string)	target.hostname
server_dns_computer_name (string)	target.domain.name
server_tree_name (string)	target.labels [server_tree_name]
success (boolean - bool)	extensions.auth.auth_details	If the success log field value is equal to true, then the extensions.auth.auth_details UDM field is set to Authentication successful. Else, the extensions.auth.auth_details UDM field is set to Authentication failed.

הפניה למיפוי שדות: CORELIGHT - pe

בטבלה הבאה מפורטים שדות היומן של סוג היומן pe והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
id (string)	about.labels [id]
machine (string)	target.labels [machine]
compile_ts (time)	target.file.pe_file.section
os (string)	target.platform	If the os log field value is equal to windows, then the target.platform UDM field is set to WINDOWS. Else, if is equal to linux, then the target.platform UDM field is set to LINUX. Else, if the os log field value is equal to mac or the os log field value is equal to osx, then the target.platform UDM field is set to MAC.
subsystem (string)	target.application
is_exe (boolean - bool)	about.file.file_type	If the is_exe log field value is equal to true, then the about.file.file_type UDM field is set to FILE_TYPE_PE_EXE.
is_64bit (boolean - bool)	about.labels [is_64bit]
uses_aslr (boolean - bool)	about.labels [uses_aslr]
uses_dep (boolean - bool)	about.labels [uses_dep]
uses_code_integrity (boolean - bool)	about.labels [uses_code_integrity]
uses_seh (boolean - bool)	about.labels [uses_seh ]
has_import_table (boolean - bool)	about.labels [has_import_table]
has_export_table (boolean - bool)	about.labels [has_export_table]
has_cert_table (boolean - bool)	about.labels [has_cert_table]
has_debug_data (boolean - bool)	about.labels [has_debug_data]
section_names (array[string] - vector of string)	target.file.pe_file.section	Iterate through log field section_names, then section_names log field is mapped to the target.file.pe_file.section UDM field.

הפניה למיפוי שדות: CORELIGHT - ntp

בטבלה הבאה מפורטים שדות היומן של סוג היומן ntp והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to NTP.
	network.ip_protocol	The network.ip_protocol UDM field is set to UDP.
version (integer - count)	network.application_protocol_version
mode (integer - count)	about.labels [mode]
stratum (integer - count)	about.labels [stratum]
poll (number - interval)	about.labels [poll]
precision (number - interval)	about.labels [precision]
root_delay (number - interval)	about.labels [root_delay]
root_disp (number - interval)	about.labels [root_disp]
ref_id (string)	target.ip	If the ref_idlog field value is matched with regex of IP, then the ref_idlog field is mapped to the target.ip UDM field. Else, the ref_idlog field is mapped to the target.labels UDM field.
ref_id (string)	target.labels [ref_id]	If the ref_idlog field value is matched with regex of IP, then the ref_idlog field is mapped to the target.ip UDM field. Else, the ref_idlog field is mapped to the target.labels UDM field.
ref_time (time)	about.labels [ref_time]
org_time (time)	about.labels [org_time]
rec_time (time)	about.labels [rec_time]
xmt_time (time)	about.labels [rec_time]
num_exts (integer - count)	about.labels [num_exts]

הפניה למיפוי שדות: CORELIGHT – radius

בטבלה הבאה מפורטים שדות היומן של סוג היומן radius והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to USER_LOGIN.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
username (string)	target.user.userid
mac (string)	principal.mac
framed_addr (string - addr)	intermediary.ip
tunnel_client (string)	intermediary.ip	If the tunnel_client log field value is matched with regex of IP, then the tunnel_client log field is mapped to the intermediary.ip UDM field. Else, the tunnel_client log field is mapped to the intermediary.domain.name UDM field.
tunnel_client (string)	intermediary.domain.name	If the tunnel_client log field value is matched with regex of IP, then the tunnel_client log field is mapped to the intermediary.ip UDM field. Else, the tunnel_client log field is mapped to the intermediary.domain.name UDM field.
connect_info (string)	about.labels [connect_info]
reply_msg (string)	extensions.auth.auth_details
result (string)	security_result.action	If the result log field value is equal to true then, the security_result.action UDM field is set to ALLOW. Else, the security_result.action UDM field is set to FAIL.
ttl (number - interval)	network.session_duration

הפניה למיפוי שדות: CORELIGHT - reporter

בטבלה הבאה מפורטים שדות היומן של סוג היומן reporter והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
level (string - enum)	security_result.severity	If the level log field value is equal to CRITICAL or ERROR or HIGH or INFORMATIONAL or LOW or MEDIUM, then the level log field is mapped to the security_result.severity UDM field.
level (string - enum)	security_result.severity_details
message (string)	security_result.description
location (string)	about.labels [location]

הפניה למיפוי שדות: CORELIGHT – log4shell

בטבלה הבאה מפורטים שדות היומן של סוג היומן log4shell והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to SCAN_HOST.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	extensions.vulns.vulnerabilities.cve_id	The extensions.vulns.vulnerabilities.cve_id UDM field is set to CVE-2021-44228.
http_uri (string)	about.labels [http_uri]
uri (string)	target.url
stem (string)	target.labels [stem]
target_host (string)	target.hostname
target_port (string)	target.port
method (string)	network.http.method
is_orig (boolean - bool)	about.labels [is_orig]
name (string)	about.labels.key
value (string)	about.labels.value
matched_name (boolean - bool)	about.labels [matched_name]
matched_value (boolean - bool)	about.labels [matched_value]

הפניה למיפוי שדות: CORELIGHT – modbus

בטבלה הבאה מפורטים שדות היומן של סוג היומן modbus והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to MODBUS.
func (string)	about.labels [func]
exception (string)	security_result.description
pdu_type (string)	additional.fields [pdu_type]
tid (integer - count)	additional.fields [tid]
unit (integer - count)	additional.fields [unit]

הפניה למיפוי שדות: CORELIGHT - mqtt_connect

בטבלה הבאה מפורטים שדות היומן של סוג היומן mqtt_connect והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to MQTT.
proto_name (string)	about.labels [proto_name]
proto_version (string)	network.application_protocol_version
client_id (string)	principal.labels [client_id]
connect_status (string)	security_result.description
will_topic (string)	target.resource.name
will_payload (string)	about.labels [will_payload]

הפניה למיפוי שדות: CORELIGHT - mqtt_publish

בטבלה הבאה מפורטים שדות היומן של סוג היומן mqtt_publish והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to MQTT.
from_client (boolean - bool)	about.labels [from_client]
retain (boolean - bool)	target.labels [retain]
qos (string)	about.labels [qos]
status (string)	security_result.description
topic (string)	target.resource.name
payload (string)	about.labels [payload]
payload_len (integer - count)	about.labels [payload_len]

הפניה למיפוי שדות: CORELIGHT – mqtt_subscribe

בטבלה הבאה מפורטים שדות היומן של סוג היומן mqtt_subscribe והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to MQTT.
action (string - enum)	security_result.action_details
topics (array[string] - vector of string)	target.resource.name	Iterate through log field topics, then if the index value is equal to 0 then, topics log field is mapped to the target.resource.name UDM field. Else, the about.labels.key UDM field is set to topics and %{topics} log field is mapped to the about.labels.value UDM field.
qos_levels (array[integer] - vector of count)	about.labels [qos_levels]
granted_qos_level (integer - count)	about.labels [granted_qos_level]
ack (boolean - bool)	security_result.action, security_result.detection_fields [ack]	If the ack log field value is equal to true then, the security_result.action UDM field is set to ALLOW. Else, if the ack log field value is equal to false then, the security_result.action UDM field is set to BLOCK. Else, the security_result.detection_fields.key UDM field is set to ack and ack log field is mapped to the security_result.detection_fields.value UDM field.

הפניה למיפוי שדות: CORELIGHT - dpd

בטבלה הבאה מפורטים שדות היומן של סוג היומן dpd והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
proto (string - enum)	network.ip_protocol
analyzer (string)	about.labels [analyzer]
failure_reason (string)	about.labels [failure_reason]

הפניה למיפוי שדות: CORELIGHT – encrypted_dns

בטבלה הבאה מפורטים שדות היומן של סוג היומן encrypted_dns והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to DNS.
resp_h (string - addr)	target.ip
cert.cn (string)	about.labels [cert_cn]
cert.sans (array[string] - set[string])	about.labels [cert_sans]
sni (string)	network.tls.client.server_name
match (string)	about.labels [match]

הפניה למיפוי שדות: CORELIGHT - enip

בטבלה הבאה מפורטים שדות היומן של סוג היומן enip והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
command (string)	principal.process.command_line
length (integer - count)	about.labels [length]
session_handle (string)	about.labels[session_handle]
status (string)	about.labels [status]
sender_context (string)	about.labels [sender_context]
options (string)	about.labels [options]
enip_command (string)	additional.fields [enip_command]
enip_command_code (string)	additional.fields [enip_command_code]
enip_status (string)	additional.fields [enip_status]
is_orig (boolean - bool)	additional.fields [is_orig]

הפניה למיפוי שדות: CORELIGHT - enip_debug

בטבלה הבאה מפורטים שדות היומן של סוג היומן enip_debug והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to STATUS_UPDATE.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
raw_data (string)	about.labels [raw_data]

הפניה למיפוי שדות: CORELIGHT - enip_list_identity

בטבלה הבאה מפורטים שדות היומן של סוג היומן enip_list_identity והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
device_type (string)	target.asset.attribute.labels [device_type]
vendor (string)	target.asset.hardware.manufacturer
product_name (string)	target.asset.attribute.labels [product_name]
serial_number (string)	target.asset.asset_id	The target.asset.asset_id UDM field is set with serial_number log fields as "CORELIGHT: serial_number".
product_code (integer - count)	target.asset.attribute.labels [product_code]
revision (number - double)	target.asset.attribute.labels [revision]
status (string)	about.labels [status]
state (string)	target.asset.attribute.labels [state]
device_ip (string - addr)	target.asset.ip

הפניה למיפוי שדות: CORELIGHT - etc_viz

בטבלה הבאה מפורטים שדות היומן של סוג היומן etc_viz והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
server_a (string - addr)	target.ip
server_p (integer - port)	target.port
service (array[string] - set[string])	target.application	The service log field is mapped to target.application UDM field when index value in service is equal to 0. For every other index value, target.labels.key UDM field is set to service and service log field is mapped to the target.labels.value.
viz_stat (string)	about.labels [viz_stat]
c2s_viz.size (integer - count)	network.sent_bytes
c2s_viz.enc_dev (number - double)	about.labels [c2s_viz_enc_dev]
c2s_viz.enc_frac (number - double)	about.labels [c2s_viz_enc_frac]
c2s_viz.pdu1_enc (boolean - bool)	about.labels [c2s_viz_pdu1_enc]
c2s_viz.clr_frac (number - double)	about.labels [c2s_viz_clr_frac]
c2s_viz.clr_ex (string)	about.labels [c2s_viz_clr_ex]
s2c_viz.size (integer - count)	network.received_bytes
s2c_viz.enc_dev (number - double)	about.labels [s2c_viz_enc_dev]
s2c_viz.enc_frac (number - double)	about.labels [s2c_viz_enc_frac]
s2c_viz.pdu1_enc (boolean - bool)	about.labels [s2c_viz_pdu1_enc]
s2c_viz.clr_frac (number - double)	about.labels [s2c_viz_clr_frac]
s2c_viz.clr_ex (string)	about.labels [s2c_viz_clr_ex]

הפניה למיפוי שדות: CORELIGHT - ftp

בטבלה הבאה מפורטים שדות היומן של סוג היומן ftp והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_FTP.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
user (string)	principal.user.user_display_name
password (string)	extensions.auth.auth_details
command (string), arg (string)	network.ftp.command	The network.ftp.command UDM field is set with command, arg log fields as "command arg".
mime_type (string)	target.file.mime_type
file_size (integer - count)	target.file.size
reply_code (integer - count)	about.labels [reply_code]
reply_msg (string)	about.labels [reply_msg]
data_channel.passive (boolean - bool)	about.labels [data_channel_passive]
data_channel.orig_h (string - addr)	principal.ip
data_channel.resp_h (string - addr)	target.ip
data_channel.resp_p (integer - port)	target.labels [data_channel_resp_p]
fuid (string)	about.labels [fuid]

הפניה למיפוי שדות: CORELIGHT - generic_dns_tunnels

בטבלה הבאה מפורטים שדות היומן של סוג היומן generic_dns_tunnels והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_DNS.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to DNS.
dns_client (string - addr)	principal.ip
domain (string)	network.dns_domain
domain (string)	network.dns.questions.name
bytes (integer - int)	about.labels [bytes]
capture_secs (number - interval)	network.session_duration

הפניה למיפוי שדות: CORELIGHT - generic_icmp_tunnels

בטבלה הבאה מפורטים שדות היומן של סוג היומן generic_icmp_tunnels והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.ip_protocol	The network.ip_protocol UDM field is set to ICMP.
detection (string)	security_result.detection_fields [detection]
orig (string - addr)	principal.ip
resp (string - addr)	target.ip
id (integer - count)	about.labels [id]
seq (integer - count)	about.labels [seq]
bytes (integer - count)	about.labels [bytes]
payload_len (integer - count)	about.labels [payload_len]
payload (string)	about.labels [payload]

הפניה למיפוי שדות: CORELIGHT - icmp_specific_tunnels

בטבלה הבאה מפורטים שדות היומן של סוג היומן icmp_specific_tunnels והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.ip_protocol	The network.ip_protocol UDM field is set to ICMP.
start_time (time)	about.labels [start_time]
duration (number - interval)	network.session_duration
tunnel (string)	intermediary.labels [tunnel]
seq (integer - count)	about.labels [seq]
icmp_id (integer - count)	about.labels [icmp_id]
payload (string)	about.labels [payload]

הפניה למיפוי שדות: CORELIGHT - ipsec

בטבלה הבאה מפורטים שדות היומן של סוג היומן ipsec והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
initiator_spi (string)	principal.labels [initiator_spi]
responder_spi (string)	target.labels [responder_spi]
maj_ver (integer - count)	about.labels [maj_ver]
min_ver (integer - count)	about.labels [min_ver]
exchange_type (integer - count)	about.labels [exchange_type]
flag_e (boolean - bool)	about.labels [flag_e]
flag_c (boolean - bool)	about.labels [flag_c]
flag_a (boolean - bool)	about.labels [flag_a]
flag_i (boolean - bool)	about.labels [flag_i]
flag_v (boolean - bool)	about.labels [flag_v]
flag_r (boolean - bool)	about.labels [flag_r]
message_id (integer - count)	about.labels [message_id]
vendor_ids (array[string] - vector of string)	about.labels [vendor_id]
notify_messages (array[string] - vector of string)	about.labels [notify_message]
transforms (array[string] - vector of string)	about.labels [transform]
ke_dh_groups (array[integer] - vector of count)	about.labels [ke_dh_group]
proposals (array[integer] - vector of count)	about.labels [proposal]
protocol_id (integer - count)	about.labels [protocol_id]
certificates (array[string] - vector of string)	about.labels [certificate]
transform_attributes (array[string] - vector of string)	about.labels [transform_attribute]
length (integer - count)	about.labels [length]
hash (string)	about.labels [hash]
doi (integer - count)	about.labels [doi]
situation (string)	about.labels [situation]
is_orig (boolean - bool)	additional.fields [is_orig]

הפניה למיפוי שדות: CORELIGHT - profinet

בטבלה הבאה מפורטים שדות היומן של סוג היומן profinet והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
operation_type (string)	about.labels [operation_type]
block_version (string)	about.labels [block_version]
slot_number (integer - count)	about.labels [slot_number]
subslot_number (integer - count)	about.labels [subslot_number]
index (string)	about.labels [index]

הפניה למיפוי שדות: CORELIGHT - profinet_dce_rpc

בטבלה הבאה מפורטים שדות היומן של סוג היומן profinet_dce_rpc והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	network.application_protocol	The network.application_protocol UDM field is set to DCERPC.
version (integer - count)	about.labels [version]
packet_type (integer - count)	about.labels [packet_type]
object_uuid (string)	about.labels [object_uuid]
interface_uuid (string)	about.labels [interface_uuid]
activity_uuid (string)	about.labels [activity_uuid]
server_boot_time (integer - count)	about.labels [server_boot_time]
operation (string)	about.labels [operation]

הפניה למיפוי שדות: CORELIGHT - profinet_debug

בטבלה הבאה מפורטים שדות היומן של סוג היומן profinet_debug והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
raw_data (string)	about.labels [raw_data]

הפניה למיפוי שדות: CORELIGHT - rfb

בטבלה הבאה מפורטים שדות היומן של סוג היומן rfb והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
client_major_version (string)	principal.labels [client_major_version]
client_minor_version (string)	principal.labels [client_minor_version]
server_major_version (string)	target.labels [server_major_version]
server_minor_version (string)	target.labels [server_minor_version]
authentication_method (string)	extension.auth.mechanism	If the authentication_method log field value is equal to VNC, then the extension.auth.mechanism UDM field is set to REMOTE_INTERACTIVE. Else, the extensions.auth.mechanism UDM field is set to MECHANISM_OTHER.
authentication_method (string)	extension.auth.auth_details
auth (boolean - bool)	security_result.action	If the auth log field value is equal to true, then the security_result.action UDM field is set to ALLOW. Else, the security_result.action UDM field is set to FAIL.
share_flag (boolean - bool)	about.labels [share_flag]
desktop_name (string)	principal.labels [desktop_name]
width (integer - count)	principal.labels [width]
height (integer - count)	principal.labels [height]

הפניה למיפוי שדות: CORELIGHT - known_certs

בטבלה הבאה מפורטים שדות היומן של סוג היומן known_certs והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.entity_type	The metadata.entity_type UDM field is set to RESOURCE.
	entity.resource.resource_subtype	The entity.resource.resource_subtype UDM field is set to CERTIFICATE.
ts (time)	metadata.interval.start_time
duration (number - interval)	entity.labels [duration]
kuid (string)	entity.labels [kuid]
host_ip (string - addr)	entity.ip
hash (string)	entity.resource.attribute.labels [hash]
port (integer - port)	entity.port
protocol (string - enum)	entity.labels [protocol]
serial (string)	entity.resource.attribute.labels [serial]
subject (string)	entity.resource.attribute.labels [subject]
issuer_subject (string)	entity.resource.attribute.labels [issuer_subject]
num_conns (integer - count)	metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string)	metadata.threat.detection_fields [annotations]
last_active_session (string)	entity.labels [last_active_session]
last_active_interval (number - interval)	entity.labels [last_active_interval]
host_inner_vlan (integer - int)	additional.fields [host_inner_vlan]
host_vlan (integer - int)	additional.fields [host_vlan]
long_conns (integer - count)	metadata.threat.detection_fields [long_conns]
port_num (integer - port)	entity.port

הפניה למיפוי שדות: CORELIGHT - known_devices

בטבלה הבאה מפורטים שדות היומן של סוג היומן known_devices והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.entity_type	The metadata.entity_type UDM field is set to RESOURCE.
ts (time)	metadata.interval.start_time
ts (time)	entity.asset.first_seen_time
duration (number - interval)	entity.labels [duration]
kuid (string)	entity.labels [kuid]
host_ip (string - addr)	entity.asset.ip
mac (string)	entity.asset.mac
vendor_mac (string)	entity.asset.hardware.manufacturer
protocols (array[string] - set[string])	entity.network.application_protocol
num_conns (integer - count)	metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string)	metadata.threat.detection_fields [annotations]
last_active_session (string)	entity.labels [last_active_session]
last_active_interval (number - interval)	entity.labels [last_active_interval]
host_inner_vlan (integer - int)	additional.fields [host_inner_vlan]
host_vlan (integer - int)	additional.fields [host_vlan]
long_conns (integer - count)	metadata.threat.detection_fields [long_conns]

חומרי עזר למיפוי שדות: CORELIGHT - known_domains

בטבלה הבאה מפורטים שדות היומן של סוג היומן known_domains והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.entity_type	The metadata.entity_type UDM field is set to DOMAIN_NAME.
ts (time)	metadata.interval.start_time
ts (time)	entity.domain.first_seen_time
duration (number - interval)	entity.labels [duration]
kuid (string)	entity.labels [kuid]
host_ip (string - addr)	entity.ip
domain (string)	entity.domain.name
protocols (array[string] - set[string])	entity.network.application_protocol
num_conns (integer - count)	metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string)	metadata.threat.detection_fields [annotations]
last_active_session (string)	entity.labels [last_active_session]
last_active_interval (number - interval)	entity.labels [last_active_interval]
host_inner_vlan (integer - int)	additional.fields [host_inner_vlan]
host_vlan (integer - int)	additional.fields [host_vlan]
long_conns (integer - count)	metadata.threat.detection_fields [long_conns]

הפניה למיפוי שדות: CORELIGHT - known_hosts

בטבלה הבאה מפורטים שדות היומן של סוג היומן known_hosts והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.entity_type	The metadata.entity_type UDM field is set to IP_ADDRESS.
ts (time)	metadata.interval.start_time
duration (number - interval)	entity.labels [duration]
kuid (string)	entity.labels [kuid]
host_ip (string - addr)	entity.ip
conns_opened (integer - count)	metadata.threat.detection_fields [conns_opened]
conns_closed (integer - count)	metadata.threat.detection_fields [conns_closed]
conns_pending (integer - count)	metadata.threat.detection_fields [conns_pending]
long_conns (integer - count)	metadata.threat.detection_fields [long_conns]
annotations (array[string] - vector of string)	metadata.threat.detection_fields [annotations]
last_active_session (string)	entity.labels [last_active_session]
last_active_interval (number - interval)	entity.labels [last_active_interval]
ep.cid (string)	additional.fields [ep_cid]
ep.criticality (string)	entity.security_result.detection_fields[ep_criticality]
ep.desc (string)	metadata.description
ep.os_version (string)	entity.platform_version
ep.source (string)	additional.fields [ep_source]
ep.status (string)	additional.fields [ep_status]
ep.uid (string)	additional.fields [ep_uid]
host_inner_vlan (integer - int)	additional.fields [host_inner_vlan]
host_vlan (integer - int)	additional.fields [host_vlan]

הפניה למיפוי שדות: CORELIGHT - known_names

בטבלה הבאה מפורטים שדות היומן של סוג היומן known_names והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.entity_type	The metadata.entity_type UDM field is set to RESOURCE.
ts (time)	metadata.interval.start_time
duration (number - interval)	entity.labels [duration]
kuid (string)	entity.labels [kuid]
host_ip (string - addr)	entity.ip
hostname (string)	entity.hostname
protocols (array[string] - set[string])	entity.labels [protocol]
num_conns (integer - count)	metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string)	metadata.threat.detection_fields [annotations]
last_active_session (string)	entity.labels [last_active_session]
last_active_interval (number - interval)	entity.labels [last_active_interval]
host_inner_vlan (integer - int)	additional.fields [host_inner_vlan]
host_vlan (integer - int)	additional.fields [host_vlan]
long_conns (integer - count)	metadata.threat.detection_fields [long_conns]

הפניה למיפוי שדות: CORELIGHT - known_remotes

בטבלה הבאה מפורטים שדות היומן של סוג היומן known_remotes והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.entity_type	The metadata.entity_type UDM field is set to IP_ADDRESS.
ts (time)	metadata.interval.start_time
duration (number - interval)	entity.labels [duration]
kuid (string)	entity.labels [kuid]
host_ip (string - addr)	entity.ip
num_conns (integer - count)	metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string)	metadata.threat.detection_fields [annotations]
host_inner_vlan (integer - int)	additional.fields [host_inner_vlan]
host_vlan (integer - int)	additional.fields [host_vlan]
long_conns (integer - count)	metadata.threat.detection_fields [long_conns]

הפניה למיפוי שדות: CORELIGHT - known_services

בטבלה הבאה מפורטים שדות היומן של סוג היומן known_services והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.entity_type	The metadata.entity_type UDM field is set to RESOURCE.
ts (time)	metadata.interval.start_time
duration (number - interval)	entity.labels [duration]
kuid (string)	entity.labels [kuid]
host_ip (string - addr)	entity.ip
port (integer - port)	entity.port
protocol (string - enum)	entity.network.application_protocol
service (array[string] - vector of string)	entity.labels [service]
software (array[string] - set[string])	entity.asset.software.name
app (array[string] - set[string])	entity.application	The app log field is mapped to entity.application UDM field when index value in app is equal to 0. For every other index value, entity.labels.key UDM field is set to app and app log field is mapped to the entity.labels.value.
num_conns (integer - count)	metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string)	metadata.threat.detection_fields [annotations]
last_active_session (string)	entity.labels [last_active_session]
last_active_interval (number - interval)	entity.labels [last_active_interval]
host_inner_vlan (integer - int)	additional.fields [host_inner_vlan]
host_vlan (integer - int)	additional.fields [host_vlan]
long_conns (integer - count)	metadata.threat.detection_fields [long_conns]
num_conns_complete (integer - count)	entity.security_result.detection_fields[num_conns_complete]
num_conns_pending (integer - int)	entity.security_result.detection_fields[num_conns_pending]
port_num (integer - port)	entity.port

הפניה למיפוי שדות: CORELIGHT - known_users

בטבלה הבאה מפורטים שדות היומן של סוג היומן known_users והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
	metadata.entity_type	The metadata.entity_type UDM field is set to RESOURCE.
ts (time)	metadata.interval.start_time
duration (number - interval)	entity.labels [duration]
kuid (string)	entity.labels [kuid]
host_ip (string - addr)	entity.ip
remote_ip (string - addr)	entity.ip
user (string)	entity.user.user_display_name
protocol (string)	entity.labels [protocol]
num_conns (integer - count)	metadata.threat.detection_fields [num_conns]
annotations (array[string] - vector of string)	metadata.threat.detection_fields [annotations]
last_active_session (string)	entity.labels [last_active_session]
last_active_interval (number - interval)	entity.labels [last_active_interval]
host_inner_vlan (integer - int)	additional.fields [host_inner_vlan]
host_vlan (integer - int)	additional.fields [host_vlan]
remote_inner_vlan (integer - int)	additional.fields [remote_inner_vlan]
remote_vlan (integer - int)	additional.fields [remote_vlan]
long_conns (integer - count)	metadata.threat.detection_fields [long_conns]

הפניה למיפוי שדות: CORELIGHT - s7comm

בטבלה הבאה מפורטים שדות היומן של סוג היומן s7comm והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to Zeek.
rosctr (string)	about.labels [rosctr]
parameter (array[string] - vector of string)	about.labels [parameter]
item_count (integer - count)	about.labels [item_count]
data_info (array[string] - vector of string)	about.labels [data_info]
error_class (string)	additional.fields [error_class]
error_code (string)	additional.fields [error_code]
function_code (string)	additional.fields [function_code]
function_name (string)	additional.fields [function_name]
is_orig (boolean - bool)	additional.fields [is_orig]
pdu_reference (integer - count)	additional.fields [pdu_reference]
rosctr_code (integer - count)	additional.fields [rosctr_code]
rosctr_name (string)	additional.fields [rosctr_name]
subfunction_code (string)	additional.fields [subfunction_code]
subfunction_name (string)	additional.fields [subfunction_name]

הפניה למיפוי שדות: CORELIGHT – smartpcap

בטבלה הבאה מפורטים שדות היומן של סוג היומן smartpcap והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Smartpcap.
logstr (string)	metadata.description

הפניה למיפוי שדות: CORELIGHT - snmp

בטבלה הבאה מפורטים שדות היומן של סוג היומן snmp והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_UNCATEGORIZED.
	metadata.product_name	The metadata.product_name UDM field is set to zeek.
duration (number - interval)	network.session_duration
version (string)	network.application_protocol_version
community (string)	about.labels [community]
get_requests (integer - count)	about.labels [get_requests]
get_bulk_requests (integer - count)	about.labels [get_bulk_requests]
get_responses (integer - count)	about.labels [get_responses]
set_requests (integer - count)	about.labels [set_requests]
display_string (string)	about.labels [display_string]
up_since (time)	target.asset.last_boot_time

הפניה למיפוי שדות: CORELIGHT - socks

בטבלה הבאה מפורטים שדות היומן של סוג היומן socks והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
	metadata.product_name	The metadata.product_name UDM field is set to zeek.
version (integer - count)	network.application_protocol_version
user (string)	principal.user.userid
password (string)	extensions.auth.auth_details
status (string)	about.labels [status]
request.host (string - addr)	target.ip
request.name (string)	target.hostname
request_p (integer - port)	target.labels [request_p]
bound.host (string - addr)	intermediary.ip
bound.name (string)	intermediary.hostname
bound_p (integer - port)	intermediary.port

הפניה למיפוי שדות: CORELIGHT – תוכנה

בטבלה הבאה מפורטים שדות היומן של סוג היומן software והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to zeek.
host (string - addr)	target.asset.ip
host_p (integer - port)	target.port
software_type (string - enum)	target.asset.software.description
name (string)	target.asset.software.name
version.major (integer - count)	target.asset.software.version
version.minor (integer - count)	target.asset.attribute.labels [version_minor]
version.minor2 (integer - count)	target.asset.attribute.labels [version_minor2]
version.minor3 (integer - count)	target.asset.attribute.labels [version_minor3]
version.addl (string)	target.asset.attribute.labels [version_addl]
unparsed_version (string)	target.asset.attribute.labels [unparsed_version]

הפניה למיפוי שדות: CORELIGHT - specific_dns_tunnels

בטבלה הבאה מפורטים שדות היומן של סוג היומן specific_dns_tunnels והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_DNS.
	metadata.product_name	The metadata.product_name UDM field is set to zeek.
	network.application_protocol	The network.application_protocol UDM field is set to DNS.
trans_id (integer - count)	network.dns.id
dns_client (string - addr)	principal.ip
resolver (string - addr)	target.ip
query (string)	network.dns.questions.name
program (string - enum)	principal.application
session_id (integer - count)	about.labels[session_id]
detection (string)	security_result.description
sods_id (integer - count)	about.labels [sods_id]

הפניה למיפוי שדות: CORELIGHT - stepping

בטבלה הבאה מפורטים שדות היומן של סוג היומן stepping והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
	metadata.product_name	The metadata.product_name UDM field is set to zeek.
dt (number - interval)	about.labels [dt]
uid1 (string)	about.labels [uid1]
uid2 (string)	about.labels [uid2]
direct (boolean - bool)	about.labels [direct]
client1_h (string - addr)	principal.ip
client1_p (integer - port)	principal.port
server1_h (string - addr)	intermediary.ip
server1_p (integer - port)	intermediary.port
client2_h (string - addr)	intermediary.ip
client2_p (integer - port)	intermediary.port
server2_h (string - addr)	target.ip
server2_p (integer - port)	target.port

הפניה למיפוי שדות: CORELIGHT - stun

בטבלה הבאה מפורטים שדות היומן של סוג היומן stun והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
	metadata.product_name	The metadata.product_name UDM field is set to zeek.
proto (string - enum)	network.ip_protocol
is_orig (boolean - bool)	about.labels [is_orig]
trans_id (string)	metadata.product_log_id
method (string)	about.labels [method]
class (string)	about.labels [class]
attr_types (array[string] - vector of string)	about.labels.key
attr_vals (array[string] - vector of string)	about.labels.value

הפניה למיפוי שדות: CORELIGHT - stun_nat

בטבלה הבאה מפורטים שדות היומן של סוג היומן stun_nat והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.
	metadata.product_name	The metadata.product_name UDM field is set to zeek.
proto (string - enum)	network.ip_protocol
is_orig (boolean - bool)	about.labels [is_orig]
wan_addrs (array[string] - vector of addr)	principal.nat_ip
wan_ports (array[integer] - vector of count)	principal.nat_port	The wan_ports log field is mapped to principal.nat_port UDM field when index value in wan_ports is equal to 0. For every other index value, principal.labels.key UDM field is set to wan_port and wan_ports log field is mapped to the principal.labels.value.
lan_addrs (array[string] - vector of addr)	principal.ip

הפניה למיפוי שדות: CORELIGHT - suricata_stats

בטבלה הבאה מפורטים שדות היומן של סוג היומן suricata_stats והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
	metadata.product_name	The metadata.product_name UDM field is set to Suricata.
raw_mgmt	about.labels [raw_mgmt]
timestamp(time)	metadata.event_timestamp
event_type(string)	about.labels [event_type]
stats.uptime(integer)	about.labels [stats_uptime]
stats.napa_total.pkts(integer)	about.labels [stats_napa_total_pkts]
stats.napa_total.byte(integer)	about.labels [stats_napa_total_byte]
stats.napa_total.overflow_drop_pkts(integer)	about.labels [stats_napa_total_overflow_drop_pkts]
stats.napa_total.overflow_drop_byte(integer)	about.labels [stats_napa_total_overflow_drop_byte]
stats.napa_dispatch_host.pkts(integer)	about.labels [stats_napa_dispatch_host_pkts]
stats.napa_dispatch_host.byte(integer)	about.labels [stats_napa_dispatch_host_byte]
stats.napa_dispatch_drop.pkts(integer)	about.labels [stats_napa_dispatch_drop_pkts]
stats.napa_dispatch_drop.byte(integer)	about.labels [stats_napa_dispatch_drop_byte]
stats.decoder.pkts(integer)	about.labels [stats_decoder_pkts]
stats.decoder.bytes(integer)	about.labels [stats_decoder_bytes]
stats.decoder.invalid(integer)	about.labels [stats_decoder_invalid]
stats.decoder.ipv4(integer)	about.labels [stats_decoder_ipv4]
stats.decoder.ipv6(integer)	about.labels [stats_decoder_ipv6]
stats.decoder.ethernet(integer)	about.labels [stats_decoder_ethernet]
stats.decoder.chdlc(integer)	about.labels [stats_decoder_chdlc]
stats.decoder.raw(integer)	about.labels [stats_decoder_raw]
stats.decoder.null(integer)	about.labels [stats_decoder_null]
stats.decoder.sll(integer)	about.labels [stats_decoder_sll]
stats.decoder.tcp(integer)	about.labels [stats_decoder_tcp]
stats.decoder.udp(integer)	about.labels [stats_decoder_udp]
stats.decoder.sctp(integer)	about.labels [stats_decoder_sctp]
stats.decoder.icmpv4(integer)	about.labels [stats_decoder_icmpv4]
stats.decoder.icmpv6(integer)	about.labels [stats_decoder_icmpv6]
stats.decoder.ppp(integer)	about.labels [stats_decoder_ppp]
stats.decoder.pppoe(integer)	about.labels [stats_decoder_pppoe]
stats.decoder.geneve(integer)	about.labels [stats_decoder_geneve]
stats.decoder.gre(integer)	about.labels [stats_decoder_gre]
stats.decoder.vlan(integer)	about.labels [stats_decoder_vlan]
stats.decoder.vlan_qinq(integer)	about.labels [stats_decoder_vlan_qinq]
stats.decoder.vxlan(integer)	about.labels [stats_decoder_vxlan]
stats.decoder.vntag(integer)	about.labels [stats_decoder_vntag]
stats.decoder.ieee8021ah(integer)	about.labels [stats_decoder_ieee8021ah]
stats.decoder.teredo(integer)	about.labels [stats_decoder_teredo]
stats.decoder.ipv4_in_ipv6(integer)	about.labels [stats_decoder_ipv4_in_ipv6]
stats.decoder.ipv6_in_ipv6(integer)	about.labels [stats_decoder_ipv6_in_ipv6]
stats.decoder.mpls(integer)	about.labels [stats_decoder_mpls]
stats.decoder.avg_pkt_size(integer)	about.labels [stats_decoder_avg_pkt_size]
stats.decoder.max_pkt_size(integer)	about.labels [stats_decoder_max_pkt_size]
stats.decoder.max_mac_addrs_src(integer)	about.labels [stats_decoder_max_mac_addrs_src]
stats.decoder.max_mac_addrs_dst(integer)	about.labels [stats_decoder_max_mac_addrs_dst]
stats.decoder.erspan(integer)	about.labels [stats_decoder_erspan]
stats.decoder.event.ipv4.pkt_too_small(integer)	about.labels [stats_decoder_event_ipv4_pkt_too_small]
stats.decoder.event.ipv4.hlen_too_small(integer)	about.labels [stats_decoder_event_ipv4_hlen_too_small]
stats.decoder.event.ipv4.iplen_smaller_than_hlen(integer)	about.labels [stats_decoder_event_ipv4_iplen_smaller_than_hlen]
stats.decoder.event.ipv4.trunc_pkt(integer)	about.labels [stats_decoder_event_ipv4_trunc_pkt]
stats.decoder.event.ipv4.opt_invalid(integer)	about.labels [stats_decoder_event_ipv4_opt_invalid]
stats.decoder.event.ipv4.opt_invalid_len(integer)	about.labels [stats_decoder_event_ipv4_opt_invalid_len]
stats.decoder.event.ipv4.opt_malformed(integer)	about.labels [stats_decoder_event_ipv4_opt_malformed]
stats.decoder.event.ipv4.opt_pad_required(integer)	about.labels [stats_decoder_event_ipv4_opt_pad_required]
stats.decoder.event.ipv4.opt_eol_required(integer)	about.labels [stats_decoder_event_ipv4_opt_eol_required]
stats.decoder.event.ipv4.opt_duplicate(integer)	about.labels [stats_decoder_event_ipv4_opt_duplicate]
stats.decoder.event.ipv4.opt_unknown(integer)	about.labels [stats_decoder_event_ipv4_opt_unknown]
stats.decoder.event.ipv4.wrong_ip_version(integer)	about.labels [stats_decoder_event_ipv4_wrong_ip_version]
stats.decoder.event.ipv4.icmpv6(integer)	about.labels [stats_decoder_event_ipv4_icmpv6]
stats.decoder.event.ipv4.frag_pkt_too_large(integer)	about.labels [stats_decoder_event_ipv4_frag_pkt_too_large]
stats.decoder.event.ipv4.frag_overlap(integer)	about.labels [stats_decoder_event_ipv4_frag_overlap]
stats.decoder.event.ipv4.frag_ignored(integer)	about.labels [stats_decoder_event_ipv4_frag_ignored]
stats.decoder.event.icmpv4.pkt_too_small(integer)	about.labels [stats_decoder_event_icmpv4_pkt_too_small]
stats.decoder.event.icmpv4.unknown_type(integer)	about.labels [stats_decoder_event_icmpv4_unknown_type]
stats.decoder.event.icmpv4.unknown_code(integer)	about.labels [stats_decoder_event_icmpv4_unknown_code]
stats.decoder.event.icmpv4.ipv4_trunc_pkt(integer)	about.labels [stats_decoder_event_icmpv4_ipv4_trunc_pkt]
stats.decoder.event.icmpv4.ipv4_unknown_ver(integer)	about.labels [stats_decoder_event_icmpv4_ipv4_unknown_ver]
stats.decoder.event.icmpv6.unknown_type(integer)	about.labels [stats_decoder_event_icmpv6_unknown_type]
stats.decoder.event.icmpv6.unknown_code(integer)	about.labels [stats_decoder_event_icmpv6_unknown_code]
stats.decoder.event.icmpv6.pkt_too_small(integer)	about.labels [stats_decoder_event_icmpv6_pkt_too_small]
stats.decoder.event.icmpv6.ipv6_unknown_version(integer)	about.labels [stats_decoder_event_icmpv6_ipv6_unknown_version]
stats.decoder.event.icmpv6.ipv6_trunc_pkt(integer)	about.labels [stats_decoder_event_icmpv6_ipv6_trunc_pkt]
stats.decoder.event.icmpv6.mld_message_with_invalid_hl(integer)	about.labels [stats_decoder_event_icmpv6_mld_message_with_invalid_hl]
stats.decoder.event.icmpv6.unassigned_type(integer)	about.labels [stats_decoder_event_icmpv6_unassigned_type]
stats.decoder.event.icmpv6.experimentation_type(integer)	about.labels [stats_decoder_event_icmpv6_experimentation_type]
stats.decoder.event.ipv6.pkt_too_small(integer)	about.labels [stats_decoder_event_ipv6_pkt_too_small]
stats.decoder.event.ipv6.trunc_pkt(integer)	about.labels [stats_decoder_event_ipv6_trunc_pkt]
stats.decoder.event.ipv6.trunc_exthdr(integer)	about.labels [stats_decoder_event_ipv6_trunc_exthdr]
stats.decoder.event.ipv6.exthdr_dupl_fh(integer)	about.labels [stats_decoder_event_ipv6_exthdr_dupl_fh]
stats.decoder.event.ipv6.exthdr_useless_fh(integer)	about.labels [stats_decoder_event_ipv6_exthdr_useless_fh]
stats.decoder.event.ipv6.exthdr_dupl_rh(integer)	about.labels [stats_decoder_event_ipv6_exthdr_dupl_rh]
stats.decoder.event.ipv6.exthdr_dupl_hh(integer)	about.labels [stats_decoder_event_ipv6_exthdr_dupl_hh]
stats.decoder.event.ipv6.exthdr_dupl_dh(integer)	about.labels [stats_decoder_event_ipv6_exthdr_dupl_dh]
stats.decoder.event.ipv6.exthdr_dupl_ah(integer)	about.labels [stats_decoder_event_ipv6_exthdr_dupl_ah]
stats.decoder.event.ipv6.exthdr_dupl_eh(integer)	about.labels [stats_decoder_event_ipv6_exthdr_dupl_eh]
stats.decoder.event.ipv6.exthdr_invalid_optlen(integer)	about.labels [stats_decoder_event_ipv6_exthdr_invalid_optlen]
stats.decoder.event.ipv6.wrong_ip_version(integer)	about.labels [stats_decoder_event_ipv6_wrong_ip_version]
stats.decoder.event.ipv6.exthdr_ah_res_not_null(integer)	about.labels [stats_decoder_event_ipv6_exthdr_ah_res_not_null]
stats.decoder.event.ipv6.hopopts_unknown_opt(integer)	about.labels [stats_decoder_event_ipv6_hopopts_unknown_opt]
stats.decoder.event.ipv6.hopopts_only_padding(integer)	about.labels [stats_decoder_event_ipv6_hopopts_only_padding]
stats.decoder.event.ipv6.dstopts_unknown_opt(integer)	about.labels [stats_decoder_event_ipv6_dstopts_unknown_opt]
stats.decoder.event.ipv6.dstopts_only_padding(integer)	about.labels [stats_decoder_event_ipv6_dstopts_only_padding]
stats.decoder.event.ipv6.rh_type_0(integer)	about.labels [stats_decoder_event_ipv6_rh_type_0]
stats.decoder.event.ipv6.zero_len_padn(integer)	about.labels [stats_decoder_event_ipv6_zero_len_padn]
stats.decoder.event.ipv6.fh_non_zero_reserved_field(integer)	about.labels [stats_decoder_event_ipv6_fh_non_zero_reserved_field]
stats.decoder.event.ipv6.data_after_none_header(integer)	about.labels [stats_decoder_event_ipv6_data_after_none_header]
stats.decoder.event.ipv6.unknown_next_header(integer)	about.labels [stats_decoder_event_ipv6_unknown_next_header]
stats.decoder.event.ipv6.icmpv4(integer)	about.labels [stats_decoder_event_ipv6_icmpv4]
stats.decoder.event.ipv6.frag_pkt_too_large(integer)	about.labels [stats_decoder_event_ipv6_frag_pkt_too_large]
stats.decoder.event.ipv6.frag_overlap(integer)	about.labels [stats_decoder_event_ipv6_frag_overlap]
stats.decoder.event.ipv6.frag_invalid_length(integer)	about.labels [stats_decoder_event_ipv6_frag_invalid_length]
stats.decoder.event.ipv6.frag_ignored(integer)	about.labels [stats_decoder_event_ipv6_frag_ignored]
stats.decoder.event.ipv6.ipv4_in_ipv6_too_small(integer)	about.labels [stats_decoder_event_ipv6_ipv4_in_ipv6_too_small]
stats.decoder.event.ipv6.ipv4_in_ipv6_wrong_version(integer)	about.labels [stats_decoder_event_ipv6_ipv4_in_ipv6_wrong_version]
stats.decoder.event.ipv6.ipv6_in_ipv6_too_small(integer)	about.labels [stats_decoder_event_ipv6_ipv6_in_ipv6_too_small]
stats.decoder.event.ipv6.ipv6_in_ipv6_wrong_version(integer)	about.labels [stats_decoder_event_ipv6_ipv6_in_ipv6_wrong_version]
stats.decoder.event.tcp.pkt_too_small(integer)	about.labels [stats_decoder_event_tcp_pkt_too_small]
stats.decoder.event.tcp.hlen_too_small(integer)	about.labels [stats_decoder_event_tcp_hlen_too_small]
stats.decoder.event.tcp.invalid_optlen(integer)	about.labels [stats_decoder_event_tcp_invalid_optlen]
stats.decoder.event.tcp.opt_invalid_len(integer)	about.labels [stats_decoder_event_tcp_opt_invalid_len]
stats.decoder.event.tcp.opt_duplicate(integer)	about.labels [stats_decoder_event_tcp_opt_duplicate]
stats.decoder.event.udp.pkt_too_small(integer)	about.labels [stats_decoder_event_udp_pkt_too_small]
stats.decoder.event.udp.hlen_too_small(integer)	about.labels [stats_decoder_event_udp_hlen_too_small]
stats.decoder.event.udp.hlen_invalid(integer)	about.labels [stats_decoder_event_udp_hlen_invalid]
stats.decoder.event.udp.len_invalid(integer)	about.labels [stats_decoder_event_udp_len_invalid]
stats.decoder.event.sll.pkt_too_small(integer)	about.labels [stats_decoder_event_sll_pkt_too_small]
stats.decoder.event.ethernet.pkt_too_small(integer)	about.labels [stats_decoder_event_ethernet_pkt_too_small]
stats.decoder.event.ppp.pkt_too_small(integer)	about.labels [stats_decoder_event_ppp_pkt_too_small]
stats.decoder.event.ppp.vju_pkt_too_small(integer)	about.labels [stats_decoder_event_ppp_vju_pkt_too_small]
stats.decoder.event.ppp.ip4_pkt_too_small(integer)	about.labels [stats_decoder_event_ppp_ip4_pkt_too_small]
stats.decoder.event.ppp.ip6_pkt_too_small(integer)	about.labels [stats_decoder_event_ppp_ip6_pkt_too_small]
stats.decoder.event.ppp.wrong_type(integer)	about.labels [stats_decoder_event_ppp_wrong_type]
stats.decoder.event.ppp.unsup_proto(integer)	about.labels [stats_decoder_event_ppp_unsup_proto]
stats.decoder.event.pppoe.pkt_too_small(integer)	about.labels [stats_decoder_event_pppoe_pkt_too_small]
stats.decoder.event.pppoe.wrong_code(integer)	about.labels [stats_decoder_event_pppoe_wrong_code]
stats.decoder.event.pppoe.malformed_tags(integer)	about.labels [stats_decoder_event_pppoe_malformed_tags]
stats.decoder.event.gre.pkt_too_small(integer)	about.labels [stats_decoder_event_gre_pkt_too_small]
stats.decoder.event.gre.wrong_version(integer)	about.labels [stats_decoder_event_gre_wrong_version]
stats.decoder.event.gre.version0_recur(integer)	about.labels [stats_decoder_event_gre_version0_recur]
stats.decoder.event.gre.version0_flags(integer)	about.labels [stats_decoder_event_gre_version0_flags]
stats.decoder.event.gre.version0_hdr_too_big(integer)	about.labels [stats_decoder_event_gre_version0_hdr_too_big]
stats.decoder.event.gre.version0_malformed_sre_hdr(integer)	about.labels [stats_decoder_event_gre_version0_malformed_sre_hdr]
stats.decoder.event.gre.version1_chksum(integer)	about.labels [stats_decoder_event_gre_version1_chksum]
stats.decoder.event.gre.version1_route(integer)	about.labels [stats_decoder_event_gre_version1_route]
stats.decoder.event.gre.version1_ssr(integer)	about.labels [stats_decoder_event_gre_version1_ssr]
stats.decoder.event.gre.version1_recur(integer)	about.labels [stats_decoder_event_gre_version1_recur]
stats.decoder.event.gre.version1_flags(integer)	about.labels [stats_decoder_event_gre_version1_flags]
stats.decoder.event.gre.version1_no_key(integer)	about.labels [stats_decoder_event_gre_version1_no_key]
stats.decoder.event.gre.version1_wrong_protocol(integer)	about.labels [stats_decoder_event_gre_version1_wrong_protocol]
stats.decoder.event.gre.version1_malformed_sre_hdr(integer)	about.labels [stats_decoder_event_gre_version1_malformed_sre_hdr]
stats.decoder.event.gre.version1_hdr_too_big(integer)	about.labels [stats_decoder_event_gre_version1_hdr_too_big]
stats.decoder.event.vlan.header_too_small(integer)	about.labels [stats_decoder_event_vlan_header_too_small]
stats.decoder.event.vlan.unknown_type(integer)	about.labels [stats_decoder_event_vlan_unknown_type]
stats.decoder.event.vlan.too_many_layers(integer)	about.labels [stats_decoder_event_vlan_too_many_layers]
stats.decoder.event.ieee8021ah.header_too_small(integer)	about.labels [stats_decoder_event_ieee8021ah_header_too_small]
stats.decoder.event.vntag.header_too_small(integer)	about.labels [stats_decoder_event_vntag_header_too_small]
stats.decoder.event.vntag.unknown_type(integer)	about.labels [stats_decoder_event_vntag_unknown_type]
stats.decoder.event.ipraw.invalid_ip_version(integer)	about.labels [stats_decoder_event_ipraw_invalid_ip_version]
stats.decoder.event.ltnull.pkt_too_small(integer)	about.labels [stats_decoder_event_ltnull_pkt_too_small]
stats.decoder.event.ltnull.unsupported_type(integer)	about.labels [stats_decoder_event_ltnull_unsupported_type]
stats.decoder.event.sctp.pkt_too_small(integer)	about.labels [stats_decoder_event_sctp_pkt_too_small]
stats.decoder.event.mpls.header_too_small(integer)	about.labels [stats_decoder_event_mpls_header_too_small]
stats.decoder.event.mpls.pkt_too_small(integer)	about.labels [stats_decoder_event_mpls_pkt_too_small]
stats.decoder.event.mpls.bad_label_router_alert(integer)	about.labels [stats_decoder_event_mpls_bad_label_router_alert]
stats.decoder.event.mpls.bad_label_implicit_null(integer)	about.labels [stats_decoder_event_mpls_bad_label_implicit_null]
stats.decoder.event.mpls.bad_label_reserved(integer)	about.labels [stats_decoder_event_mpls_bad_label_reserved]
stats.decoder.event.mpls.unknown_payload_type(integer)	about.labels [stats_decoder_event_mpls_unknown_payload_type]
stats.decoder.event.vxlan.unknown_payload_type(integer)	about.labels [stats_decoder_event_vxlan_unknown_payload_type]
stats.decoder.event.geneve.unknown_payload_type(integer)	about.labels [stats_decoder_event_geneve_unknown_payload_type]
stats.decoder.event.erspan.header_too_small(integer)	about.labels [stats_decoder_event_erspan_header_too_small]
stats.decoder.event.erspan.unsupported_version(integer)	about.labels [stats_decoder_event_erspan_unsupported_version]
stats.decoder.event.erspan.too_many_vlan_layers(integer)	about.labels [stats_decoder_event_erspan_too_many_vlan_layers]
stats.decoder.event.dce.pkt_too_small(integer)	about.labels [stats_decoder_event_dce_pkt_too_small]
stats.decoder.event.chdlc.pkt_too_small(integer)	about.labels [stats_decoder_event_chdlc_pkt_too_small]
stats.decoder.too_many_layers(integer)	about.labels [stats_decoder_too_many_layers]
stats.flow.memcap(integer)	about.labels [stats_flow_memcap]
stats.flow.tcp(integer)	about.labels [stats_flow_tcp]
stats.flow.udp(integer)	about.labels [stats_flow_udp]
stats.flow.icmpv4(integer)	about.labels [stats_flow_icmpv4]
stats.flow.icmpv6(integer)	about.labels [stats_flow_icmpv6]
stats.flow.tcp_reuse(integer)	about.labels [stats_flow_tcp_reuse]
stats.flow.get_used(integer)	about.labels [stats_flow_get_used]
stats.flow.get_used_eval(integer)	about.labels [stats_flow_get_used_eval]
stats.flow.get_used_eval_reject(integer)	about.labels [stats_flow_get_used_eval_reject]
stats.flow.get_used_eval_busy(integer)	about.labels [stats_flow_get_used_eval_busy]
stats.flow.get_used_failed(integer)	about.labels [stats_flow_get_used_failed]
stats.flow.wrk.spare_sync_avg(integer)	about.labels [stats_flow_wrk_spare_sync_avg]
stats.flow.wrk.spare_sync(integer)	about.labels [stats_flow_wrk_spare_sync]
stats.flow.wrk.spare_sync_incomplete(integer)	about.labels [stats_flow_wrk_spare_sync_incomplete]
stats.flow.wrk.spare_sync_empty(integer)	about.labels [stats_flow_wrk_spare_sync_empty]
stats.flow.wrk.flows_evicted_needs_work(integer)	about.labels [stats_flow_wrk_flows_evicted_needs_work]
stats.flow.wrk.flows_evicted_pkt_inject(integer)	about.labels [stats_flow_wrk_flows_evicted_pkt_inject]
stats.flow.wrk.flows_evicted(integer)	about.labels [stats_flow_wrk_flows_evicted]
stats.flow.wrk.flows_injected(integer)	about.labels [stats_flow_wrk_flows_injected]
stats.flow.mgr.full_hash_pass(integer)	about.labels [stats_flow_mgr_full_hash_pass]
stats.flow.mgr.closed_pruned(integer)	about.labels [stats_flow_mgr_closed_pruned]
stats.flow.mgr.new_pruned(integer)	about.labels [stats_flow_mgr_new_pruned]
stats.flow.mgr.est_pruned(integer)	about.labels [stats_flow_mgr_est_pruned]
stats.flow.mgr.bypassed_pruned(integer)	about.labels [stats_flow_mgr_bypassed_pruned]
stats.flow.mgr.rows_maxlen(integer)	about.labels [stats_flow_mgr_rows_maxlen]
stats.flow.mgr.flows_checked(integer)	about.labels [stats_flow_mgr_flows_checked]
stats.flow.mgr.flows_notimeout(integer)	about.labels [stats_flow_mgr_flows_notimeout]
stats.flow.mgr.flows_timeout(integer)	about.labels [stats_flow_mgr_flows_timeout]
stats.flow.mgr.flows_timeout_inuse(integer)	about.labels [stats_flow_mgr_flows_timeout_inuse]
stats.flow.mgr.flows_evicted(integer)	about.labels [stats_flow_mgr_flows_evicted]
stats.flow.mgr.flows_evicted_needs_work(integer)	about.labels [stats_flow_mgr_flows_evicted_needs_work]
stats.flow.spare(integer)	about.labels [stats_flow_spare]
stats.flow.emerg_mode_entered(integer)	about.labels [stats_flow_emerg_mode_entered]
stats.flow.emerg_mode_over(integer)	about.labels [stats_flow_emerg_mode_over]
stats.flow.memuse(integer)	about.labels [stats_flow_memuse]
stats.defrag.ipv4.fragments(integer)	about.labels [stats_defrag_ipv4_fragments]
stats.defrag.ipv4.reassembled(integer)	about.labels [stats_defrag_ipv4_reassembled]
stats.defrag.ipv4.timeouts(integer)	about.labels [stats_defrag_ipv4_timeouts]
stats.defrag.ipv6.fragments(integer)	about.labels [stats_defrag_ipv6_fragments]
stats.defrag.ipv6.reassembled(integer)	about.labels [stats_defrag_ipv6_reassembled]
stats.defrag.ipv6.timeouts(integer)	about.labels [stats_defrag_ipv6_timeouts]
stats.defrag.max_frag_hits(integer)	about.labels [stats_defrag_max_frag_hits]
stats.flow_bypassed.local_pkts(integer)	about.labels [stats_flow_bypassed_local_pkts]
stats.flow_bypassed.local_bytes(integer)	about.labels [stats_flow_bypassed_local_bytes]
stats.flow_bypassed.local_capture_pkts(integer)	about.labels [stats_flow_bypassed_local_capture_pkts]
stats.flow_bypassed.local_capture_bytes(integer)	about.labels [stats_flow_bypassed_local_capture_bytes]
stats.flow_bypassed.closed(integer)	about.labels [stats_flow_bypassed_closed]
stats.flow_bypassed.pkts(integer)	about.labels [stats_flow_bypassed_pkts]
stats.flow_bypassed.bytes(integer)	about.labels [stats_flow_bypassed_bytes]
stats.tcp.sessions(integer)	about.labels [stats_tcp_sessions]
stats.tcp.ssn_memcap_drop(integer)	about.labels [stats_tcp_ssn_memcap_drop]
stats.tcp.pseudo(integer)	about.labels [stats_tcp_pseudo]
stats.tcp.pseudo_failed(integer)	about.labels [stats_tcp_pseudo_failed]
stats.tcp.invalid_checksum(integer)	about.labels [stats_tcp_invalid_checksum]
stats.tcp.no_flow(integer)	about.labels [stats_tcp_no_flow]
stats.tcp.syn(integer)	about.labels [stats_tcp_syn]
stats.tcp.synack(integer)	about.labels [stats_tcp_synack]
stats.tcp.rst(integer)	about.labels [stats_tcp_rst]
stats.tcp.midstream_pickups(integer)	about.labels [stats_tcp_midstream_pickups]
stats.tcp.pkt_on_wrong_thread(integer)	about.labels [stats_tcp_pkt_on_wrong_thread]
stats.tcp.segment_memcap_drop(integer)	about.labels [stats_tcp_segment_memcap_drop]
stats.tcp.stream_depth_reached(integer)	about.labels [stats_tcp_stream_depth_reached]
stats.tcp.reassembly_gap(integer)	about.labels [stats_tcp_reassembly_gap]
stats.tcp.overlap(integer)	about.labels [stats_tcp_overlap]
stats.tcp.overlap_diff_data(integer)	about.labels [stats_tcp_overlap_diff_data]
stats.tcp.insert_data_normal_fail(integer)	about.labels [stats_tcp_insert_data_normal_fail]
stats.tcp.insert_data_overlap_fail(integer)	about.labels [stats_tcp_insert_data_overlap_fail]
stats.tcp.insert_list_fail(integer)	about.labels [stats_tcp_insert_list_fail]
stats.tcp.memuse(integer)	about.labels [stats_tcp_memuse]
stats.tcp.reassembly_memuse(integer)	about.labels [stats_tcp_reassembly_memuse]
stats.detect.engines.id(array)	about.labels [stats_detect_engines_id]
stats.detect.engines.last_reload(array)	about.labels [stats_detect_engines_last_reload]
stats.detect.engines.rules_loaded(array)	about.labels [stats_detect_engines_rules_loaded]
stats.detect.engines.rules_failed(array)	about.labels [stats_detect_engines_rules_failed]
stats.detect.alert(integer)	about.labels [stats_detect_alert]
stats.detect.alert_queue_overflow(integer)	about.labels [stats_detect_alert_queue_overflow]
stats.detect.alerts_suppressed(integer)	about.labels [stats_detect_alerts_suppressed]
stats.app_layer.flow.http(integer)	about.labels [stats_app_layer_flow_http]
stats.app_layer.flow.ftp(integer)	about.labels [stats_app_layer_flow_ftp]
stats.app_layer.flow.smtp(integer)	about.labels [stats_app_layer_flow_smtp]
stats.app_layer.flow.tls(integer)	about.labels [stats_app_layer_flow_tls]
stats.app_layer.flow.ssh(integer)	about.labels [stats_app_layer_flow_ssh]
stats.app_layer.flow.imap(integer)	about.labels [stats_app_layer_flow_imap]
stats.app_layer.flow.smb(integer)	about.labels [stats_app_layer_flow_smb]
stats.app_layer.flow.dcerpc_tcp(integer)	about.labels [stats_app_layer_flow_dcerpc_tcp]
stats.app_layer.flow.dns_tcp(integer)	about.labels [stats_app_layer_flow_dns_tcp]
stats.app_layer.flow.nfs_tcp(integer)	about.labels [stats_app_layer_flow_nfs_tcp]
stats.app_layer.flow.ntp(integer)	about.labels [stats_app_layer_flow_ntp]
stats.app_layer.flow.ftp-data(integer)	about.labels [stats_app_layer_flow_ftp-data]
stats.app_layer.flow.tftp(integer)	about.labels [stats_app_layer_flow_tftp]
stats.app_layer.flow.ikev2(integer)	about.labels [stats_app_layer_flow_ikev2]
stats.app_layer.flow.krb5_tcp(integer)	about.labels [stats_app_layer_flow_krb5_tcp]
stats.app_layer.flow.dhcp(integer)	about.labels [stats_app_layer_flow_dhcp]
stats.app_layer.flow.rfb(integer)	about.labels [stats_app_layer_flow_rfb]
stats.app_layer.flow.rdp(integer)	about.labels [stats_app_layer_flow_rdp]
stats.app_layer.flow.failed_tcp(integer)	about.labels [stats_app_layer_flow_failed_tcp]
stats.app_layer.flow.dcerpc_udp(integer)	about.labels [stats_app_layer_flow_dcerpc_udp]
stats.app_layer.flow.dns_udp(integer)	about.labels [stats_app_layer_flow_dns_udp]
stats.app_layer.flow.nfs_udp(integer)	about.labels [stats_app_layer_flow_nfs_udp]
stats.app_layer.flow.krb5_udp(integer)	about.labels [stats_app_layer_flow_krb5_udp]
stats.app_layer.flow.failed_udp(integer)	about.labels [stats_app_layer_flow_failed_udp]
stats.app_layer.tx.http(integer)	about.labels [stats_app_layer_tx_http]
stats.app_layer.tx.ftp(integer)	about.labels [stats_app_layer_tx_ftp]
stats.app_layer.tx.smtp(integer)	about.labels [stats_app_layer_tx_smtp]
stats.app_layer.tx.tls(integer)	about.labels [stats_app_layer_tx_tls]
stats.app_layer.tx.ssh(integer)	about.labels [stats_app_layer_tx_ssh]
stats.app_layer.tx.imap(integer)	about.labels [stats_app_layer_tx_imap]
stats.app_layer.tx.smb(integer)	about.labels [stats_app_layer_tx_smb]
stats.app_layer.tx.dcerpc_tcp(integer)	about.labels [stats_app_layer_tx_dcerpc_tcp]
stats.app_layer.tx.dns_tcp(integer)	about.labels [stats_app_layer_tx_dns_tcp]
stats.app_layer.tx.nfs_tcp(integer)	about.labels [stats_app_layer_tx_nfs_tcp]
stats.app_layer.tx.ntp(integer)	about.labels [stats_app_layer_tx_ntp]
stats.app_layer.tx.ftp-data(integer)	about.labels [stats_app_layer_tx_ftp-data]
stats.app_layer.tx.tftp(integer)	about.labels [stats_app_layer_tx_tftp]
stats.app_layer.tx.ikev2(integer)	about.labels [stats_app_layer_tx_ikev2]
stats.app_layer.tx.krb5_tcp(integer)	about.labels [stats_app_layer_tx_krb5_tcp]
stats.app_layer.tx.dhcp(integer)	about.labels [stats_app_layer_tx_dhcp]
stats.app_layer.tx.rfb(integer)	about.labels [stats_app_layer_tx_rfb]
stats.app_layer.tx.rdp(integer)	about.labels [stats_app_layer_tx_rdp]
stats.app_layer.tx.dcerpc_udp(integer)	about.labels [stats_app_layer_tx_dcerpc_udp]
stats.app_layer.tx.dns_udp(integer)	about.labels [stats_app_layer_tx_dns_udp]
stats.app_layer.tx.nfs_udp(integer)	about.labels [stats_app_layer_tx_nfs_udp]
stats.app_layer.tx.krb5_udp(integer)	about.labels [stats_app_layer_tx_krb5_udp]
stats.app_layer.expectations(integer)	about.labels [stats_app_layer_expectations]
stats.http.memuse(integer)	about.labels [stats_http_memuse]
stats.http.memcap(integer)	about.labels [stats_http_memcap]
stats.ftp.memuse(integer)	about.labels [stats_ftp_memuse]
stats.ftp.memcap(integer)	about.labels [stats_ftp_memcap]

הפניה למיפוי שדות: CORELIGHT – logschema

בטבלה הבאה מפורטים שדות היומן של סוג היומן logschema והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.
name(string)	about.labels [name]
text(string)	about.labels [text]
schema(string)	about.labels [schema]
avro(string)	about.labels [avro]

הפניה למיפוי שדות: CORELIGHT – analyzer

בטבלה הבאה מפורטים שדות היומן של סוג היומן analyzer והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
cause (string)	metadata.description
analyzer_kind (string)	additional.fields[analyzer_kind]
analyzer_name (string)	additional.fields[analyzer_name]
fuid (string)	additional.fields[fuid]
failure_reason (string)	security_result.summary
failure_data (string)	security_result.description
	metadata.event_type	The metadata.event_type UDM field is set to SCAN_UNCATEGORIZED.

הפניה למיפוי שדות: CORELIGHT – חריגה

בטבלה הבאה מפורטים שדות היומן של סוג היומן anomaly והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
use_case (string)	security_result.rule_name
use_case_description (string)	security_result.description
entity (string)	additional.fields[entity]
original_entity (string)	additional.fields[original_entity]
entity_training_items (array[string] - vector of string)	additional.fields[entity_training_item]	Iterate through log field entity_training_items, then entity_training_item_%{index} log field is mapped to the additional.fields.key UDM field and entity_training_item log field is mapped to the additional.fields.value UDM field.
item (string)	security_result.detection_fields[item]
item_score (number - double)	security_result.detection_fields[item_score]
item_assoc_entities (array[string] - vector of string)	security_result.detection_fields[item_assoc_entities]	Iterate through log field item_assoc_entities, then item_assoc_entities_%{index} log field is mapped to the security_result.detection_fields.key UDM field and item_assoc_entities log field is mapped to the security_result.detection_fields.value UDM field.
item_assoc_entities_similarity (array[number] - vector of double)	security_result.detection_fields[item_assoc_entities_similarity]	Iterate through log field item_assoc_entities_similarity, then item_assoc_entities_similarity_%{index} log field is mapped to the security_result.detection_fields.key UDM field and item_assoc_entities_similarity log field is mapped to the security_result.detection_fields.value UDM field.
ignorable (boolean - bool)	security_result.detection_fields[ignorable]
history_days (integer - count)	security_result.detection_fields[history_days]
history (number - interval)	security_result.detection_fields[history]
nn1_entities (array[string] - vector of string)	additional.fields[nn1_entities]	Iterate through log field nn1_entities, then nn1_entities_%{index} log field is mapped to the additional.fields.key UDM field and nn1_entities log field is mapped to the additional.fields.value UDM field.
nn1_entity_similarity (number - double)	additional.fields[nn1_entity_similarity]
nn1_train_items (array[string] - vector of string)	additional.fields[nn1_train_item]	Iterate through log field nn1_train_items, then nn1_train_item_%{index} log field is mapped to the additional.fields.key UDM field and nn1_train_items log field is mapped to the additional.fields.value UDM field.
nn1_pred_items (array[string] - set[string])	additional.fields[nn1_pred_item]	Iterate through log field nn1_pred_items, then nn1_pred_item_%{index} log field is mapped to the additional.fields.key UDM field and nn1_pred_items log field is mapped to the additional.fields.value UDM field.
nn2_entities (array[string] - vector of string)	additional.fields[nn2_entities]	Iterate through log field nn2_entities, then nn2_entities_%{index} log field is mapped to the additional.fields.key UDM field and nn2_entities log field is mapped to the additional.fields.value UDM field.
nn2_entity_similarity (number - double)	additional.fields[nn2_entity_similarity]
nn2_train_items (array[string] - vector of string)	additional.fields[nn2_train_item]	Iterate through log field nn2_train_items, then nn2_train_item_%{index} log field is mapped to the additional.fields.key UDM field and nn2_train_items log field is mapped to the additional.fields.value UDM field.
nn2_pred_items (array[string] - set[string])	additional.fields[nn2_pred_item]	Iterate through log field nn2_pred_items, then nn2_pred_item_%{index} log field is mapped to the additional.fields.key UDM field and nn2_pred_items log field is mapped to the additional.fields.value UDM field.
nn3_entities (array[string] - vector of string)	additional.fields[nn3_entities]	Iterate through log field nn3_entities, then nn3_entities_%{index} log field is mapped to the additional.fields.key UDM field and nn3_entities log field is mapped to the additional.fields.value UDM field.
nn3_entity_similarity (number - double)	additional.fields[nn3_entity_similarity]
nn3_train_items (array[string] - vector of string)	additional.fields[nn3_train_item]	Iterate through log field nn3_train_items, then nn3_train_item_%{index} log field is mapped to the additional.fields.key UDM field and nn3_train_items log field is mapped to the additional.fields.value UDM field.
nn3_pred_items (array[string] - set[string])	additional.fields[nn3_pred_item]	Iterate through log field nn3_pred_items, then nn3_pred_item_%{index} log field is mapped to the additional.fields.key UDM field and nn3_pred_items log field is mapped to the additional.fields.value UDM field.
nn4_entities (array[string] - vector of string)	additional.fields[nn4_entities]	Iterate through log field nn4_entities, then nn4_entities_%{index} log field is mapped to the additional.fields.key UDM field and nn4_entities log field is mapped to the additional.fields.value UDM field.
nn4_entity_similarity (number - double)	additional.fields[nn4_entity_similarity]
nn4_train_items (array[string] - vector of string)	additional.fields[nn4_train_item]	Iterate through log field nn4_train_items, then nn4_train_item_%{index} log field is mapped to the additional.fields.key UDM field and nn4_train_items log field is mapped to the additional.fields.value UDM field.
nn4_pred_items (array[string] - set[string])	additional.fields[nn4_pred_item]	Iterate through log field nn4_pred_items, then nn4_pred_item_%{index} log field is mapped to the additional.fields.key UDM field and nn4_pred_items log field is mapped to the additional.fields.value UDM field.
nn5_entities (array[string] - vector of string)	additional.fields[nn5_entities]	Iterate through log field nn5_entities, then nn5_entities_%{index} log field is mapped to the additional.fields.key UDM field and nn5_entities log field is mapped to the additional.fields.value UDM field.
nn5_entity_similarity (number - double)	additional.fields[nn5_entity_similarity]
nn5_train_items (array[string] - vector of string)	additional.fields[nn5_train_item]	Iterate through log field nn5_train_items, then nn5_train_item_%{index} log field is mapped to the additional.fields.key UDM field and nn5_train_items log field is mapped to the additional.fields.value UDM field.
nn5_pred_items (array[string] - set[string])	additional.fields[nn5_pred_item]	Iterate through log field nn5_pred_items, then nn5_pred_item_%{index} log field is mapped to the additional.fields.key UDM field and nn5_pred_items log field is mapped to the additional.fields.value UDM field.
nn6_entities (array[string] - vector of string)	additional.fields[nn6_entities]	Iterate through log field nn6_entities, then nn6_entities_%{index} log field is mapped to the additional.fields.key UDM field and nn6_entities log field is mapped to the additional.fields.value UDM field.
nn6_entity_similarity (number - double)	additional.fields[nn6_entity_similarity]
nn6_train_items (array[string] - vector of string)	additional.fields[nn6_train_item]	Iterate through log field nn6_train_items, then nn6_train_item_%{index} log field is mapped to the additional.fields.key UDM field and nn6_train_items log field is mapped to the additional.fields.value UDM field.
nn6_pred_items (array[string] - set[string])	additional.fields[nn6_pred_item]	Iterate through log field nn6_pred_items, then nn6_pred_item_%{index} log field is mapped to the additional.fields.key UDM field and nn6_pred_items log field is mapped to the additional.fields.value UDM field.
nn7_entities (array[string] - vector of string)	additional.fields[nn7_entities]	Iterate through log field nn7_entities, then nn7_entities_%{index} log field is mapped to the additional.fields.key UDM field and nn7_entities log field is mapped to the additional.fields.value UDM field.
nn7_entity_similarity (number - double)	additional.fields[nn7_entity_similarity]
nn7_train_items (array[string] - vector of string)	additional.fields[nn7_train_item]	Iterate through log field nn7_train_items, then nn7_train_item_%{index} log field is mapped to the additional.fields.key UDM field and nn7_train_items log field is mapped to the additional.fields.value UDM field.
nn7_pred_items (array[string] - set[string])	additional.fields[nn7_pred_item]	Iterate through log field nn7_pred_items, then nn7_pred_item_%{index} log field is mapped to the additional.fields.key UDM field and nn7_pred_items log field is mapped to the additional.fields.value UDM field.
nn8_entities (array[string] - vector of string)	additional.fields[nn8_entities]	Iterate through log field nn8_entities, then nn8_entities_%{index} log field is mapped to the additional.fields.key UDM field and nn8_entities log field is mapped to the additional.fields.value UDM field.
nn8_entity_similarity (number - double)	additional.fields[nn8_entity_similarity]
nn8_train_items (array[string] - vector of string)	additional.fields[nn8_train_item]	Iterate through log field nn8_train_items, then nn8_train_item_%{index} log field is mapped to the additional.fields.key UDM field and nn8_train_items log field is mapped to the additional.fields.value UDM field.
nn8_pred_items (array[string] - set[string])	additional.fields[nn8_pred_item]	Iterate through log field nn8_pred_items, then nn8_pred_item_%{index} log field is mapped to the additional.fields.key UDM field and nn8_pred_items log field is mapped to the additional.fields.value UDM field.
nn9_entities (array[string] - vector of string)	additional.fields[nn9_entities]	Iterate through log field nn9_entities, then nn9_entities_%{index} log field is mapped to the additional.fields.key UDM field and nn9_entities log field is mapped to the additional.fields.value UDM field.
nn9_entity_similarity (number - double)	additional.fields[nn9_entity_similarity]
nn9_train_items (array[string] - vector of string)	additional.fields[nn9_train_item]	Iterate through log field nn9_train_items, then nn9_train_item_%{index} log field is mapped to the additional.fields.key UDM field and nn9_train_items log field is mapped to the additional.fields.value UDM field.
nn9_pred_items (array[string] - set[string])	additional.fields[nn9_pred_item]	Iterate through log field nn9_pred_items, then nn9_pred_item_%{index} log field is mapped to the additional.fields.key UDM field and nn9_pred_items log field is mapped to the additional.fields.value UDM field.
nn10_entities (array[string] - vector of string)	additional.fields[nn10_entities]	Iterate through log field nn10_entities, then nn10_entities_%{index} log field is mapped to the additional.fields.key UDM field and nn10_entities log field is mapped to the additional.fields.value UDM field.
nn10_entity_similarity (number - double)	additional.fields[nn10_entity_similarity]
nn10_train_items (array[string] - vector of string)	additional.fields[nn10_train_item]	Iterate through log field nn10_train_items, then nn10_train_item_%{index} log field is mapped to the additional.fields.key UDM field and nn10_train_items log field is mapped to the additional.fields.value UDM field.
nn10_pred_items (array[string] - set[string])	additional.fields[nn10_pred_item]	Iterate through log field nn10_pred_items, then nn10_pred_item_%{index} log field is mapped to the additional.fields.key UDM field and nn10_pred_items log field is mapped to the additional.fields.value UDM field.
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.

הפניה למיפוי שדות: CORELIGHT - ssdp

בטבלה הבאה מפורטים שדות היומן של סוג היומן ssdp והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
is_orig (boolean - bool)	additional.fields[is_orig]
operation (string)	additional.fields[operation]
host (string)	additional.fields[host]
usn (string)	additional.fields[usn]
target (string)	about.resource.name
target_sub (string)	additional.fields[target_sub]
location (string)	target.location.name
user_agent (string)	network.http.user_agent
server (string)	additional.fields[server]
man (string)	additional.fields[man]
mx (string)	additional.fields[mx]
cache_control (string)	additional.fields[cache_control]
remaining_header_names (array[string] - vector of string)	additional.fields[remaining_header_name]	Iterate through log field remaining_header_names, then remaining_header_name_%{index} log field is mapped to the additional.fields.key UDM field and remaining_header_names log field is mapped to the additional.fields.value UDM field.
remaining_header_values (array[string] - vector of string)	additional.fields[remaining_header_value]	Iterate through log field remaining_header_values, then remaining_header_value_%{index} log field is mapped to the additional.fields.key UDM field and remaining_header_values log field is mapped to the additional.fields.value UDM field.
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.

הפניה למיפוי שדות: CORELIGHT – telnet

בטבלה הבאה מפורטים שדות היומן של סוג היומן telnet והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
tn3270 (boolean - bool)	additional.fields[tn3270]
tn3270e (boolean - bool)	additional.fields[tn3270e]
terminal_type (string)	additional.fields[terminal_type]
terminal_speed (string)	additional.fields[terminal_speed]
x_display_location (string)	additional.fields[x_display_location]
environ_value_names (array[string] - vector of string)	additional.fields[environ_value_name]	Iterate through log field environ_value_names, then environ_value_name_%{index} log field is mapped to the additional.fields.key UDM field and environ_value_names log field is mapped to the additional.fields.value UDM field.
environ_value_values (array[string] - vector of string)	additional.fields[environ_value_value]	Iterate through log field environ_value_values, then environ_value_value_%{index} log field is mapped to the additional.fields.key UDM field and environ_value_values log field is mapped to the additional.fields.value UDM field.
tn3270e_device_type_request (string)	additional.fields[tn3270e_device_type_request]
tn3270e_device_type_request_associate (string)	additional.fields[tn3270e_device_type_request_associate]
tn3270e_device_type_request_connect (string)	additional.fields[tn3270e_device_type_request_connect]
tn3270e_device_type_is (string)	additional.fields[tn3270e_device_type_is]
tn3270e_device_type_is_associate (string)	additional.fields[tn3270e_device_type_is_associate]
tn3270e_device_type_is_connect (string)	additional.fields[tn3270e_device_type_is_connect]
data (string)	additional.fields[data]
	network.application_protocol	The network.application_protocol UDM field is set to TELNET.
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.

הפניה למיפוי שדות: CORELIGHT - websocket

בטבלה הבאה מפורטים שדות היומן של סוג היומן websocket והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
host (string)	target.hostname
uri (string)	target.url
user_agent (string)	network.http.user_agent
subprotocol (string)	additional.fields[subprotocol]
client_protocols (array[string] - vector of string)	additional.fields[client_protocol]	Iterate through log field client_protocols, then client_protocol_%{index} log field is mapped to the additional.fields.key UDM field and client_protocols log field is mapped to the additional.fields.value UDM field.
server_extensions (array[string] - vector of string)	additional.fields[server_extension]	Iterate through log field server_extensions, then server_extension_%{index} log field is mapped to the additional.fields.key UDM field and server_extensions log field is mapped to the additional.fields.value UDM field.
client_extensions (array[string] - vector of string)	additional.fields[client_extensions]	Iterate through log field client_extensions, then client_extension_%{index} log field is mapped to the additional.fields.key UDM field and client_extensions log field is mapped to the additional.fields.value UDM field.
	metadata.event_type	The metadata.event_type UDM field is set to NETWORK_CONNECTION.

הפניה למיפוי שדות: CORELIGHT – first_seen

בטבלה הבאה מפורטים שדות היומן של סוג היומן first_seen והשדות התואמים ב-UDM.

Log field	UDM mapping	Logic
use_case (string)	security_result.rule_name
use_case_description (string)	security_result.description
entity (string)	additional.fields[entity]
original_entity (string)	additional.fields[original_entity]
entity_training_items (array[string] - vector of string)	additional.fields[entity_training_item]	Iterate through log field entity_training_items, then entity_training_item_%{index} log field is mapped to the additional.fields.key UDM field and entity_training_item log field is mapped to the additional.fields.value UDM field.
item (string)	security_result.detection_fields[item]
first_seen_type (string - enum AnomalyDetection::AnomalyTypes)	security_result.detection_fields[first_seen_type]
history_days (integer - count)	security_result.detection_fields[history_days]
history (number - interval)	security_result.detection_fields[history]
	metadata.event_type	The metadata.event_type UDM field is set to GENERIC_EVENT.

הבדלים במיפוי UDM

הפניה לשינויים במיפוי UDM: Corelight

בטבלה הבאה מפורט הדלתא של מנתח ברירת המחדל של Corelight.

Log Name	Log Field	Previous UDM Mapping	Updated UDM Mapping
	uid	additional.fields[uid]	network.session_id
cip	direction	additional.fields[direction]	network.direction
cip	cip_status	additional.fields[cip_status]	security_result.description
etc_viz	c2s_viz.size	about.labels [c2s_viz_size]	network.sent_bytes
etc_viz	s2c_viz.size	about.labels [s2c_viz_size]	network.received_bytes
generic_dns_tunnels	capture_secs	about.labels [capture_secs]	network.session_duration
kerberos	request_type	principal.application	extensions.auth.auth_details
kerberos	error_msg	security_result.action_details	security_result.description
known_devices	protocols	entity.labels [protocol]	entity.network.application_protocol
known_domains	protocols	entity.labels [protocol]	entity.network.application_protocol
known_services	protocol	entity.labels [protocol]	entity.network.application_protocol
ldap	result	security_result.detection_fields [result]	security_result.action
ldap	object	about.labels [object]	target.resource.name
mqtt_connect	will_topic	about.labels [will_topic]	target.resource.name
mqtt_publish	topic	about.labels [topic]	target.resource.name
mqtt_subscribe	topics	about.labels [topics]	target.resource.name
mqtt_subscribe	ack	security_result.detection_fields [ack]	security_result.action
pe	compile_ts	about.labels [compile_ts]	target.file.pe_file.compilation_time
pe	section_names	about.labels [section_names]	target.file.pe_file.section
radius	reply_msg	about.labels [reply_msg]	extensions.auth.auth_details
radius	result	extensions.auth.auth_details	security_result.action
rdp	cookie	about.labels [cookie]	principal.user.userid
rdp	client_build	principal.labels [client_build]	principal.asset.software.version
rdp	client_dig_product_id	principal.labels [client_dig_product_id ]	principal.asset.product_object_id
rdp	auth_success	about.labels [auth_success]	security_result.action
smtp	helo	target.domain.name	network.smtp.helo
smtp	path	intermediary.ip	network.smtp.message_path
smtp	user_agent	about.labels [user_agent]	principal.application
snmp	up_since	about.labels [up_since]	target.asset.last_boot_time
socks	version	about.labels [version]	network.application_protocol_version
specific_dns_tunnels	detection	security_result.detection_fields [detection]	security_result.description
ssh	client	principal.application	principal.asset.software.version
ssh	server	target.application	target.asset.software.version
ssh	host_key_alg	security_result.detection_fields [host_key_alg]	network.tls.server.certificate.version
ssh	host_key	security_result.detection_fields [host_key]	network.tls.server.certificate.sha256
ssh	inferences	security_result.summary, security_result.description	security_result.summary, security_result.description, security_result.detection_fields
ssl	validation_status	security_result.detection_fields [validation_status]	security_result.description
ssl_red	validation_status	security_result.detection_fields [validation_status]	security_result.description
stepping	server1_h	target.ip	intermediary.ip
stepping	server1_p	target.port	intermediary.port
stepping	client2_h	principal.ip	intermediary.ip
stepping	client2_p	principal.labels [client2_p]	intermediary.port
stepping	server2_h	target.labels [server2_h]	target.ip
stepping	server2_p	target.labels [server2_p]	target.port
suricata_corelight	alert.rev	security_result.detection_fields [alert_rev]	security_result.rule_version
suricata_corelight	alert.metadata	security_result.detection_fields [alert_metadata]	security_result.rule_labels
suricata_corelight	metadata	security_result.detection_fields [alert_metadata]	security_result.rule_labels
syslog	severity	about.labels [severity]	security_result.severity, security_result.severity_details
vpn	inferences	about.labels [inference]	metadata.description
vpn	client_info	principal.labels [client_info]	network.http.user_agent
weird	name	about.labels [name]	metadata.product_event_type
weird	addl	about.labels [addl]	metadata.description
weird	peer	about.labels [peer]	observer.hostname
weird	source	about.labels [source]	metadata.product_name
x509	fingerprint	about.labels [fingerprint]	about.domain.last_https_certificate.thumbprint
x509	certificate.version	network.tls.server.certificate.version	about.domain.last_https_certificate.version
x509	certificate.serial	network.tls.server.certificate.serial	about.domain.last_https_certificate.serial_number
x509	certificate.subject	network.tls.server.certificate.subject	about.domain.last_https_certificate.subject.common_name
x509	certificate.issuer	network.tls.server.certificate.issuer	about.domain.last_https_certificate.issuer
x509	certificate.not_valid_before	network.tls.server.certificate.not_before	about.domain.last_https_certificate.validity.issue_time
x509	certificate.not_valid_after	network.tls.server.certificate.not_after	about.domain.last_https_certificate.validity.expiry_time
x509	certificate.key_alg	about.labels [certificate_key_alg]	about.labels [public_key_algorithm]
x509	certificate.sig_alg	about.labels [certificate_sig_alg]	about.domain.last_https_certificate.signature_algorithm
x509	certificate.key_type	about.labels [certificate_key_type]	about.domain.last_https_certificate.public_key.algorithm
x509	certificate.key_length	about.labels [certificate_key_length]	about.domain.last_https_certificate.public_key.rsa.key_size
x509	certificate.exponent	about.labels [certificate_exponent]	about.domain.last_https_certificate.public_key.rsa.exponent
x509	certificate.curve	network.tls.curve	about.domain.last_https_certificate.ec.oid
x509	san.dns	about.labels [san_dns]	about.domain.last_https_certificate.extension.subject_alternative_name
x509	basic_constraints.ca	about.labels [basic_constraints_ca]	about.domain.last_https_certificate.extension.ca
x509_red	fingerprint	about.labels [fingerprint]	about.domain.last_https_certificate.thumbprint
x509_red	certificate.version	network.tls.server.certificate.version	about.domain.last_https_certificate.version
x509_red	certificate.serial	network.tls.server.certificate.serial	about.domain.last_https_certificate.serial_number
x509_red	certificate.subject	network.tls.server.certificate.subject	about.domain.last_https_certificate.subject.common_name
x509_red	certificate.issuer	network.tls.server.certificate.issuer	about.domain.last_https_certificate.issuer
x509_red	certificate.not_valid_before	network.tls.server.certificate.not_before	about.domain.last_https_certificate.validity.issue_time
x509_red	certificate.not_valid_after	network.tls.server.certificate.not_after	about.domain.last_https_certificate.validity.expiry_time
x509_red	certificate.key_alg	about.labels [certificate_key_alg]	about.labels [public_key_algorithm]
x509_red	certificate.sig_alg	about.labels [certificate_sig_alg]	about.domain.last_https_certificate.signature_algorithm
x509_red	certificate.key_type	about.labels [certificate_key_type]	about.domain.last_https_certificate.public_key.algorithm
x509_red	certificate.key_length	about.labels [certificate_key_length]	about.domain.last_https_certificate.public_key.rsa.key_size
x509_red	certificate.exponent	about.labels [certificate_exponent]	about.domain.last_https_certificate.public_key.rsa.exponent
x509_red	certificate.curve	network.tls.curve	about.domain.last_https_certificate.ec.oid
x509_red	san.dns	about.labels [san_dns]	about.domain.last_https_certificate.extension.subject_alternative_name
x509_red	basic_constraints.ca	about.labels [basic_constraints_ca]	about.domain.last_https_certificate.extension.ca

המאמרים הבאים

• העברת נתונים אל Google Security Operations

שנה רישום

צפייה ביומן השינויים של כלי הניתוח הזה

הבעיה עדיין לא נפתרה? קבלת תשובות מחברי הקהילה וממומחי Google SecOps.
