Pre-migration validation guide

Supported in:

Google secops SOAR

This document outlines a systematic, step-by-step diagnostic approach for validating the Google Security Operations instance and authentication setup before SOAR migration. This guide focuses on the SAML standard that is used for user authentication and authorization.

Chronicle API setup validation

To check if Chronicle API is correctly configured in your Google Cloud project, follow these steps:

1. Sign in to the Google Cloud console and select the correct Google Cloud project from the project list in the top navigation bar.
2. Open the navigation menu (≡) and go to APIs & Services > Enabled APIs & services.
3. Go to the list of Enabled APIs & Services to find Chronicle API.

4. If it is listed: The API is enabled.

   If it is NOT listed: Click + ENABLE APIS AND SERVICES at the top, search for Chronicle API, and click Enable.

To verify whether the Service Account is created, do the following:

1. Go to the IAM Page in the Google Cloud console.
2. Reveal hidden accounts (crucial step): You must select the box on the right side of the filter bar that says Include Google-provided role grants.
3. Search for the agent: In the filter bar, type chronicle. You're looking for an email address that matches this specific pattern: service-[PROJECT_NUMBER]@gcp-sa-chronicle.iam.gserviceaccount.com
4. Verify permissions: Ensure it has the role of Chronicle Service Agent. If the role is missing, click edit Edit and add it back.

Authentication workflow architecture

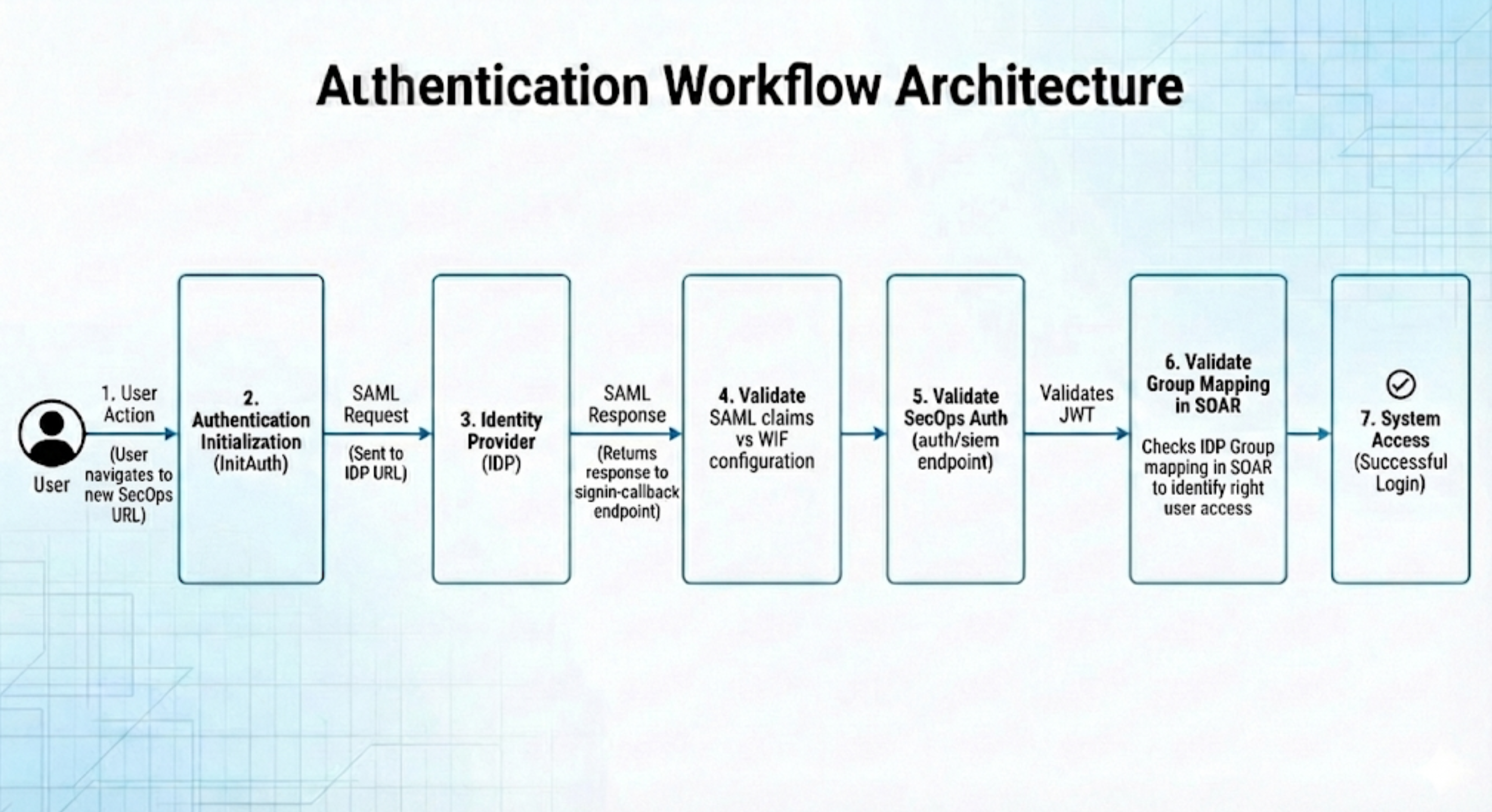

Understanding the request flow is critical for isolating any failure points. The following diagram illustrates the sequential path of a successful login.

Step-by-step troubleshooting procedure

To diagnose and trace the SAML authentication process effectively, you can use the web-based utilities listed in the following sections.

Although Google does not endorse any particular product, the following tools are known to aid in troubleshooting the process:

• SAML validation: https://www.samltool.io/
  • Purpose: Used to decode and validate raw SAML requests and responses.
• JWT inspection: https://www.jwt.io/
  • Purpose: Used to inspect the claims and contents of JSON Web Tokens (JWTs).

Phase 1: Environment preparation

Before beginning, do the following to ensure that your browser environment is ready to capture network traffic:

1. Open a new, blank browser tab.
2. Open Developer Tools (press F12 or Ctrl + Shift + I (Windows /Linux) or Cmd + Option + I (macOS)) and navigate to the Network tab.

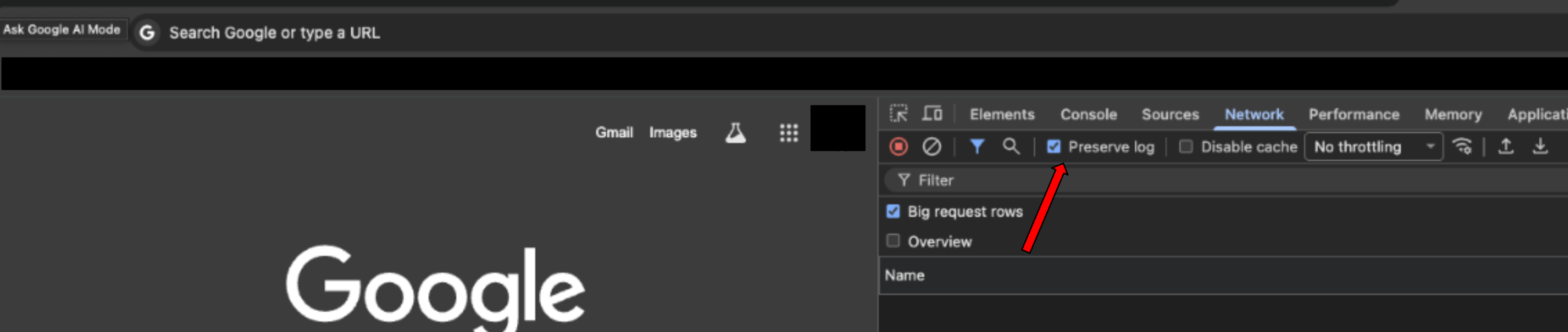

3. Select the Preserve log box to ensure no data is lost during redirects.



4. Navigate to your Google SecOps environment URL to initiate the login flow. You will receive this URL through email after you complete Google SecOps setup in Step 5 of Migration stage 1 for SOAR standalone customers. The Subject of the email is YourGoogle SecOps instance is ready.

Phase 2: Validate the SAML request to IDP

This step verifies the initial message sent by Google Cloud to your Identity Provider (IDP).

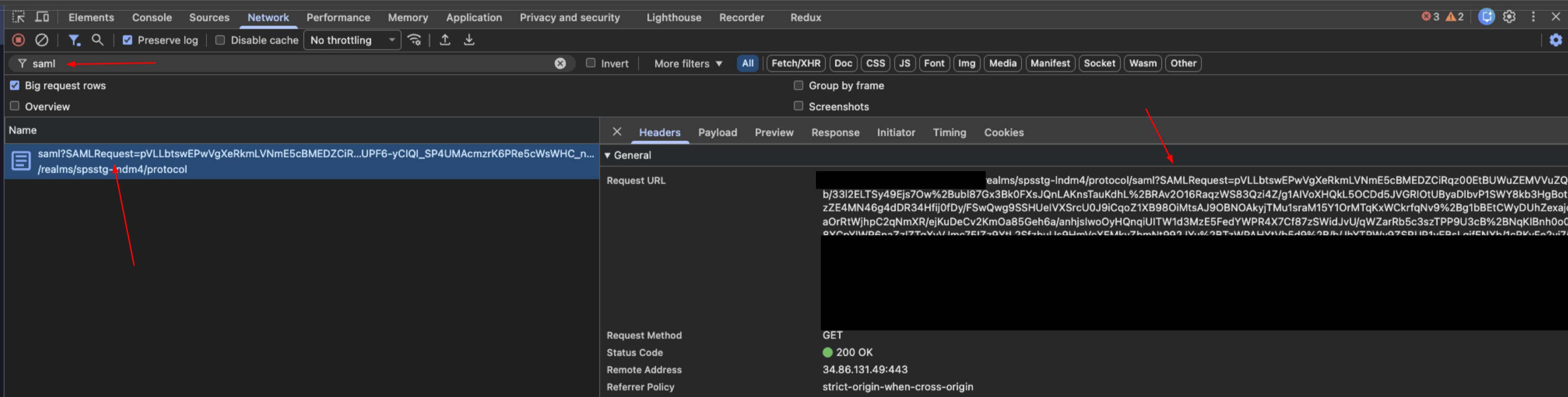

1. Locate the request: In the Network tab filter bar, search for saml.

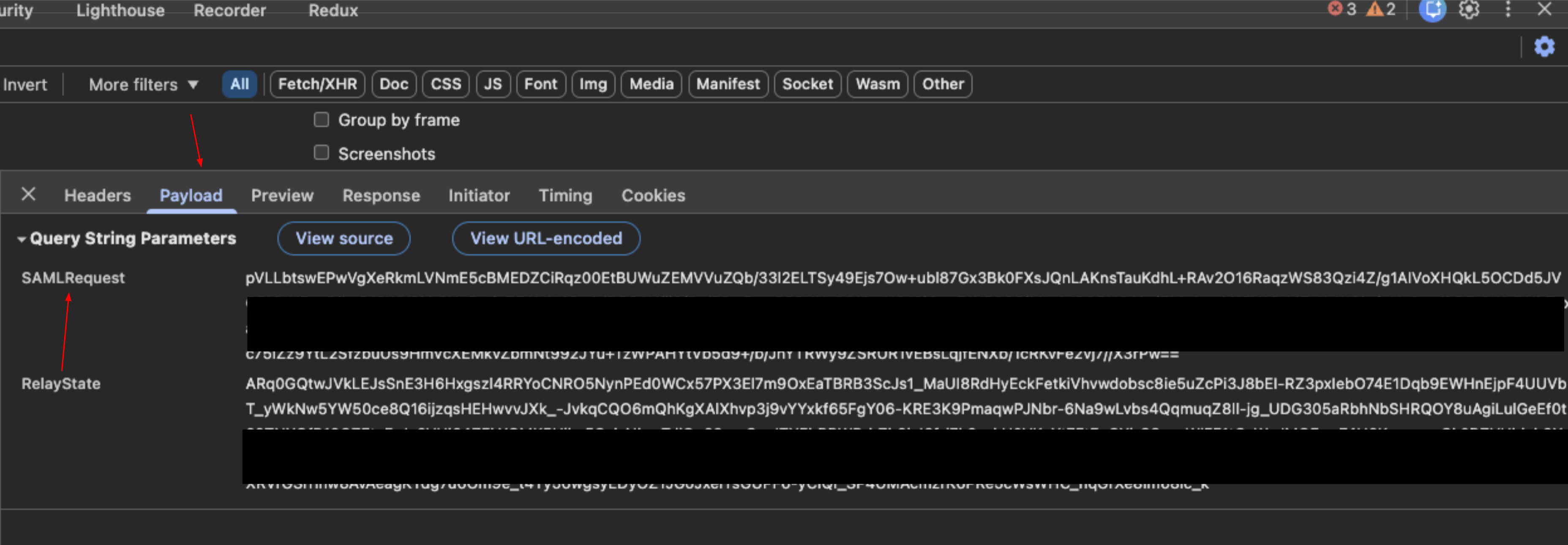

2. Extract data: Select the request and click the Payload tab. Locate the query string parameter labeled SAMLRequest.

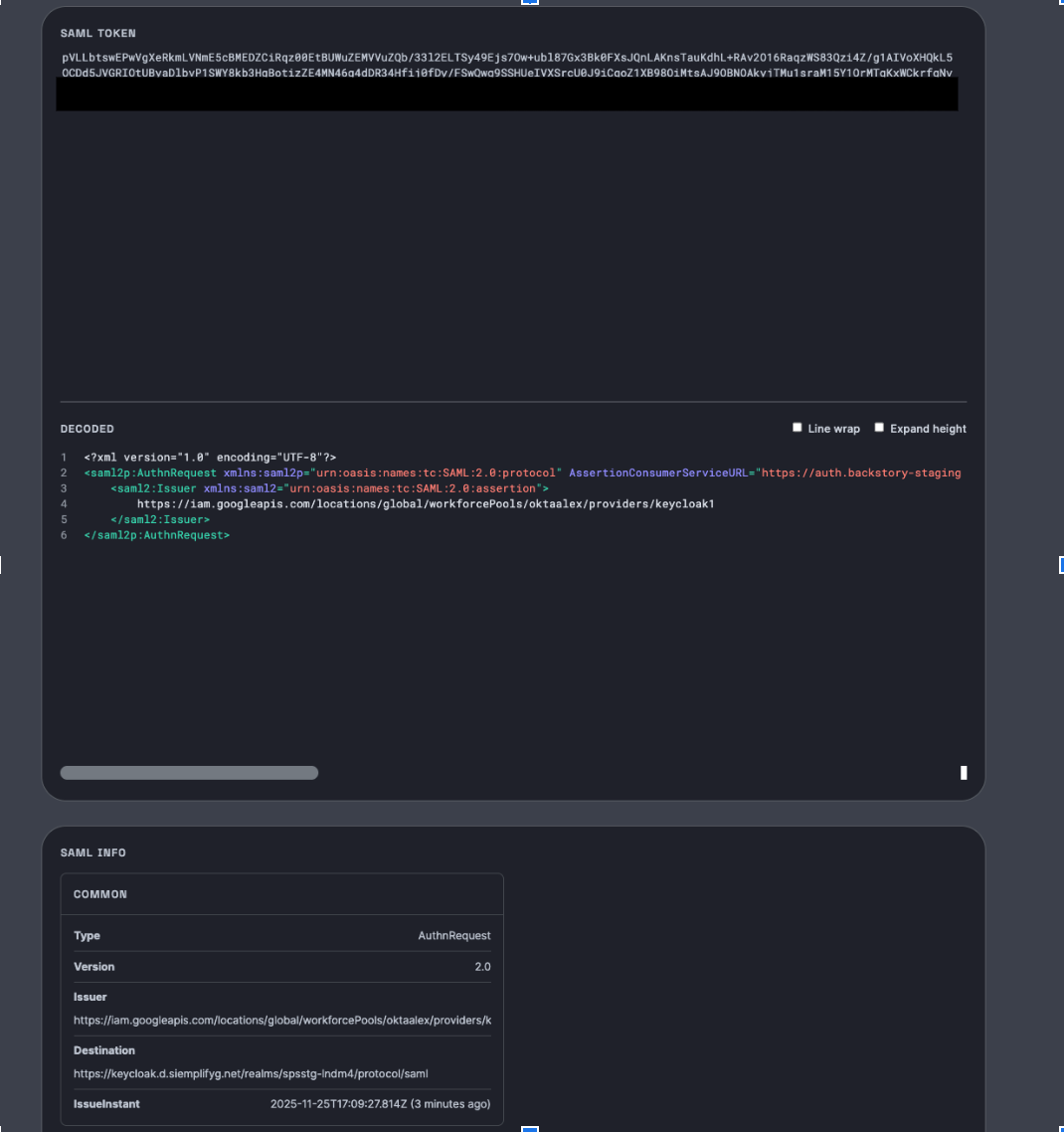

3. Decode: Copy the request value and paste it into the SAML Validation tool (samltool.io) to decode it.



4. Verification:

   • Check the Request Destination.
   • Confirm this URL matches the configuration settings within your IDP.

Phase 3: Validate the SAML response from IDP

This step verifies the attributes returned by the IDP to Google Cloud after authentication.

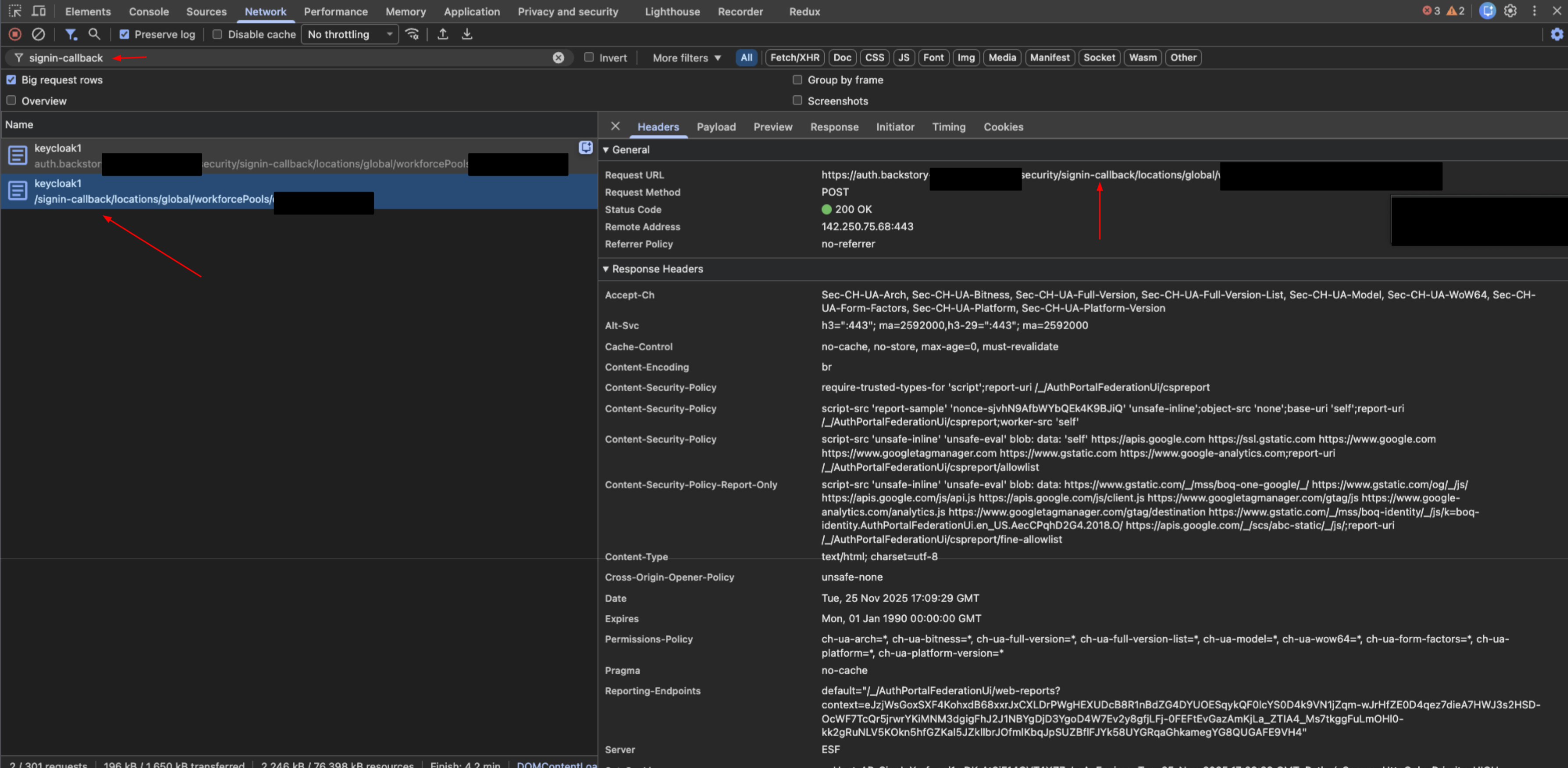

1. Locate the response: In the Network tab filter bar, search for signin-callback.

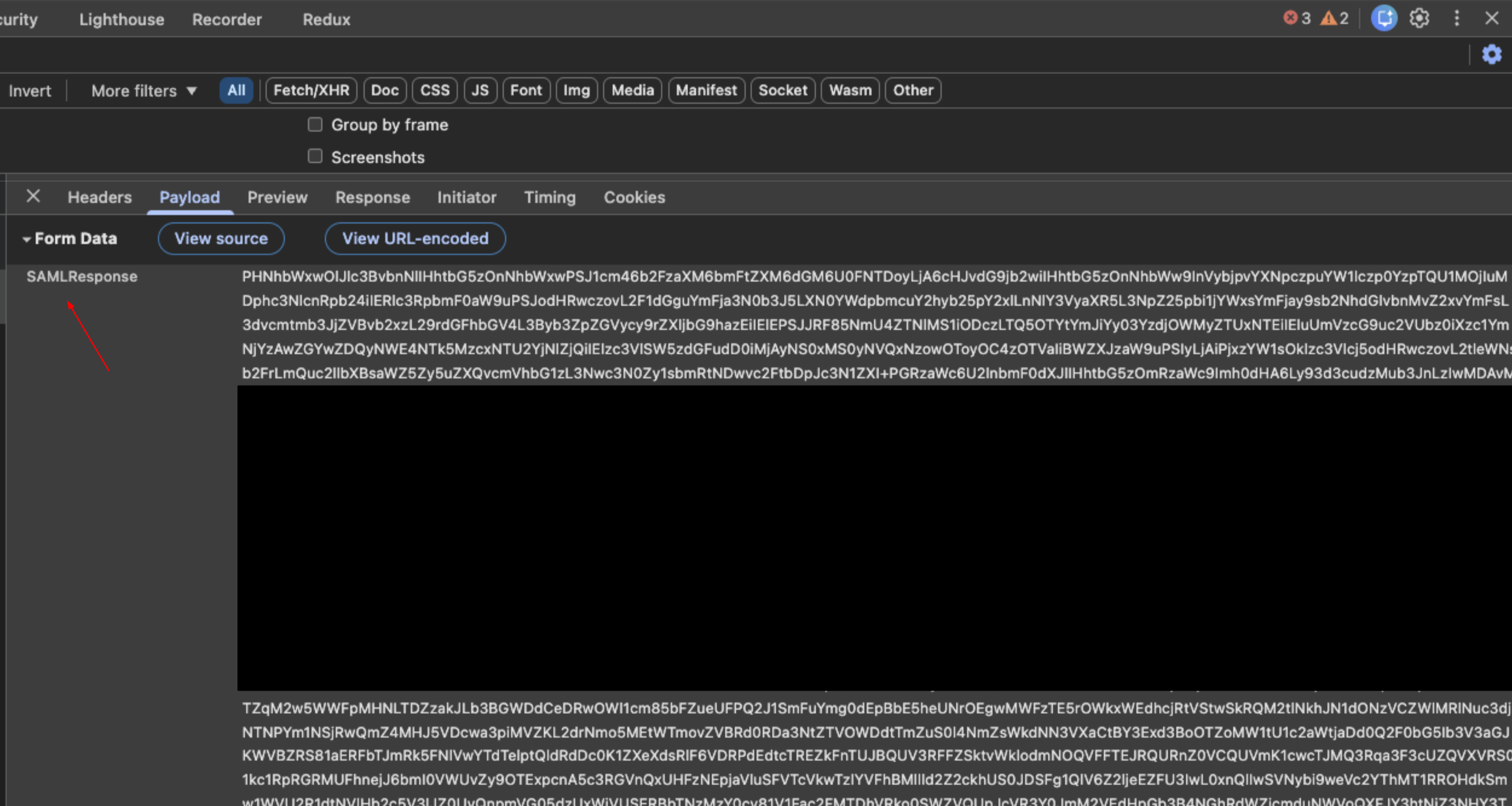

2. Extract data: Select the request and click the Payload tab. Locate the SAMLResponse data.



3. Decode: Copy the response value and paste it into the SAML Validation tool.

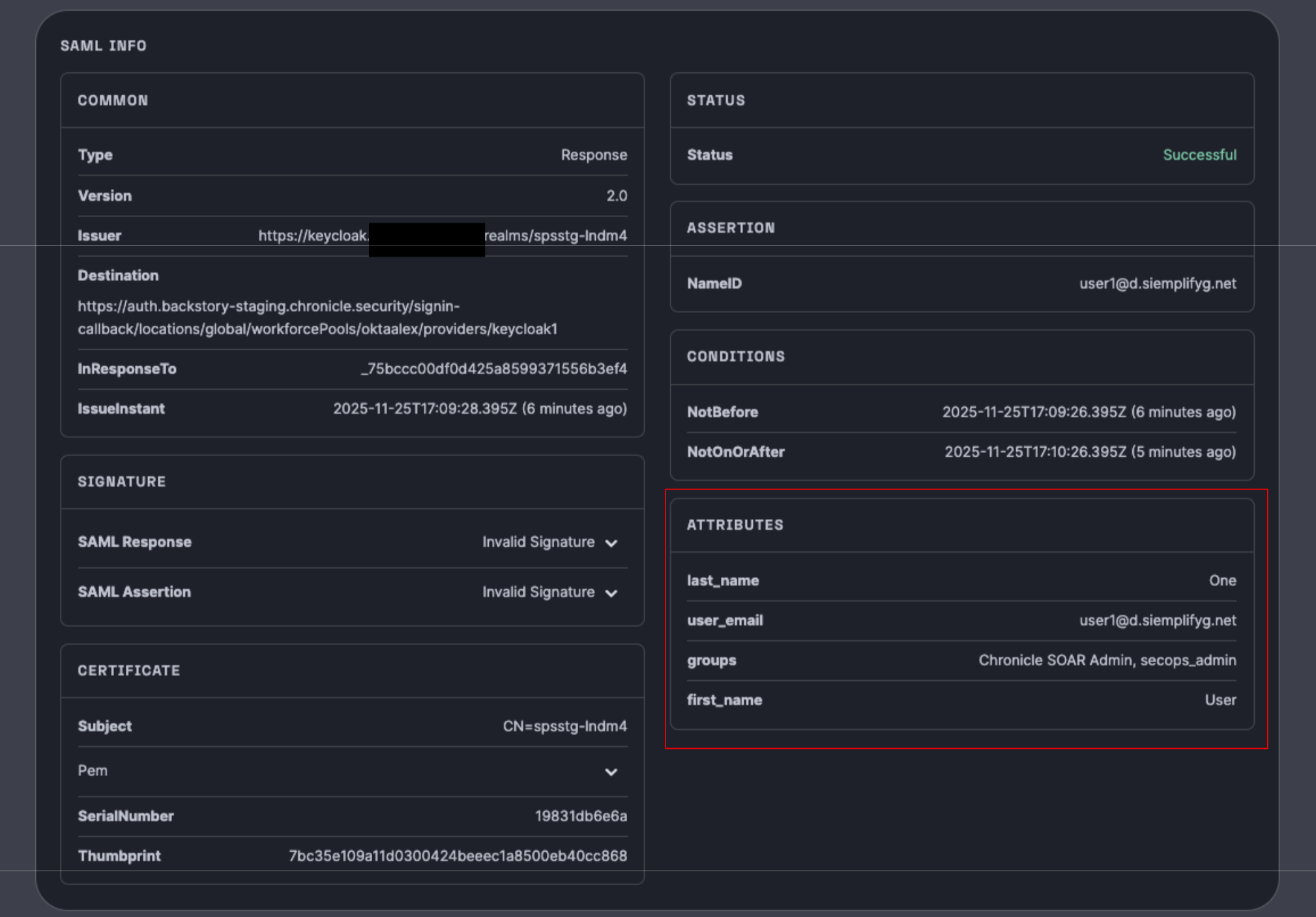

4. Verification:

   • Review the returned claims (attributes) such as groups, first name, last name, and email.
   • Critical: Ensure these attributes match the configuration in the Workforce pool settings in Google Cloud.

   • Confirm the values are correct for the specific user attempting to log in.

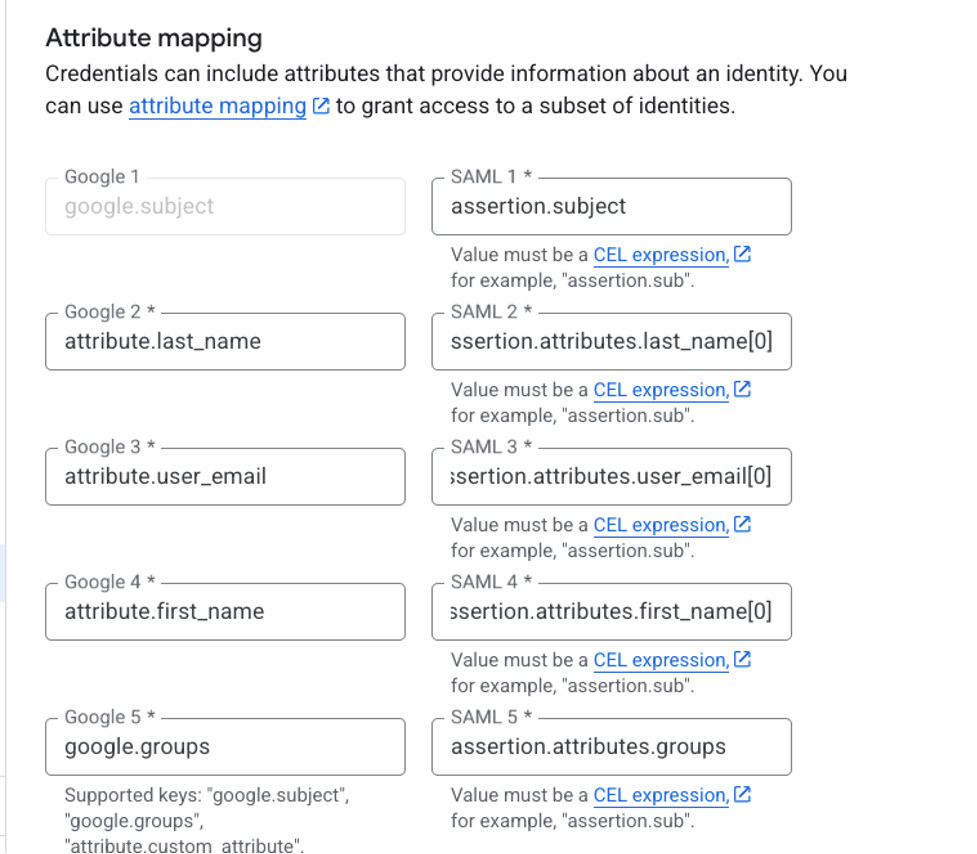

The following image shows an attribute mapping:

The mapping in the image is as follows:

• google.subject = assertion.subject
• attribute.last_name = assertion.attributes.last_name[0]
• attribute.user_email = assertion.attributes.user_email[0]
• attribute.first_name = assertion.attributes.first_name[0]
• google.groups = assertion.attributes.groups

The left part is always the same; it's the Google syntax. The right side is according to the claim Attribute keys shown in the SAML response.

The [0] is critical for the specific attributes stated (last_name, user_email , first_name), and not relevant for subject and groups.

Phase 4: Validate the Google SecOps authentication

This step verifies whether Google Cloud is authenticating the user to log in to Google SecOps SOAR.

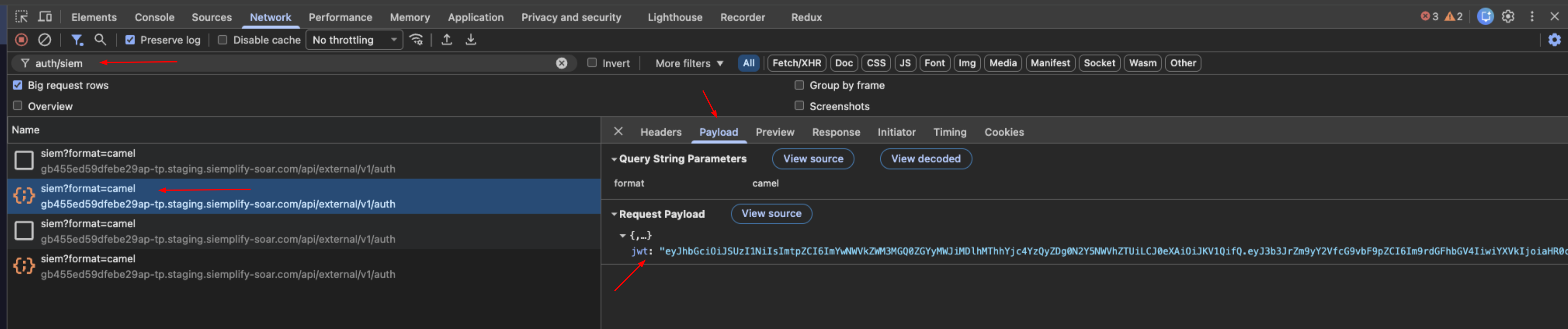

1. Locate the token in the user's browser: In the Network tab filter bar, search for the endpoint auth/siem.



2. Extract data: Select the request and view the Payload tab. Locate the jwt string.

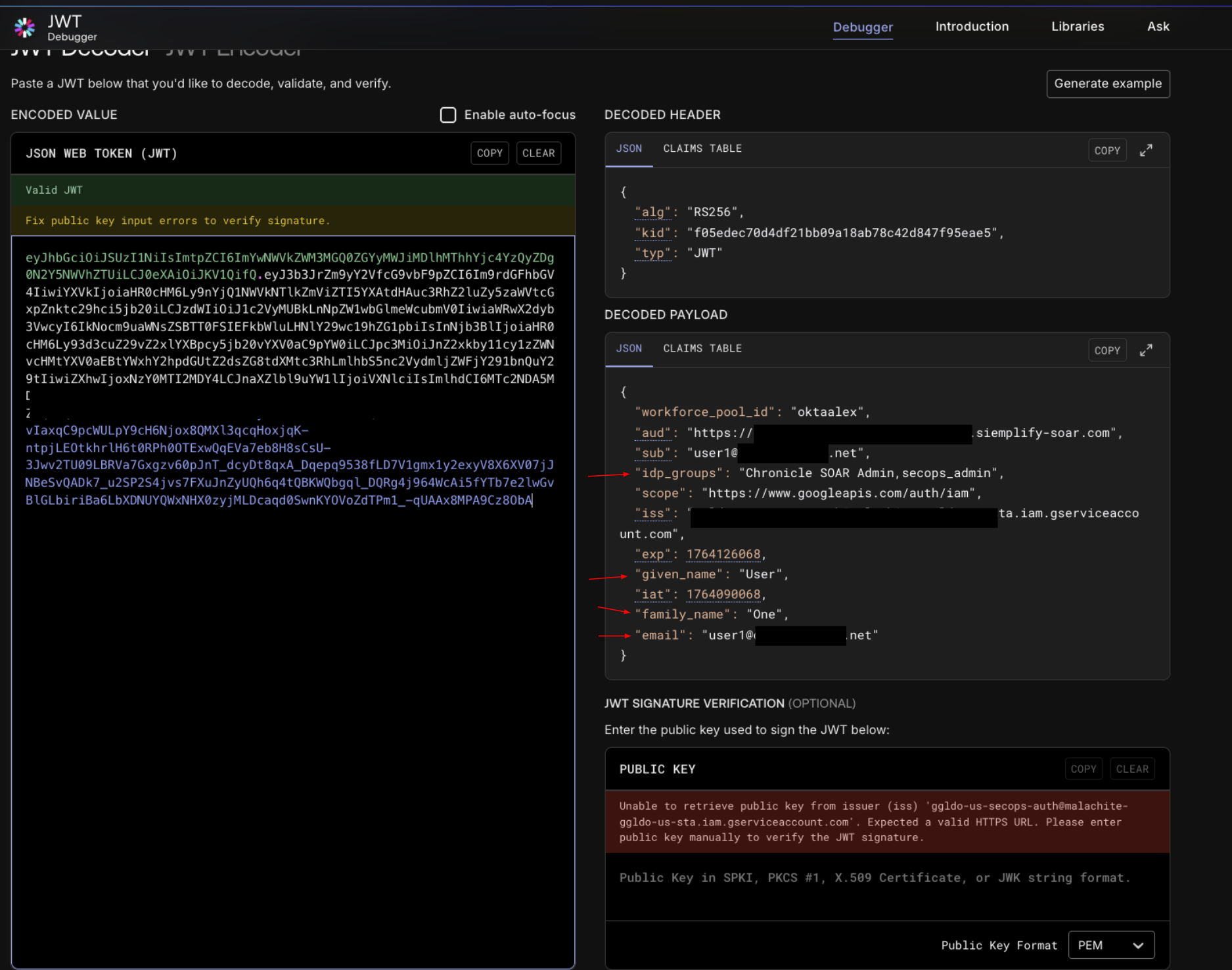

3. Decode: Copy the JWT string and paste it into the JWT Inspection tool (jwt.io).



4. Verification:

   • Compare the decoded claims for given_name, family_name, email, and idpgroups.
   • Match confirmation: These values must exactly match the attributes validated in Phase 3 (SAML Response).
   • If the values match and you still don't have access, then check the roles assignment in IAM. Make sure all of your users are assigned one of the Chronicle predefined roles by using the correct principal format for your Identity setup (Workforce Identity Federation or Cloud Identity for Google Managed Accounts).
