Menyamarkan data pengguna untuk analisis

Fitur ini memungkinkan Anda menyamarkan data sebelum mengirimkannya sebagai bagian dari payload analisis. Dengan fitur ini, Apigee menggunakan SHA512 untuk melakukan hashing pada nilai asli sebelum berkomunikasi dari bidang runtime ke bidang kontrol.

Prosedur

Aktifkan fitur ini dengan menetapkan features.analytics.data.obfuscation.enabled ke true.

curl -v -X PUT \
   https://apigee.googleapis.com/v1/organizations/YOUR_ORG_NAME/environments/YOUR_ENV_NAME \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $TOKEN" \
  -d '{
  "name" : "YOUR_ENV_NAME",
  "properties" : {
    "property" : [ {
      "name" : "features.analytics.data.obfuscation.enabled",
      "value" : "true"
    },]
  }
}'

Dengan pengaburan diaktifkan, Apigee Hybrid akan melakukan hashing pada kolom berikut dengan SHA512 di bidang runtime sebelum mengirimkan informasi ke backend analisis:

  • client_id
  • client_ip
  • developer_email
  • proxy_client_ip
  • proxy_pathsuffix
  • request_uri
  • request_path
  • target_basepath
  • target_url
  • x_forwarded_for_ip
  • x-apigee.edge.true_client_ip
  • x-apigee.intelligence.client_ip_header

Apigee Hybrid akan melakukan hashing pada nilai dimensi berikut dalam laporan analisis kustom:

  • ID Klien
  • Alamat IP Klien
  • Email Developer
  • IP Klien Proxy
  • Akhiran Jalur Proxy
  • IP Klien yang Dirujuk
  • Jalur Permintaan
  • URI Permintaan
  • IP Klien yang Diselesaikan
  • Jalur Dasar Target
  • URL Target
  • X Forwarded For

Lihat Referensi metrik, dimensi, dan filter Analytics untuk mengetahui deskripsi mendetail tentang dimensi Analytics.

Melihat hasil yang di-obfuscate

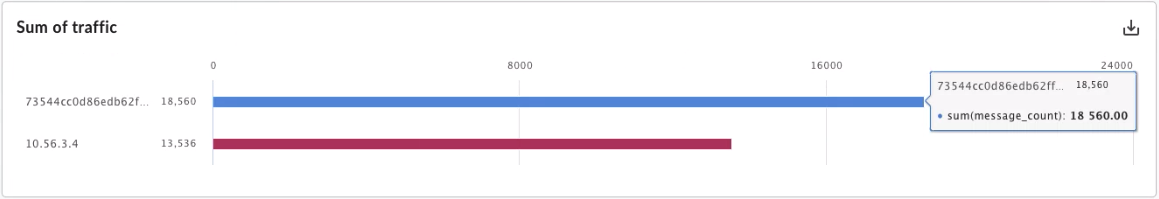

Hasil yang di-obfuscate ditampilkan di dasbor analisis hybrid Apigee. Mungkin perlu waktu beberapa menit sebelum Anda melihat hasil yang di-hash di UI.

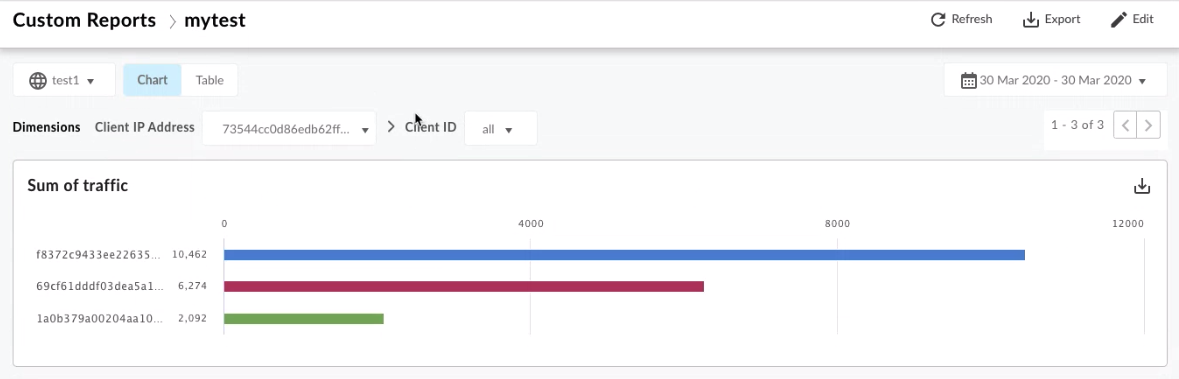

Laporan kustom yang menampilkan data pengguna yang di-hash

Contoh

Contoh berikut menunjukkan data sebelum dan sesudah di-obfuscate:

// JSON data sent to AX before obfuscating
{
   "proxy_basepath":"/APP_NAME",
   "x-apigee.edge.execution.stats.request_flow_endtimestamp":1582770652814,
   "apiproxy":"APP_NAME",
   "x-apigee.edge.is_policy_error":0,
   "client_sent_start_timestamp":1582770652817,
   "x-apigee.edge.is_target_error":0,
   "client_received_start_timestamp":1582770652813,
   "client_ip":"10.10.0.99",
   "is_error":false,
   "x-apigee.edge.stats.steps":"{\"JS1.0\":1}",
   "request_size":0,
   "x-apigee.intelligence.client_ip_header":"10.10.0.99",
   "virtual_host":"default",
   "x-apigee.edge.mp_host":"mp",
   "sla":false,
   "x-apigee.intelligence.service":"{}",
   "client_sent_end_timestamp":1582770652817,
   "request_uri":"/APP_NAME",
   "proxy":"default",
   "proxy_client_ip":"10.10.0.99",
   "x-apigee.edge.dn.region":"dc-1",
   "apigee.edge.execution.is_apigee_fault":0,
   "x-apigee.edge.target.latency.stats":"{\"targetList\":[]}",
   "useragent":"Apache-HttpClient/4.3.6 (java 1.5)",
   "proxy_pathsuffix":"",
   "x-apigee.edge.execution.stats.request_flow_start_timestamp":1582770652814,
   "x_forwarded_for_ip":"10.10.0.99",
   "x_forwarded_proto":"http",
   "response_status_code":200,
   "request_verb":"GET",
   "x-apigee.edge.execution.stats.response_flow_end_timestamp":1582770652816,
   "gateway_source":"message_processor",
   "environment":"env_82hw",
   "client_received_end_timestamp":1582770652814,
   "organization":"Org_1582769880344",
   "x-apigee.edge.execution.stats.response_flow_start_timestamp":1582770652814,
   "request_path":"/APP_NAME",
   "gateway_flow_id":"rt-8644-188-1",
   "apiproxy_revision":"1"
}

// JSON data sent to AX after obfuscating
{
   "proxy_basepath":"/APP_NAME",
   "x-apigee.edge.execution.stats.request_flow_endtimestamp":1582749361836,
   "apiproxy":"APP_NAME",
   "x-apigee.edge.is_policy_error":0,
   "client_sent_start_timestamp":1582749361884,
   "x-apigee.edge.is_target_error":0,
   "client_received_start_timestamp":1582749361790,
   "client_ip":"090cdae81ea6e58e55093f702661cf2325cef6a68aa801f1209e73bb0649c2b931bcad468911da887a42ce1d1daee07b24933e3dbbde6eb7438cfc9020a25445",
   "is_error":false,
   "x-apigee.edge.stats.steps":"{\"JS1.0\":30}",
   "request_size":0,
   "x-apigee.intelligence.client_ip_header":"090cdae81ea6e58e55093f702661cf2325cef6a68aa801f1209e73bb0649c2b931bcad468911da887a42ce1d1daee07b24933e3dbbde6eb7438cfc9020a25445",
   "virtual_host":"default",
   "x-apigee.edge.mp_host":"mp",
   "sla":false,
   "x-apigee.intelligence.service":"{}",
   "client_sent_end_timestamp":1582749361886,
   "request_uri":"0176937d9c4a33094d3c3f38ac8b15fa05dd6380a6bb544e4002c98de9f27bdbfea754901b0acb487f4980b09f7d312ad1e7027b96b2c8bfd8b9c24e833fbb5a",
   "proxy":"default",
   "proxy_client_ip":"090cdae81ea6e58e55093f702661cf2325cef6a68aa801f1209e73bb0649c2b931bcad468911da887a42ce1d1daee07b24933e3dbbde6eb7438cfc9020a25445",
   "x-apigee.edge.dn.region":"dc-1",
   "apigee.edge.execution.is_apigee_fault":0,
   "x-apigee.edge.target.latency.stats":"{\"targetList\":[]}",
   "useragent":"Apache-HttpClient/4.3.6 (java 1.5)",
   "proxy_pathsuffix":"cf83e1357eefb8bdf1542850d66d8007d620e4050b5715dc83f4a921d36ce9ce47d0d13c5d85f2b0ff8318d2877eec2f63b931bd47417a81a538327af927da3e",
   "x-apigee.edge.execution.stats.request_flow_start_timestamp":1582749361833,
   "x_forwarded_for_ip":"090cdae81ea6e58e55093f702661cf2325cef6a68aa801f1209e73bb0649c2b931bcad468911da887a42ce1d1daee07b24933e3dbbde6eb7438cfc9020a25445",
   "x_forwarded_proto":"http",
   "response_status_code":200,
   "request_verb":"GET",
   "x-apigee.edge.execution.stats.response_flow_end_timestamp":1582749361874,
   "gateway_source":"message_processor",
   "environment":"env_xj25",
   "client_received_end_timestamp":1582749361821,
   "organization":"Org_1582749068984",
   "x-apigee.edge.execution.stats.response_flow_start_timestamp":1582749361836,
   "request_path":"0176937d9c4a33094d3c3f38ac8b15fa05dd6380a6bb544e4002c98de9f27bdbfea754901b0acb487f4980b09f7d312ad1e7027b96b2c8bfd8b9c24e833fbb5a",
   "gateway_flow_id":"rt-6290-57-1",
   "apiproxy_revision":"1"
}
