Manage security profiles for multiple Apigee organizations and gateways

This page applies to Apigee and Apigee hybrid.

This page describes how to create and manage security profiles for your Apigee Advanced API Security add-on in API hub.

A security profile defines the criteria for calculating API risk scores. By configuring the type and weight of specific security assessments, security profiles provide granular control over your organization's security posture.

With Apigee Advanced API Security's multi-gateway support, you can manage security profiles from a single, centralized location and apply them consistently across all your connected Apigee projects, environments, and gateways. This ensures that all your APIs are evaluated against the same security standards, regardless of where they are deployed.

A default security profile, google-default, is provided. It includes the essential security checks that are required for risk assessment. You can create custom security profiles based on the default profile or including any of the available assessments to further refine the security posture of your organization.

Before you begin

Enable and configure the Apigee Advanced API Security add-on for your API hub instance. For more information, see Configure Apigee Advanced API Security for multiple Apigee organizations and gateways.
Grant the required IAM roles and permissions to your principal account. For more information, see IAM roles and permissions.

View security profiles

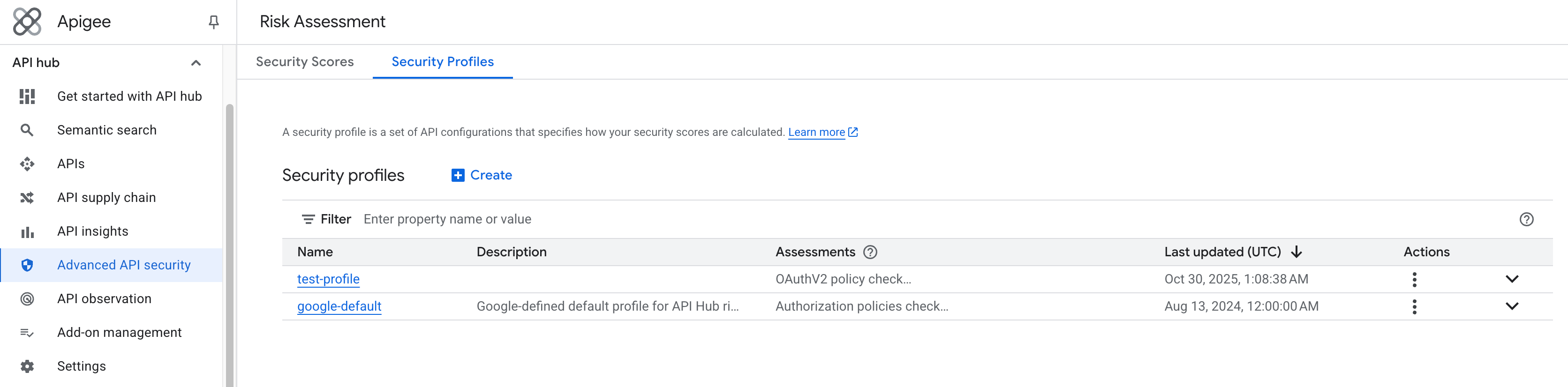

You can view the list of all security profiles, both default and custom, that are available across your API hub instance.

Console

To view the list of available security profiles, go to the API hub > Risk assessment page and select the Security profiles tab.

To view the complete details of a specific security profile, click the name of the profile. The following security profile details are displayed:

Description: the description of the security profile.
Last updated (UTC): the date and time when the security profile was last modified.
Profile type: the type of the security profile. The supported types are Google-default and User-defined.
Security scores: a link to the Security scores page, where you can view the risk assessment security scores calculated using the security profile.
Assessments configurations: the list of assessments and checks that are included in the security profile, along with their assigned weights and gateway types.

REST

To view the list of security profiles, make a GET request to the securityProfilesV2 API.

curl -H "Authorization: Bearer $(gcloud auth print-access-token)"
"https://apigee.googleapis.com/v1/organizations/APIGEE_ORG/securityProfilesV2?risk_assessment_type=API_HUB"

To view the complete details of a specific security profile, make a GET request as follows:

curl -H "Authorization: Bearer $(gcloud auth print-access-token)"
"https://apigee.googleapis.com/v1/organizations/APIGEE_ORG/securityProfilesV2/PROFILE_ID?risk_assessment_type=API_HUB"

Replace the following:

APIGEE_ORG: Name of the Apigee organization provisioned in your Google Cloud project.
PROFILE_ID: The name of the security profile.

Create a security profile

Create custom security profiles to tailor risk evaluation to your organization's specific standards and apply them across your API landscape. For more information about custom security profiles, see Security profiles v2.

Console

To create a custom security profile, do the following:

In the Google Cloud console, go to the API hub > Risk assessment page.
Go to Risk assessment
In the Risk assessment page, click the Security profiles tab.
Click Create.
The Create security profile page appears.
Enter a Name and Description for the security profile.
Note: Security profile names can't be duplicated between your API hub instance and your Apigee organizations. Ensure each profile has a unique name regardless of where it is created.
In the Assessments and checks section, configure the assessment checks that you want to include in the security profile:
Important: Assessment checks are gateway-independent; however, some configuration options are not supported by every gateway type. Including assessment checks for unsupported configuration options won't result in an error, but it can impact your overall security score calculation. For more information, see Scoring behavior for unsupported assessment checks.
- Assessment: choose the assessments you want to include in the profile. For the list of available assessments, see Supported assessment categories and checks.
- Weight: assign Minor, Moderate, or Major to determine the assessment check's significance in the overall security score calculation (Minor=1 point, Moderate=5 points, Major=15 points).
- Gateway types: select the gateway types to which this assessment applies. The supported gateway types include Apigee X, Apigee hybrid, and Apigee Edge Public Cloud.
To add another assessment check, click + Add and repeat the previous steps.
Click Create.
The security profile is created and you are returned to the Security profiles tab.

REST

To create a custom security profile, make a POST request to the securityProfilesV2 API.

curl "https://apigee.googleapis.com/v1/organizations/APIGEE_ORG/securityProfilesV2?security_profile_v2_id=PROFILE_ID"
-X POST  -H "Authorization: Bearer $(gcloud auth print-access-token)"
-H 'Content-type: application/json'   -d '
{
  "description": "SECURITY_PROFILE_DESCRIPTION",
  "risk_assessment_type": "API_HUB",
  "profile_assessment_configs": {
    "ASSESSMENT": {
      "weight": "WEIGHT",
      "include": {
        "gateway_types": ["GATEWAY_TYPES"]
      }
    }
  }
}'

Replace the following:

APIGEE_ORG: Name of the Apigee organization provisioned in your Google Cloud project.
PROFILE_ID: The name of the security profile.
SECURITY_PROFILE_DESCRIPTION: The description of the security profile.
ASSESSMENT: The assessment that you want to include in the security profile. For the list of available assessments, see Supported assessment categories and checks.
WEIGHT: The weight of the assessment. The supported weights are MINOR, MODERATE, and MAJOR.
GATEWAY_TYPES: The gateway types to which this assessment applies. The supported gateway types are APIGEE_X, APIGEE_HYBRID, and APIGEE_EDGE_CLOUD.

Duplicate a security profile

You can duplicate an existing profile to quickly create a new one based on existing settings. For information about duplicating a security profile from your Apigee X/hybrid instance into your API hub instance, see Manage security profiles for Apigee.

Console

To duplicate an existing security profile, do the following:

Go to the API hub > Risk assessment page.
Go to Risk assessment
In the Risk assessment page, click the Security profiles tab.
The Security profiles tab displays the list of all the security profiles created in API hub.
Click the name of the security profile that you want to duplicate.
Click Duplicate.
Enter a Name for the duplicated security profile.
Click Create.

Edit a security profile

You can edit an existing security profile to update its description and assessment configurations.

Console

To edit a custom security profile, do the following:

Go to the API hub > Risk assessment page.
Go to Risk assessment
In the Risk assessment page, click the Security profiles tab.
The Security profiles tab displays the list of all the security profiles created in API hub.
Click the name of the security profile that you want to edit.
Click Edit.
In the Edit security profile page, make the required edits to the assessment configurations.
Click Save.

REST

To edit a custom security profile, make a PATCH request to the securityProfilesV2 API.

curl "https://apigee.googleapis.com/v1/organizations/APIGEE_ORG/securityProfilesV2/PROFILE_ID?update_mask=profile_assessment_configs"
-X PATCH  -H "Authorization: Bearer $(gcloud auth print-access-token)"
-H 'Content-type: application/json'   -d '
{
  "risk_assessment_type": "API_HUB",
  "profile_assessment_configs": {
    "ASSESSMENT": {
      "weight": "WEIGHT",
      "include": {
        "gateway_types": ["GATEWAY_TYPES"]
      }
    }
  }
}'

Replace the following:

APIGEE_ORG: Name of the Apigee organization provisioned in your Google Cloud project.
PROFILE_ID: The name of the security profile.
ASSESSMENT: The assessment that you want to include in the security profile. For the list of available assessments, see Supported assessment categories and checks.
WEIGHT: The weight of the assessment. The supported weights are MINOR, MODERATE, and MAJOR.
GATEWAY_TYPES: The gateway types to which this assessment applies. The supported gateway types are APIGEE_X, APIGEE_HYBRID, and APIGEE_EDGE_CLOUD.

Delete a security profile

Deleting a custom security profile stops the profile from being applied to API deployments and, subsequently, from calculating their security scores. You can't delete the default security profile.

Console

To delete a custom security profile, do the following:

Go to the API hub > Risk assessment page.
Go to Risk assessment
In the Risk assessment page, click the Security profiles tab.
The Security profiles tab displays the list of all the security profiles created in API hub.
Click the name of the security profile that you want to delete.
Click Delete.
Enter the security profile name and click Delete to confirm the deletion.

REST

To delete a custom security profile, make a DELETE request to the securityProfilesV2 API.

curl -H "Authorization: Bearer $(gcloud auth print-access-token)"
"https://apigee.googleapis.com/v1/organizations/APIGEE_ORG/securityProfilesV2/PROFILE_ID?risk_assessment_type=API_HUB"
-X DELETE

Replace the following:

APIGEE_ORG: Name of the Apigee organization provisioned in your Google Cloud project.
PROFILE_ID: The name of the security profile.

Supported assessment categories and checks

The following table lists the supported assessment categories and checks for multi-gateway security profiles.

Assessment category	Assessment check	Supported gateway types
Assessment category	Assessment check	Apigee X	Apigee hybrid	Apigee Edge Public Cloud
Auth	Auth policies check / `auth-policies-check`
Auth	ContinueOnError check in auth policies / `continue-on-error-auth-policies-check`
Auth	AccessControl policy check / `access-control-policy-check`
Auth	BasicAuthentication policy check / `basic-auth-policy-check`
Auth	HMAC policy check / `hmac-policy-check`
Auth	OAuthV2 policy check / `oauthv2-policy-check`
Auth	VerifyAPIKey policy / `verify-api-key-policy-check`
Auth	VerifyJWS policy / `verify-jws-policy-check`
Auth	VerifyJWT policy / `verify-jwt-policy-check`
Auth	ValidateSAMLAssertion policy check / `validate-saml-assertion-policy-check`
Auth	VerifyIAM policy / `verify-IAM-policy-check`
AI	SanitizeUserPrompt / `sanitize-user-prompt-policy-check`
AI	SanitizeModelResponse / `sanitize-model-response-policy-check`
AI	SemanticCacheLookup / `semantic-cache-lookup-policy-check`
Cors	CORS policies check / `cors-policies-check`
Cors	CORS policy check / `cors-policy-check`
Cors	CORS AssignMessage policy check / `cors-assign-message-policy-check`
Mediation	Mediation policies check / `mediation-policies-check`
Mediation	SOAPMessageValidation policy check / `soap-validation-policy-check`
Mediation	OASValidation policy check / `oas-validation-policy-check`
Target	Target Server TLS check / `tls-target-server-check`
Target	Target Server mTLS check / `mtls-target-server-check`
Target	Target Server enforce field check / `target-enforce-field-check`
Threat	Threat policies check / `threat-policies-check`
Threat	ContinueOnError check in threat policies / `continue-on-error-threat-policies-check`
Threat	JSONThreatProtection policy check / `json-threat-protection-policy-check`
Threat	RegularExpressionProtection policy check / `regex-protection-policy-check`
Threat	XMLThreatProtection policy check / `xml-threat-protection-policy-check`
Traffic	Traffic management policies check / `traffic-management-policies-check`
Traffic	LookupCache policy check / `lookup-cache-policy-check`
Traffic	Quota policy check / `quota-policy-check`
Traffic	ResponseCache policy check / `response-cache-policy-check`
Traffic	SpikeArrest policy check / `spike-arrest-policy-check`

Risk assessment scoring behavior for unsupported gateway types

Assessment checks are evaluated based on the gateway types explicitly configured in a security profile. If a profile includes an assessment check whose associated configuration option isn't supported by a gateway type, the security score is affected as follows:

If the check is applied to an unsupported gateway type: The check always fails for deployments of the unsupported gateway type, and this failure lowers their score.
For example, if the VerifyIAM check is included in a profile and explicitly enabled for the APIGEE_EDGE_CLOUD gateway type, the check fails for Edge proxies because they do not support VerifyIAM.
If the check is not applied to an unsupported gateway type: The assessment is ignored for deployments of the unsupported gateway type, and their score is not impacted.
For example, if the VerifyIAM check is enabled only for APIGEE_X and APIGEE_HYBRID in a profile, the check is skipped when scoring an Apigee Edge proxy.

Limitations

The following limitations apply to security profiles:

You can create a maximum of 100 custom security profiles per organization.
You can add a maximum of 50 assessment configurations to a security profile.
Security profile names are shared across your API hub instance and your Apigee organization. A profile created in one instance can't use the same name as a profile in the other.

What's next

View security scores across all projects and gateways, see View security scores across all projects and gateways.
View security scores for a given API across its deployments in gateways, see View security scores for APIs.
Learn about the available assessment categories and checks.
