Integrate EmailV2 with Google SecOps

Integration version: 36.0

This document explains how to integrate EmailV2 with Google Security Operations (Google SecOps).

Note: This integration uses one or more open source components. You can download a copy of the full source code of this integration from the storage bucket.

Use cases

The EmailV2 integration uses the Google SecOps capabilities to support the following use cases:

• Phishing triage and notification: Automate the process of sending notification emails to recipients, including external users, and setting up asynchronous playbooks to wait for user responses (such as confirmation of a phishing attempt).

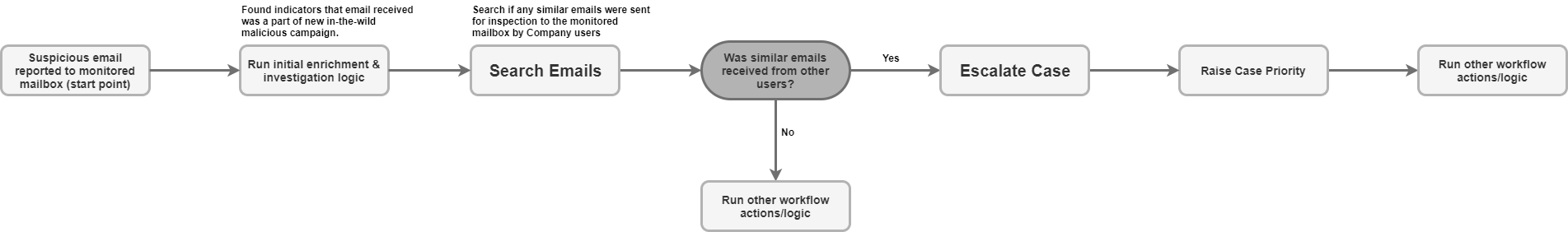

• Incident data enrichment and retention: Search a mailbox for related messages based on criteria (like sender or subject) and save all file attachments from suspicious emails directly to the case wall for forensic analysis and data retention.

• Mailbox management and containment: Automatically move malicious or triaged emails from the inbox to quarantine or archive folders, or permanently delete emails that match specific filters (such as deleting all copies of a known malware email across multiple folders).

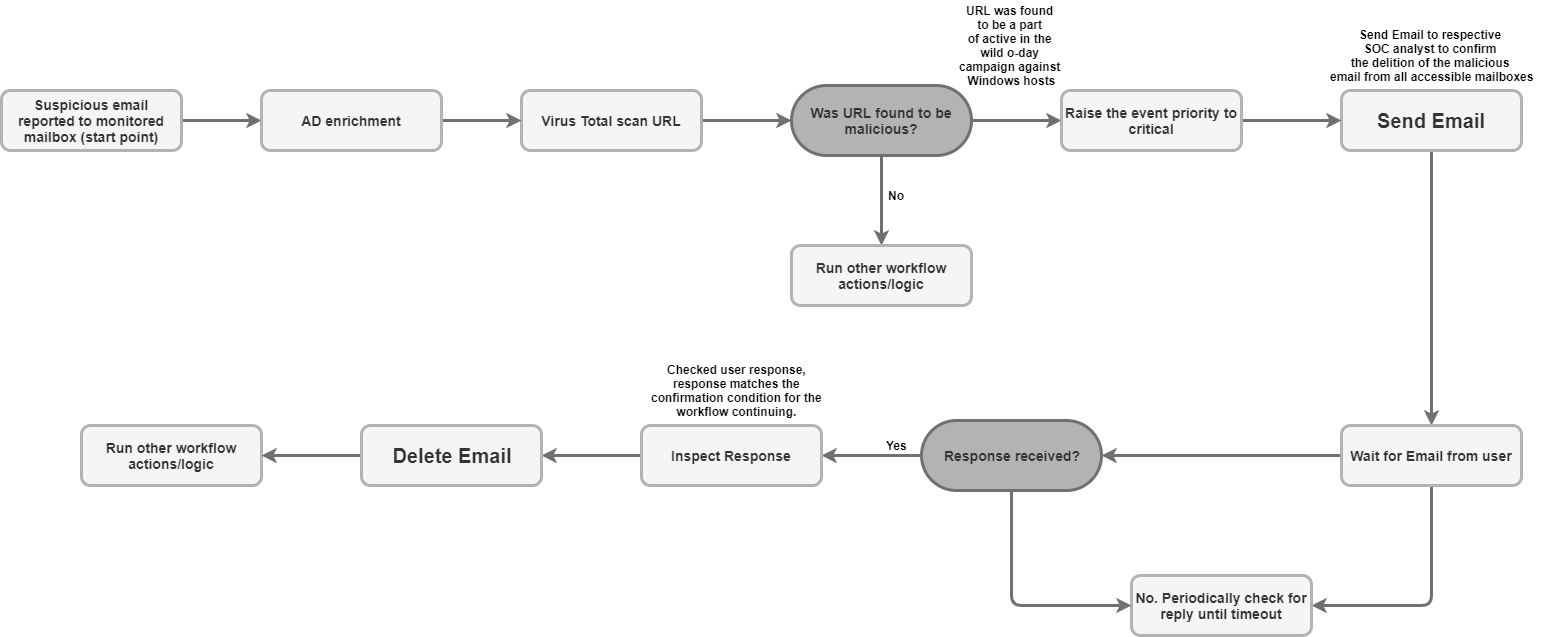

• Threaded response and collaboration: Send an immediate reply or a structured response within an existing email thread using the Send Thread Reply action, ensuring all necessary parties are kept in the loop with relevant security updates.

Before you begin

To enable the EmailV2 integration to successfully connect to your mail server, you must ensure the configured mailbox grants access to third-party applications using IMAP/SMTP.

If you are using a Gmail account, note the following access options:

1. OAuth 2.0 (Recommended): The most secure method, allowing applications to access mail data using tokens without requiring direct password exposure. For more details, see Third-party apps & your Google Account.

2. App password (Recommended for 2FA): A 16-digit passcode used as a password substitute for third-party applications when 2-Step Verification is enabled. For more details, see Sign in with app passwords.

3. Less secure apps (Deprecated): This legacy option allows access for apps that don't meet Google's latest security standards. For more details, see Less secure apps & your Google Account.

   Important: Use this option with extreme caution, as it makes your account less secure.

Note: We recommend you configure the security access method during the setup stage to ensure uninterrupted connector and action functionality.

Network Access to IMAP/SMTP

Accessing and processing received email using IMAP and sending outgoing email using SMTP requires network access using the configured account credentials.

Note: If you are using an account requiring legacy access, ensure the mailbox configuration, such as Less Secure App Access, is enabled.

Network Requirements

The following table details the network access required for the integration to communicate with the mail server:

Function	Default Port	Direction	Protocol
Mail Server Communication	Multivalues	Outbound	IMAP/SMTP

Integration parameters

The EmailV2 integration requires the following parameters:

Parameter	Description
IMAP - Use SSL	Optional. If selected, the action enables secure communication (SSL/TLS) when connecting to the IMAP server. Enabled by default.
SMTP - Use Authentication	Optional. If selected, the action enables authentication for the SMTP connection. This is required when the SMTP server isn't in an "open relay" configuration and requires credentials to send outgoing emails. Enabled by default.
Sender's Address	Required. The email address of the mailbox used by the integration for both sending and receiving messages.
Sender's Display Name	Required. The name that appears as the sender when the integration sends emails.
SMTP Server Address	Optional. The DNS hostname or IP address of the SMTP server used for sending emails, such as smtp.hmail.com.
SMTP Port	Optional. The port number used to connect to the SMTP server, such as 565.
IMAP Server Address	Optional. The DNS hostname or IP address of the IMAP server required to retrieve received emails, such as imap.hmail.com.
IMAP Port	Optional. The port number used to connect to the IMAP server, such as 995.
Username	Required. The username required for authenticating with the mail server.
Password	Required. The password required for authenticating with the mail server.

For instructions about how to configure an integration in Google SecOps, see Configure integrations.

You can make changes at a later stage, if needed. After you configure an integration instance, you can use it in playbooks. For more information about how to configure and support multiple instances, see Supporting multiple instances.

Actions

For more information about actions, see Respond to pending actions from Your Workdesk and Perform a manual action.

Delete Email

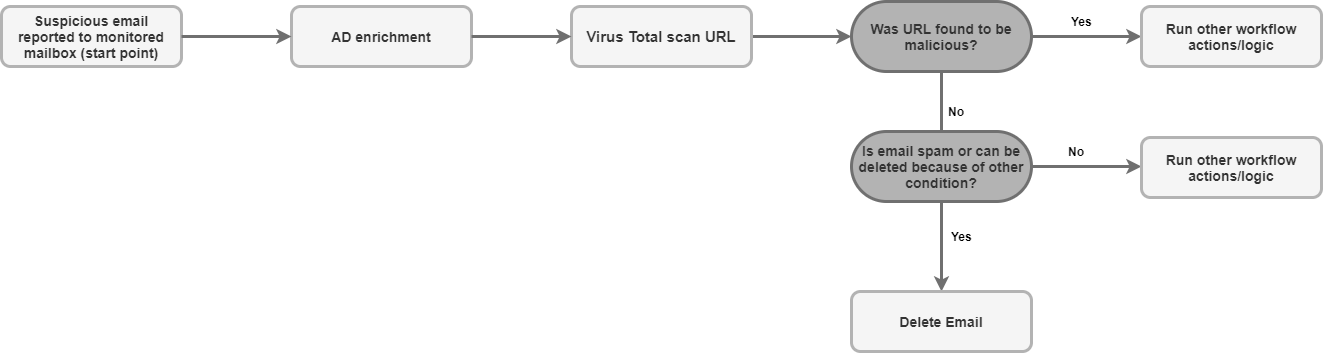

Use the Delete Email action to remove emails from the mailbox that match specified search criteria. You can utilize this action to either delete the first matching email found or delete all matching emails.

This action doesn't run on Google SecOps entities.

Action inputs

The Delete Email action requires the following parameters:

Parameter	Description
Folder Name	Required. A comma-separated list of the mailbox folders where the action searches for emails.
Message IDs	Optional. A comma-separated list of specific Message IDs to search for and delete. If provided, this list overrides the Subject Filter, Sender Filter, and Recipient Filter.
Subject Filter	Optional. A subject line used to narrow the search for matching emails.
Sender Filter	Optional. A sender's address used to search for matching emails.
Recipient Filter	Optional. A recipient's address used to search for matching emails.
Days Back	Optional. The time window (in days) the action searches for emails to delete. The timeframe is calculated with day granularity. Using a value of 0 restricts the search to emails received only within the current day. The default value is 0.
Delete all matching emails	Optional. If selected, the action deletes all emails that match the specified criteria; otherwise, it only deletes the first match. Disabled by default.

Action outputs

The Delete Email action provides the following outputs:

Action output type	Availability
Case wall attachment	Not available
Case wall link	Not available
Case wall table	Not available
Enrichment table	Not available
JSON result	Available
Output messages	Available
Script result	Available

JSON result

The following example shows the JSON result outputs received when using the Delete Email action:

{
    "deleted_emails": {
        "email_1_deleted": {
            "message_id": "<[e-mail]>",
            "deleted_from_folder": "Inbox",
            "subject": "Suspicious Login Alert - Deleted",
            "sender": "[e-mail]",
            "timestamp": "2025-11-20T14:30:00Z"
        },
        "email_2_deleted": {
            "message_id": "<[e-mail]>",
            "deleted_from_folder": "Spam",
            "subject": "Phishing Offer",
            "sender": "[e-mail]",
            "timestamp": "2025-11-15T09:15:00Z"
        }
    }
}

Output messages

The Delete Email action can return the following output messages:

Output message	Message description
NUMBER_OF_DELETED_EMAILS email(s) were deleted successfully Failed to find emails for deletion!	The action succeeded.
Error deleting emails ERROR_REASON	The action failed. Check the connection to the server, input parameters, or credentials.

Script result

The following table lists the value for the script result output when using the Delete Email action:

Script result name	Value
is_success	true or false

DownloadEmailAttachments

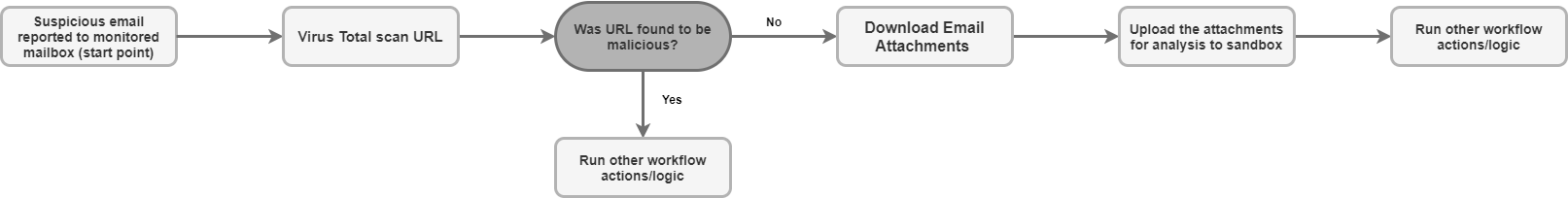

Use the Download Email Attachments action to retrieve attachments from specific emails and save them to a designated path on the Google SecOps server.

This action doesn't run on Google SecOps entities.

Action inputs

The Download Email Attachments action requires the following parameters:

Parameter	Description
Folder Name	Required. A comma-separated list of the mailbox folders where the action searches for the email. The default value is Inbox.
Download Path	Required. The path on the Google SecOps server where the downloaded attachments are saved.
Message IDs	Optional. A comma-separated list of message IDs from which to download attachments.
Subject filter	Optional. A subject line used to narrow the search for the email.

Action outputs

The Download Email Attachments action provides the following outputs:

Action output type	Availability
Case wall attachment	Not available
Case wall link	Not available
Case wall table	Not available
Enrichment table	Not available
JSON result	Not available
Output messages	Available
Script result	Available

Output messages

The Download Email Attachments action can return the following output messages:

Output message	Message description
Downloaded NUMBER_OF_ATTACHMENTS attachments. ATTACHMENT_PATHS	The action succeeded.
failed to download email attachments, the error is: ERROR_REASON	The action failed. Check the connection to the server, input parameters, or credentials.

Script result

The following table lists the value for the script result output when using the Download Email Attachments action:

Script result name	Value
attachments_local_paths	A string of comma-separated full paths to the saved attachments.

Forward Email

Use the Forward Email action to send an existing email, including its previous thread content, to new recipients by providing the original email's unique Message ID.

This action doesn't run on Google SecOps entities.

Action inputs

The Forward Email action requires the following parameters:

Parameter	Description
Folder Name	Required. The mailbox folders where the original email is located. Provide a comma-separated list if checking multiple folders. The folder name must match the IMAP folder exactly. If the folder name contains spaces, it must be wrapped in double quotes. The default value is Inbox.
Message ID of the email to forward	Required. The unique message_id of the existing email that the action forwards.
Recipients	Required. A comma-separated list of the primary email addresses for the new recipients.
CC	Optional. A comma-separated list of email addresses to include in the CC field.
BCC	Optional. A comma-separated list of email addresses to include in the BCC field.
Subject	Required. The subject line for the forwarded email.
Content	Optional. Additional body content to include in the forwarded email.
Return message id for the forwarded email	Optional. If selected, the action returns the unique Message ID of the newly forwarded email in the JSON result. Disabled by default.
Attachment Paths	Optional. A comma-separated list of file paths on the server for additional attachments.

Action outputs

The Forward Email action provides the following outputs:

Action output type	Availability
Case wall attachment	Not available
Case wall link	Not available
Case wall table	Not available
Enrichment table	Not available
JSON result	Available
Output messages	Available
Script result	Available

JSON result

The following example shows the JSON result outputs received when using the Forward Email action:

{
   "Date"
   "message_id"
   "Recipient"
}

Output messages

The Forward Email action can return the following output messages:

Output message	Message description
Email was forwarded successfully. Mail was forwarded successfully. Mail message ID is: MESSAGE_ID	The action succeeded.
Failed to forward the email! The Error is ERROR_REASON	The action failed. Check the connection to the server, input parameters, or credentials.

Script result

The following table lists the value for the script result output when using the Forward Email action:

Script result name	Value
is_success	true or false

Move Email to Folder

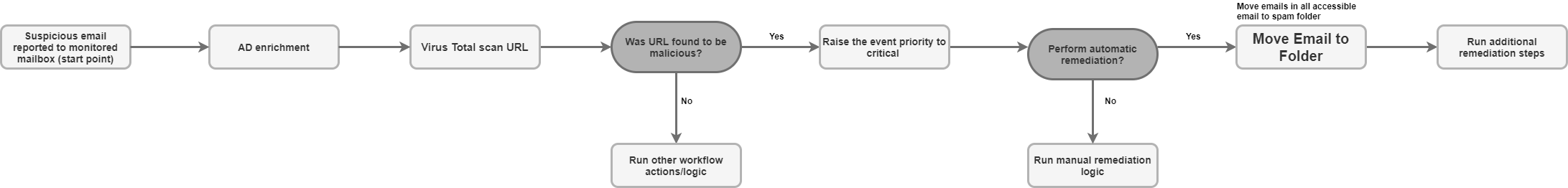

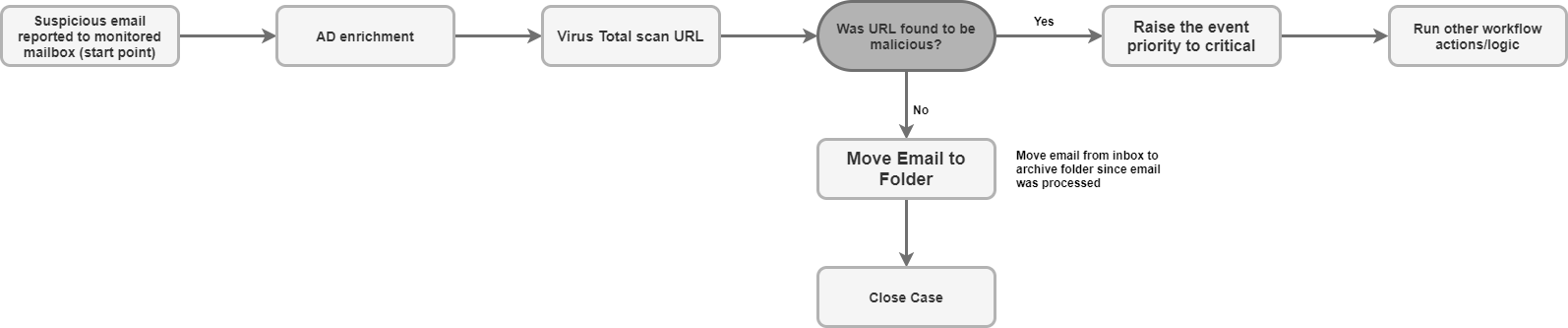

Use the Move Email to Folder action to transfer emails from a specified source folder to a different destination folder within the mailbox.

This action doesn't run on Google SecOps entities.

Action inputs

The Move Email to Folder action requires the following parameters:

Parameter	Description
Source Folder Name	Required. The name of the source folder from which the emails are moved.
Destination Folder Name	Required. The name of the destination folder where the emails are moved.
Message IDs	Optional. A comma-separated list of specific Message IDs to search for and move. If provided, this list overrides Subject Filter.
Subject Filter	Optional. A subject line used to narrow the search for matching emails.
Only Unread	Optional. If selected, the search restricts results to only unread emails. Disabled by default.

Action outputs

The Move Email to Folder action provides the following outputs:

Action output type	Availability
Case wall attachment	Not available
Case wall link	Not available
Case wall table	Not available
Enrichment table	Not available
JSON result	Available
Output messages	Available
Script result	Available

JSON result

The following example shows the JSON result outputs received when using the Move Email to Folder action:

{
    "emails": {
        "email_1": {
            "message_id": "<[e-mail]>",
            "received": "Mon, 24 Nov 2025 10:00:00 +0000",
            "sender": "[e-mail]",
            "recipients": "[e-mail]",
            "subject": "Phishing Alert: Urgent Action Required",
            "plaintext_body": "Original alert content...",
            "moved_from_folder": "Inbox",
            "moved_to_folder": "Quarantine"
        },
        "email_2": {
            "message_id": "<[e-mail]>",
            "received": "Sun, 23 Nov 2025 14:30:00 +0000",
            "sender": "[e-mail]",
            "recipients": "[e-mail]",
            "subject": "System Update Notification",
            "plaintext_body": "System update successful...",
            "moved_from_folder": "Inbox",
            "moved_to_folder": "Archive"
        }
    }
}

Output messages

The Move Email to Folder action can return the following output messages:

Output message	Message description
NUMBER_OF_MOVED_EMAILS mails were successfully moved from SOURCE_FOLDER to DESTINATION_FOLDER No mails were found matching the search criteria!	The action succeeded.
Error search emails: ERROR_REASON	The action failed. Check the connection to the server, input parameters, or credentials.

Script result

The following table lists the value for the script result output when using the Move Email to Folder action:

Script result name	Value
is_success	true or false

Ping

Use the Ping action to test the connectivity to Email V2.

This action doesn't run on Google SecOps entities.

Action inputs

None.

Action outputs

The Ping action provides the following outputs:

Action output type	Availability
Case wall attachment	Not available
Case wall link	Not available
Case wall table	Not available
Enrichment table	Not available
JSON result	Not available
Output messages	Available
Script result	Available

Output messages

The Ping action can return the following output messages:

Note: This action performs separate connectivity checks for IMAP and SMTP.

The action returns an overall success if at least one server is configured and passes the check, while noting any skipped or unconfigured parts.

It returns an overall failure if all configured checks fail, printing all associated errors.

If both IMAP and SMTP aren't configured, it returns an error.

Output message	Message description
Successfully connected to the email server server with the provided connection parameters!	The action succeeded.
Failed to connect to the IMAP server! Error is ERROR_REASON Failed to connect to the SMTP server! Error is ERROR_REASON SMTP (or IMAP) configuration is needed to execute action. Please configure STMP (or IMAP) on integration configuration page in Marketplace.	The action failed. Check the connection to the server, input parameters, or credentials.

Script result

The following table lists the value for the script result output when using the Ping action:

Script result name	Value
is_success	true or false

Save Email Attachments to Case

Use the Save Email Attachments to Case action to retrieve and automatically save attachments from specific emails in the mailbox directly onto the current case's Case Wall.

This action doesn't run on Google SecOps entities.

Action inputs

The Save Email Attachments to Case action requires the following parameters:

Parameter	Description
Folder Name	Required. A comma-separated list of the mailbox folders where the action searches for the email.
Message ID	Optional. The unique Message ID of the email from which to download attachments.
Attachment To Save	Optional. The specific name of the attachment being saved. If no value is provided, the action saves all attachments from the email to the Case Wall.

Action outputs

The Save Email Attachments to Case action provides the following outputs:

Action output type	Availability
Case wall attachment	Not available
Case wall link	Not available
Case wall table	Not available
Enrichment table	Not available
JSON result	Available
Output messages	Available
Script result	Available

JSON result

The following example shows the JSON result outputs received when using the Save Email Attachments to Case action:

{
    "saved_attachments_from_email": {
        "message_id": "<[e-mail]>",
        "subject": "Email with Malicious Attachment",
        "sender": "[e-mail]",
        "attachments_saved": [
            {
                "file_name": "Invoice_Q3_2025.pdf",
                "file_hash_md5": "3bd4a36cc0ed0bfc12ae5e2ece929e82",
                "saved_to_case_wall": "True"
            },
            {
                "file_name": "Report_Data.docx",
                "file_hash_md5": "b3e0c1a9f8d7c6b5a4e3d2c1b0a9f8e7",
                "saved_to_case_wall": "True"
            }
        ]
    }
}

Output messages

The Save Email Attachments to Case action can return the following output messages:

Output message	Message description
Successfully saved the following attachments from the email MESSAGE_ID: MESSAGE_INFO	The action succeeded.
Failed to save the email attachments to the case, the error is: ERROR_REASON	The action failed. Check the connection to the server, input parameters, or credentials.

Script result

The following table lists the value for the script result output when using the Save Email Attachments to Case action:

Script result name	Value
is_success	true or false

Search Email

Use the Search Email action to find specific emails within the configured mailbox using various filtering criteria.

The action retrieves details about the matching messages in a JSON file, which can be used for subsequent automated or manual analysis.

This action doesn't run on Google SecOps entities.

Action inputs

The Search Email action requires the following parameters:

Parameter	Description
Folder Name	Required. A comma-separated list of the mailbox folders where the action searches for emails. The default value is Inbox.
Subject Filter	Optional. A subject line used to narrow the search for matching emails.
Sender Filter	Optional. A sender's address used to search for matching emails.
Recipient Filter	Optional. A recipient's address used to search for matching emails.
Time frame (minutes)	Required. The time window (in minutes) the search looks back for emails. The default value is 60.
Only Unread	Optional. If selected, the search retrieves only unread emails. Disabled by default
Max Emails To Return	Required. The maximum number of emails the action returns as a result. The default value is 100.

Action outputs

The Search Email action provides the following outputs:

Action output type	Availability
Case wall attachment	Not available
Case wall link	Not available
Case wall table	Not available
Enrichment table	Not available
JSON result	Available
Output messages	Available
Script result	Available

JSON result

The following example shows the JSON result outputs received when using the Search Email action:

{
    "emails": {
        "email_1": {
            "message id": "<CAJP=[e-mail]>",
            "received": "Mon, 26 Aug 2019 03:20:13 -0700 (PDT)",
            "sender": "[e-mail]",
            "recipients": "[e-mail],[e-mail]",
            "subject": "Cool offer",
            "plaintext_body": "Hi, ...",
            "attachmment_1": "pdfdocument.pdf",
            "attachment_1_file_hash_md5": "3bd4a36cc0ed0bfc12ae5e2ece929e82"
        },
        "email_2": {
            "message id": "<WEAA=[e-mail]>",
            "received": "Wen, 21 Aug 2019 03:20:13 -0700 (PDT)",
            "sender": "[e-mail]",
            "recipients": "[e-mail]",
            "subject": "Cool offer",
            "plaintext_body": "Hi, ...",
            "attachmment_1": "photo.jpg",        "attachment_1_file_hash_md5": "3bd4a36cc0ed0bfc12ae5e2ece929e82",
            "attachmment_2": "word_document.docx",
            "attachment_2_file_hash_md5": "3bd4a36cc0ed0bfc12ae5e2ece929e82"
        }
    }
}

Output messages

The Search Email action can return the following output messages:

Output message	Message description
Search found NUMBER_OF_FOUND_EMAILS emails based on the provided search criteria Search didn't found any matching emails	The action succeeded.
Search didn't completed successfully due to error: ERROR_REASON	The action failed. Check the connection to the server, input parameters, or credentials.

Script result

The following table lists the value for the script result output when using the Search Email action:

Script result name	Value
is_success	true or false

Send Email

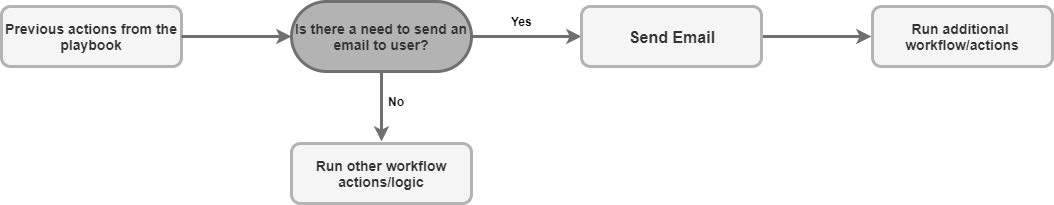

Use the Send Email action to send emails from the configured mailbox to multiple recipients.

This action optionally returns the Message ID, which can then be used by the Wait for Email From User action to track user responses and control playbook execution.

This action doesn't run on Google SecOps entities.

Action inputs

The Send Email action requires the following parameters:

Parameter	Description
Recipients	Required. The primary recipient email addresses. Multiple addresses must be separated by commas.
CC	Optional. The email addresses to include in the Carbon Copy (CC) field. Multiple addresses must be separated by commas.
Bcc	Optional. The email addresses to include in the Blind Carbon Copy (Bcc) field. Multiple addresses must be separated by commas.
Subject	Required. The subject line of the email message.
Content	Required. The body content of the email message.
Return message id for the sent email	Optional. If selected, the action returns the unique Message ID in the JSON result. This ID can be used by the Wait for Email From User action to track responses. Disabled by default.
Attachments Paths	Optional. A comma-separated list of absolute file paths on the server for attachments.

Action outputs

The Send Email action provides the following outputs:

Action output type	Availability
Case wall attachment	Not available
Case wall link	Not available
Case wall table	Not available
Enrichment table	Not available
JSON result	Available
Output messages	Available
Script result	Available

JSON result

The following example shows the JSON result outputs received when using the Send Email action:

Note: Enabling Return message id for the sent email is required to retrieve the unique message_id in the JSON result, which is required for dependent actions.

{
    "message_id": "<[e-mail]>"
}

Output messages

The Send Email action can return the following output messages:

Note: This action performs separate connectivity checks for IMAP and SMTP.

The action returns an overall success if at least one server is configured and passes the check, while noting any skipped or unconfigured parts.

It returns an overall failure if all configured checks fail, printing all associated errors.

If neither IMAP nor SMTP are configured, it returns an error.

Output message	Message description
Mail sent successfully. Mail sent successfully. Mail message ID is: MESSAGE_ID	The action succeeded.
Execution Failed: ERROR_REASON	The action failed. Check the connection to the server, input parameters, or credentials.

Script result

The following table lists the value for the script result output when using the Send Email action:

Script result name	Value
is_success	true or false

Send Thread Reply

Use the Send Thread Reply action to send a new message as a response within an existing email thread using the original message ID.

This action doesn't run on Google SecOps entities.

Action inputs

The Send Thread Reply action requires the following parameters:

Parameter	Description
Message ID	Required. The unique ID of the message to which the reply is sent.
Folder Name	Required. A comma-separated list of the mailbox folders where the action searches for the original email. The folder name must match the IMAP folder exactly. If the name contains spaces, it must be wrapped in double quotes (such as "[Gmail]/All Mail"). The default value is Inbox.
Content	Required. The body content of the reply message.
Attachment Paths	Optional. A comma-separated list of file paths on the server for attachments to include in the reply.
Reply All	Optional. If selected, the reply is sent to all recipients of the original email thread. This parameter takes priority over Reply To. Enabled by default.
Reply To	Optional. A comma-separated list of specific email addresses to receive the reply. If Reply All is disabled and no value is provided, the reply is sent only to the sender of the original email.

Action outputs

The Send Thread Reply action provides the following outputs:

Action output type	Availability
Case wall attachment	Not available
Case wall link	Not available
Case wall table	Not available
Enrichment table	Not available
JSON result	Available
Output messages	Available
Script result	Available

JSON result

The following example shows the JSON result outputs received when using the Send Thread Reply action:

{
    "message_id": "<162556278608.14165.480701790user@example>",
    "recipients": "[e-mail]"
}

Output messages

The Send Thread Reply action can return the following output messages:

Output message	Message description
Successfully sent reply to the message with ID MESSAGE_ID in Exchange.	The action succeeded.
Error executing action "Send Thread Reply". Reason: ERROR_REASON	The action failed. Check the connection to the server, input parameters, or credentials.

Script result

The following table lists the value for the script result output when using the Send Thread Reply action:

Script result name	Value
is_success	true or false

Wait for Email From User

Use the Wait for Email From User action to pause the playbook's execution and monitor a mailbox for a reply to a message previously sent by the Send Email action.

This action doesn't run on Google SecOps entities.

Note: This action is asynchronous. Adjust the script timeout value in the Google SecOps IDE as needed.

Action inputs

The Wait for Email From User action requires the following parameters:

Parameter	Description
Email Message_id	Required. The unique Message ID of the sent email for which the action tracks replies. If the message has been sent using the Send Email action, please select SendEmail.JSONResult.message_id as a placeholder.
Email Date	Required. The timestamp indicating when the original email was sent. The action uses this value to calculate the reply window. If the message was sent using the Send Email action, use the placeholder SendEmail.JSONResult.email_date.
Email Recipients	Required. A comma-separated list of recipient email addresses from which the action waits for a reply. If the message was sent using the Send Email action, use the placeholder SendEmail.JSONResult.email_date.
Wait stage timeout (minutes)	Optional. The duration (in minutes) the action waits for a reply before marking the wait stage as timed out. The default value is 1440.
Wait for all recipients to reply?	Optional. If selected, the playbook waits for responses from all recipients to proceed; otherwise, it proceeds after receiving the first reply. Enabled by default.
Wait stage exclude pattern	Optional. A regular expression pattern used to exclude specific replies (such as automated Out-of-Office messages) from being considered valid responses.
Folder to check for reply	Optional. A comma-separated list of the mailbox folders where the action searches for the user's reply. This parameter is case-sensitive. The default value is Inbox.
Fetch Response Attachments	Optional. If selected, any attachments included in the recipient's reply are saved as attachments for the action result. Disabled by default.

Action outputs

The Wait for Email From User action provides the following outputs:

Action output type	Availability
Case wall attachment	Not available
Case wall link	Not available
Case wall table	Not available
Enrichment table	Not available
JSON result	Available
Output messages	Available
Script result	Available

JSON result

The following example shows the JSON result outputs received when using the Wait for Email From User action:

{
    "Responses":
    {[
     "[e-mail]": "Approved",
     "[e-mail]": "",
     "[e-mail]": ""
     ]}
}

Script result

The following table lists the value for the script result output when using the Wait for Email From User action:

Script result name	Value
is_success	true or false

Connectors

For more detail about how to configure connectors in Google SecOps, see Ingest your data (connectors).

Generic IMAP Email Connector

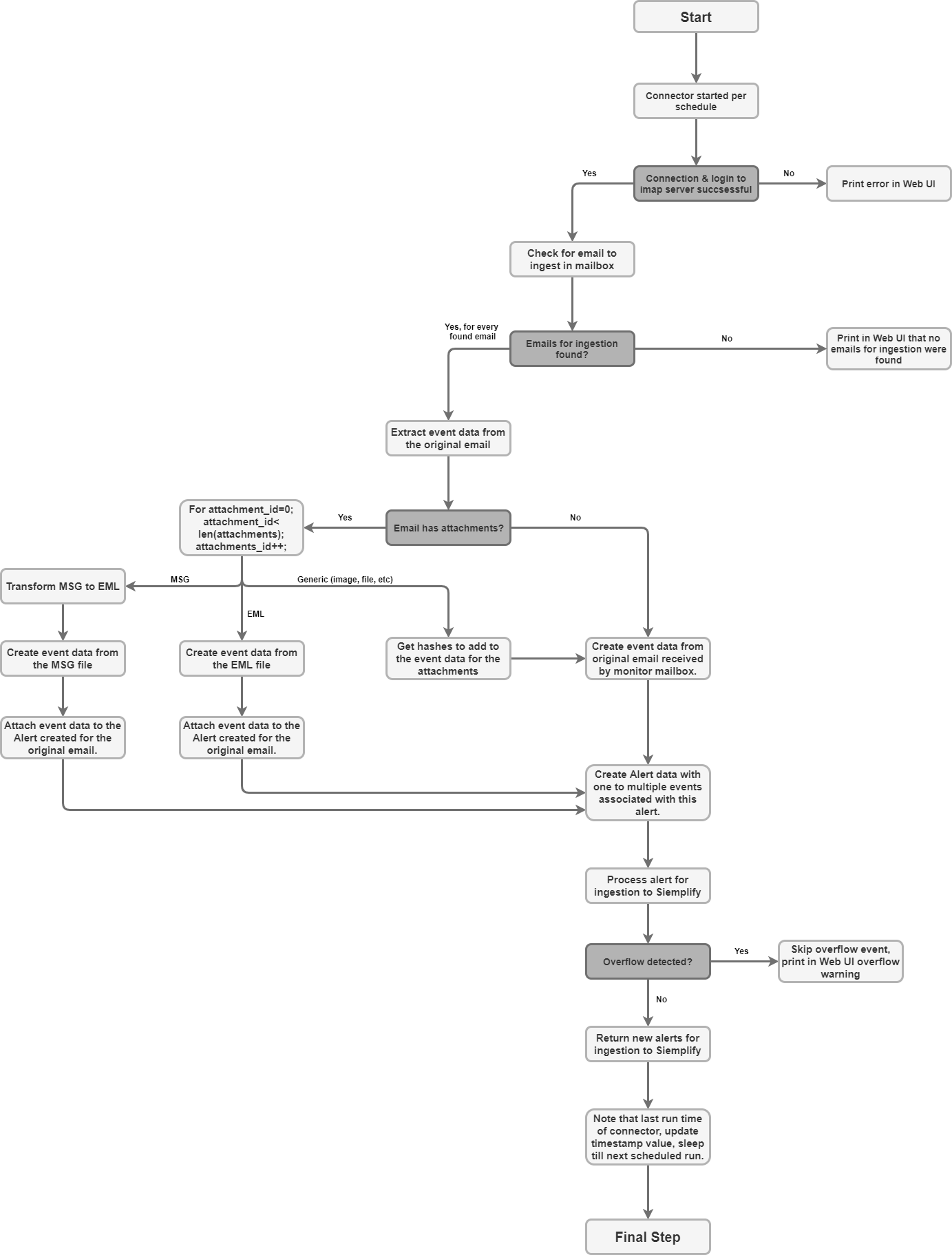

Use the Generic IMAP Email Connector to periodically connect to an IMAP mail to check a specified mailbox for new emails. The connector processes new emails in near real-time, translating them into contextualized alerts and cases within the Google SecOps platform.

Known Issues and Limitations

1. Outlook Attachments (.eml): The connector may not process attachments converted to the .eml format by Microsoft Outlook if critical headers are missing. Google SecOps still creates an alert for the email, but without an event based on the attachment. The following log indicates this issue:

   Error Code 1: Encountered an email object with missing headers. Please
   visit documentation portal for more details.


2. Missing Filenames: When processing attached mail files that lack a filename in the email headers, the connector assigns a unique placeholder filename: Undefined_{UUID}.eml, allowing the attachment to appear as an event in Google SecOps.

Email Case Forwarding

Google SecOps communicates with the email server to search for and ingest emails, forwarding them to the platform for near real-time translation and contextualization as security alerts.

Connector Rules

• The connector uses SSL/TLS to ensure encrypted communication with the email server.
• The connector supports connecting to the mail server using a proxy for both IMAP and IMAPS traffic.
• The connector allows searching for emails across multiple mailbox folders. The Folder parameter accepts a comma-separated, case-sensitive list of folder names.
• The connector supports Unicode encoding, enabling it to process emails sent in languages other than English.

Connector inputs

The Generic IMAP Email Connector requires the following parameters:

Parameter	Description
Default Environment	Optional. The name of the environment to which ingested alerts are assigned.
Run Every	Optional. The frequency at which the connector runs to check for new emails. The default value is 00:00:10:00 (10 minutes).
Product Field Name	Required. The name of the field where the product name is stored. The product name primarily impacts mapping. To streamline and improve the mapping process for the connector, the default value resolves to a fallback value that is referenced from the code. Any invalid input for this parameter resolves to a fallback value by default. The default value is Product Name.
Event Field Name	Required. The name of the field that determines the event name (subtype). The default value is event_name_mail_type.
Additional headers to extract from emails	Optional. A comma-separated list of custom header fields to be extracted from the email message during connector processing.
Script Timeout (Seconds)	Required. The timeout limit, in seconds, for the Python process that runs the current script. The default value is 60.
IMAP Server Address	Required. The IP address or DNS hostname of the IMAP server to connect to.
IMAP Port	Required. The port number used to connect to the IMAP server.
Username	Required. The username for the mailbox from which the connector pulls emails such as [e-mail].
Password	Required. The password for the mailbox used to pull emails.
Folder to check for emails	Required. A comma-separated list of mailbox folders where the connector searches for emails. This parameter is case-sensitive. The default value is Inbox.
Server Time Zone	Optional. The timezone configured in the mail server. The default value is UTC.
Environment Regex Pattern	Optional. A regular expression pattern used to manipulate the event field data and extract the environment name.
IMAP USE SSL	Optional. If selected, the connector uses SSL/TLS to establish a secure IMAP connection to the mail server. Enabled by default.
Unread Emails Only	Optional. If selected, the connector pulls only unread emails. Enabled by default.
Mark Emails as Read	Optional. If selected, emails are marked as read after being successfully pulled by the connector. Enabled by default.
Attach Original EML	Optional. If selected, the original message is attached to the created alert as an .eml file. Disabled by default.
Regex expressions to handle forwarded emails	Optional. A JSON one-liner string containing regular expression patterns to extract original subject, sender, and recipient fields from forwarded emails.
Exclusion Body Regex	Optional. A regular expression pattern used to exclude emails from ingestion if the body content matches the pattern, such as ([N|n]ewsletter)|([O|o]ut of office).
Exclusion Subject Regex	Optional. A regular expression pattern used to exclude emails from ingestion if the subject line matches the pattern, such as ([N|n]ewsletter)|([O|o]ut of office).
Offset Time In Days	Required. The maximum number of days backwards the connector fetches mail from (max time window). This value also serves as a fallback for the initial run or if the connector timestamp expires, ensuring alerts are ingested for the disabled period. The default value is 5.
Max Emails Per Cycle	Required. The maximum number of emails the connector processes in a single polling cycle. The default value is 10.
Proxy Server Address	Optional. The address of the proxy server to use.
Proxy Username	Optional. The username for proxy server authentication.
Proxy Password	Optional. The password for proxy server authentication.
Create a Separate Siemplify Alert per Attached Mail File?	Optional. If selected, the connector creates a separate alert for every attached email file found within a message. This is useful when event mapping is set to create entities from attached email files. Disabled by default.
Original Received Mail Prefix	Optional. A prefix (such as orig) added to extracted keys (to, from, subject, etc.) from the original email received in the monitored mailbox. The default value is orig.
Attached Mail File Prefix	Optional. A prefix (such as attach) added to extracted keys (to, from, subject, etc.) from attached mail files found within the email. The default value is attach.

Note: The connector supports extracting specific values from emails using Regular Expressions defined in the Dynamic List area (often labeled "Extraction Rules"). To extract a value, use the format: Desired Display Name: matching regex.

To extract URLs from the email body for creation as entities, insert:

none urls: http[s]?://(?:[a-zA-Z]|[0-9]|[$-_@.&+]|[!*(),]|(?:%0-9a-fA-F))+

Need more help? Get answers from Community members and Google SecOps professionals.
