HAProxy Layer 7 load balancing reference implementation

Google Distributed Cloud (GDC) air-gapped provides a built-in managed Layer 4 (L4) load balancer, but many enterprise applications require advanced Layer 7 (L7) capabilities, such as host-based routing, centralized TLS management, and complex traffic splitting. Historically, this is accomplished using the Ingress API, which is now considered feature-frozen in the Kubernetes community.

This reference architecture provides a self-managed Layer 7 load balancing solution. By deploying the popular HAProxy open source controller on a GDC standard cluster, customers can seamlessly route L7 traffic to hybrid environments. This architecture uses TLS Termination (HTTPRoute) to route traffic based on Server Name Indication (SNI) to both built-in containerized pods and applications hosted on external Virtual Machines.

Architecture

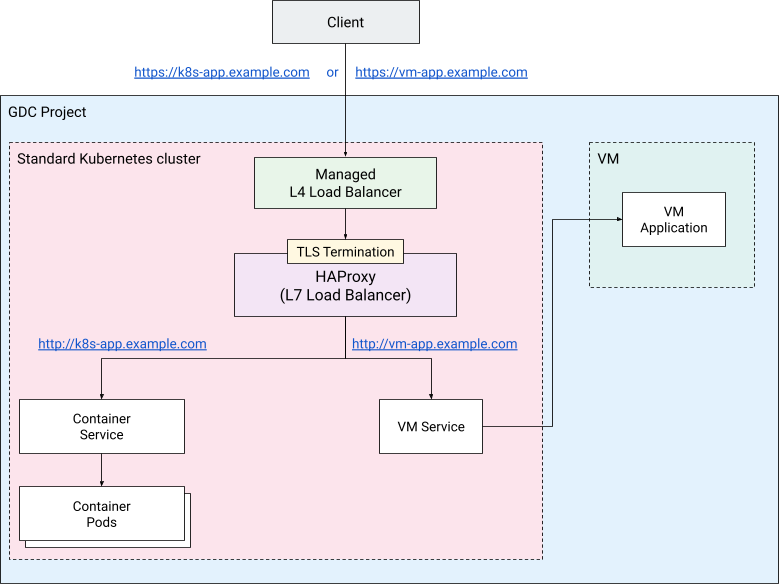

Architecture diagram for HAProxy Layer 7 load balancing on GDC air-gapped.

The key components of the solution include:

  • Client: An entity initiating HTTPS requests to interact with the applications.
  • GDC standard cluster: GDC provides a built-in way to create Kubernetes Vanilla Clusters. In this solution, the cluster will host the L7 LB and its controllers, along with the workloads and healess service for external VMs
  • GDC L4 Load Balancer: The built-in L4 load balancer serving as the entry point, distributing TCP/443 traffic directly to the Kubernetes Pods running the controllers.
  • Ingress Controllers: HAProxy operators running in the standard cluster. They monitor the Ingress resources and dynamically update the underlying proxies. HAProxy Ingress Controller will be used in the following implementation
  • Ingress: Standardized Kubernetes resources defining the physical listening port (443) and the SNI-based host routing rules with TLS Termination.
  • Containerized Workload (Pods): A standard Kubernetes Deployment exposed internally with a regular Kubernetes Service.
  • VM-based Workload (External): A workload hosted on an external VM on the project network, exposed to the proxy using a headless Kubernetes Service and a custom endpoint containing the VM's direct IP.
  • Harbor Registry: A private container registry used to store and serve the proxy and application images in the air-gapped environment.

In the standard cluster, you create three namespaces:

  • The load-balancer namespace hosts the HAProxy Ingress Controller and the HAProxy load balancer workload:

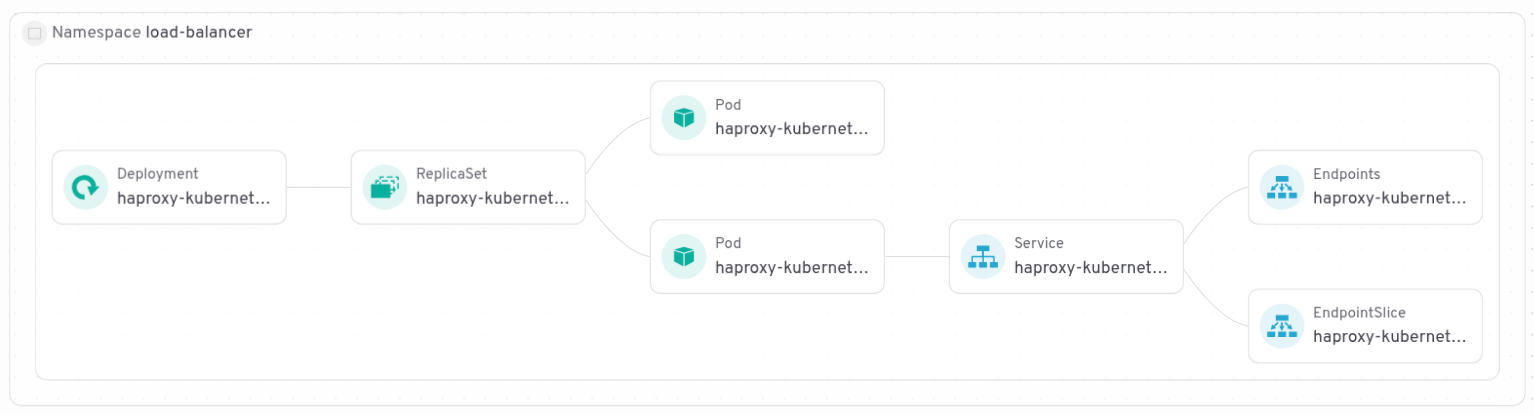

    The load-balancer namespace resources.

  • The hello-app namespace hosts the Deployment, a Service, and an Ingress for the demo container workload:

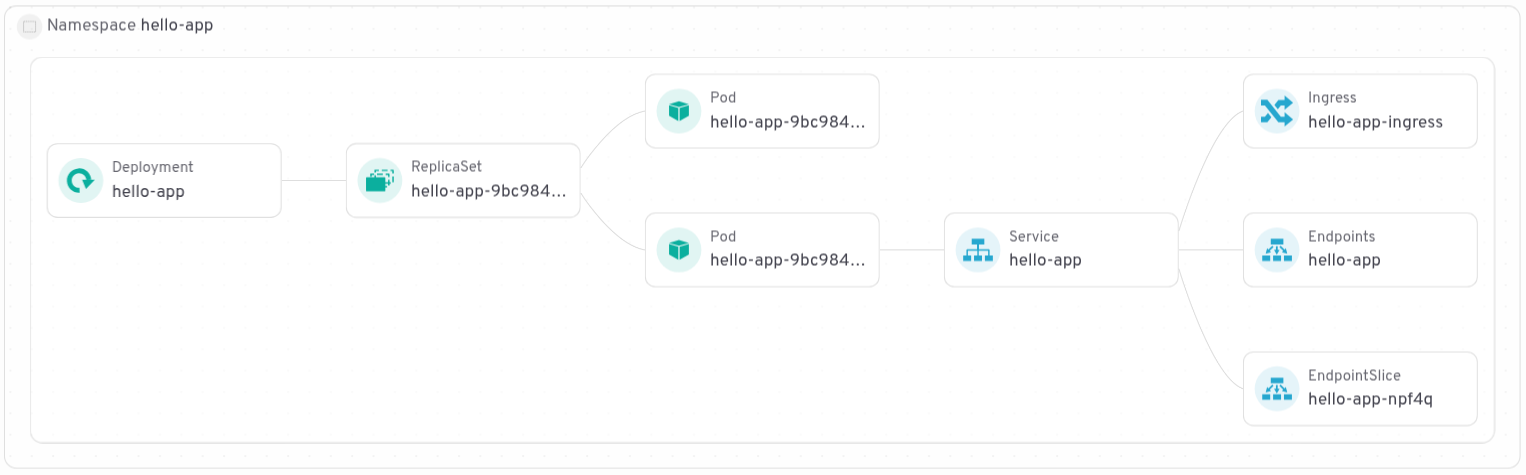

    The hello-app namespace resources.

  • The vm-app namespace hosts a headless service that exposes the external VM IP, an EndpointSlice that points at the external IP, and an Ingress:

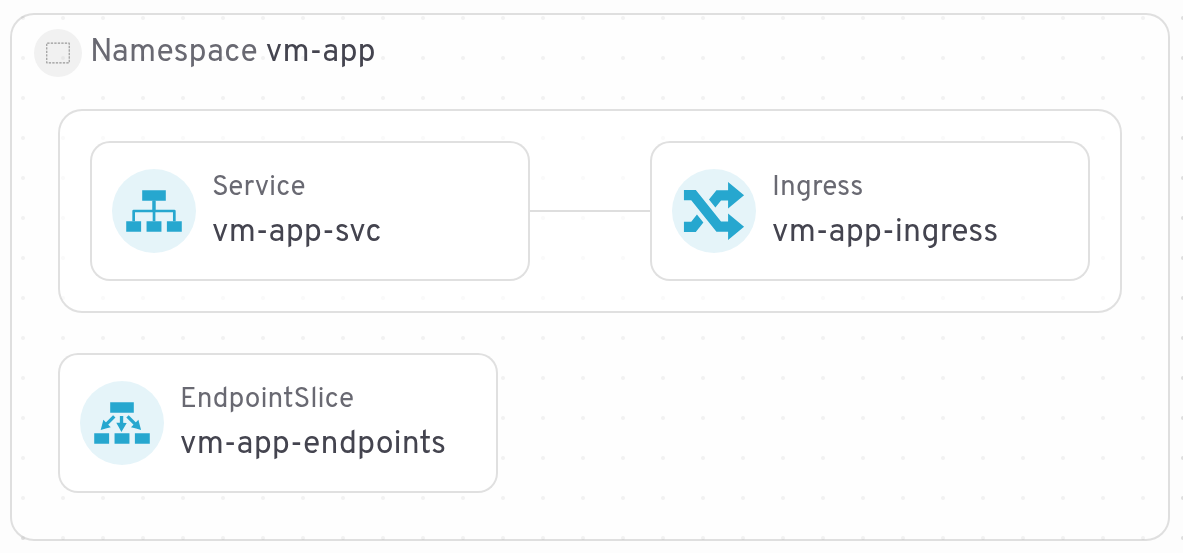

    The vm-app namespace resources.

Before you begin

Before deploying this solution, ensure you have the following prerequisites in place:

  • Software needed: helm, docker, kubectl

  • CLI login and local setup: Download gdcloud CLI from the GDC console and set up your environment locally:

    export USER_NAME="USER_NAME"
export PROJECT_ID="PROJECT_ID"
export ZONE="ZONE"
export ORG_NAME="ORG_NAME"
export GDC_URL="GDC_URL"

gdcloud components install gdcloud-k8s-auth-plugin

gdcloud config set core/organization_console_url \
  https://console.$ORG_NAME.$ZONE.$GDC_URL
gdcloud config set core/zone $ZONE
gdcloud config set core/project ${PROJECT_ID}

gdcloud auth login # use --login-config-cert option in case of TLS error

  • Project Setup: Create a project in your GDC air-gapped environment to hold the resources:

    gdcloud projects create $PROJECT_ID

  • IAM Roles: Grant your user the Cluster Admin and Standard Cluster Admin roles to manage Kubernetes resources, and the Harbor Instance Admin role to push images:

    # Grant standard cluster and cluster admin roles
gdcloud projects add-iam-policy-binding ${PROJECT_ID} \
  --member="user:${USER_NAME}" \
  --role=cluster-admin

gdcloud projects add-iam-policy-binding ${PROJECT_ID} \
  --member="user:${USER_NAME}" \
  --role=standard-cluster-admin

# Grant Harbor instance admin role
gdcloud projects add-iam-policy-binding ${PROJECT_ID} \
  --member="user:${USER_NAME}" \
  --role=harbor-instance-admin

Create a standard cluster

This section guides you through the process of setting up a standard Kubernetes cluster within your GDC air-gapped environment. A standard cluster provides a flexible and robust foundation for deploying various workloads, including the HAProxy Ingress Controller, and your custom applications. The following steps will ensure your cluster is properly configured and accessible for subsequent deployments.

  1. Identify the available virtual machine image types by running:

    gdcloud compute machine-types list

  2. Select an appropriate machine type for your cluster worker nodes. For this tutorial, a machine type with at least 4 vCPUs is recommended.

    export MACHINE_TYPE="MACHINE_TYPE"

  3. Get the management API server kubeconfig and set an alias:

    export CLUSTER_NAME="CLUSTER_NAME"

KUBECONFIG=kubeconfig-admin.yaml gdcloud clusters \
  get-credentials ${ORG_NAME}-admin

alias km="kubectl --kubeconfig kubeconfig-admin.yaml"

  4. Create a standard cluster with two worker nodes:

    km create -f - <<EOF
apiVersion: cluster.gdc.goog/v1
kind: Cluster
metadata:
  name: ${CLUSTER_NAME}
  namespace: ${PROJECT_ID}
spec:
  nodePools:
  - machineTypeName: ${MACHINE_TYPE}
    nodeCount: 2
    name: ${CLUSTER_NAME}-node-pool
EOF

    For more details on available options, refer to the documentation.

    Standard cluster creation can take up to 60 minutes to complete. To check the status, use the following command:

    km get clusters/${CLUSTER_NAME} \
  -n ${PROJECT_ID} \
  --watch

    After the cluster is ready, the output should show a state of Running, like this:

    NAME         STATE     K8S VERSION
my-cluster   Running   1.30.12-gke.300

  5. After the cluster is ready, retrieve its credentials:

    KUBECONFIG=kubeconfig-${CLUSTER_NAME}.yaml gdcloud clusters \
  get-credentials ${CLUSTER_NAME} \
  --standard \
  --project ${PROJECT_ID} \
  --zone ${ZONE}

  6. Create an alias to keep kubectl commands more concise in the rest of this guide. This alias will be used to interact with the standard cluster:

    alias kk="kubectl --kubeconfig kubeconfig-${CLUSTER_NAME}.yaml"

  7. Create namespaces for the controller, the "hello-app" demo containerized app, and the VM-based demo app:

    kk create namespace load-balancer
kk create namespace hello-app
kk create namespace vm-app

Create and integrate Harbor Registry

Harbor is a container image registry with built-in support in GDC air-gapped. This section guides you through the steps to integrate a Harbor Registry with your standard cluster, including configuring credentials and secrets to enable secure pulling and pushing of images.

  1. Create a Harbor instance in your project.
  2. Create a Harbor project in your Harbor instance.

  3. Set environment variables:

    export HARBOR_INSTANCE_NAME="HARBOR_INSTANCE_NAME"
export HARBOR_INSTANCE_URL="HARBOR_INSTANCE_URL"
export HARBOR_PROJECT="HARBOR_PROJECT"
export IMAGE_PULL_SECRET_NAME="harbor-secret"

  4. Sign in to the Harbor instance using a robot account:

    docker --config=./docker login ${HARBOR_INSTANCE_URL}

  5. Create the secrets in the standard cluster:

    kk create secret docker-registry ${IMAGE_PULL_SECRET_NAME} \
  --from-file=.dockerconfigjson=./docker/config.json \
  -n load-balancer

kk create secret docker-registry ${IMAGE_PULL_SECRET_NAME} \
  --from-file=.dockerconfigjson=./docker/config.json \
  -n hello-app

Deploy demo containerized app

This section details the deployment of a demo containerized application (hello-app) within your GDC air-gapped Kubernetes cluster. You will create the necessary Kubernetes Deployment and Service resources to run the hello-app and expose it internally within the cluster, preparing it for access using the L7 load balancer.

  1. Upload a sample image for the demo containerized app into Harbor:

    docker pull gcr.io/google-samples/hello-app:1.0 \
  --platform linux/amd64
docker tag gcr.io/google-samples/hello-app:1.0 \
  ${HARBOR_INSTANCE_URL}/${HARBOR_PROJECT}/hello-app:1.0
docker --config=./docker push \
  ${HARBOR_INSTANCE_URL}/${HARBOR_PROJECT}/hello-app:1.0

  2. Deploy the following manifest in the standard cluster:

    cat << EOF > hello-app.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: hello-app
  namespace: hello-app
spec:
  replicas: 2
  selector:
    matchLabels:
      app: hello-app
  template:
    metadata:
      labels:
        app: hello-app
    spec:
      containers:
      - name: hello-server
        image: ${HARBOR_INSTANCE_URL}/${HARBOR_PROJECT}/hello-app:1.0
        ports:
        - containerPort: 8080
      imagePullSecrets:
      - name: ${IMAGE_PULL_SECRET_NAME}
---
apiVersion: v1
kind: Service
metadata:
  name: hello-app
  namespace: hello-app
spec:
  type: ClusterIP
  selector:
    app: hello-app
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080
EOF

kk apply -f hello-app.yaml

Then verify that the deployment and the service are there

kk get svc,deploy -n hello-app

Deploy demo app in a VM

This section details the deployment of a demo application within a virtual machine (VM) outside your Kubernetes cluster. By setting up an HTTP server on a VM, you'll simulate an external application that the load balancer can expose, demonstrating its capability to manage traffic to resources both inside and outside the cluster.

First, create a VM for the demo app:

  1. Open the GDC console in your web browser.
  2. Select the same project as where you created your standard Kubernetes cluster.
  3. Open the menu then click Virtual machines.
  4. Click Create Instance.
  5. Give the VM the name vm-workload. A 2 vCPU image is enough for the example.
  6. For the boot disk image, select an Ubuntu 22.04 distribution, which comes with Python pre-installed.
  7. Click Create.
  8. Wait a few minutes until the VM becomes ready.
  9. Establish an SSH connection to VM:
    1. In the GDC console, click the VM.
    2. Click Connect with SSH.

After you're connected to the SSH console, run the following:

mkdir ~/simple-server
cd ~/simple-server
echo 'Welcome to my VM!' > index.html
python3 -m http.server --bind 0.0.0.0 8080 &

To route traffic to a VM, create a headless Service (without selectors). This will be manually mapped to the VM's internal IP address using an EndpointSlice resource.

kk apply -f - <<EOF
apiVersion: v1
kind: Service
metadata:
  name: vm-app-svc
  namespace: vm-app
spec:
  ports:
  - protocol: TCP
    port: 443
    targetPort: 443
EOF

Get the IP address of vm-workload VM by running

gdcloud compute instances list --project ${PROJECT_ID} \
  | grep workload-vm | awk '{print $3}'

The output will be the IP address of the VM that will be needed to set up the EndpointSlice resource.

Create the resource EndpointSlice that will connect to the VM-app selector-less Service and address the IP of the VM to which the traffic should be routed.

apiVersion: discovery.k8s.io/v1
kind: EndpointSlice
metadata:
  name: vm-app-endpoints
  namespace: vm-app
  labels:
    kubernetes.io/service-name: vm-app-svc
addressType: IPv4
ports:
  - port: 8080
endpoints:
  - addresses:
    - "VM_IP"
    conditions:
      ready: true

Create self-signed certificates

This section guides you through the process of creating TLS certificates and Kubernetes secrets to secure communication for your container-based and VM-based applications. This guide uses self-signed certificates for convenience, but in production environments, you must use production-grade certificates, as described in Optional: Use production-ready certificates. Choose arbitrary sample domain names for these apps. By establishing secure connections, you ensure data integrity and confidentiality for clients accessing your application through the HAProxy Ingress Controller.

For the containerized app, we create a self-signed certificate and save it as a secret on the load-balancer namespace. This will be used for the TLS when requesting k8s-app.example.com

openssl req -x509 -newkey rsa:2048 -nodes \
  -keyout tls-containerized.key \
  -out tls-containerized.crt \
  -subj "/CN=k8s-app.example.com" \
  -days 365

kk create secret tls tls-containerized \
  --namespace load-balancer \
  --key tls-containerized.key \
  --cert tls-containerized.crt

kk create secret tls tls-containerized \
  --namespace hello-app \
  --key tls-containerized.key \
  --cert tls-containerized.crt

For the VM app, a similar self-signed certificate is issued and saved. This will be used for the TLS when requesting vm-app.example.com

openssl req -x509 -newkey rsa:2048 -nodes \
  -keyout tls-vm.key \
  -out tls-vm.crt \
  -subj "/CN=vm-app.example.com" \
  -days 365

kk create secret tls tls-vm \
  --namespace load-balancer \
  --key tls-vm.key \
  --cert tls-vm.crt

kk create secret tls tls-vm \
  --namespace vm-app \
  --key tls-vm.key \
  --cert tls-vm.crt

Deploy HAProxy

Install HAProxy Ingress controller and L4 LB

export HAPROXY_VERSION=3.1.14

# pull the HAProxy Ingress Controller image and push it to Harbor
docker pull haproxytech/kubernetes-ingress:${HAPROXY_VERSION} \
  --platform linux/amd64
docker tag haproxytech/kubernetes-ingress:${HAPROXY_VERSION} \
  ${HARBOR_INSTANCE_URL}/${HARBOR_PROJECT}/haproxy-ingress:${HAPROXY_VERSION}
docker --config=./docker push \
  ${HARBOR_INSTANCE_URL}/${HARBOR_PROJECT}/haproxy-ingress:${HAPROXY_VERSION}

# Get Helm repo
helm repo add haproxytech https://haproxytech.github.io/helm-charts
helm repo update

# Install the Ingress Controller with helm
helm upgrade --install haproxy-kubernetes-ingress \
  haproxytech/kubernetes-ingress \
  --kubeconfig kubeconfig-${CLUSTER_NAME}.yaml \
  --namespace load-balancer \
  --set controller.image.repository=${HARBOR_INSTANCE_URL}/${HARBOR_PROJECT}/haproxy-ingress \
  --set controller.image.tag=${HAPROXY_VERSION} \
  --set controller.existingImagePullSecret=${IMAGE_PULL_SECRET_NAME} \
  --set controller.service.type=LoadBalancer \
  --set-json \
  controller.service.annotations='{"networking.gke.io/load-balancer-type": "internal"}'

The HAProxy Ingress Controller gains a unique virtual IP address for client access using a LoadBalancer type service. This service sets up a fully-managed Layer 4 load balancer. For this guide's simplicity, an internal load balancer is created by setting the load-balancer-type annotation to internal. Omitting this annotation would result in an external load balancer. The Kubernetes deployment securely pulls images from Harbor using the provided secret (${IMAGE_PULL_SECRET_NAME}), which contains the Harbor robot account's credentials.

Validate HAProxy Ingress controller installation

Check that the HAProxy Ingress Controller's pods are running and ready:

kk get pods -n load-balancer

The output should look like the following:

NAME                                          READY   STATUS      RESTARTS   AGE
haproxy-kubernetes-ingress-78dc9c8676-f8fcb   1/1     Running     0          35s
haproxy-kubernetes-ingress-78dc9c8676-lfnr2   1/1     Running     0          65s
haproxy-kubernetes-ingress-crdjob-3-tgj2h     0/1     Completed   0          65s

Check that the HAProxy Ingress Controller's service is created and configured:

kk get services -n load-balancer

The output looks similar to the following:

NAME                         TYPE           CLUSTER-IP     EXTERNAL-IP   PORT(S)                                                                  AGE
haproxy-kubernetes-ingress   LoadBalancer   10.252.27.46   10.252.4.17   80:32023/TCP,443:31103/TCP,443:31103/UDP,1024:30146/TCP,6060:30718/TCP   10m

Define Ingress resources for the demo apps

Create the Ingress resource that will connect the HAProxy to the containerized app Service

cat << EOF > hello-app-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: hello-app-ingress
  namespace: hello-app
  annotations:
    haproxy.org/ssl-redirect: "true"
    haproxy.org/ssl-redirect-port: "443"
    haproxy.org/ssl-redirect-code: "308"
spec:
  ingressClassName: haproxy
  tls:
  - hosts:
    - "k8s-app.example.com"
    secretName: tls-containerized
  rules:
  - host: "k8s-app.example.com"
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: hello-app
            port:
              number: 80
EOF

kk apply -f hello-app-ingress.yaml

Create the Ingress resource that will connect to the VM-app selector-less Service and address the IP of the VM to which the traffic should be routed.

cat << EOF > vm-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: vm-app-ingress
  namespace: vm-app
  annotations:
    haproxy.org/ssl-redirect: "true"
    haproxy.org/ssl-redirect-port: "443"
    haproxy.org/ssl-redirect-code: "308"
spec:
  ingressClassName: haproxy
  tls:
  - hosts:
    - "vm-app.example.com"
    secretName: tls-vm
  rules:
  - host: "vm-app.example.com"
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: vm-app-svc
            port:
              number: 443
EOF

kk apply -f vm-ingress.yaml

Retrieve load balancer IP address

Run the command to get the IP address of the load balancer.

kk get services/haproxy-kubernetes-ingress \
  -n load-balancer \
  -o jsonpath='{.status.loadBalancer.ingress[0].ip}'

This will be needed when verifying the access to the apps. This will be referred to as LOAD_BALANCER_IP.

Create a client VM

Follow the steps to create a client VM:

  1. Open the GDC console in your web browser.
  2. Open the menu and click Virtual machines.
  3. Click Create Instance.
  4. Create a VM named client, select a small machine type and select either Rocky Linux or Ubuntu, which come with curl preinstalled.
  5. Click Create.
  6. Wait a few minutes until the VM becomes ready.
  7. After the VM is ready, establish an SSH connection with the VM:
    1. In the GDC console, click the VM.
    2. Click Connect with SSH.

Verify access and routing

To test the routing, execute curl commands from your client VM. You can connect to both applications using their defined hostnames with the load balancer's IP address.

By passing the --resolve flag in curl, you can force the domain names to resolve to your GDC air-gapped L4 Load Balancer's IP. Note that we pass the -k flag to trust the self-signed certificates.

Test the Kubernetes containerized app:

curl -k --resolve k8s-app.example.com:443:$LOAD_BALANCER_IP https://k8s-app.example.com -v

Test the external VM app:

curl -k --resolve vm-app.example.com:443:$LOAD_BALANCER_IP https://vm-app.example.com -v

If configured correctly, the Ingress controller will seamlessly act as TLS terminator and pass-through the traffic to the destination.

Optional: Use production-ready certificates

This section covers how to leverage the GDC air-gapped CA Service to create a private Root Certificate Authority (CA), issue signed certificates for your workloads, and securely update your GDC air-gapped standard cluster and client VMs.

This section outlines how to use the GDC air-gapped CA Service to create a private Root Certificate Authority (CA) and issue valid certificates for your applications. By installing this Root CA on your client VM, you can verify that TLS termination works seamlessly with trusted certificates, without needing to bypass SSL warnings (for example, using curl -k).

Grant necessary permissions and get credentials

To manage the CA Service and issue certificates, your user needs the appropriate IAM roles in the project.

  1. Grant the certificate-authority-service-admin and certificate-requester roles:

    gdcloud projects add-iam-policy-binding ${PROJECT_ID} \
  --member=user:${USER_NAME} \
  --role=certificate-authority-service-admin

gdcloud projects add-iam-policy-binding ${PROJECT_ID} \
  --member=user:${USER_NAME} \
  --role=certificate-requester

  2. Get the credentials of the management API server:

    gdcloud clusters get-credentials ${ORG_NAME}-admin

Create the root CA

You will create a Certificate Authority in the management API server within your project namespace.

  1. Apply the CertificateAuthority resource:

    km apply -f - <<EOF
apiVersion: pki.security.gdc.goog/v1
kind: CertificateAuthority
metadata:
  name: my-root-ca
  namespace: ${PROJECT_ID}
spec:
  caProfile:
    commonName: "My Root CA"
    duration: 87600h # 10 years
    keyAlgorithm: RSA_2048
    maxChainLength: 1
  caType: ROOT
  keyLocation: HSM
  rotationPolicy:
    cronTime: 0 0 1 1 *
EOF

    km -n ${PROJECT_ID} get \
certificateauthority.pki.security.gdc.goog/my-root-ca -ojson \
| jq -r '
.status.conditions[] | select( .type as $id | "Ready" | index($id)) .status'

Issue and deploy certificates

After the CA is ready, you will request certificates for both the containerized app and the VM-based app. These requests happen in the management API server, and the resulting keys must be moved to your standard cluster.

Create requests for both domains:

km apply -f - <<EOF
apiVersion: pki.security.gdc.goog/v1
kind: CertificateRequest
metadata:
  name: tls-containerized-req
  namespace: ${PROJECT_ID}
spec:
  certificateAuthorityRef:
    name: my-root-ca
    namespace: ${PROJECT_ID}
  certificateConfig:
    subjectConfig:
      commonName: "k8s-app.example.com"
      dnsNames:
      - "k8s-app.example.com"
  signedCertificateSecret: tls-containerized-signed
---
apiVersion: pki.security.gdc.goog/v1
kind: CertificateRequest
metadata:
  name: tls-vm-req
  namespace: ${PROJECT_ID}
spec:
  certificateAuthorityRef:
    name: my-root-ca
    namespace: ${PROJECT_ID}
  certificateConfig:
    subjectConfig:
      commonName: "vm-app.example.com"
      dnsNames:
      - "vm-app.example.com"
  signedCertificateSecret: tls-vm-signed
EOF

Wait a few moments for the certificates to be issued. You can verify they are ready when the Ready condition is True:

km get certificaterequests -n ${PROJECT_ID}

Update the standard cluster

If you followed the previous sections of this guide, you have self-signed secrets in your standard cluster. You must delete them before creating the new, signed versions:

kk delete secret tls-containerized -n load-balancer
kk delete secret tls-vm -n load-balancer

kk delete secret tls-containerized -n hello-app
kk delete secret tls-vm -n vm-app

Now, extract the signed certificates from the management API server and create the new secrets in the standard cluster.

km get secret -n ${PROJECT_ID} tls-containerized-signed \
  -o jsonpath='{.data.tls\.crt}' \
  | base64 -d > tls-containerized.crt

km get secret -n ${PROJECT_ID} tls-containerized-signed \
  -o jsonpath='{.data.tls\.key}' \
  | base64 -d > tls-containerized.key

kk create secret tls tls-containerized \
  --namespace load-balancer \
  --key tls-containerized.key \
  --cert tls-containerized.crt

kk create secret tls tls-containerized \
  --namespace hello-app \
  --key tls-containerized.key \
  --cert tls-containerized.crt

km get secret -n ${PROJECT_ID} tls-vm-signed \
  -o jsonpath='{.data.tls\.crt}' \
  | base64 -d > tls-vm.crt

km get secret -n ${PROJECT_ID} tls-vm-signed \
  -o jsonpath='{.data.tls\.key}' \
  | base64 -d > tls-vm.key

kk create secret tls tls-vm \
  --namespace load-balancer \
  --key tls-vm.key \
  --cert tls-vm.crt

kk create secret tls tls-vm \
  --namespace vm-app \
  --key tls-vm.key \
  --cert tls-vm.crt

The new secrets will be obtained automatically and refreshed by load balancers.

Configure client trust

To verify the setup, you need to tell your client VM to trust your new root CA.

Extract the root CA certificate to a file:

km get secret -n ${PROJECT_ID} my-root-ca-secret \
  -o jsonpath='{.data.tls\.crt}' \
  | base64 -d > my-root-ca.crt

Transfer the certificate to your client VM. (You can copy the content of my-root-ca.crt and paste it into a file on the client VM).

On the client VM, update the trust store.

If client VM is Ubuntu:

sudo cp my-root-ca.crt /usr/local/share/ca-certificates/
sudo chmod 644 /usr/local/share/ca-certificates/my-root-ca.crt
sudo update-ca-certificates

If client VM is Rocky Linux:

sudo cp my-root-ca.crt /etc/pki/ca-trust/source/anchors/
sudo update-ca-trust

Verify access

You can now access your applications using curl without the -k flag. The connection will be fully trusted.

Test the k8s containerized App:

curl -v --resolve k8s-app.example.com:443:LOAD_BALANDER_IP https://k8s-app.example.com

Test the VM App:

curl -v --resolve vm.example.com:443:LOAD_BALANDER_IP https://vm-app.example.com

If successful, you will see the application output immediately without any SSL certificate warnings.
