Body-Based Routing with Envoy Agent Router user guide on GDC air-gapped

This document provides step-by-step instructions for configuring Body-Based Routing (BBR) for Large Language Model (LLM) traffic with Envoy Agent Router (formerly Envoy AI Gateway) on Google Distributed Cloud (GDC) air-gapped environments. With body-based routing the gateway inspects the JSON payload of an OpenAI-compatible request, extracts the model field into the x-ai-eg-model header and routes the request to the backend that serves that model: an InferencePool, whose Endpoint Picker (EPP) selects the best replica from real-time metrics such as queue depth and KV-cache utilization, or a standard AIServiceBackend.

The guide deploys two simulated vLLM model servers (meta-llama/Llama-3.1-8B-Instruct and Qwen/Qwen3-32B, served by the llm-d inference simulator so that no accelerator is required), one InferencePool with an Endpoint Picker per model, a mock OpenAI-compatible backend, and a single AIGatewayRoute that routes by model name. An optional section adds a real open weight model served with Ollama from the companion Open Weight Models on GDC air-gapped guides to the same route.

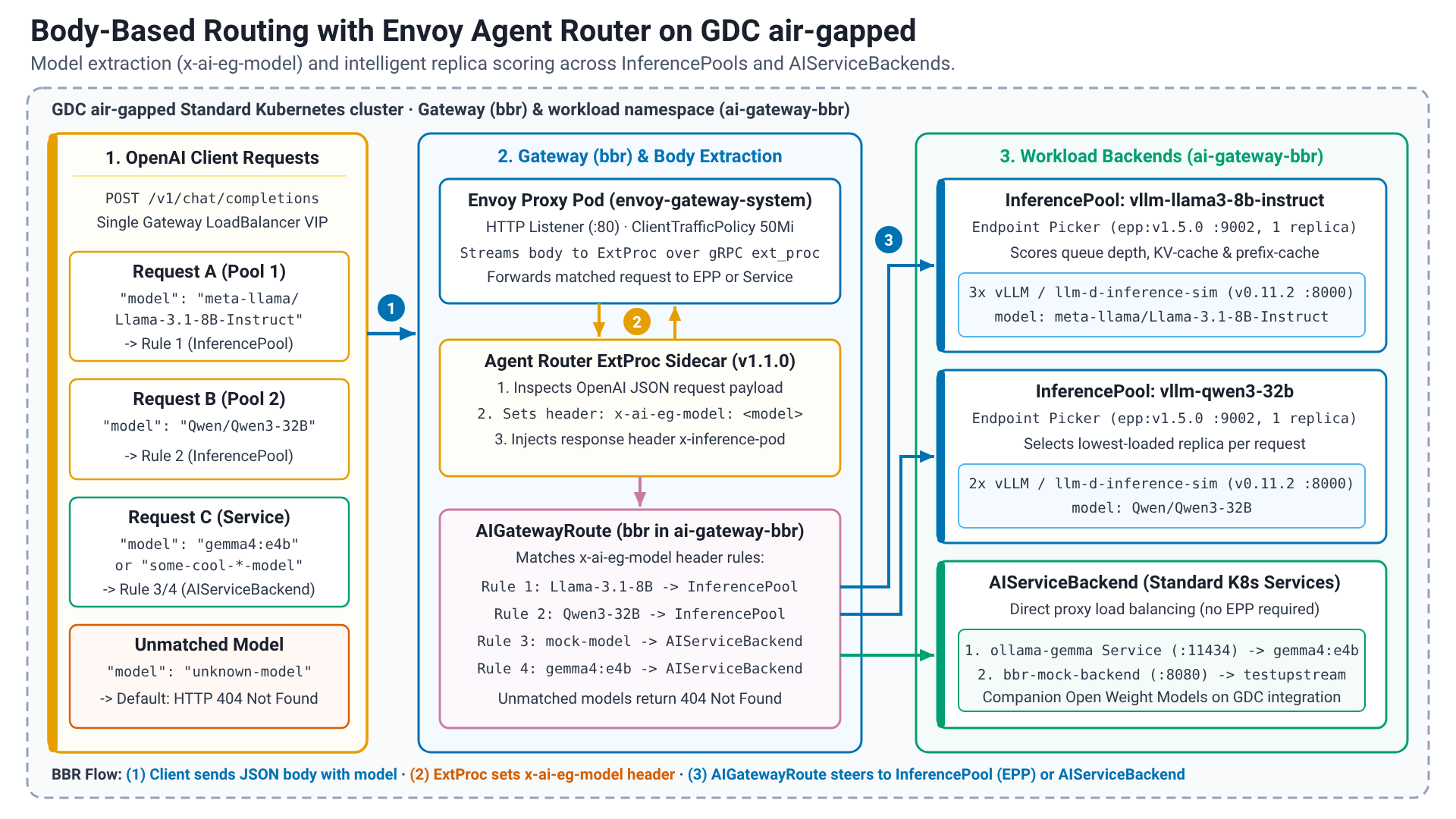

Architecture

A Gateway of the GatewayClass created by the reference implementation exposes one HTTP listener. Envoy Agent Router injects its external processor into the Envoy proxy Pod of the Gateway; the processor parses each request body and sets the routing header. The AIGatewayRoute matches on that header and forwards to either an InferencePool (a set of model server Pods selected by label, fronted by an Endpoint Picker Deployment that the proxy consults per request) or to an AIServiceBackend that points at a Kubernetes Service. All resources of this guide live in one workload namespace; the proxy Pods themselves run in the Envoy Gateway namespace.

Note: Limitation: The Endpoint Picker is deployed with a single replica per InferencePool (the upstream recommendation, because its scoring is stateful). InferenceObjective is an alpha API (inference.networking.x-k8s.io/v1alpha2) and may change between releases. The simulated model servers return canned text and exist only to exercise the routing; replace them with the Ollama or vLLM backends of the companion guides for real inference.

Before you begin

Note: This guide requires GDC air-gapped 1.16.2-hf1 (1.16.2-gdch.1353-1) or later, including later hotfix releases, and a standard cluster that runs Kubernetes v1.32.13-gke.400 or later. Hotfix releases can change the Kubernetes patch version, and standard clusters are upgraded separately from the organization, so check the version of your cluster before you begin. To change it, see Upgrade a cluster. GPU workloads in a standard cluster also require 1.16.2-hf1 or later.

Ensure that the Envoy Agent Router reference implementation has been deployed using the workstation and you have access to the gdcag-solutions/ai-gateway/envoy directory.

Identity and Access Management

Ensure that the necessary IAM accounts, roles, and permissions are properly configured.

GDC User roles on project:

• Standard Cluster Admin (standard-cluster-admin)

GDC User role on the standard cluster:

• StandardClusterRoleBinding to the StandardClusterRole cluster-admin (created by a Project IAM Admin, see the Identity and Access Management section of the reference implementation)

Workstation

This guide requires a workstation with the necessary connectivity to the environment and internet.

1. Create the user guide directory structure:

   mkdir -p ${HOME}/gdcag-solutions/ai-gateway/envoy/bbr/env.d


2. Create the user guide environment configuration file:

   cat << 'EOF' > ${HOME}/gdcag-solutions/ai-gateway/envoy/bbr/env.d/bbr.sh && echo "Successfully created." || echo "Failed to create!"
   # Workload
   export GDCS_WORKLOAD_NAMESPACE="ai-gateway-bbr"
   export GDCS_BBR_GATEWAY_NAME="bbr"

   # Simulated model servers (llm-d inference simulator, no accelerator required)
   export GDCS_INFERENCE_SIM_IMAGE_TAG="v0.11.2"
   export GDCS_BBR_MODEL_1_NAME="meta-llama/Llama-3.1-8B-Instruct"
   export GDCS_BBR_MODEL_1_POOL="vllm-llama3-8b-instruct"
   export GDCS_BBR_MODEL_1_REPLICAS="3"
   export GDCS_BBR_MODEL_2_NAME="Qwen/Qwen3-32B"
   export GDCS_BBR_MODEL_2_POOL="vllm-qwen3-32b"
   export GDCS_BBR_MODEL_2_REPLICAS="2"

   # Endpoint Picker (Gateway API Inference Extension)
   export GDCS_EPP_IMAGE_TAG="${GDCS_GATEWAY_API_INFERENCE_EXTENSION_VERSION}"
   export GDCS_EPP_CHART_VERSION="${GDCS_GATEWAY_API_INFERENCE_EXTENSION_VERSION}"

   # Mock OpenAI-compatible backend (traditional AIServiceBackend)
   export GDCS_BBR_MOCK_MODEL_NAME="some-cool-self-hosted-model"
   EOF


3. Create the user guide environment loader file:

   cat << 'EOF' > ${HOME}/gdcag-solutions/ai-gateway/envoy/bbr/env.sh && echo "Successfully created." || echo "Failed to create!"
   source "${HOME}/gdcag-solutions/ai-gateway/envoy/env.sh"

   export GDCS_USER_GUIDE_HOME="${HOME}/gdcag-solutions/ai-gateway/envoy/bbr"
   echo "GDCS_USER_GUIDE_HOME=${GDCS_USER_GUIDE_HOME}"

   # Sourced in dependency order
   source "${GDCS_USER_GUIDE_HOME}/env.d/bbr.sh"

   if [[ -f "${GDCS_USER_GUIDE_HOME}/env.d/ollama.sh" ]]; then
     source "${GDCS_USER_GUIDE_HOME}/env.d/ollama.sh"
   fi
   EOF


4. Edit and review the environment file with your preferred editor:

   ${EDITOR:-vi} ${HOME}/gdcag-solutions/ai-gateway/envoy/bbr/env.d/bbr.sh


5. Source the environment file:

   source ${HOME}/gdcag-solutions/ai-gateway/envoy/bbr/env.sh


Note: Any time a new terminal or shell is started, the environment file needs to be sourced.

1. Verify the environment variables have been set:

   echo "GDCS_USER_GUIDE_HOME=${GDCS_USER_GUIDE_HOME}"
   echo "GDCS_HARBOR_PROJECT_URI=${GDCS_HARBOR_PROJECT_URI}"


Cluster

1. Retrieve cluster credentials:

   gdcloud clusters get-credentials "${GDC_STANDARD_CLUSTER_NAME}" \
   --project="${GDC_PROJECT}" \
   --standard \
   --zone="${GDC_ZONE}"


2. Verify connectivity to the cluster:

   kubectl get nodes -L node.cluster.private.gdc.goog/machine-class


3. Verify that every node runs the Kubernetes version that the Before you begin section of this guide requires:

   kubectl get nodes -o custom-columns='NAME:.metadata.name,VERSION:.status.nodeInfo.kubeletVersion'


4. Verify the GatewayClass of the reference implementation is Accepted:

   kubectl get gatewayclass "${GDCS_GATEWAY_CLASS_NAME}"


Implementation

The implementation seeds the additional artifacts, deploys the simulated model servers with their inference pools and Endpoint Pickers, adds a mock backend, and finally creates the Gateway and the AIGatewayRoute.

Artifact migration

1. Define the list of required container images for this guide:

   declare -a GDCS_REGISTRY_IMAGES=(
     "ghcr.io/llm-d/llm-d-inference-sim:${GDCS_INFERENCE_SIM_IMAGE_TAG}"
     "registry.k8s.io/gateway-api-inference-extension/epp:${GDCS_EPP_IMAGE_TAG}"
   )
   export SERIALIZED_IMAGES=$(declare -p GDCS_REGISTRY_IMAGES)


2. Seed the required container images to the artifact registry:

   ${GDCS_IMPLEMENTATION_HOME}/seed_registry.sh


3. Define the list of required Helm charts for this guide:

   declare -a GDCS_REGISTRY_CHARTS=(
     "registry.k8s.io/gateway-api-inference-extension/charts/inferencepool:${GDCS_EPP_CHART_VERSION}"
   )
   export SERIALIZED_CHARTS=$(declare -p GDCS_REGISTRY_CHARTS)


4. Seed the required Helm charts to the artifact registry:

   ${GDCS_IMPLEMENTATION_HOME}/seed_charts.sh


5. Verify the images and the chart are available in Harbor:

   crane ls "${GDCS_HARBOR_PROJECT_URI}/llm-d/llm-d-inference-sim"
   crane ls "${GDCS_HARBOR_PROJECT_URI}/gateway-api-inference-extension/epp"
   helm show chart "${GDCS_HARBOR_CHART_OCI_URI}/gateway-api-inference-extension/charts/inferencepool" --version "${GDCS_EPP_CHART_VERSION}" | grep -E '^(name|version):'


Namespace

1. Create the namespace:

   kubectl create namespace "${GDCS_WORKLOAD_NAMESPACE}"


2. Add the imagePullSecret:

   kubectl create secret docker-registry "${GDCS_HARBOR_K8S_PULL_SECRET}" \
   --dry-run=client \
   --from-file=.dockerconfigjson=${GDCS_HARBOR_K8S_DOCKER_CONFIG}/config.json \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}" \
   --output=yaml | kubectl apply -f -


Simulated model servers

Each simulated model server is a Deployment of the llm-d inference simulator, which exposes the vLLM OpenAI-compatible API and metrics on port 8000 and answers with random sentences. The app label of the Pods is the selector of the corresponding InferencePool.

1. Create the manifest for the first simulated model server:

   cat <<EOF > "${GDCS_USER_GUIDE_HOME}/${GDCS_BBR_MODEL_1_POOL}-sim.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: ${GDCS_BBR_MODEL_1_POOL}
     labels:
       app: ${GDCS_BBR_MODEL_1_POOL}
       inference.networking.k8s.io/engine-type: vllm
   spec:
     replicas: ${GDCS_BBR_MODEL_1_REPLICAS}
     selector:
       matchLabels:
         app: ${GDCS_BBR_MODEL_1_POOL}
     template:
       metadata:
         labels:
           app: ${GDCS_BBR_MODEL_1_POOL}
           inference.networking.k8s.io/engine-type: vllm
       spec:
         containers:
           - name: vllm-sim
             image: ${GDCS_HARBOR_PROJECT_URI}/llm-d/llm-d-inference-sim:${GDCS_INFERENCE_SIM_IMAGE_TAG}
             imagePullPolicy: IfNotPresent
             args:
               - --model
               - ${GDCS_BBR_MODEL_1_NAME}
               - --port
               - "8000"
               - --max-loras
               - "2"
               - --lora-modules
               - '{"name": "food-review-1"}'
             env:
               - name: POD_NAME
                 valueFrom:
                   fieldRef:
                     fieldPath: metadata.name
               - name: NAMESPACE
                 valueFrom:
                   fieldRef:
                     fieldPath: metadata.namespace
             ports:
               - containerPort: 8000
                 name: http
                 protocol: TCP
             readinessProbe:
               httpGet:
                 path: /health
                 port: 8000
               periodSeconds: 5
             resources:
               limits:
                 memory: 256Mi
               requests:
                 cpu: 50m
                 memory: 64Mi
         imagePullSecrets:
           - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
   EOF


2. Apply the manifest for the first simulated model server:

   kubectl apply \
   --filename="${GDCS_USER_GUIDE_HOME}/${GDCS_BBR_MODEL_1_POOL}-sim.yaml" \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}"


3. Create the manifest for the second simulated model server:

   cat <<EOF > "${GDCS_USER_GUIDE_HOME}/${GDCS_BBR_MODEL_2_POOL}-sim.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: ${GDCS_BBR_MODEL_2_POOL}
     labels:
       app: ${GDCS_BBR_MODEL_2_POOL}
       inference.networking.k8s.io/engine-type: vllm
   spec:
     replicas: ${GDCS_BBR_MODEL_2_REPLICAS}
     selector:
       matchLabels:
         app: ${GDCS_BBR_MODEL_2_POOL}
     template:
       metadata:
         labels:
           app: ${GDCS_BBR_MODEL_2_POOL}
           inference.networking.k8s.io/engine-type: vllm
       spec:
         containers:
           - name: vllm-sim
             image: ${GDCS_HARBOR_PROJECT_URI}/llm-d/llm-d-inference-sim:${GDCS_INFERENCE_SIM_IMAGE_TAG}
             imagePullPolicy: IfNotPresent
             args:
               - --model
               - ${GDCS_BBR_MODEL_2_NAME}
               - --port
               - "8000"
               - --max-loras
               - "2"
               - --lora-modules
               - '{"name": "food-review-1"}'
             env:
               - name: POD_NAME
                 valueFrom:
                   fieldRef:
                     fieldPath: metadata.name
               - name: NAMESPACE
                 valueFrom:
                   fieldRef:
                     fieldPath: metadata.namespace
             ports:
               - containerPort: 8000
                 name: http
                 protocol: TCP
             readinessProbe:
               httpGet:
                 path: /health
                 port: 8000
               periodSeconds: 5
             resources:
               limits:
                 memory: 256Mi
               requests:
                 cpu: 50m
                 memory: 64Mi
         imagePullSecrets:
           - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
   EOF


4. Apply the manifest for the second simulated model server:

   kubectl apply \
   --filename="${GDCS_USER_GUIDE_HOME}/${GDCS_BBR_MODEL_2_POOL}-sim.yaml" \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}"


5. Wait for the simulated model servers to be Available:

   watch --color --interval 5 --no-title \
   "kubectl get deployments --selector='inference.networking.k8s.io/engine-type' \
   --namespace=${GDCS_WORKLOAD_NAMESPACE} | GREP_COLORS='mt=01;92' egrep --color=always -e '^' -e '${GDCS_BBR_MODEL_1_REPLICAS}/${GDCS_BBR_MODEL_1_REPLICAS}' -e '${GDCS_BBR_MODEL_2_REPLICAS}/${GDCS_BBR_MODEL_2_REPLICAS}'"


Inference pools and endpoint Pickers

The inferencepool Helm chart of the Gateway API Inference Extension creates, per model, the InferencePool, the Endpoint Picker Deployment and Service (gRPC port 9002), its plugin configuration (queue-scorer, kv-cache-utilization-scorer, prefix-cache-scorer) and the namespace-scoped RBAC the picker needs to watch Pods and InferencePools.

1. Create the shared Helm values file for the Endpoint Pickers. The chart has no image pull secret value, so the secret is added to the Deployment after the install:

   cat <<EOF > "${GDCS_USER_GUIDE_HOME}/epp-values.yaml" && echo "Successfully created." || echo "Failed to create!"
   inferenceExtension:
     image:
       pullPolicy: IfNotPresent
       registry: ${GDCS_HARBOR_PROJECT_URI}
       repository: gateway-api-inference-extension/epp
       tag: ${GDCS_EPP_IMAGE_TAG}
     replicas: 1
     resources:
       limits:
         memory: 4Gi
       requests:
         cpu: 500m
         memory: 1Gi
   inferencePool:
     modelServerType: vllm
     targetPorts:
       - number: 8000
   provider:
     name: none
   EOF


2. Install the InferencePool and Endpoint Picker for the first model:

   helm upgrade --install "${GDCS_BBR_MODEL_1_POOL}" "${GDCS_HARBOR_CHART_OCI_URI}/gateway-api-inference-extension/charts/inferencepool" \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}" \
   --set "inferencePool.modelServers.matchLabels.app=${GDCS_BBR_MODEL_1_POOL}" \
   --values="${GDCS_USER_GUIDE_HOME}/epp-values.yaml" \
   --version="${GDCS_EPP_CHART_VERSION}"


3. Install the InferencePool and Endpoint Picker for the second model:

   helm upgrade --install "${GDCS_BBR_MODEL_2_POOL}" "${GDCS_HARBOR_CHART_OCI_URI}/gateway-api-inference-extension/charts/inferencepool" \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}" \
   --set "inferencePool.modelServers.matchLabels.app=${GDCS_BBR_MODEL_2_POOL}" \
   --values="${GDCS_USER_GUIDE_HOME}/epp-values.yaml" \
   --version="${GDCS_EPP_CHART_VERSION}"


4. Add the imagePullSecret to the Endpoint Picker Deployments. The patch starts a new rollout with the secret:

   for pool in "${GDCS_BBR_MODEL_1_POOL}" "${GDCS_BBR_MODEL_2_POOL}"; do
     kubectl patch deployment "${pool}-epp" \
     --namespace="${GDCS_WORKLOAD_NAMESPACE}" \
     --patch="{\"spec\":{\"template\":{\"spec\":{\"imagePullSecrets\":[{\"name\":\"${GDCS_HARBOR_K8S_PULL_SECRET}\"}]}}}}"
   done


5. Wait for the Endpoint Pickers to be Available:

   watch --color --interval 5 --no-title \
   "kubectl get deployments --selector='inference.networking.k8s.io/igw-mode=inferencepool' \
   --namespace=${GDCS_WORKLOAD_NAMESPACE} | GREP_COLORS='mt=01;92' egrep --color=always -e '^' -e '1/1     1            1'"


6. Verify the InferencePools exist:

   kubectl get inferencepools \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}"


   The output is similar to the following:

   NAME                      AGE
   vllm-llama3-8b-instruct   1m
   vllm-qwen3-32b            1m


7. Create the manifest for the InferenceObjectives. An objective binds a priority to an InferencePool; the Endpoint Picker prefers higher priorities when the pool is saturated:

   cat <<EOF > "${GDCS_USER_GUIDE_HOME}/inferenceobjectives.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: inference.networking.x-k8s.io/v1alpha2
   kind: InferenceObjective
   metadata:
     name: ${GDCS_BBR_MODEL_1_POOL}
   spec:
     poolRef:
       name: ${GDCS_BBR_MODEL_1_POOL}
     priority: 10
   ---
   apiVersion: inference.networking.x-k8s.io/v1alpha2
   kind: InferenceObjective
   metadata:
     name: ${GDCS_BBR_MODEL_2_POOL}
   spec:
     poolRef:
       name: ${GDCS_BBR_MODEL_2_POOL}
     priority: 5
   EOF


8. Apply the manifest for the InferenceObjectives:

   kubectl apply \
   --filename="${GDCS_USER_GUIDE_HOME}/inferenceobjectives.yaml" \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}"


Mock backend

1. Create the manifest for the mock OpenAI-compatible backend and its AIServiceBackend. It stands in for any model server that is addressed as a plain Kubernetes Service instead of an InferencePool:

   cat <<EOF > "${GDCS_USER_GUIDE_HOME}/mock-backend.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: aigateway.envoyproxy.io/v1beta1
   kind: AIServiceBackend
   metadata:
     name: mock-backend
   spec:
     schema:
       name: OpenAI
     backendRef:
       name: mock-backend
       kind: Backend
       group: gateway.envoyproxy.io
   ---
   apiVersion: gateway.envoyproxy.io/v1alpha1
   kind: Backend
   metadata:
     name: mock-backend
   spec:
     endpoints:
       - fqdn:
           hostname: mock-backend.${GDCS_WORKLOAD_NAMESPACE}.svc.cluster.local
           port: 80
   ---
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: mock-backend
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: mock-backend
     template:
       metadata:
         labels:
           app: mock-backend
       spec:
         containers:
           - name: testupstream
             image: ${GDCS_HARBOR_PROJECT_URI}/envoyproxy/ai-gateway-testupstream:${GDCS_ENVOY_AGENT_ROUTER_VERSION}
             imagePullPolicy: IfNotPresent
             ports:
               - containerPort: 8080
             env:
               - name: TESTUPSTREAM_ID
                 value: test
             readinessProbe:
               httpGet:
                 path: /health
                 port: 8080
               initialDelaySeconds: 1
               periodSeconds: 1
         imagePullSecrets:
           - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
   ---
   apiVersion: v1
   kind: Service
   metadata:
     name: mock-backend
   spec:
     selector:
       app: mock-backend
     ports:
       - protocol: TCP
         port: 80
         targetPort: 8080
     type: ClusterIP
   EOF


2. Apply the manifest for the mock backend:

   kubectl apply \
   --filename="${GDCS_USER_GUIDE_HOME}/mock-backend.yaml" \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}"


Gateway and route

1. Create the manifest for the Gateway and its ClientTrafficPolicy. The buffer limit is raised from the 32 KiB default because the external processor buffers the request body:

   cat <<EOF > "${GDCS_USER_GUIDE_HOME}/gateway.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: gateway.networking.k8s.io/v1
   kind: Gateway
   metadata:
     name: ${GDCS_BBR_GATEWAY_NAME}
   spec:
     gatewayClassName: ${GDCS_GATEWAY_CLASS_NAME}
     listeners:
       - name: http
         protocol: HTTP
         port: 80
   ---
   apiVersion: gateway.envoyproxy.io/v1alpha1
   kind: ClientTrafficPolicy
   metadata:
     name: ${GDCS_BBR_GATEWAY_NAME}-buffer-limit
   spec:
     targetRefs:
       - group: gateway.networking.k8s.io
         kind: Gateway
         name: ${GDCS_BBR_GATEWAY_NAME}
     connection:
       bufferLimit: 50Mi
   EOF


2. Apply the manifest for the Gateway:

   kubectl apply \
   --filename="${GDCS_USER_GUIDE_HOME}/gateway.yaml" \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}"


3. Create the manifest for the AIGatewayRoute. Each rule matches the x-ai-eg-model header that the external processor derives from the model field of the request body:

   cat <<EOF > "${GDCS_USER_GUIDE_HOME}/aigatewayroute.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: aigateway.envoyproxy.io/v1beta1
   kind: AIGatewayRoute
   metadata:
     name: ${GDCS_BBR_GATEWAY_NAME}
   spec:
     parentRefs:
       - name: ${GDCS_BBR_GATEWAY_NAME}
         kind: Gateway
         group: gateway.networking.k8s.io
     rules:
       - matches:
           - headers:
               - type: Exact
                 name: x-ai-eg-model
                 value: ${GDCS_BBR_MODEL_1_NAME}
         backendRefs:
           - group: inference.networking.k8s.io
             kind: InferencePool
             name: ${GDCS_BBR_MODEL_1_POOL}
       - matches:
           - headers:
               - type: Exact
                 name: x-ai-eg-model
                 value: ${GDCS_BBR_MODEL_2_NAME}
         backendRefs:
           - group: inference.networking.k8s.io
             kind: InferencePool
             name: ${GDCS_BBR_MODEL_2_POOL}
       - matches:
           - headers:
               - type: Exact
                 name: x-ai-eg-model
                 value: ${GDCS_BBR_MOCK_MODEL_NAME}
         backendRefs:
           - name: mock-backend
   EOF


4. Apply the manifest for the AIGatewayRoute:

   kubectl apply \
   --filename="${GDCS_USER_GUIDE_HOME}/aigatewayroute.yaml" \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}"


5. Wait for the Gateway to be Programmed:

   watch --color --interval 5 --no-title \
   "kubectl get gateway/${GDCS_BBR_GATEWAY_NAME} \
   --namespace=${GDCS_WORKLOAD_NAMESPACE} | GREP_COLORS='mt=01;92' egrep --color=always -e '^' -e 'True'"


6. Verify the AIGatewayRoute is Accepted:

   kubectl get aigatewayroute/${GDCS_BBR_GATEWAY_NAME} \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}" \
   --output=jsonpath='{range .status.conditions[*]}{.type}={.status} {.message}{"\n"}{end}'


   The output is similar to the following:

   Accepted=True AI Gateway Route is accepted


Validation

1. Start port forwarding to the Envoy Service of the Gateway:

   export ENVOY_SERVICE=$(kubectl get service --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" --selector="gateway.envoyproxy.io/owning-gateway-namespace=${GDCS_WORKLOAD_NAMESPACE},gateway.envoyproxy.io/owning-gateway-name=${GDCS_BBR_GATEWAY_NAME}" --output=jsonpath='{.items[0].metadata.name}')
   echo "ENVOY_SERVICE=${ENVOY_SERVICE}"

   kubectl port-forward "service/${ENVOY_SERVICE}" \
   --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" 8888:80 &
   PF_PID=$!

   sleep 2


2. Send a request for the first model. The response headers show the Pod the Endpoint Picker selected:

   curl http://127.0.0.1:8888/v1/chat/completions \
   --data '{"model": "'${GDCS_BBR_MODEL_1_NAME}'", "messages": [{"role": "user", "content": "Say this is a test."}]}' \
   --dump-header - \
   --header "Content-Type: application/json" \
   --no-progress-meter \
   --show-error | grep -E -i '^(HTTP|x-inference-pod|x-inference-port)|"model"|"content"'


   The output is similar to the following:

   HTTP/1.1 200 OK
   x-inference-port: 8000
   x-inference-pod: vllm-llama3-8b-instruct-...
     "model": "meta-llama/Llama-3.1-8B-Instruct",
           "content": "..."


3. Send a request for the second model:

   curl http://127.0.0.1:8888/v1/chat/completions \
   --data '{"model": "'${GDCS_BBR_MODEL_2_NAME}'", "messages": [{"role": "user", "content": "Say this is a test."}]}' \
   --dump-header - \
   --header "Content-Type: application/json" \
   --no-progress-meter \
   --show-error | grep -E -i '^(HTTP|x-inference-pod|x-inference-port)|"model"|"content"'


   The output is similar to the following:

   HTTP/1.1 200 OK
   x-inference-port: 8000
   x-inference-pod: vllm-qwen3-32b-...
     "model": "Qwen/Qwen3-32B",
           "content": "..."


4. Send a request for the model served by the mock backend:

   curl http://127.0.0.1:8888/v1/chat/completions \
   --data '{"model": "'${GDCS_BBR_MOCK_MODEL_NAME}'", "messages": [{"role": "user", "content": "Say this is a test."}]}' \
   --dump-header - \
   --header "Content-Type: application/json" \
   --no-progress-meter \
   --show-error | grep -E -i '^(HTTP|testupstream-id|x-model)|"content"'


   The output is similar to the following:

   HTTP/1.1 200 OK
   testupstream-id: test
   x-model: some-cool-self-hosted-model
           "content": "..."


5. Send a request for a model that no rule serves. The gateway rejects it instead of forwarding it:

   curl http://127.0.0.1:8888/v1/chat/completions \
   --data '{"model": "unknown-model", "messages": [{"role": "user", "content": "Say this is a test."}]}' \
   --header "Content-Type: application/json" \
   --no-progress-meter \
   --show-error \
   --write-out '\nHTTP %{http_code}\n'


   The output is similar to the following:

   ...
   HTTP 404


6. Send several requests for the first model and confirm that the Endpoint Picker spreads them over the replicas of the pool:

   for i in $(seq 1 6); do
     curl http://127.0.0.1:8888/v1/chat/completions \
     --data '{"model": "'${GDCS_BBR_MODEL_1_NAME}'", "messages": [{"role": "user", "content": "Request '${i}'"}]}' \
     --dump-header - \
     --header "Content-Type: application/json" \
     --no-progress-meter \
     --output /dev/null \
     --show-error | grep -i '^x-inference-pod'
   done | sort | uniq -c


7. Stop the port forwarding:

   kill -9 ${PF_PID}


Route to an open weight model

Note: An option to configure body-based routing with actual foundation models (such as Gemma with Ollama or Mistral with vLLM) will be integrated with direct documentation links once the companion Open Weight Models solution guides are published.

This optional section adds a real model to the route: the Gemma 4 E4B model served with Ollama by the companion guide Gemma 4 E4B with Ollama on GDC air-gapped user guide. Ollama exposes an OpenAI-compatible API, so it is attached as an AIServiceBackend whose Backend points at the in-cluster Service of the Ollama Deployment. Any other OpenAI-compatible model server, for example the vLLM Deployment of the companion guides, can be attached the same way.

1. Create the Ollama backend configuration file. The Service name and namespace are those of the Ollama user guide:

   cat << 'EOF' > ${HOME}/gdcag-solutions/ai-gateway/envoy/bbr/env.d/ollama.sh && echo "Successfully created." || echo "Failed to create!"
   # Open weight model backend (Ollama user guide)
   export GDCS_BBR_OLLAMA_MODEL_NAME="BBR_OLLAMA_MODEL_NAME"
   export GDCS_BBR_OLLAMA_SERVICE_NAME="BBR_OLLAMA_SERVICE_NAME"
   export GDCS_BBR_OLLAMA_SERVICE_NAMESPACE="BBR_OLLAMA_SERVICE_NAMESPACE"
   export GDCS_BBR_OLLAMA_SERVICE_PORT="80"
   EOF


   Replace the following:

   • BBR_OLLAMA_MODEL_NAME: the Ollama model name (GDCS_OLLAMA_MODEL of the Ollama user guide).
   • BBR_OLLAMA_SERVICE_NAME: the Ollama Service name (GDCS_OLLAMA_MODEL_KUBERNETES of the Ollama user guide).
   • BBR_OLLAMA_SERVICE_NAMESPACE: the Ollama namespace (GDCS_WORKLOAD_NAMESPACE of the Ollama user guide).

2. Source the environment file:

   source ${HOME}/gdcag-solutions/ai-gateway/envoy/bbr/env.sh


3. Verify the Ollama Service is reachable by name from inside the cluster:

   kubectl get service "${GDCS_BBR_OLLAMA_SERVICE_NAME}" \
   --namespace="${GDCS_BBR_OLLAMA_SERVICE_NAMESPACE}"


4. Create the manifest for the Ollama AIServiceBackend:

   cat <<EOF > "${GDCS_USER_GUIDE_HOME}/ollama-backend.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: aigateway.envoyproxy.io/v1beta1
   kind: AIServiceBackend
   metadata:
     name: ollama-backend
   spec:
     schema:
       name: OpenAI
     backendRef:
       name: ollama-backend
       kind: Backend
       group: gateway.envoyproxy.io
   ---
   apiVersion: gateway.envoyproxy.io/v1alpha1
   kind: Backend
   metadata:
     name: ollama-backend
   spec:
     endpoints:
       - fqdn:
           hostname: ${GDCS_BBR_OLLAMA_SERVICE_NAME}.${GDCS_BBR_OLLAMA_SERVICE_NAMESPACE}.svc.cluster.local
           port: ${GDCS_BBR_OLLAMA_SERVICE_PORT}
   EOF


5. Apply the manifest for the Ollama AIServiceBackend:

   kubectl apply \
   --filename="${GDCS_USER_GUIDE_HOME}/ollama-backend.yaml" \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}"


6. Add a rule for the Ollama model to the AIGatewayRoute and apply it:

   cat <<EOF >> "${GDCS_USER_GUIDE_HOME}/aigatewayroute.yaml" && echo "Successfully added." || echo "Failed to add!"
       - matches:
           - headers:
               - type: Exact
                 name: x-ai-eg-model
                 value: ${GDCS_BBR_OLLAMA_MODEL_NAME}
         backendRefs:
           - name: ollama-backend
   EOF

   kubectl apply \
   --filename="${GDCS_USER_GUIDE_HOME}/aigatewayroute.yaml" \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}"


7. Send a request for the Ollama model through the gateway. The route change of the previous step takes a few seconds to reach the proxy, so the request retries on transient errors; on CPU-only clusters the model answers slowly, so it allows five minutes:

   export ENVOY_SERVICE=$(kubectl get service --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" --selector="gateway.envoyproxy.io/owning-gateway-namespace=${GDCS_WORKLOAD_NAMESPACE},gateway.envoyproxy.io/owning-gateway-name=${GDCS_BBR_GATEWAY_NAME}" --output=jsonpath='{.items[0].metadata.name}')

   kubectl port-forward "service/${ENVOY_SERVICE}" \
   --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" 8888:80 &
   PF_PID=$!

   sleep 2

   curl http://127.0.0.1:8888/v1/chat/completions \
   --data '{"model": "'${GDCS_BBR_OLLAMA_MODEL_NAME}'", "messages": [{"role": "user", "content": "Explain Google Distributed Cloud air-gapped in one sentence."}], "max_tokens": 256}' \
   --fail-with-body \
   --header "Content-Type: application/json" \
   --max-time 300 \
   --no-progress-meter \
   --output "${GDCS_USER_GUIDE_HOME}/ollama-response.json" \
   --retry 5 \
   --retry-all-errors \
   --retry-delay 5 \
   --show-error \
   --write-out 'HTTP %{http_code} in %{time_total}s\n'

   jq '{model, system_fingerprint, finish_reason: .choices[0].finish_reason, content: .choices[0].message.content, reasoning: ((.choices[0].message.reasoning // "") | .[0:160])}' "${GDCS_USER_GUIDE_HOME}/ollama-response.json"

   kill -9 ${PF_PID}


   The output is similar to the following:

   HTTP 200 in 41.2s
   {
     "model": "gemma4:e4b",
     "system_fingerprint": "fp_ollama",
     "finish_reason": "length",
     "content": "",
     "reasoning": "Here's a thinking process to construct the one-sentence explanation: ..."
   }


   Note: Gemma 4 is a thinking model; on the OpenAI-compatible endpoint the reasoning is returned in choices[0].message.reasoning and counts against max_tokens, so with a small budget content stays empty and finish_reason is length; the routing is still proven by model and system_fingerprint. Use a larger max_tokens (and --max-time) for a visible answer. Access from outside the project to a LoadBalancer in front of the Gateway additionally requires a ProjectNetworkPolicy, see the Operations section.

Operations

Day-two tasks for the route and its backends.

Expose the gateway outside the cluster

• The Envoy Service of a Gateway is of type LoadBalancer by default and receives an external IP address from the GDC load balancer (kubectl get service "${ENVOY_SERVICE}" --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}"). Traffic from outside the project additionally requires a ProjectNetworkPolicy (networking.gdc.goog/v1) created in the project namespace by a Project NetworkPolicy Admin, see Configure project network policies.

Scale a model

• Scale the model server Deployment (kubectl scale deployment/${GDCS_BBR_MODEL_1_POOL} --replicas=<n> --namespace="${GDCS_WORKLOAD_NAMESPACE}"); the InferencePool selects the new Pods automatically and the Endpoint Picker starts scoring them once they are Ready.

Change scheduling priorities

• Edit the priority of an InferenceObjective and re-apply inferenceobjectives.yaml; the Endpoint Picker sheds lower priorities first when the pool is saturated.

Observe the endpoint Picker

• The picker exposes Prometheus metrics on port 9090 of its Service (kubectl port-forward service/${GDCS_BBR_MODEL_1_POOL}-epp 9090:9090 --namespace="${GDCS_WORKLOAD_NAMESPACE}" then curl http://127.0.0.1:9090/metrics), and its scheduling decisions are logged at verbosity --v=4 (inferenceExtension.flags.v: 4 in epp-values.yaml).

Upgrade the endpoint Picker

• Seed the new epp image and inferencepool chart, update GDCS_GATEWAY_API_INFERENCE_EXTENSION_VERSION in the reference implementation environment file, run the same helm upgrade --install commands and re-apply the imagePullSecret patch.

Troubleshooting

Symptom	Likely cause	Action
Endpoint Picker Pod in ImagePullBackOff	The imagePullSecret patch was not applied, or the epp image was not seeded	Re-run the patch step; crane ls "${GDCS_HARBOR_PROJECT_URI}/gateway-api-inference-extension/epp".
AIGatewayRoute shows Accepted=False with a message about the InferencePool	The InferencePool doesn't exist in the namespace, or Envoy Gateway can't read inferencepools	kubectl get inferencepools --namespace="${GDCS_WORKLOAD_NAMESPACE}"; check the ClusterRoleBinding envoy-gateway-inferencepool-reader from the reference implementation.
Requests for a pool model return 503	No Ready Pod matches the pool selector, or the picker isn't Ready	kubectl get pods --selector=app=${GDCS_BBR_MODEL_1_POOL} --namespace="${GDCS_WORKLOAD_NAMESPACE}"; kubectl logs deployment/${GDCS_BBR_MODEL_1_POOL}-epp --namespace="${GDCS_WORKLOAD_NAMESPACE}".
Requests return 404 for a model that has a rule	The model value in the body differs from the rule (x-ai-eg-model is an exact match, case-sensitive)	Compare the request body with the value of the rule; kubectl get aigatewayroute ${GDCS_BBR_GATEWAY_NAME} --namespace="${GDCS_WORKLOAD_NAMESPACE}" --output=yaml.
Request with a large prompt is rejected with 413	Buffer limit too small for the request body	Raise connection.bufferLimit in the ClientTrafficPolicy.
Ollama request times out	The model is loading or generating on CPU; the NetworkPolicy of the Ollama namespace doesn't admit the proxy	Retry with a longer --max-time; verify the Ollama NetworkPolicy admits ingress on port 11434 from the Envoy Gateway namespace.

Clean up

1. Remove the route, the gateway and the backends:

   kubectl delete \
   --filename="${GDCS_USER_GUIDE_HOME}/aigatewayroute.yaml" \
   --filename="${GDCS_USER_GUIDE_HOME}/gateway.yaml" \
   --filename="${GDCS_USER_GUIDE_HOME}/mock-backend.yaml" \
   --filename="${GDCS_USER_GUIDE_HOME}/inferenceobjectives.yaml" \
   --ignore-not-found \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}"

   kubectl delete \
   --filename="${GDCS_USER_GUIDE_HOME}/ollama-backend.yaml" \
   --ignore-not-found \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}" 2>/dev/null || true


2. Uninstall the Endpoint Pickers and remove the simulated model servers:

   helm uninstall "${GDCS_BBR_MODEL_1_POOL}" --namespace="${GDCS_WORKLOAD_NAMESPACE}"
   helm uninstall "${GDCS_BBR_MODEL_2_POOL}" --namespace="${GDCS_WORKLOAD_NAMESPACE}"

   kubectl delete \
   --filename="${GDCS_USER_GUIDE_HOME}/${GDCS_BBR_MODEL_1_POOL}-sim.yaml" \
   --filename="${GDCS_USER_GUIDE_HOME}/${GDCS_BBR_MODEL_2_POOL}-sim.yaml" \
   --ignore-not-found \
   --namespace="${GDCS_WORKLOAD_NAMESPACE}"


3. Delete the namespace:

   kubectl delete namespace "${GDCS_WORKLOAD_NAMESPACE}"


Additional materials

• InferencePool support | Envoy Agent Router
• AIGatewayRoute + InferencePool guide | Envoy Agent Router
• Gateway API Inference Extension
• llm-d inference simulator
• Configure project network policies | Google Distributed Cloud air-gapped
• AI Gateway reference architecture
• Envoy Agent Router reference implementation
