AI Gateway with Envoy Agent Router reference implementation on GDC air-gapped

This document provides step-by-step instructions for deploying an AI Gateway on Google Distributed Cloud (GDC) air-gapped environments. The gateway is built from Envoy Gateway, the Kubernetes Gateway API implementation based on Envoy proxy, and Envoy Agent Router (formerly Envoy AI Gateway), the extension that turns Envoy Gateway into a unified, OpenAI-compatible entry point for Large Language Model (LLM) traffic. It covers seeding the container images and Helm charts into the local Harbor registry, installing both control planes on a standard cluster, preparing the optional token-based rate limiting backend, and validating the installation with sample workloads.

Model serving backends (Ollama, vLLM) are deployed with the companion set of guides Open Weight Models on GDC air-gapped; the Body-based routing with Envoy Agent Router user guide shows how to route requests to them by model name.

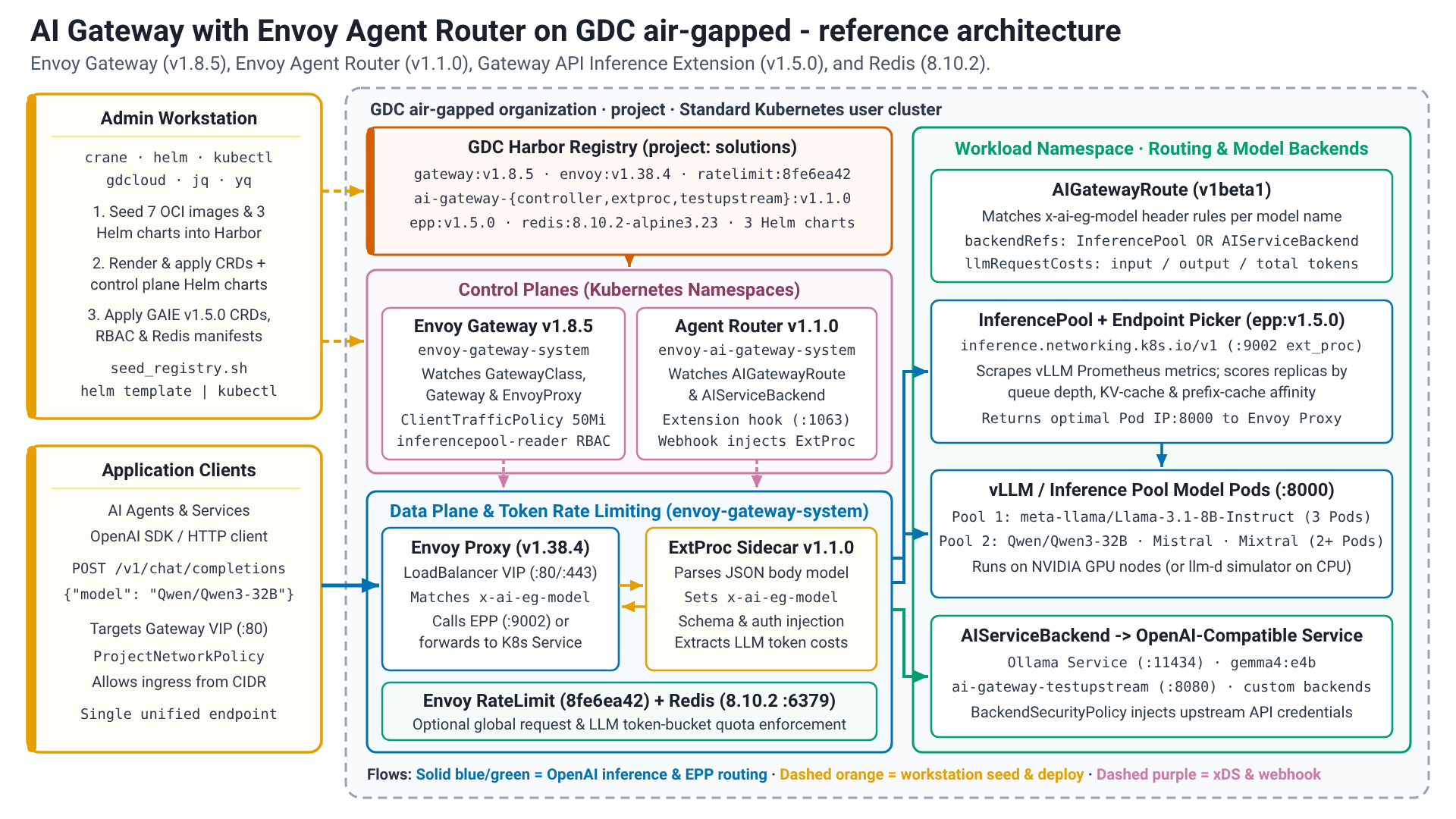

Architecture

The solution runs in a GDC standard cluster. An administrator workstation seeds the images and Helm charts into the Harbor registry of the project and installs the two control planes: the Envoy Gateway controller, which programs the Envoy proxy data plane from Gateway API resources (GatewayClass, Gateway, HTTPRoute), and the Envoy Agent Router controller, which extends that data plane with an external processor (ExtProc) for AI traffic (AIGatewayRoute, AIServiceBackend, InferencePool). Application clients send OpenAI-compatible requests to the Envoy proxy, which routes them to the model serving backends or InferencePools. An optional Redis instance stores the counters of the Envoy rate limit service for token-based rate limiting.

Envoy Gateway

Envoy Gateway is an open-source project, built on Envoy proxy, that simplifies the adoption, use and management of Envoy proxy as a Kubernetes API gateway. It implements and extends the Kubernetes Gateway API, the successor of the Ingress API: GatewayClass and Gateway resources describe the entry points, route resources such as HTTPRoute describe how traffic is matched and forwarded, and the role-oriented design separates the responsibilities of infrastructure and application teams. Envoy Gateway adds its own extension APIs, for example EnvoyProxy (data plane settings), Backend (endpoints outside the cluster or referenced by FQDN) and ClientTrafficPolicy (connection settings such as buffer limits).

Envoy Agent Router

Envoy Agent Router (formerly Envoy AI Gateway) is an open-source project that uses Envoy Gateway to handle request traffic from application clients to Generative AI services. It provides a unified layer for routing and managing LLM traffic with model-aware routing, upstream authentication, token-based rate limiting and observability, and it integrates with the Gateway API Inference Extension (InferencePool, Endpoint Picker) for metrics-aware endpoint selection. The controller watches the aigateway.envoyproxy.io/v1beta1 resources and injects an external processor next to the Envoy proxy; the external processor parses the request body (for example the model field of an OpenAI chat completion request), sets routing headers such as x-ai-eg-model, and translates between API schemas where required.

Before you begin

Note: This guide requires GDC air-gapped 1.16.2-hf1 (1.16.2-gdch.1353-1) or later, including later hotfix releases, and a standard cluster that runs Kubernetes v1.32.13-gke.400 or later. Hotfix releases can change the Kubernetes patch version, and standard clusters are upgraded separately from the organization, so check the version of your cluster before you begin. To change it, see Upgrade a cluster. GPU workloads in a standard cluster also require 1.16.2-hf1 or later.

Before proceeding with the deployment, ensure that your environment meets all necessary prerequisites and that the required command-line utilities are properly configured. Setting up these tools on your workstation is essential for managing container registries, interacting with clusters, and automating the deployment process.

• GDC air-gapped 1.16.2-hf1 or later environment is available with a standard cluster that runs Kubernetes v1.32.13-gke.400 or later.
• Standard cluster created with sufficient resources. The gateway components run on CPU only; model serving backends have their own accelerator requirements (see the Open Weight Models on GDC air-gapped guides).
• Harbor instance available and accessible.
• Necessary IAM applied.
• Workstation with the necessary connectivity to the environment and internet

Environment configuration

The environment configuration covers the identities and permissions, the workstation and the access to the GDC environment and the cluster.

Identity and Access Management

Ensure that the necessary IAM accounts, roles, and permissions are properly configured.

GDC User roles on project (RoleBinding in the project namespace, granted by a Project IAM Admin):

• Harbor Instance Viewer (harbor-instance-viewer)
• Harbor Project Creator (harbor-project-creator, only if the Harbor project doesn't exist yet)
• Standard Cluster Admin (standard-cluster-admin, required for gdcloud clusters get-credentials)

GDC User role on the standard cluster: the preceding project roles grant no permissions inside the cluster. A Project IAM Admin must additionally bind the user to the StandardClusterRole cluster-admin with a StandardClusterRoleBinding in the project namespace on the management API server; the binding is propagated to the standard clusters of the project within seconds (status.clusters[].conditions shows Propagated=True). Cluster-wide permissions are required because this guide installs Custom Resource Definitions, ClusterRoles and a GatewayClass.

cat <<EOF | kubectl --kubeconfig MANAGEMENT_API_SERVER apply -f -
apiVersion: iam.gdc.goog/v1
kind: StandardClusterRoleBinding
metadata:
  name: user-USER-cluster-admin
  namespace: PROJECT
spec:
  roleRef:
    apiGroup: iam.gdc.goog
    kind: StandardClusterRole
    name: cluster-admin
  subjects:
    - apiGroup: rbac.authorization.k8s.io
      kind: User
      name: USER
EOF

Replace the following:

• MANAGEMENT_API_SERVER: the path to the management API server kubeconfig file.
• USER: user.
• PROJECT: project.

Harbor crane (crane) robot account permissions:

• List Repository
• Pull Repository
• Push Repository
• Read Artifact
• List Artifact
• Create Tag
• List Tag

Harbor Kubernetes image pull (kubernetes-image-puller) robot account permissions:

• List Repository
• Pull Repository
• Read Artifact
• List Artifact
• List Tag

Workstation

This guide requires a workstation with the necessary connectivity to the environment and internet.

Requirements

The following tools need to be installed on the workstation:

• crane: manage and copy container images and OCI artifacts between registries (documentation).
• gdcloud: command-line interface (CLI) for managing GDC resources (documentation).
• kubectl: command-line interface (CLI) used to communicate with and manage a Kubernetes cluster.
• helm: package manager for Kubernetes, version 3.8 or higher (OCI registry support) (documentation).
• curl: command-line tool for transferring data with URLs.
• jq: lightweight and flexible command-line JSON processor.
• yq: portable command-line YAML processor.

Run all commands in this guide from the workstation unless a step states otherwise.

Workstation configuration

The following information about the environment is required for the Workstation Configuration:

• GDC_STANDARD_CLUSTER_NAME: The name of the GDC standard cluster.
• GDC_DOMAIN_SUFFIX: The domain suffix for the GDC environment (for example, gdc.example.com).
• GDC_ORG: The name of the GDC organization.
• GDC_PROJECT: The name of the GDC project.
• GDC_ZONE: The name of the GDC deployment zone.

• GDC_HARBOR_INSTANCE_NAME: The name of the Harbor instance in the project.

• GDCS_HARBOR_PROJECT_NAME: The name of the Harbor project to use for image (default: solutions)

• GDCS_HARBOR_CRANE_ROBOT_NAME: The name of the Harbor crane robot account.

• GDCS_HARBOR_CRANE_ROBOT_TOKEN: The authentication token for the Harbor crane robot account.

• GDCS_HARBOR_K8S_ROBOT_NAME: The name of the Harbor Kubernetes image pull robot account.

• GDCS_HARBOR_K8S_ROBOT_TOKEN: The authentication token for the Harbor Kubernetes image pull robot account.

Once you have gathered the values for all required variables, proceed with generating the environment variables file. After it is created, you can manually edit the file at any time.

Note: If you have already configured the root ${HOME}/gdcag-solutions environment for another solution guide in this environment, verify your configuration by running source ${HOME}/gdcag-solutions/env.sh and proceed directly to Configure solution variables.

1. Create the root solution directories and secrets folder:

   mkdir -p ${HOME}/gdcag-solutions/env.d
   mkdir -p ${HOME}/gdcag-solutions/secrets

   touch ${HOME}/gdcag-solutions/secrets/harbor_crane_robot_token
   touch ${HOME}/gdcag-solutions/secrets/harbor_k8s_robot_token

   chmod u=rwx,go= ${HOME}/gdcag-solutions/secrets
   chmod -R u=rw,go= ${HOME}/gdcag-solutions/secrets/*


2. Create the platform environment configuration file:

   cat << 'EOF' > ${HOME}/gdcag-solutions/env.d/platform.sh && echo "Successfully created." || echo "Failed to create!"
   # Infrastructure (Platform Native)
   export GDC_STANDARD_CLUSTER_NAME="STANDARD_CLUSTER_NAME"
   export GDC_DOMAIN_SUFFIX="DOMAIN_SUFFIX"
   export GDC_ORG="ORG"
   export GDC_PROJECT="PROJECT"
   export GDC_ZONE="ZONE"
   export GDC_HARBOR_INSTANCE_NAME="HARBOR_INSTANCE_NAME"

   # Derived platform values
   export GDC_ZONAL_HOSTNAME="${GDC_ORG}.${GDC_ZONE}.${GDC_DOMAIN_SUFFIX}"
   export GDC_ZONAL_CONSOLE_URL="https://console.${GDC_ZONAL_HOSTNAME}"
   export GDC_HARBOR_HOST="${GDC_HARBOR_INSTANCE_NAME}-${GDC_PROJECT}.${GDC_ORG}.${GDC_ZONE}.${GDC_DOMAIN_SUFFIX}"
   EOF


   Replace the following:

   • STANDARD_CLUSTER_NAME: GDC standard cluster name.
   • DOMAIN_SUFFIX: GDC domain suffix.
   • ORG: GDC organization.
   • PROJECT: GDC project.
   • ZONE: GDC zone.
   • HARBOR_INSTANCE_NAME: GDC Harbor instance name.

3. Create the registry environment configuration file:

   cat << 'EOF' > ${HOME}/gdcag-solutions/env.d/registry.sh && echo "Successfully created." || echo "Failed to create!"
   # GDC Solutions Registry & Secrets
   export GDCS_HARBOR_PROJECT_NAME="solutions"
   export GDCS_HARBOR_CRANE_ROBOT_NAME="HARBOR_CRANE_ROBOT_NAME"
   export GDCS_HARBOR_CRANE_ROBOT_TOKEN="$(cat ${GDCS_ROOT_HOME}/secrets/harbor_crane_robot_token)"
   export GDCS_HARBOR_K8S_ROBOT_NAME="HARBOR_K8S_ROBOT_NAME"
   export GDCS_HARBOR_K8S_ROBOT_TOKEN="$(cat ${GDCS_ROOT_HOME}/secrets/harbor_k8s_robot_token)"
   export GDCS_HARBOR_K8S_PULL_SECRET="gdcs-image-pull-secret"

   # Derived registry values
   export GDCS_HARBOR_PROJECT_URI="${GDC_HARBOR_HOST}/${GDCS_HARBOR_PROJECT_NAME}"
   export GDCS_HARBOR_CHART_OCI_URI="oci://${GDCS_HARBOR_PROJECT_URI}"
   EOF


   Replace the following:

   • HARBOR_CRANE_ROBOT_NAME: GDC Harbor robot account name.
   • HARBOR_K8S_ROBOT_NAME: GDC Harbor robot account name.

4. Add your tokens to the secret files:

   set +o history

   echo "CRANE_ROBOT_TOKEN" > ${HOME}/gdcag-solutions/secrets/harbor_crane_robot_token
   echo "KUBERNETES_ROBOT_TOKEN" > ${HOME}/gdcag-solutions/secrets/harbor_k8s_robot_token

   set -o history


   Replace the following:

   • CRANE_ROBOT_TOKEN: crane robot token.
   • KUBERNETES_ROBOT_TOKEN: Kubernetes robot token.

5. Create the root environment loader file:

   cat << 'EOF' > ${HOME}/gdcag-solutions/env.sh && echo "Successfully created." || echo "Failed to create!"
   export GDCS_ROOT_HOME="${HOME}/gdcag-solutions"
   echo "GDCS_ROOT_HOME=${GDCS_ROOT_HOME}"

   # Sourced in dependency order
   source "${GDCS_ROOT_HOME}/env.d/platform.sh"
   source "${GDCS_ROOT_HOME}/env.d/registry.sh"
   EOF


Configure solution variables

1. Create the solution implementation directory:

   mkdir -p ${HOME}/gdcag-solutions/ai-gateway/envoy/env.d


2. Create the solution environment configuration file:

   cat << 'EOF' > ${HOME}/gdcag-solutions/ai-gateway/envoy/env.d/envoy.sh && echo "Successfully created." || echo "Failed to create!"
   # Envoy Gateway
   export GDCS_ENVOY_GATEWAY_NAMESPACE="envoy-gateway-system"
   export GDCS_ENVOY_GATEWAY_VERSION="v1.8.5"
   export GDCS_ENVOY_PROXY_IMAGE_TAG="distroless-v1.38.4"
   export GDCS_ENVOY_RATELIMIT_IMAGE_TAG="8fe6ea42"
   export GDCS_GATEWAY_API_ECHO_IMAGE_TAG="v1.5.1"

   # Envoy Agent Router (formerly Envoy AI Gateway; the images and charts keep the ai-gateway names)
   export GDCS_ENVOY_AGENT_ROUTER_NAMESPACE="envoy-ai-gateway-system"
   export GDCS_ENVOY_AGENT_ROUTER_VERSION="v1.1.0"

   # Gateway API Inference Extension (InferencePool, Endpoint Picker)
   export GDCS_GATEWAY_API_INFERENCE_EXTENSION_VERSION="v1.5.0"

   # Redis (token-based rate limiting backend)
   export GDCS_REDIS_IMAGE_TAG="8.10.2-alpine3.23"
   export GDCS_REDIS_NAMESPACE="${GDCS_ENVOY_GATEWAY_NAMESPACE}"

   # Gateway class shared by the user guides
   export GDCS_GATEWAY_CLASS_NAME="envoy-ai-gateway"

   # Docker configuration directories for crane and Kubernetes
   export GDCS_HARBOR_CRANE_DOCKER_CONFIG="${GDCS_IMPLEMENTATION_HOME}/docker/crane"
   export GDCS_HARBOR_K8S_DOCKER_CONFIG="${GDCS_IMPLEMENTATION_HOME}/docker/k8s"
   EOF


3. Create the implementation environment loader file:

   cat << 'EOF' > ${HOME}/gdcag-solutions/ai-gateway/envoy/env.sh && echo "Successfully created." || echo "Failed to create!"
   source "${HOME}/gdcag-solutions/env.sh"

   export GDCS_IMPLEMENTATION_HOME="${HOME}/gdcag-solutions/ai-gateway/envoy"
   echo "GDCS_IMPLEMENTATION_HOME=${GDCS_IMPLEMENTATION_HOME}"

   # Sourced in dependency order
   source "${GDCS_IMPLEMENTATION_HOME}/env.d/envoy.sh"
   EOF


4. Edit and review the environment files with your preferred editor:

   ${EDITOR:-vi} ${HOME}/gdcag-solutions/env.d/platform.sh
   ${EDITOR:-vi} ${HOME}/gdcag-solutions/env.d/registry.sh
   ${EDITOR:-vi} ${HOME}/gdcag-solutions/ai-gateway/envoy/env.d/envoy.sh


5. Source the environment file:

   source ${HOME}/gdcag-solutions/ai-gateway/envoy/env.sh


   The output is similar to the following:

   GDCS_ROOT_HOME=HOME_DIRECTORY_PATH/gdcag-solutions
   GDCS_IMPLEMENTATION_HOME=HOME_DIRECTORY_PATH/gdcag-solutions/ai-gateway/envoy


Note: Any time a new terminal or shell is started, the environment file needs to be sourced.

GDC

This guide assumes that your workstation is configured to trust the TLS certificates for your GDC environment and Harbor instance.

1. Configure gdcloud:

   gdcloud config set core/account "default-user"
   gdcloud config set core/organization_console_url "${GDC_ZONAL_CONSOLE_URL}"
   gdcloud config set core/project "${GDC_PROJECT}"
   gdcloud config set core/zone "${GDC_ZONE}"


2. Authenticate to the GDC environment:

   gdcloud auth login


Cluster

1. Retrieve cluster credentials:

   gdcloud clusters get-credentials "${GDC_STANDARD_CLUSTER_NAME}" \
   --project="${GDC_PROJECT}" \
   --standard \
   --zone="${GDC_ZONE}"


2. Verify connectivity to the cluster:

   kubectl get nodes -L node.cluster.private.gdc.goog/machine-class


3. Verify that every node runs the Kubernetes version that the Before you begin section of this guide requires:

   kubectl get nodes -o custom-columns='NAME:.metadata.name,VERSION:.status.nodeInfo.kubeletVersion'


Artifact migration preparation

• Verify connectivity and configuration for the artifact registry.
  • Configure Docker to trust the Harbor root CA | Google Distributed Cloud (GDC) air-gapped

1. Create a Docker configuration file for crane. A robot account is used for pushing large image layers to avoid auth token timeouts when using the Managed Harbor Service (MHS) credential helper (docker-credential-mhs) with a user account:

   set +o history

   export DOCKER_CONFIG="${GDCS_HARBOR_CRANE_DOCKER_CONFIG}"

   crane auth login "${GDC_HARBOR_HOST}" \
   --password="${GDCS_HARBOR_CRANE_ROBOT_TOKEN}" \
   --username="${GDCS_HARBOR_CRANE_ROBOT_NAME}"

   set -o history


2. Create a Docker configuration file for Kubernetes:

   set +o history

   export DOCKER_CONFIG="${GDCS_HARBOR_K8S_DOCKER_CONFIG}"

   crane auth login "${GDC_HARBOR_HOST}" \
   --password="${GDCS_HARBOR_K8S_ROBOT_TOKEN}" \
   --username="${GDCS_HARBOR_K8S_ROBOT_NAME}"

   set -o history


3. Sign in to the Harbor OCI registry with helm using the Kubernetes image pull robot account. helm keeps its own registry credentials and needs them to fetch the charts from Harbor:

   set +o history
   helm registry login "${GDC_HARBOR_HOST}" \
   --password="${GDCS_HARBOR_K8S_ROBOT_TOKEN}" \
   --username="${GDCS_HARBOR_K8S_ROBOT_NAME}"
   set -o history


   The output is similar to the following:

   Login Succeeded


4. Create the seed_registry.sh script:

   cat << 'EOF' > ${GDCS_IMPLEMENTATION_HOME}/seed_registry.sh && echo "Successfully created." || echo "Failed to create!"
   #!/bin/bash

   # seed_registry.sh: Modular artifact migration for GDC Solutions

   # Requires the env.sh file to be sourced first.
   SCRIPT_DIR="$(cd "$(dirname "${BASH_SOURCE[0]}")" && pwd)"
   set -o nounset
   source "${SCRIPT_DIR}/env.sh"

   # Set the Docker config
   export DOCKER_CONFIG="${GDCS_HARBOR_CRANE_DOCKER_CONFIG}"
   eval "${SERIALIZED_IMAGES}"

   # Ensure GDCS_REGISTRY_IMAGES is set
   if [[ ${#GDCS_REGISTRY_IMAGES[@]} -eq 0 ]]; then
     echo "GDCS_REGISTRY_IMAGES must be set, exiting..."
     exit 1
   fi

   # Migrate the images
   for source_image in "${GDCS_REGISTRY_IMAGES[@]}"; do
     # Strip the registry host only when the first path segment is a host (contains a dot or a port)
     first_segment="${source_image%%/*}"
     if [[ "${first_segment}" == *.* || "${first_segment}" == *:* ]]; then
       image_path="${source_image#*/}"
     else
       image_path="${source_image}"
     fi
     destination_image="${GDCS_HARBOR_PROJECT_URI}/${image_path}"
     # Ensure the folder structure is created
     crane append \
       --new_layer=<(tar czf - -T /dev/null) \
       --new_tag="${destination_image%:*}:create" \
       --oci-empty-base 2> /dev/null || true
     # Copy the linux/amd64 platform only to avoid transferring multi-arch layers over air-gapped links
     crane copy --platform linux/amd64 "${source_image}" "${destination_image}" 2> /dev/null
   done
   echo "Migration complete: Images are available at ${GDCS_HARBOR_PROJECT_URI}"
   EOF
   chmod u+x "${GDCS_IMPLEMENTATION_HOME}/seed_registry.sh"


5. Create the seed_charts.sh script. Helm charts published as OCI artifacts are copied with crane as well, without platform selection and without the create tag used for container image repositories:

   cat << 'EOF' > ${GDCS_IMPLEMENTATION_HOME}/seed_charts.sh && echo "Successfully created." || echo "Failed to create!"
   #!/bin/bash

   # seed_charts.sh: OCI Helm chart migration for GDC Solutions

   # Requires the env.sh file to be sourced first.
   SCRIPT_DIR="$(cd "$(dirname "${BASH_SOURCE[0]}")" && pwd)"
   set -o nounset
   source "${SCRIPT_DIR}/env.sh"

   # Set the Docker config
   export DOCKER_CONFIG="${GDCS_HARBOR_CRANE_DOCKER_CONFIG}"
   eval "${SERIALIZED_CHARTS}"

   # Ensure GDCS_REGISTRY_CHARTS is set
   if [[ ${#GDCS_REGISTRY_CHARTS[@]} -eq 0 ]]; then
     echo "GDCS_REGISTRY_CHARTS must be set, exiting..."
     exit 1
   fi

   # Migrate the charts (source format: REGISTRY_HOST/REPOSITORY:CHART_VERSION)
   for source_chart in "${GDCS_REGISTRY_CHARTS[@]}"; do
     chart_path="${source_chart#*/}"
     destination_chart="${GDCS_HARBOR_PROJECT_URI}/${chart_path}"
     crane copy "${source_chart}" "${destination_chart}" || { echo "Failed to copy ${source_chart} to ${destination_chart}"; exit 1; }
   done
   echo "Migration complete: Charts are available at ${GDCS_HARBOR_CHART_OCI_URI}"
   EOF
   chmod u+x "${GDCS_IMPLEMENTATION_HOME}/seed_charts.sh"


   Replace the following:

   • REGISTRY_HOST: registry host.
   • REPOSITORY: repository.
   • CHART_VERSION: chart version.

6. Define the list of required container images for the solution:

   declare -a GDCS_REGISTRY_IMAGES=(
     "docker.io/envoyproxy/gateway:${GDCS_ENVOY_GATEWAY_VERSION}"
     "docker.io/envoyproxy/envoy:${GDCS_ENVOY_PROXY_IMAGE_TAG}"
     "docker.io/envoyproxy/ratelimit:${GDCS_ENVOY_RATELIMIT_IMAGE_TAG}"
     "docker.io/envoyproxy/ai-gateway-controller:${GDCS_ENVOY_AGENT_ROUTER_VERSION}"
     "docker.io/envoyproxy/ai-gateway-extproc:${GDCS_ENVOY_AGENT_ROUTER_VERSION}"
     "docker.io/envoyproxy/ai-gateway-testupstream:${GDCS_ENVOY_AGENT_ROUTER_VERSION}"
     "docker.io/library/redis:${GDCS_REDIS_IMAGE_TAG}"
     "registry.k8s.io/gateway-api/echo-basic:${GDCS_GATEWAY_API_ECHO_IMAGE_TAG}"
   )
   export SERIALIZED_IMAGES=$(declare -p GDCS_REGISTRY_IMAGES)


7. Seed the required container images to the artifact registry:

   ${GDCS_IMPLEMENTATION_HOME}/seed_registry.sh


Note: On slow or proxied links crane copy can fail repeatedly on layers of several hundred MB (retrying PATCH …, HTTP/2 stream error … PROTOCOL_ERROR). Retry with a client that uploads blobs in chunks over HTTP/1.1, for example GODEBUG=http2client=0 regctl image copy --platform linux/amd64 <source> <destination> (after regctl registry login), or seed the registry from a host inside the environment.

1. Define the list of required Helm charts for the solution:

   declare -a GDCS_REGISTRY_CHARTS=(
     "docker.io/envoyproxy/gateway-crds-helm:${GDCS_ENVOY_GATEWAY_VERSION}"
     "docker.io/envoyproxy/gateway-helm:${GDCS_ENVOY_GATEWAY_VERSION}"
     "docker.io/envoyproxy/ai-gateway-crds-helm:${GDCS_ENVOY_AGENT_ROUTER_VERSION}"
     "docker.io/envoyproxy/ai-gateway-helm:${GDCS_ENVOY_AGENT_ROUTER_VERSION}"
   )
   export SERIALIZED_CHARTS=$(declare -p GDCS_REGISTRY_CHARTS)


2. Seed the required Helm charts to the artifact registry:

   ${GDCS_IMPLEMENTATION_HOME}/seed_charts.sh


3. Verify the charts can be read back from Harbor:

   helm show chart "${GDCS_HARBOR_CHART_OCI_URI}/envoyproxy/gateway-helm" --version "${GDCS_ENVOY_GATEWAY_VERSION}" | grep -E '^(name|version):'
   helm show chart "${GDCS_HARBOR_CHART_OCI_URI}/envoyproxy/ai-gateway-helm" --version "${GDCS_ENVOY_AGENT_ROUTER_VERSION}" | grep -E '^(name|version):'


   The output is similar to the following:

   name: gateway-helm
   version: v1.8.5
   name: ai-gateway-helm
   version: v1.1.0


4. Download the Gateway API Inference Extension manifests. They are published as a release asset, not as a chart:

   mkdir -p "${GDCS_IMPLEMENTATION_HOME}/manifests"

   curl --fail --location --show-error --silent \
   --output "${GDCS_IMPLEMENTATION_HOME}/manifests/gateway-api-inference-extension-${GDCS_GATEWAY_API_INFERENCE_EXTENSION_VERSION}.yaml" \
   "https://github.com/kubernetes-sigs/gateway-api-inference-extension/releases/download/${GDCS_GATEWAY_API_INFERENCE_EXTENSION_VERSION}/manifests.yaml"

   grep --count '^kind: CustomResourceDefinition' "${GDCS_IMPLEMENTATION_HOME}/manifests/gateway-api-inference-extension-${GDCS_GATEWAY_API_INFERENCE_EXTENSION_VERSION}.yaml"


   The output is similar to the following:

   4


Envoy Gateway

Envoy Gateway is installed first and validated on its own with the upstream quickstart; the Envoy Agent Router integration follows in the next section.

Namespace

1. Create the namespace for Envoy Gateway. The Envoy proxy Deployments of every Gateway are created in this namespace as well:

   kubectl create namespace "${GDCS_ENVOY_GATEWAY_NAMESPACE}"


2. Add the imagePullSecret:

   kubectl create secret docker-registry "${GDCS_HARBOR_K8S_PULL_SECRET}" \
   --dry-run=client \
   --from-file=.dockerconfigjson=${GDCS_HARBOR_K8S_DOCKER_CONFIG}/config.json \
   --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" \
   --output=yaml | kubectl apply -f -


Custom Resource Definitions

1. Install the Gateway API (standard channel) and Envoy Gateway Custom Resource Definitions (CRDs) from the seeded chart:

   helm template eg-crds "${GDCS_HARBOR_CHART_OCI_URI}/envoyproxy/gateway-crds-helm" \
   --set crds.gatewayAPI.channel=standard \
   --set crds.gatewayAPI.enabled=true \
   --set crds.envoyGateway.enabled=true \
   --version "${GDCS_ENVOY_GATEWAY_VERSION}" | kubectl apply --server-side --filename=-


2. Verify the CRDs are registered:

   kubectl get crd | grep -E 'gateway.networking.k8s.io|gateway.envoyproxy.io'


Controller

1. Create the Helm values file for Envoy Gateway. The images are pulled from Harbor with the image pull secret; crds.enabled=false because the CRDs were installed separately:

   cat <<EOF > "${GDCS_IMPLEMENTATION_HOME}/envoy-gateway-values.yaml" && echo "Successfully created." || echo "Failed to create!"
   config:
     envoyGateway:
       extensionApis:
         enableBackend: true
         enableEnvoyPatchPolicy: true
       gateway:
         controllerName: gateway.envoyproxy.io/gatewayclass-controller
       logging:
         level:
           default: info
       provider:
         type: Kubernetes
   crds:
     enabled: false
   global:
     imagePullSecrets:
       - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
     imageRegistry: ${GDCS_HARBOR_PROJECT_URI}
     images:
       envoyProxy:
         image: ${GDCS_HARBOR_PROJECT_URI}/envoyproxy/envoy:${GDCS_ENVOY_PROXY_IMAGE_TAG}
         pullSecrets:
           - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
   EOF


2. Install Envoy Gateway:

   helm upgrade --install eg "${GDCS_HARBOR_CHART_OCI_URI}/envoyproxy/gateway-helm" \
   --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" \
   --values="${GDCS_IMPLEMENTATION_HOME}/envoy-gateway-values.yaml" \
   --version="${GDCS_ENVOY_GATEWAY_VERSION}"


3. Wait for the Envoy Gateway controller to be Available:

   watch --color --interval 5 --no-title \
   "kubectl get deployment/envoy-gateway \
   --namespace=${GDCS_ENVOY_GATEWAY_NAMESPACE} | GREP_COLORS='mt=01;92' egrep --color=always -e '^' -e '1/1     1            1'"


4. Verify the images of the controller and its certificate generation job come from Harbor:

   kubectl get pods --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" \
   --output=jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.spec.containers[*].image}{"\n"}{end}'


Envoy proxy and Gateway class

1. Create the manifest for the EnvoyProxy data plane template and the GatewayClass. The EnvoyProxy sets the proxy image, the image pull secret and the resource requests of the proxy Pods; the GatewayClass is shared by the user guides:

   cat <<EOF > "${GDCS_IMPLEMENTATION_HOME}/gateway-class.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: gateway.envoyproxy.io/v1alpha1
   kind: EnvoyProxy
   metadata:
     name: ${GDCS_GATEWAY_CLASS_NAME}
     namespace: ${GDCS_ENVOY_GATEWAY_NAMESPACE}
   spec:
     provider:
       type: Kubernetes
       kubernetes:
         envoyDeployment:
           container:
             image: ${GDCS_HARBOR_PROJECT_URI}/envoyproxy/envoy:${GDCS_ENVOY_PROXY_IMAGE_TAG}
             resources:
               limits:
                 memory: 2Gi
               requests:
                 cpu: 250m
                 memory: 512Mi
           pod:
             imagePullSecrets:
               - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
   ---
   apiVersion: gateway.networking.k8s.io/v1
   kind: GatewayClass
   metadata:
     name: ${GDCS_GATEWAY_CLASS_NAME}
   spec:
     controllerName: gateway.envoyproxy.io/gatewayclass-controller
     parametersRef:
       group: gateway.envoyproxy.io
       kind: EnvoyProxy
       name: ${GDCS_GATEWAY_CLASS_NAME}
       namespace: ${GDCS_ENVOY_GATEWAY_NAMESPACE}
   EOF


2. Apply the manifest for the EnvoyProxy and the GatewayClass:

   kubectl apply \
   --filename="${GDCS_IMPLEMENTATION_HOME}/gateway-class.yaml"


3. Verify the GatewayClass is Accepted:

   kubectl get gatewayclass "${GDCS_GATEWAY_CLASS_NAME}"


   The output is similar to the following:

   NAME               CONTROLLER                                      ACCEPTED   AGE
   envoy-ai-gateway   gateway.envoyproxy.io/gatewayclass-controller   True       5s


Validation

The validation deploys the Envoy Gateway quickstart (an echo backend behind an HTTPRoute) into the Envoy Gateway namespace and removes it afterwards.

1. Create the manifest for the quickstart workload:

   cat <<EOF > "${GDCS_IMPLEMENTATION_HOME}/eg-quickstart.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: gateway.networking.k8s.io/v1
   kind: Gateway
   metadata:
     name: eg-quickstart
   spec:
     gatewayClassName: ${GDCS_GATEWAY_CLASS_NAME}
     listeners:
       - name: http
         protocol: HTTP
         port: 80
   ---
   apiVersion: v1
   kind: ServiceAccount
   metadata:
     name: eg-quickstart-backend
   ---
   apiVersion: v1
   kind: Service
   metadata:
     name: eg-quickstart-backend
     labels:
       app: eg-quickstart-backend
   spec:
     ports:
       - name: http
         port: 3000
         targetPort: 3000
     selector:
       app: eg-quickstart-backend
   ---
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: eg-quickstart-backend
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: eg-quickstart-backend
     template:
       metadata:
         labels:
           app: eg-quickstart-backend
       spec:
         serviceAccountName: eg-quickstart-backend
         containers:
           - image: ${GDCS_HARBOR_PROJECT_URI}/gateway-api/echo-basic:${GDCS_GATEWAY_API_ECHO_IMAGE_TAG}
             imagePullPolicy: IfNotPresent
             name: backend
             ports:
               - containerPort: 3000
             env:
               - name: POD_NAME
                 valueFrom:
                   fieldRef:
                     fieldPath: metadata.name
               - name: NAMESPACE
                 valueFrom:
                   fieldRef:
                     fieldPath: metadata.namespace
         imagePullSecrets:
           - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
   ---
   apiVersion: gateway.networking.k8s.io/v1
   kind: HTTPRoute
   metadata:
     name: eg-quickstart-backend
   spec:
     parentRefs:
       - name: eg-quickstart
     hostnames:
       - "www.example.com"
     rules:
       - backendRefs:
           - group: ""
             kind: Service
             name: eg-quickstart-backend
             port: 3000
             weight: 1
         matches:
           - path:
               type: PathPrefix
               value: /
   EOF


2. Apply the manifest for the quickstart workload:

   kubectl apply \
   --filename="${GDCS_IMPLEMENTATION_HOME}/eg-quickstart.yaml" \
   --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}"


3. Wait for the Gateway to be Programmed:

   watch --color --interval 5 --no-title \
   "kubectl get gateway/eg-quickstart \
   --namespace=${GDCS_ENVOY_GATEWAY_NAMESPACE} | GREP_COLORS='mt=01;92' egrep --color=always -e '^' -e 'True'"


4. Wait for the backend Deployment to be Available:

   watch --color --interval 5 --no-title \
   "kubectl get deployment/eg-quickstart-backend \
   --namespace=${GDCS_ENVOY_GATEWAY_NAMESPACE} | GREP_COLORS='mt=01;92' egrep --color=always -e '^' -e '1/1     1            1'"


5. Send a test request through the gateway using port forwarding. The Envoy Service of a Gateway is found by its owning-gateway labels:

   export ENVOY_SERVICE=$(kubectl get service --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" --selector="gateway.envoyproxy.io/owning-gateway-namespace=${GDCS_ENVOY_GATEWAY_NAMESPACE},gateway.envoyproxy.io/owning-gateway-name=eg-quickstart" --output=jsonpath='{.items[0].metadata.name}')
   echo "ENVOY_SERVICE=${ENVOY_SERVICE}"

   kubectl port-forward "service/${ENVOY_SERVICE}" \
   --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" 8888:80 &
   PF_PID=$!

   sleep 2

   curl --header "Host: www.example.com" \
   --no-progress-meter \
   --show-error \
   http://127.0.0.1:8888/get | jq

   kill -9 ${PF_PID}


   The output is similar to the following:

   {
     "path": "/get",
     "host": "www.example.com",
     "method": "GET",
     ...
     "namespace": "envoy-gateway-system",
     "pod": "eg-quickstart-backend-...",
     ...
   }


6. Remove the quickstart workload:

   kubectl delete \
   --filename="${GDCS_IMPLEMENTATION_HOME}/eg-quickstart.yaml" \
   --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}"


Envoy Agent Router

Envoy Agent Router is installed into its own namespace; Envoy Gateway is then reconfigured to call it as its extension server.

Namespace

1. Create the namespace for the Envoy Agent Router controller:

   kubectl create namespace "${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE}"


2. Add the imagePullSecret:

   kubectl create secret docker-registry "${GDCS_HARBOR_K8S_PULL_SECRET}" \
   --dry-run=client \
   --from-file=.dockerconfigjson=${GDCS_HARBOR_K8S_DOCKER_CONFIG}/config.json \
   --namespace="${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE}" \
   --output=yaml | kubectl apply -f -


Custom Resource Definitions

1. Install the Envoy Agent Router CRDs from the seeded chart:

   helm template aieg-crds "${GDCS_HARBOR_CHART_OCI_URI}/envoyproxy/ai-gateway-crds-helm" \
   --version "${GDCS_ENVOY_AGENT_ROUTER_VERSION}" | kubectl apply --server-side --filename=-


2. Install the Gateway API Inference Extension CRDs (InferencePool, InferenceObjective) from the downloaded manifests:

   kubectl apply --server-side \
   --filename="${GDCS_IMPLEMENTATION_HOME}/manifests/gateway-api-inference-extension-${GDCS_GATEWAY_API_INFERENCE_EXTENSION_VERSION}.yaml"


3. Verify the CRDs are registered:

   kubectl get crd | grep -E 'aigateway.envoyproxy.io|inference.networking'


   The output is similar to the following:

   aigatewayroutes.aigateway.envoyproxy.io                 ...
   aiservicebackends.aigateway.envoyproxy.io               ...
   backendsecuritypolicies.aigateway.envoyproxy.io         ...
   gatewayconfigs.aigateway.envoyproxy.io                  ...
   inferencemodelrewrites.inference.networking.x-k8s.io    ...
   inferenceobjectives.inference.networking.x-k8s.io       ...
   inferencepoolimports.inference.networking.x-k8s.io      ...
   inferencepools.inference.networking.k8s.io              ...
   mcproutes.aigateway.envoyproxy.io                       ...
   quotapolicies.aigateway.envoyproxy.io                   ...


Redis

Token-based rate limiting is enforced by the Envoy rate limit service, which stores its counters in Redis. This guide deploys a single-replica Redis without persistence; an existing Redis service can be used instead by changing the rateLimit.backend.redis.url value in the next section.

1. Create the manifest for the Redis Deployment:

   cat <<EOF > "${GDCS_IMPLEMENTATION_HOME}/redis.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: v1
   kind: Service
   metadata:
     name: redis
     labels:
       app: redis
   spec:
     ports:
       - name: redis
         port: 6379
     selector:
       app: redis
   ---
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: redis
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: redis
     template:
       metadata:
         labels:
           app: redis
       spec:
         containers:
           - image: ${GDCS_HARBOR_PROJECT_URI}/library/redis:${GDCS_REDIS_IMAGE_TAG}
             imagePullPolicy: IfNotPresent
             name: redis
             ports:
               - name: redis
                 containerPort: 6379
             resources:
               limits:
                 memory: 512Mi
               requests:
                 cpu: 100m
                 memory: 128Mi
         imagePullSecrets:
           - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
         restartPolicy: Always
   EOF


2. Apply the manifest for the Redis Deployment:

   kubectl apply \
   --filename="${GDCS_IMPLEMENTATION_HOME}/redis.yaml" \
   --namespace="${GDCS_REDIS_NAMESPACE}"


3. Wait for the Redis Deployment to be Available:

   watch --color --interval 5 --no-title \
   "kubectl get deployment/redis \
   --namespace=${GDCS_REDIS_NAMESPACE} | GREP_COLORS='mt=01;92' egrep --color=always -e '^' -e '1/1     1            1'"


Controller

1. Create the Helm values file for Envoy Agent Router:

   cat <<EOF > "${GDCS_IMPLEMENTATION_HOME}/envoy-agent-router-values.yaml" && echo "Successfully created." || echo "Failed to create!"
   controller:
     image:
       repository: ${GDCS_HARBOR_PROJECT_URI}/envoyproxy/ai-gateway-controller
     imagePullSecrets:
       - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
   envoyGateway:
     namespace: ${GDCS_ENVOY_GATEWAY_NAMESPACE}
   extProc:
     image:
       repository: ${GDCS_HARBOR_PROJECT_URI}/envoyproxy/ai-gateway-extproc
     imagePullSecrets:
       - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
   global:
     imagePullSecrets:
       - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
   EOF


2. Install Envoy Agent Router:

   helm upgrade --install aieg "${GDCS_HARBOR_CHART_OCI_URI}/envoyproxy/ai-gateway-helm" \
   --namespace="${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE}" \
   --values="${GDCS_IMPLEMENTATION_HOME}/envoy-agent-router-values.yaml" \
   --version="${GDCS_ENVOY_AGENT_ROUTER_VERSION}"


3. Wait for the Envoy Agent Router controller to be Available:

   watch --color --interval 5 --no-title \
   "kubectl get deployment/ai-gateway-controller \
   --namespace=${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE} | GREP_COLORS='mt=01;92' egrep --color=always -e '^' -e '1/1     1            1'"


Envoy Gateway integration

Envoy Gateway must be reconfigured to call the Envoy Agent Router controller as its extension server, to accept InferencePool resources as backends and to use the Redis-backed rate limit service.

1. Create the Helm values file for the integration:

   cat <<EOF > "${GDCS_IMPLEMENTATION_HOME}/envoy-gateway-agent-router-values.yaml" && echo "Successfully created." || echo "Failed to create!"
   config:
     envoyGateway:
       extensionManager:
         backendResources:
           - group: inference.networking.k8s.io
             kind: InferencePool
             version: v1
         hooks:
           xdsTranslator:
             post:
               - Translation
               - Cluster
               - Route
             translation:
               cluster:
                 includeAll: true
               listener:
                 includeAll: true
               route:
                 includeAll: true
               secret:
                 includeAll: true
         service:
           fqdn:
             hostname: ai-gateway-controller.${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE}.svc.cluster.local
             port: 1063
       rateLimit:
         backend:
           redis:
             url: redis.${GDCS_REDIS_NAMESPACE}.svc.cluster.local:6379
           type: Redis
   EOF


2. Upgrade Envoy Gateway with both values files:

   helm upgrade --install eg "${GDCS_HARBOR_CHART_OCI_URI}/envoyproxy/gateway-helm" \
   --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" \
   --values="${GDCS_IMPLEMENTATION_HOME}/envoy-gateway-values.yaml" \
   --values="${GDCS_IMPLEMENTATION_HOME}/envoy-gateway-agent-router-values.yaml" \
   --version="${GDCS_ENVOY_GATEWAY_VERSION}"


3. Create the manifest for the ClusterRole that lets the Envoy Gateway controller watch InferencePool resources. The chart doesn't grant this permission; a separate ClusterRoleBinding survives chart upgrades, unlike a patch of the chart-managed ClusterRole:

   cat <<EOF > "${GDCS_IMPLEMENTATION_HOME}/envoy-gateway-inferencepool-rbac.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: rbac.authorization.k8s.io/v1
   kind: ClusterRole
   metadata:
     name: envoy-gateway-inferencepool-reader
   rules:
     - apiGroups:
         - inference.networking.k8s.io
       resources:
         - inferencepools
       verbs:
         - get
         - list
         - watch
   ---
   apiVersion: rbac.authorization.k8s.io/v1
   kind: ClusterRoleBinding
   metadata:
     name: envoy-gateway-inferencepool-reader
   roleRef:
     apiGroup: rbac.authorization.k8s.io
     kind: ClusterRole
     name: envoy-gateway-inferencepool-reader
   subjects:
     - kind: ServiceAccount
       name: envoy-gateway
       namespace: ${GDCS_ENVOY_GATEWAY_NAMESPACE}
   EOF


4. Apply the manifest for the ClusterRole:

   kubectl apply \
   --filename="${GDCS_IMPLEMENTATION_HOME}/envoy-gateway-inferencepool-rbac.yaml"


5. Restart the Envoy Gateway controller so that it picks up the new configuration and permissions, and wait for it to be Available:

   kubectl rollout restart deployment/envoy-gateway \
   --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}"

   kubectl rollout status deployment/envoy-gateway \
   --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" \
   --timeout=5m


6. Verify the rate limit service was deployed and is Available:

   watch --color --interval 5 --no-title \
   "kubectl get deployment/envoy-ratelimit \
   --namespace=${GDCS_ENVOY_GATEWAY_NAMESPACE} | GREP_COLORS='mt=01;92' egrep --color=always -e '^' -e '1/1     1            1'"


Validation

The validation deploys the Envoy Agent Router basic example (a mock OpenAI-compatible upstream behind an AIGatewayRoute) into the Envoy Agent Router namespace and removes it afterwards.

1. Create the manifest for the validation workload:

   cat <<EOF > "${GDCS_IMPLEMENTATION_HOME}/aieg-basic.yaml" && echo "Successfully created." || echo "Failed to create!"
   apiVersion: gateway.networking.k8s.io/v1
   kind: Gateway
   metadata:
     name: aieg-basic
   spec:
     gatewayClassName: ${GDCS_GATEWAY_CLASS_NAME}
     listeners:
       - name: http
         protocol: HTTP
         port: 80
   ---
   apiVersion: gateway.envoyproxy.io/v1alpha1
   kind: ClientTrafficPolicy
   metadata:
     name: aieg-basic-buffer-limit
   spec:
     targetRefs:
       - group: gateway.networking.k8s.io
         kind: Gateway
         name: aieg-basic
     connection:
       bufferLimit: 50Mi
   ---
   apiVersion: aigateway.envoyproxy.io/v1beta1
   kind: AIGatewayRoute
   metadata:
     name: aieg-basic
   spec:
     parentRefs:
       - name: aieg-basic
         kind: Gateway
         group: gateway.networking.k8s.io
     rules:
       - matches:
           - headers:
               - type: Exact
                 name: x-ai-eg-model
                 value: some-cool-self-hosted-model
         backendRefs:
           - name: aieg-basic-testupstream
   ---
   apiVersion: aigateway.envoyproxy.io/v1beta1
   kind: AIServiceBackend
   metadata:
     name: aieg-basic-testupstream
   spec:
     schema:
       name: OpenAI
     backendRef:
       name: aieg-basic-testupstream
       kind: Backend
       group: gateway.envoyproxy.io
   ---
   apiVersion: gateway.envoyproxy.io/v1alpha1
   kind: Backend
   metadata:
     name: aieg-basic-testupstream
   spec:
     endpoints:
       - fqdn:
           hostname: aieg-basic-testupstream.${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE}.svc.cluster.local
           port: 80
   ---
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: aieg-basic-testupstream
   spec:
     replicas: 1
     selector:
       matchLabels:
         app: aieg-basic-testupstream
     template:
       metadata:
         labels:
           app: aieg-basic-testupstream
       spec:
         containers:
           - name: testupstream
             image: ${GDCS_HARBOR_PROJECT_URI}/envoyproxy/ai-gateway-testupstream:${GDCS_ENVOY_AGENT_ROUTER_VERSION}
             imagePullPolicy: IfNotPresent
             ports:
               - containerPort: 8080
             env:
               - name: TESTUPSTREAM_ID
                 value: test
             readinessProbe:
               httpGet:
                 path: /health
                 port: 8080
               initialDelaySeconds: 5
               periodSeconds: 10
             livenessProbe:
               httpGet:
                 path: /health
                 port: 8080
               initialDelaySeconds: 10
               periodSeconds: 20
         imagePullSecrets:
           - name: ${GDCS_HARBOR_K8S_PULL_SECRET}
   ---
   apiVersion: v1
   kind: Service
   metadata:
     name: aieg-basic-testupstream
   spec:
     selector:
       app: aieg-basic-testupstream
     ports:
       - protocol: TCP
         port: 80
         targetPort: 8080
     type: ClusterIP
   EOF


2. Apply the manifest for the validation workload:

   kubectl apply \
   --filename="${GDCS_IMPLEMENTATION_HOME}/aieg-basic.yaml" \
   --namespace="${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE}"


3. Wait for the Gateway to be Programmed:

   watch --color --interval 5 --no-title \
   "kubectl get gateway/aieg-basic \
   --namespace=${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE} | GREP_COLORS='mt=01;92' egrep --color=always -e '^' -e 'True'"


4. Wait for the mock upstream Deployment to be Available:

   watch --color --interval 5 --no-title \
   "kubectl get deployment/aieg-basic-testupstream \
   --namespace=${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE} | GREP_COLORS='mt=01;92' egrep --color=always -e '^' -e '1/1     1            1'"


5. Verify the Envoy proxy Pod of the Gateway runs the external processor sidecar injected by Envoy Agent Router:

   kubectl get pods --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" \
   --selector="gateway.envoyproxy.io/owning-gateway-name=aieg-basic" \
   --output=jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.spec.containers[*].name}{"\n"}{end}'


   The output is similar to the following:

   envoy-envoy-ai-gateway-system-aieg-basic-...   envoy shutdown-manager ai-gateway-extproc


6. Send a chat completion request through the gateway using port forwarding. The external processor reads the model field of the request body and routes it to the mock upstream:

   export ENVOY_SERVICE=$(kubectl get service --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" --selector="gateway.envoyproxy.io/owning-gateway-namespace=${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE},gateway.envoyproxy.io/owning-gateway-name=aieg-basic" --output=jsonpath='{.items[0].metadata.name}')
   echo "ENVOY_SERVICE=${ENVOY_SERVICE}"

   kubectl port-forward "service/${ENVOY_SERVICE}" \
   --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}" 8888:80 &
   PF_PID=$!

   sleep 2

   curl http://127.0.0.1:8888/v1/chat/completions \
   --data '{"model": "some-cool-self-hosted-model", "messages": [{"role": "user", "content": "Say this is a test."}]}' \
   --header "Content-Type: application/json" \
   --no-progress-meter \
   --show-error | jq

   kill -9 ${PF_PID}


   The output is similar to the following:

   {
     "choices": [
       {
         "index": 0,
         "message": {
           "role": "assistant",
           "content": "..."
         },
         "finish_reason": "stop"
       }
     ],
     "usage": {
       ...
     }
   }


7. Remove the validation workload:

   kubectl delete \
   --filename="${GDCS_IMPLEMENTATION_HOME}/aieg-basic.yaml" \
   --namespace="${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE}"


Operations

Day-two tasks for the gateway control planes.

Upgrade

• Seed the images and charts of the new versions (update the version variables in env.sh, re-run seed_registry.sh and seed_charts.sh), apply the new CRD charts with kubectl apply --server-side, then run the same helm upgrade --install commands with the new --version. Check the Envoy Agent Router compatibility matrix for the Envoy Gateway and Gateway API versions supported by the target release; Envoy Agent Router 1.1.0 is built against Envoy Gateway 1.8.

Uninstall

• Delete the Gateway, AIGatewayRoute and InferencePool resources of the user guides first, then helm uninstall aieg --namespace="${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE}", helm uninstall eg --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}", the ClusterRole envoy-gateway-inferencepool-reader, the GatewayClass, the Redis Deployment and finally the CRDs.

Troubleshooting

Symptom	Likely cause	Action
helm show chart or helm upgrade fails with unauthorized or FetchReference	helm has no credentials for Harbor (it doesn't use the crane Docker configuration)	Run the helm registry login step again with the Kubernetes image pull robot account.
Envoy Gateway or Envoy Agent Router Pods stay in ImagePullBackOff	Image not seeded, or the image pull secret is missing in the namespace	Check kubectl describe pod, compare the image path with crane ls "${GDCS_HARBOR_PROJECT_URI}/envoyproxy/gateway", and verify the secret exists in ${GDCS_ENVOY_GATEWAY_NAMESPACE} and ${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE}.
Gateway stays Programmed=False after the integration	The Envoy Gateway controller can't reach the extension server, or was not restarted after the upgrade	kubectl logs deployment/envoy-gateway --namespace="${GDCS_ENVOY_GATEWAY_NAMESPACE}"; confirm service/ai-gateway-controller exists in ${GDCS_ENVOY_AGENT_ROUTER_NAMESPACE} and port 1063 is listed; repeat the rollout restart.
AIGatewayRoute referencing an InferencePool isn't Accepted	Envoy Gateway lacks permission to read inferencepools, or the InferencePool CRDs are missing	Verify the ClusterRoleBinding envoy-gateway-inferencepool-reader and the inferencepools.inference.networking.k8s.io CRD; check the controller logs for forbidden.
Chat completion request returns 413 or the connection is reset for large prompts	The default Envoy buffer limit (32 KiB) is too small for AI payloads	Attach a ClientTrafficPolicy with connection.bufferLimit (the validation uses 50Mi) to the Gateway.
Rate limit service Pod is CrashLoopBackOff	Redis isn't reachable at the configured URL	kubectl get service redis --namespace="${GDCS_REDIS_NAMESPACE}"; fix rateLimit.backend.redis.url in the integration values file and upgrade again.

Additional materials

• Envoy Agent Router documentation
• Envoy Agent Router release notes and compatibility matrix
• Envoy Gateway documentation
• Kubernetes Gateway API
• Gateway API Inference Extension
• Create a standard cluster | Google Distributed Cloud air-gapped

• Create Harbor projects | Google Distributed Cloud air-gapped

• Body-based routing with Envoy Agent Router user guide

• AI Gateway reference architecture
