Customer-managed encryption keys (CMEK)

By default, Gemini Enterprise Agent Platform encrypts customer content at rest. Agent Platform handles encryption for you without any additional actions on your part. This option is called Google default encryption.

If you want to control your encryption keys, then you can use customer-managed encryption keys (CMEKs) in Cloud KMS with CMEK-integrated services including Agent Platform. Using Cloud KMS keys gives you control over their protection level, location, rotation schedule, usage and access permissions, and cryptographic boundaries. Using Cloud KMS also lets you track key usage, view audit logs, and control key lifecycles. Instead of Google owning and managing the symmetric key encryption keys (KEKs) that protect your data, you control and manage these keys in Cloud KMS.

After you set up your resources with CMEKs, the experience of accessing your Agent Platform resources is similar to using Google default encryption. For more information about your encryption options, see Customer-managed encryption keys (CMEK).

This guide describes some benefits of using CMEK for Gemini Enterprise Agent Platform resources and walks through how to configure a training job to use CMEK.

For more information about how to use CMEK for Colab Enterprise, see the Colab Enterprise CMEK page. For more information about how to use CMEK for Vertex AI Workbench instances, see the Vertex AI Workbench instances CMEK page.

CMEK for Gemini Enterprise Agent Platform resources

The following sections describe basic information about CMEK for Gemini Enterprise Agent Platform resources that you must understand before configuring CMEK for your jobs.

Benefits of CMEK

In general, CMEK is most useful if you need full control over the keys used to encrypt your data. With CMEK, you can manage your keys within Cloud KMS. For example, you can rotate or disable a key or you can set up a rotation schedule using the Cloud KMS API. For more information about CMEK in general, including when and why to enable it, see the Cloud KMS documentation.

When you run an AutoML or custom training job, your code runs on one or more virtual machine (VM) instances managed by Gemini Enterprise Agent Platform. When you enable CMEK for Gemini Enterprise Agent Platform resources, the key that you designate, rather than a key managed by Google, is used to encrypt data on the boot disks of these VMs. The CMEK key encrypts the following kinds of data:

The copy of your code on the VMs.
Any data that gets loaded by your code.
Any temporary data that gets saved to the local disk by your code.
Automl-trained models.
Media files (data) uploaded into media datasets.

In general, the CMEK key does not encrypt metadata associated with your operation, like the job's name and region, or a dataset's display name. Metadata associated with operations is always encrypted using Google's default encryption mechanism.

For datasets, when a user imports data into dataset, the data items and annotations are CMEK-encrypted. The dataset display name is not CMEK-encrypted.

For models, the models stored in the storage system (for example, disk) are CMEK-encrypted. All the model evaluation results are CMEK-encrypted.

For endpoints, all model files used for the model deployment under the endpoint are CMEK-encrypted. This does not include any in-memory data.

For batch prediction, any temporary files (such as model files, logs, VM disks) used to execute the batch prediction job are CMEK-encrypted. Batch prediction results are stored in the user provided destination. Consequently, Agent Platform respects the default value of the destination's encryption config. Otherwise, results will also be encrypted with CMEK.

For data labeling, any input files (image, text, tabular), temporary discussion (for example, questions, feedback) and output (labeling result) are CMEK-encrypted. The annotation spec display names are not CMEK-encrypted.

For agents, CMEK encrypts all source files used for agent development. Additionally, container images and deployed instances for the agent are also CMEK-encrypted.

External keys

You can use Cloud External Key Manager (Cloud EKM) to create external keys, that you manage, to encrypt data within Google Cloud.

When you use a Cloud EKM key, Google has no control over the availability of your externally-managed key. If you request access to a resource encrypted with an externally-managed key, and the key is unavailable, then Gemini Enterprise Agent Platform will reject the request. There can be a delay of up to 10 minutes before you can access the resource once the key becomes available.

For more considerations when using external keys, see Cloud External Key Manager.

Use CMEK with other Google Cloud products

Configuring CMEK for Gemini Enterprise Agent Platform resources does not automatically configure CMEK for other Google Cloud products that you use together with Gemini Enterprise Agent Platform. To use CMEK to encrypt data in other Google Cloud products, additional configuration is required. For example:

Cloud Storage: When you perform custom training, Agent Platform usually loads your data from Cloud Storage. When you use a Python training application and a prebuilt container for training, Gemini Enterprise Agent Platform also loads your code from a Cloud Storage bucket. In addition, some training jobs export trained model artifacts (for example, a TensorFlow SaveModel directory) to a Cloud Storage bucket as part of their output.

To ensure that your data in Cloud Storage is encrypted with CMEK, read the Cloud Storage guide to using customer-managed encryption keys. You can set your encryption key as the default key for the Cloud Storage bucket(s) that you use with Gemini Enterprise Agent Platform, or you can use it to encrypt specific objects.

Learn more about how Cloud Storage uses CMEK.
Artifact Registry: When you use a custom container for training, you can configure Agent Platform to load your container image from Artifact Registry.

To ensure that your container image is encrypted with CMEK, read the Artifact Registry guide to CMEK.
Cloud Logging: When you run a training job, Gemini Enterprise Agent Platform training saves logs to Logging. To encrypt these logs by using CMEK, see Configure CMEK for Cloud Logging.

Current CMEK-supported resources

The current Gemini Enterprise Agent Platform resources covered by CMEK are as follows. CMEK support for Preview features is in Preview status as well.

Resource	Material encrypted	Documentation links
Dataset	All user imported data (for example, text content) for `DataItems` and `Annotations`. User created content such as `AnnotationSpecs`, `ColumnSpecs`.	Create a dataset for training classification and regression models Create a dataset for training forecast models
Model	Uploaded model files. Evaluation results of the trained model.	Train a classification or regression model Train a forecast model Train an AutoML Edge model using the Cloud console Train an AutoML Edge model using the Agent Platform API Creating training pipelines Importing models to Agent Platform
Endpoint	All model files used for the model deployment under the endpoint. This does not include any in-memory data, but the model will be auto-undeployed if the key is disabled.	Deploying a model using the Cloud console Deploying a model using the Agent Platform API
CustomJob	The copy of your code on the VMs used to run the operation. Any data that gets loaded by your code. Any temporary data that gets saved to the local disk by your code.	Creating custom training jobs Creating training pipelines
HyperparameterTuningJob	The copy of your code on the VMs used to run the operation. Any data that gets loaded by your code. Any temporary data that gets saved to the local disk by your code.	Using hyperparameter tuning
TrainingPipeline	The copy of your code on the VMs used to run the operation. Any data that gets loaded by your code. Any temporary data that gets saved to the local disk by your code. AutoML-trained models.	Train a classification or regression model Train a forecast model Train an AutoML Edge model using the Cloud console Train an AutoML Edge model using the Agent Platform API Creating training pipelines
BatchPredictionJob (excludes AutoML image batchPrediction)	Any temporary files (for example, model files, logs, VM disks) used in the job to proceed the batch prediction job. If the written results of the BatchPrediction are stored in the user provided destination, it will respect the encryption config of its default value. Otherwise, it will also be encrypted with CMEK.	Get batch predictions and explanations for a classification or regression model Get predictions for a forecast model
ModelDeploymentMonitoringJob	Any temporary files (for example, training dataset files, logs, VM disks) used in the job to process the model deployment monitoring job. Any data used for detection monitoring anomalies. If the key is disabled, the model deployment monitoring job will be paused.	Setting up model monitoring
PipelineJob	The pipeline job and all of its sub-resources.	Running a pipeline
MetadataStore	All content in the metadata store.	Configuring your project's metadata store
TensorBoard	All data from the uploaded TensorBoard logs including scalars, histograms, graph defs, images, and text.	Using Vertex AI TensorBoard
Featurestore	The featurestore and all content in the featurestore.	Managing featurestores
Index	All data files used for Vector Search indexes stored in Cloud Storage, Pub/Sub, and internal storage. Index and IndexEndpoint must be created with the same key.	Manage indexes
IndexEndpoint	All data files used for Vector Search indexes stored in Cloud Storage, Pub/Sub, and internal storage. Index and IndexEndpoint must be created with the same key.	Deploy and manage public endpoints Deploy and manage index endpoints in a VPC network Vector Search Private Service Connect
Colab Enterprise runtime	The boot disk and data disks of the runtime's VM	Use customer-managed encryption keys (CMEK) in Colab Enterprise
Colab Enterprise notebook	The notebook file and its comments	Use customer-managed encryption keys (CMEK) in Colab Enterprise
Agent Runtime	The copy of your agent source files, including code, scripts, and any dependency files The container images built from your agent source files The running instances deployed from your agent container images	Agent Runtime overview

CMEK support for Generative AI tuning pipelines

CMEK support is provided in the tuning pipeline of the following models:

BERT
T5
image-generation (GPU)

Limitations

CMEK support isn't provided in the following:

AutoML image model batch prediction (BatchPredictionJob)
TPU tuning

Configure CMEK for your resources

The following sections describe how to create a key ring and key in Cloud Key Management Service, grant Agent Platform encrypter and decrypter permissions for your key, and create resources that use CMEK.

Before you begin

This guide assumes that you use two separate Google Cloud projects to configure CMEK for Agent Platform data:

A project for managing your encryption key (referred to as the "Cloud KMS project").
A project for accessing Agent Platform data or output in Cloud Storage, and interacting with any other Google Cloud products that you need for your use case (referred to as the "AI Platform project").

This recommended setup supports a separation of duties.

Alternatively, you can use a single Google Cloud project for the whole guide. To do so, use the same project for all of the following tasks that refer to the Cloud KMS project and the tasks that refer to the AI Platform project.

Set up the Cloud KMS project

Sign in to your Google Cloud account. If you're new to Google Cloud, create an account to evaluate how our products perform in real-world scenarios. New customers also get $300 in free credits to run, test, and deploy workloads.

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Roles required to select or create a project

Select a project: Selecting a project doesn't require a specific IAM role—you can select any project that you've been granted a role on.
Create a project: To create a project, you need the Project Creator role (roles/resourcemanager.projectCreator), which contains the resourcemanager.projects.create permission. Learn how to grant roles.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

Enable the Cloud KMS API.

Roles required to enable APIs

To enable APIs, you need the Service Usage Admin IAM role (roles/serviceusage.serviceUsageAdmin), which contains the serviceusage.services.enable permission. Learn how to grant roles.

Enable the API

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Roles required to select or create a project

Select a project: Selecting a project doesn't require a specific IAM role—you can select any project that you've been granted a role on.
Create a project: To create a project, you need the Project Creator role (roles/resourcemanager.projectCreator), which contains the resourcemanager.projects.create permission. Learn how to grant roles.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

Enable the Cloud KMS API.

Roles required to enable APIs

To enable APIs, you need the Service Usage Admin IAM role (roles/serviceusage.serviceUsageAdmin), which contains the serviceusage.services.enable permission. Learn how to grant roles.

Enable the API

Set up the AI Platform project

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Roles required to select or create a project

Select a project: Selecting a project doesn't require a specific IAM role—you can select any project that you've been granted a role on.
Create a project: To create a project, you need the Project Creator role (roles/resourcemanager.projectCreator), which contains the resourcemanager.projects.create permission. Learn how to grant roles.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

Enable the Agent Platform API.

Roles required to enable APIs

To enable APIs, you need the Service Usage Admin IAM role (roles/serviceusage.serviceUsageAdmin), which contains the serviceusage.services.enable permission. Learn how to grant roles.

Enable the API

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Roles required to select or create a project

Select a project: Selecting a project doesn't require a specific IAM role—you can select any project that you've been granted a role on.
Create a project: To create a project, you need the Project Creator role (roles/resourcemanager.projectCreator), which contains the resourcemanager.projects.create permission. Learn how to grant roles.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

Enable the Agent Platform API.

Roles required to enable APIs

To enable APIs, you need the Service Usage Admin IAM role (roles/serviceusage.serviceUsageAdmin), which contains the serviceusage.services.enable permission. Learn how to grant roles.

Enable the API

Set up the Google Cloud CLI

The gcloud CLI is required for some steps in this guide and optional for others.

Install the Google Cloud CLI. After installation, initialize the Google Cloud CLI by running the following command:

gcloud init

If you're using an external identity provider (IdP), you must first sign in to the gcloud CLI with your federated identity.

Create a key ring and key

Follow the Cloud KMS guide to creating symmetric keys to create a key ring and a key. When you create your key ring, specify a region that supports Agent Platform operations as the key ring's location. Agent Platform training only supports CMEK when your resource and key use the same region. You must not specify a dual-regional, multi-regional, or global location for your key ring.

Make sure to create your key ring and key in your Cloud KMS project.

Grant Agent Platform permissions

To use CMEK for your resources, you must grant Agent Platform permission to encrypt and decrypt data using your key. Agent Platform uses a Google-managed service agent to run operations using your resources. This service account is identified by an email address with the following format:

service-PROJECT_NUMBER@gcp-sa-aiplatform.iam.gserviceaccount.com

To find the appropriate service account for your AI Platform project, go to the IAM page in the Google Cloud console and find the member that matches this email address format, with the project number for your AI Platform project replacing the AI_PLATFORM_PROJECT_NUMBER variable. The service account also has the name Agent Platform Service Agent.

Go to the IAM page

Make note of the email address for this service account, and use it in the following steps to grant it permission to encrypt and decrypt data using your key. You can grant permission by using the Google Cloud console or by using the Google Cloud CLI:

Google Cloud console

In the Google Cloud console, Click Security and select Key Management. This will take you to Cryptographic Keys page and select your Cloud KMS project.

Go to the Cryptographic Keys page
Click on the name of the key ring that you created in a preceding section of this guide to go to the Key ring details page.
Select the checkbox for the key that you created in a preceding section of this guide. If an info panel labeled with the name of your key is not already open, click Show info panel.
In the info panel, click Add member to open the Add members to "KEY_NAME" dialog. In this dialog, do the following:
1. In the New members box, enter the service account email address that you made a note of in the preceding section: service-AI_PLATFORM_PROJECT_NUMBER@gcp-sa-aiplatform.iam.gserviceaccount.com
2. In the Select a role drop-down list, click Cloud KMS and then select the Cloud KMS CryptoKey Encrypter/Decrypter role.
3. Click Save.

gcloud

Run the following command:

gcloud kms keys add-iam-policy-binding KEY_NAME \
  --keyring=KEY_RING_NAME \
  --location=REGION \
  --project=KMS_PROJECT_ID \
  --member=serviceAccount:service-AI_PLATFORM_PROJECT_NUMBER@gcp-sa-aiplatform.iam.gserviceaccount.com \
  --role=roles/cloudkms.cryptoKeyEncrypterDecrypter

In this command, replace the following placeholders:

KEY_NAME: The name of the key that you created in a preceding section of this guide.
KEY_RING_NAME: The key ring that you created in a preceding section of this guide.
REGION: The region where you created your key ring.
KMS_PROJECT_ID: The ID of your Cloud KMS project.
AI_PLATFORM_PROJECT_NUMBER: The project number of your AI Platform project, which you noted in the preceding section as part of a service account email address.

Create resources with the KMS key

When you create a new CMEK-supported resource you can specify your key as one of the create parameters.

Console

When you create a new CMEK-supported resource in the Agent Platform section of the Google Cloud console, you can select your key in the general or advanced option section:

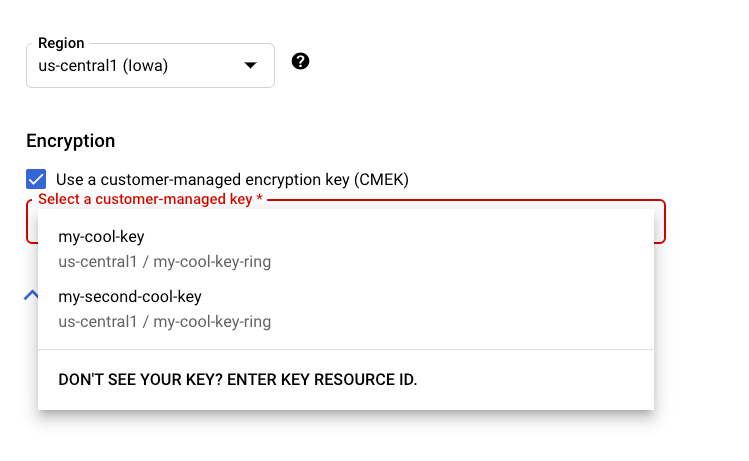

Select encryption key for resource section

REST & CMD Line

When you create a supported resource, add an encryptionSpec object to your request and set the encryptionSpec.kmsKeyName field to point to your key resource.

For example, when creating a dataset resource you would specify your key in the request body:

 {
   "displayName": DATASET_NAME,
   "metadataSchemaUri": METADATA_URI,
   "encryptionSpec": {
     "kmsKeyName": "projects/PROJECT_ID/locations/LOCATION_ID/keyRings/KEY_RING_NAME/cryptoKeys/KEY_NAME"
   }
 }

Java

When you create a supported resource, set the EncryptionSpec to point to your key resource. See the Agent Platform client library for Java documentation for more information.

Node.js

When you create a supported resource, set the encryptionSpec parameter to point to your key resource. See the Agent Platform client library for Node.js documentation for more information.

Python

When you create a supported resource, set the encryption_spec parameter to point to your key resource. See the Python Client for Cloud AI Platform documentation for more information.

What's next

Learn more about CMEK on Google Cloud.
Learn how to use CMEK with other Google Cloud products.
