Graph query overview

Preview

This feature is subject to the "Pre-GA Offerings Terms" in the General Service Terms section of the Service Specific Terms. Pre-GA features are available "as is" and might have limited support. For more information, see the launch stage descriptions.

Note: To request support or provide feedback for this feature, send email to [e-mail].

This document provides an overview of the graph query language (GQL) and how to write graph queries for BigQuery Graph. You can run graph queries to find patterns, traverse relationships, and gain insights from your property graph. The examples in this document refer to a graph called FinGraph, which shows the relationships between people, accounts they own, and transfers between accounts. For information about the definition of the graph, see FinGraph example.

Query structure

A graph query consists of the name of the graph, followed by one or more linear query statements. Each linear query contains one or more statements, which let you work with graph data to find pattern matches, define variables, filter and transform intermediate data, and return results. You run a graph query the same way that you run a SQL query in BigQuery.

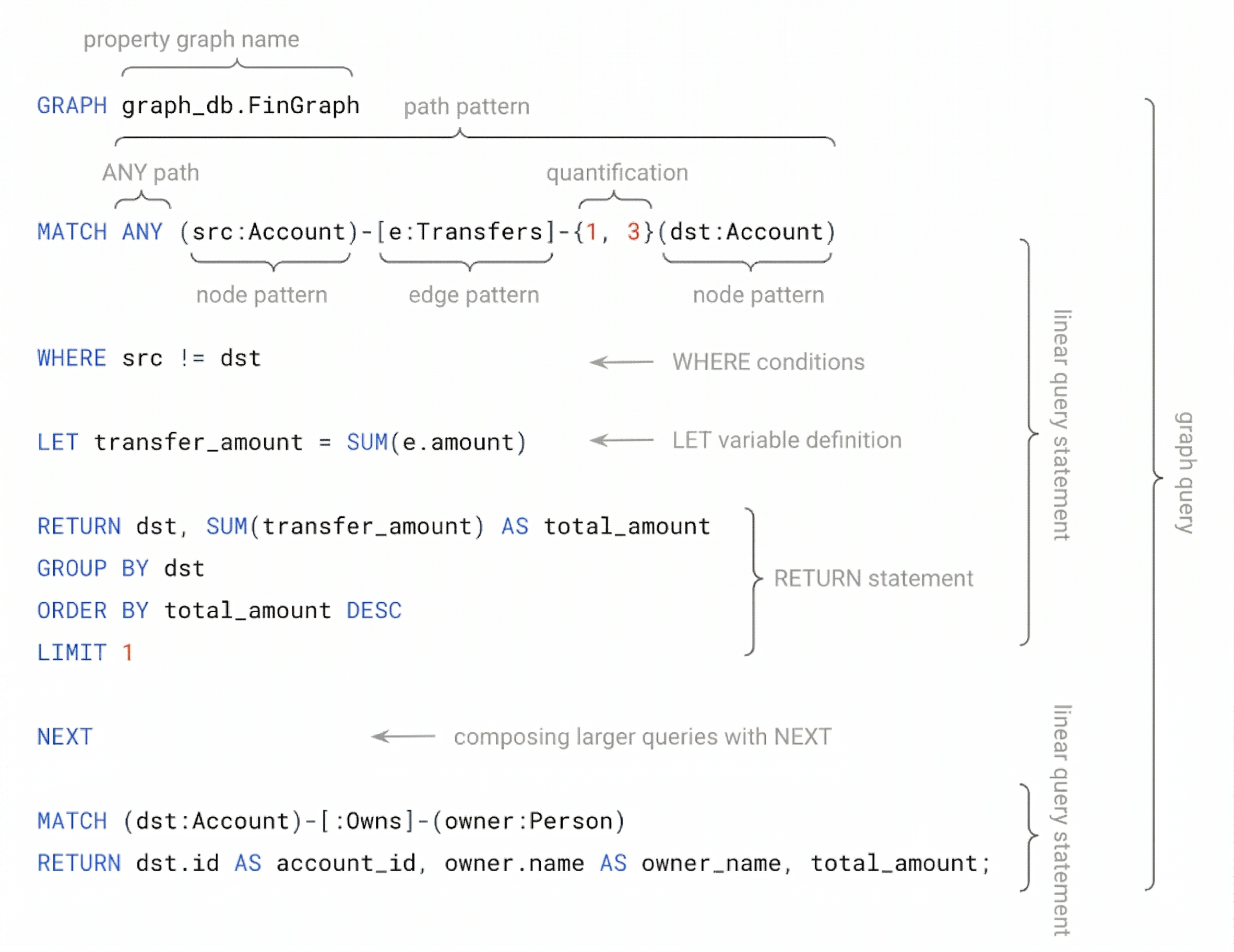

An example of the structure of a graph query.

Graph pattern matching

Graph pattern matching finds specific patterns within your graph. The most basic patterns are element patterns, such as node patterns that match nodes and edge patterns that match edges.

Node patterns

A node pattern matches nodes in your graph. This pattern contains matching parentheses, which might optionally include a graph pattern variable, a label expression, and property filters.

Find all nodes

The following query returns all nodes in the graph. The variable n, a graph pattern variable, binds to the matching nodes. In this case, the node pattern matches all nodes in the graph.

GRAPH graph_db.FinGraph
MATCH (n)
RETURN LABELS(n) AS label, n.id;

This query returns label and id:

label	id
Account	7
Account	16
Account	20
Person	1
Person	2
Person	3

Find all nodes with a specific label

The following query matches all nodes in the graph that have the Person label. The query returns the label and some properties of the matched nodes.

GRAPH graph_db.FinGraph
MATCH (p:Person)
RETURN LABELS(p) AS label, p.id, p.name;

This query returns the following properties of the matched nodes:

label	id	name
Person	1	Alex
Person	2	Dana
Person	3	Lee

Find all nodes matching a label expression

You can create a label expression with one or more logical operators. For example, the following query matches all nodes in the graph that have either the Person or Account label. The graph pattern variable n exposes all properties from nodes with the Person or Account label.

GRAPH graph_db.FinGraph
MATCH (n:Person|Account)
RETURN LABELS(n) AS label, n.id, n.birthday, n.create_time;

Note the following in the results of this query:

• All nodes have the id property.
• Nodes matching the Account label have the create_time property but don't have the birthday property. The birthday property is NULL for these nodes.
• Nodes matching the Person label have the birthday property but don't have the create_time property. The create_time property is NULL for these nodes.

label	id	birthday	create_time
Account	7	NULL	2020-01-10T14:22:20.222Z
Account	16	NULL	2020-01-28T01:55:09.206Z
Account	20	NULL	2020-02-18T13:44:20.655Z
Person	1	1991-12-21T08:00:00Z	NULL
Person	2	1980-10-31T08:00:00Z	NULL
Person	3	1986-12-07T08:00:00Z	NULL

Note: A NULL value doesn't necessarily indicate the absence of a property, because an element can expose a property with a NULL value.

Find all nodes matching the label expression and property filter

The following query matches all nodes in the graph that have the Person label and the property id equal to 1:

GRAPH graph_db.FinGraph
MATCH (p:Person {id: 1})
RETURN LABELS(p) AS label, p.id, p.name, p.birthday;

The result is similar to the following:

label	id	name	birthday
Person	1	Alex	1991-12-21T08:00:00Z

You can use the WHERE clause to form more complex filtering conditions on labels and properties.

The following query uses the WHERE clause to filter on nodes for which the property birthday is before 1990-01-10:

GRAPH graph_db.FinGraph
MATCH (p:Person WHERE p.birthday < '1990-01-10')
RETURN LABELS(p) AS label, p.name, p.birthday;

The result is similar to the following:

label	name	birthday
Person	Dana	1980-10-31T08:00:00Z
Person	Lee	1986-12-07T08:00:00Z

Edge patterns

An edge pattern matches edges or relationships between nodes. Edge patterns are enclosed in square brackets ([]) and include symbols such as -, ->, or <- to indicate directions. An edge pattern might optionally include a graph pattern variable to bind to matching edges.

Find all edges with matching labels

This query returns all edges in the graph with the Transfers label. The query binds the graph pattern variable e to the matching edges.

GRAPH graph_db.FinGraph
MATCH -[e:Transfers]->
RETURN e.Id as src_account, e.order_number;

The result is similar to the following:

src_account	order_number
7	304330008004315
7	304120005529714
16	103650009791820
20	304120005529714
20	302290001255747

Find all edges matching the label expression and property filter

The edge pattern in the following query uses a label expression and a property filter to find all edges labeled Transfers that match a specified order number:

GRAPH graph_db.FinGraph
MATCH -[e:Transfers {order_number: "304120005529714"}]->
RETURN e.Id AS src_account, e.order_number;

The result is similar to the following:

src_account	order_number
7	304120005529714
20	304120005529714

Find all edges using any direction edge pattern

You can use the any direction edge pattern (-[]-) in a query to match edges in either direction. The following query finds all transfers with a blocked account:

GRAPH graph_db.FinGraph
MATCH (account:Account)-[transfer:Transfers]-(:Account {is_blocked:true})
RETURN transfer.order_number, transfer.amount;

The result is similar to the following:

order_number	amount
304330008004315	300
304120005529714	100
103650009791820	300
302290001255747	200

Path patterns

A path pattern is built from alternating node and edge patterns.

Find all paths from a specific node using a path pattern

The following query finds all transfers to an account initiated from an account owned by Person with id equal to 2.

Each matched result represents a path from a Person node when id is equal to 2 through a connected Account node using an Owns edge, into another Account node using a Transfers edge.

GRAPH graph_db.FinGraph
MATCH
  (p:Person {id: 2})-[:Owns]->(account:Account)-[t:Transfers]->
  (to_account:Account)
RETURN
  p.id AS sender_id, account.id AS from_id, to_account.id AS to_id;

The result is similar to the following:

sender_id	from_id	to_id
2	20	7
2	20	16

Quantified path patterns

A quantified pattern repeats a pattern within a specified range.

Match a quantified edge pattern

To find paths of a variable length, you can apply a quantifier to an edge pattern. The following query demonstrates this by finding destination accounts that are one to three transfers away from a source Account with an id value of 7.

The query applies the quantifier {1, 3} to the edge pattern -[e:Transfers]->. This instructs the query to match paths that repeat the Transfers edge pattern one, two, or three times. The WHERE clause is used to exclude the source account from the results. The ARRAY_LENGTH function is used to access the group variable e.

GRAPH graph_db.FinGraph
MATCH (src:Account {id: 7})-[e:Transfers]->{1, 3}(dst:Account)
WHERE src != dst
RETURN src.id AS src_account_id, ARRAY_LENGTH(e) AS path_length, dst.id AS dst_account_id;

The result is similar to the following:

src_account_id	path_length	dst_account_id
7	1	16
7	1	16
7	3	16
7	3	16
7	2	20
7	2	20

Some rows in the results are repeated. This is because multiple paths that match the pattern can exist between the same source and destination nodes, and the query returns all of them.

Match a quantified path pattern

The following query finds paths between Account nodes with one to two Transfers edges through intermediate accounts that are blocked.

The parenthesized path pattern is quantified, and its WHERE clause specifies conditions for the repeated pattern.

GRAPH graph_db.FinGraph
MATCH
  (src:Account)
  ((a:Account)-[:Transfers]->(b:Account {is_blocked:true}) WHERE a != b){1,2}
    -[:Transfers]->(dst:Account)
RETURN src.id AS src_account_id, dst.id AS dst_account_id;

The result is similar to the following:

src_account_id	dst_account_id
7	20
7	20
20	20

Group variables

A graph pattern variable declared in a quantified pattern becomes a group variable when accessed outside that pattern. It then binds to an array of matched graph elements.

You can access a group variable as an array. Its graph elements are preserved in the order of their appearance along the matched paths. You can aggregate a group variable using horizontal aggregation.

Access group variable

In the following example, the variable e is accessed as follows:

• As a graph pattern variable bound to a single edge in the WHERE clause e.amount > 100 when it's within the quantified pattern.
• As a group variable bound to an array of edge elements in ARRAY_LENGTH(e) in the RETURN statement when it's outside the quantified pattern.
• As a group variable bound to an array of edge elements, which is aggregated by SUM(e.amount) outside the quantified pattern. This is an example of horizontal aggregation.

GRAPH graph_db.FinGraph
MATCH
  (src:Account {id: 7})-[e:Transfers WHERE e.amount > 100]->{0,2}
  (dst:Account)
WHERE src.id != dst.id
LET total_amount = SUM(e.amount)
RETURN
  src.id AS src_account_id, ARRAY_LENGTH(e) AS path_length,
  total_amount, dst.id AS dst_account_id;

The result is similar to the following:

src_account_id	path_length	total_amount	dst_account_id
7	1	300	16
7	2	600	20

Path search prefixes

To limit matched paths within groups that share source and destination nodes, you can use the ANY, ANY SHORTEST, or ANY CHEAPEST path search prefix. You can only apply these prefixes before an entire path pattern, and you can't apply them inside parentheses.

Match using ANY

The following query finds all reachable unique accounts that are one or two Transfers away from a given Account node.

The ANY path search prefix ensures that the query returns only one path between a unique pair of src and dst Account nodes. In the following example, although you can reach the Account node with {id: 16} in two different paths from the source Account node, the query returns only one path.

GRAPH graph_db.FinGraph
MATCH ANY (src:Account {id: 7})-[e:Transfers]->{1,2}(dst:Account)
LET ids_in_path = ARRAY_CONCAT(ARRAY_AGG(e.Id), [dst.Id])
RETURN src.id AS src_account_id, dst.id AS dst_account_id, ids_in_path;

The result is similar to the following:

src_account_id	dst_account_id	ids_in_path
7	16	7,16
7	20	7,16,20

Match using ANY SHORTEST

The ANY SHORTEST path search prefix returns a single path for each pair of source and destination nodes, selected from those with the minimum number of edges.

For example, the following query finds one of the shortest paths between an Account node with id value of 7 and an Account node with an id value of 20. The query considers paths with one to three Transfers edges.

GRAPH graph_db.FinGraph
MATCH ANY SHORTEST (src:Account {id: 7})-[e:Transfers]->{1, 3}(dst:Account {id: 20})
RETURN src.id AS src_account_id, dst.id AS dst_account_id, ARRAY_LENGTH(e) AS path_length;

The result is similar to the following:

src_account_id	dst_account_id	path_length
7	20	2

Match using ANY CHEAPEST

The ANY CHEAPEST path search prefix ensures that for each pair of source and destination accounts, the query returns only one path with the minimum total compute cost.

The following query finds a path with the minimum total compute cost between Account nodes. This cost is based on the sum of the amount property of the Transfers edges. The search considers paths with one to three Transfers edges.

GRAPH graph_db.FinGraph
MATCH ANY CHEAPEST (src:Account)-[e:Transfers COST e.amount]->{1,3}(dst:Account)
LET total_cost = sum(e.amount)
RETURN src.id AS src_account_id, dst.id AS dst_account_id, total_cost;

The result is similar to the following:

src_account_id	dst_account_id	total_cost
7	7	900
7	16	100
7	20	400
16	7	800
16	16	500
16	20	300
20	7	500
20	16	200
20	20	500

Graph patterns

A graph pattern consists of one or more path patterns, separated by a comma (,). Graph patterns can contain a WHERE clause, which lets you access all the graph pattern variables in the path patterns to form filtering conditions. Each path pattern produces a collection of paths.

Match using a graph pattern

The following query identifies intermediary accounts and their owners involved in transactions amounts exceeding 200, through which funds are transferred from a source account to a blocked account.

The following path patterns form the graph pattern:

• The first pattern finds paths where the transfer occurs from one account to a blocked account using an intermediate account.
• The second pattern finds paths from an account to its owning person.

The variable interm acts as a common link between the two path patterns, which requires interm to reference the same element node in both path patterns. This creates an equi-join operation based on the interm variable.

Note: If there is no shared variable among the path patterns, a cross join is performed between the collection of matches for each path pattern.

GRAPH graph_db.FinGraph
MATCH
  (src:Account)-[t1:Transfers]->(interm:Account)-[t2:Transfers]->(dst:Account),
  (interm)<-[:Owns]-(p:Person)
WHERE dst.is_blocked = TRUE AND t1.amount > 200 AND t2.amount > 200
RETURN
  src.id AS src_account_id, dst.id AS dst_account_id,
  interm.id AS interm_account_id, p.id AS owner_id;

The result is similar to the following:

src_account_id	dst_account_id	interm_account_id	owner_id
20	16	7	1

Linear query statements

You can chain multiple graph statements together to form a linear query statement. The statements are executed in the same order as they appear in the query.

• Each statement takes the output from the previous statement as input. The input is empty for the first statement.

• The output of the last statement is the final result.

For example, you can use linear query statements to find the maximum transfer to a blocked account. The following query finds the account and its owner with the largest outgoing transfer to a blocked account.

GRAPH graph_db.FinGraph
MATCH (src_account:Account)-[transfer:Transfers]->(dst_account:Account {is_blocked:true})
ORDER BY transfer.amount DESC
LIMIT 1
MATCH (src_account:Account)<-[owns:Owns]-(owner:Person)
RETURN src_account.id AS account_id, owner.name AS owner_name;

The following table illustrates this process by showing the intermediate results passed between each statement. For brevity, only some properties are shown.

Statement	Intermediate result (abbreviated)
MATCH (src_account:Account) -[transfer:Transfers]-> (dst_account:Account {is_blocked:true})	src_account transfer dst_account {id: 7} {amount: 300.0} {id: 16, is_blocked: true} {id: 7} {amount: 100.0} {id: 16, is_blocked: true} {id: 20} {amount: 200.0} {id: 16, is_blocked: true}
ORDER BY transfer.amount DESC	src_account transfer dst_account {id: 7} {amount: 300.0} {id: 16, is_blocked: true} {id: 20} {amount: 200.0} {id: 16, is_blocked: true} {id: 7} {amount: 100.0} {id: 16, is_blocked: true}
LIMIT 1	src_account transfer dst_account {id: 7} {amount: 300.0} {id: 16, is_blocked: true}
MATCH (src_account:Account) <-[owns:Owns]- (owner:Person)	src_account transfer dst_account owns owner {id: 7} {amount: 300.0} {id: 16, is_blocked: true} {person_id: 1, account_id: 7} {id: 1, name: Alex}
RETURN src_account.id AS account_id, owner.name AS owner_name	account_id owner_name 7 Alex

The result is similar to the following:

account_id	owner_name
7	Alex

Return statement

The RETURN statement specifies what to return from the matched patterns. It can access graph pattern variables and include expressions and other clauses, such as ORDER BY and GROUP BY.

BigQuery Graph doesn't support returning graph elements as query results. To return the entire graph element, use the TO_JSON function.

Return graph elements as JSON

GRAPH graph_db.FinGraph
MATCH (n:Account {id: 7})
-- Returning a graph element in the final results is NOT allowed. Instead, use
-- the TO_JSON function or explicitly return the graph element's properties.
RETURN TO_JSON(n) AS n;

The result is similar to the following:

n
{"identifier":"mUZpbkdyYXBoLkFjY291bnQAeJEO","kind":"node","labels":["Account"],"properties":{"create_time":"2020-01-10T14:22:20.222Z","id":7,"is_blocked":false,"nick_name":"Vacation Fund"}}

Compose larger queries with the NEXT keyword

You can chain multiple graph linear query statements using the NEXT keyword. The first statement receives an empty input, and the output of each subsequent statement becomes the input for the next.

The following example finds the owner of the account with the most incoming transfers by chaining multiple graph linear statements. You can use the same variable, for example, account, to refer to the same graph element across multiple linear statements.

GRAPH graph_db.FinGraph
MATCH (:Account)-[:Transfers]->(account:Account)
RETURN account, COUNT(*) AS num_incoming_transfers
GROUP BY account
ORDER BY num_incoming_transfers DESC
LIMIT 1

NEXT

MATCH (account:Account)<-[:Owns]-(owner:Person)
RETURN account.id AS account_id, owner.name AS owner_name, num_incoming_transfers;

The result is similar to the following:

account_id	owner_name	num_incoming_transfers
16	Lee	3

You can also combine linear query statements with set operators.

Functions and expressions

You can use all GoogleSQL functions (both aggregate and scalar functions), operators, and conditional expressions in graph queries. BigQuery Graph also supports GQL functions and GQL operators that can only be used in graph queries.

The following query includes a mix of GQL and SQL functions and operators within a graph query:

GRAPH graph_db.FinGraph
MATCH (person:Person)-[o:Owns]->(account:Account)
WHERE person IS SOURCE OF o
RETURN person, ARRAY_AGG(account.nick_name) AS accounts
GROUP BY person

NEXT

RETURN
  LABELS(person) AS labels,
  accounts,
  CONCAT(person.city, ", ", person.country) AS location,
  TO_JSON(person) AS person
LIMIT 1;

The result is similar to the following:

labels	accounts	location	person
Person	["Vacation Fund"]	Adelaide, Australia	{"identifier":"mUZpbkdyYXBoLlBlcnNvbgB4kQI=","kind":"node","labels":["Person"],"properties":{"birthday":"1991-12-21T08:00:00Z","city":"Adelaide","country":"Australia","id":1,"name":"Alex"}}

Subqueries

A subquery is a query that is nested in another query. The following rules apply to subqueries within graph queries:

• A subquery is enclosed within a pair of braces {}.
• A subquery starts with a GRAPH clause to specify the graph in scope. The specified graph doesn't need to be the same as the one used in the outer query.
• A graph pattern variable declared outside the subquery scope can't be declared again inside the subquery, but it can be referred to in expressions or functions inside the subquery.

Use a subquery to find the total number of transfers from each account

The following query illustrates the use of the VALUE subquery. The subquery is enclosed in braces {} prefixed by the VALUE keyword. The query returns the total number of transfers initiated from an account.

GRAPH graph_db.FinGraph
MATCH (p:Person)-[:Owns]->(account:Account)
RETURN p.name, account.id AS account_id, VALUE {
  GRAPH graph_db.FinGraph
  MATCH (a:Account)-[transfer:Transfers]->(:Account)
  WHERE a = account
  RETURN COUNT(transfer) AS num_transfers
} AS num_transfers;

The result is similar to the following:

name	account_id	num_transfers
Alex	7	2
Dana	20	2
Lee	16	1

For a list of supported subquery expressions, see BigQuery Graph subqueries.

Query parameters

You can query BigQuery Graph with parameters. For more information, see the syntax and learn how to Run parameterized queries.

The following query matches Person nodes that have an id value that matches a query parameter:

GRAPH graph_db.FinGraph
MATCH (person:Person {id: @id})
RETURN person.name;

Query graphs and tables together

You can combine graph queries and SQL queries by using the GRAPH_TABLE operator.

The GRAPH_TABLE operator takes a linear graph query and returns its result in a tabular form that can be integrated into a SQL query. This interoperability lets you enrich graph query results with non-graph content and the other way around.

For example, you can create a CreditReports table and insert a few credit reports, as shown in the following example:

CREATE TABLE graph_db.CreditReports (
  person_id     INT64 NOT NULL,
  create_time   TIMESTAMP NOT NULL,
  score         INT64 NOT NULL,
  PRIMARY KEY (person_id, create_time) NOT ENFORCED
);

INSERT INTO graph_db.CreditReports (person_id, create_time, score)
VALUES
  (1,"2020-01-10 06:22:20.222", 700),
  (2,"2020-02-10 06:22:20.222", 800),
  (3,"2020-03-10 06:22:20.222", 750);

Next, you can identify specific persons through graph pattern matching in GRAPH_TABLE and join the graph query results with the CreditReports table to retrieve credit scores.

SELECT
  gt.person.id,
  credit.score AS latest_credit_score
FROM GRAPH_TABLE(
  graph_db.FinGraph
  MATCH (person:Person)-[:Owns]->(:Account)-[:Transfers]->(account:Account {is_blocked:true})
  RETURN DISTINCT person
) AS gt
JOIN graph_db.CreditReports AS credit
  ON gt.person.id = credit.person_id
ORDER BY credit.create_time;

The result is similar to the following:

person_id	latest_credit_score
1	700
2	800

What's next

• Learn how to create and query a graph.
• Learn more about how to design a graph schema.
• Learn how to visualize query results.
