Generate embeddings with transformer models in ONNX format

Preview

This feature is subject to the "Pre-GA Offerings Terms" in the General Service Terms section of the Service Specific Terms. Pre-GA features are available "as is" and might have limited support. For more information, see the launch stage descriptions.

Note: To give feedback or request support for this feature, send an email to [e-mail].

This tutorial shows you how to export a transformer model to Open Neural Network Exchange (ONNX) format, import the ONNX model into a BigQuery dataset, and then use the model to generate embeddings from a SQL query.

This tutorial uses the sentence-transformers/all-MiniLM-L6-v2 model. This sentence transformer model is known for its fast and effective performance at generating sentence embeddings. Sentence embedding enables tasks like semantic search, clustering, and sentence similarity by capturing the underlying meaning of the text.

ONNX provides a uniform format that is designed to represent any machine learning (ML) framework. BigQuery ML support for ONNX lets you do the following:

• Train a model using your favorite framework.
• Convert the model into the ONNX model format.
• Import the ONNX model into BigQuery and make predictions using BigQuery ML.

Convert the transformer model files to ONNX

Optionally, you can follow the steps in this section to manually convert the sentence-transformers/all-MiniLM-L6-v2 model and tokenizer to ONNX. Otherwise, you can use sample files from the public gs://cloud-samples-data Cloud Storage bucket that have already been converted.

If you choose to manually convert the files, you must have a local command-line environment that has Python installed. For more information on installing Python, see Python downloads.

Export the transformer model to ONNX

Use the Hugging face Optimum CLI to export the sentence-transformers/all-MiniLM-L6-v2 model to ONNX. For more information about exporting models with the Optimum CLI, see Export a model to ONNX with optimum.exporters.onnx.

To export the model, open a command-line environment and follow these steps:

1. Install the Optimum CLI:

   pip install optimum[onnx]


2. Export the model. The --model argument specifies the Hugging Face model ID. The --opset argument specifies the ONNXRuntime library version, and is set to 17 to maintain compatibility with the ONNXRuntime library supported by BigQuery.

   optimum-cli export onnx \
     --model sentence-transformers/all-MiniLM-L6-v2 \
     --task sentence-similarity \
     --opset 17 all-MiniLM-L6-v2/


The model file is exported to the all-MiniLM-L6-v2 directory as model.onnx.

Apply quantization to the transformer model

Use the Optimum CLI to apply quantization to the exported transformer model in order to reduce model size and speed up inference. For more information, see Quantization.

To apply quantization to the model, run the following command on the command-line:

optimum-cli onnxruntime quantize \
  --onnx_model all-MiniLM-L6-v2/ \
  --avx512_vnni -o all-MiniLM-L6-v2_quantized

The quantized model file is exported to the all-MiniLM-L6-v2_quantized directory as model_quantized.onnx.

Convert the tokenizer to ONNX

To generate embeddings using a transformer model in ONNX format, you typically use a tokenizer to produce two inputs to the model, input_ids and attention_mask.

To produce these inputs, convert the tokenizer for the sentence-transformers/all-MiniLM-L6-v2 model to ONNX format by using the onnxruntime-extensions library. After you convert the tokenizer, you can perform tokenization directly on raw text inputs to generate ONNX predictions.

To convert the tokenizer, follow these steps on the command-line:

1. Install the Optimum CLI:

   pip install optimum[onnx]


2. Using the text editor of your choice, create a file named convert-tokenizer.py. The following example uses the nano text editor:

   nano convert-tokenizer.py


3. Copy and paste the following Python script into the convert-tokenizer.py file:

   from onnxruntime_extensions import gen_processing_models

   # Load the Huggingface tokenizer
   tokenizer = AutoTokenizer.from_pretrained("sentence-transformers/all-MiniLM-L6-v2")

   # Export the tokenizer to ONNX using gen_processing_models
   onnx_tokenizer_path = "tokenizer.onnx"

   # Generate the tokenizer ONNX model, and set the maximum token length.
   # Ensure 'max_length' is set to a value less than the model's maximum sequence length, failing to do so will result in error during inference.
   tokenizer_onnx_model = gen_processing_models(tokenizer, pre_kwargs={'max_length': 256})[0]

   # Modify the tokenizer ONNX model signature.
   # This is because certain tokenizers don't support batch inference.
   tokenizer_onnx_model.graph.input[0].type.tensor_type.shape.dim[0].dim_value = 1

   # Save the tokenizer ONNX model
   with open(onnx_tokenizer_path, "wb") as f:
     f.write(tokenizer_onnx_model.SerializeToString())


4. Save the convert-tokenizer.py file.

5. Run the Python script to convert the tokenizer:

   python convert-tokenizer.py


The converted tokenizer is exported to the all-MiniLM-L6-v2_quantized directory as tokenizer.onnx.

Upload the converted model files to Cloud Storage

After you have converted the transformer model and the tokenizer, do the following:

• Create a Cloud Storage bucket to store the converted files.
• Upload the converted transformer model and tokenizer files to your Cloud Storage bucket.

Create a dataset

Create a BigQuery dataset to store your ML model.

Console

1. In the Google Cloud console, go to the BigQuery page.

   Go to the BigQuery page

2. In the Explorer pane, click your project name.

3. Click View actions > Create dataset

4. On the Create dataset page, do the following:

   • For Dataset ID, enter bqml_tutorial.

   • For Location type, select Multi-region, and then select US (multiple regions in United States).

   • Leave the remaining default settings as they are, and click Create dataset.

bq

To create a new dataset, use the bq mk command with the --location flag. For a full list of possible parameters, see the bq mk --dataset command reference.

1. Create a dataset named bqml_tutorial with the data location set to US and a description of BigQuery ML tutorial dataset:

   bq --location=US mk -d \
    --description "BigQuery ML tutorial dataset." \
    bqml_tutorial

   Instead of using the --dataset flag, the command uses the -d shortcut. If you omit -d and --dataset, the command defaults to creating a dataset.

2. Confirm that the dataset was created:

   bq ls

API

Call the datasets.insert method with a defined dataset resource.

{
  "datasetReference": {
     "datasetId": "bqml_tutorial"
  }
}

BigQuery DataFrames

Before trying this sample, follow the BigQuery DataFrames setup instructions in the BigQuery quickstart using BigQuery DataFrames. For more information, see the BigQuery DataFrames reference documentation.

To authenticate to BigQuery, set up Application Default Credentials. For more information, see Set up ADC for a local development environment.

import google.cloud.bigquery

bqclient = google.cloud.bigquery.Client()
bqclient.create_dataset("bqml_tutorial", exists_ok=True)

Import the ONNX models into BigQuery

Import the converted tokenizer and the sentence transformer models as BigQuery ML models.

Select one of the following options:

Console

1. In the Google Cloud console, open BigQuery Studio.

   Go to BigQuery Studio

2. In the query editor, run the following CREATE MODEL statement to create the tokenizer model.

    CREATE OR REPLACE MODEL `bqml_tutorial.tokenizer`
     OPTIONS (MODEL_TYPE='ONNX',
      MODEL_PATH='TOKENIZER_BUCKET_PATH')

   Replace TOKENIZER_BUCKET_PATH with the path to the model that you uploaded to Cloud Storage. If you're using the sample model, replace TOKENIZER_BUCKET_PATH with the following value: gs://cloud-samples-data/bigquery/ml/onnx/all-MiniLM-L6-v2/tokenizer.onnx.

   When the operation is complete, you see a message similar to the following: Successfully created model named tokenizer in the Query results pane.

3. Click Go to model to open the Details pane.

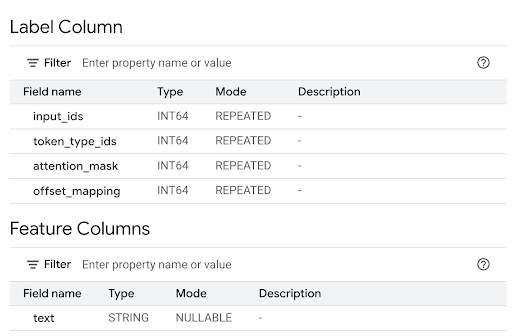

4. Review the Feature Columns section to see the model inputs and the Label Column to see model outputs.



5. In the query editor, run the following CREATE MODEL statement to create the all-MiniLM-L6-v2 model.

    CREATE OR REPLACE MODEL `bqml_tutorial.all-MiniLM-L6-v2`
     OPTIONS (MODEL_TYPE='ONNX',
      MODEL_PATH='TRANSFORMER_BUCKET_PATH')

   Replace TRANSFORMER_BUCKET_PATH with the path to the model that you uploaded to Cloud Storage. If you're using the sample model, replace TRANSFORMER_BUCKET_PATH with the following value: gs://cloud-samples-data/bigquery/ml/onnx/all-MiniLM-L6-v2/model_quantized.onnx.

   When the operation is complete, you see a message similar to the following: Successfully created model named all-MiniLM-L6-v2 in the Query results pane.

6. Click Go to model to open the Details pane.

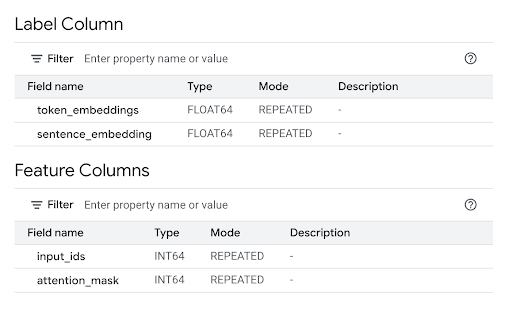

7. Review the Feature Columns section to see the model inputs and the Label Column to see model outputs.



bq

Use the bq command-line tool query command to run the CREATE MODEL statement.

1. On the command line, run the following command to create the tokenizer model.

   bq query --use_legacy_sql=false \
   "CREATE OR REPLACE MODEL
   `bqml_tutorial.tokenizer`
   OPTIONS
   (MODEL_TYPE='ONNX',
   MODEL_PATH='TOKENIZER_BUCKET_PATH')"

   Replace TOKENIZER_BUCKET_PATH with the path to the model that you uploaded to Cloud Storage. If you're using the sample model, replace TOKENIZER_BUCKET_PATH with the following value: gs://cloud-samples-data/bigquery/ml/onnx/all-MiniLM-L6-v2/tokenizer.onnx.

   When the operation is complete, you see a message similar to the following: Successfully created model named tokenizer.

2. On the command line, run the following command to create the all-MiniLM-L6-v2 model.

   bq query --use_legacy_sql=false \
   "CREATE OR REPLACE MODEL
   `bqml_tutorial.all-MiniLM-L6-v2`
   OPTIONS
   (MODEL_TYPE='ONNX',
     MODEL_PATH='TRANSFORMER_BUCKET_PATH')"

   Replace TRANSFORMER_BUCKET_PATH with the path to the model that you uploaded to Cloud Storage. If you're using the sample model, replace TRANSFORMER_BUCKET_PATH with the following value: gs://cloud-samples-data/bigquery/ml/onnx/all-MiniLM-L6-v2/model_quantized.onnx.

   When the operation is complete, you see a message similar to the following: Successfully created model named all-MiniLM-L6-v2.

3. After you import the models, verify that the models appear in the dataset.

   bq ls -m bqml_tutorial

   The output is similar to the following:

   tableId            Type
   ------------------------
   tokenizer          MODEL
   all-MiniLM-L6-v2   MODEL

API

Use the jobs.insert method to import the models.Populate the query parameter of the QueryRequest resource in the request body with the CREATE MODEL statement.

1. Use the following query parameter value to create the tokenizer model.

   {
   "query": "CREATE MODEL `PROJECT_ID :bqml_tutorial.tokenizer` OPTIONS(MODEL_TYPE='ONNX' MODEL_PATH='TOKENIZER_BUCKET_PATH')"
   }

   Replace the following:

   • PROJECT_ID with your project ID.
   • TOKENIZER_BUCKET_PATH with the path to the model that you uploaded to Cloud Storage. If you're using the sample model, replace TOKENIZER_BUCKET_PATH with the following value: gs://cloud-samples-data/bigquery/ml/onnx/all-MiniLM-L6-v2/tokenizer.onnx.

2. Use the following query parameter value to create the all-MiniLM-L6-v2 model.

   {
   "query": "CREATE MODEL `PROJECT_ID :bqml_tutorial.all-MiniLM-L6-v2` OPTIONS(MODEL_TYPE='ONNX' MODEL_PATH='TRANSFORMER_BUCKET_PATH')"
   }

   Replace the following:

   • PROJECT_ID with your project ID.
   • TRANSFORMER_BUCKET_PATH with the path to the model that you uploaded to Cloud Storage. If you're using the sample model, replace TRANSFORMER_BUCKET_PATH with the following value: gs://cloud-samples-data/bigquery/ml/onnx/all-MiniLM-L6-v2/model_quantized.onnx.

BigQuery DataFrames

Before trying this sample, follow the BigQuery DataFrames setup instructions in the BigQuery quickstart using BigQuery DataFrames. For more information, see the BigQuery DataFrames reference documentation.

To authenticate to BigQuery, set up Application Default Credentials. For more information, see Set up ADC for a local development environment.

Import the tokenizer and sentence transformer models by using the ONNXModel object.

import bigframes
from bigframes.ml.imported import ONNXModel

bigframes.options.bigquery.project = PROJECT_ID

bigframes.options.bigquery.location = "US"

tokenizer = ONNXModel(
  model_path= "TOKENIZER_BUCKET_PATH"
)
imported_onnx_model = ONNXModel(
  model_path="TRANSFORMER_BUCKET_PATH"
)

Replace the following:

• PROJECT_ID with your project ID.
• TOKENIZER_BUCKET_PATH with the path to the model that you uploaded to Cloud Storage. If you're using the sample model, replace TOKENIZER_BUCKET_PATH with the following value: gs://cloud-samples-data/bigquery/ml/onnx/all-MiniLM-L6-v2/tokenizer.onnx.
• TRANSFORMER_BUCKET_PATH with the path to the model that you uploaded to Cloud Storage. If you're using the sample model, replace TRANSFORMER_BUCKET_PATH with the following value: gs://cloud-samples-data/bigquery/ml/onnx/all-MiniLM-L6-v2/model_quantized.onnx.

Generate embeddings with the imported ONNX models

Use the imported tokenizer and the sentence transformer models to generate embeddings based on data from the bigquery-public-data.imdb.reviews public dataset.

Select one of the following options:

Console

Use the ML.PREDICT function to generate embeddings with the models.

The query uses a nested ML.PREDICT call, to process raw text directly through the tokenizer and the embedding model, as follows:

• Tokenization (inner query): the inner ML.PREDICT call uses the bqml_tutorial.tokenizer model. It takes the title column from the bigquery-public-data.imdb.reviews public dataset as its text input. The tokenizer model converts the raw text strings into the numerical token inputs that the main model requires, including the input_ids and attention_mask inputs.
• Embedding generation (outer query): the outer ML.PREDICT call uses the bqml_tutorial.all-MiniLM-L6-v2 model. The query takes the input_ids and attention_mask columns from the inner query's output as its input.

The SELECT statement retrieves the sentence_embedding column, which is an array of FLOAT values that represent the text's semantic embedding.

1. In the Google Cloud console, open BigQuery Studio.

   Go to BigQuery Studio

2. In the query editor, run the following query.

   SELECT
   sentence_embedding
   FROM
   ML.PREDICT (MODEL `bqml_tutorial.all-MiniLM-L6-v2`,
     (
     SELECT
       input_ids, attention_mask
     FROM
       ML.PREDICT(MODEL `bqml_tutorial.tokenizer`,
         (
         SELECT
           title AS text
         FROM
           `bigquery-public-data.imdb.reviews` limit 10))))

   The result is similar to the following:

   +-----------------------+
   | sentence_embedding    |
   +-----------------------+
   | -0.02361682802438736  |
   | 0.02025664784014225   |
   | 0.005168713629245758  |
   | -0.026361213997006416 |
   | 0.0655381828546524    |
   | ...                   |
   +-----------------------+


bq

Use the bq command-line tool query command to run a query. The query uses the ML.PREDICT function to generate embeddings with the models.

The query uses a nested ML.PREDICT call, to process raw text directly through the tokenizer and the embedding model, as follows:

• Tokenization (inner query): the inner ML.PREDICT call uses the bqml_tutorial.tokenizer model. It takes the title column from the bigquery-public-data.imdb.reviews public dataset as its text input. The tokenizer model converts the raw text strings into the numerical token inputs that the main model requires, including the input_ids and attention_mask inputs.
• Embedding generation (outer query): the outer ML.PREDICT call uses the bqml_tutorial.all-MiniLM-L6-v2 model. The query takes the input_ids and attention_mask columns from the inner query's output as its input.

The SELECT statement retrieves the sentence_embedding column, which is an array of FLOAT values that represent the text's semantic embedding.

On the command line, run the following command to run the query.

bq query --use_legacy_sql=false \
'SELECT
sentence_embedding
FROM
ML.PREDICT (MODEL `bqml_tutorial.all-MiniLM-L6-v2`,
  (
  SELECT
    input_ids, attention_mask
  FROM
    ML.PREDICT(MODEL `bqml_tutorial.tokenizer`,
      (
      SELECT
        title AS text
      FROM
        `bigquery-public-data.imdb.reviews` limit 10))))'

The result is similar to the following:

+-----------------------+
| sentence_embedding    |
+-----------------------+
| -0.02361682802438736  |
| 0.02025664784014225   |
| 0.005168713629245758  |
| -0.026361213997006416 |
| 0.0655381828546524    |
| ...                   |
+-----------------------+

BigQuery DataFrames

Before trying this sample, follow the BigQuery DataFrames setup instructions in the BigQuery quickstart using BigQuery DataFrames. For more information, see the BigQuery DataFrames reference documentation.

To authenticate to BigQuery, set up Application Default Credentials. For more information, see Set up ADC for a local development environment.

Use the predict method to generate embeddings using the ONNX models.

import bigframes.pandas as bpd

df = bpd.read_gbq("bigquery-public-data.imdb.reviews", max_results=10)
df_pred = df.rename(columns={"title": "text"})
tokens = tokenizer.predict(df_pred)
predictions = imported_onnx_model.predict(tokens)
predictions.peek(5)

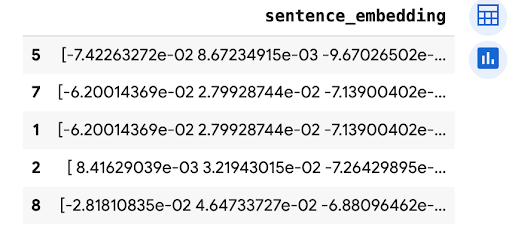

The output is similar to the following:
