Configure private UI access

By default, users access Gemini Enterprise interfaces for features such as agents, the assistant, and NotebookLM Enterprise, through the public internet. To meet organizational security requirements, you can establish private UI access using hybrid networking solutions like Cloud VPN or Cloud Interconnect.

To configure private connectivity to Gemini Enterprise, you must route Google Cloud API traffic through a Private Service Connect (PSC) endpoint. This allows users to access Gemini Enterprise interfaces through an internal IP address within your Virtual Private Cloud (VPC), avoiding the public internet.

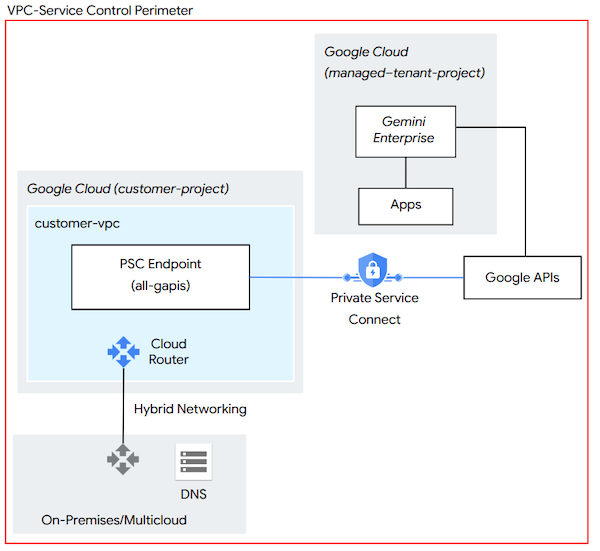

Reference architecture using VPC Service Controls to provide private access to Gemini Enterprise UIs.

In this reference architecture, on-premises or multi-cloud users connect to a PSC endpoint, which enables access to Google APIs through a user-defined internal IP address within your Google Cloud Virtual Private Cloud. In addition, you must configure your internal DNS to resolve Gemini Enterprise domains to the IP address of the PSC endpoint.

Limitations

Deep Research and video generation rely on the discoveryengine.clients6.google.com domain. This domain isn't supported by Private Service Connect. To use these features, your network must allow public DNS resolution and internet access for the discoveryengine.clients6.google.com domain.

Before you begin

Before configuring private UI access, ensure that you have the following:

• A Google Cloud Virtual Private Cloud network connected to your on-premises network through Cloud Router, using Cloud VPN or Cloud Interconnect.

• Permissions to create Private Service Connect endpoints and manage Cloud Router custom routes.

Configure Private Service Connect

Private and restricted virtual IP addresses (VIPs) used for Private Google Access don't support private access to the Gemini Enterprise UI. To ensure full functionality, you must resolve the Gemini Enterprise domains to a Private Service Connect endpoint configured with the all-apis bundle.

1. Create a new PSC endpoint in the same Virtual Private Cloud as the Cloud Router used for hybrid networking.

2. Target the All Google APIs API bundle. This bundle provides access to most Google APIs, including *.googleapis.com service endpoints. The VPC-SC API bundle doesn't support all Gemini Enterprise domains.

Note: The Google APIs DNS zone *.p.googleapis.com is automatically generated when you create a PSC endpoint. However, using this zone from an on-premises or VPC network isn't supported in Gemini Enterprise.

Configure network routing

The PSC endpoint uses a /32 IP address that doesn't originate from a standard VPC subnet and won't be visible from on-premises or multi-cloud networks. You must configure your Cloud Router to advertise the IP address. For more information about IP address requirements for Private Service Connect endpoints, see IP address requirements.

1. Identify the IP address that you assigned to your PSC endpoint.

2. In your Cloud Router configuration, create a custom route for the IP address. For more information about specifying custom advertised routes on a Cloud Router, see Advertise custom address ranges.

3. Update on-premises or multi-cloud firewalls to permit outbound traffic to the IP address.

Update DNS settings

Finally, update your DNS settings to resolve the Gemini Enterprise domains using the PSC endpoint. For more information, see Create DNS records by using default DNS names.

1. Configure internal on-premises or cloud network DNS records to resolve the following Gemini Enterprise domains to the internal IP address of the PSC endpoint:

   • vertexaisearch.cloud.google.com

   • notebooklm.cloud.google.com

   • discoveryengine.googleapis.com

   • discoveryengine.mtls.googleapis.com

   • discoveryengine.mtls.clients6.google.com

   • accounts.googleapis.com

2. If your environment requires strict data exfiltration protection boundaries, configure the discoveryengine.googleapis.com domain to the VPC-SC bundle IP address.

Important: Deep Research and video generation rely on the discoveryengine.clients6.google.com domain. This domain isn't supported with Private Service Connect and requires public DNS resolution and internet access.

About securing your app with VPC Service Controls

For advanced security, you can implement VPC Service Controls (VPC-SC) to prevent data exfiltration from managed services like Gemini Enterprise and BigQuery. Unlike Identity and Access Management, which controls who can access data, VPC-SC controls dictate where data can be accessed and moved.

If considering this approach, keep the following in mind:

• While optional, using VPC Service Controls is a best practice for blocking public access to Google services exposed through googleapis.com.

• Among other implications, services (such as discoveryengine.googleapis.com) that are added to a VPC-SC perimeter are blocked to all public access, including access through the Google Cloud console.

• To allow access to protected services within a VPC-SC perimeter, admins must explicitly allow ingress, by using VPC-SC ingress rules or defining access levels using Access Context Manager.

For more information about securing your Gemini Enterprise app using VPC-SC and Access Context Manager, see Secure your app with VPC Service Controls.
