Cloud Monitoring 可讓您掌握雲端應用程式的效能、運作時間和整體健康狀態。Google Cloud Observability 會收集及擷取 Managed Service for Apache Spark 叢集的指標、事件和中繼資料，包括每個叢集的 HDFS、YARN、工作和作業指標，並透過資訊主頁和圖表產生洞察資料 (請參閱「Cloud Monitoring Managed Service for Apache Spark 指標」)。
請參閱 Cloud Monitoring 定價瞭解相關費用。
如要瞭解指標資料保留相關資訊，請參閱「Monitoring 配額與限制」一文。
收集 Managed Service for Apache Spark 資源指標
Cloud Monitoring 會收集下列 Managed Service for Apache Spark 資源的相關指標：
- Cloud Dataproc 叢集
- Cloud Dataproc 工作
- Cloud Dataproc 批次
- Cloud Dataproc 工作階段
Managed Service for Apache Spark 資源指標會以以下格式收集：
dataproc.googleapis.com/RESOURCE/METRIC，
並包含多項 OSS 指標的集合。
查看 Managed Service for Apache Spark 資源指標

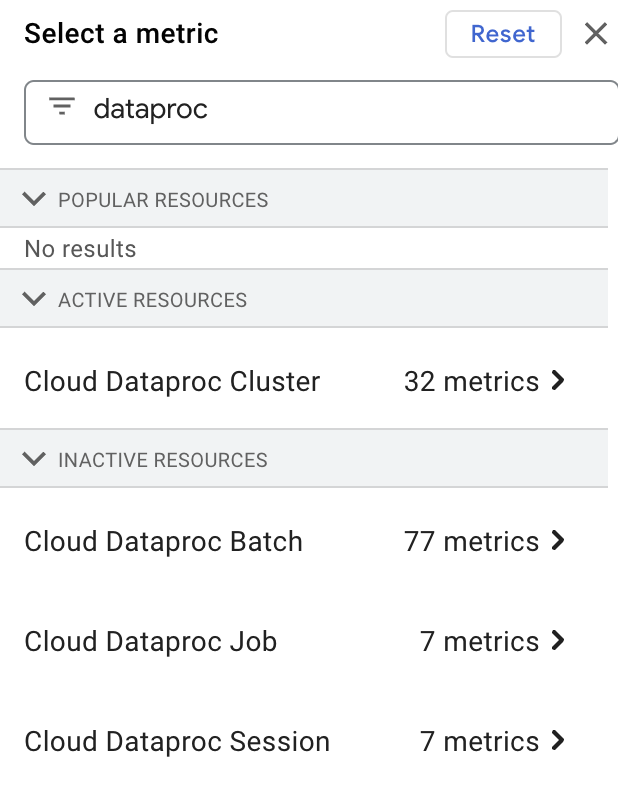

您可以在 Metrics Explorer 中選取並查看 Managed Service for Apache Spark 資源指標，方法是在 Filter by resource or metric name 方塊中輸入「dataproc」，然後選取「Cloud Dataproc」資源。
收集自訂指標
建立 Managed Service for Apache Spark 叢集時，您可以啟用從一或多個自訂指標來源收集指標。系統會從每個已啟用的指標來源收集一組標準指標，除非您指定要從指標來源收集的指標 (使用者指定的指標稱為指標「覆寫」)。
自訂 OSS 指標會以以下格式收集：
custom.googleapis.com/OSS_COMPONENT/METRIC
自訂 OSS 指標範例：
custom.googleapis.com/spark/driver/DAGScheduler/job/allJobs custom.googleapis.com/hiveserver2/memory/MaxNonHeapMemory
啟用自訂指標收集功能
您可以使用 gcloud CLI 或 Dataproc API，從一或多個指標來源啟用自訂指標的收集作業。
gcloud CLI
自訂指標收集
使用
gcloud dataproc clusters create --metric-sources
旗標，從一或多個指標來源啟用自訂指標的收集作業。
gcloud dataproc clusters create cluster-name \ --metric-sources=METRIC_SOURCE(s) \ ... other flags
注意：
--metric-sources：啟用自訂指標收集功能時，必須提供這項資訊。 指定一或多個下列指標來源：spark、flink、hdfs、yarn、spark-history-server、hiveserver2、hivemetastore和monitoring-agent-defaults。 指標來源名稱不區分大小寫，例如「yarn」或「YARN」都可以。- 2.2 版映像檔叢集不支援 monitoring-agent-defaults。您可以安裝作業套件代理程式，收集 syslog 記錄和主機指標。
覆寫指標收集作業
視需要新增 --metric-overrides 或 --metric-overrides-file 標記，從一或多個指標來源收集一或多個自訂指標。
-
任何自訂指標和所有 Spark 指標都可以列為指標覆寫，供系統收集。覆寫指標值區分大小寫，且必須以 CamelCase 格式提供 (如適用)。
範例：
sparkHistoryServer:JVM:Memory:NonHeapMemoryUsage.committedhiveserver2:JVM:Memory:NonHeapMemoryUsage.usedyarn:ResourceManager:JvmMetrics:MemHeapMaxM
-
系統只會從指定的指標來源收集覆寫的指標。舉例來說，如果一或多個
spark:executive指標列為指標覆寫，系統就不會收集其他SPARK指標。從其他指標來源收集自訂指標的作業不會受到影響。舉例來說，如果同時啟用SPARK和YARN指標來源，但只為 Spark 指標提供覆寫，系統就會收集已啟用的標準 YARN 指標集。 -
必須啟用指定指標覆寫的來源。舉例來說，如果一或多個
spark:driver指標做為指標覆寫提供，則必須啟用spark指標來源 (--metric-sources=spark)。
覆寫指標清單
gcloud dataproc clusters create cluster-name \ --metric-sources=METRIC_SOURCE(s) \ --metric-overrides=LIST_OF_METRIC_OVERRIDES \ ... other flags
注意：
--metric-sources：啟用自訂指標收集功能時，這是必要屬性。 指定一或多個下列指標來源：spark、flink、hdfs、yarn、spark-history-server、hiveserver2、hivemetastore和monitoring-agent-defaults。 指標來源名稱不區分大小寫，例如「yarn」或「YARN」都可以。--metric-overrides：請提供指標清單，格式如下：METRIC_SOURCE:INSTANCE:GROUP:METRIC
範例：
--metric-overrides=sparkHistoryServer:JVM:Memory:NonHeapMemoryUsage.committed這個旗標是
--metric-overrides-file旗標的替代方案，無法與--metric-overrides-file旗標搭配使用。
覆寫指標檔案
gcloud dataproc clusters create cluster-name \ --metric-sources=METRIC-SOURCE(s) \ --metric-overrides-file=METRIC_OVERRIDES_FILENAME \ ... other flags
注意：
-
--metric-sources：啟用自訂指標收集功能時，這是必要屬性。 指定一或多個下列指標來源：spark、flink、hdfs、yarn、spark-history-server、hiveserver2、hivemetastore和monitoring-agent-defaults。 指標來源名稱不區分大小寫，例如「yarn」或「YARN」都可以。 -
--metric-overrides-file：指定本機或 Cloud Storage 檔案 (gs://bucket/filename)，其中包含一或多個指標，格式如下：METRIC_SOURCE:INSTANCE:GROUP:METRIC
視情況使用駝峰式大小寫格式。範例：
--metric-overrides-file=gs://my-bucket/my-filename.txt--metric-overrides-file=./local-directory/local-filename.txt這個標記是
--metric-overrides標記的替代方案，無法與--metric-overrides標記搭配使用。
REST API
在 clusters.create 要求中納入 DataprocMetricConfig，即可啟用自訂指標收集功能。注意：除非安裝 Ops Agent，否則 2.2 版映像檔叢集不支援 monitoring-agent-defaults。
查看自訂指標

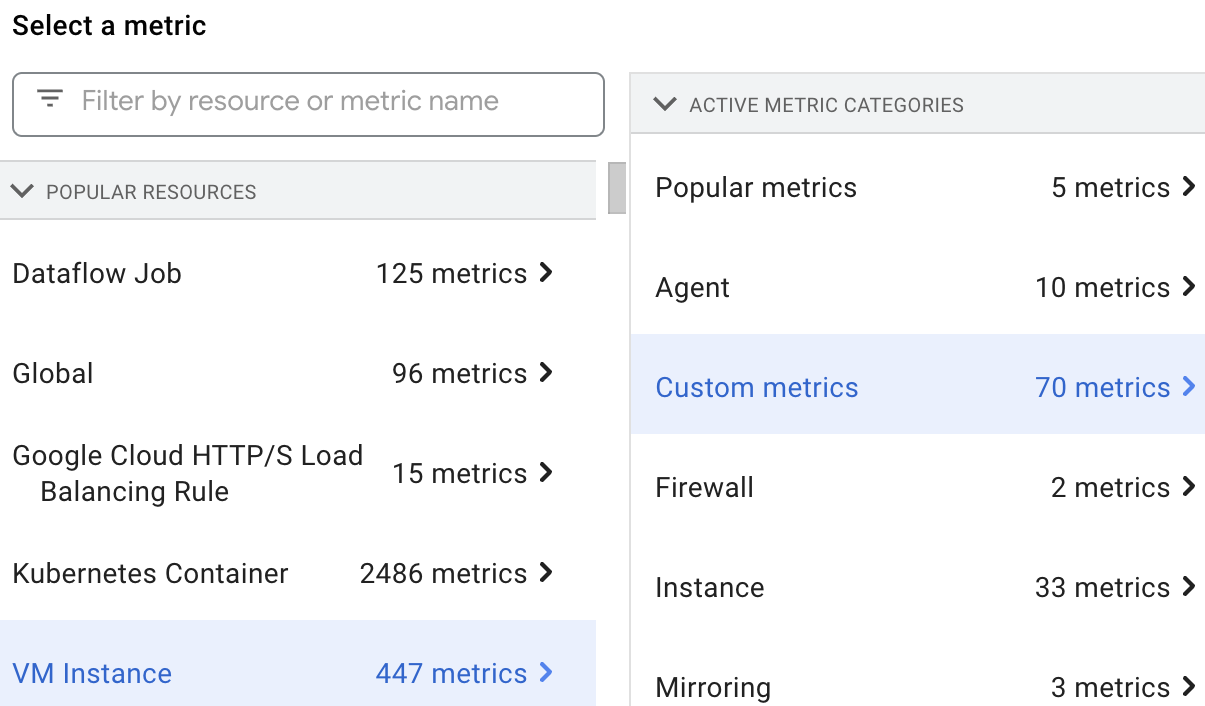

您可以在「指標探索器」中選取並查看 Managed Service for Apache Spark 資源指標，方法是選取 VM Instance 資源，然後選取 Custom metrics。
自訂指標
您可以啟用 Managed Service for Apache Spark，收集下表列出的自訂指標。
如果 Managed Service for Apache Spark 在您啟用相關聯的指標來源時收集指標，「已啟用指標」欄會標示為「y」。
如要收集指標來源列出的任何指標，以及所有 Spark 指標，請覆寫指標來源的標準啟用指標集 (請參閱「啟用自訂指標收集功能」)。
Managed Service for Apache Spark 會使用監控代理程式收集指標。啟用任何指標來源，即可收集代理程式指標。 這些指標不會向使用者收費，Managed Service for Apache Spark 會使用這些指標診斷指標收集問題。
Hadoop 指標
HDFS 指標
| 指標 | Metrics Explorer 名稱 | 已啟用指標 |
|---|---|---|
| hdfs:NameNode:FSNamesystem:CapacityTotalGB | dfs/FSNamesystem/CapacityTotalGB | y |
| hdfs:NameNode:FSNamesystem:CapacityUsedGB | dfs/FSNamesystem/CapacityUsedGB | y |
| hdfs:NameNode:FSNamesystem:CapacityRemainingGB | dfs/FSNamesystem/CapacityRemainingGB | y |
| hdfs:NameNode:FSNamesystem:FilesTotal | dfs/FSNamesystem/FilesTotal | y |
| hdfs:NameNode:FSNamesystem:MissingBlocks | dfs/FSNamesystem/MissingBlocks | n |
| hdfs:NameNode:FSNamesystem:ExpiredHeartbeats | dfs/FSNamesystem/ExpiredHeartbeats | n |
| hdfs:NameNode:FSNamesystem:TransactionsSinceLastCheckpoint | dfs/FSNamesystem/TransactionsSinceLastCheckpoint | n |
| hdfs:NameNode:FSNamesystem:TransactionsSinceLastLogRoll | dfs/FSNamesystem/TransactionsSinceLastLogRoll | n |
| hdfs:NameNode:FSNamesystem:LastWrittenTransactionId | dfs/FSNamesystem/LastWrittenTransactionId | n |
| hdfs:NameNode:FSNamesystem:CapacityTotal | dfs/FSNamesystem/CapacityTotal | n |
| hdfs:NameNode:FSNamesystem:CapacityUsed | dfs/FSNamesystem/CapacityUsed | n |
| hdfs:NameNode:FSNamesystem:CapacityRemaining | dfs/FSNamesystem/CapacityRemaining | n |
| hdfs:NameNode:FSNamesystem:CapacityUsedNonDFS | dfs/FSNamesystem/CapacityUsedNonDFS | n |
| hdfs:NameNode:FSNamesystem:TotalLoad | dfs/FSNamesystem/TotalLoad | n |
| hdfs:NameNode:FSNamesystem:SnapshottableDirectories | dfs/FSNamesystem/SnapshottableDirectories | n |
| hdfs:NameNode:FSNamesystem:Snapshots | dfs/FSNamesystem/Snapshots | n |
| hdfs:NameNode:FSNamesystem:BlocksTotal | dfs/FSNamesystem/BlocksTotal | n |
| hdfs:NameNode:FSNamesystem:PendingReplicationBlocks | dfs/FSNamesystem/PendingReplicationBlocks | n |
| hdfs:NameNode:FSNamesystem:UnderReplicatedBlocks | dfs/FSNamesystem/UnderReplicatedBlocks | n |
| hdfs:NameNode:FSNamesystem:CorruptBlocks | dfs/FSNamesystem/CorruptBlocks | n |
| hdfs:NameNode:FSNamesystem:ScheduledReplicationBlocks | dfs/FSNamesystem/ScheduledReplicationBlocks | n |
| hdfs:NameNode:FSNamesystem:PendingDeletionBlocks | dfs/FSNamesystem/PendingDeletionBlocks | n |
| hdfs:NameNode:FSNamesystem:ExcessBlocks | dfs/FSNamesystem/ExcessBlocks | n |
| hdfs:NameNode:FSNamesystem:PostponedMisreplicatedBlocks | dfs/FSNamesystem/PostponedMisreplicatedBlocks | n |
| hdfs:NameNode:FSNamesystem:PendingDataNodeMessageCourt | dfs/FSNamesystem/PendingDataNodeMessageCourt | n |
| hdfs:NameNode:FSNamesystem:MillisSinceLastLoadedEdits | dfs/FSNamesystem/MillisSinceLastLoadedEdits | n |
| hdfs:NameNode:FSNamesystem:BlockCapacity | dfs/FSNamesystem/BlockCapacity | n |
| hdfs:NameNode:FSNamesystem:StaleDataNodes | dfs/FSNamesystem/StaleDataNodes | n |
| hdfs:NameNode:FSNamesystem:TotalFiles | dfs/FSNamesystem/TotalFiles | n |
| hdfs:NameNode:JvmMetrics:MemHeapUsedM | dfs/jvm/MemHeapUsedM | n |
| hdfs:NameNode:JvmMetrics:MemHeapCommittedM | dfs/jvm/MemHeapCommittedM | n |
| hdfs:NameNode:JvmMetrics:MemHeapMaxM | dfs/jvm/MemHeapMaxM | n |
| hdfs:NameNode:JvmMetrics:MemMaxM | dfs/jvm/MemMaxM | n |
YARN 指標
| 指標 | Metrics Explorer 名稱 | 已啟用指標 |
|---|---|---|
| yarn:ResourceManager:ClusterMetrics:NumActiveNMs | yarn/ClusterMetrics/NumActiveNMs | y |
| yarn:ResourceManager:ClusterMetrics:NumDecommissionedNMs | yarn/ClusterMetrics/NumDecommissionedNMs | n |
| yarn:ResourceManager:ClusterMetrics:NumLostNMs | yarn/ClusterMetrics/NumLostNMs | n |
| yarn:ResourceManager:ClusterMetrics:NumUnhealthyNMs | yarn/ClusterMetrics/NumUnhealthyNMs | n |
| yarn:ResourceManager:ClusterMetrics:NumRebootedNMs | yarn/ClusterMetrics/NumRebootedNMs | n |
| yarn:ResourceManager:QueueMetrics:running_0 | yarn/QueueMetrics/running_0 | y |
| yarn:ResourceManager:QueueMetrics:running_60 | yarn/QueueMetrics/running_60 | y |
| yarn:ResourceManager:QueueMetrics:running_300 | yarn/QueueMetrics/running_300 | y |
| yarn:ResourceManager:QueueMetrics:running_1440 | yarn/QueueMetrics/running_1440 | y |
| yarn:ResourceManager:QueueMetrics:AppsSubmitted | yarn/QueueMetrics/AppsSubmitted | y |
| yarn:ResourceManager:QueueMetrics:AvailableMB | yarn/QueueMetrics/AvailableMB | y |
| yarn:ResourceManager:QueueMetrics:PendingContainers | yarn/QueueMetrics/PendingContainers | y |
| yarn:ResourceManager:QueueMetrics:AppsRunning | yarn/QueueMetrics/AppsRunning | n |
| yarn:ResourceManager:QueueMetrics:AppsPending | yarn/QueueMetrics/AppsPending | n |
| yarn:ResourceManager:QueueMetrics:AppsCompleted | yarn/QueueMetrics/AppsCompleted | n |
| yarn:ResourceManager:QueueMetrics:AppsKilled | yarn/QueueMetrics/AppsKilled | n |
| yarn:ResourceManager:QueueMetrics:AppsFailed | yarn/QueueMetrics/AppsFailed | n |
| yarn:ResourceManager:QueueMetrics:AllocatedMB | yarn/QueueMetrics/AllocatedMB | n |
| yarn:ResourceManager:QueueMetrics:AllocatedVCores | yarn/QueueMetrics/AllocatedVCores | n |
| yarn:ResourceManager:QueueMetrics:AllocatedContainers | yarn/QueueMetrics/AllocatedContainers | n |
| yarn:ResourceManager:QueueMetrics:AggregateContainersAllocated | yarn/QueueMetrics/AggregateContainersAllocated | n |
| yarn:ResourceManager:QueueMetrics:AggregateContainersReleased | yarn/QueueMetrics/AggregateContainersReleased | n |
| yarn:ResourceManager:QueueMetrics:AvailableVCores | yarn/QueueMetrics/AvailableVCores | n |
| yarn:ResourceManager:QueueMetrics:PendingMB | yarn/QueueMetrics/PendingMB | n |
| yarn:ResourceManager:QueueMetrics:PendingVCores | yarn/QueueMetrics/PendingVCores | n |
| yarn:ResourceManager:QueueMetrics:ReservedMB | yarn/QueueMetrics/ReservedMB | n |
| yarn:ResourceManager:QueueMetrics:ReservedVCores | yarn/QueueMetrics/ReservedVCores | n |
| yarn:ResourceManager:QueueMetrics:ReservedContainers | yarn/QueueMetrics/ReservedContainers | n |
| yarn:ResourceManager:QueueMetrics:ActiveUsers | yarn/QueueMetrics/ActiveUsers | n |
| yarn:ResourceManager:QueueMetrics:ActiveApplications | yarn/QueueMetrics/ActiveApplications | n |
| yarn:ResourceManager:QueueMetrics:FairShareMB | yarn/QueueMetrics/FairShareMB | n |
| yarn:ResourceManager:QueueMetrics:FairShareVCores | yarn/QueueMetrics/FairShareVCores | n |
| yarn:ResourceManager:QueueMetrics:MinShareMB | yarn/QueueMetrics/MinShareMB | n |
| yarn:ResourceManager:QueueMetrics:MinShareVCores | yarn/QueueMetrics/MinShareVCores | n |
| yarn:ResourceManager:QueueMetrics:MaxShareMB | yarn/QueueMetrics/MaxShareMB | n |
| yarn:ResourceManager:QueueMetrics:MaxShareVCores | yarn/QueueMetrics/MaxShareVCores | n |
| yarn:ResourceManager:JvmMetrics:MemHeapUsedM | yarn/jvm/MemHeapUsedM | n |
| yarn:ResourceManager:JvmMetrics:MemHeapCommittedM | yarn/jvm/MemHeapCommittedM | n |
| yarn:ResourceManager:JvmMetrics:MemHeapMaxM | yarn/jvm/MemHeapMaxM | n |
| yarn:ResourceManager:JvmMetrics:MemMaxM | yarn/jvm/MemMaxM | n |
Spark 指標
Spark 驅動程式指標
| 指標 | Metrics Explorer 名稱 | 已啟用指標 |
|---|---|---|
| spark:driver:BlockManager:disk.diskSpaceUsed_MB | spark/driver/BlockManager/disk/diskSpaceUsed_MB | y |
| spark:driver:BlockManager:memory.maxMem_MB | spark/driver/BlockManager/memory/maxMem_MB | y |
| spark:driver:BlockManager:memory.memUsed_MB | spark/driver/BlockManager/memory/memUsed_MB | y |
| spark:driver:DAGScheduler:job.allJobs | spark/driver/DAGScheduler/job/allJobs | y |
| spark:driver:DAGScheduler:stage.failedStages | spark/driver/DAGScheduler/stage/failedStages | y |
| spark:driver:DAGScheduler:stage.waitingStages | spark/driver/DAGScheduler/stage/waitingStages | y |
Spark 執行器指標
| 指標 | Metrics Explorer 名稱 | 已啟用指標 |
|---|---|---|
| spark:executor:executor:bytesRead | spark/executor/bytesRead | y |
| spark:executor:executor:bytesWritten | spark/executor/bytesWritten | y |
| spark:executor:executor:cpuTime | spark/executor/cpuTime | y |
| spark:executor:executor:diskBytesSpilled | spark/executor/diskBytesSpilled | y |
| spark:executor:executor:recordsRead | spark/executor/recordsRead | y |
| spark:executor:executor:recordsWritten | spark/executor/recordsWritten | y |
| spark:executor:executor:runTime | spark/executor/runTime | y |
| spark:executor:executor:shuffleRecordsRead | spark/executor/shuffleRecordsRead | y |
| spark:executor:executor:shuffleRecordsWritten | spark/executor/shuffleRecordsWritten | y |
Flink 指標
| 指標 | Metrics Explorer 名稱 | 已啟用指標 |
|---|---|---|
| flink:jobmanager:numRegisteredTaskManagers | flink/jobmanager/numRegisteredTaskManagers | n |
| flink:jobmanager:numRunningJobs | flink/jobmanager/numRunningJobs | n |
| flink:jobmanager:Status.JVM.ClassLoader.ClassesLoaded | flink/jobmanager/Status.JVM.ClassLoader.ClassesLoaded | n |
| flink:jobmanager:Status.JVM.ClassLoader.ClassesUnloaded | flink/jobmanager/Status.JVM.ClassLoader.ClassesUnloaded | n |
| flink:jobmanager:Status.JVM.CPU.Load | flink/jobmanager/Status.JVM.CPU.Load | n |
| flink:jobmanager:Status.JVM.CPU.Time | flink/jobmanager/Status.JVM.CPU.Time | y |
| flink:jobmanager:Status.JVM.GarbageCollector.PSMarkSweep.Count | flink/jobmanager/Status.JVM.GarbageCollector.PSMarkSweep.Count | n |
| flink:jobmanager:Status.JVM.GarbageCollector.PSMarkSweep.Time | flink/jobmanager/Status.JVM.GarbageCollector.PSMarkSweep.Time | n |
| flink:jobmanager:Status.JVM.GarbageCollector.PSScavenge.Count | flink/jobmanager/Status.JVM.GarbageCollector.PSScavenge.Count | n |
| flink:jobmanager:Status.JVM.GarbageCollector.PSScavenge.Time | flink/jobmanager/Status.JVM.GarbageCollector.PSScavenge.Time | n |
| flink:jobmanager:Status.JVM.Memory.Direct.Count | flink/jobmanager/Status.JVM.Memory.Direct.Count | y |
| flink:jobmanager:Status.JVM.Memory.Direct.MemoryUsed | flink/jobmanager/Status.JVM.Memory.Direct.MemoryUsed | y |
| flink:jobmanager:Status.JVM.Memory.Direct.TotalCapacity | flink/jobmanager/Status.JVM.Memory.Direct.TotalCapacity | y |
| flink:jobmanager:Status.JVM.Memory.Heap.Committed | flink/jobmanager/Status.JVM.Memory.Heap.Committed | y |
| flink:jobmanager:Status.JVM.Memory.Heap.Max | flink/jobmanager/Status.JVM.Memory.Heap.Max | y |
| flink:jobmanager:Status.JVM.Memory.Heap.Used | flink/jobmanager/Status.JVM.Memory.Heap.Used | y |
| flink:jobmanager:Status.JVM.Memory.Mapped.Count | flink/jobmanager/Status.JVM.Memory.Mapped.Count | y |
| flink:jobmanager:Status.JVM.Memory.Mapped.MemoryUsed | flink/jobmanager/Status.JVM.Memory.Mapped.MemoryUsed | y |
| flink:jobmanager:Status.JVM.Memory.Mapped.TotalCapacity | flink/jobmanager/Status.JVM.Memory.Mapped.TotalCapacity | y |
| flink:jobmanager:Status.JVM.Memory.Metaspace.Committed | flink/jobmanager/Status.JVM.Memory.Metaspace.Committed | n |
| flink:jobmanager:Status.JVM.Memory.Metaspace.Max | flink/jobmanager/Status.JVM.Memory.Metaspace.Max | n |
| flink:jobmanager:Status.JVM.Memory.Metaspace.Used | flink/jobmanager/Status.JVM.Memory.Metaspace.Used | n |
| flink:jobmanager:Status.JVM.Memory.NonHeap.Committed | flink/jobmanager/Status.JVM.Memory.NonHeap.Committed | n |
| flink:jobmanager:Status.JVM.Memory.NonHeap.Max | flink/jobmanager/Status.JVM.Memory.NonHeap.Max | n |
| flink:jobmanager:Status.JVM.Memory.NonHeap.Used | flink/jobmanager/Status.JVM.Memory.NonHeap.Used | n |
| flink:jobmanager:Status.JVM.Threads.Count | flink/jobmanager/Status.JVM.Threads.Count | n |
| flink:jobmanager:taskSlotsAvailable | flink/jobmanager/taskSlotsAvailable | y |
| flink:jobmanager:taskSlotsTotal | flink/jobmanager/taskSlotsTotal | y |
| flink:operator:numRecordsIn | flink/operator/numRecordsIn | n |
| flink:operator:numRecordsInPerSecond.count | flink/operator/numRecordsInPerSecond.count | n |
| flink:operator:numRecordsInPerSecond.rate | flink/operator/numRecordsInPerSecond.rate | n |
| flink:operator:numRecordsOut | flink/operator/numRecordsOut | n |
| flink:operator:numRecordsOutPerSecond.count | flink/operator/numRecordsOutPerSecond.count | n |
| flink:operator:numRecordsOutPerSecond.rate | flink/operator/numRecordsOutPerSecond.rate | n |
| flink:operator:numSplitsProcessed | flink/operator/numSplitsProcessed | n |
| flink:task:buffers.inPoolUsage | flink/task/buffers.inPoolUsage | n |
| flink:task:buffers.inputExclusiveBuffersUsage | flink/task/buffers.inputExclusiveBuffersUsage | n |
| flink:task:buffers.inputFloatingBuffersUsage | flink/task/buffers.inputFloatingBuffersUsage | n |
| flink:task:buffers.inputQueueLength | flink/task/buffers.inputQueueLength | n |
| flink:task:buffers.outPoolUsage | flink/task/buffers.outPoolUsage | n |
| flink:task:buffers.outputQueueLength | flink/task/buffers.outputQueueLength | n |
| flink:task:idleTimeMsPerSecond.count | flink/task/idleTimeMsPerSecond.count | n |
| flink:task:idleTimeMsPerSecond.rate | flink/task/idleTimeMsPerSecond.rate | n |
| flink:task:numBuffersInLocal | flink/task/numBuffersInLocal | n |
| flink:task:numBuffersInLocalPerSecond.count | flink/task/numBuffersInLocalPerSecond.count | n |
| flink:task:numBuffersInLocalPerSecond.rate | flink/task/numBuffersInLocalPerSecond.rate | n |
| flink:task:numBuffersInRemote | flink/task/numBuffersInRemote | n |
| flink:task:numBuffersInRemotePerSecond.count | flink/task/numBuffersInRemotePerSecond.count | n |
| flink:task:numBuffersInRemotePerSecond.rate | flink/task/numBuffersInRemotePerSecond.rate | n |
| flink:task:numBuffersOut | flink/task/numBuffersOut | n |
| flink:task:numBuffersOutPerSecond.count | flink/task/numBuffersOutPerSecond.count | n |
| flink:task:numBuffersOutPerSecond.rate | flink/task/numBuffersOutPerSecond.rate | n |
| flink:task:numBytesIn | flink/task/numBytesIn | n |
| flink:task:numBytesInLocal | flink/task/numBytesInLocal | n |
| flink:task:numBytesInLocalPerSecond.count | flink/task/numBytesInLocalPerSecond.count | n |
| flink:task:numBytesInLocalPerSecond.rate | flink/task/numBytesInLocalPerSecond.rate | n |
| flink:task:numBytesInPerSecond.count | flink/task/numBytesInPerSecond.count | n |
| flink:task:numBytesInPerSecond.rate | flink/task/numBytesInPerSecond.rate | n |
| flink:task:numBytesInRemote | flink/task/numBytesInRemote | n |
| flink:task:numBytesInRemotePerSecond.count | flink/task/numBytesInRemotePerSecond.count | n |
| flink:task:numBytesInRemotePerSecond.rate | flink/task/numBytesInRemotePerSecond.rate | n |
| flink:task:numBytesOut | flink/task/numBytesOut | n |
| flink:task:numBytesOutPerSecond.count | flink/task/numBytesOutPerSecond.count | n |
| flink:task:numBytesOutPerSecond.rate | flink/task/numBytesOutPerSecond.rate | n |
| flink:task:numRecordsIn | flink/task/numRecordsIn | n |
| flink:task:numRecordsInPerSecond.count | flink/task/numRecordsInPerSecond.count | n |
| flink:task:numRecordsInPerSecond.rate | flink/task/numRecordsInPerSecond.rate | n |
| flink:task:numRecordsOut | flink/task/numRecordsOut | n |
| flink:task:numRecordsOutPerSecond.count | flink/task/numRecordsOutPerSecond.count | n |
| flink:task:numRecordsOutPerSecond.rate | flink/task/numRecordsOutPerSecond.rate | n |
| flink:task:Shuffle.Netty.Input.Buffers.inPoolUsage | flink/task/Shuffle.Netty.Input.Buffers.inPoolUsage | n |
| flink:task:Shuffle.Netty.Input.Buffers.inputExclusiveBuffersUsage | flink/task/Shuffle.Netty.Input.Buffers.inputExclusiveBuffersUsage | n |
| flink:task:Shuffle.Netty.Input.Buffers.inputFloatingBuffersUsage | flink/task/Shuffle.Netty.Input.Buffers.inputFloatingBuffersUsage | n |
| flink:task:Shuffle.Netty.Input.Buffers.inputQueueLength | flink/task/Shuffle.Netty.Input.Buffers.inputQueueLength | n |
| flink:task:Shuffle.Netty.Input.numBuffersInLocal | flink/task/Shuffle.Netty.Input.numBuffersInLocal | n |
| flink:task:Shuffle.Netty.Input.numBuffersInLocalPerSecond.count | flink/task/Shuffle.Netty.Input.numBuffersInLocalPerSecond.count | n |
| flink:task:Shuffle.Netty.Input.numBuffersInLocalPerSecond.rate | flink/task/Shuffle.Netty.Input.numBuffersInLocalPerSecond.rate | n |
| flink:task:Shuffle.Netty.Input.numBuffersInRemote | flink/task/Shuffle.Netty.Input.numBuffersInRemote | n |
| flink:task:Shuffle.Netty.Input.numBuffersInRemotePerSecond.count | flink/task/Shuffle.Netty.Input.numBuffersInRemotePerSecond.count | n |
| flink:task:Shuffle.Netty.Input.numBuffersInRemotePerSecond.rate | flink/task/Shuffle.Netty.Input.numBuffersInRemotePerSecond.rate | n |
| flink:task:Shuffle.Netty.Input.numBytesInLocal | flink/task/Shuffle.Netty.Input.numBytesInLocal | n |
| flink:task:Shuffle.Netty.Input.numBytesInLocalPerSecond.count | flink/task/Shuffle.Netty.Input.numBytesInLocalPerSecond.count | n |
| flink:task:Shuffle.Netty.Input.numBytesInLocalPerSecond.rate | flink/task/Shuffle.Netty.Input.numBytesInLocalPerSecond.rate | n |
| flink:task:Shuffle.Netty.Input.numBytesInRemote | flink/task/Shuffle.Netty.Input.numBytesInRemote | n |
| flink:task:Shuffle.Netty.Input.numBytesInRemotePerSecond.count | flink/task/Shuffle.Netty.Input.numBytesInRemotePerSecond.count | n |
| flink:task:Shuffle.Netty.Input.numBytesInRemotePerSecond.rate | flink/task/Shuffle.Netty.Input.numBytesInRemotePerSecond.rate | n |
| flink:task:Shuffle.Netty.Output.Buffers.outPoolUsage | flink/task/Shuffle.Netty.Output.Buffers.outPoolUsage | n |
| flink:task:Shuffle.Netty.Output.Buffers.outputQueueLength | flink/task/Shuffle.Netty.Output.Buffers.outputQueueLength | n |
| flink:taskmanager:Status.flink.Memory.Managed.Total | flink/taskmanager/Status.flink.Memory.Managed.Total | n |
| flink:taskmanager:Status.flink.Memory.Managed.Used | flink/taskmanager/Status.flink.Memory.Managed.Used | n |
| flink:taskmanager:Status.JVM.ClassLoader.ClassesLoaded | flink/taskmanager/Status.JVM.ClassLoader.ClassesLoaded | n |
| flink:taskmanager:Status.JVM.ClassLoader.ClassesUnloaded | flink/taskmanager/Status.JVM.ClassLoader.ClassesUnloaded | n |
| flink:taskmanager:Status.JVM.CPU.Load | flink/taskmanager/Status.JVM.CPU.Load | n |
| flink:taskmanager:Status.JVM.CPU.Time | flink/taskmanager/Status.JVM.CPU.Time | y |
| flink:taskmanager:Status.JVM.GarbageCollector.PSMarkSweep.Count | flink/taskmanager/Status.JVM.GarbageCollector.PSMarkSweep.Count | n |
| flink:taskmanager:Status.JVM.GarbageCollector.PSMarkSweep.Time | flink/taskmanager/Status.JVM.GarbageCollector.PSMarkSweep.Time | n |
| flink:taskmanager:Status.JVM.GarbageCollector.PSScavenge.Count | flink/taskmanager/Status.JVM.GarbageCollector.PSScavenge.Count | n |
| flink:taskmanager:Status.JVM.GarbageCollector.PSScavenge.Time | flink/taskmanager/Status.JVM.GarbageCollector.PSScavenge.Time | n |
| flink:taskmanager:Status.JVM.Memory.Direct.Count | flink/taskmanager/Status.JVM.Memory.Direct.Count | y |
| flink:taskmanager:Status.JVM.Memory.Direct.MemoryUsed | flink/taskmanager/Status.JVM.Memory.Direct.MemoryUsed | y |
| flink:taskmanager:Status.JVM.Memory.Direct.TotalCapacity | flink/taskmanager/Status.JVM.Memory.Direct.TotalCapacity | y |
| flink:taskmanager:Status.JVM.Memory.Heap.Committed | flink/taskmanager/Status.JVM.Memory.Heap.Committed | y |
| flink:taskmanager:Status.JVM.Memory.Heap.Max | flink/taskmanager/Status.JVM.Memory.Heap.Max | y |
| flink:taskmanager:Status.JVM.Memory.Heap.Used | flink/taskmanager/Status.JVM.Memory.Heap.Used | y |
| flink:taskmanager:Status.JVM.Memory.Mapped.Count | flink/taskmanager/Status.JVM.Memory.Mapped.Count | y |
| flink:taskmanager:Status.JVM.Memory.Mapped.MemoryUsed | flink/taskmanager/Status.JVM.Memory.Mapped.MemoryUsed | y |
| flink:taskmanager:Status.JVM.Memory.Mapped.TotalCapacity | flink/taskmanager/Status.JVM.Memory.Mapped.TotalCapacity | y |
| flink:taskmanager:Status.JVM.Memory.Metaspace.Committed | flink/taskmanager/Status.JVM.Memory.Metaspace.Committed | n |
| flink:taskmanager:Status.JVM.Memory.Metaspace.Max | flink/taskmanager/Status.JVM.Memory.Metaspace.Max | n |
| flink:taskmanager:Status.JVM.Memory.Metaspace.Used | flink/taskmanager/Status.JVM.Memory.Metaspace.Used | n |
| flink:taskmanager:Status.JVM.Memory.NonHeap.Committed | flink/taskmanager/Status.JVM.Memory.NonHeap.Committed | n |
| flink:taskmanager:Status.JVM.Memory.NonHeap.Max | flink/taskmanager/Status.JVM.Memory.NonHeap.Max | n |
| flink:taskmanager:Status.JVM.Memory.NonHeap.Used | flink/taskmanager/Status.JVM.Memory.NonHeap.Used | n |
| flink:taskmanager:Status.JVM.Threads.Count | flink/taskmanager/Status.JVM.Threads.Count | n |
| flink:taskmanager:Status.Network.AvailableMemorySegments | flink/taskmanager/Status.Network.AvailableMemorySegments | n |
| flink:taskmanager:Status.Network.TotalMemorySegments | flink/taskmanager/Status.Network.TotalMemorySegments | n |
| flink:taskmanager:Status.Shuffle.Netty.AvailableMemory | flink/taskmanager/Status.Shuffle.Netty.AvailableMemory | n |
| flink:taskmanager:Status.Shuffle.Netty.AvailableMemorySegments | flink/taskmanager/Status.Shuffle.Netty.AvailableMemorySegments | n |
| flink:taskmanager:Status.Shuffle.Netty.TotalMemory | flink/taskmanager/Status.Shuffle.Netty.TotalMemory | n |
| flink:taskmanager:Status.Shuffle.Netty.TotalMemorySegments | flink/taskmanager/Status.Shuffle.Netty.TotalMemorySegments | n |
| flink:taskmanager:Status.Shuffle.Netty.UsedMemory | flink/taskmanager/Status.Shuffle.Netty.UsedMemory | n |
| flink:taskmanager:Status.Shuffle.Netty.UsedMemorySegments | flink/taskmanager/Status.Shuffle.Netty.UsedMemorySegments | n |
Spark 記錄伺服器指標
Managed Service for Apache Spark 會收集下列 Spark 歷來服務 JVM 記憶體指標：
| 指標 | Metrics Explorer 名稱 | 已啟用指標 |
|---|---|---|
| sparkHistoryServer:JVM:Memory:HeapMemoryUsage.committed | sparkHistoryServer/memory/CommittedHeapMemory | y |
| sparkHistoryServer:JVM:Memory:HeapMemoryUsage.used | sparkHistoryServer/memory/UsedHeapMemory | y |
| sparkHistoryServer:JVM:Memory:HeapMemoryUsage.max | sparkHistoryServer/memory/MaxHeapMemory | y |
| sparkHistoryServer:JVM:Memory:NonHeapMemoryUsage.committed | sparkHistoryServer/memory/CommittedNonHeapMemory | y |
| sparkHistoryServer:JVM:Memory:NonHeapMemoryUsage.used | sparkHistoryServer/memory/UsedNonHeapMemory | y |
| sparkHistoryServer:JVM:Memory:NonHeapMemoryUsage.max | sparkHistoryServer/memory/MaxNonHeapMemory | y |
HiveServer 2 指標
| 指標 | Metrics Explorer 名稱 | 已啟用指標 |
|---|---|---|
| hiveserver2:JVM:Memory:HeapMemoryUsage.committed | hiveserver2/memory/CommittedHeapMemory | y |
| hiveserver2:JVM:Memory:HeapMemoryUsage.used | hiveserver2/memory/UsedHeapMemory | y |
| hiveserver2:JVM:Memory:HeapMemoryUsage.max | hiveserver2/memory/MaxHeapMemory | y |
| hiveserver2:JVM:Memory:NonHeapMemoryUsage.committed | hiveserver2/memory/CommittedNonHeapMemory | y |
| hiveserver2:JVM:Memory:NonHeapMemoryUsage.used | hiveserver2/memory/UsedNonHeapMemory | y |
| hiveserver2:JVM:Memory:NonHeapMemoryUsage.max | hiveserver2/memory/MaxNonHeapMemory | y |
Hive Metastore 指標
| 指標 | Metrics Explorer 名稱 | 已啟用指標 |
|---|---|---|
| hivemetastore:API:GetDatabase:Mean | hivemetastore/get_database/mean | y |
| hivemetastore:API:CreateDatabase:Mean | hivemetastore/create_database/mean | y |
| hivemetastore:API:DropDatabase:Mean | hivemetastore/drop_database/mean | y |
| hivemetastore:API:AlterDatabase:Mean | hivemetastore/alter_database/mean | y |
| hivemetastore:API:GetAllDatabases:Mean | hivemetastore/get_all_databases/mean | y |
| hivemetastore:API:CreateTable:Mean | hivemetastore/create_table/mean | y |
| hivemetastore:API:DropTable:Mean | hivemetastore/drop_table/mean | y |
| hivemetastore:API:AlterTable:Mean | hivemetastore/alter_table/mean | y |
| hivemetastore:API:GetTable:Mean | hivemetastore/get_table/mean | y |
| hivemetastore:API:GetAllTables:Mean | hivemetastore/get_all_tables/mean | y |
| hivemetastore:API:AddPartitionsReq:Mean | hivemetastore/add_partitions_req/mean | y |
| hivemetastore:API:DropPartition:Mean | hivemetastore/drop_partition/mean | y |
| hivemetastore:API:AlterPartition:Mean | hivemetastore/alter_partition/mean | y |
| hivemetastore:API:GetPartition:Mean | hivemetastore/get_partition/mean | y |
| hivemetastore:API:GetPartitionNames:Mean | hivemetastore/get_partition_names/mean | y |
| hivemetastore:API:GetPartitionsPs:Mean | hivemetastore/get_partitions_ps/mean | y |
| hivemetastore:API:GetPartitionsPsWithAuth:Mean | hivemetastore/get_partitions_ps_with_auth/mean | y |
Hive Metastore 指標評估
| 統計測量 | 範例指標 | 範例指標名稱 |
|---|---|---|
| 最大值 | hivemetastore:API:GetDatabase:Max | hivemetastore/get_database/max |
| 最小值 | hivemetastore:API:GetDatabase:Min | hivemetastore/get_database/min |
| 平均值 | hivemetastore:API:GetDatabase:Mean | hivemetastore/get_database/mean |
| 數量 | hivemetastore:API:GetDatabase:Count | hivemetastore/get_database/count |
| 第 50 個百分位數 | hivemetastore:API:GetDatabase:50thPercentile | hivemetastore/get_database/median |
| 第 75 個百分位數 | hivemetastore:API:GetDatabase:75thPercentile | hivemetastore/get_database/75th_percentile |
| 第 95 個百分位數 | hivemetastore:API:GetDatabase:95thPercentile | hivemetastore/get_database/95th_percentile |
| 98thPercentile | hivemetastore:API:GetDatabase:98thPercentile | hivemetastore/get_database/98th_percentile |
| 第 99 個百分位數 | hivemetastore:API:GetDatabase:99thPercentile | hivemetastore/get_database/99th_percentile |
| 999thPercentile | hivemetastore:API:GetDatabase:999thPercentile | hivemetastore/get_database/999th_percentile |
| 標準差 | hivemetastore:API:GetDatabase:StdDev | hivemetastore/get_database/stddev |
| FifteenMinuteRate | hivemetastore:API:GetDatabase:FifteenMinuteRate | hivemetastore/get_database/15min_rate |
| FiveMinuteRate | hivemetastore:API:GetDatabase:FiveMinuteRate | hivemetastore/get_database/5min_rate |
| OneMinuteRate | hivemetastore:API:GetDatabase:OneMinuteRate | hivemetastore/get_database/1min_rate |
| MeanRate | hivemetastore:API:GetDatabase:MeanRate | hivemetastore/get_database/mean_rate |
Managed Service for Apache Spark 監控代理程式指標
設定 --metric-sources=monitoring-agent-defaults 時，Managed Service for Apache Spark 會收集下列 Managed Service for Apache Spark 監控代理程式指標：這些指標會加上 agent.googleapis.com 前置字元。
CPU
agent.googleapis.com/cpu/load_15m
agent.googleapis.com/cpu/load_1m
agent.googleapis.com/cpu/load_5m
agent.googleapis.com/cpu/usage_time*
agent.googleapis.com/cpu/utilization*
磁碟
agent.googleapis.com/disk/bytes_used
agent.googleapis.com/disk/io_time
agent.googleapis.com/disk/merged_operations
agent.googleapis.com/disk/operation_count
agent.googleapis.com/disk/operation_time
agent.googleapis.com/disk/pending_operations
agent.googleapis.com/disk/percent_used
agent.googleapis.com/disk/read_bytes_count
交換
agent.googleapis.com/swap/bytes_used
agent.googleapis.com/swap/io
agent.googleapis.com/swap/percent_used
記憶體
agent.googleapis.com/memory/bytes_used
agent.googleapis.com/memory/percent_used
程序 - 部分屬性遵循獨特的配額政策。
agent.googleapis.com/processes/count_by_state
agent.googleapis.com/processes/cpu_time
agent.googleapis.com/processes/disk/read_bytes_count
agent.googleapis.com/processes/disk/write_bytes_count
agent.googleapis.com/processes/fork_count
agent.googleapis.com/processes/rss_usage
agent.googleapis.com/processes/vm_usage
介面
agent.googleapis.com/interface/errors
agent.googleapis.com/interface/packets
agent.googleapis.com/interface/traffic
網路
agent.googleapis.com/network/tcp_connections
建構監控資訊主頁
您可以建構 Monitoring 資訊主頁，顯示所選 Managed Service for Apache Spark 指標的圖表。

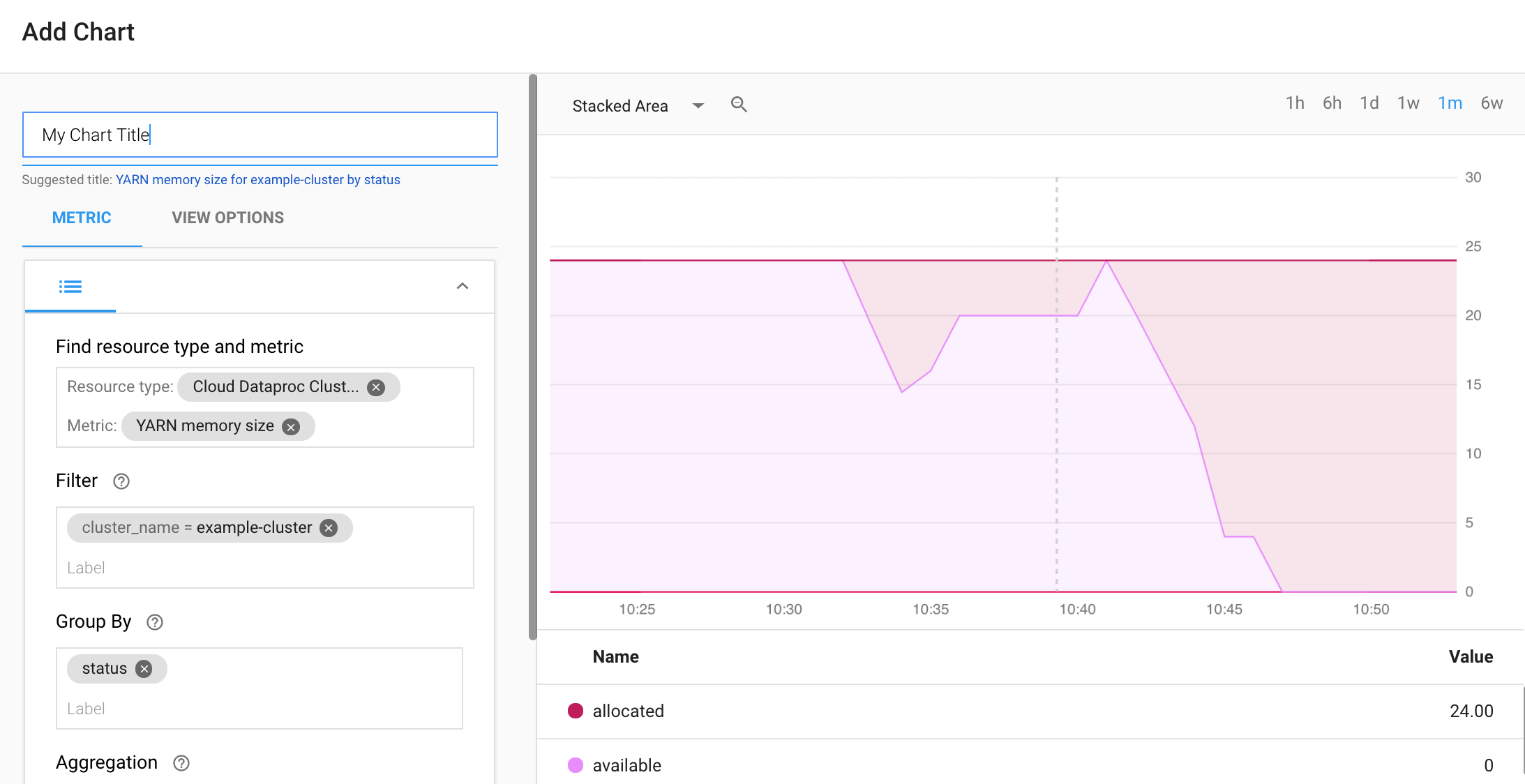

在「Monitoring Dashboards Overview」頁面中，選取「+ CREATE DASHBOARD」。為資訊主頁命名，然後按一下右上選單中的「Add Chart」，開啟「Add Chart」視窗。選取「Cloud Managed Service for Apache Spark Cluster」做為資源類型。選取一或多個指標和圖表屬性，然後「Save」圖表。

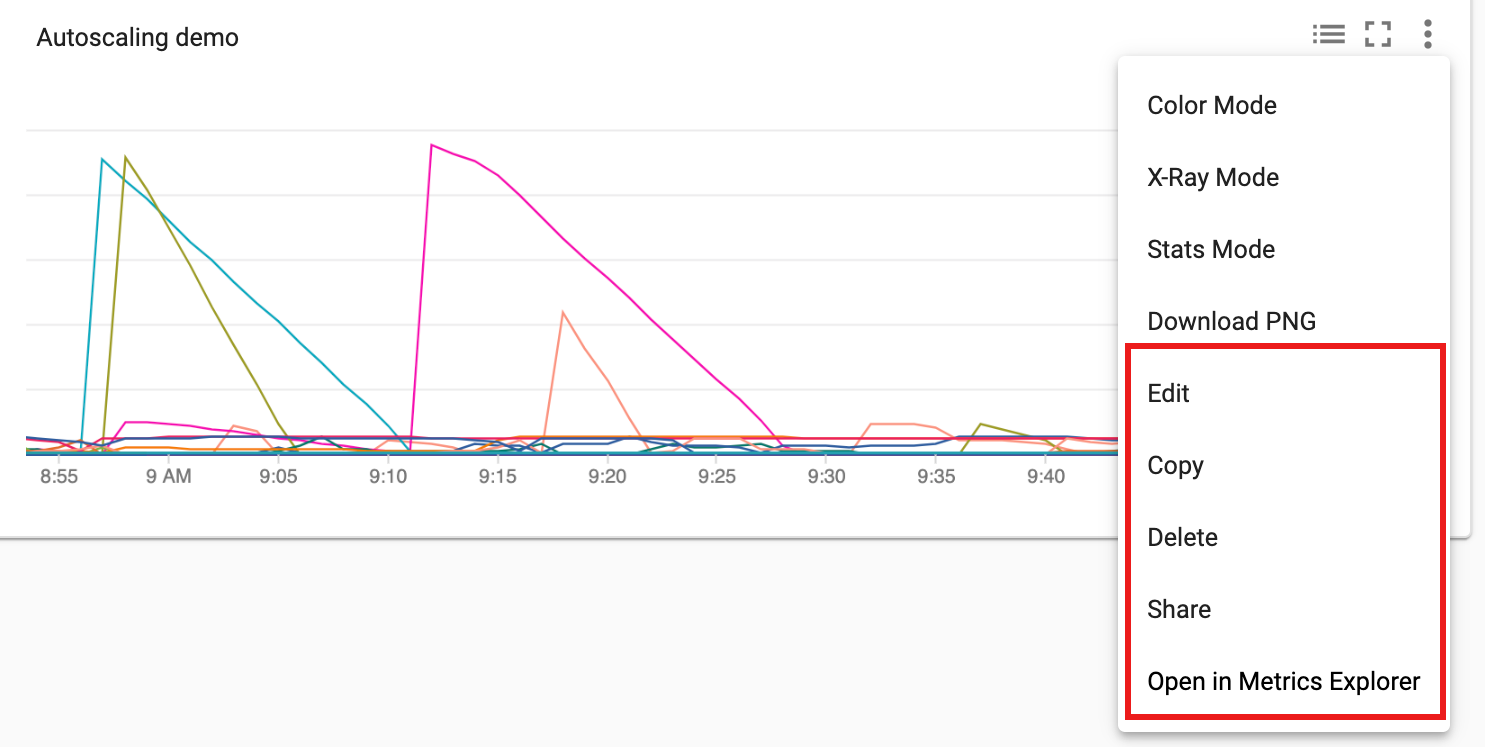

您可以在資訊主頁中新增其他圖表。儲存資訊主頁後，標題會出現在 Monitoring 的「資訊主頁總覽」頁面中。 您可以在資訊主頁顯示頁面中查看、更新及刪除資訊主頁圖表。
