Metrik Managed Service for Apache Spark

Cloud Monitoring memberikan visibilitas pada performa, waktu operasional, dan kondisi keseluruhan aplikasi yang didukung oleh teknologi cloud. Google Cloud Observability mengumpulkan dan menyerap metrik, peristiwa, dan metadata dari cluster Managed Service for Apache Spark, termasuk metrik HDFS, YARN, tugas, dan operasi per cluster, untuk menghasilkan insight melalui dasbor dan diagram (lihat Metrik Managed Service for Apache Spark Cloud Monitoring).

Pengumpulan metrik resource Managed Service untuk Apache Spark

Cloud Monitoring mengumpulkan metrik yang terkait dengan resource Managed Service untuk Apache Spark berikut:

  • Cluster Cloud Dataproc
  • Tugas Cloud Dataproc
  • Batch Cloud Dataproc
  • Sesi Cloud Dataproc

Metrik resource Managed Service untuk Apache Spark dikumpulkan dalam format berikut: dataproc.googleapis.com/RESOURCE/METRIC, dan mencakup pengumpulan beberapa metrik OSS.

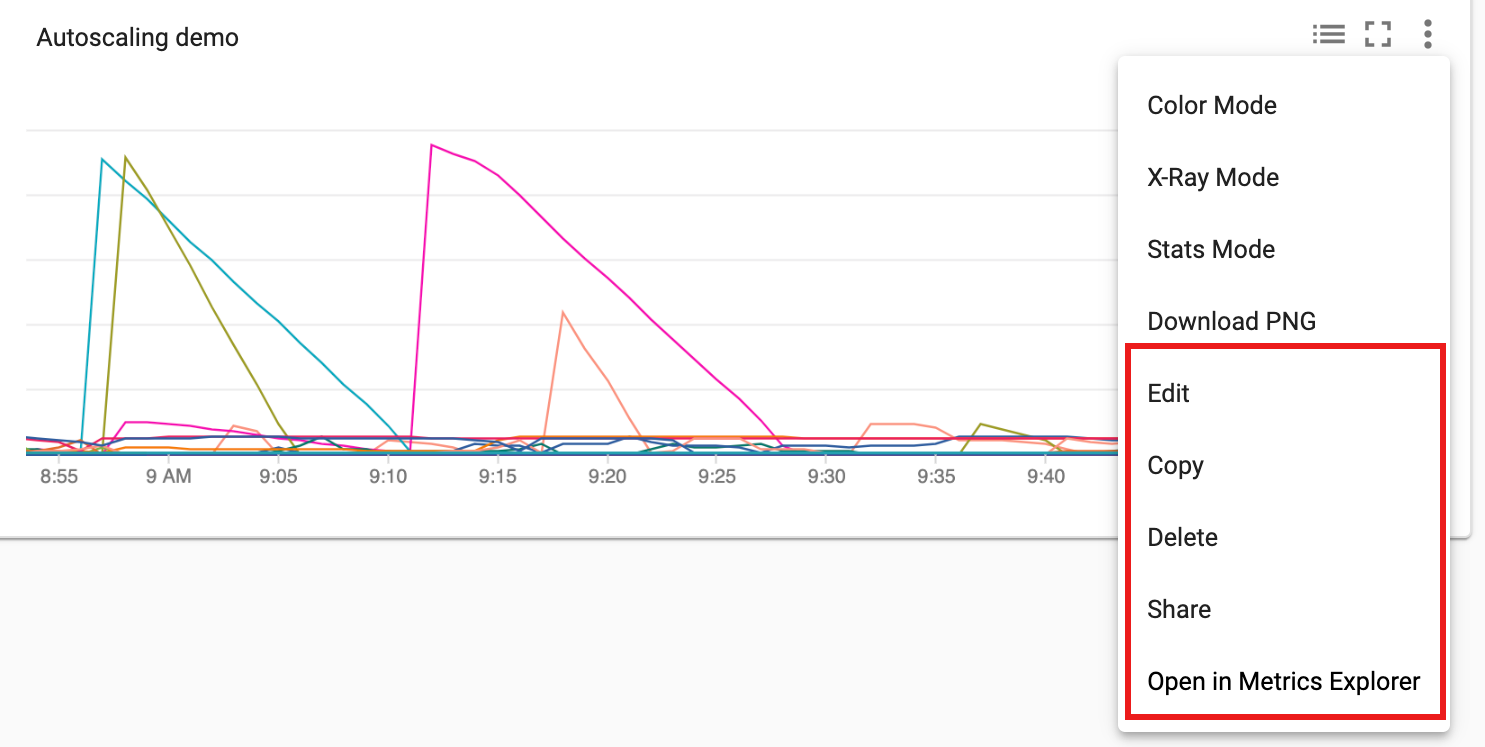

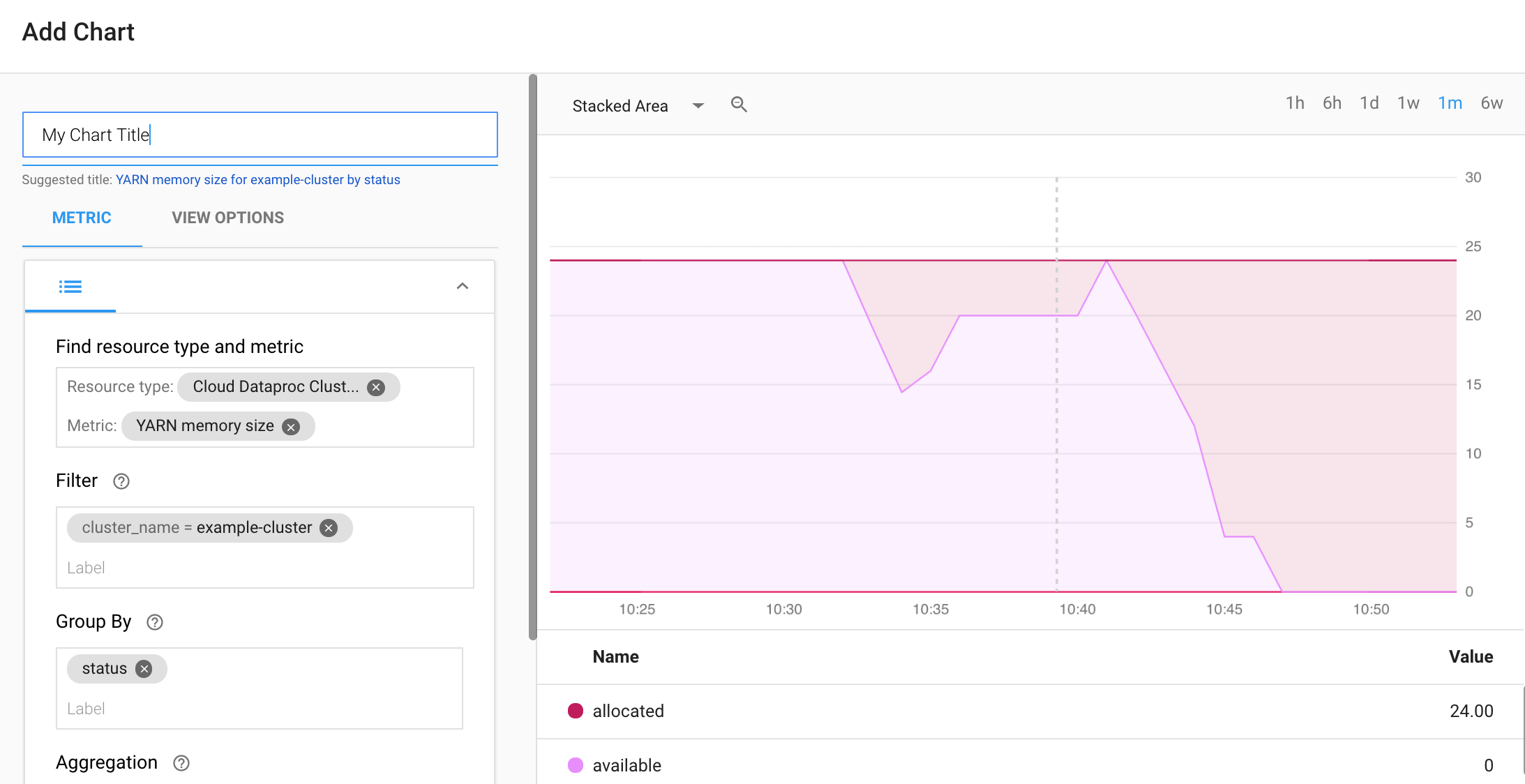

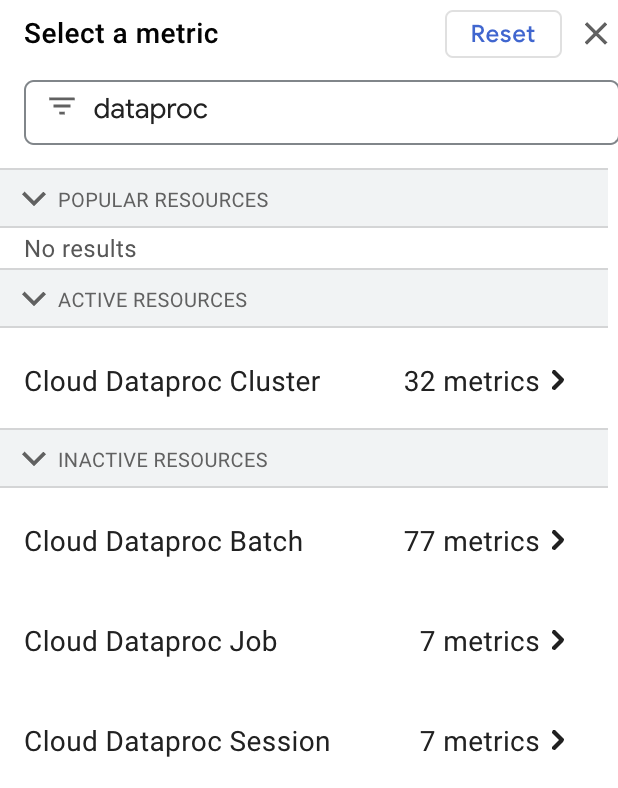

Melihat metrik resource Managed Service untuk Apache Spark

Anda dapat memilih dan melihat metrik resource Managed Service for Apache Spark di Metrics Explorer dengan mengetik "dataproc" di kotak Filter by resource or metric name, lalu memilih resource "Cloud Dataproc".

Pengumpulan metrik kustom

Saat membuat cluster Managed Service untuk Apache Spark, Anda dapat mengaktifkan pengumpulan metrik dari satu atau beberapa sumber metrik kustom. Serangkaian metrik standar dikumpulkan dari tiap sumber metrik yang diaktifkan, kecuali jika Anda menentukan metrik yang akan dikumpulkan dari sumber metrik (metrik yang ditentukan pengguna disebut "penggantian" metrik).

Metrik OSS kustom dikumpulkan dalam format berikut: custom.googleapis.com/OSS_COMPONENT/METRIC

Contoh metrik OSS kustom:

custom.googleapis.com/spark/driver/DAGScheduler/job/allJobs
custom.googleapis.com/hiveserver2/memory/MaxNonHeapMemory

Mengaktifkan pengumpulan metrik kustom

Anda dapat menggunakan gcloud CLI atau Dataproc API untuk mengaktifkan pengumpulan metrik kustom dari satu atau beberapa sumber metrik.

gcloud CLI

Pengumpulan metrik kustom

Gunakan flag gcloud dataproc clusters create --metric-sources untuk mengaktifkan pengumpulan metrik kustom dari satu atau beberapa sumber metrik.

gcloud dataproc clusters create cluster-name \
    --metric-sources=METRIC_SOURCE(s) \
    ... other flags

Catatan:

Mengganti pengumpulan metrik

Jika perlu, tambahkan flag --metric-overrides atau --metric-overrides-file untuk mengaktifkan pengumpulan satu atau beberapa metrik kustom dari satu atau beberapa sumber metrik.

  • Metrik kustom dan semua metrik Spark, dapat dicantumkan untuk pengumpulan sebagai penggantian metrik. Nilai metrik pengganti peka huruf besar/kecil, dan harus diberikan, jika sesuai, dalam format CamelCase.

    Contoh:

    • sparkHistoryServer:JVM:Memory:NonHeapMemoryUsage.committed
    • hiveserver2:JVM:Memory:NonHeapMemoryUsage.used
    • yarn:ResourceManager:JvmMetrics:MemHeapMaxM

  • Hanya metrik yang diganti dan ditentukan yang akan dikumpulkan dari sumber metrik tertentu. Misalnya, jika satu atau beberapa metrik spark:executive dicantumkan sebagai penggantian metrik, metrik SPARK lainnya tidak akan dikumpulkan. Pengumpulan metrik kustom dari sumber metrik lain tidak akan terpengaruh. Misalnya, jika sumber metrik SPARK dan YARN diaktifkan, dan penggantian hanya diberikan untuk metrik Spark, kumpulan metrik YARN standar yang diaktifkan akan dikumpulkan.
  • Sumber penggantian metrik yang ditentukan harus diaktifkan. Misalnya, jika satu atau beberapa metrik spark:driver diberikan sebagai penggantian metrik, sumber metrik spark harus diaktifkan (--metric-sources=spark).

Daftar metrik penggantian

gcloud dataproc clusters create cluster-name \
    --metric-sources=METRIC_SOURCE(s) \
    --metric-overrides=LIST_OF_METRIC_OVERRIDES \
    ... other flags

Catatan:

  • --metric-sources: Wajib diisi untuk mengaktifkan pengumpulan metrik kustom. Tentukan satu atau beberapa sumber metrik berikut: spark, flink, hdfs, yarn, spark-history-server, hiveserver2, hivemetastore, dan monitoring-agent-defaults. Nama sumber metrik tidak peka huruf besar/kecil, misalnya, "yarn" atau "YARN" dapat diterima.
  • --metric-overrides: Berikan daftar metrik dalam format berikut:

    METRIC_SOURCE:INSTANCE:GROUP:METRIC

    Contoh:--metric-overrides=sparkHistoryServer:JVM:Memory:NonHeapMemoryUsage.committed

    Flag ini adalah alternatif dan tidak dapat digunakan dengan flag --metric-overrides-file.

Mengganti file metrik

gcloud dataproc clusters create cluster-name \
    --metric-sources=METRIC-SOURCE(s) \
    --metric-overrides-file=METRIC_OVERRIDES_FILENAME \
    ... other flags

Catatan:

  • --metric-sources: Wajib diisi untuk mengaktifkan pengumpulan metrik kustom. Tentukan satu atau beberapa sumber metrik berikut: spark, flink, hdfs, yarn, spark-history-server, hiveserver2, hivemetastore, dan monitoring-agent-defaults. Nama sumber metrik tidak peka huruf besar/kecil, misalnya, "yarn" atau "YARN" dapat diterima.
  • --metric-overrides-file: Tentukan file lokal atau Cloud Storage (gs://bucket/filename) yang berisi satu atau beberapa metrik dalam format berikut:

    METRIC_SOURCE:INSTANCE:GROUP:METRIC

    Gunakan format camelcase yang sesuai.

    Contoh:

    • --metric-overrides-file=gs://my-bucket/my-filename.txt
    • --metric-overrides-file=./local-directory/local-filename.txt

      Flag ini adalah alternatif dan tidak dapat digunakan dengan flag --metric-overrides.

REST API

Gunakan DataprocMetricConfig sebagai bagian dari permintaan clusters.create untuk mengaktifkan pengumpulan metrik kustom. Catatan: monitoring-agent-defaults tidak tersedia di cluster versi image 2.2 kecuali jika Agen Operasional diinstal.

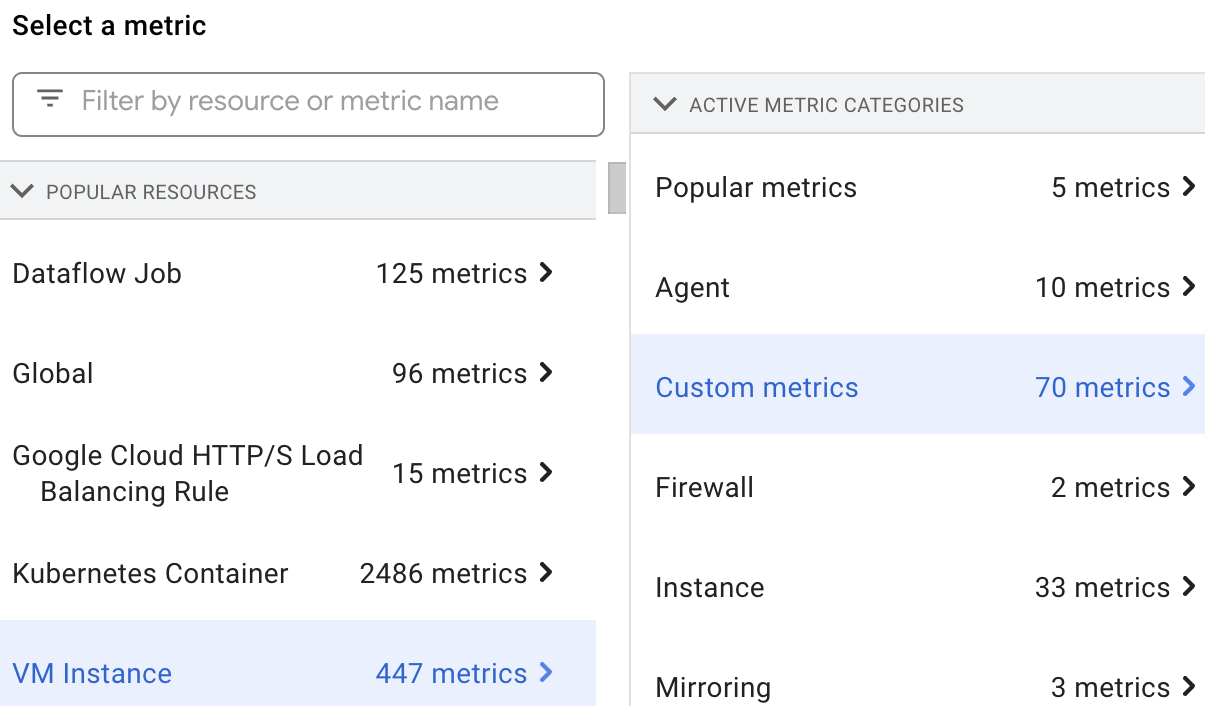

Melihat metrik kustom

Anda dapat memilih dan melihat metrik resource Managed Service untuk Apache Spark di Metrics Explorer dengan memilih resource VM Instance, lalu memilih Custom metrics.

Metrik kustom

Anda dapat mengaktifkan Managed Service untuk Apache Spark guna mengumpulkan metrik kustom yang tercantum dalam tabel berikut.

  • Kolom Metrik yang diaktifkan ditandai dengan "y" jika Managed Service for Apache Spark mengumpulkan metrik saat Anda mengaktifkan sumber metrik terkait.

  • Metrik apa pun yang tercantum untuk sumber metrik, dan semua metrik Spark), dapat diaktifkan untuk pengumpulan jika Anda mengganti pengumpulan set standar metrik yang diaktifkan untuk sumber metrik (baca bagian Mengaktifkan pengumpulan metrik kustom).

  • Managed Service untuk Apache Spark menggunakan agen pemantauan untuk mengumpulkan metrik. Mengaktifkan sumber metrik apa pun akan mengaktifkan pengumpulan metrik agen. Metrik ini tidak akan ditagih kepada pengguna. Managed Service for Apache Spark akan menggunakannya untuk mendiagnosis masalah pengumpulan metrik.

Metrik Hadoop

Metrik HDFS

Metrik Nama Metrics Explorer Metrik yang diaktifkan
hdfs:NameNode:FSNamesystem:CapacityTotalGB dfs/FSNamesystem/CapacityTotalGB y
hdfs:NameNode:FSNamesystem:CapacityUsedGB dfs/FSNamesystem/CapacityUsedGB y
hdfs:NameNode:FSNamesystem:CapacityRemainingGB dfs/FSNamesystem/CapacityRemainingGB y
hdfs:NameNode:FSNamesystem:FilesTotal dfs/FSNamesystem/FilesTotal y
hdfs:NameNode:FSNamesystem:MissingBlocks dfs/FSNamesystem/MissingBlocks n
hdfs:NameNode:FSNamesystem:ExpiredHeartbeats dfs/FSNamesystem/ExpiredHeartbeats n
hdfs:NameNode:FSNamesystem:TransactionsSinceLastCheckpoint dfs/FSNamesystem/TransactionsSinceLastCheckpoint n
hdfs:NameNode:FSNamesystem:TransactionsSinceLastLogRoll dfs/FSNamesystem/TransactionsSinceLastLogRoll n
hdfs:NameNode:FSNamesystem:LastWrittenTransactionId dfs/FSNamesystem/LastWrittenTransactionId n
hdfs:NameNode:FSNamesystem:CapacityTotal dfs/FSNamesystem/CapacityTotal n
hdfs:NameNode:FSNamesystem:CapacityUsed dfs/FSNamesystem/CapacityUsed n
hdfs:NameNode:FSNamesystem:CapacityRemaining dfs/FSNamesystem/CapacityRemaining n
hdfs:NameNode:FSNamesystem:CapacityUsedNonDFS dfs/FSNamesystem/CapacityUsedNonDFS n
hdfs:NameNode:FSNamesystem:TotalLoad dfs/FSNamesystem/TotalLoad n
hdfs:NameNode:FSNamesystem:SnapshottableDirectories dfs/FSNamesystem/SnapshottableDirectories n
hdfs:NameNode:FSNamesystem:Snapshots dfs/FSNamesystem/Snapshots n
hdfs:NameNode:FSNamesystem:BlocksTotal dfs/FSNamesystem/BlocksTotal n
hdfs:NameNode:FSNamesystem:PendingReplicationBlocks dfs/FSNamesystem/PendingReplicationBlocks n
hdfs:NameNode:FSNamesystem:UnderReplicatedBlocks dfs/FSNamesystem/UnderReplicatedBlocks n
hdfs:NameNode:FSNamesystem:CorruptBlocks dfs/FSNamesystem/CorruptBlocks n
hdfs:NameNode:FSNamesystem:ScheduledReplicationBlocks dfs/FSNamesystem/ScheduledReplicationBlocks n
hdfs:NameNode:FSNamesystem:PendingDeletionBlocks dfs/FSNamesystem/PendingDeletionBlocks n
hdfs:NameNode:FSNamesystem:ExcessBlocks dfs/FSNamesystem/ExcessBlocks n
hdfs:NameNode:FSNamesystem:PostponedMisreplicatedBlocks dfs/FSNamesystem/PostponedMisreplicatedBlocks n
hdfs:NameNode:FSNamesystem:PendingDataNodeMessageCourt dfs/FSNamesystem/PendingDataNodeMessageCourt n
hdfs:NameNode:FSNamesystem:MillisSinceLastLoadedEdits dfs/FSNamesystem/MillisSinceLastLoadedEdits n
hdfs:NameNode:FSNamesystem:BlockCapacity dfs/FSNamesystem/BlockCapacity n
hdfs:NameNode:FSNamesystem:StaleDataNodes dfs/FSNamesystem/StaleDataNodes n
hdfs:NameNode:FSNamesystem:TotalFiles dfs/FSNamesystem/TotalFiles n
hdfs:NameNode:JvmMetrics:MemHeapUsedM dfs/jvm/MemHeapUsedM n
hdfs:NameNode:JvmMetrics:MemHeapCommittedM dfs/jvm/MemHeapCommittedM n
hdfs:NameNode:JvmMetrics:MemHeapMaxM dfs/jvm/MemHeapMaxM n
hdfs:NameNode:JvmMetrics:MemMaxM dfs/jvm/MemMaxM n

Metrik YARN

Metrik Nama Metrics Explorer Metrik yang diaktifkan
yarn:ResourceManager:ClusterMetrics:NumActiveNMs yarn/ClusterMetrics/NumActiveNMs y
yarn:ResourceManager:ClusterMetrics:NumDecommissionedNMs yarn/ClusterMetrics/NumDecommissionedNMs n
yarn:ResourceManager:ClusterMetrics:NumLostNMs yarn/ClusterMetrics/NumLostNMs n
yarn:ResourceManager:ClusterMetrics:NumUnhealthyNMs yarn/ClusterMetrics/NumUnhealthyNMs n
yarn:ResourceManager:ClusterMetrics:NumRebootedNMs yarn/ClusterMetrics/NumRebootedNMs n
yarn:ResourceManager:QueueMetrics:running_0 yarn/QueueMetrics/running_0 y
yarn:ResourceManager:QueueMetrics:running_60 yarn/QueueMetrics/running_60 y
yarn:ResourceManager:QueueMetrics:running_300 yarn/QueueMetrics/running_300 y
yarn:ResourceManager:QueueMetrics:running_1440 yarn/QueueMetrics/running_1440 y
yarn:ResourceManager:QueueMetrics:AppsSubmitted yarn/QueueMetrics/AppsSubmitted y
yarn:ResourceManager:QueueMetrics:AvailableMB yarn/QueueMetrics/AvailableMB y
yarn:ResourceManager:QueueMetrics:PendingContainers yarn/QueueMetrics/PendingContainers y
yarn:ResourceManager:QueueMetrics:AppsRunning yarn/QueueMetrics/AppsRunning n
yarn:ResourceManager:QueueMetrics:AppsPending yarn/QueueMetrics/AppsPending n
yarn:ResourceManager:QueueMetrics:AppsCompleted yarn/QueueMetrics/AppsCompleted n
yarn:ResourceManager:QueueMetrics:AppsKilled yarn/QueueMetrics/AppsKilled n
yarn:ResourceManager:QueueMetrics:AppsFailed yarn/QueueMetrics/AppsFailed n
yarn:ResourceManager:QueueMetrics:AllocatedMB yarn/QueueMetrics/AllocatedMB n
yarn:ResourceManager:QueueMetrics:AllocatedVCores yarn/QueueMetrics/AllocatedVCores n
yarn:ResourceManager:QueueMetrics:AllocatedContainers yarn/QueueMetrics/AllocatedContainers n
yarn:ResourceManager:QueueMetrics:AggregateContainersAllocated yarn/QueueMetrics/AggregateContainersAllocated n
yarn:ResourceManager:QueueMetrics:AggregateContainersReleased yarn/QueueMetrics/AggregateContainersReleased n
yarn:ResourceManager:QueueMetrics:AvailableVCores yarn/QueueMetrics/AvailableVCores n
yarn:ResourceManager:QueueMetrics:PendingMB yarn/QueueMetrics/PendingMB n
yarn:ResourceManager:QueueMetrics:PendingVCores yarn/QueueMetrics/PendingVCores n
yarn:ResourceManager:QueueMetrics:ReservedMB yarn/QueueMetrics/ReservedMB n
yarn:ResourceManager:QueueMetrics:ReservedVCores yarn/QueueMetrics/ReservedVCores n
yarn:ResourceManager:QueueMetrics:ReservedContainers yarn/QueueMetrics/ReservedContainers n
yarn:ResourceManager:QueueMetrics:ActiveUsers yarn/QueueMetrics/ActiveUsers n
yarn:ResourceManager:QueueMetrics:ActiveApplications yarn/QueueMetrics/ActiveApplications n
yarn:ResourceManager:QueueMetrics:FairShareMB yarn/QueueMetrics/FairShareMB n
yarn:ResourceManager:QueueMetrics:FairShareVCores yarn/QueueMetrics/FairShareVCores n
yarn:ResourceManager:QueueMetrics:MinShareMB yarn/QueueMetrics/MinShareMB n
yarn:ResourceManager:QueueMetrics:MinShareVCores yarn/QueueMetrics/MinShareVCores n
yarn:ResourceManager:QueueMetrics:MaxShareMB yarn/QueueMetrics/MaxShareMB n
yarn:ResourceManager:QueueMetrics:MaxShareVCores yarn/QueueMetrics/MaxShareVCores n
yarn:ResourceManager:JvmMetrics:MemHeapUsedM yarn/jvm/MemHeapUsedM n
yarn:ResourceManager:JvmMetrics:MemHeapCommittedM yarn/jvm/MemHeapCommittedM n
yarn:ResourceManager:JvmMetrics:MemHeapMaxM yarn/jvm/MemHeapMaxM n
yarn:ResourceManager:JvmMetrics:MemMaxM yarn/jvm/MemMaxM n

Metrik Spark

Metrik driver Spark

Metrik Nama Metrics Explorer Metrik yang diaktifkan
spark:driver:BlockManager:disk.diskSpaceUsed_MB spark/driver/BlockManager/disk/diskSpaceUsed_MB y
spark:driver:BlockManager:memory.maxMem_MB spark/driver/BlockManager/memory/maxMem_MB y
spark:driver:BlockManager:memory.memUsed_MB spark/driver/BlockManager/memory/memUsed_MB y
spark:driver:DAGScheduler:job.allJobs spark/driver/DAGScheduler/job/allJobs y
spark:driver:DAGScheduler:stage.failedStages spark/driver/DAGScheduler/stage/failedStages y
spark:driver:DAGScheduler:stage.waitingStages spark/driver/DAGScheduler/stage/waitingStages y

Metrik eksekutor Spark

Metrik Nama Metrics Explorer Metrik yang diaktifkan
spark:executor:executor:bytesRead spark/executor/bytesRead y
spark:executor:executor:bytesWritten spark/executor/bytesWritten y
spark:executor:executor:cpuTime spark/executor/cpuTime y
spark:executor:executor:diskBytesSpilled spark/executor/diskBytesSpilled y
spark:executor:executor:recordsRead spark/executor/recordsRead y
spark:executor:executor:recordsWritten spark/executor/recordsWritten y
spark:executor:executor:runTime spark/executor/runTime y
spark:executor:executor:shuffleRecordsRead spark/executor/shuffleRecordsRead y
spark:executor:executor:shuffleRecordsWritten spark/executor/shuffleRecordsWritten y
Metrik Nama Metrics Explorer Metrik yang diaktifkan
flink:jobmanager:numRegisteredTaskManagers flink/jobmanager/numRegisteredTaskManagers n
flink:jobmanager:numRunningJobs flink/jobmanager/numRunningJobs n
flink:jobmanager:Status.JVM.ClassLoader.ClassesLoaded flink/jobmanager/Status.JVM.ClassLoader.ClassesLoaded n
flink:jobmanager:Status.JVM.ClassLoader.ClassesUnloaded flink/jobmanager/Status.JVM.ClassLoader.ClassesUnloaded n
flink:jobmanager:Status.JVM.CPU.Load flink/jobmanager/Status.JVM.CPU.Load n
flink:jobmanager:Status.JVM.CPU.Time flink/jobmanager/Status.JVM.CPU.Time y
flink:jobmanager:Status.JVM.GarbageCollector.PSMarkSweep.Count flink/jobmanager/Status.JVM.GarbageCollector.PSMarkSweep.Count n
flink:jobmanager:Status.JVM.GarbageCollector.PSMarkSweep.Time flink/jobmanager/Status.JVM.GarbageCollector.PSMarkSweep.Time n
flink:jobmanager:Status.JVM.GarbageCollector.PSScavenge.Count flink/jobmanager/Status.JVM.GarbageCollector.PSScavenge.Count n
flink:jobmanager:Status.JVM.GarbageCollector.PSScavenge.Time flink/jobmanager/Status.JVM.GarbageCollector.PSScavenge.Time n
flink:jobmanager:Status.JVM.Memory.Direct.Count flink/jobmanager/Status.JVM.Memory.Direct.Count y
flink:jobmanager:Status.JVM.Memory.Direct.MemoryUsed flink/jobmanager/Status.JVM.Memory.Direct.MemoryUsed y
flink:jobmanager:Status.JVM.Memory.Direct.TotalCapacity flink/jobmanager/Status.JVM.Memory.Direct.TotalCapacity y
flink:jobmanager:Status.JVM.Memory.Heap.Committed flink/jobmanager/Status.JVM.Memory.Heap.Committed y
flink:jobmanager:Status.JVM.Memory.Heap.Max flink/jobmanager/Status.JVM.Memory.Heap.Max y
flink:jobmanager:Status.JVM.Memory.Heap.Used flink/jobmanager/Status.JVM.Memory.Heap.Used y
flink:jobmanager:Status.JVM.Memory.Mapped.Count flink/jobmanager/Status.JVM.Memory.Mapped.Count y
flink:jobmanager:Status.JVM.Memory.Mapped.MemoryUsed flink/jobmanager/Status.JVM.Memory.Mapped.MemoryUsed y
flink:jobmanager:Status.JVM.Memory.Mapped.TotalCapacity flink/jobmanager/Status.JVM.Memory.Mapped.TotalCapacity y
flink:jobmanager:Status.JVM.Memory.Metaspace.Committed flink/jobmanager/Status.JVM.Memory.Metaspace.Committed n
flink:jobmanager:Status.JVM.Memory.Metaspace.Max flink/jobmanager/Status.JVM.Memory.Metaspace.Max n
flink:jobmanager:Status.JVM.Memory.Metaspace.Used flink/jobmanager/Status.JVM.Memory.Metaspace.Used n
flink:jobmanager:Status.JVM.Memory.NonHeap.Committed flink/jobmanager/Status.JVM.Memory.NonHeap.Committed n
flink:jobmanager:Status.JVM.Memory.NonHeap.Max flink/jobmanager/Status.JVM.Memory.NonHeap.Max n
flink:jobmanager:Status.JVM.Memory.NonHeap.Used flink/jobmanager/Status.JVM.Memory.NonHeap.Used n
flink:jobmanager:Status.JVM.Threads.Count flink/jobmanager/Status.JVM.Threads.Count n
flink:jobmanager:taskSlotsAvailable flink/jobmanager/taskSlotsAvailable y
flink:jobmanager:taskSlotsTotal flink/jobmanager/taskSlotsTotal y
flink:operator:numRecordsIn flink/operator/numRecordsIn n
flink:operator:numRecordsInPerSecond.count flink/operator/numRecordsInPerSecond.count n
flink:operator:numRecordsInPerSecond.rate flink/operator/numRecordsInPerSecond.rate n
flink:operator:numRecordsOut flink/operator/numRecordsOut n
flink:operator:numRecordsOutPerSecond.count flink/operator/numRecordsOutPerSecond.count n
flink:operator:numRecordsOutPerSecond.rate flink/operator/numRecordsOutPerSecond.rate n
flink:operator:numSplitsProcessed flink/operator/numSplitsProcessed n
flink:task:buffers.inPoolUsage flink/task/buffers.inPoolUsage n
flink:task:buffers.inputExclusiveBuffersUsage flink/task/buffers.inputExclusiveBuffersUsage n
flink:task:buffers.inputFloatingBuffersUsage flink/task/buffers.inputFloatingBuffersUsage n
flink:task:buffers.inputQueueLength flink/task/buffers.inputQueueLength n
flink:task:buffers.outPoolUsage flink/task/buffers.outPoolUsage n
flink:task:buffers.outputQueueLength flink/task/buffers.outputQueueLength n
flink:task:idleTimeMsPerSecond.count flink/task/idleTimeMsPerSecond.count n
flink:task:idleTimeMsPerSecond.rate flink/task/idleTimeMsPerSecond.rate n
flink:task:numBuffersInLocal flink/task/numBuffersInLocal n
flink:task:numBuffersInLocalPerSecond.count flink/task/numBuffersInLocalPerSecond.count n
flink:task:numBuffersInLocalPerSecond.rate flink/task/numBuffersInLocalPerSecond.rate n
flink:task:numBuffersInRemote flink/task/numBuffersInRemote n
flink:task:numBuffersInRemotePerSecond.count flink/task/numBuffersInRemotePerSecond.count n
flink:task:numBuffersInRemotePerSecond.rate flink/task/numBuffersInRemotePerSecond.rate n
flink:task:numBuffersOut flink/task/numBuffersOut n
flink:task:numBuffersOutPerSecond.count flink/task/numBuffersOutPerSecond.count n
flink:task:numBuffersOutPerSecond.rate flink/task/numBuffersOutPerSecond.rate n
flink:task:numBytesIn flink/task/numBytesIn n
flink:task:numBytesInLocal flink/task/numBytesInLocal n
flink:task:numBytesInLocalPerSecond.count flink/task/numBytesInLocalPerSecond.count n
flink:task:numBytesInLocalPerSecond.rate flink/task/numBytesInLocalPerSecond.rate n
flink:task:numBytesInPerSecond.count flink/task/numBytesInPerSecond.count n
flink:task:numBytesInPerSecond.rate flink/task/numBytesInPerSecond.rate n
flink:task:numBytesInRemote flink/task/numBytesInRemote n
flink:task:numBytesInRemotePerSecond.count flink/task/numBytesInRemotePerSecond.count n
flink:task:numBytesInRemotePerSecond.rate flink/task/numBytesInRemotePerSecond.rate n
flink:task:numBytesOut flink/task/numBytesOut n
flink:task:numBytesOutPerSecond.count flink/task/numBytesOutPerSecond.count n
flink:task:numBytesOutPerSecond.rate flink/task/numBytesOutPerSecond.rate n
flink:task:numRecordsIn flink/task/numRecordsIn n
flink:task:numRecordsInPerSecond.count flink/task/numRecordsInPerSecond.count n
flink:task:numRecordsInPerSecond.rate flink/task/numRecordsInPerSecond.rate n
flink:task:numRecordsOut flink/task/numRecordsOut n
flink:task:numRecordsOutPerSecond.count flink/task/numRecordsOutPerSecond.count n
flink:task:numRecordsOutPerSecond.rate flink/task/numRecordsOutPerSecond.rate n
flink:task:Shuffle.Netty.Input.Buffers.inPoolUsage flink/task/Shuffle.Netty.Input.Buffers.inPoolUsage n
flink:task:Shuffle.Netty.Input.Buffers.inputExclusiveBuffersUsage flink/task/Shuffle.Netty.Input.Buffers.inputExclusiveBuffersUsage n
flink:task:Shuffle.Netty.Input.Buffers.inputFloatingBuffersUsage flink/task/Shuffle.Netty.Input.Buffers.inputFloatingBuffersUsage n
flink:task:Shuffle.Netty.Input.Buffers.inputQueueLength flink/task/Shuffle.Netty.Input.Buffers.inputQueueLength n
flink:task:Shuffle.Netty.Input.numBuffersInLocal flink/task/Shuffle.Netty.Input.numBuffersInLocal n
flink:task:Shuffle.Netty.Input.numBuffersInLocalPerSecond.count flink/task/Shuffle.Netty.Input.numBuffersInLocalPerSecond.count n
flink:task:Shuffle.Netty.Input.numBuffersInLocalPerSecond.rate flink/task/Shuffle.Netty.Input.numBuffersInLocalPerSecond.rate n
flink:task:Shuffle.Netty.Input.numBuffersInRemote flink/task/Shuffle.Netty.Input.numBuffersInRemote n
flink:task:Shuffle.Netty.Input.numBuffersInRemotePerSecond.count flink/task/Shuffle.Netty.Input.numBuffersInRemotePerSecond.count n
flink:task:Shuffle.Netty.Input.numBuffersInRemotePerSecond.rate flink/task/Shuffle.Netty.Input.numBuffersInRemotePerSecond.rate n
flink:task:Shuffle.Netty.Input.numBytesInLocal flink/task/Shuffle.Netty.Input.numBytesInLocal n
flink:task:Shuffle.Netty.Input.numBytesInLocalPerSecond.count flink/task/Shuffle.Netty.Input.numBytesInLocalPerSecond.count n
flink:task:Shuffle.Netty.Input.numBytesInLocalPerSecond.rate flink/task/Shuffle.Netty.Input.numBytesInLocalPerSecond.rate n
flink:task:Shuffle.Netty.Input.numBytesInRemote flink/task/Shuffle.Netty.Input.numBytesInRemote n
flink:task:Shuffle.Netty.Input.numBytesInRemotePerSecond.count flink/task/Shuffle.Netty.Input.numBytesInRemotePerSecond.count n
flink:task:Shuffle.Netty.Input.numBytesInRemotePerSecond.rate flink/task/Shuffle.Netty.Input.numBytesInRemotePerSecond.rate n
flink:task:Shuffle.Netty.Output.Buffers.outPoolUsage flink/task/Shuffle.Netty.Output.Buffers.outPoolUsage n
flink:task:Shuffle.Netty.Output.Buffers.outputQueueLength flink/task/Shuffle.Netty.Output.Buffers.outputQueueLength n
flink:taskmanager:Status.flink.Memory.Managed.Total flink/taskmanager/Status.flink.Memory.Managed.Total n
flink:taskmanager:Status.flink.Memory.Managed.Used flink/taskmanager/Status.flink.Memory.Managed.Used n
flink:taskmanager:Status.JVM.ClassLoader.ClassesLoaded flink/taskmanager/Status.JVM.ClassLoader.ClassesLoaded n
flink:taskmanager:Status.JVM.ClassLoader.ClassesUnloaded flink/taskmanager/Status.JVM.ClassLoader.ClassesUnloaded n
flink:taskmanager:Status.JVM.CPU.Load flink/taskmanager/Status.JVM.CPU.Load n
flink:taskmanager:Status.JVM.CPU.Time flink/taskmanager/Status.JVM.CPU.Time y
flink:taskmanager:Status.JVM.GarbageCollector.PSMarkSweep.Count flink/taskmanager/Status.JVM.GarbageCollector.PSMarkSweep.Count n
flink:taskmanager:Status.JVM.GarbageCollector.PSMarkSweep.Time flink/taskmanager/Status.JVM.GarbageCollector.PSMarkSweep.Time n
flink:taskmanager:Status.JVM.GarbageCollector.PSScavenge.Count flink/taskmanager/Status.JVM.GarbageCollector.PSScavenge.Count n
flink:taskmanager:Status.JVM.GarbageCollector.PSScavenge.Time flink/taskmanager/Status.JVM.GarbageCollector.PSScavenge.Time n
flink:taskmanager:Status.JVM.Memory.Direct.Count flink/taskmanager/Status.JVM.Memory.Direct.Count y
flink:taskmanager:Status.JVM.Memory.Direct.MemoryUsed flink/taskmanager/Status.JVM.Memory.Direct.MemoryUsed y
flink:taskmanager:Status.JVM.Memory.Direct.TotalCapacity flink/taskmanager/Status.JVM.Memory.Direct.TotalCapacity y
flink:taskmanager:Status.JVM.Memory.Heap.Committed flink/taskmanager/Status.JVM.Memory.Heap.Committed y
flink:taskmanager:Status.JVM.Memory.Heap.Max flink/taskmanager/Status.JVM.Memory.Heap.Max y
flink:taskmanager:Status.JVM.Memory.Heap.Used flink/taskmanager/Status.JVM.Memory.Heap.Used y
flink:taskmanager:Status.JVM.Memory.Mapped.Count flink/taskmanager/Status.JVM.Memory.Mapped.Count y
flink:taskmanager:Status.JVM.Memory.Mapped.MemoryUsed flink/taskmanager/Status.JVM.Memory.Mapped.MemoryUsed y
flink:taskmanager:Status.JVM.Memory.Mapped.TotalCapacity flink/taskmanager/Status.JVM.Memory.Mapped.TotalCapacity y
flink:taskmanager:Status.JVM.Memory.Metaspace.Committed flink/taskmanager/Status.JVM.Memory.Metaspace.Committed n
flink:taskmanager:Status.JVM.Memory.Metaspace.Max flink/taskmanager/Status.JVM.Memory.Metaspace.Max n
flink:taskmanager:Status.JVM.Memory.Metaspace.Used flink/taskmanager/Status.JVM.Memory.Metaspace.Used n
flink:taskmanager:Status.JVM.Memory.NonHeap.Committed flink/taskmanager/Status.JVM.Memory.NonHeap.Committed n
flink:taskmanager:Status.JVM.Memory.NonHeap.Max flink/taskmanager/Status.JVM.Memory.NonHeap.Max n
flink:taskmanager:Status.JVM.Memory.NonHeap.Used flink/taskmanager/Status.JVM.Memory.NonHeap.Used n
flink:taskmanager:Status.JVM.Threads.Count flink/taskmanager/Status.JVM.Threads.Count n
flink:taskmanager:Status.Network.AvailableMemorySegments flink/taskmanager/Status.Network.AvailableMemorySegments n
flink:taskmanager:Status.Network.TotalMemorySegments flink/taskmanager/Status.Network.TotalMemorySegments n
flink:taskmanager:Status.Shuffle.Netty.AvailableMemory flink/taskmanager/Status.Shuffle.Netty.AvailableMemory n
flink:taskmanager:Status.Shuffle.Netty.AvailableMemorySegments flink/taskmanager/Status.Shuffle.Netty.AvailableMemorySegments n
flink:taskmanager:Status.Shuffle.Netty.TotalMemory flink/taskmanager/Status.Shuffle.Netty.TotalMemory n
flink:taskmanager:Status.Shuffle.Netty.TotalMemorySegments flink/taskmanager/Status.Shuffle.Netty.TotalMemorySegments n
flink:taskmanager:Status.Shuffle.Netty.UsedMemory flink/taskmanager/Status.Shuffle.Netty.UsedMemory n
flink:taskmanager:Status.Shuffle.Netty.UsedMemorySegments flink/taskmanager/Status.Shuffle.Netty.UsedMemorySegments n

Metrik Spark History Server

Managed Service untuk Apache Spark mengumpulkan metrik memori JVM layanan histori Spark berikut:

Metrik Nama Metrics Explorer Metrik yang diaktifkan
sparkHistoryServer:JVM:Memory:HeapMemoryUsage.committed sparkHistoryServer/memory/CommittedHeapMemory y
sparkHistoryServer:JVM:Memory:HeapMemoryUsage.used sparkHistoryServer/memory/UsedHeapMemory y
sparkHistoryServer:JVM:Memory:HeapMemoryUsage.max sparkHistoryServer/memory/MaxHeapMemory y
sparkHistoryServer:JVM:Memory:NonHeapMemoryUsage.committed sparkHistoryServer/memory/CommittedNonHeapMemory y
sparkHistoryServer:JVM:Memory:NonHeapMemoryUsage.used sparkHistoryServer/memory/UsedNonHeapMemory y
sparkHistoryServer:JVM:Memory:NonHeapMemoryUsage.max sparkHistoryServer/memory/MaxNonHeapMemory y

Metrik HiveServer 2

Metrik Nama Metrics Explorer Metrik yang diaktifkan
hiveserver2:JVM:Memory:HeapMemoryUsage.committed hiveserver2/memory/CommittedHeapMemory y
hiveserver2:JVM:Memory:HeapMemoryUsage.used hiveserver2/memory/UsedHeapMemory y
hiveserver2:JVM:Memory:HeapMemoryUsage.max hiveserver2/memory/MaxHeapMemory y
hiveserver2:JVM:Memory:NonHeapMemoryUsage.committed hiveserver2/memory/CommittedNonHeapMemory y
hiveserver2:JVM:Memory:NonHeapMemoryUsage.used hiveserver2/memory/UsedNonHeapMemory y
hiveserver2:JVM:Memory:NonHeapMemoryUsage.max hiveserver2/memory/MaxNonHeapMemory y

Metrik Hive Metastore

Metrik Nama Metrics Explorer Metrik yang diaktifkan
hivemetastore:API:GetDatabase:Mean hivemetastore/get_database/mean y
hivemetastore:API:CreateDatabase:Mean hivemetastore/create_database/mean y
hivemetastore:API:DropDatabase:Mean hivemetastore/drop_database/mean y
hivemetastore:API:AlterDatabase:Mean hivemetastore/alter_database/mean y
hivemetastore:API:GetAllDatabases:Mean hivemetastore/get_all_databases/mean y
hivemetastore:API:CreateTable:Mean hivemetastore/create_table/mean y
hivemetastore:API:DropTable:Mean hivemetastore/drop_table/mean y
hivemetastore:API:AlterTable:Mean hivemetastore/alter_table/mean y
hivemetastore:API:GetTable:Mean hivemetastore/get_table/mean y
hivemetastore:API:GetAllTables:Mean hivemetastore/get_all_tables/mean y
hivemetastore:API:AddPartitionsReq:Mean hivemetastore/add_partitions_req/mean y
hivemetastore:API:DropPartition:Mean hivemetastore/drop_partition/mean y
hivemetastore:API:AlterPartition:Mean hivemetastore/alter_partition/mean y
hivemetastore:API:GetPartition:Mean hivemetastore/get_partition/mean y
hivemetastore:API:GetPartitionNames:Mean hivemetastore/get_partition_names/mean y
hivemetastore:API:GetPartitionsPs:Mean hivemetastore/get_partitions_ps/mean y
hivemetastore:API:GetPartitionsPsWithAuth:Mean hivemetastore/get_partitions_ps_with_auth/mean y

Pengukuran metrik Hive Metastore

Ukuran statistik Contoh metrik Contoh nama metrik
Maksimal hivemetastore:API:GetDatabase:Max hivemetastore/get_database/max
Minimal hivemetastore:API:GetDatabase:Min hivemetastore/get_database/min
Rata-rata hivemetastore:API:GetDatabase:Mean hivemetastore/get_database/mean
Jumlah hivemetastore:API:GetDatabase:Count hivemetastore/get_database/count
Persentil ke-50 hivemetastore:API:GetDatabase:50thPercentile hivemetastore/get_database/median
Persentil ke-75 hivemetastore:API:GetDatabase:75thPercentile hivemetastore/get_database/75th_percentile
Persentil ke-95 hivemetastore:API:GetDatabase:95thPercentile hivemetastore/get_database/95th_percentile
Persentil ke-98 hivemetastore:API:GetDatabase:98thPercentile hivemetastore/get_database/98th_percentile
Persentil ke-99 hivemetastore:API:GetDatabase:99thPercentile hivemetastore/get_database/99th_percentile
Persentil ke-999 hivemetastore:API:GetDatabase:999thPercentile hivemetastore/get_database/999th_percentile
StdDev hivemetastore:API:GetDatabase:StdDev hivemetastore/get_database/stddev
FifteenMinuteRate hivemetastore:API:GetDatabase:FifteenMinuteRate hivemetastore/get_database/15min_rate
FiveMinuteRate hivemetastore:API:GetDatabase:FiveMinuteRate hivemetastore/get_database/5min_rate
OneMinuteRate hivemetastore:API:GetDatabase:OneMinuteRate hivemetastore/get_database/1min_rate
MeanRate hivemetastore:API:GetDatabase:MeanRate hivemetastore/get_database/mean_rate

Metrik agen pemantauan Managed Service untuk Apache Spark

Managed Service untuk Apache Spark mengumpulkan metrik agen pemantauan Managed Service untuk Apache Spark berikut saat Anda menetapkan --metric-sources=monitoring-agent-defaults. Metrik ini dipublikasikan dengan awalan agent.googleapis.com.

CPU
agent.googleapis.com/cpu/load_15m
agent.googleapis.com/cpu/load_1m
agent.googleapis.com/cpu/load_5m
agent.googleapis.com/cpu/usage_time*
agent.googleapis.com/cpu/utilization*

Disk
agent.googleapis.com/disk/bytes_used
agent.googleapis.com/disk/io_time
agent.googleapis.com/disk/merged_operations
agent.googleapis.com/disk/operation_count
agent.googleapis.com/disk/operation_time
agent.googleapis.com/disk/pending_operations
agent.googleapis.com/disk/percent_used
agent.googleapis.com/disk/read_bytes_count

Swap
agent.googleapis.com/swap/bytes_used
agent.googleapis.com/swap/io
agent.googleapis.com/swap/percent_used

Memori
agent.googleapis.com/memory/bytes_used
agent.googleapis.com/memory/percent_used

Proses - Beberapa atribut mengikuti kebijakan kuota yang unik.
agent.googleapis.com/processes/count_by_state
agent.googleapis.com/processes/cpu_time
agent.googleapis.com/processes/disk/read_bytes_count
agent.googleapis.com/processes/disk/write_bytes_count
agent.googleapis.com/processes/fork_count
agent.googleapis.com/processes/rss_usage
agent.googleapis.com/processes/vm_usage

Antarmuka
agent.googleapis.com/interface/errors
agent.googleapis.com/interface/packets
agent.googleapis.com/interface/traffic

Jaringan
agent.googleapis.com/network/tcp_connections

Membangun dasbor Monitoring

Anda dapat membuat dasbor Monitoring yang menampilkan diagram metrik Managed Service untuk Apache Spark yang dipilih.

  1. Pilih + CREATE DASHBOARD dari halaman Dashboards Overview Monitoring. Beri nama dasbor, lalu klik Add Chart di menu kanan atas untuk membuka jendela Add Chart. Pilih "Cluster Managed Service untuk Apache Spark Cloud" sebagai jenis resource. Pilih satu atau beberapa metrik dan properti metrik serta diagram. Kemudian, simpan diagram dengan mengklik tombol Save.

  2. Anda dapat menambahkan diagram lain ke dasbor. Setelah Anda mengklik Save untuk dasbor, judulnya akan muncul di halaman Dashboards Overview Monitoring. Diagram dasbor dapat dilihat, diperbarui, dan dihapus dari halaman tampilan dasbor.

Langkah berikutnya
