Monitorize as reservas do BigQuery
Como administrador do BigQuery, pode monitorizar as reservas no seu projeto vendo a utilização de slots do projeto e da reserva, bem como a fatura baseada na capacidade.
Veja a utilização de projetos e de slots de reserva
Pode ver a utilização do projeto e do intervalo de reserva das seguintes formas:
INFORMATION_SCHEMAvisualizações. Para obter informações sobre a utilização de projetos e reservas, consulte as vistasINFORMATION_SCHEMA.JOBS*.O campo
reservation_idnas visualizaçõesINFORMATION_SCHEMA.JOBS*contém o nome da reserva.Google Cloud console. A Google Cloud consola inclui gráficos que apresentam a utilização de espaços. Para mais informações, consulte o artigo Use gráficos de recursos administrativos.
Registos de auditoria. Use registos de auditoria para ver métricas sobre a utilização de slots.
O método

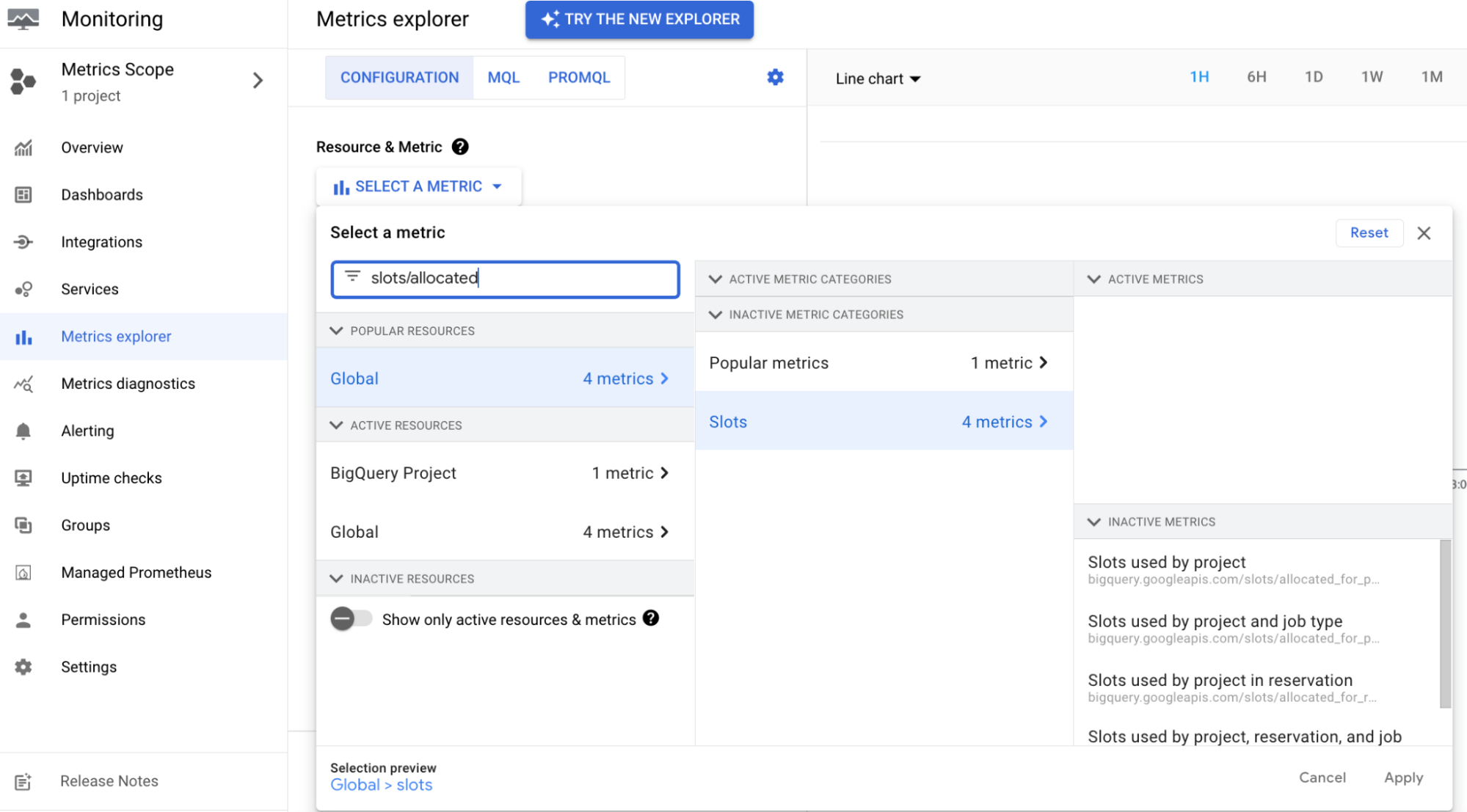

Jobs. Use o método da APIJobspara ver métricas sobre a utilização de espaços para uma tarefa.Cloud Monitoring. Pode usar o Cloud Monitoring para criar painéis de controlo para monitorizar os seus slots atribuídos. Com um painel de controlo do Cloud Monitoring, pode ver a utilização de slots para cada reserva e para cada tipo de tarefa, em todos os projetos na reserva. Para mais informações acerca das métricas disponíveis para o painel de controlo do Cloud Monitoring, consulte o artigo Métricas disponíveis para visualização.
Veja a sua fatura baseada na capacidade
Para ver a sua fatura baseada na capacidade em tempo real, siga estes passos:
Na Google Cloud consola, aceda à página Faturação.
Selecione o projeto da conta de faturação para o qual quer ver a fatura.
Navegue para a secção Relatórios e, de seguida, na secção Filtros, faça o seguinte:
- Na lista Serviços, selecione BigQuery e selecione tudo o que for aplicável.
- Selecione Todos os SKUs na lista SKUs.
Atribuição do custo da reserva
Esta funcionalidade permite-lhe atribuir taxas de reserva à utilização de consultas específicas em todos os projetos que usaram a reserva. Isto resulta em custos líquidos mais precisos para cada base de projeto.
Todos os clientes da API BigQuery Reservations têm um item de linha"Atribuição de slots de análise" nos respetivos dados de faturação da Cloud. Este item de linha está incluído na página Faturação e na exportação do Cloud Billing.
Este elemento publicitário mostra as horas de espaço usadas por projeto. Não incorre em custos e não afeta os totais das suas faturas.
Registos de auditoria
A criação, a eliminação e a atualização de recursos relacionados com as reservas do BigQuery são registadas nos registos de auditoria do proprietário do projeto. Para mais informações, consulte o Registo de auditoria.
Monitorize o dimensionamento automático com o esquema de informações
Pode usar os seguintes scripts SQL para verificar os segundos de espaço faturados para uma edição específica. Tem de executar estes scripts no mesmo projeto em que as reservas foram criadas. O primeiro script mostra os segundos de espaço faturados cobertos por commitment_plan, enquanto o segundo script mostra os segundos de espaço faturados que não estão cobertos por um compromisso.
Só tem de definir o valor de três variáveis para executar estes scripts:
start_timeend_timeedition_to_check
Estes scripts estão sujeitos às seguintes ressalvas:
As reservas e os compromissos de capacidade eliminados são removidos das vistas do esquema de informações no final do período de retenção de dados. Especifique um período recente que não contenha reservas nem compromissos eliminados para obter resultados corretos.
O resultado dos scripts pode não corresponder exatamente à fatura devido a pequenos erros de arredondamento.
O script seguinte agrega as vagas de ajuste de escala automático por edição.
Expanda para ver o script para calcular os segundos de espaço de ajuste automático por edição.
SELECT edition, SUM(s.autoscale_current_slots) AS autoscale_slot_seconds FROM `region-us.INFORMATION_SCHEMA.RESERVATIONS_TIMELINE` m JOIN m.per_second_details s WHERE period_start BETWEEN '2025-09-28' AND '2025-09-29' GROUP BY edition ORDER BY edition
O script seguinte agrega os espaços de ajuste automático por reserva.
Expanda para ver o script para calcular os segundos de espaço de dimensionamento automático por reserva.
select reservation_id, sum(s.autoscale_current_slots) as autoscale_slot_seconds from `region-us.INFORMATION_SCHEMA.RESERVATIONS_TIMELINE` m LEFT JOIN m.per_second_details s WHERE period_start between '2025-09-28' and '2025-09-29' group by reservation_id order by reservation_id
Expanda para ver o script para calcular os segundos de espaço a partir dos compromissos.
DECLARE start_time,end_time TIMESTAMP; DECLARE edition_to_check STRING; /* Google uses Pacific Time to calculate the billing period for all customers, regardless of their time zone. Use the following format if you want to match the billing report. Change the start_time and end_time values to match the desired window. */ /* The following three variables (start_time, end_time, and edition_to_check) are the only variables that you need to set in the script. During daylight savings time, the start_time and end_time variables should follow this format: 2024-02-20 00:00:00-08. */ SET start_time = "2023-07-20 00:00:00-07"; SET end_time = "2023-07-28 00:00:00-07"; SET edition_to_check = 'ENTERPRISE'; /* The following function returns the slot seconds for the time window between two capacity changes. For example, if there are 100 slots between (2023-06-01 10:00:00, 2023-06-01 11:00:00), then during that window the total slot seconds will be 100 * 3600. This script calculates a specific window (based on the variables defined above), which is why the following script includes script_start_timestamp_unix_millis and script_end_timestamp_unix_millis. */ CREATE TEMP FUNCTION GetSlotSecondsBetweenChanges( slots FLOAT64, range_begin_timestamp_unix_millis FLOAT64, range_end_timestamp_unix_millis FLOAT64, script_start_timestamp_unix_millis FLOAT64, script_end_timestamp_unix_millis FLOAT64) RETURNS INT64 LANGUAGE js AS r""" if (script_end_timestamp_unix_millis < range_begin_timestamp_unix_millis || script_start_timestamp_unix_millis > range_end_timestamp_unix_millis) { return 0; } var begin = Math.max(script_start_timestamp_unix_millis, range_begin_timestamp_unix_millis) var end = Math.min(script_end_timestamp_unix_millis, range_end_timestamp_unix_millis) return slots * Math.ceil((end - begin) / 1000.0) """; /* Sample CAPACITY_COMMITMENT_CHANGES data (unrelated columns ignored): +---------------------+------------------------+-----------------+--------+------------+--------+ | change_timestamp | capacity_commitment_id | commitment_plan | state | slot_count | action | +---------------------+------------------------+-----------------+--------+------------+--------+ | 2023-07-20 19:30:27 | 12954109101902401697 | ANNUAL | ACTIVE | 100 | CREATE | | 2023-07-27 22:29:21 | 11445583810276646822 | FLEX | ACTIVE | 100 | CREATE | | 2023-07-27 23:10:06 | 7341455530498381779 | MONTHLY | ACTIVE | 100 | CREATE | | 2023-07-27 23:11:06 | 7341455530498381779 | FLEX | ACTIVE | 100 | UPDATE | The last row indicates a special change from MONTHLY to FLEX, which happens because of commercial migration. */ WITH /* Information containing which commitment might have plan updated (e.g. renewal or commercial migration). For example: +------------------------+------------------+--------------------+--------+------------+--------+-----------+----------------------------+ | change_timestamp | capacity_commitment_id | commitment_plan | state | slot_count | action | next_plan | next_plan_change_timestamp | +---------------------+------------------------+-----------------+--------+------------+--------+-----------+----------------------------+ | 2023-07-20 19:30:27 | 12954109101902401697 | ANNUAL | ACTIVE | 100 | CREATE | ANNUAL | 2023-07-20 19:30:27 | | 2023-07-27 22:29:21 | 11445583810276646822 | FLEX | ACTIVE | 100 | CREATE | FLEX | 2023-07-27 22:29:21 | | 2023-07-27 23:10:06 | 7341455530498381779 | MONTHLY | ACTIVE | 100 | CREATE | FLEX | 2023-07-27 23:11:06 | | 2023-07-27 23:11:06 | 7341455530498381779 | FLEX | ACTIVE | 100 | UPDATE | FLEX | 2023-07-27 23:11:06 | */ commitments_with_next_plan AS ( SELECT *, IFNULL( LEAD(commitment_plan) OVER ( PARTITION BY capacity_commitment_id ORDER BY change_timestamp ASC ), commitment_plan) next_plan, IFNULL( LEAD(change_timestamp) OVER ( PARTITION BY capacity_commitment_id ORDER BY change_timestamp ASC ), change_timestamp) next_plan_change_timestamp FROM `region-us.INFORMATION_SCHEMA.CAPACITY_COMMITMENT_CHANGES_BY_PROJECT` ), /* Insert a 'DELETE' action for those with updated plans. The FLEX commitment '7341455530498381779' is has no 'CREATE' action, and is instead labeled as an 'UPDATE' action. For example: +---------------------+------------------------+-----------------+--------+------------+--------+ | change_timestamp | capacity_commitment_id | commitment_plan | state | slot_count | action | +---------------------+------------------------+-----------------+--------+------------+--------+ | 2023-07-20 19:30:27 | 12954109101902401697 | ANNUAL | ACTIVE | 100 | CREATE | | 2023-07-27 22:29:21 | 11445583810276646822 | FLEX | ACTIVE | 100 | CREATE | | 2023-07-27 23:10:06 | 7341455530498381779 | MONTHLY | ACTIVE | 100 | CREATE | | 2023-07-27 23:11:06 | 7341455530498381779 | FLEX | ACTIVE | 100 | UPDATE | | 2023-07-27 23:11:06 | 7341455530498381779 | MONTHLY | ACTIVE | 100 | DELETE | */ capacity_changes_with_additional_deleted_event_for_changed_plan AS ( SELECT next_plan_change_timestamp AS change_timestamp, project_id, project_number, capacity_commitment_id, commitment_plan, state, slot_count, 'DELETE' AS action, commitment_start_time, commitment_end_time, failure_status, renewal_plan, user_email, edition, is_flat_rate, FROM commitments_with_next_plan WHERE commitment_plan <> next_plan UNION ALL SELECT * FROM `region-us.INFORMATION_SCHEMA.CAPACITY_COMMITMENT_CHANGES_BY_PROJECT` ), /* The committed_slots change the history. For example: +---------------------+------------------------+------------------+-----------------+ | change_timestamp | capacity_commitment_id | slot_count_delta | commitment_plan | +---------------------+------------------------+------------------+-----------------+ | 2023-07-20 19:30:27 | 12954109101902401697 | 100 | ANNUAL | | 2023-07-27 22:29:21 | 11445583810276646822 | 100 | FLEX | | 2023-07-27 23:10:06 | 7341455530498381779 | 100 | MONTHLY | | 2023-07-27 23:11:06 | 7341455530498381779 | -100 | MONTHLY | | 2023-07-27 23:11:06 | 7341455530498381779 | 100 | FLEX | */ capacity_commitment_slot_data AS ( SELECT change_timestamp, capacity_commitment_id, CASE WHEN action = "CREATE" OR action = "UPDATE" THEN IFNULL( IF( LAG(action) OVER ( PARTITION BY capacity_commitment_id ORDER BY change_timestamp ASC, action ASC ) IN UNNEST(['CREATE', 'UPDATE']), slot_count - LAG(slot_count) OVER ( PARTITION BY capacity_commitment_id ORDER BY change_timestamp ASC, action ASC ), slot_count), slot_count) ELSE IF( LAG(action) OVER (PARTITION BY capacity_commitment_id ORDER BY change_timestamp ASC, action ASC) IN UNNEST(['CREATE', 'UPDATE']), -1 * slot_count, 0) END AS slot_count_delta, commitment_plan FROM capacity_changes_with_additional_deleted_event_for_changed_plan WHERE state = "ACTIVE" AND edition = edition_to_check AND change_timestamp <= end_time ), /* The total_committed_slots history for each plan. For example: +---------------------+---------------+-----------------+ | change_timestamp | capacity_slot | commitment_plan | +---------------------+---------------+-----------------+ | 2023-07-20 19:30:27 | 100 | ANNUAL | | 2023-07-27 22:29:21 | 100 | FLEX | | 2023-07-27 23:10:06 | 100 | MONTHLY | | 2023-07-27 23:11:06 | 0 | MONTHLY | | 2023-07-27 23:11:06 | 200 | FLEX | */ running_capacity_commitment_slot_data AS ( SELECT change_timestamp, SUM(slot_count_delta) OVER ( PARTITION BY commitment_plan ORDER BY change_timestamp RANGE BETWEEN UNBOUNDED PRECEDING AND CURRENT ROW ) AS capacity_slot, commitment_plan, FROM capacity_commitment_slot_data ), /* The slot_seconds between each changes, partitioned by each plan. For example: +---------------------+--------------+-----------------+ | change_timestamp | slot_seconds | commitment_plan | +---------------------+--------------+-----------------+ | 2023-07-20 19:30:27 | 64617300 | ANNUAL | | 2023-07-27 22:29:21 | 250500 | FLEX | | 2023-07-27 23:10:06 | 6000 | MONTHLY | | 2023-07-27 23:11:06 | 0 | MONTHLY | | 2023-07-27 23:11:06 | 5626800 | FLEX | */ slot_seconds_data AS ( SELECT change_timestamp, GetSlotSecondsBetweenChanges( capacity_slot, UNIX_MILLIS(change_timestamp), UNIX_MILLIS( IFNULL( LEAD(change_timestamp) OVER (PARTITION BY commitment_plan ORDER BY change_timestamp ASC), CURRENT_TIMESTAMP())), UNIX_MILLIS(start_time), UNIX_MILLIS(end_time)) AS slot_seconds, commitment_plan, FROM running_capacity_commitment_slot_data WHERE change_timestamp <= end_time ) /* The final result is similar to the following: +-----------------+--------------------+ | commitment_plan | total_slot_seconds | +-----------------+--------------------+ | ANNUAL | 64617300 | | MONTHLY | 6000 | | FLEX | 5877300 | */ SELECT commitment_plan, SUM(slot_seconds) AS total_slot_seconds FROM slot_seconds_data GROUP BY commitment_plan
O script seguinte verifica a utilização de espaços não abrangidos por compromissos para uma edição específica. Esta utilização contém dois tipos de espaços: espaços dimensionados e espaços de base não abrangidos por compromissos.
Expanda para ver o script para calcular os segundos de espaço não abrangidos por compromissos
/* This script has several parts: 1. Calculate the baseline and scaled slots for reservations 2. Calculate the committed slots 3. Join the two results above to calculate the baseline not covered by committed slots 4. Aggregate the number */ -- variables DECLARE start_time, end_time TIMESTAMP; DECLARE edition_to_check STRING; /* Google uses Pacific Time to calculate the billing period for all customers, regardless of their time zone. Use the following format if you want to match the billing report. Change the start_time and end_time values to match the desired window. */ /* The following three variables (start_time, end_time, and edition_to_check) are the only variables that you need to set in the script. During daylight savings time, the start_time and end_time variables should follow this format: 2024-02-20 00:00:00-08. */ SET start_time = "2023-07-20 00:00:00-07"; SET end_time = "2023-07-28 00:00:00-07"; SET edition_to_check = 'ENTERPRISE'; /* The following function returns the slot seconds for the time window between two capacity changes. For example, if there are 100 slots between (2023-06-01 10:00:00, 2023-06-01 11:00:00), then during that window the total slot seconds will be 100 * 3600. This script calculates a specific window (based on the variables defined above), which is why the following script includes script_start_timestamp_unix_millis and script_end_timestamp_unix_millis. */ CREATE TEMP FUNCTION GetSlotSecondsBetweenChanges( slots FLOAT64, range_begin_timestamp_unix_millis FLOAT64, range_end_timestamp_unix_millis FLOAT64, script_start_timestamp_unix_millis FLOAT64, script_end_timestamp_unix_millis FLOAT64) RETURNS INT64 LANGUAGE js AS r""" if (script_end_timestamp_unix_millis < range_begin_timestamp_unix_millis || script_start_timestamp_unix_millis > range_end_timestamp_unix_millis) { return 0; } var begin = Math.max(script_start_timestamp_unix_millis, range_begin_timestamp_unix_millis) var end = Math.min(script_end_timestamp_unix_millis, range_end_timestamp_unix_millis) return slots * Math.ceil((end - begin) / 1000.0) """; /* Sample RESERVATION_CHANGES data (unrelated columns ignored): +---------------------+------------------+--------+---------------+---------------+ | change_timestamp | reservation_name | action | slot_capacity | current_slots | +---------------------+------------------+--------+---------------+---------------+ | 2023-07-27 22:24:15 | res1 | CREATE | 300 | 0 | | 2023-07-27 22:25:21 | res1 | UPDATE | 300 | 180 | | 2023-07-27 22:39:14 | res1 | UPDATE | 300 | 100 | | 2023-07-27 22:40:20 | res2 | CREATE | 300 | 0 | | 2023-07-27 22:54:18 | res2 | UPDATE | 300 | 120 | | 2023-07-27 22:55:23 | res1 | UPDATE | 300 | 0 | Sample CAPACITY_COMMITMENT_CHANGES data (unrelated columns ignored): +---------------------+------------------------+-----------------+--------+------------+--------+ | change_timestamp | capacity_commitment_id | commitment_plan | state | slot_count | action | +---------------------+------------------------+-----------------+--------+------------+--------+ | 2023-07-20 19:30:27 | 12954109101902401697 | ANNUAL | ACTIVE | 100 | CREATE | | 2023-07-27 22:29:21 | 11445583810276646822 | FLEX | ACTIVE | 100 | CREATE | | 2023-07-27 23:10:06 | 7341455530498381779 | MONTHLY | ACTIVE | 100 | CREATE | */ WITH /* The scaled_slots & baseline change history: +---------------------+------------------+------------------------------+---------------------+ | change_timestamp | reservation_name | autoscale_current_slot_delta | baseline_slot_delta | +---------------------+------------------+------------------------------+---------------------+ | 2023-07-27 22:24:15 | res1 | 0 | 300 | | 2023-07-27 22:25:21 | res1 | 180 | 0 | | 2023-07-27 22:39:14 | res1 | -80 | 0 | | 2023-07-27 22:40:20 | res2 | 0 | 300 | | 2023-07-27 22:54:18 | res2 | 120 | 0 | | 2023-07-27 22:55:23 | res1 | -100 | 0 | */ reservation_slot_data AS ( SELECT change_timestamp, reservation_name, CASE action WHEN "CREATE" THEN autoscale.current_slots WHEN "UPDATE" THEN IFNULL( autoscale.current_slots - LAG(autoscale.current_slots) OVER ( PARTITION BY project_id, reservation_name ORDER BY change_timestamp ASC, action ASC ), IFNULL( autoscale.current_slots, IFNULL( -1 * LAG(autoscale.current_slots) OVER ( PARTITION BY project_id, reservation_name ORDER BY change_timestamp ASC, action ASC ), 0))) WHEN "DELETE" THEN IF( LAG(action) OVER ( PARTITION BY project_id, reservation_name ORDER BY change_timestamp ASC, action ASC ) IN UNNEST(['CREATE', 'UPDATE']), -1 * autoscale.current_slots, 0) END AS autoscale_current_slot_delta, CASE action WHEN "CREATE" THEN slot_capacity WHEN "UPDATE" THEN IFNULL( slot_capacity - LAG(slot_capacity) OVER ( PARTITION BY project_id, reservation_name ORDER BY change_timestamp ASC, action ASC ), IFNULL( slot_capacity, IFNULL( -1 * LAG(slot_capacity) OVER ( PARTITION BY project_id, reservation_name ORDER BY change_timestamp ASC, action ASC ), 0))) WHEN "DELETE" THEN IF( LAG(action) OVER ( PARTITION BY project_id, reservation_name ORDER BY change_timestamp ASC, action ASC ) IN UNNEST(['CREATE', 'UPDATE']), -1 * slot_capacity, 0) END AS baseline_slot_delta, FROM `region-us.INFORMATION_SCHEMA.RESERVATION_CHANGES` WHERE edition = edition_to_check AND change_timestamp <= end_time ), -- Convert the above to running total /* +---------------------+-------------------------+----------------+ | change_timestamp | autoscale_current_slots | baseline_slots | +---------------------+-------------------------+----------------+ | 2023-07-27 22:24:15 | 0 | 300 | | 2023-07-27 22:25:21 | 180 | 300 | | 2023-07-27 22:39:14 | 100 | 300 | | 2023-07-27 22:40:20 | 100 | 600 | | 2023-07-27 22:54:18 | 220 | 600 | | 2023-07-27 22:55:23 | 120 | 600 | */ running_reservation_slot_data AS ( SELECT change_timestamp, SUM(autoscale_current_slot_delta) OVER (ORDER BY change_timestamp RANGE BETWEEN UNBOUNDED PRECEDING AND CURRENT ROW) AS autoscale_current_slots, SUM(baseline_slot_delta) OVER (ORDER BY change_timestamp RANGE BETWEEN UNBOUNDED PRECEDING AND CURRENT ROW) AS baseline_slots, FROM reservation_slot_data ), /* The committed_slots change history. For example: +---------------------+------------------------+------------------+ | change_timestamp | capacity_commitment_id | slot_count_delta | +---------------------+------------------------+------------------+ | 2023-07-20 19:30:27 | 12954109101902401697 | 100 | | 2023-07-27 22:29:21 | 11445583810276646822 | 100 | | 2023-07-27 23:10:06 | 7341455530498381779 | 100 | */ capacity_commitment_slot_data AS ( SELECT change_timestamp, capacity_commitment_id, CASE WHEN action = "CREATE" OR action = "UPDATE" THEN IFNULL( IF( LAG(action) OVER ( PARTITION BY capacity_commitment_id ORDER BY change_timestamp ASC, action ASC ) IN UNNEST(['CREATE', 'UPDATE']), slot_count - LAG(slot_count) OVER ( PARTITION BY capacity_commitment_id ORDER BY change_timestamp ASC, action ASC ), slot_count), slot_count) ELSE IF( LAG(action) OVER (PARTITION BY capacity_commitment_id ORDER BY change_timestamp ASC, action ASC) IN UNNEST(['CREATE', 'UPDATE']), -1 * slot_count, 0) END AS slot_count_delta FROM `region-us.INFORMATION_SCHEMA.CAPACITY_COMMITMENT_CHANGES_BY_PROJECT` WHERE state = "ACTIVE" AND edition = edition_to_check AND change_timestamp <= end_time ), /* The total_committed_slots history. For example: +---------------------+---------------+ | change_timestamp | capacity_slot | +---------------------+---------------+ | 2023-07-20 19:30:27 | 100 | | 2023-07-27 22:29:21 | 200 | | 2023-07-27 23:10:06 | 300 | */ running_capacity_commitment_slot_data AS ( SELECT change_timestamp, SUM(slot_count_delta) OVER (ORDER BY change_timestamp RANGE BETWEEN UNBOUNDED PRECEDING AND CURRENT ROW) AS capacity_slot FROM capacity_commitment_slot_data ), /* Add next_change_timestamp to the above data, which will be used when joining with reservation data. For example: +---------------------+-----------------------+---------------+ | change_timestamp | next_change_timestamp | capacity_slot | +---------------------+-----------------------+---------------+ | 2023-07-20 19:30:27 | 2023-07-27 22:29:21 | 100 | | 2023-07-27 22:29:21 | 2023-07-27 23:10:06 | 200 | | 2023-07-27 23:10:06 | 2023-07-31 00:14:37 | 300 | */ running_capacity_commitment_slot_data_with_next_change AS ( SELECT change_timestamp, IFNULL(LEAD(change_timestamp) OVER (ORDER BY change_timestamp ASC), CURRENT_TIMESTAMP()) AS next_change_timestamp, capacity_slot FROM running_capacity_commitment_slot_data ), /* Whenever we have a change in reservations or commitments, the scaled_slots_and_baseline_not_covered_by_commitments will be changed. Hence we get a collection of all the change_timestamp from both tables. +---------------------+ | change_timestamp | +---------------------+ | 2023-07-20 19:30:27 | | 2023-07-27 22:24:15 | | 2023-07-27 22:25:21 | | 2023-07-27 22:29:21 | | 2023-07-27 22:39:14 | | 2023-07-27 22:40:20 | | 2023-07-27 22:54:18 | | 2023-07-27 22:55:23 | | 2023-07-27 23:10:06 | */ merged_timestamp AS ( SELECT change_timestamp FROM running_reservation_slot_data UNION DISTINCT SELECT change_timestamp FROM running_capacity_commitment_slot_data ), /* Change running reservation-slots and make sure we have one row when commitment changes. +---------------------+-------------------------+----------------+ | change_timestamp | autoscale_current_slots | baseline_slots | +---------------------+-------------------------+----------------+ | 2023-07-20 19:30:27 | 0 | 0 | | 2023-07-27 22:24:15 | 0 | 300 | | 2023-07-27 22:25:21 | 180 | 300 | | 2023-07-27 22:29:21 | 180 | 300 | | 2023-07-27 22:39:14 | 100 | 300 | | 2023-07-27 22:40:20 | 100 | 600 | | 2023-07-27 22:54:18 | 220 | 600 | | 2023-07-27 22:55:23 | 120 | 600 | | 2023-07-27 23:10:06 | 120 | 600 | */ running_reservation_slot_data_with_merged_timestamp AS ( SELECT change_timestamp, IFNULL( autoscale_current_slots, IFNULL( LAST_VALUE(autoscale_current_slots IGNORE NULLS) OVER (ORDER BY change_timestamp ASC), 0)) AS autoscale_current_slots, IFNULL( baseline_slots, IFNULL(LAST_VALUE(baseline_slots IGNORE NULLS) OVER (ORDER BY change_timestamp ASC), 0)) AS baseline_slots FROM running_reservation_slot_data RIGHT JOIN merged_timestamp USING (change_timestamp) ), /* Join the above, so that we will know the number for baseline not covered by commitments. +---------------------+-----------------------+-------------------------+------------------------------------+ | change_timestamp | next_change_timestamp | autoscale_current_slots | baseline_not_covered_by_commitment | +---------------------+-----------------------+-------------------------+------------------------------------+ | 2023-07-20 19:30:27 | 2023-07-27 22:24:15 | 0 | 0 | | 2023-07-27 22:24:15 | 2023-07-27 22:25:21 | 0 | 200 | | 2023-07-27 22:25:21 | 2023-07-27 22:29:21 | 180 | 200 | | 2023-07-27 22:29:21 | 2023-07-27 22:39:14 | 180 | 100 | | 2023-07-27 22:39:14 | 2023-07-27 22:40:20 | 100 | 100 | | 2023-07-27 22:40:20 | 2023-07-27 22:54:18 | 100 | 400 | | 2023-07-27 22:54:18 | 2023-07-27 22:55:23 | 220 | 400 | | 2023-07-27 22:55:23 | 2023-07-27 23:10:06 | 120 | 400 | | 2023-07-27 23:10:06 | 2023-07-31 00:16:07 | 120 | 300 | */ scaled_slots_and_baseline_not_covered_by_commitments AS ( SELECT r.change_timestamp, IFNULL(LEAD(r.change_timestamp) OVER (ORDER BY r.change_timestamp ASC), CURRENT_TIMESTAMP()) AS next_change_timestamp, r.autoscale_current_slots, IF( r.baseline_slots - IFNULL(c.capacity_slot, 0) > 0, r.baseline_slots - IFNULL(c.capacity_slot, 0), 0) AS baseline_not_covered_by_commitment FROM running_reservation_slot_data_with_merged_timestamp r LEFT JOIN running_capacity_commitment_slot_data_with_next_change c ON r.change_timestamp >= c.change_timestamp AND r.change_timestamp < c.next_change_timestamp ), /* The slot_seconds between each changes. For example: +---------------------+--------------------+ | change_timestamp | slot_seconds | +---------------------+--------------+ | 2023-07-20 19:30:27 | 0 | | 2023-07-27 22:24:15 | 13400 | | 2023-07-27 22:25:21 | 91580 | | 2023-07-27 22:29:21 | 166320 | | 2023-07-27 22:39:14 | 13200 | | 2023-07-27 22:40:20 | 419500 | | 2023-07-27 22:54:18 | 40920 | | 2023-07-27 22:55:23 | 459160 | | 2023-07-27 23:10:06 | 11841480 | */ slot_seconds_data AS ( SELECT change_timestamp, GetSlotSecondsBetweenChanges( autoscale_current_slots + baseline_not_covered_by_commitment, UNIX_MILLIS(change_timestamp), UNIX_MILLIS(next_change_timestamp), UNIX_MILLIS(start_time), UNIX_MILLIS(end_time)) AS slot_seconds FROM scaled_slots_and_baseline_not_covered_by_commitments WHERE change_timestamp <= end_time AND next_change_timestamp > start_time ) /* Final result for this example: +--------------------+ | total_slot_seconds | +--------------------+ | 13045560 | */ SELECT SUM(slot_seconds) AS total_slot_seconds FROM slot_seconds_data
O que se segue?
- Saiba mais sobre os planos de compromisso de capacidade.
- Saiba como usar gráficos de recursos administrativos.
- Saiba mais acerca dos preços do BigQuery.
