使用 SSH 连接到集群

如果您在创建集群时启用了对集群的 SSH 访问权限,则可以使用 SSH 连接到 Managed Service for Apache Spark 集群。

启用或停用对集群的 SSH 访问权限

对于 3.1 之前的映像版本,默认情况下可以使用 SSH 连接到集群;对于 3.1 及更高版本的映像,默认情况下无法使用 SSH 连接到集群。使用映像版本 2.3.30 及更高版本创建集群时,可以更改默认行为。

Google Cloud CLI

使用 gcloud dataproc clusters create 命令创建集群时,传递 --enable-ssh 标志可启用 SSH 访问权限,传递 --no-ssh 标志可停用集群的 SSH 访问权限。

gcloud dataproc clusters create CLUSTER_NAME \
    --region=REGION \
    --enable-ssh | --no-ssh \
    ... other args

REST API

clusters.create 请求中,将 IdentityConfig.enableSsh 字段设置为 true 可启用对集群的 SSH 访问权限,设置为 false 可停用对集群的 SSH 访问权限。

使用 SSH 连接到集群

控制台

  1. 在 Google Cloud 控制台中,前往虚拟机实例页面。

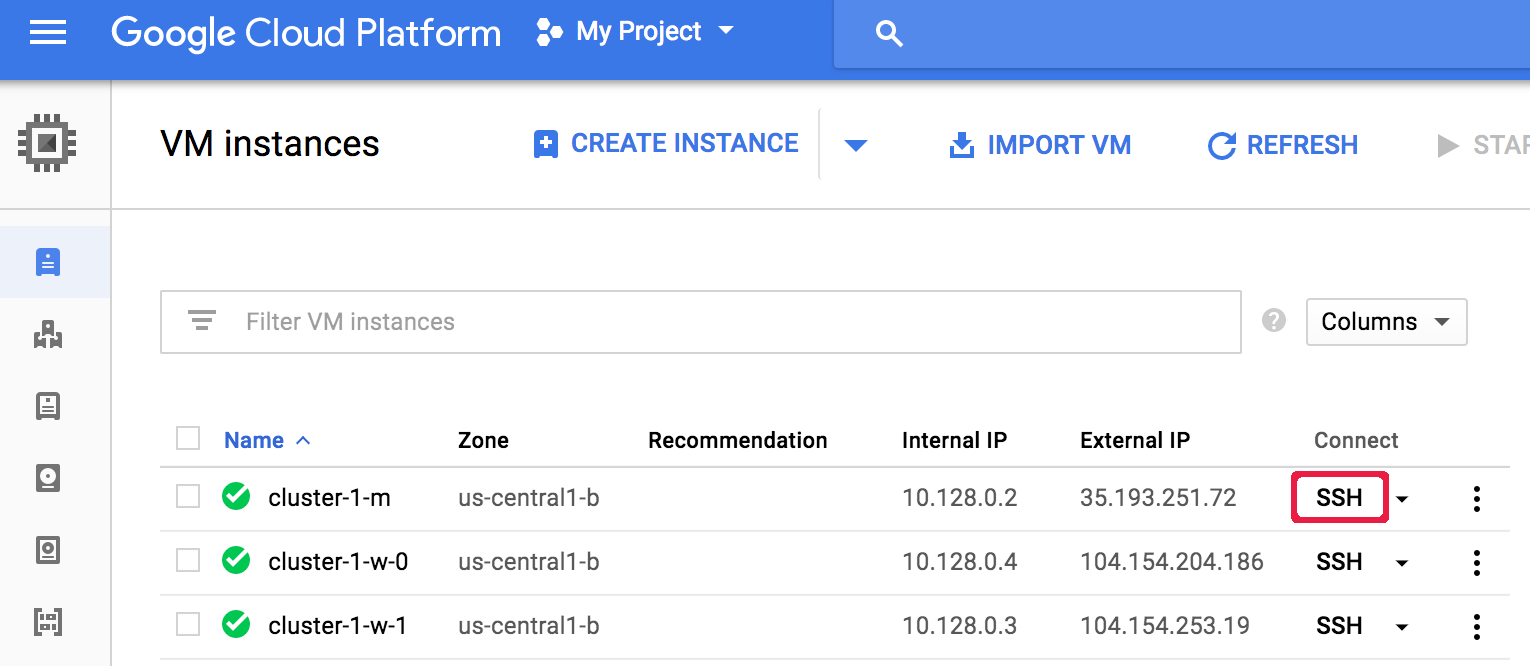

  2. 在虚拟机实例列表中,点击要连接的 Managed Service for Apache Spark 虚拟机实例所在行中的 SSH
    虚拟机实例列表,其中显示了集群节点的 SSH 按钮。

此时会打开一个浏览器窗口,并显示节点上的主目录。

Connected, host fingerprint: ssh-rsa ...
Linux cluster-1-m 3.16.0-0.bpo.4-amd64 ...
...
user@cluster-1-m:~$
显示“虚拟机实例”标签页的“集群详情”页面。

Google Cloud CLI

在本地终端窗口或通过 Cloud Shell 运行 gcloud compute ssh 命令,使用 SSH 连接到集群虚拟机节点。

gcloud compute ssh VM_NAME\
    --zone=ZONE \
    --project=PROJECT_ID

示例(主节点的默认名称是集群名称,后跟 -m 后缀):

gcloud compute ssh cluster-1-m \
  --zone=us-central-1-a \
  --project=my-project-id
...
Linux cluster-1-m 4.9.0-8-amd64 #1 SMP Debian 4.9.110-3+deb9u6...
...
user@cluster-1-m:~$
