使用時間點復原 (PITR) 還原資料

本頁面說明如何使用時間點復原 (PITR) 功能，保留及復原 GoogleSQL 方言資料庫和 PostgreSQL 方言資料庫中的資料。

詳情請參閱「時間點復原」。

必要條件

本指南會使用 Spanner 快速入門導覽課程中定義的資料庫和結構定義。您可以執行快速入門導覽來建立資料庫和結構定義，也可以修改指令，以便搭配自己的資料庫使用。

設定保留期限

如要設定資料庫的保留期限，請按照下列步驟操作：

控制台

1. 前往Google Cloud 控制台的 Spanner 執行個體頁面。

   前往 Spanner「Instances」(執行個體) 頁面

2. 按一下包含資料庫的執行個體，開啟「Overview」(總覽) 頁面。

3. 按一下資料庫，開啟「總覽」頁面。

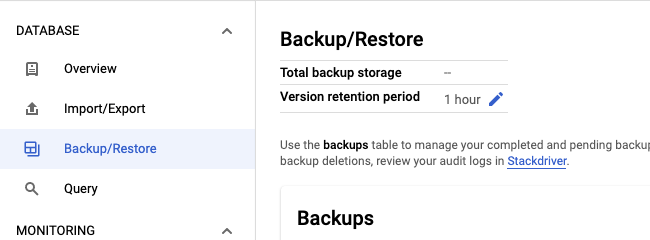

4. 選取「備份/還原」分頁標籤。



5. 按一下「版本保留期限」欄位中的鉛筆圖示。

6. 輸入保留期限的數量和時間單位，然後按一下「更新」。

gcloud

使用 ALTER DATABASE 陳述式更新資料庫的結構定義。例如：

gcloud spanner databases ddl update example-db \
    --instance=test-instance \
    --ddl="ALTER DATABASE \"example-db\" \
    SET spanner.version_retention_period = '7d';"

輸出內容如下所示：

ALTER DATABASE "example-db" SET "spanner.version_retention_period" = '7d';

注意： 如果資料庫名稱包含連字號 (-) 等特殊字元，請務必加上雙引號 (")。

如要查看保留期限，請取得資料庫的 DDL：

gcloud spanner databases ddl describe example-db \
    --instance=test-instance

輸出內容如下所示：

ALTER DATABASE example-db SET OPTIONS (
  version_retention_period = '7d'
);
...

用戶端程式庫

C#

using Google.Cloud.Spanner.Data;
using System.Threading.Tasks;

public class CreateDatabaseWithRetentionPeriodAsyncSample
{
    public async Task CreateDatabaseWithRetentionPeriodAsync(string projectId, string instanceId, string databaseId)
    {
        string connectionString = $"Data Source=projects/{projectId}/instances/{instanceId}";

        using var connection = new SpannerConnection(connectionString);
        var versionRetentionPeriod = "7d";
        var createStatement = $"CREATE DATABASE `{databaseId}`";
        var alterStatement = @$"ALTER DATABASE `{databaseId}` SET OPTIONS
                   (version_retention_period = '{versionRetentionPeriod}')";
        // The retention period cannot be set as part of the CREATE DATABASE statement,
        // but can be set using an ALTER DATABASE statement directly after database creation.
        using var createDbCommand = connection.CreateDdlCommand(
            createStatement,
            alterStatement
        );
        await createDbCommand.ExecuteNonQueryAsync();
    }
}

C++

void CreateDatabaseWithVersionRetentionPeriod(
    google::cloud::spanner_admin::DatabaseAdminClient client,
    std::string const& project_id, std::string const& instance_id,
    std::string const& database_id) {
  google::cloud::spanner::Database database(project_id, instance_id,
                                            database_id);
  google::spanner::admin::database::v1::CreateDatabaseRequest request;
  request.set_parent(database.instance().FullName());
  request.set_create_statement("CREATE DATABASE `" + database.database_id() +
                               "`");
  request.add_extra_statements("ALTER DATABASE `" + database.database_id() +
                               "` " +
                               "SET OPTIONS (version_retention_period='2h')");
  request.add_extra_statements(R"""(
      CREATE TABLE Singers (
          SingerId   INT64 NOT NULL,
          FirstName  STRING(1024),
          LastName   STRING(1024),
          SingerInfo BYTES(MAX),
          FullName   STRING(2049)
              AS (ARRAY_TO_STRING([FirstName, LastName], " ")) STORED
      ) PRIMARY KEY (SingerId))""");
  request.add_extra_statements(R"""(
      CREATE TABLE Albums (
          SingerId     INT64 NOT NULL,
          AlbumId      INT64 NOT NULL,
          AlbumTitle   STRING(MAX)
      ) PRIMARY KEY (SingerId, AlbumId),
          INTERLEAVE IN PARENT Singers ON DELETE CASCADE)""");
  auto db = client.CreateDatabase(request).get();
  if (!db) throw std::move(db).status();
  std::cout << "Database " << db->name() << " created.\n";

  auto ddl = client.GetDatabaseDdl(db->name());
  if (!ddl) throw std::move(ddl).status();
  std::cout << "Database DDL is:\n" << ddl->DebugString();
}

Go

import (
	"context"
	"fmt"
	"io"
	"regexp"

	database "cloud.google.com/go/spanner/admin/database/apiv1"
	adminpb "cloud.google.com/go/spanner/admin/database/apiv1/databasepb"
)

func createDatabaseWithRetentionPeriod(ctx context.Context, w io.Writer, db string) error {
	matches := regexp.MustCompile("^(.+)/databases/(.+)$").FindStringSubmatch(db)
	if matches == nil || len(matches) != 3 {
		return fmt.Errorf("createDatabaseWithRetentionPeriod: invalid database id %q", db)
	}

	adminClient, err := database.NewDatabaseAdminClient(ctx)
	if err != nil {
		return fmt.Errorf("createDatabaseWithRetentionPeriod.NewDatabaseAdminClient: %w", err)
	}
	defer adminClient.Close()

	// Create a database with a version retention period of 7 days.
	retentionPeriod := "7d"
	alterDatabase := fmt.Sprintf(
		"ALTER DATABASE `%s` SET OPTIONS (version_retention_period = '%s')",
		matches[2], retentionPeriod,
	)
	req := adminpb.CreateDatabaseRequest{
		Parent:          matches[1],
		CreateStatement: "CREATE DATABASE `" + matches[2] + "`",
		ExtraStatements: []string{
			`CREATE TABLE Singers (
				SingerId   INT64 NOT NULL,
				FirstName  STRING(1024),
				LastName   STRING(1024),
				SingerInfo BYTES(MAX)
			) PRIMARY KEY (SingerId)`,
			`CREATE TABLE Albums (
				SingerId     INT64 NOT NULL,
				AlbumId      INT64 NOT NULL,
				AlbumTitle   STRING(MAX)
			) PRIMARY KEY (SingerId, AlbumId),
			INTERLEAVE IN PARENT Singers ON DELETE CASCADE`,
			alterDatabase,
		},
	}
	op, err := adminClient.CreateDatabase(ctx, &req)
	if err != nil {
		return fmt.Errorf("createDatabaseWithRetentionPeriod.CreateDatabase: %w", err)
	}
	if _, err := op.Wait(ctx); err != nil {
		return fmt.Errorf("createDatabaseWithRetentionPeriod.Wait: %w", err)
	}
	fmt.Fprintf(w, "Created database [%s] with version retention period %q\n", db, retentionPeriod)
	return nil
}

Java

import com.google.cloud.spanner.Spanner;
import com.google.cloud.spanner.SpannerException;
import com.google.cloud.spanner.SpannerExceptionFactory;
import com.google.cloud.spanner.SpannerOptions;
import com.google.cloud.spanner.admin.database.v1.DatabaseAdminClient;
import com.google.common.collect.Lists;
import com.google.spanner.admin.database.v1.CreateDatabaseRequest;
import com.google.spanner.admin.database.v1.Database;
import com.google.spanner.admin.database.v1.InstanceName;
import java.util.concurrent.ExecutionException;

public class CreateDatabaseWithVersionRetentionPeriodSample {

  static void createDatabaseWithVersionRetentionPeriod() {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "my-project";
    String instanceId = "my-instance";
    String databaseId = "my-database";
    String versionRetentionPeriod = "7d";

    createDatabaseWithVersionRetentionPeriod(projectId, instanceId, databaseId,
        versionRetentionPeriod);
  }

  static void createDatabaseWithVersionRetentionPeriod(String projectId,
      String instanceId, String databaseId, String versionRetentionPeriod) {
    try (Spanner spanner =
        SpannerOptions.newBuilder().setProjectId(projectId).build().getService();
        DatabaseAdminClient databaseAdminClient = spanner.createDatabaseAdminClient()) {
      CreateDatabaseRequest request =
          CreateDatabaseRequest.newBuilder()
              .setParent(InstanceName.of(projectId, instanceId).toString())
              .setCreateStatement("CREATE DATABASE `" + databaseId + "`")
              .addAllExtraStatements(Lists.newArrayList("ALTER DATABASE " + "`" + databaseId + "`"
                  + " SET OPTIONS ( version_retention_period = '" + versionRetentionPeriod + "' )"))
              .build();
      Database database =
          databaseAdminClient.createDatabaseAsync(request).get();
      System.out.println("Created database [" + database.getName() + "]");
      System.out.println("\tVersion retention period: " + database.getVersionRetentionPeriod());
      System.out.println("\tEarliest version time: " + database.getEarliestVersionTime());
    } catch (ExecutionException e) {
      // If the operation failed during execution, expose the cause.
      throw (SpannerException) e.getCause();
    } catch (InterruptedException e) {
      // Throw when a thread is waiting, sleeping, or otherwise occupied,
      // and the thread is interrupted, either before or during the activity.
      throw SpannerExceptionFactory.propagateInterrupt(e);
    }
  }
}

注意：舊版 Java 用戶端程式庫介面的程式碼範例已封存於 GitHub。

Node.js

// Imports the Google Cloud client library
const {Spanner} = require('@google-cloud/spanner');

/**
 * TODO(developer): Uncomment the following lines before running the sample.
 */
// const projectId = 'my-project-id';
// const instanceId = 'my-instance';

// creates a client
const spanner = new Spanner({
  projectId: projectId,
});

// Gets a reference to a Cloud Spanner Database Admin Client object
const databaseAdminClient = spanner.getDatabaseAdminClient();

try {
  // Create a new database with an extra statement which will alter the
  // database after creation to set the version retention period.
  console.log(
    `Creating database ${databaseAdminClient.instancePath(
      projectId,
      instanceId,
    )}.`,
  );
  const versionRetentionStatement = `
    ALTER DATABASE \`${databaseId}\`
    SET OPTIONS (version_retention_period = '1d')`;

  const [operation] = await databaseAdminClient.createDatabase({
    createStatement: 'CREATE DATABASE `' + databaseId + '`',
    extraStatements: [versionRetentionStatement],
    parent: databaseAdminClient.instancePath(projectId, instanceId),
  });

  console.log(`Waiting for operation on ${databaseId} to complete...`);
  await operation.promise();
  console.log(`
      Created database ${databaseId} with version retention period.`);

  const [metadata] = await databaseAdminClient.getDatabase({
    name: databaseAdminClient.databasePath(projectId, instanceId, databaseId),
  });

  console.log(`Version retention period: ${metadata.versionRetentionPeriod}`);
  const milliseconds =
    parseInt(metadata.earliestVersionTime.seconds, 10) * 1000 +
    parseInt(metadata.earliestVersionTime.nanos, 10) / 1e6;
  const date = new Date(milliseconds);
  console.log(`Earliest version time: ${date.toString()}`);
} catch (err) {
  console.error('ERROR:', err);
}

注意：Node.js 的舊版用戶端程式庫介面程式碼範例已封存至 GitHub。

PHP

use Google\Cloud\Spanner\Admin\Database\V1\Client\DatabaseAdminClient;
use Google\Cloud\Spanner\Admin\Database\V1\CreateDatabaseRequest;
use Google\Cloud\Spanner\Admin\Database\V1\GetDatabaseRequest;

/**
 * Creates a database with data retention for Point In Time Restore.
 * Example:
 * ```
 * create_database_with_version_retention_period($projectId, $instanceId, $databaseId, $retentionPeriod);
 * ```
 *
 * @param string $projectId The Google Cloud project ID.
 * @param string $instanceId The Spanner instance ID.
 * @param string $databaseId The Spanner database ID.
 * @param string $retentionPeriod The data retention period for the database.
 */
function create_database_with_version_retention_period(
    string $projectId,
    string $instanceId,
    string $databaseId,
    string $retentionPeriod
): void {
    $databaseAdminClient = new DatabaseAdminClient();
    $instance = $databaseAdminClient->instanceName($projectId, $instanceId);
    $databaseFullName = $databaseAdminClient->databaseName($projectId, $instanceId, $databaseId);

    $operation = $databaseAdminClient->createDatabase(
        new CreateDatabaseRequest([
            'parent' => $instance,
            'create_statement' => sprintf('CREATE DATABASE `%s`', $databaseId),
            'extra_statements' => [
                'CREATE TABLE Singers (' .
                'SingerId     INT64 NOT NULL,' .
                'FirstName    STRING(1024),' .
                'LastName     STRING(1024),' .
                'SingerInfo   BYTES(MAX)' .
                ') PRIMARY KEY (SingerId)',
                'CREATE TABLE Albums (' .
                    'SingerId     INT64 NOT NULL,' .
                    'AlbumId      INT64 NOT NULL,' .
                    'AlbumTitle   STRING(MAX)' .
                ') PRIMARY KEY (SingerId, AlbumId),' .
                'INTERLEAVE IN PARENT Singers ON DELETE CASCADE',
                "ALTER DATABASE `$databaseId` SET OPTIONS(version_retention_period='$retentionPeriod')"
            ]
        ])
    );

    print('Waiting for operation to complete...' . PHP_EOL);
    $operation->pollUntilComplete();

    $request = new GetDatabaseRequest(['name' => $databaseFullName]);
    $databaseInfo = $databaseAdminClient->getDatabase($request);

    print(sprintf(
        'Database %s created with version retention period %s',
        $databaseInfo->getName(), $databaseInfo->getVersionRetentionPeriod()
    ) . PHP_EOL);
}

注意：舊版 PHP 用戶端程式庫介面的程式碼範例已封存至 GitHub。

Python

def create_database_with_version_retention_period(
    instance_id, database_id, retention_period
):
    """Creates a database with a version retention period."""

    from google.cloud.spanner_admin_database_v1.types import spanner_database_admin

    spanner_client = spanner.Client()
    database_admin_api = spanner_client.database_admin_api
    ddl_statements = [
        "CREATE TABLE Singers ("
        + "  SingerId   INT64 NOT NULL,"
        + "  FirstName  STRING(1024),"
        + "  LastName   STRING(1024),"
        + "  SingerInfo BYTES(MAX)"
        + ") PRIMARY KEY (SingerId)",
        "CREATE TABLE Albums ("
        + "  SingerId     INT64 NOT NULL,"
        + "  AlbumId      INT64 NOT NULL,"
        + "  AlbumTitle   STRING(MAX)"
        + ") PRIMARY KEY (SingerId, AlbumId),"
        + "  INTERLEAVE IN PARENT Singers ON DELETE CASCADE",
        "ALTER DATABASE `{}`"
        " SET OPTIONS (version_retention_period = '{}')".format(
            database_id, retention_period
        ),
    ]
    operation = database_admin_api.create_database(
        request=spanner_database_admin.CreateDatabaseRequest(
            parent=database_admin_api.instance_path(
                spanner_client.project, instance_id
            ),
            create_statement="CREATE DATABASE `{}`".format(database_id),
            extra_statements=ddl_statements,
        )
    )

    db = operation.result(30)
    print(
        "Database {} created with version retention period {} and earliest version time {}".format(
            db.name, db.version_retention_period, db.earliest_version_time
        )
    )

    database_admin_api.drop_database(
        spanner_database_admin.DropDatabaseRequest(database=db.name)
    )

注意：舊版 Python 用戶端程式庫介面的程式碼範例已封存至 GitHub。

Ruby

# project_id  = "Your Google Cloud project ID"
# instance_id = "Your Spanner instance ID"
# database_id = "Your Spanner database ID"

require "google/cloud/spanner"
require "google/cloud/spanner/admin/database"

database_admin_client = Google::Cloud::Spanner::Admin::Database.database_admin

instance_path = database_admin_client.instance_path project: project_id, instance: instance_id

version_retention_period = "7d"

db_path = database_admin_client.database_path project: project_id,
                                              instance: instance_id,
                                              database: database_id

job = database_admin_client.create_database parent: instance_path,
                                            create_statement: "CREATE DATABASE `#{database_id}`",
                                            extra_statements: [
                                              "CREATE TABLE Singers (
    SingerId     INT64 NOT NULL,
    FirstName    STRING(1024),
    LastName     STRING(1024),
    SingerInfo   BYTES(MAX)
  ) PRIMARY KEY (SingerId)",

                                              "CREATE TABLE Albums (
    SingerId     INT64 NOT NULL,
    AlbumId      INT64 NOT NULL,
    AlbumTitle   STRING(MAX)
  ) PRIMARY KEY (SingerId, AlbumId),
  INTERLEAVE IN PARENT Singers ON DELETE CASCADE",

                                              "ALTER DATABASE `#{database_id}`
    SET OPTIONS ( version_retention_period = '#{version_retention_period}' )"
                                            ]

puts "Waiting for create database operation to complete"

job.wait_until_done!
database = database_admin_client.get_database name: db_path

puts "Created database #{database_id} on instance #{instance_id}"
puts "\tVersion retention period: #{database.version_retention_period}"
puts "\tEarliest version time: #{database.earliest_version_time}"

使用須知：

• 保留期限必須介於 1 小時至 7 天之間，且可以天、小時、分鐘或秒為單位指定。舉例來說，1d、24h、1440m 和 86400s 的值是等效的。
• 如果您已在專案中啟用 Spanner API 的記錄功能，系統會將事件記錄為 UpdateDatabaseDdl，並顯示在記錄檢視器中。
• 如要還原為 1 小時的預設保留期限，您可以將 GoogleSQL 資料庫的 version_retention_period 資料庫選項設為 NULL，或將 PostgreSQL 資料庫的 version_retention_period 資料庫選項設為 DEFAULT。
• 延長保留期限後，系統不會回填先前的資料版本。舉例來說，如果將保留期限從 1 小時延長至 24 小時，系統必須累積舊資料 23 小時，您才能還原 24 小時前的資料。

取得保留期限和最早版本時間

「資料庫」資源包含兩個欄位：

• version_retention_period：Spanner 保留資料庫所有資料版本的時間長度。

• earliest_version_time：可從資料庫讀取舊版資料的最早時間戳記。Spanner 會持續更新這個值，但查詢時會過時。如果您使用這個值來復原資料，請務必考量從查詢值到啟動復原作業之間的時間。

控制台

1. 前往 Google Cloud 控制台的 Spanner 執行個體頁面。

   前往 Spanner「Instances」(執行個體) 頁面

2. 按一下包含資料庫的執行個體，開啟「Overview」(總覽) 頁面。

3. 按一下資料庫，開啟「總覽」頁面。

4. 選取「備份/還原」分頁，開啟「備份/還原」頁面，並顯示保留期限。



5. 按一下「建立」，開啟「建立備份」頁面，並顯示最早的版本時間。



gcloud

您可以呼叫「describe databases」或「list databases」來取得這些欄位。例如：

gcloud spanner databases describe example-db \
    --instance=test-instance

輸出內容如下所示：

createTime: '2020-09-07T16:56:08.285140Z'
earliestVersionTime: '2020-10-07T16:56:08.285140Z'
name: projects/my-project/instances/test-instance/databases/example-db
state: READY
versionRetentionPeriod: 3d

復原部分資料庫

1. 執行過時讀取，並指定所需的復原時間戳記。請確認您指定的時間戳記比資料庫的earliest_version_time.

   gcloud

   使用 execute-sql 例如：

   gcloud spanner databases execute-sql example-db \
       --instance=test-instance \
       --read-timestamp=2020-09-11T10:19:36.010459-07:00 \
       --sql='SELECT * FROM SINGERS'

   用戶端程式庫

   請參閱執行過時讀取。

2. 儲存查詢結果。這是必要步驟，因為您無法在同一項交易中，將查詢結果寫回資料庫。如果資料量較少，可以列印到控制台或儲存在記憶體中。如果資料量較大，可能需要寫入本機檔案。

3. 將復原的資料寫回需要復原的表格。例如：

   gcloud

   注意： Spanner 適用的 PostgreSQL 介面不支援 gcloud spanner rows update 指令。

   gcloud spanner rows update --instance=test-instance \
       --database=example-db --table=Singers \
       --data=SingerId=1,FirstName='Marc'

   詳情請參閱使用 gcloud 更新資料。

   用戶端程式庫

   詳情請參閱使用 DML 更新資料或使用變異更新資料。

   (選用) 如要在寫回資料前對復原的資料進行分析，您可以在同一個資料庫中手動建立臨時資料表，先將復原的資料寫入這個臨時資料表，然後進行分析，再從這個臨時資料表讀取要復原的資料，並寫入需要復原的資料表。

復原整個資料庫

您可以使用「備份與還原」或「匯入與匯出」，並指定復原時間戳記，復原整個資料庫。

備份與還原

1. 建立備份，並將 version_time 設為所需的復原時間戳記。

   控制台

   1. 前往 Cloud 控制台的「資料庫詳細資料」頁面。

      前往 Google Cloud 控制台

   2. 在「備份/還原」分頁中，按一下「建立」。

   3. 勾選「從較早的時間點建立備份」方塊。



   gcloud

   gcloud spanner backups create example-db-backup-1 \
       --instance=test-instance \
       --database=example-db \
       --retention-period=1y \
       --version-time=2021-01-22T01:10:35Z --async

   詳情請參閱「使用 gcloud 建立備份」。

   用戶端程式庫

   C#

   // Copyright 2020 Google Inc.
   //
   // Licensed under the Apache License, Version 2.0 (the "License");
   // you may not use this file except in compliance with the License.
   // You may obtain a copy of the License at
   //
   //     http://www.apache.org/licenses/LICENSE-2.0
   //
   // Unless required by applicable law or agreed to in writing, software
   // distributed under the License is distributed on an "AS IS" BASIS,
   // WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
   // See the License for the specific language governing permissions and
   // limitations under the License.


   using Google.Cloud.Spanner.Admin.Database.V1;
   using Google.Cloud.Spanner.Common.V1;
   using Google.LongRunning;
   using Google.Protobuf.WellKnownTypes;
   using System;

   public class CreateBackupSample
   {
       public Backup CreateBackup(string projectId, string instanceId, string databaseId, string backupId, DateTime versionTime)
       {
           // Create the DatabaseAdminClient instance.
           DatabaseAdminClient databaseAdminClient = DatabaseAdminClient.Create();

           // Initialize request parameters.
           Backup backup = new Backup
           {
               DatabaseAsDatabaseName = DatabaseName.FromProjectInstanceDatabase(projectId, instanceId, databaseId),
               ExpireTime = DateTime.UtcNow.AddDays(14).ToTimestamp(),
               VersionTime = versionTime.ToTimestamp(),
           };
           InstanceName instanceName = InstanceName.FromProjectInstance(projectId, instanceId);

           // Make the CreateBackup request.
           Operation<Backup, CreateBackupMetadata> response = databaseAdminClient.CreateBackup(instanceName, backup, backupId);

           Console.WriteLine("Waiting for the operation to finish.");

           // Poll until the returned long-running operation is complete.
           Operation<Backup, CreateBackupMetadata> completedResponse = response.PollUntilCompleted();

           if (completedResponse.IsFaulted)
           {
               Console.WriteLine($"Error while creating backup: {completedResponse.Exception}");
               throw completedResponse.Exception;
           }

           Console.WriteLine($"Backup created successfully.");

           // GetBackup to get more information about the created backup.
           BackupName backupName = BackupName.FromProjectInstanceBackup(projectId, instanceId, backupId);
           backup = databaseAdminClient.GetBackup(backupName);
           Console.WriteLine($"Backup {backup.Name} of size {backup.SizeBytes} bytes " +
                         $"was created at {backup.CreateTime} from {backup.Database} " +
                         $"and is in state {backup.State} " +
                         $"and has version time {backup.VersionTime}");
           return backup;
       }
   }


   C++

   void CreateBackup(google::cloud::spanner_admin::DatabaseAdminClient client,
                     std::string const& project_id, std::string const& instance_id,
                     std::string const& database_id, std::string const& backup_id,
                     google::cloud::spanner::Timestamp expire_time,
                     google::cloud::spanner::Timestamp version_time) {
     google::cloud::spanner::Database database(project_id, instance_id,
                                               database_id);
     google::spanner::admin::database::v1::CreateBackupRequest request;
     request.set_parent(database.instance().FullName());
     request.set_backup_id(backup_id);
     request.mutable_backup()->set_database(database.FullName());
     *request.mutable_backup()->mutable_expire_time() =
         expire_time.get<google::protobuf::Timestamp>().value();
     *request.mutable_backup()->mutable_version_time() =
         version_time.get<google::protobuf::Timestamp>().value();
     auto backup = client.CreateBackup(request).get();
     if (!backup) throw std::move(backup).status();
     std::cout
         << "Backup " << backup->name() << " of " << backup->database()
         << " of size " << backup->size_bytes() << " bytes as of "
         << google::cloud::spanner::MakeTimestamp(backup->version_time()).value()
         << " was created at "
         << google::cloud::spanner::MakeTimestamp(backup->create_time()).value()
         << ".\n";
   }

   Go


   import (
   	"context"
   	"fmt"
   	"io"
   	"regexp"
   	"time"

   	database "cloud.google.com/go/spanner/admin/database/apiv1"
   	adminpb "cloud.google.com/go/spanner/admin/database/apiv1/databasepb"
   	pbt "github.com/golang/protobuf/ptypes/timestamp"
   )

   func createBackup(ctx context.Context, w io.Writer, db, backupID string, versionTime time.Time) error {
   	// versionTime := time.Now().AddDate(0, 0, -1) // one day ago
   	matches := regexp.MustCompile("^(.+)/databases/(.+)$").FindStringSubmatch(db)
   	if matches == nil || len(matches) != 3 {
   		return fmt.Errorf("createBackup: invalid database id %q", db)
   	}

   	adminClient, err := database.NewDatabaseAdminClient(ctx)
   	if err != nil {
   		return fmt.Errorf("createBackup.NewDatabaseAdminClient: %w", err)
   	}
   	defer adminClient.Close()

   	expireTime := time.Now().AddDate(0, 0, 14)
   	// Create a backup.
   	req := adminpb.CreateBackupRequest{
   		Parent:   matches[1],
   		BackupId: backupID,
   		Backup: &adminpb.Backup{
   			Database:    db,
   			ExpireTime:  &pbt.Timestamp{Seconds: expireTime.Unix(), Nanos: int32(expireTime.Nanosecond())},
   			VersionTime: &pbt.Timestamp{Seconds: versionTime.Unix(), Nanos: int32(versionTime.Nanosecond())},
   		},
   	}
   	op, err := adminClient.CreateBackup(ctx, &req)
   	if err != nil {
   		return fmt.Errorf("createBackup.CreateBackup: %w", err)
   	}
   	// Wait for backup operation to complete.
   	backup, err := op.Wait(ctx)
   	if err != nil {
   		return fmt.Errorf("createBackup.Wait: %w", err)
   	}

   	// Get the name, create time, version time and backup size.
   	backupCreateTime := time.Unix(backup.CreateTime.Seconds, int64(backup.CreateTime.Nanos))
   	backupVersionTime := time.Unix(backup.VersionTime.Seconds, int64(backup.VersionTime.Nanos))
   	fmt.Fprintf(w,
   		"Backup %s of size %d bytes was created at %s with version time %s\n",
   		backup.Name,
   		backup.SizeBytes,
   		backupCreateTime.Format(time.RFC3339),
   		backupVersionTime.Format(time.RFC3339))
   	return nil
   }


   Java

   static void createBackup(DatabaseAdminClient dbAdminClient, String projectId, String instanceId,
       String databaseId, String backupId, Timestamp versionTime) {
     // Set expire time to 14 days from now.
     Timestamp expireTime =
         Timestamp.newBuilder().setSeconds(TimeUnit.MILLISECONDS.toSeconds((
             System.currentTimeMillis() + TimeUnit.DAYS.toMillis(14)))).build();
     BackupName backupName = BackupName.of(projectId, instanceId, backupId);
     Backup backup = Backup.newBuilder()
         .setName(backupName.toString())
         .setDatabase(DatabaseName.of(projectId, instanceId, databaseId).toString())
         .setExpireTime(expireTime).setVersionTime(versionTime).build();

     // Initiate the request which returns an OperationFuture.
     System.out.println("Creating backup [" + backupId + "]...");
     try {
       // Wait for the backup operation to complete.
       backup = dbAdminClient.createBackupAsync(
           InstanceName.of(projectId, instanceId), backup, backupId).get();
       System.out.println("Created backup [" + backup.getName() + "]");
     } catch (ExecutionException e) {
       throw SpannerExceptionFactory.asSpannerException(e);
     } catch (InterruptedException e) {
       throw SpannerExceptionFactory.propagateInterrupt(e);
     }

     // Reload the metadata of the backup from the server.
     backup = dbAdminClient.getBackup(backup.getName());
     System.out.println(
         String.format(
             "Backup %s of size %d bytes was created at %s for version of database at %s",
             backup.getName(),
             backup.getSizeBytes(),
             java.time.OffsetDateTime.ofInstant(
                 Instant.ofEpochSecond(backup.getCreateTime().getSeconds(),
                     backup.getCreateTime().getNanos()), ZoneId.systemDefault()),
             java.time.OffsetDateTime.ofInstant(
                 Instant.ofEpochSecond(backup.getVersionTime().getSeconds(),
                     backup.getVersionTime().getNanos()), ZoneId.systemDefault()))
     );
   }

   注意：舊版 Java 用戶端程式庫介面的程式碼範例已封存於 GitHub。

   Node.js


   // Imports the Google Cloud client library and precise date library
   const {Spanner, protos} = require('@google-cloud/spanner');
   const {PreciseDate} = require('@google-cloud/precise-date');

   /**
    * TODO(developer): Uncomment the following lines before running the sample.
    */
   // const projectId = 'my-project-id';
   // const instanceId = 'my-instance';
   // const databaseId = 'my-database';
   // const backupId = 'my-backup';
   // const versionTime = Date.now() - 1000 * 60 * 60 * 24; // One day ago

   // Creates a client
   const spanner = new Spanner({
     projectId: projectId,
   });

   // Gets a reference to a Cloud Spanner Database Admin Client object
   const databaseAdminClient = spanner.getDatabaseAdminClient();

   // Creates a new backup of the database
   try {
     console.log(
       `Creating backup of database ${databaseAdminClient.databasePath(
         projectId,
         instanceId,
         databaseId,
       )}.`,
     );

     // Expire backup 14 days in the future
     const expireTime = Date.now() + 1000 * 60 * 60 * 24 * 14;

     // Create a backup of the state of the database at the current time.
     const [operation] = await databaseAdminClient.createBackup({
       parent: databaseAdminClient.instancePath(projectId, instanceId),
       backupId: backupId,
       backup: (protos.google.spanner.admin.database.v1.Backup = {
         database: databaseAdminClient.databasePath(
           projectId,
           instanceId,
           databaseId,
         ),
         expireTime: Spanner.timestamp(expireTime).toStruct(),
         versionTime: Spanner.timestamp(versionTime).toStruct(),
         name: databaseAdminClient.backupPath(projectId, instanceId, backupId),
       }),
     });

     console.log(
       `Waiting for backup ${databaseAdminClient.backupPath(
         projectId,
         instanceId,
         backupId,
       )} to complete...`,
     );
     await operation.promise();

     // Verify backup is ready
     const [backupInfo] = await databaseAdminClient.getBackup({
       name: databaseAdminClient.backupPath(projectId, instanceId, backupId),
     });
     if (backupInfo.state === 'READY') {
       console.log(
         `Backup ${backupInfo.name} of size ` +
           `${backupInfo.sizeBytes} bytes was created at ` +
           `${new PreciseDate(backupInfo.createTime).toISOString()} ` +
           'for version of database at ' +
           `${new PreciseDate(backupInfo.versionTime).toISOString()}`,
       );
     } else {
       console.error('ERROR: Backup is not ready.');
     }
   } catch (err) {
     console.error('ERROR:', err);
   } finally {
     // Close the spanner client when finished.
     // The databaseAdminClient does not require explicit closure. The closure of the Spanner client will automatically close the databaseAdminClient.
     spanner.close();
   }

   注意：Node.js 的舊版用戶端程式庫介面程式碼範例已封存至 GitHub。

   PHP

   use Google\Cloud\Spanner\Admin\Database\V1\Backup;
   use Google\Cloud\Spanner\Admin\Database\V1\GetBackupRequest;
   use Google\Cloud\Spanner\Admin\Database\V1\Client\DatabaseAdminClient;
   use Google\Cloud\Spanner\Admin\Database\V1\CreateBackupRequest;
   use Google\Protobuf\Timestamp;

   /**
    * Create a backup.
    * Example:
    * ```
    * create_backup($projectId, $instanceId, $databaseId, $backupId, $versionTime);
    * ```
    *
    * @param string $projectId The Google Cloud project ID.
    * @param string $instanceId The Spanner instance ID.
    * @param string $databaseId The Spanner database ID.
    * @param string $backupId The Spanner backup ID.
    * @param string $versionTime The version of the database to backup. Read more
    * at https://cloud.google.com/spanner/docs/reference/rest/v1/projects.instances.backups#Backup.FIELDS.version_time
    */
   function create_backup(
       string $projectId,
       string $instanceId,
       string $databaseId,
       string $backupId,
       string $versionTime = '-1hour'
   ): void {
       $databaseAdminClient = new DatabaseAdminClient();
       $databaseFullName = DatabaseAdminClient::databaseName($projectId, $instanceId, $databaseId);
       $instanceFullName = DatabaseAdminClient::instanceName($projectId, $instanceId);
       $timestamp = new Timestamp();
       $timestamp->setSeconds((new \DateTime($versionTime))->getTimestamp());
       $expireTime = new Timestamp();
       $expireTime->setSeconds((new \DateTime('+14 days'))->getTimestamp());
       $request = new CreateBackupRequest([
           'parent' => $instanceFullName,
           'backup_id' => $backupId,
           'backup' => new Backup([
               'database' => $databaseFullName,
               'expire_time' => $expireTime,
               'version_time' => $timestamp
           ])
       ]);

       $operation = $databaseAdminClient->createBackup($request);

       print('Waiting for operation to complete...' . PHP_EOL);
       $operation->pollUntilComplete();

       $request = new GetBackupRequest();
       $request->setName($databaseAdminClient->backupName($projectId, $instanceId, $backupId));
       $info = $databaseAdminClient->getBackup($request);
       printf(
           'Backup %s of size %d bytes was created at %d for version of database at %d' . PHP_EOL,
           basename($info->getName()),
           $info->getSizeBytes(),
           $info->getCreateTime()->getSeconds(),
           $info->getVersionTime()->getSeconds());
   }

   注意：舊版 PHP 用戶端程式庫介面的程式碼範例已封存至 GitHub。

   Python

   def create_backup(instance_id, database_id, backup_id, version_time):
       """Creates a backup for a database."""

       from google.cloud.spanner_admin_database_v1.types import backup as backup_pb

       spanner_client = spanner.Client()
       database_admin_api = spanner_client.database_admin_api

       # Create a backup
       expire_time = datetime.utcnow() + timedelta(days=14)

       request = backup_pb.CreateBackupRequest(
           parent=database_admin_api.instance_path(spanner_client.project, instance_id),
           backup_id=backup_id,
           backup=backup_pb.Backup(
               database=database_admin_api.database_path(
                   spanner_client.project, instance_id, database_id
               ),
               expire_time=expire_time,
               version_time=version_time,
           ),
       )

       operation = database_admin_api.create_backup(request)

       # Wait for backup operation to complete.
       backup = operation.result(2100)

       # Verify that the backup is ready.
       assert backup.state == backup_pb.Backup.State.READY

       print(
           "Backup {} of size {} bytes was created at {} for version of database at {}".format(
               backup.name, backup.size_bytes, backup.create_time, backup.version_time
           )
       )



   注意：舊版 Python 用戶端程式庫介面的程式碼範例已封存至 GitHub。

   Ruby

   # project_id  = "Your Google Cloud project ID"
   # instance_id = "Your Spanner instance ID"
   # database_id = "Your Spanner database ID"
   # backup_id = "Your Spanner backup ID"
   # version_time = Time.now - 60 * 60 * 24 # 1 day ago

   require "google/cloud/spanner"
   require "google/cloud/spanner/admin/database"

   database_admin_client = Google::Cloud::Spanner::Admin::Database.database_admin

   instance_path = database_admin_client.instance_path project: project_id, instance: instance_id
   db_path = database_admin_client.database_path project: project_id,
                                                 instance: instance_id,
                                                 database: database_id
   backup_path = database_admin_client.backup_path project: project_id,
                                                   instance: instance_id,
                                                   backup: backup_id
   expire_time = Time.now + (14 * 24 * 3600) # 14 days from now

   job = database_admin_client.create_backup parent: instance_path,
                                             backup_id: backup_id,
                                             backup: {
                                               database: db_path,
                                                 expire_time: expire_time,
                                                 version_time: version_time
                                             }

   puts "Backup operation in progress"

   job.wait_until_done!

   backup = database_admin_client.get_backup name: backup_path
   puts "Backup #{backup_id} of size #{backup.size_bytes} bytes was created at #{backup.create_time} for version of database at #{backup.version_time}"

2. 從備份還原至新資料庫。請注意，Spanner 會將備份的保留期限設定保留至還原的資料庫。

   控制台

   1. 前往 Cloud 控制台的「執行個體詳細資料」頁面。

      前往 Google Cloud 控制台

   2. 在「備份/還原」分頁中選取備份，然後按一下「還原」。

   gcloud

   gcloud spanner databases restore --async \
     --destination-instance=destination-instance --destination-database=example-db-restored \
     --source-instance=test-instance --source-backup=example-db-backup-1

   詳情請參閱「從備份還原資料庫」。

   用戶端程式庫

   C#


   using Google.Cloud.Spanner.Admin.Database.V1;
   using Google.Cloud.Spanner.Common.V1;
   using Google.LongRunning;
   using System;

   public class RestoreDatabaseSample
   {
       public RestoreInfo RestoreDatabase(string projectId, string instanceId, string databaseId, string backupId)
       {
           // Create the DatabaseAdminClient instance.
           DatabaseAdminClient databaseAdminClient = DatabaseAdminClient.Create();

           InstanceName parentAsInstanceName = InstanceName.FromProjectInstance(projectId, instanceId);
           BackupName backupAsBackupName = BackupName.FromProjectInstanceBackup(projectId, instanceId, backupId);

           // Make the RestoreDatabase request.
           Operation<Database, RestoreDatabaseMetadata> response = databaseAdminClient.RestoreDatabase(parentAsInstanceName, databaseId, backupAsBackupName);

           Console.WriteLine("Waiting for the operation to finish");

           // Poll until the returned long-running operation is complete.
           var completedResponse = response.PollUntilCompleted();

           if (completedResponse.IsFaulted)
           {
               Console.WriteLine($"Database Restore Failed: {completedResponse.Exception}");
               throw completedResponse.Exception;
           }

           RestoreInfo restoreInfo = completedResponse.Result.RestoreInfo;
           Console.WriteLine(
               $"Database {restoreInfo.BackupInfo.SourceDatabase} was restored " +
               $"to {databaseId} from backup {restoreInfo.BackupInfo.Backup} " +
               $"with version time {restoreInfo.BackupInfo.VersionTime}");

           return restoreInfo;
       }
   }

   C++

   void RestoreDatabase(google::cloud::spanner_admin::DatabaseAdminClient client,
                        std::string const& project_id,
                        std::string const& instance_id,
                        std::string const& database_id,
                        std::string const& backup_id) {
     google::cloud::spanner::Database database(project_id, instance_id,
                                               database_id);
     google::cloud::spanner::Backup backup(database.instance(), backup_id);
     auto restored_db =
         client
             .RestoreDatabase(database.instance().FullName(),
                              database.database_id(), backup.FullName())
             .get();
     if (!restored_db) throw std::move(restored_db).status();
     std::cout << "Database";
     if (restored_db->restore_info().source_type() ==
         google::spanner::admin::database::v1::BACKUP) {
       auto const& backup_info = restored_db->restore_info().backup_info();
       std::cout << " " << backup_info.source_database() << " as of "
                 << google::cloud::spanner::MakeTimestamp(
                        backup_info.version_time())
                        .value();
     }
     std::cout << " restored to " << restored_db->name();
     std::cout << " from backup " << backup.FullName();
     std::cout << ".\n";
   }

   Go


   import (
   	"context"
   	"fmt"
   	"io"
   	"regexp"

   	database "cloud.google.com/go/spanner/admin/database/apiv1"
   	adminpb "cloud.google.com/go/spanner/admin/database/apiv1/databasepb"
   )

   func restoreBackup(ctx context.Context, w io.Writer, db, backupID string) error {
   	adminClient, err := database.NewDatabaseAdminClient(ctx)
   	if err != nil {
   		return err
   	}
   	defer adminClient.Close()

   	matches := regexp.MustCompile("^(.*)/databases/(.*)$").FindStringSubmatch(db)
   	if matches == nil || len(matches) != 3 {
   		return fmt.Errorf("Invalid database id %s", db)
   	}
   	instanceName := matches[1]
   	databaseID := matches[2]
   	backupName := instanceName + "/backups/" + backupID

   	// Start restoring backup to a new database.
   	restoreOp, err := adminClient.RestoreDatabase(ctx, &adminpb.RestoreDatabaseRequest{
   		Parent:     instanceName,
   		DatabaseId: databaseID,
   		Source: &adminpb.RestoreDatabaseRequest_Backup{
   			Backup: backupName,
   		},
   	})
   	if err != nil {
   		return err
   	}
   	// Wait for restore operation to complete.
   	dbObj, err := restoreOp.Wait(ctx)
   	if err != nil {
   		return err
   	}
   	// Newly created database has restore information.
   	backupInfo := dbObj.RestoreInfo.GetBackupInfo()
   	if backupInfo != nil {
   		fmt.Fprintf(w, "Source database %s restored from backup %s\n", backupInfo.SourceDatabase, backupInfo.Backup)
   	}

   	return nil
   }


   Java

   static void restoreBackup(
       DatabaseAdminClient dbAdminClient,
       String projectId,
       String instanceId,
       String backupId,
       String restoreToDatabaseId) {
     BackupName backupName = BackupName.of(projectId, instanceId, backupId);
     Backup backup = dbAdminClient.getBackup(backupName);
     // Initiate the request which returns an OperationFuture.
     System.out.println(String.format(
         "Restoring backup [%s] to database [%s]...", backup.getName(), restoreToDatabaseId));
     try {
       RestoreDatabaseRequest request =
           RestoreDatabaseRequest.newBuilder()
               .setParent(InstanceName.of(projectId, instanceId).toString())
               .setDatabaseId(restoreToDatabaseId)
               .setBackup(backupName.toString()).build();
       OperationFuture<com.google.spanner.admin.database.v1.Database, RestoreDatabaseMetadata> op =
           dbAdminClient.restoreDatabaseAsync(request);
       // Wait until the database has been restored.
       com.google.spanner.admin.database.v1.Database db = op.get();
       // Get the restore info.
       RestoreInfo restoreInfo = db.getRestoreInfo();
       BackupInfo backupInfo = restoreInfo.getBackupInfo();

       System.out.println(
           "Restored database ["
               + db.getName()
               + "] from ["
               + restoreInfo.getBackupInfo().getBackup()
               + "] with version time [" + backupInfo.getVersionTime() + "]");
     } catch (ExecutionException e) {
       throw SpannerExceptionFactory.newSpannerException(e.getCause());
     } catch (InterruptedException e) {
       throw SpannerExceptionFactory.propagateInterrupt(e);
     }
   }

   注意：舊版 Java 用戶端程式庫介面的程式碼範例已封存於 GitHub。

   Node.js

   // Imports the Google Cloud client library and precise date library
   const {Spanner} = require('@google-cloud/spanner');
   const {PreciseDate} = require('@google-cloud/precise-date');

   /**
    * TODO(developer): Uncomment the following lines before running the sample.
    */
   // const projectId = 'my-project-id';
   // const instanceId = 'my-instance';
   // const databaseId = 'my-database';
   // const backupId = 'my-backup';

   // Creates a client
   const spanner = new Spanner({
     projectId: projectId,
   });

   // Gets a reference to a Cloud Spanner Database Admin Client object
   const databaseAdminClient = spanner.getDatabaseAdminClient();

   // Restore the database
   console.log(
     `Restoring database ${databaseAdminClient.databasePath(
       projectId,
       instanceId,
       databaseId,
     )} from backup ${backupId}.`,
   );
   const [restoreOperation] = await databaseAdminClient.restoreDatabase({
     parent: databaseAdminClient.instancePath(projectId, instanceId),
     databaseId: databaseId,
     backup: databaseAdminClient.backupPath(projectId, instanceId, backupId),
   });

   // Wait for restore to complete
   console.log('Waiting for database restore to complete...');
   await restoreOperation.promise();

   console.log('Database restored from backup.');
   const [metadata] = await databaseAdminClient.getDatabase({
     name: databaseAdminClient.databasePath(projectId, instanceId, databaseId),
   });
   console.log(
     `Database ${metadata.restoreInfo.backupInfo.sourceDatabase} was restored ` +
       `to ${databaseId} from backup ${metadata.restoreInfo.backupInfo.backup} ` +
       'with version time ' +
       `${new PreciseDate(
         metadata.restoreInfo.backupInfo.versionTime,
       ).toISOString()}.`,
   );

   注意：Node.js 的舊版用戶端程式庫介面程式碼範例已封存至 GitHub。

   PHP

   use Google\Cloud\Spanner\Admin\Database\V1\Client\DatabaseAdminClient;
   use Google\Cloud\Spanner\Admin\Database\V1\RestoreDatabaseRequest;

   /**
    * Restore a database from a backup.
    * Example:
    * ```
    * restore_backup($projectId, $instanceId, $databaseId, $backupId);
    * ```
    * @param string $projectId The Google Cloud project ID.
    * @param string $instanceId The Spanner instance ID.
    * @param string $databaseId The Spanner database ID.
    * @param string $backupId The Spanner backup ID.
    */
   function restore_backup(
       string $projectId,
       string $instanceId,
       string $databaseId,
       string $backupId
   ): void {
       $databaseAdminClient = new DatabaseAdminClient();

       $backupName = DatabaseAdminClient::backupName($projectId, $instanceId, $backupId);
       $instanceName = DatabaseAdminClient::instanceName($projectId, $instanceId);

       $request = new RestoreDatabaseRequest([
           'parent' => $instanceName,
           'database_id' => $databaseId,
           'backup' => $backupName
       ]);

       $operationResponse = $databaseAdminClient->restoreDatabase($request);
       $operationResponse->pollUntilComplete();

       $database = $operationResponse->operationSucceeded() ? $operationResponse->getResult() : null;
       $restoreInfo = $database->getRestoreInfo();
       $backupInfo = $restoreInfo->getBackupInfo();
       $sourceDatabase = $backupInfo->getSourceDatabase();
       $sourceBackup = $backupInfo->getBackup();
       $versionTime = $backupInfo->getVersionTime()->getSeconds();
       printf(
           'Database %s restored from backup %s with version time %s' . PHP_EOL,
           $sourceDatabase, $sourceBackup, $versionTime
       );
   }

   注意：舊版 PHP 用戶端程式庫介面的程式碼範例已封存至 GitHub。

   Python

   def restore_database(instance_id, new_database_id, backup_id):
       """Restores a database from a backup."""
       from google.cloud.spanner_admin_database_v1 import RestoreDatabaseRequest

       spanner_client = spanner.Client()
       database_admin_api = spanner_client.database_admin_api

       # Start restoring an existing backup to a new database.
       request = RestoreDatabaseRequest(
           parent=database_admin_api.instance_path(spanner_client.project, instance_id),
           database_id=new_database_id,
           backup=database_admin_api.backup_path(
               spanner_client.project, instance_id, backup_id
           ),
       )
       operation = database_admin_api.restore_database(request)

       # Wait for restore operation to complete.
       db = operation.result(1600)

       # Newly created database has restore information.
       restore_info = db.restore_info
       print(
           "Database {} restored to {} from backup {} with version time {}.".format(
               restore_info.backup_info.source_database,
               new_database_id,
               restore_info.backup_info.backup,
               restore_info.backup_info.version_time,
           )
       )



   注意：舊版 Python 用戶端程式庫介面的程式碼範例已封存至 GitHub。

   Ruby

   # project_id  = "Your Google Cloud project ID"
   # instance_id = "Your Spanner instance ID"
   # database_id = "Your Spanner database ID of where to restore"
   # backup_id = "Your Spanner backup ID"

   require "google/cloud/spanner"
   require "google/cloud/spanner/admin/database"

   database_admin_client = Google::Cloud::Spanner::Admin::Database.database_admin

   instance_path = database_admin_client.instance_path project: project_id, instance: instance_id

   db_path = database_admin_client.database_path project: project_id,
                                                 instance: instance_id,
                                                 database: database_id

   backup_path = database_admin_client.backup_path project: project_id,
                                                   instance: instance_id,
                                                   backup: backup_id

   job = database_admin_client.restore_database parent: instance_path,
                                                database_id: database_id,
                                                backup: backup_path

   puts "Waiting for restore backup operation to complete"

   job.wait_until_done!

   database = database_admin_client.get_database name: db_path
   restore_info = database.restore_info
   puts "Database #{restore_info.backup_info.source_database} was restored to #{database_id} from backup #{restore_info.backup_info.backup} with version time #{restore_info.backup_info.version_time}"

匯入及匯出

1. 匯出資料庫，並將 snapshotTime 參數指定為所需的復原時間戳記。

   控制台

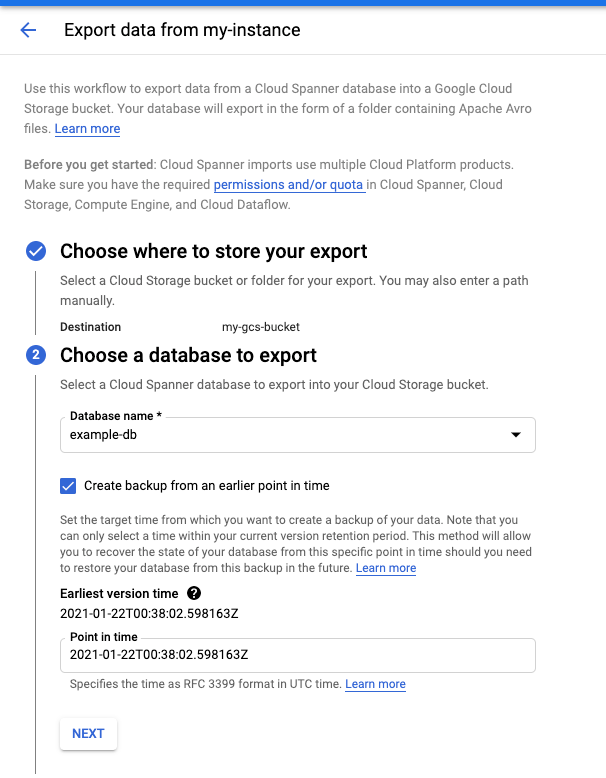

   1. 前往 Cloud 控制台的「執行個體詳細資料」頁面。

      前往 Google Cloud 控制台

   2. 在「匯入/匯出」分頁中，按一下「匯出」。

   3. 勾選「匯出過去時間點的資料庫」方塊。



   如需詳細操作說明，請參閱匯出資料庫。

   gcloud

   使用 Spanner to Avro Dataflow 範本匯出資料庫。

   gcloud dataflow jobs run JOB_NAME \
      --gcs-location='gs://cloud-spanner-point-in-time-recovery/Import Export Template/export/templates/Cloud_Spanner_to_GCS_Avro'
      --region=DATAFLOW_REGION \
      --parameters='instanceId=test-instance,databaseId=example-db,outputDir=YOUR_GCS_DIRECTORY,snapshotTime=2020-09-01T23:59:40.125245Z'

   使用須知：

• 您可以在 Dataflow 主控台中追蹤匯入和匯出工作的進度。
• Spanner 保證匯出的資料在指定時間戳記具有外部和交易一致性。
• 請以 RFC 3339 格式指定時間戳記。例如：2020-09-01T23:59:30.234233Z。
• 請確認您指定的時間戳記比資料庫的 earliest_version_time 新。如果指定時間戳記的資料已不存在，系統會顯示錯誤訊息。

1. 匯入新資料庫。

   控制台

   1. 前往 Cloud 控制台的「執行個體詳細資料」頁面。

      前往 Google Cloud 控制台

   2. 在「匯入/匯出」分頁中，按一下「匯入」。

   如需詳細的操作說明，請參閱「匯入 Spanner Avro 檔案」。

   gcloud

   使用 Cloud Storage Avro 到 Spanner Dataflow 範本匯入 Avro 檔案。

   gcloud dataflow jobs run JOB_NAME \
      --gcs-location='gs://cloud-spanner-point-in-time-recovery/Import Export Template/import/templates/GCS_Avro_to_Cloud_Spanner' \
      --region=DATAFLOW_REGION \
      --staging-location=YOUR_GCS_STAGING_LOCATION \
      --parameters='instanceId=test-instance,databaseId=example-db,inputDir=YOUR_GCS_DIRECTORY'

預估儲存空間增加量

提高資料庫的版本保留期限前，您可以先加總所需時間範圍內的交易位元組，預估資料庫儲存空間使用率的預期增幅。舉例來說，下列查詢會從交易統計資料表讀取資料，計算過去 7 天 (168 小時) 寫入的 GiB 數量。

GoogleSQL

SELECT
  SUM(bytes_per_hour) / (1024 * 1024 * 1024 ) as GiB
FROM (
  SELECT
    ((commit_attempt_count - commit_failed_precondition_count - commit_abort_count) * avg_bytes)
    AS bytes_per_hour, interval_end
  FROM
    spanner_sys.txn_stats_total_hour
  ORDER BY
    interval_end DESC
  LIMIT
    168);

PostgreSQL

SELECT
  bph /  (1024 * 1024 * 1024 ) as GiB
FROM (
  SELECT
    SUM(bytes_per_hour) as bph
  FROM (
    SELECT
      ((commit_attempt_count - commit_failed_precondition_count - commit_abort_count) * avg_bytes)
      AS bytes_per_hour, interval_end
    FROM
      spanner_sys.txn_stats_total_hour
    ORDER BY
      interval_end DESC
    LIMIT
      168)
sub1) sub2;

請注意，這項查詢提供的是粗略估計值，可能因下列原因而有誤差：

• 查詢不會將每個舊版資料必須儲存的時間戳記納入考量。如果資料庫包含許多小型資料類型，查詢可能會低估儲存空間增加量。
• 查詢會包含所有寫入作業，但只有更新作業會建立資料的先前版本。如果工作負載包含大量插入作業，查詢可能會高估儲存空間增加量。
