使用用戶端程式庫建立叢集

使用用戶端程式庫建立叢集

以下程式碼範例說明如何使用 Cloud 用戶端程式庫建立 Managed Service for Apache Spark 叢集、在叢集上執行工作，然後刪除叢集。

您也可以使用下列方法執行這些工作：

• API REST 要求 (請參閱「快速入門導覽課程：使用 API Explorer」)
• Google Cloud 控制台 (請參閱「使用 Google Cloud 控制台建立叢集」)
• Google Cloud CLI (請參閱「使用 Google Cloud CLI 建立叢集」)

事前準備

登入 Google Cloud 帳戶。如果您是 Google Cloud新手，歡迎 建立帳戶，親自評估產品在實際工作環境中的成效。新客戶還能獲得價值 $300 美元的免費抵免額，可用於執行、測試及部署工作負載。

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Roles required to select or create a project

• Select a project: Selecting a project doesn't require a specific IAM role—you can select any project that you've been granted a role on.
• Create a project: To create a project, you need the Project Creator role (roles/resourcemanager.projectCreator), which contains the resourcemanager.projects.create permission. Learn how to grant roles.

Note: If you don't plan to keep the resources that you create in this procedure, create a project instead of selecting an existing project. After you finish these steps, you can delete the project, removing all resources associated with the project.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

Enable the Dataproc API.

Roles required to enable APIs

To enable APIs, you need the Service Usage Admin IAM role (roles/serviceusage.serviceUsageAdmin), which contains the serviceusage.services.enable permission. Learn how to grant roles.

Enable the API

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Roles required to select or create a project

• Select a project: Selecting a project doesn't require a specific IAM role—you can select any project that you've been granted a role on.
• Create a project: To create a project, you need the Project Creator role (roles/resourcemanager.projectCreator), which contains the resourcemanager.projects.create permission. Learn how to grant roles.

Note: If you don't plan to keep the resources that you create in this procedure, create a project instead of selecting an existing project. After you finish these steps, you can delete the project, removing all resources associated with the project.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

Enable the Dataproc API.

Roles required to enable APIs

To enable APIs, you need the Service Usage Admin IAM role (roles/serviceusage.serviceUsageAdmin), which contains the serviceusage.services.enable permission. Learn how to grant roles.

Enable the API

執行程式碼

嘗試逐步操作說明：按一下「Open in Cloud Shell」(在 Cloud Shell 開啟)，執行 Python Cloud 用戶端程式庫逐步操作說明，建立叢集、執行 PySpark 工作，然後刪除叢集。

在 Cloud Shell 開啟

Go

1. 安裝用戶端程式庫，詳情請參閱「設定開發環境」。
2. 設定驗證方法
3. 複製並執行 GitHub 程式碼範例。
   選取 PySpark 輸入檔案： 下方的 Google 用戶端程式庫程式碼範例會執行您指定為輸入參數的 PySpark 工作。您可以傳遞位於 Cloud Storage gs://dataproc-examples/pyspark/hello-world/hello-world.py 的簡易「Hello World」PySpark 應用程式，或是自己的 PySpark 應用程式。如要進一步瞭解如何將檔案上傳至 Cloud Storage，請參閱「上傳物件」。

   // This quickstart shows how you can use the Dataproc Client library to create a
   // Dataproc cluster, submit a PySpark job to the cluster, wait for the job to finish
   // and finally delete the cluster.
   //
   // Usage:
   //
   //	go build
   //	./quickstart --project_id <PROJECT_ID> --region <REGION> \
   //	    --cluster_name <CLUSTER_NAME> --job_file_path <GCS_JOB_FILE_PATH>
   package main

   import (
   	"context"
   	"flag"
   	"fmt"
   	"io"
   	"log"
   	"regexp"

   	dataproc "cloud.google.com/go/dataproc/apiv1"
   	"cloud.google.com/go/dataproc/apiv1/dataprocpb"
   	"cloud.google.com/go/storage"
   	"google.golang.org/api/option"
   )

   func main() {
   	var projectID, clusterName, region, jobFilePath string
   	flag.StringVar(&projectID, "project_id", "", "Cloud Project ID, used for creating resources.")
   	flag.StringVar(&region, "region", "", "Region that resources should be created in.")
   	flag.StringVar(&clusterName, "cluster_name", "", "Name of Cloud Dataproc cluster to create.")
   	flag.StringVar(&jobFilePath, "job_file_path", "", "Path to job file in GCS.")
   	flag.Parse()

   	ctx := context.Background()

   	// Create the cluster client.
   	endpoint := fmt.Sprintf("%s-dataproc.googleapis.com:443", region)
   	clusterClient, err := dataproc.NewClusterControllerClient(ctx, option.WithEndpoint(endpoint))
   	if err != nil {
   		log.Fatalf("error creating the cluster client: %s\n", err)
   	}

   	// Create the cluster config.
   	createReq := &dataprocpb.CreateClusterRequest{
   		ProjectId: projectID,
   		Region:    region,
   		Cluster: &dataprocpb.Cluster{
   			ProjectId:   projectID,
   			ClusterName: clusterName,
   			Config: &dataprocpb.ClusterConfig{
   				MasterConfig: &dataprocpb.InstanceGroupConfig{
   					NumInstances:   1,
   					MachineTypeUri: "n1-standard-2",
   				},
   				WorkerConfig: &dataprocpb.InstanceGroupConfig{
   					NumInstances:   2,
   					MachineTypeUri: "n1-standard-2",
   				},
   			},
   		},
   	}

   	// Create the cluster.
   	createOp, err := clusterClient.CreateCluster(ctx, createReq)
   	if err != nil {
   		log.Fatalf("error submitting the cluster creation request: %v\n", err)
   	}

   	createResp, err := createOp.Wait(ctx)
   	if err != nil {
   		log.Fatalf("error creating the cluster: %v\n", err)
   	}

   	// Defer cluster deletion.
   	defer func() {
   		dReq := &dataprocpb.DeleteClusterRequest{
   			ProjectId:   projectID,
   			Region:      region,
   			ClusterName: clusterName,
   		}
   		deleteOp, err := clusterClient.DeleteCluster(ctx, dReq)
   		deleteOp.Wait(ctx)
   		if err != nil {
   			fmt.Printf("error deleting cluster %q: %v\n", clusterName, err)
   			return
   		}
   		fmt.Printf("Cluster %q successfully deleted\n", clusterName)
   	}()

   	// Output a success message.
   	fmt.Printf("Cluster created successfully: %q\n", createResp.ClusterName)

   	// Create the job client.
   	jobClient, err := dataproc.NewJobControllerClient(ctx, option.WithEndpoint(endpoint))

   	// Create the job config.
   	submitJobReq := &dataprocpb.SubmitJobRequest{
   		ProjectId: projectID,
   		Region:    region,
   		Job: &dataprocpb.Job{
   			Placement: &dataprocpb.JobPlacement{
   				ClusterName: clusterName,
   			},
   			TypeJob: &dataprocpb.Job_PysparkJob{
   				PysparkJob: &dataprocpb.PySparkJob{
   					MainPythonFileUri: jobFilePath,
   				},
   			},
   		},
   	}

   	submitJobOp, err := jobClient.SubmitJobAsOperation(ctx, submitJobReq)
   	if err != nil {
   		fmt.Printf("error with request to submitting job: %v\n", err)
   		return
   	}

   	submitJobResp, err := submitJobOp.Wait(ctx)
   	if err != nil {
   		fmt.Printf("error submitting job: %v\n", err)
   		return
   	}

   	re := regexp.MustCompile("gs://(.+?)/(.+)")
   	matches := re.FindStringSubmatch(submitJobResp.DriverOutputResourceUri)

   	if len(matches) < 3 {
   		fmt.Printf("regex error: %s\n", submitJobResp.DriverOutputResourceUri)
   		return
   	}

   	// Dataproc job outget gets saved to a GCS bucket allocated to it.
   	storageClient, err := storage.NewClient(ctx)
   	if err != nil {
   		fmt.Printf("error creating storage client: %v\n", err)
   		return
   	}

   	obj := fmt.Sprintf("%s.000000000", matches[2])
   	reader, err := storageClient.Bucket(matches[1]).Object(obj).NewReader(ctx)
   	if err != nil {
   		fmt.Printf("error reading job output: %v\n", err)
   		return
   	}

   	defer reader.Close()

   	body, err := io.ReadAll(reader)
   	if err != nil {
   		fmt.Printf("could not read output from Dataproc Job: %v\n", err)
   		return
   	}

   	fmt.Printf("Job finished successfully: %s", body)
   }


Java

1. 安裝用戶端程式庫 詳情請參閱「設定 Java 開發環境」。
2. 設定驗證方法
3. 複製並執行 GitHub 程式碼範例。
   選取 PySpark 輸入檔案： 下方的 Google 用戶端程式庫程式碼範例會執行您指定為輸入參數的 PySpark 工作。您可以傳遞位於 Cloud Storage gs://dataproc-examples/pyspark/hello-world/hello-world.py 的簡易「Hello World」PySpark 應用程式，或是自己的 PySpark 應用程式。如要進一步瞭解如何將檔案上傳至 Cloud Storage，請參閱「上傳物件」。
   /* This quickstart sample walks a user through creating a Cloud Dataproc
    * cluster, submitting a PySpark job from Google Cloud Storage to the
    * cluster, reading the output of the job and deleting the cluster, all
    * using the Java client library.
    *
    * Usage:
    *     mvn clean package -DskipTests
    *
    *     mvn exec:java -Dexec.args="<PROJECT_ID> <REGION> <CLUSTER_NAME> <GCS_JOB_FILE_PATH>"
    *
    *     You can also set these arguments in the main function instead of providing them via the CLI.
    */

   import com.google.api.gax.longrunning.OperationFuture;
   import com.google.cloud.dataproc.v1.Cluster;
   import com.google.cloud.dataproc.v1.ClusterConfig;
   import com.google.cloud.dataproc.v1.ClusterControllerClient;
   import com.google.cloud.dataproc.v1.ClusterControllerSettings;
   import com.google.cloud.dataproc.v1.ClusterOperationMetadata;
   import com.google.cloud.dataproc.v1.InstanceGroupConfig;
   import com.google.cloud.dataproc.v1.Job;
   import com.google.cloud.dataproc.v1.JobControllerClient;
   import com.google.cloud.dataproc.v1.JobControllerSettings;
   import com.google.cloud.dataproc.v1.JobMetadata;
   import com.google.cloud.dataproc.v1.JobPlacement;
   import com.google.cloud.dataproc.v1.PySparkJob;
   import com.google.cloud.storage.Blob;
   import com.google.cloud.storage.Storage;
   import com.google.cloud.storage.StorageOptions;
   import com.google.protobuf.Empty;
   import java.io.IOException;
   import java.util.concurrent.ExecutionException;
   import java.util.regex.Matcher;
   import java.util.regex.Pattern;

   public class Quickstart {

     public static void quickstart(
         String projectId, String region, String clusterName, String jobFilePath)
         throws IOException, InterruptedException {
       String myEndpoint = String.format("%s-dataproc.googleapis.com:443", region);

       // Configure the settings for the cluster controller client.
       ClusterControllerSettings clusterControllerSettings =
           ClusterControllerSettings.newBuilder().setEndpoint(myEndpoint).build();

       // Configure the settings for the job controller client.
       JobControllerSettings jobControllerSettings =
           JobControllerSettings.newBuilder().setEndpoint(myEndpoint).build();

       // Create both a cluster controller client and job controller client with the
       // configured settings. The client only needs to be created once and can be reused for
       // multiple requests. Using a try-with-resources closes the client, but this can also be done
       // manually with the .close() method.
       try (ClusterControllerClient clusterControllerClient =
               ClusterControllerClient.create(clusterControllerSettings);
           JobControllerClient jobControllerClient =
               JobControllerClient.create(jobControllerSettings)) {
         // Configure the settings for our cluster.
         InstanceGroupConfig masterConfig =
             InstanceGroupConfig.newBuilder()
                 .setMachineTypeUri("n1-standard-2")
                 .setNumInstances(1)
                 .build();
         InstanceGroupConfig workerConfig =
             InstanceGroupConfig.newBuilder()
                 .setMachineTypeUri("n1-standard-2")
                 .setNumInstances(2)
                 .build();
         ClusterConfig clusterConfig =
             ClusterConfig.newBuilder()
                 .setMasterConfig(masterConfig)
                 .setWorkerConfig(workerConfig)
                 .build();
         // Create the cluster object with the desired cluster config.
         Cluster cluster =
             Cluster.newBuilder().setClusterName(clusterName).setConfig(clusterConfig).build();

         // Create the Cloud Dataproc cluster.
         OperationFuture<Cluster, ClusterOperationMetadata> createClusterAsyncRequest =
             clusterControllerClient.createClusterAsync(projectId, region, cluster);
         Cluster clusterResponse = createClusterAsyncRequest.get();
         System.out.println(
             String.format("Cluster created successfully: %s", clusterResponse.getClusterName()));

         // Configure the settings for our job.
         JobPlacement jobPlacement = JobPlacement.newBuilder().setClusterName(clusterName).build();
         PySparkJob pySparkJob = PySparkJob.newBuilder().setMainPythonFileUri(jobFilePath).build();
         Job job = Job.newBuilder().setPlacement(jobPlacement).setPysparkJob(pySparkJob).build();

         // Submit an asynchronous request to execute the job.
         OperationFuture<Job, JobMetadata> submitJobAsOperationAsyncRequest =
             jobControllerClient.submitJobAsOperationAsync(projectId, region, job);
         Job jobResponse = submitJobAsOperationAsyncRequest.get();

         // Print output from Google Cloud Storage.
         Matcher matches =
             Pattern.compile("gs://(.*?)/(.*)").matcher(jobResponse.getDriverOutputResourceUri());
         matches.matches();

         Storage storage = StorageOptions.getDefaultInstance().getService();
         Blob blob = storage.get(matches.group(1), String.format("%s.000000000", matches.group(2)));

         System.out.println(
             String.format("Job finished successfully: %s", new String(blob.getContent())));

         // Delete the cluster.
         OperationFuture<Empty, ClusterOperationMetadata> deleteClusterAsyncRequest =
             clusterControllerClient.deleteClusterAsync(projectId, region, clusterName);
         deleteClusterAsyncRequest.get();
         System.out.println(String.format("Cluster \"%s\" successfully deleted.", clusterName));

       } catch (ExecutionException e) {
         System.err.println(String.format("quickstart: %s ", e.getMessage()));
       }
     }

     public static void main(String... args) throws IOException, InterruptedException {
       if (args.length != 4) {
         System.err.println(
             "Insufficient number of parameters provided. Please make sure a "
                 + "PROJECT_ID, REGION, CLUSTER_NAME and JOB_FILE_PATH are provided, in this order.");
         return;
       }

       String projectId = args[0]; // project-id of project to create the cluster in
       String region = args[1]; // region to create the cluster
       String clusterName = args[2]; // name of the cluster
       String jobFilePath = args[3]; // location in GCS of the PySpark job

       quickstart(projectId, region, clusterName, jobFilePath);
     }
   }

Node.js

1. 安裝用戶端程式庫 詳情請參閱「設定 Node.js 開發環境」。
2. 設定驗證方法
3. 複製並執行 GitHub 程式碼範例。
   選取 PySpark 輸入檔案： 下方的 Google 用戶端程式庫程式碼範例會執行您指定為輸入參數的 PySpark 工作。您可以傳遞位於 Cloud Storage gs://dataproc-examples/pyspark/hello-world/hello-world.py 的簡易「Hello World」PySpark 應用程式，或是自己的 PySpark 應用程式。如要進一步瞭解如何將檔案上傳至 Cloud Storage，請參閱「上傳物件」。
   // This quickstart sample walks a user through creating a Dataproc
   // cluster, submitting a PySpark job from Google Cloud Storage to the
   // cluster, reading the output of the job and deleting the cluster, all
   // using the Node.js client library.

   'use strict';

   function main(projectId, region, clusterName, jobFilePath) {
     const dataproc = require('@google-cloud/dataproc');
     const {Storage} = require('@google-cloud/storage');

     // Create a cluster client with the endpoint set to the desired cluster region
     const clusterClient = new dataproc.v1.ClusterControllerClient({
       apiEndpoint: `${region}-dataproc.googleapis.com`,
       projectId: projectId,
     });

     // Create a job client with the endpoint set to the desired cluster region
     const jobClient = new dataproc.v1.JobControllerClient({
       apiEndpoint: `${region}-dataproc.googleapis.com`,
       projectId: projectId,
     });

     async function quickstart() {
       // Create the cluster config
       const cluster = {
         projectId: projectId,
         region: region,
         cluster: {
           clusterName: clusterName,
           config: {
             masterConfig: {
               numInstances: 1,
               machineTypeUri: 'n1-standard-2',
             },
             workerConfig: {
               numInstances: 2,
               machineTypeUri: 'n1-standard-2',
             },
           },
         },
       };

       // Create the cluster
       const [operation] = await clusterClient.createCluster(cluster);
       const [response] = await operation.promise();

       // Output a success message
       console.log(`Cluster created successfully: ${response.clusterName}`);

       const job = {
         projectId: projectId,
         region: region,
         job: {
           placement: {
             clusterName: clusterName,
           },
           pysparkJob: {
             mainPythonFileUri: jobFilePath,
           },
         },
       };

       const [jobOperation] = await jobClient.submitJobAsOperation(job);
       const [jobResponse] = await jobOperation.promise();

       const matches =
         jobResponse.driverOutputResourceUri.match('gs://(.*?)/(.*)');

       const storage = new Storage();

       const output = await storage
         .bucket(matches[1])
         .file(`${matches[2]}.000000000`)
         .download();

       // Output a success message.
       console.log(`Job finished successfully: ${output}`);

       // Delete the cluster once the job has terminated.
       const deleteClusterReq = {
         projectId: projectId,
         region: region,
         clusterName: clusterName,
       };

       const [deleteOperation] =
         await clusterClient.deleteCluster(deleteClusterReq);
       await deleteOperation.promise();

       // Output a success message
       console.log(`Cluster ${clusterName} successfully deleted.`);
     }

     quickstart();
   }

   const args = process.argv.slice(2);

   if (args.length !== 4) {
     console.log(
       'Insufficient number of parameters provided. Please make sure a ' +
         'PROJECT_ID, REGION, CLUSTER_NAME and JOB_FILE_PATH are provided, in this order.'
     );
   }

   main(...args);

Python

1. 安裝用戶端程式庫 詳情請參閱「設定 Python 開發環境」。
2. 設定驗證方法
3. 複製並執行 GitHub 程式碼範例。
   選取 PySpark 輸入檔案： 下方的 Google 用戶端程式庫程式碼範例會執行您指定為輸入參數的 PySpark 工作。您可以傳遞位於 Cloud Storage gs://dataproc-examples/pyspark/hello-world/hello-world.py 的簡易「Hello World」PySpark 應用程式，或是自己的 PySpark 應用程式。如要進一步瞭解如何將檔案上傳至 Cloud Storage，請參閱「上傳物件」。
   """
   This quickstart sample walks a user through creating a Cloud Dataproc
   cluster, submitting a PySpark job from Google Cloud Storage to the
   cluster, reading the output of the job and deleting the cluster, all
   using the Python client library.

   Usage:
       python quickstart.py --project_id <PROJECT_ID> --region <REGION> \
           --cluster_name <CLUSTER_NAME> --job_file_path <GCS_JOB_FILE_PATH>
   """

   import argparse
   import re

   from google.cloud import dataproc_v1 as dataproc
   from google.cloud import storage


   def quickstart(project_id, region, cluster_name, job_file_path):
       # Create the cluster client.
       cluster_client = dataproc.ClusterControllerClient(
           client_options={"api_endpoint": "{}-dataproc.googleapis.com:443".format(region)}
       )

       # Create the cluster config.
       cluster = {
           "project_id": project_id,
           "cluster_name": cluster_name,
           "config": {
               "master_config": {
                   "num_instances": 1,
                   "machine_type_uri": "n1-standard-2",
                   "disk_config": {"boot_disk_size_gb": 100},
               },
               "worker_config": {
                   "num_instances": 2,
                   "machine_type_uri": "n1-standard-2",
                   "disk_config": {"boot_disk_size_gb": 100},
               },
           },
       }

       # Create the cluster.
       operation = cluster_client.create_cluster(
           request={"project_id": project_id, "region": region, "cluster": cluster}
       )
       result = operation.result()

       print("Cluster created successfully: {}".format(result.cluster_name))

       # Create the job client.
       job_client = dataproc.JobControllerClient(
           client_options={"api_endpoint": "{}-dataproc.googleapis.com:443".format(region)}
       )

       # Create the job config.
       job = {
           "placement": {"cluster_name": cluster_name},
           "pyspark_job": {"main_python_file_uri": job_file_path},
       }

       operation = job_client.submit_job_as_operation(
           request={"project_id": project_id, "region": region, "job": job}
       )
       response = operation.result()

       # Dataproc job output gets saved to the Google Cloud Storage bucket
       # allocated to the job. Use a regex to obtain the bucket and blob info.
       matches = re.match("gs://(.*?)/(.*)", response.driver_output_resource_uri)

       output = (
           storage.Client()
           .get_bucket(matches.group(1))
           .blob(f"{matches.group(2)}.000000000")
           .download_as_bytes()
           .decode("utf-8")
       )

       print(f"Job finished successfully: {output}")

       # Delete the cluster once the job has terminated.
       operation = cluster_client.delete_cluster(
           request={
               "project_id": project_id,
               "region": region,
               "cluster_name": cluster_name,
           }
       )
       operation.result()

       print("Cluster {} successfully deleted.".format(cluster_name))


   if __name__ == "__main__":
       parser = argparse.ArgumentParser(
           description=__doc__,
           formatter_class=argparse.RawDescriptionHelpFormatter,
       )
       parser.add_argument(
           "--project_id",
           type=str,
           required=True,
           help="Project to use for creating resources.",
       )
       parser.add_argument(
           "--region",
           type=str,
           required=True,
           help="Region where the resources should live.",
       )
       parser.add_argument(
           "--cluster_name",
           type=str,
           required=True,
           help="Name to use for creating a cluster.",
       )
       parser.add_argument(
           "--job_file_path",
           type=str,
           required=True,
           help="Job in GCS to execute against the cluster.",
       )

       args = parser.parse_args()
       quickstart(args.project_id, args.region, args.cluster_name, args.job_file_path)

查看輸出內容

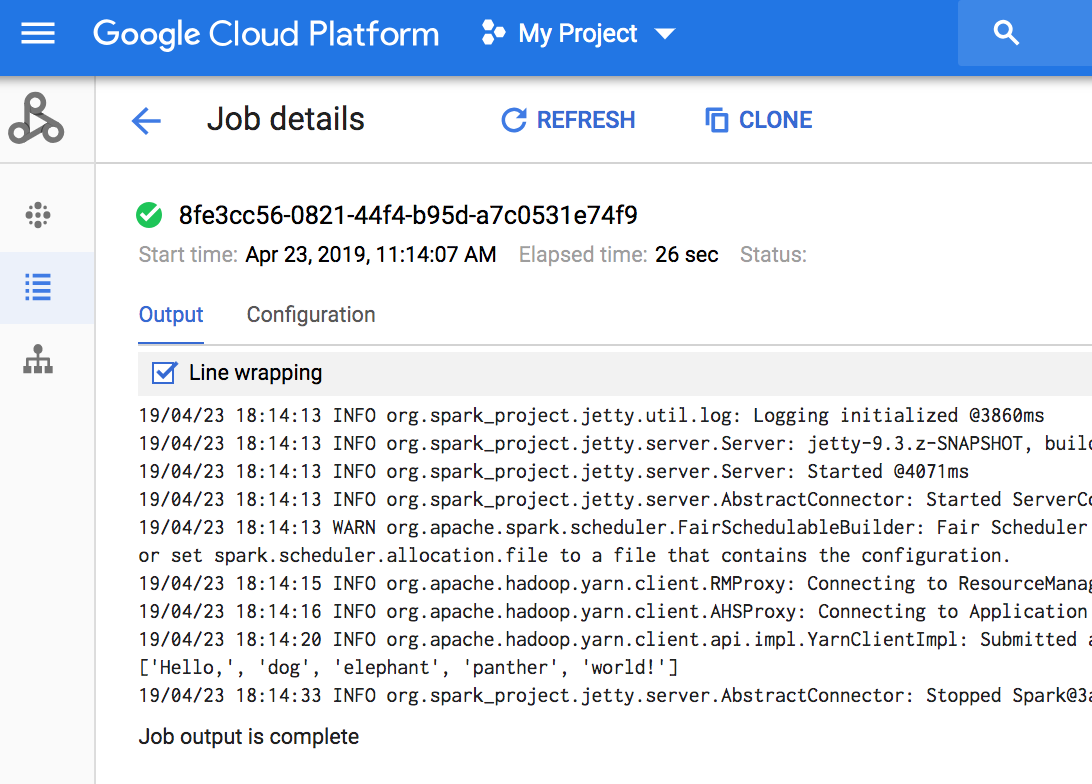

程式碼會將工作驅動程式記錄檔輸出至 Cloud Storage 的預設 Managed Service for Apache Spark 暫存 bucket。您可以在 Google Cloud 控制台的專案中，透過 Google Cloud 控制台查看 Managed Service for Apache Spark「Jobs」(工作) 頁面，查看工作驅動程式輸出內容。按一下工作 ID，即可在「Job details」(工作詳細資料) 頁面查看工作輸出內容。

後續步驟

• 請參閱 Managed Service for Apache Spark Cloud 用戶端程式庫的「其他資源」。
