Google Distributed Cloud (GDC) air-gapped provides a managed Kubernetes service with Google Kubernetes Engine (GKE) Enterprise edition, letting you deploy and run container workloads using industry standard Kubernetes methodologies. GKE on GDC brings core features and functionality of GKE Enterprise to a disconnected environment. Additional GKE Enterprise features will be available for GKE on GDC over time.
GKE on GDC provides enterprise features such as:
- Multi-cluster lifecycle management
- Fully supported Kubernetes distribution
- Cost visibility
- Multi-team management
- GitOps-based configuration management
- Managed service mesh
- Policy control
All of these features come standard with GKE on GDC, and are available for use with clusters created by the managed Kubernetes service.
For the purposes of documentation, GKE on GDC clusters are termed as Kubernetes clusters or Clusters.
GDC cluster architecture
Kubernetes clusters are logically separated from each other to provide different failure domains and isolation guarantees. In some cases, they are even physically separated. Each organization in GDC has a dedicated set of Kubernetes clusters. The following cluster types are available specifically for your workloads and services in each organization:
- Org infrastructure cluster: Runs the control plane and data plane components of the organization. It also hosts the management API server where all non-container workloads and services are deployed.
- Kubernetes cluster: Runs container-based workloads for the organization. The number of worker nodes depends on the utilization of the cluster. You can scale them as your needs evolve. A Kubernetes cluster is sometimes referred to as a user cluster in Distributed Cloud.
When your Infrastructure Operator (IO) creates an organization, GDC automatically generates the org infrastructure cluster. The initial configuration for the org infrastructure cluster is set during organization creation.
As an Administrator, you create and manage Kubernetes clusters. This section of topics covers the management of Kubernetes clusters. Your containerized Kubernetes workloads all run in a Kubernetes cluster. For more information about creating and managing containers in a Kubernetes cluster, see the Deploy container workloads section.
A Kubernetes cluster consists of a control plane and worker machines called nodes. The control plane and nodes make up the Kubernetes cluster orchestration system. GKE on GDC manages the entire underlying infrastructure of clusters, including the control plane and all system components. You are responsible for managing the worker nodes that run your containerized workloads.

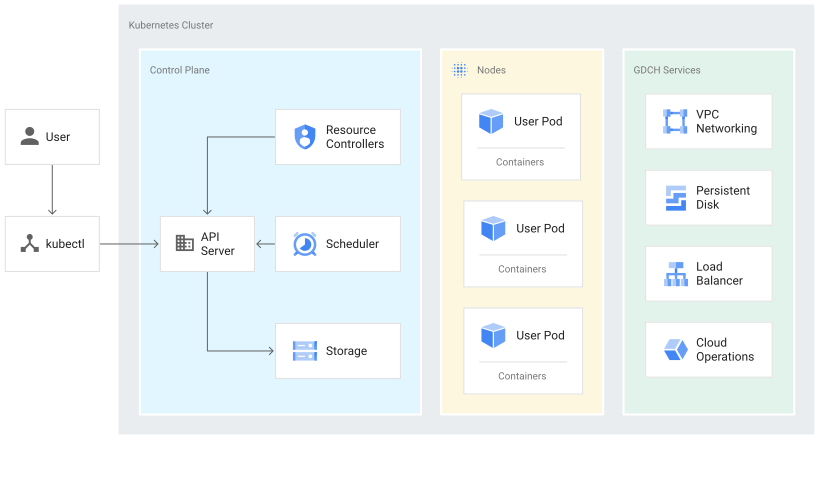

The following diagram shows the architecture of a Kubernetes cluster:
About the control plane
The control plane runs processes such as the Kubernetes API server, scheduler, and core resource controllers. GKE on GDC manages the control plane lifecycle from cluster creation to deletion. This includes upgrades to the Kubernetes version running on the control plane, which GDC performs automatically, or manually at your request if you prefer to upgrade earlier than the automatic schedule.
Control plane and the Kubernetes API
The control plane is the unified endpoint for your cluster. You interact with
the control plane through Kubernetes API calls. The control plane runs the
Kubernetes API server process, or kube-apiserver, to handle API requests. You
can make Kubernetes API calls in the following ways:
- Direct calls: KRM
- Indirect calls: Kubernetes command-line clients, such as
kubectl, or the GDC console.
The API server process is the hub for all communication for the cluster. All internal cluster components such as nodes, system processes, and application controllers act as clients of the API server.
Your API requests tell Kubernetes what your chosen state is for the objects in your cluster. Kubernetes attempts to constantly maintain that state. Kubernetes lets you configure objects in the API either imperatively or declaratively.
Worker node management
The control plane manages what runs on all of the cluster's nodes. The control plane schedules workloads and manages the workloads' lifecycle, scaling, and upgrades. The control plane also manages network and storage resources for those workloads. The control plane and nodes communicate with each other using Kubernetes APIs.
About nodes
Nodes are the worker machines that run your containerized applications and other workloads. The individual machines are virtual machines (VMs) that GKE on GDC creates. The control plane manages and receives updates on each node's self-reported status.
A node runs the services necessary to support the containers that make up your cluster's workloads. These include the runtime and the Kubernetes node agent, or kubelet, which communicates with the control plane and is responsible for starting and running containers scheduled on the node.
GKE on GDC also runs a number of system containers that run as per-node agents, called DaemonSets, that provide features such as log collection and intra-cluster network connectivity.
Nodes are grouped into a node pool, which is a set of nodes within a cluster that share the same configuration and characteristics. You can't configure a single node in a node pool.
Custom node pools are useful when scheduling pods that require more resources than others, such as more memory or local disk space. You can use node taints if you need more control over scheduling pods.
For more information, see Manage node pools.
Kubernetes cluster configurations
The following cluster configurations are available with the GKE on GDC service to manage your container workloads in an organization:
- Shared cluster: An organization-scoped Kubernetes cluster that spans multiple projects and is not managed by a single project, but rather, is attached to them.
- Standard cluster: A project-scoped Kubernetes cluster that manages cluster resources within a project, and can't span multiple projects.
You can choose the cluster that best fits your requirements for managing container workloads. For more information, see Kubernetes cluster configurations.
GPU workloads in a cluster
GDC provides NVIDIA GPU support for Kubernetes clusters, and they run your GPU devices as user workloads. For example, you might prefer running artificial intelligence (AI) and machine learning (ML) notebooks in a GPU environment. You must configure your cluster to support GPU devices by provisioning GPU machines for them. For a list of supported machine types for Kubernetes clusters in GDC, see Cluster node machines.
GPUs are statically allocated. The first four GPUs are always dedicated to workloads like pretrained AI and ML APIs. These GPUs don't run on a Kubernetes cluster. The remaining GPUs are available to Kubernetes clusters. AI and ML notebooks run on Kubernetes clusters.
Be sure to allocate GPU machines for the correct cluster types to let components such as AI and ML APIs run in your cluster. For more information, see Create a shared cluster or Create a standard cluster.
Limitations for GKE on GDC
The following GKE capabilities are limitations not available for GKE on GDC:
- Connect gateway
- Attaching multicloud clusters
- Binary Authorization
- Multi-cluster Data transfer in
