Build an agent to discover your data

The Knowledge Catalog discovery agent is an AI-powered assistant that improves search relevance for complex natural language queries based on Knowledge Catalog search capabilities. By optimizing query understanding and formulation, it provides more accurate results than the standard Knowledge Catalog Search API. This capability is critical especially for complex or lengthy queries.

Use cases

The discovery agent provides a rich, conversational experience for scenarios such as:

  • Complex or combined intents and constraints: Handling search requests with multiple criteria, such as finding datasets in us-central1 but excluding resources in BigQuery.
  • Business-oriented search: Discovering data assets based on intent and business context rather than matching exact technical terms.
  • Multi-turn exploration: Refining your search through a conversational dialogue to narrow down results.

The discovery agent is built on top of Knowledge Catalog semantic search which provides you out-of-the box hybrid search. You can continue to use Knowledge Catalog semantic search directly when you need to process high-intent searches (when you know the specific resource or column), low-latency requirements, or zero-setup hybrid search.

How it works

The discovery agent performs the following steps to respond to a search query:

  1. Analyzes input for intent to understand the query, generates multiple search variations, and maps terms to metadata filters.
  2. Searches for resources using the Knowledge Catalog semantic search.
  3. Ranks the merged results based on relevance.

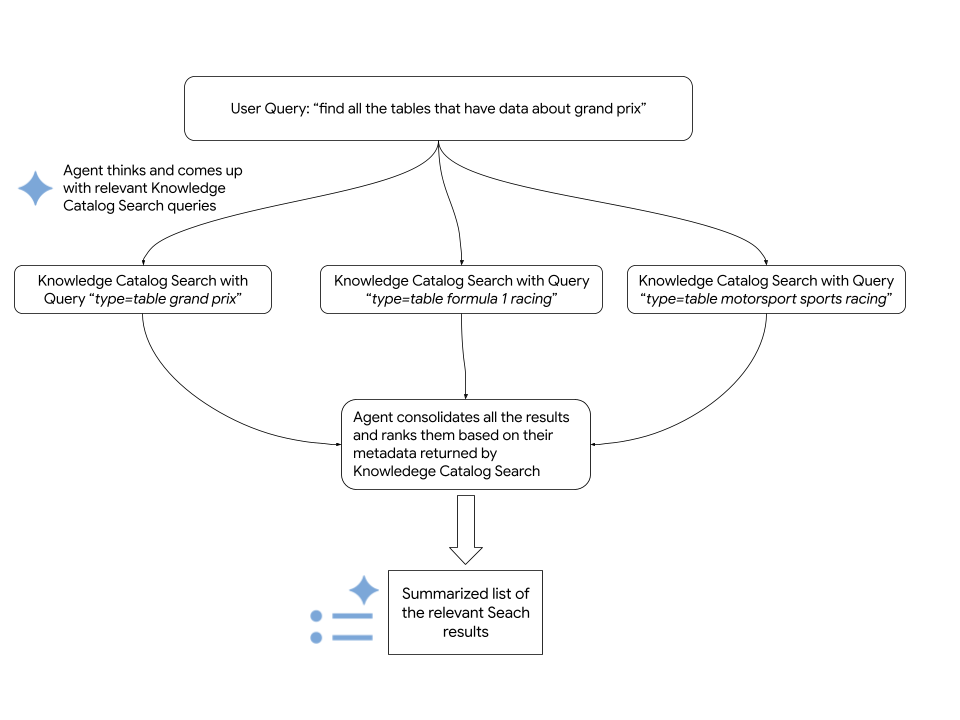

The following diagram provides the details of the process:

Discovery agent process for search requests.
Processing path for search requests in the discovery agent.

The agent relies on the Knowledge Catalog Search API to fetch relevant Google Cloud resources. The following code snippet shows how the agent calls Knowledge Catalog sematic search:


      # Configure the request parameters for the
      # call to Knowledge Catalog Semantic Search API.
      endpoint = "dataplex.googleapis.com"

      client = dataplex_v1.CatalogServiceClient(
          client_options={"api_endpoint": endpoint}
      )

      location = "global"
      consumer_project_id = "my-gcp-project"
      parent_name = f"projects/{consumer_project_id}/locations/{location}"

      # Call Knowledge Catalog Semantic Search API.
      response = client.search_entries(
          request={
              "name": parent_name,
              "query": query,
              "page_size": 50,
              "semantic_search": True,
          }
      )

      # Extract useful metadata to share with the agent.
      entries = [
          {
              "entry_name": result.dataplex_entry.name,
              "system": result.dataplex_entry.entry_source.system,
              "resource_id": result.dataplex_entry.entry_source.resource,
              "display_name": result.dataplex_entry.entry_source.display_name,
          }
          for result in response.results
      ]

      return {"results": entries}

Before you begin

To run the Knowledge Catalog discovery agent, ensure you meet the following requirements:

Required roles

To get the permissions that you need to use the discovery agent, ask your administrator to grant you the following IAM roles on your Google Cloud project iam.gserviceaccount.com:

For more information about granting roles, see Manage access to projects, folders, and organizations.

These predefined roles contain the permissions required to use the discovery agent. To see the exact permissions that are required, expand the Required permissions section:

Required permissions

The following permissions are required to use the discovery agent:

  • dataplex.projects.search
  • aiplatform.endpoints.predict
  • serviceusage.services.use

You might also be able to get these permissions with custom roles or other predefined roles.

Enable APIs

To use Knowledge Catalog discovery agent, enable the following APIs in your project: Knowledge Catalog API, Vertex AI API, and Service Usage API.

Roles required to enable APIs

To enable APIs, you need the Service Usage Admin IAM role (roles/serviceusage.serviceUsageAdmin), which contains the serviceusage.services.enable permission. Learn how to grant roles.

Enable the APIs

Set up the environment

To set up the development environment for the discovery agent, do the following:

  1. Clone the dataplex-labs repository.

    git clone https://github.com/GoogleCloudPlatform/dataplex-labs.git

  2. Change to the agent directory:

    cd dataplex-labs/knowledge_catalog_discovery_agent

  3. Create and activate a Python Virtual Environment, then install the dependencies listed in the requirements.txt file:

    • google-adk (Agent Development Kit)
    • google-cloud-dataplex (Knowledge Catalog Python Client)
    • google-api-core
      python3 -m venv /tmp/kcsearch

  source /tmp/kcsearch/bin/activate

  pip3 install -r requirements.txt

  4. Set up the environment variables with the following command:


export GOOGLE_CLOUD_PROJECT=PROJECT_ID
export GOOGLE_GENAI_USE_VERTEXAI=True

    Replace the following:

    • PROJECT_ID with the ID of your project

Run the discovery agent as the root agent

To run the discovery agent directly as the root agent, do the following:

  1. In the agent.py file located in the knowledge_catalog_discovery_agent folder, rename the discovery_agent variable to root_agent.

  2. Run the agent using the adk run command:

    adk run path/to/agent/parent/folder

    Replace the following:

    • path/to/agent/parent/folder with the parent directory that contains the folder with your agent. For example, if your agent resides in knowledge_catalog_discovery_agent/, run adk run from the agents/ directory.

Run the discovery agent as a sub-agent

To integrate the discovery agent into a larger custom agent, such as my_custom_agent, do the following:

  1. Set up your project structure to contain the discovery agent module:

    my_custom_agent/
├── agent.py
└── knowledge_catalog_discovery_agent/
    ├── SKILL.md
    ├── agent.py
    ├── tools.py
    └── utils.py

  2. In your custom agent's agent.py file, import the discovery agent and use it as an agent tool. See the example:

    root_agent = llm_agent.Agent(
    model=google_llm.Gemini(model=GEMINI_MODEL),
    name="my_custom_agent",
    instruction=(
        "You are a Custom Agent. Your goal is to help users understand"
        " their data landscape, evaluate data assets, and derive insights"
        " from available resources. **IMPORTANT**: You should use the"
        " `knowledge_catalog_discovery_agent` to search for and discover"
        " data assets. For best results, pass in the Natural Language user'"
        " query as is to the `knowledge_catalog_discovery_agent`. Once assets"
        " are found, you should analyze their metadata, compare them, and"
        " provide recommendations or summaries to the user to help them make"
        " decisions. Focus on general metadata summary and comparison."
    ),
    tools=[
        agent_tool.AgentTool(discovery_agent),
    ],
)

  3. Run the agent using the adk run command:

    adk run path/to/agent/parent/folder

    Replace the following:

    • path/to/agent/parent/folder with the parent directory that contains your my_custom_agent/ folder. For example, if your agent resides in agents/my_custom_agent/, run adk run from the agents/ directory.
