Automate cross-regional failover with service health

Preview — Cloud Run service health

This feature is subject to the "Pre-GA Offerings Terms" in the General Service Terms section of the Service Specific Terms. Pre-GA features are available "as is" and might have limited support. For more information, see the launch stage descriptions.

This guide shows you how to deploy a highly available, multi-region Cloud Run service with automated failover and failback for external traffic. You can configure a Cloud Run service with these features by setting up Serverless NEGs, a global external Application Load Balancer, and a readiness probe. For more information, see Serve traffic from multiple regions.

Objectives

In this tutorial, you will:

1. Prepare the sample application
2. Deploy Cloud Run services in two regions with readiness probes
3. Set up a global external Application Load Balancer
4. Add your services through the serverless NEG
5. Test failover

Before you begin

Sign in to your Google Cloud account. If you're new to Google Cloud, create an account to evaluate how our products perform in real-world scenarios. New customers also get $300 in free credits to run, test, and deploy workloads.

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Roles required to select or create a project

• Select a project: Selecting a project doesn't require a specific IAM role—you can select any project that you've been granted a role on.
• Create a project: To create a project, you need the Project Creator role (roles/resourcemanager.projectCreator), which contains the resourcemanager.projects.create permission. Learn how to grant roles.

Note: If you don't plan to keep the resources that you create in this procedure, create a project instead of selecting an existing project. After you finish these steps, you can delete the project, removing all resources associated with the project.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Roles required to select or create a project

• Select a project: Selecting a project doesn't require a specific IAM role—you can select any project that you've been granted a role on.
• Create a project: To create a project, you need the Project Creator role (roles/resourcemanager.projectCreator), which contains the resourcemanager.projects.create permission. Learn how to grant roles.

Note: If you don't plan to keep the resources that you create in this procedure, create a project instead of selecting an existing project. After you finish these steps, you can delete the project, removing all resources associated with the project.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

1. Enable the Artifact Registry, Cloud Build, Cloud Run Admin API, Network Services API, and Compute Engine APIs.

   Roles required to enable APIs

   To enable APIs, you need the Service Usage Admin IAM role (roles/serviceusage.serviceUsageAdmin), which contains the serviceusage.services.enable permission. Learn how to grant roles.

   Enable the APIs

2. Install and initialize the gcloud CLI.
3. Update components:

   gcloud components update

4. Set the configuration variables used in this tutorial:

   PROJECT_ID= gcloud config set core/project PROJECT_ID
   PROJECT_NUMBER=$(gcloud projects describe PROJECT_ID --format="value(projectNumber)")
   SERVICE=health-example
   REGION_A=us-west1
   REGION_B=europe-west1

   Replace PROJECT_ID with your Google Cloud project ID.

Set required roles

To deploy from source with build, you or your administrator must grant the Cloud Build service account the following IAM roles.

Click to view required roles for the Cloud Build service account

Cloud Build automatically uses the Compute Engine default service account as the default Cloud Build service account to build your source code and Cloud Run resource, unless you override this behavior. For Cloud Build to build your sources, ask your administrator to grant Cloud Run Builder (roles/run.builder) to the Compute Engine default service account on your project:

  gcloud projects add-iam-policy-binding PROJECT_ID \
      --member=serviceAccount:[e-mail] \
      --role=roles/run.builder


Replace PROJECT_NUMBER with your Google Cloud project number, and PROJECT_ID with your Google Cloud project ID. For detailed instructions on how to find your project ID, and project number, see Creating and managing projects.

Granting the Cloud Run builder role to the Compute Engine default service account takes a couple of minutes to propagate.

Note:

The iam.automaticIamGrantsForDefaultServiceAccounts organization policy constraint prevents the Editor role from being automatically granted to default service accounts. If you created your organization after May 3, 2024, this constraint is enforced by default.

We strongly recommend that you enforce this constraint to disable the automatic role grant. If you disable the automatic role grant, you must decide which roles to grant to the default service accounts, and then grant these roles yourself.

If the default service account already has the Editor role, we recommend that you replace the Editor role with less permissive roles.To safely modify the service account's roles, use Policy Simulator to see the impact of the change, and then grant and revoke the appropriate roles.

To get the permissions that your service identity needs to access the file and Cloud Storage bucket, ask your administrator to grant the service identity the Storage Admin (roles/storage.admin) role. For more details on Cloud Storage roles and permissions, see IAM for Cloud Storage.

For a list of IAM roles and permissions that are associated with Cloud Run, see Cloud Run IAM roles and Cloud Run IAM permissions. If your Cloud Run service interfaces with Google Cloud APIs, such as Cloud Client Libraries, see the service identity configuration guide. For more information about granting roles, see deployment permissions and manage access.

Prepare the sample application

To retrieve the code sample for use:

1. Clone the sample repository to your local machine:

   git clone https://github.com/GoogleCloudPlatform/golang-samples


2. Change to the directory that contains the Cloud Run sample code:

   cd golang-samples/run/service-health


Deploy the Cloud Run service in two regions with readiness probes

Failovers require at least two services from different regions. To deploy your services from source in two different regions with readiness probes, run the following commands:

1. Deploy your service health-example in us-central1 and europe-west1 from the source directory. You need at least one minimum instance to configure service health with readiness probes:

   gcloud beta run deploy $SERVICE \
   --source=. \
   --regions=$REGION_A,$REGION_B \
   --min=10 \
   --readiness-probe httpGet.path="/are_you_ready"


2. Respond to any prompts to install required APIs by responding y when prompted. You only need to do this once for a project. Respond to other prompts by supplying the platform and region, if you haven't set defaults for these as described in the Before you begin section.

Set up a global external Application Load Balancer

To set up a global external Application Load Balancer to route traffic between us-central1 and europe-west1, follow these steps:

1. Create a backend service:

   gcloud compute backend-services create $SERVICE-bs \
     --load-balancing-scheme=EXTERNAL_MANAGED \
     --global


2. Set up a global static external IP address to reach your load balancer:

   gcloud compute addresses create $SERVICE-ip \
     --network-tier=PREMIUM \
     --ip-version=IPV4 \
     --global


3. Create a URL map to route incoming requests to the backend service:

   gcloud compute url-maps create $SERVICE-lb \
     --default-service $SERVICE-bs


4. Create a target HTTP proxy to route requests to your URL map:

   gcloud compute target-http-proxies create $SERVICE-hp \
   --url-map=$SERVICE-lb


5. Create a forwarding rule to route incoming requests to the proxy:

   gcloud compute forwarding-rules create $SERVICE-fr \
     --load-balancing-scheme=EXTERNAL_MANAGED \
     --network-tier=PREMIUM \
     --address=$SERVICE-ip \
     --target-http-proxy=$SERVICE-hp \
     --global \
     --ports=80


Add your services through a serverless NEG

To add the services you deployed in us-central1 and europe-west1 using the Serverless NEG, follow these steps:

1. Create a serverless network endpoint group (NEG) for your Cloud Run service in us-central1 and europe-west1:

   gcloud compute network-endpoint-groups create $SERVICE-neg-$REGION_A \
       --region $REGION_A \
       --network-endpoint-type=serverless \
       --cloud-run-service=$SERVICE


   gcloud compute network-endpoint-groups create $SERVICE-neg-$REGION_B \
       --region $REGION_B \
       --network-endpoint-type=serverless \
       --cloud-run-service=$SERVICE


2. Add the serverless NEG as a backend to the backend services in us-central1 and europe-west1:

   gcloud compute backend-services add-backend $SERVICE-bs \
       --global \
       --network-endpoint-group=$SERVICE-neg-$REGION_A \
       --network-endpoint-group-region=$REGION_A


   gcloud compute backend-services add-backend $SERVICE-bs \
       --global \
       --network-endpoint-group=$SERVICE-neg-$REGION_B \
       --network-endpoint-group-region=$REGION_B


For additional configuration options, see Set up a global external Application Load Balancer with Cloud Run.

Test failover

To test failover for ensuring the reliability and resilience of your Cloud Run services, follow these steps:

1. Run the following command to get your load balancer's IP address:

   LBIP=$(gcloud compute addresses describe $SERVICE-ip --global --format='value(address)')


2. Optional: Send a request to your load balancer if your services require authentication:

   curl  -H "Authorization: Bearer $(gcloud auth print-identity-token)" $LBIP


3. Obtain the value of the LBIP variable by running the echo $LBIP command. This outputs the load balancer's IP address. For example, 11.22.33.44

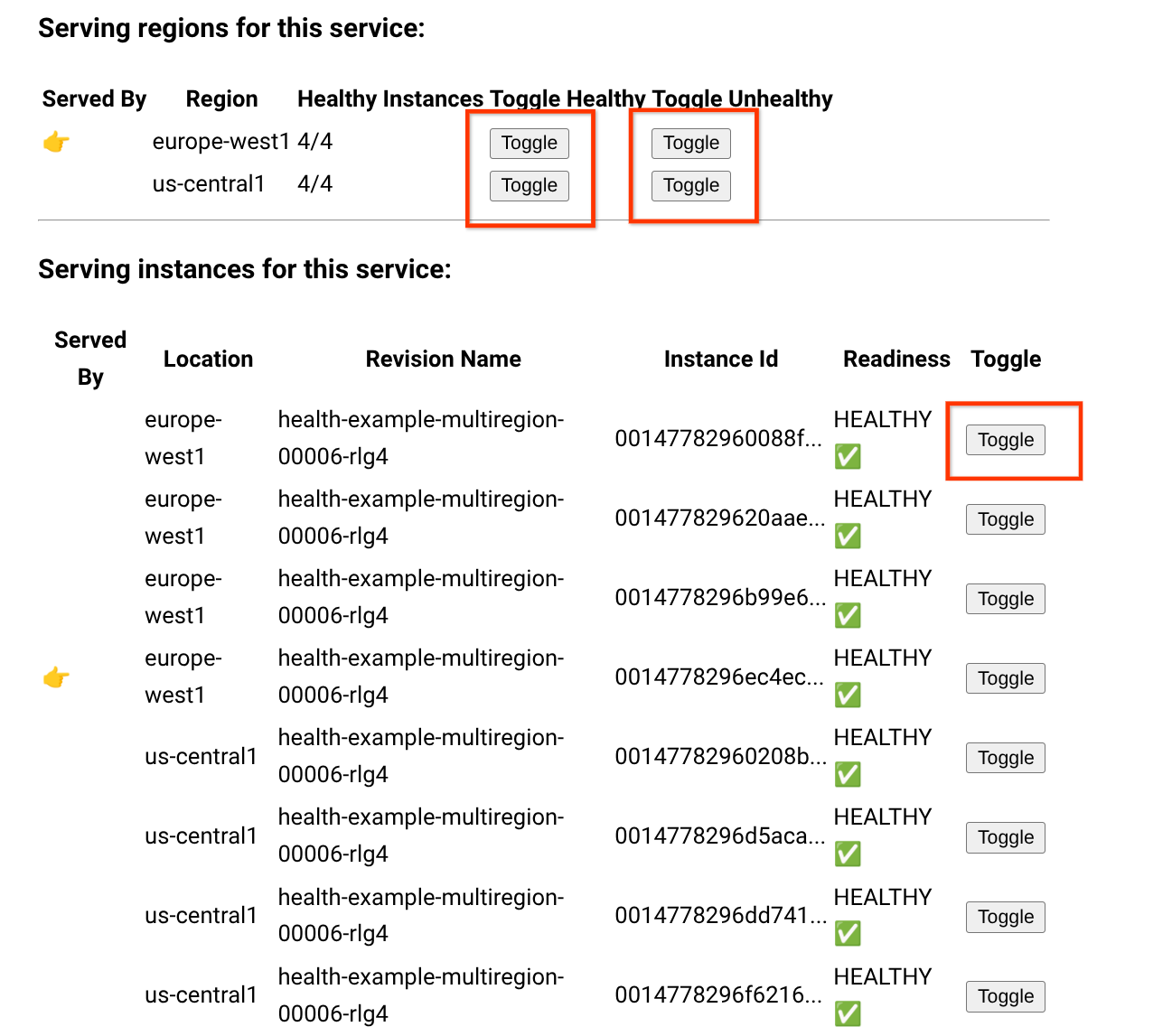

4. To test a failover, navigate to the http://LOAD_BALANCER_IP URL where LOAD_BALANCER_IP is the value you obtained in the previous step. Click the toggle button for your region in the Serving Regions section. This designates the healthy region and the instance serving traffic:



Success: You deployed a highly available, multi-region Cloud Run service with automated failover and failback for external traffic.

Clean up

To avoid additional charges to your Google Cloud account, delete all the resources you deployed with this tutorial.

Delete the project

If you created a new project for this tutorial, delete the project. If you used an existing project and need to keep it without the changes you added in this tutorial, delete resources that you created for the tutorial.

The easiest way to eliminate billing is to delete the project that you created for the tutorial.

To delete the project:

Caution: Deleting a project has the following effects:

• Everything in the project is deleted. If you used an existing project for the tasks in this document, when you delete it, you also delete any other work you've done in the project.
• Custom project IDs are lost. When you created this project, you might have created a custom project ID that you want to use in the future. To preserve the URLs that use the project ID, such as an appspot.com URL, delete selected resources inside the project instead of deleting the whole project.

If you plan to explore multiple architectures, tutorials, or quickstarts, reusing projects can help you avoid exceeding project quota limits.

1. In the Google Cloud console, go to the Manage resources page.

   Go to Manage resources

2. In the project list, select the project that you want to delete, and then click Delete.
3. In the dialog, type the project ID, and then click Shut down to delete the project.

Delete tutorial resources

1. Delete the Cloud Run service you deployed in this tutorial. Cloud Run services don't incur costs until they receive requests.

   To delete your Cloud Run service, run the following command:

   gcloud run services delete SERVICE-NAME

   Replace SERVICE-NAME with the name of your service.

   You can also delete Cloud Run services from the Google Cloud console.

2. Remove the gcloud default region configuration you added during tutorial setup:

    gcloud config unset run/region


3. Remove the project configuration:

    gcloud config unset project
