Create charts with Metrics Explorer

This document explains how to explore metric data by creating temporary charts with Metrics Explorer. For example, to view the CPU utilization of a virtual machine (VM), use Metrics Explorer to create a chart that displays the most recent data. To create permanent charts, create a chart with Metrics Explorer and save it to a custom dashboard. Alternatively, create a custom dashboard and use its interface to add charts. Dashboards can display log data, metric data, trace data, incidents, and other content. For more information, see Create and manage custom dashboards.

You can create charts that display a single metric type or complex charts that display multiple metric types. After you create a chart with Metrics Explorer, you can discard it, save it to a custom dashboard, save its configuration, or share it.

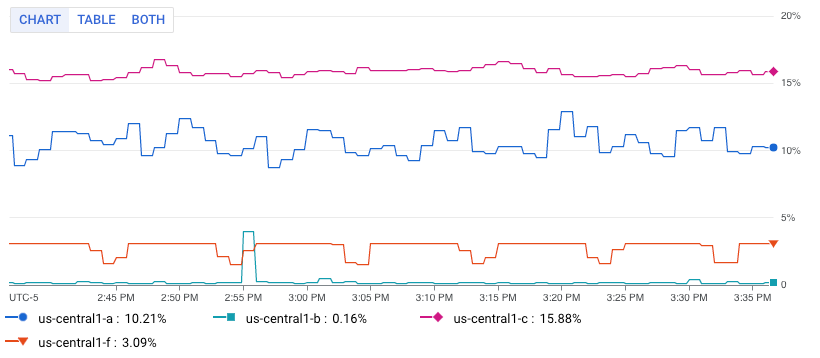

The following image shows a single metric type—the CPU utilization of a VM instance—displayed on the Metrics Explorer page:

Chart displaying a single metric type, CPU utilization, using Metrics Explorer.

The image shows multiple lines. Each line displays the average CPU utilization for all VMs in a specific zone.

This feature is supported only for Google Cloud projects. For App Hub configurations, select the App Hub host project or management project.

Before you begin

To get the permissions that you need to break down a chart by labels, ask your administrator to grant you the Monitoring Viewer (roles/monitoring.viewer) IAM role on your project. For more information about granting roles, see Manage access to projects, folders, and organizations.

You might also be able to get the required permissions through custom roles or other predefined roles.

Chart a single metric type

By default, when you create a chart the display style is set to line chart. This style of chart is appropriate for most metric data. You can change the chart style by using the Widget type menu.

To configure a chart to display a single metric, do the following:

  1. In the Google Cloud console, go to the  Metrics explorer page:

    Go to Metrics explorer

    If you use the search bar to find this page, then select the result whose subheading is Monitoring.

  2. In the toolbar of the Google Cloud console, select your Google Cloud project. For App Hub configurations, select the App Hub host project or management project.

  3. Specify the data to display on the chart. You can use a menu-driven interface, PromQL, or you can enter a Monitoring filter:

    1. Select the time series data that you want to view:

      1. In the Metric element, expand the Select a metric menu.

        The Select a metric menu contains features that help you find the metric types available:

        • To find a specific metric type, use the Filter bar. For example, if you by enter util, then you restrict the menu to show entries that include util. Entries are shown when they pass a case-insensitive "contains" test.
        • To show all metric types, even those without data, click Active. By default, the menus only show metric types with data.

        For example, you might make the following choices:

        1. In the Active resources menu, select VM instance.
        2. In the Active metric categories menu, select uptime_check.
        3. In the Active metrics menu, select Request latency.
        4. Click Apply.
      2. Optional: To specify a subset of data to display, in the Filter element, select Add filter, and then complete the dialog. For example, you can view data for one zone by applying a filter. You can add multiple filters. For more information, see Filter charted data.

      For more information, see Select the data to chart.

    2. Combine and align time series:

      • To display every time series, in the Aggregation element, set the first menu to Unaggregated and the second menu to None.
      • To combine time series, in the Aggregation element, do the following:

        1. Expand the first menu and select a function.

          The chart is refreshed and displays a single time series. For example, if you select Mean, then the displayed time series is the average of all time series.

        2. To combine time series that have the same label values, expand the second menu, and then select one or more labels.

          The chart is refreshed and shows one time series for each unique combination of label values. For example, to display on time series per zone, set the second menu to zone.

          When the second menu is set to None, the chart displays one time series.

      • Optional: To configure the spacing between data points, click Add query element, select Min Interval, and then enter a value.

      For more information about grouping and alignment, see Choose how to display charted data.

    3. Optional: To display only the time series with the highest or lowest values, use the Sort & Limit element.

    PromQL

    1. In the toolbar of the query-builder pane, select the button whose name is  PromQL.

    2. Enter your query into the query editor. For example, to chart the average CPU utilization of the VM instances in your Google Cloud project, use the following query:

      avg(compute_googleapis_com:instance_cpu_utilization)

      For more information about using PromQL, see PromQL in Cloud Monitoring.

    Monitoring filter

    1. In the Metric element, click Help, and then select Direct Filter Mode.

      The Metric and Filter elements are deleted, and a Filters element that lets you enter text, is created.

      If you selected a resource type, metric, or filters before switching to Direct Filter Mode mode, then those settings are shown in the field of the Filters element.

    2. Enter a Monitoring filter in the field of the Filters element.

    3. Combine and align time series:

      • To display every time series, in the Aggregation element, set the first menu to Unaggregated and the second menu to None.
      • To combine time series, in the Aggregation element, do the following:

        1. Expand the first menu and select a function.

          The chart is refreshed and displays a single time series. For example, if you select Mean, then the displayed time series is the average of all time series.

        2. To combine time series that have the same label values, expand the second menu, and then select one or more labels.

          The chart is refreshed and shows one time series for each unique combination of label values. For example, to display on time series per zone, set the second menu to zone.

          When the second menu is set to None, the chart displays one time series.

      • Optional: To configure the spacing between data points, click Add query element, select Min Interval, and then enter a value.

      For more information about grouping and alignment, see Choose how to display charted data.

Advanced configuration options

This section describes the options available to you to customize your widget:

Break down your chart by labels

By default, Metrics Explorer displays one chart that shows the metric data you selected. When you are investigating an issue, the breakdown feature can help you determine if specific resource types or locations are the cause.

To view your selected metric type broken down by labels, select Show breakdown.

To learn about this feature, see Break down a chart by labels.

Change the visualization

By default, Metrics Explorer displays your selected metric data as a line chart. This style of chart is appropriate for most, but not all, metric types.

Update the chart settings based on your selected metric type:

  • For quota metric types, use the following settings:
    • In the toolbar, set the time control to be at least one week. Quota metrics typically report one sample per day.
    • In the Display pane, expand the Widget type menu and then select Stacked bar chart.
  • For metric types that have a Distribution value type, ensure that the Widget type menu is set to Heatmap chart. For more information, see About distribution-valued metrics.
  • For other metric types, use the Widget type menu to display how the data is shown. The Widget type menu lists all available widget types; however, some widgets might not be enabled. Consider a chart that displays multiple time series, and assume that each measured value is a double:
    • Line chart, Stacked bar chart, and Stacked area chart widgets are listed as Compatible. You can select any of these types.
    • The Heatmap widget is disabled because these widgets can only display distribution-valued data.

Change the chart's appearance

By default, Metrics Explorer displays time series using color mode. Each time series is assigned a unique color and the background is white. However, you can modify this appearance.

Optional: To change how a chart or table displays the selected data, use the options in the Display pane:

Chart multiple metric types

This feature is available only when you use the menu-driven interface. It isn't available when you use PromQL or Monitoring filters.

In some situations, you might want to display time series from different metric types on the same chart. For example, to compare the read and write loads on a VM, configure a chart to display the number of bytes read and the number of bytes written.

To chart multiple metrics, you must use the menu-driven interface. The other interfaces don't support charting multiple metrics.

To display multiple metrics on a chart, do the following:

  1. In the Google Cloud console, go to the  Metrics explorer page:

    Go to Metrics explorer

    If you use the search bar to find this page, then select the result whose subheading is Monitoring.

  2. In the toolbar of the Google Cloud console, select your Google Cloud project. For App Hub configurations, select the App Hub host project or management project.

  3. Specify the data to display on the chart.

    1. In the Metric element, and then select the first metric type whose data you want to view. For information about these steps, see Chart a single metric type.

      The query for this selection has the A identifier.

    2. For each additional metric type, do the following:

      1. Select Add query. A new query is added. For example, a query with the label B might be added.
      2. For the new query, in the Metric element, select a resource type and metric type. You can also add filters, combine time series, and sort and limit the number of displayed time series.

      The following screenshot illustrates the Metrics Explorer display when there are two metric types charted:

      Example of Metrics Explorer with two metric types.

    3. Optional: In the Display pane, expand the Y-axis menu and configure which Y-axis is used for each metric type.

Chart a ratio of metrics

This feature is available only when you use the menu-driven interface or when you use PromQL. It isn't available when you use Monitoring filters.

Monitoring the number of errors reported might be useful; however, it is more likely that you need to monitor the rate of errors. That is, you want to know how many errors occurred as measured against the total number of responses. To meet this requirement, you can configure a chart to display the ratio of two metrics. For references to examples and for information about anomalies that can occur when you chart ratios of metrics, see Ratios of metrics.

To display a ratio of metrics on a chart, do the following:

  1. In the Google Cloud console, go to the  Metrics explorer page:

    Go to Metrics explorer

    If you use the search bar to find this page, then select the result whose subheading is Monitoring.

  2. In the toolbar of the Google Cloud console, select your Google Cloud project. For App Hub configurations, select the App Hub host project or management project.

  3. Specify the data to appear on the chart:

    1. Configure the numerator:
      1. In the Metric element, use the menus to select a resource type and metric type. For information about these steps, see Chart a single metric type.
      2. Update the aggregation fields. By default, averages all time series.
      3. Optional: Update the fixed length of time for points within a time series to be combined. To modify this field, click Add query element, select Min Interval, and complete the dialog.
    2. Select Add query and then configure the denominator:
      1. For the new query, in Metric element, select a resource type and metric type.

        Select a metric type whose metric kind is the same as the numerator. For example, if the numerator metric is a GAUGE metric, then the select a GAUGE metric for the denominator.

      2. Update the aggregation fields.

        We recommend that the labels for the denominator metric type match the values set for the numerator metric type. For example, you might select the zone label for the numerator and denominator.

        You aren't required to use the same set of labels for both metric types; however, you can only select labels that are common to both metric types.

      3. Click Add query element, select Min Interval, and ensure this field is set to the value that is used by the numerator.

    3. In the toolbar of the query pane, select Create ratio, and then complete the dialog.

      After you create the ratio, three queries are shown:

      • A/B Ratio identifies the ratio query.
      • A identifies the query for the numerator.
      • B identifies the query for the denominator.

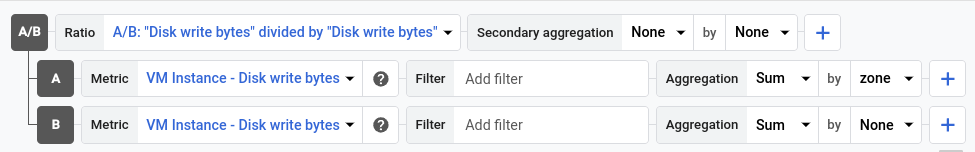

      The following example illustrates a ratio that compares the sum of the bytes written to disk per zone, to the total number of bytes written to disk:

      Example of a ratio of metrics.

    4. Optional: To switch the numerator and denominator metrics, in the Ratio element, expand the menu, and then make a selection.

    PromQL

    1. In the toolbar of the query-builder pane, select the button whose name is  PromQL.

    2. Enter your query into the query editor. For example, to chart the ratio of average latency of your my_summary_latency_seconds metric, use the following query:

      sum without (instance)(rate(my_summary_latency_seconds_sum[5m])) /
sum without (instance)(rate(my_summary_latency_seconds_count[5m]))

      For more information about using PromQL, see PromQL in Cloud Monitoring.

Save a chart

After you configure a chart, you might want to save that chart for future reference or save the data the chart displays. This section describes these options.

Save a link to a chart

To keep a reference to the chart configuration, save the chart URL. Because the chart URL encodes the chart configuration, when you paste this URL into a browser the chart you configured is displayed.

To obtain the chart's URL, click Link in the chart toolbar.

Add your chart to a custom dashboard

Metrics Explorer lets you create a chart that you can use to explore a metric. However, the charts created by this tool aren't persistent. When you navigate away from the Metrics Explorer page, the chart is discarded.

To save a chart you've configured with Metrics Explorer for future reference, add the chart to a custom dashboard or save the chart's URL:

  • To add your chart to a custom dashboard, do one of the following:

    • If you use the Google Cloud console to manage your custom dashboards, then select Save as in the Metrics Explorer toolbar, select Dashboard chart, and then complete the dialog. You can save the chart to an existing custom dashboard or you can create a dashboard.

    • If you use the Cloud Monitoring API to manage your custom dashboards, then update the JSON file that defines the dashboard and its widgets. The JSON for each widget includes the query the system uses to fetch the data to display.

      To access the JSON representation, click  JSON Editor in the chart toolbar.

      For detailed information about using the API to manage your custom dashboards, see Create and manage dashboards by API.

Save the data displayed by the chart

To save the data displayed by the chart to your local system, click Download CSV.

Create an alerting policy from your chart

You can create an alerting policy to monitor the data you've charted. To create an alerting policy, do the following:

  1. In the toolbar, click Save as and select Alert policy.

    The alerting policy dialog opens with the metric-selection fields populated. Your alerting policy is configured to notify you when the value of the monitored data becomes larger than the threshold.

  2. Complete the following and then save your policy:

    • In the Configure trigger section, update the threshold.
    • Add notification channels.
    • Enter a name for your alerting policy.
