預先建構的代理

預先建構的代理程式是 Dialogflow CX 提供的一系列代理程式，可因應常見使用情境。您可將這些代理程式當做基礎，再進一步建構對話。在 Dialogflow CX 中，您會看到電信、金融服務、醫療保健、零售和旅遊等產業的熱門用途。您也可以使用生成式預建代理程式，瞭解如何運用生成式功能實作常見用途，但這類代理程式的存取權有限。

預先建構的代理程式包含適用於其用途的意圖和實體，但您需要修改範例路徑群組和完成 (如適用)。

限制

限制如下：

預建代理程式目前僅支援英文 (en)。

匯入預先建構的代理程式

如要將預先建構的代理程式匯入專案，請按照下列步驟操作：

前往 Dialogflow CX 主控台。
按一下要匯入預建代理程式的專案。
按一下「使用預先建構的代理程式」。
按一下感興趣的代理程式，然後點選「匯入」。
選擇所需位置，然後按一下「建立」。
開始測試及自訂。

自訂匯入的預先建構代理程式

使用模擬器測試代理程式，瞭解代理程式可協助使用者完成哪些工作。
按一下左側窗格中的「管理」分頁標籤，然後按一下「測試案例」，即可查看涵蓋範圍和範例指令碼。詳情請參閱「測試案例」說明文件。
刪除與用途無關的流程。
編輯代理程式對話和自訂實體，滿足業務需求。
如果存在 Webhook 原始碼，請參閱「修改 Webhook 程式碼」。

修改 Webhook 程式碼

部分預先建立的代理程式會使用 Webhook。原始 Webhook 原始碼使用 Node.js，並託管在 Google 內部 Cloud Functions 專案中。

如要在自己的 Cloud Functions 專案中使用及修改這段程式碼，請按照後續指示操作：

前往 Dialogflow CX 主控台。
按一下要匯入預建代理程式的專案。
按一下「使用預先建構的代理程式」。

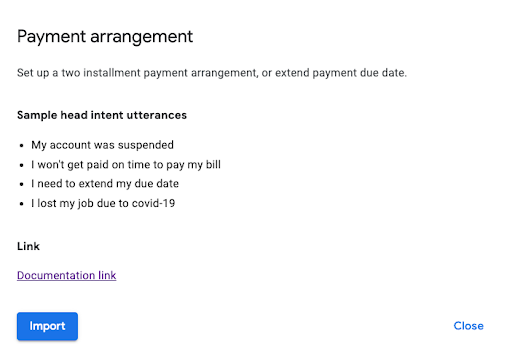

按一下感興趣的代理，然後點選「說明文件連結」，即可前往本文件中相關的預先建構代理部分。
請參閱Webhook 小節，瞭解預先建構的代理程式，並複製原始碼。

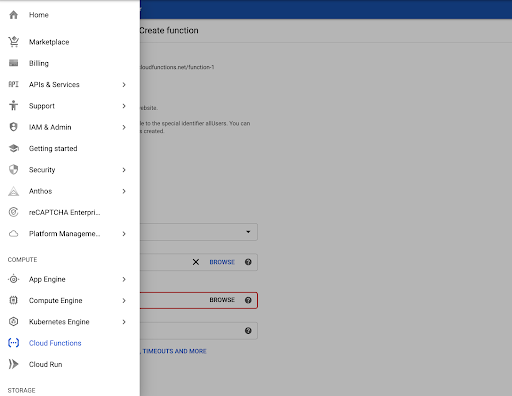

前往 Google Cloud 控制台，然後選取左側面板的「Cloud Functions」。
按一下要匯入原始碼的專案。
按一下「建立函式」。如需進一步的操作說明，請參閱「建立 Cloud Function」說明文件。
在「Source code」(原始碼) 區段下方，選取「Inline Editor」(內嵌編輯器)，然後貼上複製的原始碼。
依序點選「來源」和「編輯」，即可根據業務規則變更邏輯。完成後，按一下「部署」。
按一下「觸發條件」，然後複製「觸發條件網址」。
前往「管理」>「Webhook」，選取要貼上新網址的 webhook，然後取代代理程式中的觸發條件網址。將「觸發網址」貼到標示為「Webhook 網址」的欄位。然後按一下 [儲存]。
使用 Webhook 文件測試執行要求。

金融服務代理人

這個範本可協助使用者處理卡片和支票事宜、查詢應用程式狀態，以及調查可疑費用。

語音指令範例

我想支付餘額。
我遺失了卡片，需要申請新卡。
我想檢舉支票帳戶中的可疑活動。
我的汽車貸款申請狀態為何？
貴公司的商務信用卡年費各是多少？

Webhook

Cloud Functions Webhook 會執行下列動作：

驗證使用者的身分
提供餘額、貸款狀態和信用卡功能資訊範例
模擬付款交易，包括驗證付款金額和日期
控管營業時間

package.json

{
  "name": "sample-http",
  "version": "0.0.1"
}

index.js

/**
 * Responds to any HTTP request.
 *
 * @param {!express:Request} req HTTP request context.
 * @param {!express:Response} res HTTP response context.
 */
exports.cxPrebuiltAgentsFinServ = (req, res) => {
  console.log('Cloud Function:', 'Invoked cloud function from Dialogflow CX');
  let tag = req.body.fulfillmentInfo.tag;

  if (!!tag) {
    switch (tag) {
      // BEGIN validateAccount
      case 'validateAccount':
        console.log(tag + ' was triggered.');
        let card_last_four = req.body.sessionInfo.parameters.card_last_four;

        let card_verified;
        // card validation only fails if card number is 0000
        if (card_last_four == '0000') {
          card_verified = 'false';
        } else {
          card_verified = 'true';
        }

        res.status(200).send(
            {sessionInfo: {parameters: {card_verified: card_verified}}});

        console.log(' verified: ' + card_verified);
        break;

      // BEGIN getAccountInfo
      case 'getAccountInfo':
        console.log(tag + ' was triggered.');
        let current_balance;
        let last_statement_balance;
        let minimum_due;

        // Random current balance between 1 and 1000
        current_balance = Math.floor(Math.random() * 1000);

        // Last statement balance is 70% of current balance
        last_statement_balance = Math.floor(current_balance * 0.7);

        // Minimum due is 25% of last statement balance
        minimum_due = Math.floor(last_statement_balance * 0.25);

        res.status(200).send({
          sessionInfo: {
            parameters: {
              current_balance: current_balance,
              last_statement_balance: last_statement_balance,
              minimum_due: minimum_due
            }
          }
        });

        console.log(
            'current balance: ' + current_balance +
            ' last statement balance: ' + last_statement_balance);
        break;

      // BEGIN getPaymentSource
      case 'getPaymentSource':
        console.log(tag + ' was triggered.');

        // static array of account names
        let account_names =
            ['National Checking Account', 'My Checking', 'Personal Checking'];

        // random array value for account names
        let account_index = Math.floor(Math.random() * account_names.length);
        let selected_account = account_names[account_index];

        res.status(200).send(
            {sessionInfo: {parameters: {selected_account: selected_account}}});

        console.log(' selected account: ' + selected_account);
        break;

      // BEGIN submitPayment
      case 'submitPayment':
        console.log(tag + ' was triggered.');

        let card_digits =
            String(req.body.sessionInfo.parameters.card_last_four);

        let payment_status;
        // When first digit of card_digits is 9 the transaction fails
        if (card_digits[0] == '9') {
          payment_status = 'fail';
        } else {
          payment_status = 'success';
        }

        res.status(200).send(
            {sessionInfo: {parameters: {payment_status: payment_status}}});

        console.log(' verified: ' + card_verified);
        break;

      // BEGIN validatePaymentAmount
      case 'validatePaymentAmount':
        console.log(tag + ' was triggered.');

        // get payment amount
        let payment_amount =
            Number(req.body.sessionInfo.parameters.other_amount);
        let current_balance_temp =
            req.body.sessionInfo.parameters.current_balance;
        let amount_valid;

        payment_amount = Number(payment_amount);

        console.log(
            `payment_amount: ` + payment_amount + ` current balance: ` +
            current_balance_temp);

        // confirm payment amount is a positive value less than or equal to the
        // current balance
        if (payment_amount > 0) {
          if (payment_amount <= current_balance_temp) {
            amount_valid = true;
          } else {
            amount_valid = false;
          }
        } else {
          amount_valid = false;
        }

        res.status(200).send(
            {sessionInfo: {parameters: {amount_valid: amount_valid}}});

        console.log('payment status: ' + payment_status);
        break;

      // BEGIN validatePaymentDate
      case 'validatePaymentDate':
        console.log(tag + ' was triggered.');

        // get payment date
        let payment_date_raw = req.body.sessionInfo.parameters.payment_date;

        // set payment date in date object format. subtract one from month
        // because month is indexed to 0.
        let payment_year = payment_date_raw.year;
        let payment_month = payment_date_raw.month - 1;
        let payment_day = payment_date_raw.day;

        console.log(
            'Payment - Year: ' + payment_year + ' Month ' + payment_month +
            ' Day: ' + payment_day);

        // set today's date
        let today = new Date();

        let this_year = today.getFullYear();
        let this_month = today.getMonth();
        let this_day = today.getDate();

        console.log(
            'Today - Year: ' + this_year + ' Month ' + this_month +
            ' Day: ' + this_day);

        let payment_date_valid;

        // check if the payment date is after today
        if (payment_year > this_year) {
          payment_date_valid = true;
          console.log('Future year');
        } else if (payment_year == this_year && payment_month > this_month) {
          payment_date_valid = true;
          console.log('Future month');
        } else if (
            payment_year == this_year && payment_month == this_month &&
            payment_day >= this_day) {
          payment_date_valid = true;
          console.log('Today or later this month');
        } else {
          payment_date_valid = false;
        }


        res.status(200).send({
          sessionInfo: {parameters: {payment_date_valid: payment_date_valid}}
        });

        console.log('payment date valid: ' + payment_date_valid);
        break;

      // BEGIN checkInHours
      case 'checkInHours':
        console.log(tag + ' was triggered.');

        // check if we are currently in hours
        let currentDate = new Date();
        console.log('current time is  ' + currentDate);

        let currentHour = currentDate.getHours();
        console.log('current hour is ' + currentHour);
        if (currentHour >= 8 && currentHour <= 20) {
          in_hours = 'true';
          console.log('currently in hours');
        } else {
          in_hours = 'false';
          console.log('currently out of hours');
        }

        res.status(200).send({sessionInfo: {parameters: {in_hours: in_hours}}});
        break;

      // BEGIN getRetryCount
      case 'getRetryCount':
        console.log(tag + ' was triggered.');

        // increment the current retry counter
        let retry_count = req.body.sessionInfo.parameters.retry_count;
        retry_count = retry_count + 1;

        res.status(200).send(
            {sessionInfo: {parameters: {retry_count: retry_count}}});
        break;

      // BEGIN getLoanStatus
      case 'getLoanStatus':
        console.log(tag + ' was triggered.');

        let loan_reference =
            String(req.body.sessionInfo.parameters.loan_reference);
        let loan_type = loan_reference[0];
        let loan_status = loan_reference[1];
        let loan_found = 'true';

        console.log('loan ref is ' + loan_reference);
        console.log('type is ' + loan_type);
        console.log('status is ' + loan_status);

        // mock loan not found
        if (loan_reference[0] == '0') {
          loan_found = 'false';
        }

        // mock loan found
        if ((loan_type != 'auto') && (loan_type != 'home')) {
          if (loan_reference[0] > '5') {
            loan_type = 'home';
          } else {
            loan_type = 'auto';
          }
        }

        res.status(200).send({
          sessionInfo: {
            parameters: {
              loan_type: loan_type,
              loan_status: loan_status,
              loan_found: loan_found
            }
          }
        });
        break;

      // BEGIN validateTransactionDate
      case 'validateTransactionDate':
        console.log(tag + ' was triggered.');

        // get date queried
        let date_queried_raw = req.body.sessionInfo.parameters.date_queried;

        // set date queried in date object format. subtract one from month
        // because month is indexed to 0.
        date_queried = new Date(
            date_queried_raw.year, date_queried_raw.month - 1,
            date_queried_raw.day);

        console.log(date_queried + ' is the date im looking for.');

        let date_valid;
        let date_now = new Date();

        // check if the payment date is after today
        if (date_queried > date_now) {
          date_valid = 'false';
        } else {
          date_valid = 'true';
        }

        res.status(200).send(
            {sessionInfo: {parameters: {date_valid: date_valid}}});
        break;

      // BEGIN lookupTransactions
      case 'lookupTransactions':
        console.log(tag + ' was triggered.');

        // select a random retailer from the retailers array
        let retailers = [
          'Dior', 'Walmart', 'Target', 'Costco', 'Macy\'s', 'Bed Bath & Beyond',
          'Amazon', 'Walgreens', 'Home Depot', 'Best Buy', 'Kohl\'s'
        ];
        let randomRetail = Math.floor(Math.random() * retailers.length);
        console.log('random retail value ' + randomRetail);

        let retailer_queried = retailers[randomRetail];

        // Alter the transaction amount
        let amount_queried =
            Number(req.body.sessionInfo.parameters.amount_queried.amount);
        let transaction_value = Number(amount_queried);
        let randomAdjust = Math.floor(Math.random() * 5);
        randomAdjust = Number(randomAdjust / 100);
        let adjustment = Number(amount_queried * randomAdjust);

        let randomMath = Math.floor(Math.random() * 1);
        if (randomMath < 1) {
          transaction_value = Number(transaction_value - adjustment).toFixed(2);
        } else if (randomMath = 1) {
          transaction_value = Number(transaction_value + adjustment).toFixed(2);
        }

        if (amount_queried < 1000) {
          transaction_found = 'true';
        } else {
          transaction_found = 'false';
        }

        res.status(200).send({
          sessionInfo: {
            parameters: {
              retailer_queried: retailer_queried,
              transaction_value: transaction_value,
              transaction_found: transaction_found
            }
          }
        });

        break;

      // BEGIN lookupCardFeatures
      case 'lookupCardFeatures':
        console.log(tag + ' was triggered.');

        // setup arrays for card features
        let interestRate = [
          '14.5% APR',
          '0% APR in year 1 and then increases to 25% APR in year 2',
          '10% APR in year 1 and then increases to 20% APR in year 2', '18% APR'
        ];
        let annualFee = [
          '$0 annual fee for year 1 and then increases to $90 in year 2',
          '$70 annual fee starting in year 1',
          '$15 annual fee for year 1 and then increases to $80 in year 2',
          '$50 annual fee starting in year 1'
        ];
        let cashBackRate = ['1%', '3%', '6%', '2%', '5%', '4%'];
        let pointsBonus = ['50,000', '25,000', '10,000', '100,000', '75,000'];

        // setup card one features
        let cardOneRandomInterest =
            Math.floor(Math.random() * interestRate.length);
        let card_one_interest = interestRate[cardOneRandomInterest];
        let cardOneRandomFee = Math.floor(Math.random() * annualFee.length);
        let card_one_fee = annualFee[cardOneRandomFee];
        let cardOneRandomCashback =
            Math.floor(Math.random() * cashBackRate.length);
        let card_one_cashback = cashBackRate[cardOneRandomCashback];
        let cardOneRandomPoints =
            Math.floor(Math.random() * pointsBonus.length);
        let card_one_points = pointsBonus[cardOneRandomPoints];

        // setup card two features
        let cardTwoRandomInterest =
            Math.floor(Math.random() * interestRate.length);
        let card_two_interest = interestRate[cardTwoRandomInterest];
        let cardTwoRandomFee = Math.floor(Math.random() * annualFee.length);
        let card_two_fee = annualFee[cardTwoRandomFee];
        let cardTwoRandomCashback =
            Math.floor(Math.random() * cashBackRate.length);
        let card_two_cashback = cashBackRate[cardTwoRandomCashback];
        let cardTwoRandomPoints =
            Math.floor(Math.random() * pointsBonus.length);
        let card_two_points = pointsBonus[cardTwoRandomPoints];

        res.status(200).send({
          sessionInfo: {
            parameters: {
              card_one_interest: card_one_interest,
              card_one_fee: card_one_fee,
              card_one_cashback: card_one_cashback,
              card_one_points: card_one_points,
              card_two_interest: card_two_interest,
              card_two_fee: card_two_fee,
              card_two_cashback: card_two_cashback,
              card_two_points: card_two_points
            }
          }
        });
        break;

      default:
        console.log('default case called');
        res.status(200).end();
        break;
    }
  }
};

醫療照護代理人

這個範本可協助使用者查看理賠、福利，以及尋找醫生。

語音指令範例

什麼是共同保險？
可以幫我找醫生嗎？
我身體不適。
我的自付額是多少？

訂單和帳戶管理專員

這個範本可協助消費者購買或退回產品、追蹤訂單，以及管理帳戶設定，例如會員點數、地址和密碼。

語音指令範例

我還沒收到訂單商品，請問在哪裡？
我想換新手機。
我忘記密碼了。
請告訴我目前有多少點數。
我搬家了，需要更新地址。

付款安排代理人

這個範本可協助使用者設定分兩期付款的付款方案，或延長付款期限。

語音指令範例

我的帳戶遭到停權。
我無法及時收到款項，因此無法支付帳單。
我需要延長截止日期。
我因 COVID-19 疫情而失業。

Webhook

這個 Cloud Functions Webhook 會執行下列動作：

提供應付金額和最長延期天數的範例。
根據總餘額與已支付的第一期款項之間的差額，計算第二期款項。
驗證要求延期的日期是否超過最長延期期限。

package.json

{
  "name": "sample-http",
  "version": "0.0.1",
  "dependencies": {
    "moment": "2.27.0"
  }
}

index.js

const moment = require('moment');

function getRandomAmount(min, max) {
  return Math.random() * (max - min) + min;
}

function formatCurrency(amount) {
  return Number(amount).toFixed(2);
}

function formatUserDate(dateObject) {
  if (!dateObject) {
    console.log('dateObject error. dateObject passed to formatUserDate is:', dateObject);
    console.log('dateObject requires day, month, year properties:');
    // return false if the dates are not valid
    // returning false prevents the if/else block from running, which causes the function to crash.
    return false;
  }
  console.log('formatUserDate date set.');
  const { day, year, month } = dateObject;
  return `${year}-${month}-${day}`;
}

/**
* Responds to any HTTP request.
*
* @param {!express:Request} req HTTP request context.
* @param {!express:Response} res HTTP response context.
*/

exports.cxPrebuiltAgentsPaymentArrangement = (req, res) => {

  var tag = req.body.fulfillmentInfo.tag;
  var first_payment;
  var amount_due_1;
  //var adjust_due_date;
  var max_date_1;
  var maxDate1;
  var max_date_2;
  var maxDate2;
  var current_due_date;
  var max_extension_date;
  var maxExtensionDate;
  var amount_due;
  var payment_amount_2;
  var dateFromUser;
  var valid_payment;
  var valid_date;

  if (!!tag) {
      switch (tag) {

         //Initialize Dynamic parameters
         case 'setDynamicParams':
            console.log(tag + ' was triggered.');
            max_date_1 = moment().add(15, 'days').calendar();
            max_date_2 = moment().add(25, 'days').calendar();
            current_due_date = moment().add(10, 'days').calendar();
            max_extension_date = moment().add(30, 'days').calendar();
            amount_due = formatCurrency(getRandomAmount(200, 400));

            res.status(200).send({
                sessionInfo: {
                    parameters: {
                       max_date_1: max_date_1,
                       max_date_2: max_date_2,
                       current_due_date: current_due_date,
                       max_extension_date: max_extension_date,
                       amount_due: amount_due,
                    }
                }
            });
            break;

        //Initialize Static parameters
        case 'setStaticParams':
            console.log(tag + ' was triggered.');
            user_id = req.body.sessionInfo.parameters.user_id;
            if (user_id == '1001') {
                max_date_1 = "2021-01-15";
                max_date_2 = "2021-01-30";
                current_due_date = "2021-01-01";
                max_extension_date = "2021-02-15";
                amount_due = '225.00';
            } else if (user_id == '2002') {
                max_date_1 = "2021-03-15";
                max_date_2 = "2021-03-30";
                current_due_date = "2021-03-01";
                max_extension_date = "2021-04-15";
                amount_due = '333.00';
            } else if (user_id == '3003') {
                max_date_1 = "2021-05-15";
                max_date_2 = "2021-05-30";
                current_due_date = "2021-05-01";
                max_extension_date = "2021-06-15";
                amount_due = '189.00';
            } else {
                max_date_1 = moment().add(15, 'days').calendar();
                max_date_2 = moment().add(25, 'days').calendar();
                current_due_date = moment().add(10, 'days').calendar();
                max_extension_date = moment().add(30, 'days').calendar();
                amount_due = formatCurrency(getRandomAmount(200, 400));
            }
            res.status(200).send({
                sessionInfo: {
                    parameters: {
                       max_date_1: max_date_1,
                       max_date_2: max_date_2,
                       current_due_date: current_due_date,
                       max_extension_date: max_extension_date,
                       amount_due: formatCurrency(amount_due),
                    }
                }
            });
            break;

        //Automatically set second payment based on first payment amount
        case 'secondPayment':
            console.log(tag + ' was triggered.');
            first_payment = req.body.sessionInfo.parameters.payment_amount_1.amount;
            amount_due_1 = req.body.sessionInfo.parameters.amount_due;
            payment_amount_2 = formatCurrency(amount_due_1 - formatCurrency(first_payment));

            res.status(200).send({
                sessionInfo: {
                    parameters: {
                        payment_amount_2: payment_amount_2
                    }
                }
            });
            break;

        //BEGIN validatePayment
        case 'validatePayment':
            console.log(tag + ' was triggered.');
            first_payment = req.body.sessionInfo.parameters.payment_amount_1.amount;
            amount_due_1 = req.body.sessionInfo.parameters.amount_due;
            if ((formatCurrency(first_payment) >= '100.00') && (formatCurrency(first_payment) < amount_due_1)) {
                valid_payment = "True";
            } else {
                valid_payment = "False"
            }
            res.status(200).send({
                sessionInfo: {
                    parameters: {
                        valid_payment: valid_payment,
                    }
                }
            });
            break;

        //BEGIN validateDate
        case 'validateDate':
            // Log when the cloud function for the validateDate tag is triggered
            console.log(tag + ' was triggered.');

            // Log ALL of the session parameters passed to the cloud function
            console.log('validateDate sessionInfo parameters', req.body.sessionInfo.parameters);

            // Log ONLY max_extension_date and adjust_due_date values from session parameters.
            console.log('sessionInfo >>> max_extension_date', req.body.sessionInfo.parameters.max_extension_date);
            console.log('sessionInfo >>> adjust_due_date', req.body.sessionInfo.parameters.adjust_due_date);

            // If the formatUserDate function succeeds running, then the date will be a string formatted as yyyy-mm-dd.
            // If the session params dateObject is not formatted correctly the formatUserDate function returns the boolean value false.
            // formatUserDate returns false to prevent the Moment function from running (see 3 conditions below).
            dateFromUser = formatUserDate(req.body.sessionInfo.parameters.adjust_due_date);
            maxExtensionDate = req.body.sessionInfo.parameters.max_extension_date;

            // Set valid_date to false. We do this so the cloud function does not crash and always returns a value to Dialogflow CX
            valid_date = "False"

            // Only set valid_date to true when
            // 1) dateFromUser is a date string and not set to false by the formatUserDate function
            // 2) maxExtensionDate is string and not set to false by the formatUserDate function
            // 3) if Moment determines the dateFromUser is before maxExtensionDate

            if (dateFromUser && maxExtensionDate && moment(dateFromUser).isSameOrBefore(maxExtensionDate)) {
                valid_date = "True";
            }

            res.status(200).send({
                sessionInfo: {
                    parameters: {
                        valid_date: valid_date,
                        // You will see the debug property in the Dialogflow CX UI
                        // if formatUserDate failed for eitehr date you will
                        // see 'false' in the UI.
                        // Otherwise, you will see the string formatted date
                        debug: {dateFromUser, maxExtensionDate}
                    }
                }
            });
            break;

            case 'validateDate1':
            // Log when the cloud function for the validateDate tag is triggered
            console.log(tag + ' was triggered.');

            // Log ALL of the session parameters passed to the cloud function
            console.log('validateDate sessionInfo parameters', req.body.sessionInfo.parameters);

            // Log ONLY max_date_1 and payment_date_1 values from session parameters.
            console.log('sessionInfo >>> max_date_1', req.body.sessionInfo.parameters.max_date_1);
            console.log('sessionInfo >>> payment_date_1', req.body.sessionInfo.parameters.payment_date_1);

            // If the formatUserDate function succeeds running, then the date will be a string formatted as yyyy-mm-dd.
            // If the session params dateObject is not fomatted correctly the formatUserDate function returns the boolean value false.
            // formatUserDate returns false to prevent the Moment function from running (see 3 conditions below).
            dateFromUser = formatUserDate(req.body.sessionInfo.parameters.payment_date_1);
            //maxExtensionDate = formatUserDate(req.body.sessionInfo.parameters.max_extension_date);
            maxDate1 = req.body.sessionInfo.parameters.max_date_1;

            // Set valid_date to false. We do this so the cloud function does not crash and always returns a value to Dialogflow CX
            valid_date = "False"

            // Only set valid_date to true when
            // 1) dateFromUser is a date string and not set to false by the formatUserDate function
            // 2) maxExtensionDate is string and not set to false by the formatUserDate function
            // 3) if Moment determines the dateFromUser is before maxExtensionDate

            if (dateFromUser && maxDate1 && moment(dateFromUser).isSameOrBefore(maxDate1)) {
                valid_date = "True";
            }

            res.status(200).send({
                sessionInfo: {
                    parameters: {
                        valid_date: valid_date,
                        // You will see the debug property in the Dialogflow CX UI
                        // if formatUserDate failed for eitehr date you will
                        // see 'false' in the UI.
                        // Otherwise, you will see the string formatted date
                        debug: {dateFromUser, maxDate1}
                    }
                }
            });
            break;

            case 'validateDate2':
            // Log when the cloud function for the validateDate tag is triggered
            console.log(tag + ' was triggered.');

            // Log ALL of the session parameters passed to the cloud function
            console.log('validateDate sessionInfo parameters', req.body.sessionInfo.parameters);

            // Log ONLY max_date_2 and payment_date_2 values from session parameters.
            console.log('sessionInfo >>> max_extension_date', req.body.sessionInfo.parameters.max_date_2);
            console.log('sessionInfo >>> adjust_due_date', req.body.sessionInfo.parameters.payment_date_2);

            // If the formatUserDate function succeeds running, then the date will be a string formatted as yyyy-mm-dd.
            // If the session params dateObject is not fomatted correctly the formatUserDate function returns the boolean value false.
            // formatUserDate returns false to prevent the Moment function from running (see 3 conditions below).
            dateFromUser = formatUserDate(req.body.sessionInfo.parameters.payment_date_2);
            //maxExtensionDate = formatUserDate(req.body.sessionInfo.parameters.max_extension_date);
            maxDate2 = req.body.sessionInfo.parameters.max_date_2;

            // Set valid_date to false. We do this so the cloud function does not crash and always returns a value to Dialogflow CX
            valid_date = "False"

            // Only set valid_date to true when
            // 1) dateFromUser is a date string and not set to false by the formatUserDate function
            // 2) maxExtensionDate is string and not set to false by the formatUserDate function
            // 3) if Moment determines the dateFromUser is before maxExtensionDate

            if (dateFromUser && maxDate2 && moment(dateFromUser).isSameOrBefore(maxDate2)) {
                valid_date = "True";
            }

            res.status(200).send({
                sessionInfo: {
                    parameters: {
                        valid_date: valid_date,
                        // You will see the debug property in the Dialogflow CX UI
                        // if formatUserDate failed for eitehr date you will
                        // see 'false' in the UI.
                        // Otherwise, you will see the string formatted date
                        debug: {dateFromUser, maxDate2}
                    }
                }
            });
            break;
         default:
            break;
    }
}
};

閒聊代理程式

這個範本可透過簡單的問題，協助自訂及個人化設定代理程式。

語音指令範例

有什麼事嗎？
你是誰？
今天是我的生日。
抱歉。
怎麼說呢？

電信代理商

這個範本可協助使用者解決帳單和方案相關問題、排解疑難，以及加購旅遊和郵輪方案。

語音指令範例

如何節省帳單費用？
我的訊息傳不出去。
如果升級至方案 A，我需要多付多少費用？
我要前往牙買加，需要資料涵蓋範圍。

Webhook

Cloud Functions Webhook 會執行下列動作：

根據行程地點和時間長度比較方案費用
根據使用者的電話號碼找出帳單異常情形

package.json

{
  "name": "sample-http",
  "version": "0.0.1",
  "dependencies": {
    "moment": "2.24.0"
  }
}

helpers.js

// Get the current month, first day of current month and last month values
// based on today's date

module.exports = {
    get_date_details: function (bill_state) {
        const monthNames = ["January", "February", "March", "April", "May", "June",
            "July", "August", "September", "October", "November", "December"
        ];
        let today = new Date()
        let first_month_name = monthNames[today.getMonth()]
        let firstDay = new Date(today.getFullYear(), today.getMonth(), 1);
        let first_day_str = first_month_name + ' 0' + firstDay.getDate() + ', ' + firstDay.getFullYear()

        let last_month_name = monthNames[today.getMonth() - 1]
        let last_month_first_day_str = last_month_name + ' 0' + firstDay.getDate() + ', ' + firstDay.getFullYear()
        let second_last_month_name = monthNames[today.getMonth() - 2]

        if (bill_state.toString() == 'current') {
            return [first_month_name, first_day_str, last_month_name]
        }
        else {
            return [last_month_name, last_month_first_day_str, second_last_month_name]
        }

    }
}

index.js

/**
 * Responds to any HTTP request.
 *
 * @param {!express:Request} req HTTP request context.
 * @param {!express:Response} res HTTP response context.
 */
const helpers = require('./helpers.js')

exports.cxPrebuiltAgentsTelecom = (req, res) => {
    console.log('Cloud Function:', 'Invoked cloud function from Dialogflow CX');
    let tag = req.body.fulfillmentInfo.tag;

    if (!!tag) {
        switch (tag) {
            //BEGIN detectCustomerAnomaly
            case 'detectCustomerAnomaly':
                console.log(tag + ' was triggered.');
                let phone_number = req.body.sessionInfo.parameters.phone_number;
                let bill_month = req.body.sessionInfo.parameters.bill_state;
                let parameters = req.body.sessionInfo.parameters;
                let bill_amount;
                let product_line;
                let anomaly_detect = "false"
                let purchase = "The Godfather"
                let purchase_amount = 9.99
                let total_bill_amount = 64.33
                let bill_without_purchase = 54.34
                let updated_parameters = {}

                let [month_name, first_of_month, last_month_name] = helpers.get_date_details(bill_month)
                console.log(month_name, first_of_month, last_month_name)

                // Getting the month name based on the bill state - current or previous
                // For example, if the current month is December, we get the values as
                // December, December 1st, November

                // Only 999999 will have anomaly detection
                if (phone_number.toString() == '999999') {
                    anomaly_detect = "true"
                    product_line = "phone"
                    purchase = "device protection"
                    updated_parameters["product_line"] = product_line
                    updated_parameters["bill_month"] = month_name
                    updated_parameters["last_month"] = last_month_name
                }

                // If bill hike amount is given - we just add it to the total bill
                if ('bill_amount' in parameters) {
                    bill_amount = parameters['bill_amount']
                    purchase_amount = bill_amount['amount']
                    total_bill_amount = 54.34 + purchase_amount
                }

                // Adding the updated session parameters to the new parameters json
                updated_parameters["anomaly_detect"] = anomaly_detect
                updated_parameters["purchase"] = purchase
                updated_parameters["purchase_amount"] = purchase_amount
                updated_parameters["bill_without_purchase"] = bill_without_purchase
                updated_parameters["total_bill"] = total_bill_amount
                updated_parameters["first_month"] = first_of_month

                res.status(200).send({
                    sessionInfo: {
                        parameters: updated_parameters
                    }
                });
                break;

            // BEGIN validatePhoneLine
            case 'validatePhoneLine':
                console.log(tag + ' was triggered.');
                let phone = req.body.sessionInfo.parameters.phone_number;
                let phone_line_verified;
                let line_index;
                let domestic_coverage;
                let covered_lines =
                    ['5555555555', '5105105100', '1231231234', '9999999999'];

                // Loop over the covered lines array
                covered_lines.forEach((line, index) => {
                    // For each phone line in the array, check if the last 4 digits are
                    // included in the string. when true, update the line_index variable
                    if (line.includes(phone)) {
                        line_index = index;
                        console.log('This is the index ' + line_index);
                    }
                });

                // Only 9999 will fail;
                if (line_index === 3) {
                    phone_line_verified = 'false';
                } else {
                    phone_line_verified = 'true';
                }

                // Only 1234 will have domestic coverage.
                if (line_index === 2) {
                    domestic_coverage = 'true';
                } else {
                    domestic_coverage = 'false';
                }

                res.status(200).send({
                    sessionInfo: {
                        parameters: {
                            phone_line_verified: phone_line_verified,
                            domestic_coverage: domestic_coverage
                        }
                    }
                });
                break;

            // BEGIN cruisePlanCoverage
            case 'cruisePlanCoverage':
                console.log(tag + ' was triggered.');

                let port = req.body.sessionInfo.parameters.destination;
                let port_is_covered;
                // Sample list of covered cruise ports.
                let covered_ports = [
                    'mexico',
                    'canada',
                    'anguilla',

                ];

                if (covered_ports.includes(port.toLowerCase())) {
                    port_is_covered = 'true';
                } else {
                    port_is_covered = 'false';
                }

                res.status(200).send(
                    { sessionInfo: { parameters: { port_is_covered: port_is_covered } } });
                break;

            // BEGIN internationalCoverage
            case 'internationalCoverage':
                console.log(tag + ' was triggered.');
                let destination = req.body.sessionInfo.parameters.destination;
                let coverage;
                // Sample list of covered international monthly destinations.
                let covered_by_monthly = [
                    'anguilla',
                    'australia',
                    'brazil',
                    'canada',
                    'chile',
                    'england',
                    'france',
                    'india',
                    'japan',
                    'mexico',
                    'russia',
                    'singapore',
                ];
                // Sample list of covered international daily destinations.
                let covered_by_daily = [
                    'anguilla', 'australia', 'brazil', 'canada', 'chile', 'england',
                    'france', 'india', 'japan', 'mexico', 'singapore'
                ];

                if (covered_by_monthly.includes(destination.toLowerCase()) &&
                    covered_by_daily.includes(destination.toLowerCase())) {
                    coverage = 'both';
                } else if (
                    covered_by_monthly.includes(destination.toLowerCase()) &&
                    !covered_by_daily.includes(destination.toLowerCase())) {
                    coverage = 'monthly_only';
                } else if (
                    !covered_by_monthly.includes(destination.toLowerCase()) &&
                    !covered_by_daily.includes(destination.toLowerCase())) {
                    coverage = 'neither';
                } else {
                    // This should never happen, because covered_by_daily is a subset of
                    // covered_by_monthly
                    coverage = 'daily_only';
                }

                res.status(200).send({ sessionInfo: { parameters: { coverage: coverage } } });
                break;

            // BEGIN cheapestPlan
            case 'cheapestPlan':
                console.log(tag + ' was triggered.');
                let trip_duration = req.body.sessionInfo.parameters.trip_duration;
                let monthly_cost;
                let daily_cost;
                let suggested_plan;

                // Can only suggest cheapest if both are valid for location.

                // When trip is longer than 30 days, calculate per-month cost (example $
                // amounts). Suggest monthly plan.
                if (trip_duration > 30) {
                    monthly_cost = (Math.floor(trip_duration / 30)) * 70;
                    daily_cost = trip_duration * 10;
                    suggested_plan = 'monthly';
                }
                // When trip is <= 30 days, but greater than 6 days, calculate monthly
                // plan cost and daily plan cost. Suggest monthly b/c it is the cheaper
                // one.
                else if (trip_duration <= 30 && trip_duration > 6) {
                    monthly_cost = 70;
                    daily_cost = trip_duration * 10;
                    suggested_plan = 'monthly';
                }
                // When trip is <= 6 days, calculate daily plan cost. Suggest daily
                // plan.
                else if (trip_duration <= 6 && trip_duration > 0) {
                    monthly_cost = (Math.floor(trip_duration / 30)) * 70;
                    daily_cost = trip_duration * 10;
                    suggested_plan = 'daily';
                } else {
                    // This should never happen b/c trip_duration would have to be
                    // negative
                    suggested_plan = 'null';
                }

                res.status(200).send({
                    sessionInfo: {
                        parameters: {
                            monthly_cost: monthly_cost,
                            daily_cost: daily_cost,
                            suggested_plan: suggested_plan
                        }
                    }
                });
                break;

            default:
                console.log('default case called');
                res.status(200).end();
                break;
        }
    }
};

旅遊：行李領取處服務人員

這個範本可協助使用者建立或查看與行李遺失、延誤或損壞相關的索賠申請狀態。

語音指令範例

Can you help me file a claim for the bag you lost?
我想瞭解損壞行李的理賠申請狀態。
我的行李何時會送達？

Webhook

這個 Cloud Functions Webhook 會執行下列動作：

驗證使用者和航班詳細資料。
產生聲明 ID 並傳回聲明資訊。

package.json

{
  "name": "sample-http",
  "version": "0.0.1",
  "dependencies": {
    "moment": "2.27.0"
  }
}

index.js

const moment = require('moment')
/**
* Responds to any HTTP request.
*
* @param {!express:Request} req HTTP request context.
* @param {!express:Response} res HTTP response context.
*/
exports.cxPrebuiltAgentsClaimStatus = (req, res) => {
    let tag = req.body.fulfillmentInfo.tag;
    let passenger_last_name;
    if (!!tag) {
        switch (tag) {
            // Check Claim Status tag
            // Validates that the claim ID is 'REF123456'
            // And that the last name is 'Garcia'
            // Sends back a static status message
            case 'claimStatus':
                console.log(tag + ' was triggered.')
                let claim_id = req.body.sessionInfo.parameters.claim_id;
                passenger_last_name = req.body.sessionInfo.parameters.passenger_last_name;
                let claim_status;

                if (claim_id == 'REF123456' && passenger_last_name == "Garcia") {
                    claim_status = 'valid';
                }
                else {
                    claim_status = 'invalid';
                }
                let claim_status_message = 'Your lost bag claim is being processed and you should receive payment to your account ending in 6873 within 5-7 business days. '

                res.status(200).send({
                    sessionInfo: {
                        parameters: {
                            claim_status: claim_status,
                            claim_status_message: claim_status_message
                        }
                    }
                });
                break;

            // Case to submit a new claim and generate a confirmation ID
            // Validates that the flight number = AJ143, last name = Garcia
            // and reference id = 1234567890123
            // Ideally you would include better logic, this is just an example of a working webhook
            case 'submitClaim':
                  console.log(tag + ' was triggered.')
                  // Currently not using these two parameters but just an example
                  let claim_type = req.body.sessionInfo.parameters.claim_type;
                  let passenger_flight_date = req.body.sessionInfo.parameters.passenger_flight_date;

                  // Calculate qualifying rebate amount for delayed bags
                  let rebate_amount = 0
                  if (claim_type == 'delayed') {
                    let date_difference = Math.abs(moment(passenger_flight_date).diff(moment(), 'days'));
                    // Cap the qualifying days at 5
                    let rebate_qual_days = Math.min(date_difference, 5)
                    // An example of giving $50 per day of delay
                    rebate_amount = rebate_qual_days * 50
                  }

                  // These parameters are being checked
                  let passenger_flight_number= req.body.sessionInfo.parameters.passenger_flight_number;
                  passenger_last_name= req.body.sessionInfo.parameters.passenger_last_name;
                  let passenger_reference_id= req.body.sessionInfo.parameters.passenger_reference_id;
                  let claim_confirmation_id;

                  if (passenger_flight_number == 'AJ143' && passenger_last_name == 'Garcia' && passenger_reference_id == '1234567890123') {
                      claim_filed = true;
                      // Generate random 6 digit number to return
                      const rand_id = Math.floor(100000 + Math.random() * 900000)
                      claim_confirmation_id = 'REF' + rand_id.toString()
                  } else {
                      claim_filed = false;
                  }

                  res.status(200).send({
                      sessionInfo: {
                          parameters: {
                            claim_filed: claim_filed,
                            claim_confirmation_id: claim_confirmation_id,
                            rebate_amount: rebate_amount
                          }
                      }
                  });

                  break;
            // This is the case to verify form parameters that get updated throughout the conversation
            case 'verifyParameters':
                    // Capture newly updated form parameters
                    console.log(tag + ' was triggered.')
                    let params = req.body.pageInfo.formInfo.parameterInfo
                    let paramToValidate = {name: '', value: ''}

                    // Only validate the form parameter if it was just collected
                    for (let param of params) {
                        if (param.justCollected == true) {
                            console.log('Received parameter: ', param)
                            paramToValidate = param;
                        }
                    }

                    // Validate Passenger Reference ID
                    // Must == '1234567890123' in order to continue
                    if (paramToValidate.displayName == 'passenger_reference_id') {
                        if (paramToValidate.value != '1234567890123') {
                            paramToValidate.state = 'INVALID'
                        } else {
                            paramToValidate.state = 'VALID'
                        }
                    }

                    // Validate Flight Date
                    // Must be on or before current date
                    if (paramToValidate.displayName == 'passenger_flight_date') {
                        let flight_date = paramToValidate.value
                        let now = moment()
                        if ((moment(flight_date) <= now)) {
                            paramToValidate.state = 'VALID'
                        } else {
                            paramToValidate.state = 'INVALID'
                        }
                    }

                    res.status(200).send({
                        pageInfo: {
                            formInfo: {
                              parameterInfo: [paramToValidate]
                            }
                        }
                    });
                    break;
            default:
                  break;
          }
      }
   };

旅遊：租車代理商

這個範本可協助使用者預訂新車。

語音指令範例

我需要預訂廂型車。
你好，我週末要到洛杉磯，需要租車。
我需要預訂 SUV 的相關協助。

旅遊：航班資訊服務專員

這個範本可協助使用者預訂及變更機票、查詢航班資訊，以及申請退款。

語音指令範例

我的 XX4597 航班需要變更。可以幫我嗎？
請幫我查詢航班的新起飛時間。
取消航班後，帳戶中的抵免額會如何處理？
可以幫我預訂下個月飛往舊金山的航班嗎？
Book SFO 10am to MIA on August 10th, 2020 one way.

旅行

應對手冊

預先建構的代理 透過集合功能整理內容 你可以依據偏好儲存及分類內容。

限制

匯入預先建構的代理程式

自訂匯入的預先建構代理程式

修改 Webhook 程式碼

金融服務代理人

語音指令範例

Webhook

package.json

index.js

醫療照護代理人

語音指令範例

訂單和帳戶管理專員

語音指令範例

付款安排代理人

語音指令範例

Webhook

package.json

index.js

閒聊代理程式

語音指令範例

電信代理商

語音指令範例

Webhook

package.json

helpers.js

index.js

旅遊：行李領取處服務人員

語音指令範例

Webhook

package.json

index.js

旅遊：租車代理商

語音指令範例

旅遊：航班資訊服務專員

語音指令範例

預先建構的代理
