Monitoraggio OpenTelemetry di Pub/Sub

La tracciabilità di OpenTelemetry consente di identificare e tracciare la latenza di varie operazioni della libreria client Pub/Sub, come il raggruppamento, la gestione dei lease e il controllo del flusso. La raccolta di queste informazioni può aiutarti a eseguire il debug dei problemi della libreria client.

Alcuni potenziali casi d'uso per la tracciabilità di OpenTelemetry includono:

Il tuo servizio sta riscontrando una latenza di pubblicazione superiore al normale.
Stai riscontrando un numero elevato di riconsegne dei messaggi.
Una modifica alla funzione di callback del client di sottoscrizione fa sì che l'elaborazione richieda più tempo del solito.

Prima di iniziare

Prima di configurare OpenTelemetry, completa le seguenti attività:

Configura Pub/Sub utilizzando una delle librerie client.
Installa l'SDK OpenTelemetry e configura un esportatore di tracce e un provider di tracer.
Attiva l'API Cloud Trace.
Scopri come leggere le tracce di Cloud Observability.

Ruoli obbligatori

Per assicurarti che il account di servizio disponga delle autorizzazioni necessarie per esportare le tracce in Cloud Trace, chiedi all'amministratore di concedere i seguenti ruoli IAM al account di servizio nel tuo progetto:

Tutti: Cloud Trace Agent (roles/cloudtrace.agent)

Per saperne di più sulla concessione dei ruoli, consulta Gestisci l'accesso a progetti, cartelle e organizzazioni.

Questi ruoli predefiniti contengono le autorizzazioni necessarie per esportare le tracce in Cloud Trace. Per vedere quali sono esattamente le autorizzazioni richieste, espandi la sezione Autorizzazioni obbligatorie:

Autorizzazioni obbligatorie

Per esportare le tracce in Cloud Trace sono necessarie le seguenti autorizzazioni:

Tutti: cloudtrace.traces.patch

L'amministratore potrebbe anche essere in grado di concedere al account di servizio queste autorizzazioni tramite ruoli personalizzati o altri ruoli predefiniti.

Flusso di lavoro della tracciabilità di OpenTelemetry

Per configurare la tracciabilità di OpenTelemetry, utilizza le librerie client Pub/Sub e l'SDK OpenTelemetry. Con l'SDK, devi configurare un esportatore di tracce e un provider di tracer prima di connetterti alle librerie Pub/Sub. In alcune librerie, la configurazione di un provider di tracer è facoltativa.

Esportatore di tracce. L'SDK OpenTelemetry utilizza l'esportatore di tracce per determinare dove inviare le tracce.
Provider di tracer. Le librerie client Pub/Sub utilizzano il provider di tracer per creare le tracce.

I seguenti passaggi descrivono come configurare la tracciabilità:

Crea un'istanza di un esportatore OpenTelemetry di Cloud Trace.
Se necessario, crea e registra un provider di tracer utilizzando l'SDK OpenTelemetry.
Configura il client con l'opzione per attivare la tracciabilità di OpenTelemetry.
Utilizza le librerie client Pub/Sub per pubblicare un messaggio.

Funzionamento della tracciabilità

Per ogni messaggio pubblicato, la libreria client crea una nuova traccia. Questa traccia rappresenta l'intero ciclo di vita del messaggio, dal momento in cui pubblichi un messaggio fino a quando il messaggio non viene confermato. Una traccia incapsula informazioni come la durata delle operazioni, gli intervalli principali e secondari e gli intervalli collegati.

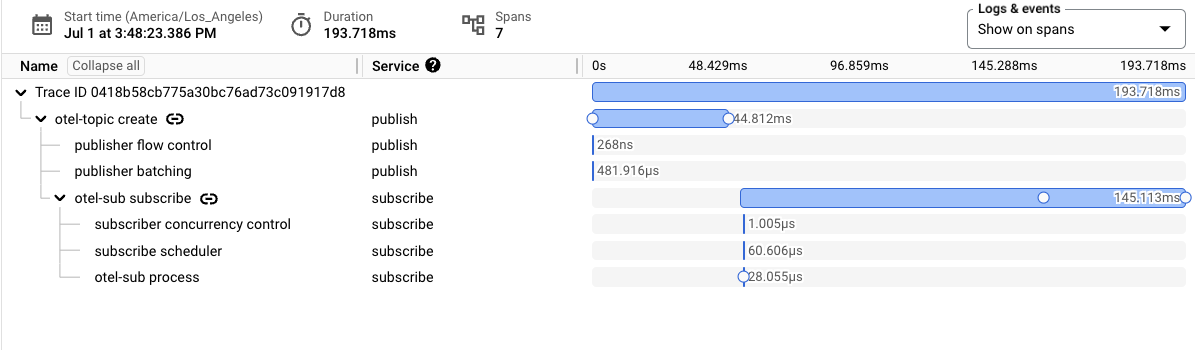

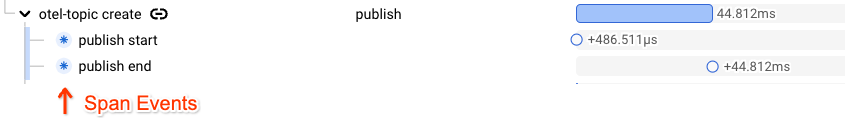

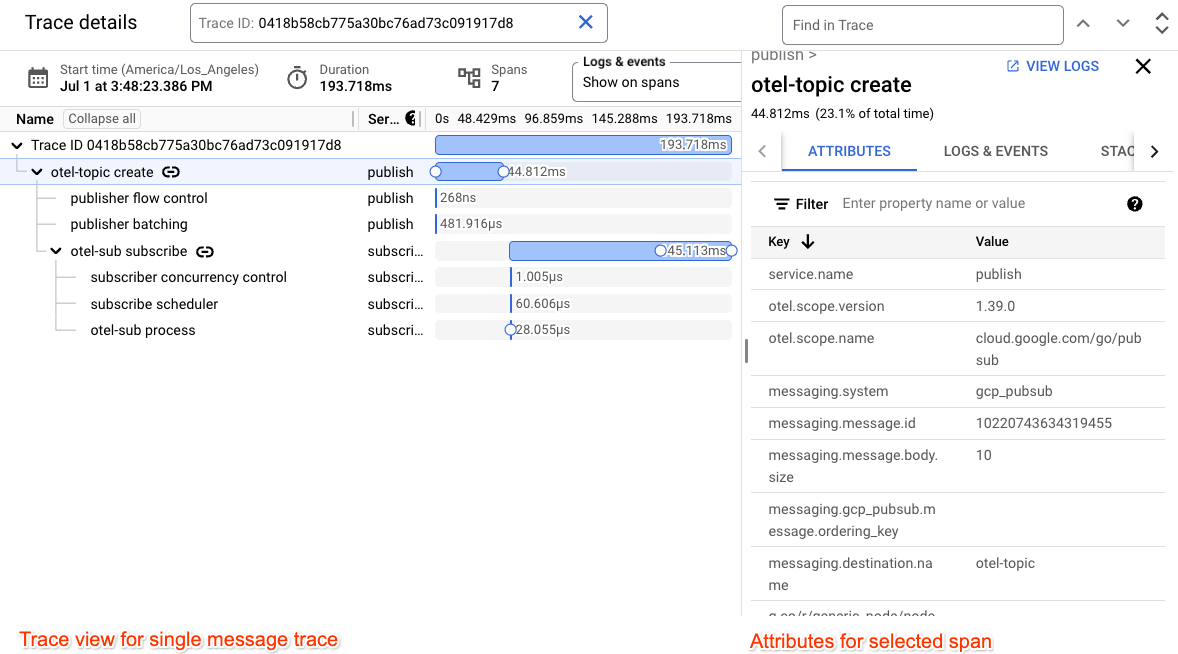

Una traccia è composta da un intervallo principale e dai relativi intervalli secondari. Questi intervalli rappresentano il lavoro svolto dalla libreria client durante l'elaborazione di un messaggio. Ogni traccia di messaggio contiene quanto segue:

Per la pubblicazione. Controllo del flusso, pianificazione della chiave di ordinamento, raggruppamento e durata della RPC di pubblicazione.
Per gli abbonamenti. Controllo della concorrenza, pianificazione della chiave di ordinamento e gestione dei lease.

Per propagare le informazioni dal lato di pubblicazione a quello di sottoscrizione, le librerie client inseriscono un attributo specifico di tracciabilità sul lato di pubblicazione. Il meccanismo di propagazione del contesto è abilitato solo quando la tracciabilità è attiva e viene anteposto al prefisso googclient_.

Pubblicare messaggi con la tracciabilità

Il seguente esempio di codice mostra come attivare la tracciabilità utilizzando la libreria client Pub/Sub e l'SDK OpenTelemetry. In questo esempio, i risultati della tracciabilità vengono esportati in Cloud Trace.

Considerazioni

Quando crei un'istanza del provider di tracer, configuri un rapporto di campionamento con l'SDK OpenTelemetry. Questo rapporto determina il numero di tracce che l'SDK deve campionare. Una frequenza di campionamento inferiore può contribuire a ridurre i costi di fatturazione e a impedire a l servizio di superare la quota di intervalli di Cloud Trace.

Vai

import (
	"context"
	"fmt"
	"io"

	"cloud.google.com/go/pubsub/v2"
	"go.opentelemetry.io/otel"
	"google.golang.org/api/option"

	texporter "github.com/GoogleCloudPlatform/opentelemetry-operations-go/exporter/trace"
	"go.opentelemetry.io/otel/sdk/resource"
	sdktrace "go.opentelemetry.io/otel/sdk/trace"
	semconv "go.opentelemetry.io/otel/semconv/v1.26.0"
)

// publishOpenTelemetryTracing publishes a single message with OpenTelemetry tracing
// enabled, exporting to Cloud Trace.
func publishOpenTelemetryTracing(w io.Writer, projectID, topicID string, sampling float64) error {
	// projectID := "my-project-id"
	// topicID := "my-topic"
	ctx := context.Background()

	exporter, err := texporter.New(texporter.WithProjectID(projectID),
		// Disable spans created by the exporter.
		texporter.WithTraceClientOptions(
			[]option.ClientOption{option.WithTelemetryDisabled()},
		),
	)
	if err != nil {
		return fmt.Errorf("error instantiating exporter: %w", err)
	}

	resources := resource.NewWithAttributes(
		semconv.SchemaURL,
		semconv.ServiceNameKey.String("publisher"),
	)

	// Instantiate a tracer provider with the following settings
	tp := sdktrace.NewTracerProvider(
		sdktrace.WithBatcher(exporter),
		sdktrace.WithResource(resources),
		sdktrace.WithSampler(
			sdktrace.ParentBased(sdktrace.TraceIDRatioBased(sampling)),
		),
	)

	defer tp.ForceFlush(ctx) // flushes any pending spans
	otel.SetTracerProvider(tp)

	// Create a new client with tracing enabled.
	client, err := pubsub.NewClientWithConfig(ctx, projectID, &pubsub.ClientConfig{
		EnableOpenTelemetryTracing: true,
	})
	if err != nil {
		return fmt.Errorf("pubsub: NewClient: %w", err)
	}
	defer client.Close()

	// client.Publisher can be passed a topic ID (e.g. "my-topic") or
	// a fully qualified name (e.g. "projects/my-project/topics/my-topic").
	// If a topic ID is provided, the project ID from the client is used.
	// Reuse this publisher for all publish calls to send messages in batches.
	publisher := client.Publisher(topicID)
	result := publisher.Publish(ctx, &pubsub.Message{
		Data: []byte("Publishing message with tracing"),
	})
	if _, err := result.Get(ctx); err != nil {
		return fmt.Errorf("pubsub: result.Get: %w", err)
	}
	fmt.Fprintln(w, "Published a traced message")
	return nil
}

C++

// Create a few namespace aliases to make the code easier to read.
namespace gc = ::google::cloud;
namespace otel = gc::otel;
namespace pubsub = gc::pubsub;

// This example uses a simple wrapper to export (upload) OTel tracing data
// to Google Cloud Trace. More complex applications may use different
// authentication, or configure their own OTel exporter.
auto project = gc::Project(project_id);
auto configuration = otel::ConfigureBasicTracing(project);

auto publisher = pubsub::Publisher(pubsub::MakePublisherConnection(
    pubsub::Topic(project_id, topic_id),
    // Configure this publisher to enable OTel tracing. Some applications may
    // chose to disable tracing in some publishers or to dynamically enable
    // this option based on their own configuration.
    gc::Options{}.set<gc::OpenTelemetryTracingOption>(true)));

// After this point, use the Cloud Pub/Sub C++ client library as usual.
// In this example, we will send a few messages and configure a callback
// action for each one.
std::vector<gc::future<void>> ids;
for (int i = 0; i < 5; i++) {
  auto id = publisher.Publish(pubsub::MessageBuilder().SetData("Hi!").Build())
                .then([](gc::future<gc::StatusOr<std::string>> f) {
                  auto id = f.get();
                  if (!id) {
                    std::cout << "Error in publish: " << id.status() << "\n";
                    return;
                  }
                  std::cout << "Sent message with id: (" << *id << ")\n";
                });
  ids.push_back(std::move(id));
}
// Block until the messages are actually sent.
for (auto& id : ids) id.get();

Python

Prima di provare questo esempio, segui le istruzioni di configurazione di Python in Guida rapida all'utilizzo delle librerie client. Per saperne di più, consulta la documentazione di riferimento dell'API Python di Pub/Sub.


from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import (
    BatchSpanProcessor,
)
from opentelemetry.exporter.cloud_trace import CloudTraceSpanExporter
from opentelemetry.sdk.trace.sampling import TraceIdRatioBased, ParentBased

from google.cloud.pubsub_v1 import PublisherClient
from google.cloud.pubsub_v1.types import PublisherOptions

# TODO(developer)
# topic_project_id = "your-topic-project-id"
# trace_project_id = "your-trace-project-id"
# topic_id = "your-topic-id"

# In this sample, we use a Google Cloud Trace to export the OpenTelemetry
# traces: https://cloud.google.com/trace/docs/setup/python-ot
# Choose and configure the exporter for your set up accordingly.

sampler = ParentBased(root=TraceIdRatioBased(1))
trace.set_tracer_provider(TracerProvider(sampler=sampler))

# Export to Google Trace.
cloud_trace_exporter = CloudTraceSpanExporter(
    project_id=trace_project_id,
)
trace.get_tracer_provider().add_span_processor(
    BatchSpanProcessor(cloud_trace_exporter)
)

# Set the `enable_open_telemetry_tracing` option to True when creating
# the publisher client. This in itself is necessary and sufficient for
# the library to export OpenTelemetry traces. However, where the traces
# must be exported to needs to be configured based on your OpenTelemetry
# set up. Refer: https://opentelemetry.io/docs/languages/python/exporters/
publisher = PublisherClient(
    publisher_options=PublisherOptions(
        enable_open_telemetry_tracing=True,
    ),
)

# The `topic_path` method creates a fully qualified identifier
# in the form `projects/{project_id}/topics/{topic_id}`
topic_path = publisher.topic_path(topic_project_id, topic_id)
# Publish messages.
for n in range(1, 10):
    data_str = f"Message number {n}"
    # Data must be a bytestring
    data = data_str.encode("utf-8")
    # When you publish a message, the client returns a future.
    future = publisher.publish(topic_path, data)
    print(future.result())

print(f"Published messages to {topic_path}.")

TypeScript

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const topicNameOrId = 'YOUR_TOPIC_OR_ID';
// const data = 'Hello, world!";

// Imports the Google Cloud client library
import {PubSub} from '@google-cloud/pubsub';

// Imports the OpenTelemetry API
import {NodeTracerProvider} from '@opentelemetry/sdk-trace-node';
import {diag, DiagConsoleLogger, DiagLogLevel} from '@opentelemetry/api';
import {SimpleSpanProcessor} from '@opentelemetry/sdk-trace-base';

// To output to the console for testing, use the ConsoleSpanExporter.
// import {ConsoleSpanExporter} from '@opentelemetry/sdk-trace-base';

// To output to Cloud Trace, import the OpenTelemetry bridge library.
import {TraceExporter} from '@google-cloud/opentelemetry-cloud-trace-exporter';

import {Resource} from '@opentelemetry/resources';
import {SEMRESATTRS_SERVICE_NAME} from '@opentelemetry/semantic-conventions';

// Enable the diagnostic logger for OpenTelemetry
diag.setLogger(new DiagConsoleLogger(), DiagLogLevel.DEBUG);

// Log spans out to the console, for testing.
// const exporter = new ConsoleSpanExporter();

// Log spans out to Cloud Trace, for production.
const exporter = new TraceExporter();

// Build a tracer provider and a span processor to do
// something with the spans we're generating.
const provider = new NodeTracerProvider({
  resource: new Resource({
    [SEMRESATTRS_SERVICE_NAME]: 'otel publisher example',
  }),
});
const processor = new SimpleSpanProcessor(exporter);
provider.addSpanProcessor(processor);
provider.register();

// Creates a client; cache this for further use.
const pubSubClient = new PubSub({enableOpenTelemetryTracing: true});

async function publishMessage(topicNameOrId: string, data: string) {
  // Publishes the message as a string, e.g. "Hello, world!"
  // or JSON.stringify(someObject)
  const dataBuffer = Buffer.from(data);

  // Cache topic objects (publishers) and reuse them.
  const publisher = pubSubClient.topic(topicNameOrId);

  const messageId = await publisher.publishMessage({data: dataBuffer});
  console.log(`Message ${messageId} published.`);

  // The rest of the sample is in service to making sure that any
  // buffered Pub/Sub messages and/or OpenTelemetry spans are properly
  // flushed to the server side. In normal usage, you'd only need to do
  // something like this on process shutdown.
  await publisher.flush();
  await processor.forceFlush();
  await new Promise(r => setTimeout(r, OTEL_TIMEOUT * 1000));
}

Node.js

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const topicNameOrId = 'YOUR_TOPIC_OR_ID';
// const data = 'Hello, world!";

// Imports the Google Cloud client library
const {PubSub} = require('@google-cloud/pubsub');

// Imports the OpenTelemetry API
const {NodeTracerProvider} = require('@opentelemetry/sdk-trace-node');
const {diag, DiagConsoleLogger, DiagLogLevel} = require('@opentelemetry/api');
const {SimpleSpanProcessor} = require('@opentelemetry/sdk-trace-base');

// To output to the console for testing, use the ConsoleSpanExporter.
// import {ConsoleSpanExporter} from '@opentelemetry/sdk-trace-base';

// To output to Cloud Trace, import the OpenTelemetry bridge library.
const {
  TraceExporter,
} = require('@google-cloud/opentelemetry-cloud-trace-exporter');

const {Resource} = require('@opentelemetry/resources');
const {
  SEMRESATTRS_SERVICE_NAME,
} = require('@opentelemetry/semantic-conventions');

// Enable the diagnostic logger for OpenTelemetry
diag.setLogger(new DiagConsoleLogger(), DiagLogLevel.DEBUG);

// Log spans out to the console, for testing.
// const exporter = new ConsoleSpanExporter();

// Log spans out to Cloud Trace, for production.
const exporter = new TraceExporter();

// Build a tracer provider and a span processor to do
// something with the spans we're generating.
const provider = new NodeTracerProvider({
  resource: new Resource({
    [SEMRESATTRS_SERVICE_NAME]: 'otel publisher example',
  }),
});
const processor = new SimpleSpanProcessor(exporter);
provider.addSpanProcessor(processor);
provider.register();

// Creates a client; cache this for further use.
const pubSubClient = new PubSub({enableOpenTelemetryTracing: true});

async function publishMessage(topicNameOrId, data) {
  // Publishes the message as a string, e.g. "Hello, world!"
  // or JSON.stringify(someObject)
  const dataBuffer = Buffer.from(data);

  // Cache topic objects (publishers) and reuse them.
  const publisher = pubSubClient.topic(topicNameOrId);

  const messageId = await publisher.publishMessage({data: dataBuffer});
  console.log(`Message ${messageId} published.`);

  // The rest of the sample is in service to making sure that any
  // buffered Pub/Sub messages and/or OpenTelemetry spans are properly
  // flushed to the server side. In normal usage, you'd only need to do
  // something like this on process shutdown.
  await publisher.flush();
  await processor.forceFlush();
  await new Promise(r => setTimeout(r, OTEL_TIMEOUT * 1000));
}

Java


import com.google.api.core.ApiFuture;
import com.google.cloud.opentelemetry.trace.TraceConfiguration;
import com.google.cloud.opentelemetry.trace.TraceExporter;
import com.google.cloud.pubsub.v1.Publisher;
import com.google.protobuf.ByteString;
import com.google.pubsub.v1.PubsubMessage;
import com.google.pubsub.v1.TopicName;
import io.opentelemetry.api.OpenTelemetry;
import io.opentelemetry.sdk.OpenTelemetrySdk;
import io.opentelemetry.sdk.resources.Resource;
import io.opentelemetry.sdk.trace.SdkTracerProvider;
import io.opentelemetry.sdk.trace.export.SimpleSpanProcessor;
import io.opentelemetry.sdk.trace.export.SpanExporter;
import io.opentelemetry.sdk.trace.samplers.Sampler;
import io.opentelemetry.semconv.ResourceAttributes;
import java.io.IOException;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeUnit;

public class OpenTelemetryPublisherExample {
  public static void main(String... args) throws Exception {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-project-id";
    String topicId = "your-topic-id";

    openTelemetryPublisherExample(projectId, topicId);
  }

  public static void openTelemetryPublisherExample(String projectId, String topicId)
      throws IOException, ExecutionException, InterruptedException {
    Resource resource =
        Resource.getDefault().toBuilder()
            .put(ResourceAttributes.SERVICE_NAME, "publisher-example")
            .build();

    // Creates a Cloud Trace exporter.
    SpanExporter traceExporter =
        TraceExporter.createWithConfiguration(
            TraceConfiguration.builder().setProjectId(projectId).build());

    SdkTracerProvider sdkTracerProvider =
        SdkTracerProvider.builder()
            .setResource(resource)
            .addSpanProcessor(SimpleSpanProcessor.create(traceExporter))
            .setSampler(Sampler.alwaysOn())
            .build();

    OpenTelemetry openTelemetry =
        OpenTelemetrySdk.builder().setTracerProvider(sdkTracerProvider).buildAndRegisterGlobal();

    TopicName topicName = TopicName.of(projectId, topicId);

    Publisher publisher = null;
    try {
      // Create a publisher instance with the created OpenTelemetry object and enabling tracing.
      publisher =
          Publisher.newBuilder(topicName)
              .setOpenTelemetry(openTelemetry)
              .setEnableOpenTelemetryTracing(true)
              .build();

      String message = "Hello World!";
      ByteString data = ByteString.copyFromUtf8(message);
      PubsubMessage pubsubMessage = PubsubMessage.newBuilder().setData(data).build();

      // Once published, returns a server-assigned message id (unique within the topic)
      ApiFuture<String> messageIdFuture = publisher.publish(pubsubMessage);
      String messageId = messageIdFuture.get();
      System.out.println("Published message ID: " + messageId);
    } finally {
      if (publisher != null) {
        // When finished with the publisher, shutdown to free up resources.
        publisher.shutdown();
        publisher.awaitTermination(1, TimeUnit.MINUTES);
      }
    }
  }
}

Ricevere messaggi con la tracciabilità

Vai

import (
	"context"
	"fmt"
	"io"
	"sync/atomic"
	"time"

	"cloud.google.com/go/pubsub/v2"
	texporter "github.com/GoogleCloudPlatform/opentelemetry-operations-go/exporter/trace"
	"go.opentelemetry.io/otel"
	"go.opentelemetry.io/otel/sdk/resource"
	sdktrace "go.opentelemetry.io/otel/sdk/trace"
	semconv "go.opentelemetry.io/otel/semconv/v1.24.0"
	"google.golang.org/api/option"
)

func subscribeOpenTelemetryTracing(w io.Writer, projectID, subID string, sampleRate float64) error {
	// projectID := "my-project-id"
	// subID := "my-sub"
	// sampleRate := "1.0"
	ctx := context.Background()

	exporter, err := texporter.New(texporter.WithProjectID(projectID),
		// Disable spans created by the exporter.
		texporter.WithTraceClientOptions(
			[]option.ClientOption{option.WithTelemetryDisabled()},
		),
	)
	if err != nil {
		return fmt.Errorf("error instantiating exporter: %w", err)
	}

	resources := resource.NewWithAttributes(
		semconv.SchemaURL,
		semconv.ServiceNameKey.String("subscriber"),
	)

	// Instantiate a tracer provider with the following settings
	tp := sdktrace.NewTracerProvider(
		sdktrace.WithBatcher(exporter),
		sdktrace.WithResource(resources),
		sdktrace.WithSampler(
			sdktrace.ParentBased(sdktrace.TraceIDRatioBased(sampleRate)),
		),
	)

	defer tp.ForceFlush(ctx) // flushes any pending spans
	otel.SetTracerProvider(tp)

	// Create a new client with tracing enabled.
	client, err := pubsub.NewClientWithConfig(ctx, projectID, &pubsub.ClientConfig{
		EnableOpenTelemetryTracing: true,
	})
	if err != nil {
		return fmt.Errorf("pubsub.NewClient: %w", err)
	}
	defer client.Close()

	// client.Subscriber can be passed a subscription ID (e.g. "my-sub") or
	// a fully qualified name (e.g. "projects/my-project/subscriptions/my-sub").
	// If a subscription ID is provided, the project ID from the client is used.
	sub := client.Subscriber(subID)

	// Receive messages for 10 seconds, which simplifies testing.
	// Comment this out in production, since `Receive` should
	// be used as a long running operation.
	ctx, cancel := context.WithTimeout(ctx, 10*time.Second)
	defer cancel()

	var received int32
	err = sub.Receive(ctx, func(_ context.Context, msg *pubsub.Message) {
		fmt.Fprintf(w, "Got message: %q\n", string(msg.Data))
		atomic.AddInt32(&received, 1)
		msg.Ack()
	})
	if err != nil {
		return fmt.Errorf("sub.Receive: %w", err)
	}
	fmt.Fprintf(w, "Received %d messages\n", received)

	return nil
}

C++

#include "google/cloud/opentelemetry/configure_basic_tracing.h"
#include "google/cloud/opentelemetry_options.h"
#include "google/cloud/pubsub/message.h"
#include "google/cloud/pubsub/publisher.h"
#include "google/cloud/pubsub/subscriber.h"
#include "google/cloud/pubsub/subscription.h"
#include <iostream>

int main(int argc, char* argv[]) try {
  if (argc != 4) {
    std::cerr << "Usage: " << argv[0]
              << " <project-id> <topic-id> <subscription-id>\n";
    return 1;
  }

  std::string const project_id = argv[1];
  std::string const topic_id = argv[2];
  std::string const subscription_id = argv[3];

  // Create a few namespace aliases to make the code easier to read.
  namespace gc = ::google::cloud;
  namespace otel = gc::otel;
  namespace pubsub = gc::pubsub;

  auto constexpr kWaitTimeout = std::chrono::seconds(30);

  auto project = gc::Project(project_id);
  auto configuration = otel::ConfigureBasicTracing(project);

  // Publish a message with tracing enabled.
  auto publisher = pubsub::Publisher(pubsub::MakePublisherConnection(
      pubsub::Topic(project_id, topic_id),
      gc::Options{}.set<gc::OpenTelemetryTracingOption>(true)));
  // Block until the message is actually sent and throw on error.
  auto id = publisher.Publish(pubsub::MessageBuilder().SetData("Hi!").Build())
                .get()
                .value();
  std::cout << "Sent message with id: (" << id << ")\n";

  // Receive a message using streaming pull with tracing enabled.
  auto subscriber = pubsub::Subscriber(pubsub::MakeSubscriberConnection(
      pubsub::Subscription(project_id, subscription_id),
      gc::Options{}.set<gc::OpenTelemetryTracingOption>(true)));

  auto session =
      subscriber.Subscribe([&](pubsub::Message const& m, pubsub::AckHandler h) {
        std::cout << "Received message " << m << "\n";
        std::move(h).ack();
      });

  std::cout << "Waiting for messages on " + subscription_id + "...\n";

  // Blocks until the timeout is reached.
  auto result = session.wait_for(kWaitTimeout);
  if (result == std::future_status::timeout) {
    std::cout << "timeout reached, ending session\n";
    session.cancel();
  }

  return 0;
} catch (google::cloud::Status const& status) {
  std::cerr << "google::cloud::Status thrown: " << status << "\n";
  return 1;
}

Python

from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import (
    BatchSpanProcessor,
)
from opentelemetry.exporter.cloud_trace import CloudTraceSpanExporter
from opentelemetry.sdk.trace.sampling import TraceIdRatioBased, ParentBased

from google.cloud import pubsub_v1
from google.cloud.pubsub_v1 import SubscriberClient
from google.cloud.pubsub_v1.types import SubscriberOptions

# TODO(developer)
# subscription_project_id = "your-subscription-project-id"
# subscription_id = "your-subscription-id"
# cloud_trace_project_id = "your-cloud-trace-project-id"
# timeout = 300.0

# In this sample, we use a Google Cloud Trace to export the OpenTelemetry
# traces: https://cloud.google.com/trace/docs/setup/python-ot
# Choose and configure the exporter for your set up accordingly.

sampler = ParentBased(root=TraceIdRatioBased(1))
trace.set_tracer_provider(TracerProvider(sampler=sampler))

# Export to Google Trace
cloud_trace_exporter = CloudTraceSpanExporter(
    project_id=cloud_trace_project_id,
)
trace.get_tracer_provider().add_span_processor(
    BatchSpanProcessor(cloud_trace_exporter)
)
# Set the `enable_open_telemetry_tracing` option to True when creating
# the subscriber client. This in itself is necessary and sufficient for
# the library to export OpenTelemetry traces. However, where the traces
# must be exported to needs to be configured based on your OpenTelemetry
# set up. Refer: https://opentelemetry.io/docs/languages/python/exporters/
subscriber = SubscriberClient(
    subscriber_options=SubscriberOptions(enable_open_telemetry_tracing=True)
)

# The `subscription_path` method creates a fully qualified identifier
# in the form `projects/{project_id}/subscriptions/{subscription_id}`
subscription_path = subscriber.subscription_path(
    subscription_project_id, subscription_id
)

# Define callback to be called when a message is received.
def callback(message: pubsub_v1.subscriber.message.Message) -> None:
    # Ack message after processing it.
    print(message.data)
    message.ack()

# Wrap subscriber in a 'with' block to automatically call close() when done.
with subscriber:
    try:
        # Optimistically subscribe to messages on the subscription.
        streaming_pull_future = subscriber.subscribe(
            subscription_path, callback=callback
        )
        streaming_pull_future.result(timeout=timeout)
    except TimeoutError:
        print("Successfully subscribed until the timeout passed.")
        streaming_pull_future.cancel()  # Trigger the shutdown.
        streaming_pull_future.result()  # Block until the shutdown is complete.

TypeScript

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const subscriptionNameOrId = 'YOUR_SUBSCRIPTION_OR_ID';

// Imports the Google Cloud client library
import {Message, PubSub} from '@google-cloud/pubsub';

// Imports the OpenTelemetry API
import {NodeTracerProvider} from '@opentelemetry/sdk-trace-node';
import {diag, DiagConsoleLogger, DiagLogLevel} from '@opentelemetry/api';
import {SimpleSpanProcessor} from '@opentelemetry/sdk-trace-base';

// To output to the console for testing, use the ConsoleSpanExporter.
// import {ConsoleSpanExporter} from '@opentelemetry/sdk-trace-base';

// To output to Cloud Trace, import the OpenTelemetry bridge library.
import {TraceExporter} from '@google-cloud/opentelemetry-cloud-trace-exporter';

import {Resource} from '@opentelemetry/resources';
import {SEMRESATTRS_SERVICE_NAME} from '@opentelemetry/semantic-conventions';

// Enable the diagnostic logger for OpenTelemetry
diag.setLogger(new DiagConsoleLogger(), DiagLogLevel.DEBUG);

// Log spans out to the console, for testing.
// const exporter = new ConsoleSpanExporter();

// Log spans out to Cloud Trace, for production.
const exporter = new TraceExporter();

// Build a tracer provider and a span processor to do
// something with the spans we're generating.
const provider = new NodeTracerProvider({
  resource: new Resource({
    [SEMRESATTRS_SERVICE_NAME]: 'otel subscriber example',
  }),
});
const processor = new SimpleSpanProcessor(exporter);
provider.addSpanProcessor(processor);
provider.register();

// Creates a client; cache this for further use.
const pubSubClient = new PubSub({enableOpenTelemetryTracing: true});

async function subscriptionListen(subscriptionNameOrId: string) {
  const subscriber = pubSubClient.subscription(subscriptionNameOrId);

  // Message handler for subscriber
  const messageHandler = async (message: Message) => {
    console.log(`Message ${message.id} received.`);
    message.ack();
  };

  // Error handler for subscriber
  const errorHandler = async (error: Error) => {
    console.log('Received error:', error);
  };

  // Listens for new messages from the topic
  subscriber.on('message', messageHandler);
  subscriber.on('error', errorHandler);

  // Ensures that all spans got flushed by the exporter. This function
  // is in service to making sure that any buffered Pub/Sub messages
  // and/or OpenTelemetry spans are properly flushed to the server
  // side. In normal usage, you'd only need to do something like this
  // on process shutdown.
  async function shutdown() {
    await subscriber.close();
    await processor.forceFlush();
    await new Promise(r => setTimeout(r, OTEL_TIMEOUT * 1000));
  }

  // Wait a bit for the subscription to receive messages, then shut down
  // gracefully. This is for the sample only; normally you would not need
  // this delay.
  await new Promise<void>(r =>
    setTimeout(async () => {
      subscriber.removeAllListeners();
      await shutdown();
      r();
    }, SUBSCRIBER_TIMEOUT * 1000),
  );
}

Node.js

/**
 * TODO(developer): Uncomment these variables before running the sample.
 */
// const subscriptionNameOrId = 'YOUR_SUBSCRIPTION_OR_ID';

// Imports the Google Cloud client library
const {PubSub} = require('@google-cloud/pubsub');

// Imports the OpenTelemetry API
const {NodeTracerProvider} = require('@opentelemetry/sdk-trace-node');
const {diag, DiagConsoleLogger, DiagLogLevel} = require('@opentelemetry/api');
const {SimpleSpanProcessor} = require('@opentelemetry/sdk-trace-base');

// To output to the console for testing, use the ConsoleSpanExporter.
// import {ConsoleSpanExporter} from '@opentelemetry/sdk-trace-base';

// To output to Cloud Trace, import the OpenTelemetry bridge library.
const {
  TraceExporter,
} = require('@google-cloud/opentelemetry-cloud-trace-exporter');

const {Resource} = require('@opentelemetry/resources');
const {
  SEMRESATTRS_SERVICE_NAME,
} = require('@opentelemetry/semantic-conventions');

// Enable the diagnostic logger for OpenTelemetry
diag.setLogger(new DiagConsoleLogger(), DiagLogLevel.DEBUG);

// Log spans out to the console, for testing.
// const exporter = new ConsoleSpanExporter();

// Log spans out to Cloud Trace, for production.
const exporter = new TraceExporter();

// Build a tracer provider and a span processor to do
// something with the spans we're generating.
const provider = new NodeTracerProvider({
  resource: new Resource({
    [SEMRESATTRS_SERVICE_NAME]: 'otel subscriber example',
  }),
});
const processor = new SimpleSpanProcessor(exporter);
provider.addSpanProcessor(processor);
provider.register();

// Creates a client; cache this for further use.
const pubSubClient = new PubSub({enableOpenTelemetryTracing: true});

async function subscriptionListen(subscriptionNameOrId) {
  const subscriber = pubSubClient.subscription(subscriptionNameOrId);

  // Message handler for subscriber
  const messageHandler = async message => {
    console.log(`Message ${message.id} received.`);
    message.ack();
  };

  // Error handler for subscriber
  const errorHandler = async error => {
    console.log('Received error:', error);
  };

  // Listens for new messages from the topic
  subscriber.on('message', messageHandler);
  subscriber.on('error', errorHandler);

  // Ensures that all spans got flushed by the exporter. This function
  // is in service to making sure that any buffered Pub/Sub messages
  // and/or OpenTelemetry spans are properly flushed to the server
  // side. In normal usage, you'd only need to do something like this
  // on process shutdown.
  async function shutdown() {
    await subscriber.close();
    await processor.forceFlush();
    await new Promise(r => setTimeout(r, OTEL_TIMEOUT * 1000));
  }

  // Wait a bit for the subscription to receive messages, then shut down
  // gracefully. This is for the sample only; normally you would not need
  // this delay.
  await new Promise(r =>
    setTimeout(async () => {
      subscriber.removeAllListeners();
      await shutdown();
      r();
    }, SUBSCRIBER_TIMEOUT * 1000),
  );
}

Java


import com.google.cloud.opentelemetry.trace.TraceConfiguration;
import com.google.cloud.opentelemetry.trace.TraceExporter;
import com.google.cloud.pubsub.v1.AckReplyConsumer;
import com.google.cloud.pubsub.v1.MessageReceiver;
import com.google.cloud.pubsub.v1.Subscriber;
import com.google.pubsub.v1.ProjectSubscriptionName;
import com.google.pubsub.v1.PubsubMessage;
import io.opentelemetry.api.OpenTelemetry;
import io.opentelemetry.sdk.OpenTelemetrySdk;
import io.opentelemetry.sdk.resources.Resource;
import io.opentelemetry.sdk.trace.SdkTracerProvider;
import io.opentelemetry.sdk.trace.export.SimpleSpanProcessor;
import io.opentelemetry.sdk.trace.export.SpanExporter;
import io.opentelemetry.sdk.trace.samplers.Sampler;
import io.opentelemetry.semconv.ResourceAttributes;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;

public class OpenTelemetrySubscriberExample {
  public static void main(String... args) throws Exception {
    // TODO(developer): Replace these variables before running the sample.
    String projectId = "your-project-id";
    String subscriptionId = "your-subscription-id";

    openTelemetrySubscriberExample(projectId, subscriptionId);
  }

  public static void openTelemetrySubscriberExample(String projectId, String subscriptionId) {
    Resource resource =
        Resource.getDefault().toBuilder()
            .put(ResourceAttributes.SERVICE_NAME, "subscriber-example")
            .build();

    // Creates a Cloud Trace exporter.
    SpanExporter traceExporter =
        TraceExporter.createWithConfiguration(
            TraceConfiguration.builder().setProjectId(projectId).build());

    SdkTracerProvider sdkTracerProvider =
        SdkTracerProvider.builder()
            .setResource(resource)
            .addSpanProcessor(SimpleSpanProcessor.create(traceExporter))
            .setSampler(Sampler.alwaysOn())
            .build();

    OpenTelemetry openTelemetry =
        OpenTelemetrySdk.builder().setTracerProvider(sdkTracerProvider).buildAndRegisterGlobal();

    ProjectSubscriptionName subscriptionName =
        ProjectSubscriptionName.of(projectId, subscriptionId);

    // Instantiate an asynchronous message receiver.
    MessageReceiver receiver =
        (PubsubMessage message, AckReplyConsumer consumer) -> {
          // Handle incoming message, then ack the received message.
          System.out.println("Id: " + message.getMessageId());
          System.out.println("Data: " + message.getData().toStringUtf8());
          consumer.ack();
        };

    Subscriber subscriber = null;
    try {
      subscriber =
          Subscriber.newBuilder(subscriptionName, receiver)
              .setOpenTelemetry(openTelemetry)
              .setEnableOpenTelemetryTracing(true)
              .build();

      // Start the subscriber.
      subscriber.startAsync().awaitRunning();
      System.out.printf("Listening for messages on %s:\n", subscriptionName.toString());
      // Allow the subscriber to run for 30s unless an unrecoverable error occurs.
      subscriber.awaitTerminated(30, TimeUnit.SECONDS);
    } catch (TimeoutException timeoutException) {
      // Shut down the subscriber after 30s. Stop receiving messages.
      subscriber.stopAsync();
    }
  }
}

Analizzare una traccia

Le sezioni seguenti contengono informazioni dettagliate su come monitorare e analizzare una traccia nella Google Cloud console.

Considerazioni

Quando pubblichi un batch di messaggi, l'intervallo della RPC di pubblicazione viene acquisito in una traccia separata.
Una RPC di pubblicazione ha più intervalli di origine, poiché più chiamate di creazione possono generare una RPC di pubblicazione quando vengono raggruppate.
Gli intervalli in OpenTelemetry possono avere zero o un intervallo principale.

Gli intervalli che rappresentano operazioni raggruppate, come publish batch, (che logicamente dovrebbero avere più intervalli principali) non possono essere rappresentati utilizzando zero o un intervallo principale.

Monitorare gli intervalli creati durante il ciclo di vita del messaggio

L'immagine seguente mostra un esempio di intervalli creati in una singola traccia per un singolo messaggio.

Visualizzare gli intervalli nel tracciamento

Ogni intervallo può avere attributi aggiuntivi. Gli attributi dell'intervallo forniscono metadati aggiuntivi, come la chiave di ordinamento del messaggio, l'ID del messaggio e le dimensioni del messaggio.

Visualizzare gli intervalli nel tracciamento

Gli intervalli principali di pubblicazione e sottoscrizione vengono aumentati con gli eventi dell'intervallo che corrispondono al momento in cui viene emessa una chiamata di rete e al momento in cui viene completata.

Visualizzare gli intervalli nel tracciamento

Risolvere i problemi comuni

I seguenti problemi possono causare problemi con la tracciabilità:

Il account di servizio che utilizzi per esportare le tracce non ha il ruolo roles/cloudtrace.agent richiesto.
È stata raggiunta la quota del numero massimo di intervalli inseriti in Cloud Trace.
L'applicazione viene terminata senza chiamare la funzione di scaricamento appropriata.

Monitoraggio OpenTelemetry di Pub/Sub Mantieni tutto organizzato con le raccolte Salva e classifica i contenuti in base alle tue preferenze.

Prima di iniziare

Ruoli obbligatori

Autorizzazioni obbligatorie

Flusso di lavoro della tracciabilità di OpenTelemetry

Funzionamento della tracciabilità

Pubblicare messaggi con la tracciabilità

Considerazioni

Vai

C++

Python

TypeScript

Node.js

Java

Ricevere messaggi con la tracciabilità

Vai

C++

Python

TypeScript

Node.js

Java

Analizzare una traccia

Considerazioni

Monitorare gli intervalli creati durante il ciclo di vita del messaggio

Risolvere i problemi comuni

Passaggi successivi

Monitoraggio OpenTelemetry di Pub/Sub
