Measure types

This page refers to the type parameter that is part of a measure.

type can also be used as part of a dimension or filter, described on the Dimension, filter, and parameter types documentation page.

type can also be used as part of a dimension group, described on the dimension_group parameter documentation page.

Usage

view: view_name {
  measure: field_name {
    type: measure_field_type
  }
}
Hierarchy
view
Field Type
type
Possible Field Types
Measure

Accepts
A measure type

This page includes details about the various types that can be assigned to a measure. A measure can only have one type, and it defaults to string if no type is specified.

Some measure types have supporting parameters, which are described within the appropriate section.

Measure type categories

Each measure type falls into one of the following categories. These categories determine whether the measure type performs aggregations, the type of fields that the measure type can reference, and whether you can filter the measure type using the filters parameter:

  • Aggregate measures: Aggregate measure types perform aggregations, such as sum and average. Aggregate measures can reference only dimensions, not other measures. This is the only measure type that works with the filters parameter.
  • Non-aggregate measures: Non-aggregate measures are, as the name suggests, measure types that don't perform aggregations, such as number and yesno. These measure types perform basic transformations and, since they don't perform aggregations, can reference only aggregate measures or previously aggregated dimensions. You cannot use the filters parameter with these measure types.
  • Post-SQL measures: Post-SQL measures are special measure types that perform specific calculations after Looker has generated query SQL. They can reference only numeric measures or numeric dimensions. You cannot use the filters parameter with these measure types.

List of type definitions

Type Category Description
average Aggregate Generates an average (mean) of values within a column
average_distinct Aggregate Properly generates an average (mean) of values when using denormalized data. See the average_distinct section for a complete description.
count Aggregate Generates a count of rows
count_distinct Aggregate Generates a count of unique values within a column
date Non-aggregate For measures that contain dates
list Aggregate Generates a list of the unique values within a column
max Aggregate Generates the maximum value within a column
median Aggregate Generates the median (midpoint value) of values within a column
median_distinct Aggregate Properly generates a median (midpoint value) of the values when a join causes a fanout. See the median_distinct section for a complete description.
min Aggregate Generates the minimum value within a column
number Non-aggregate For measures that contain numbers

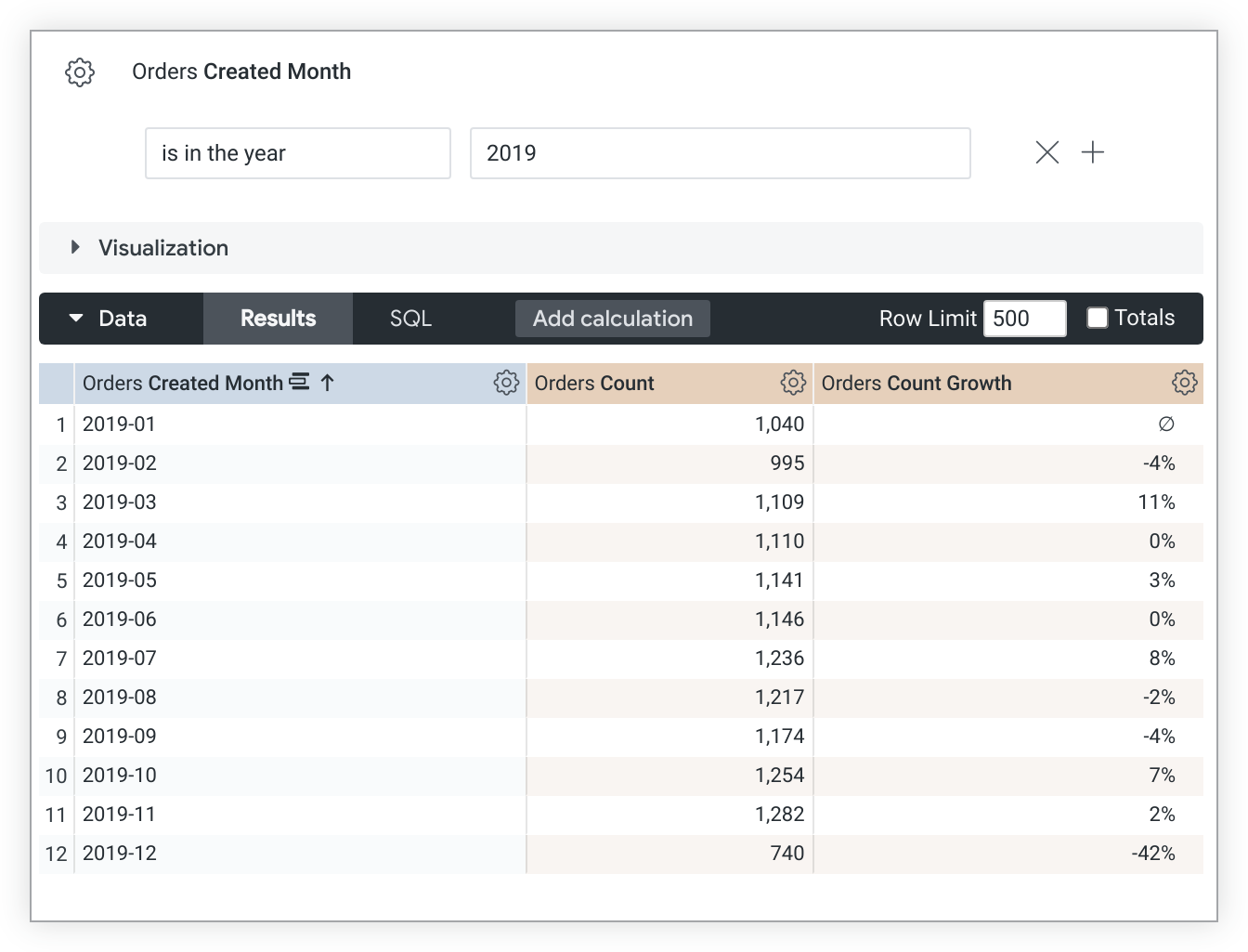

percent_of_previous Post-SQL Generates the percent difference between displayed rows

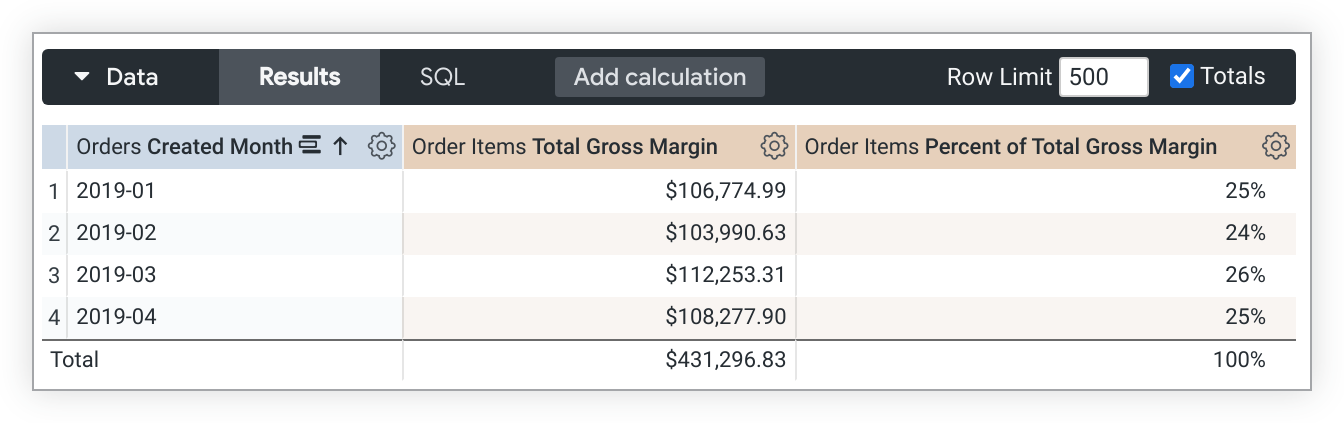

percent_of_total Post-SQL Generates the percent of total for each displayed row

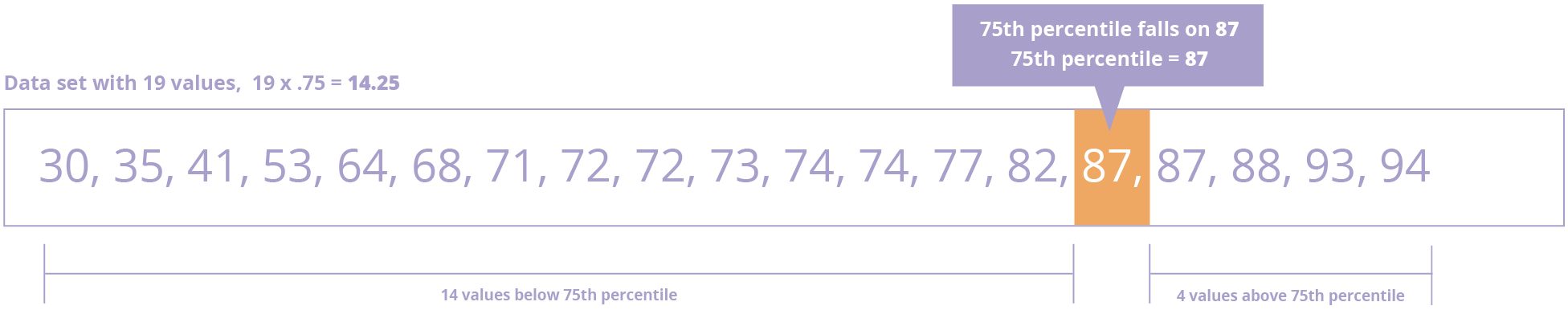

percentile Aggregate Generates the value at the specified percentile within a column
percentile_distinct Aggregate Properly generates the value at the specified percentile when a join causes a fanout. See the percentile_distinct section for a complete description.

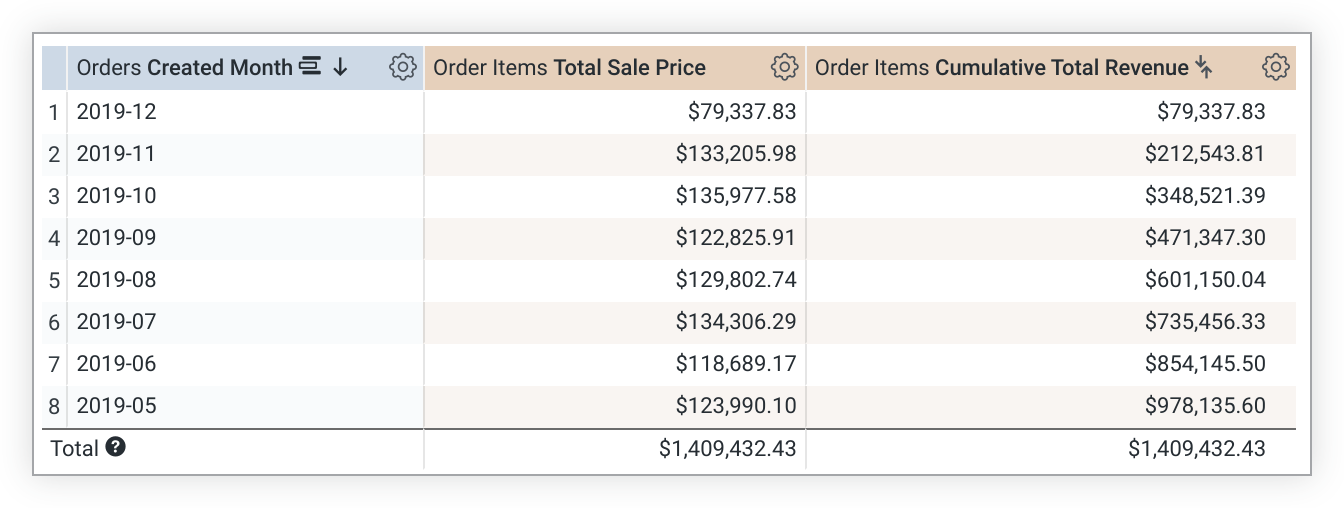

running_total Post-SQL Generates the running total for each displayed row
period_over_period Aggregate References an aggregation from an earlier time period
string Non-aggregate For measures that contain letters or special characters (as with MySQL's GROUP_CONCAT function)
sum Aggregate Generates a sum of values within a column
sum_distinct Aggregate Properly generates a sum of values when using denormalized data.

See the sum_distinct section for a complete description.
yesno Non-aggregate For fields that will show if something is true or false
int Non-aggregate Removed 5.4 Replaced by type: number

average

type: average averages the values in a given field. It is similar to SQL's AVG function. However, unlike with raw SQL, Looker will properly calculate averages even if your query's joins contain fanouts.

The sql parameter for type: average measures can take any valid SQL expression that results in a numeric table column, LookML dimension, or combination of LookML dimensions.

type: average fields can be formatted by using the value_format or value_format_name parameters.

For example, the following LookML creates a field called avg_order by averaging the sales_price dimension, then displays it in a money format ($1,234.56):

measure: avg_order {
  type: average
  sql: ${sales_price} ;;
  value_format_name: usd
}

average_distinct

type: average_distinct is for use with denormalized datasets. It averages the nonrepeated values in a given field, based on the unique values defined by the sql_distinct_key parameter.

This is an advanced concept which may be more clearly explained with an example. Consider a denormalized table like this:

Order Item ID Order ID Order Shipping
1 1 10.00
2 1 10.00
3 2 20.00
4 2 20.00
5 2 20.00

In this situation, you can see that there are multiple rows for each order. Consequently, if you added a basic type: average measure for the order_shipping column, you would get a value of 16.00, even though the actual average is 15.00.

 # Will NOT calculate the correct average
measure: avg_shipping {
  type: average
  sql: ${order_shipping} ;;
}

To get an accurate result, you can define for Looker how it should identify each unique entity (in this case, each unique order) by using the sql_distinct_key parameter. This will calculate the correct 15.00 amount:

 # Will calculate the correct average
measure: avg_shipping {
  type: average_distinct
  sql_distinct_key: ${order_id} ;;
  sql: ${order_shipping} ;;
}

Every unique value of sql_distinct_key must have just one corresponding value in sql. In other words, the preceding example works because every row with an order_id of 1 has the same order_shipping of 10.00, and every row with an order_id of 2 has the same order_shipping of 20.00.

type: average_distinct fields can be formatted by using the value_format or value_format_name parameters.

count

type: count performs a table count, similar to SQL's COUNT function. However, unlike with raw SQL, Looker will properly calculate counts even if your query's joins contain fanouts.

type: count measures perform table counts that are based on the table's primary key, so type: count measures don't support the sql parameter.

If you want to perform a table count on a field other than the table's primary key, use a type: count_distinct measure. Or, if you don't want to use count_distinct, you can use a measure of type: number (see the Community post How to count a non-primary key for more information).

For example, the following LookML creates a field number_of_products:

view: products {
  measure: number_of_products {
    type: count
    drill_fields: [product_details*]  # optional
  }
}

It is very common to provide a drill_fields (for fields) parameter when defining a type: count measure, so that users can see the individual records that make up a count when they click it.

When you use a measure of type: count in an Explore, the visualization labels the resulting values with the view name rather than the word "Count." To avoid confusion, we recommend pluralizing your view name, selecting Show Full Field Name under Series in the visualization settings, or using a view_label with a pluralized version of your view name.

You can add a filter to a measure of type: count using the filters parameter.

count_distinct

type: count_distinct calculates the number of distinct values in a given field. It makes use of SQL's COUNT DISTINCT function.

The sql parameter for type: count_distinct measures can take any valid SQL expression that results in a table column, LookML dimension, or combination of LookML dimensions.

For example, the following LookML creates a field number_of_unique_customers, which counts the number of unique customer IDs:

measure: number_of_unique_customers {
  type: count_distinct
  sql: ${customer_id} ;;
}

You can add a filter to a measure of type: count_distinct using the filters parameter.

date

type: date is used with fields that contain dates.

The sql parameter for type: date measures can take any valid SQL expression that results in a date. In practice, this type is rarely used, because most SQL aggregate functions don't return dates. One common exception is a MIN or MAX of a date dimension.

Creating a max or min date measure with type: date

If you want to create a measure of a maximum or minimum date, you might initially think it would work to use a measure of type: max or of type: min. However, these measure types are compatible only with numerical fields. Instead, you can capture a maximum or minimum date by defining a measure of type: date and wrapping the date field that is referenced in the sql parameter in a MIN() or MAX() function.

Suppose you have a dimension group of type: time, called updated:

dimension_group: updated {
  type: time
  timeframes: [time, date, week, month, raw]
  sql: ${TABLE}.updated_at ;;
}

You can create a measure of type: date to capture the maximum date of this dimension group as follows:

measure: last_updated_date {
  type: date
  sql: MAX(${updated_raw}) ;;
  convert_tz: no
}

In this example, instead of using a measure of type: max to create the last_updated_date measure, the MAX() function is applied in the sql parameter. The last_updated_date measure also has the convert_tz parameter set to no to prevent double time zone conversion in the measure, since time zone conversion has already occurred in the definition of the dimension group updated. For more information, see the documentation on the convert_tz parameter.

In the example LookML for the last_updated_date measure, type: date could be omitted, and the value would be treated as a string, because string is the default value for type. However, you will get better filtering capability for users if you use type: date.

You may also notice that the last_updated_date measure definition references the ${updated_raw} timeframe instead of the ${updated_date} timeframe. Because the value returned from ${updated_date} is a string, it is necessary to use ${updated_raw} to reference the actual date value instead.

You can also use the datatype parameter with type: date to enhance query performance by specifying the type of date data your database table uses.

Creating a max or min measure for a datetime column

Computing the maximum for a type: datetime column is a little different. In this case, you want to create a measure without declaring the type, like this:

measure: last_updated_datetime {
  sql: MAX(${TABLE}.datetime_string_field) ;;
}

list

type: list creates a list of the distinct values in a given field. It is similar to MySQL's GROUP_CONCAT function.

You don't need to include a sql parameter for type: list measures. Instead, you can use the list_field parameter to specify the dimension from which you want to create lists.

The usage is as follows:

view: view_name {
  measure: field_name {
    type: list
    list_field: my_field_name
  }
}

For example, the following LookML creates a measure name_list based on the name dimension:

measure: name_list {
  type: list
  list_field: name
}

Note the following for list:

  • The list measure type does not support filtering. You cannot use the filters parameter on a type: list measure.
  • The list measure type cannot be referenced using the substitution operator ($). You cannot use the ${} syntax to refer to a type: list measure.

Supported database dialects for list

For Looker to support type: list in your Looker project, your database dialect must also support it. The following table shows which dialects support type: list in the latest release of Looker:

Dialect Supported?
Actian Avalanche
Yes
Amazon Athena
Yes
Amazon Aurora MySQL
Yes
Amazon Redshift
Yes
Amazon Redshift 2.1+
Yes
Amazon Redshift Serverless 2.1+
Yes
Apache Druid
No
Apache Druid 0.13+
No
Apache Druid 0.18+
No
Apache Hive 2.3+
Yes
Apache Hive 3.1.2+
Yes
Apache Spark 3+
Yes
ClickHouse
Yes
Cloudera Impala 3.1+
No
Cloudera Impala 3.1+ with Native Driver
No
Cloudera Impala with Native Driver
No
DataVirtuality
No
Databricks
Yes
Denodo 7
No
Denodo 8 & 9
No
Dremio
No
Dremio 11+
No
Exasol
Yes
Google BigQuery Legacy SQL
Yes
Google BigQuery Standard SQL
Yes
Google Cloud PostgreSQL
Yes
Google Cloud SQL
Yes
Google Spanner
No
Greenplum
Yes
HyperSQL
Yes
IBM Netezza
No
MariaDB
Yes
Microsoft Azure PostgreSQL
Yes
Microsoft Azure SQL Database
No
Microsoft Azure Synapse Analytics
No
Microsoft SQL Server 2008+
No
Microsoft SQL Server 2012+
No
Microsoft SQL Server 2016
No
Microsoft SQL Server 2017+
No
MongoBI
No
MySQL
Yes
MySQL 8.0.12+
Yes
Oracle
Yes
Oracle ADWC
Yes
PostgreSQL 9.5+
Yes
PostgreSQL pre-9.5
Yes
PrestoDB
Yes
PrestoSQL
Yes
SAP HANA
No
SAP HANA 2+
No
SingleStore
Yes
SingleStore 7+
Yes
Snowflake
Yes
Teradata
No
Trino
Yes
Vector
Yes
Vertica
No

max

type: max finds the largest value in a given field. It makes use of SQL's MAX function.

The sql parameter for measures of type: max can take any valid SQL expression that results in a numeric table column, LookML dimension, or combination of LookML dimensions.

Since measures of type: max are compatible only with numerical fields, you cannot use a measure of type: max to find a maximum date. Instead, you can use the MAX() function in the sql parameter of a measure of type: date to capture a maximum date, as shown previously in the examples in the date section.

type: max fields can be formatted by using the value_format or value_format_name parameters.

For example, the following LookML creates a field called largest_order by looking at the sales_price dimension, then displays it in a money format ($1,234.56):

measure: largest_order {
  type: max
  sql: ${sales_price} ;;
  value_format_name: usd
}

You cannot use type: max measures for strings or dates, but you can manually add the MAX function to create such a field, like this:

measure: latest_name_in_alphabet {
  type: string
  sql: MAX(${name}) ;;
}

median

type: median returns the midpoint value for the values in a given field. This is especially useful when the data has a few very large or small outlier values that would skew a basic average (mean) of the data.

Consider a table like this:

Order Item ID Cost Midpoint?
2 10.00
4 10.00
3 20.00 Midpoint value
1 80.00
5 90.00

The table is sorted by cost, but that does not affect the result. While the average type would return 42 (adding all the values and dividing by 5), the median type would return the midpoint value: 20.00.

If there is an even number of values, then the median value is calculated by taking the mean of the two values closest to the midpoint. Consider a table like this with an even number of rows:

Order Item ID Cost Midpoint?
2 10
3 20 Closest before midpoint
1 80 Closest after midpoint
4 90

The median, the middle value, is (20 + 80)/2 = 50.

The median is also equal to the value at the 50th percentile.

The sql parameter for type: median measures can take any valid SQL expression that results in a numeric table column, LookML dimension, or combination of LookML dimensions.

type: median fields can be formatted by using the value_format or value_format_name parameters.

Example

For example, the following LookML creates a field called median_order by averaging the sales_price dimension, then displays it in a money format ($1,234.56):

measure: median_order {
  type: median
  sql: ${sales_price} ;;
  value_format_name: usd
}

Things to consider for median

If you're using median for a field that is involved in a fanout, Looker will attempt to use median_distinct instead. However, medium_distinct is supported only for certain dialects. If median_distinct is not available for your dialect, Looker returns an error. Since the median can be considered the 50th percentile, the error states that the dialect does not support distinct percentiles.

Supported database dialects for median

For Looker to support the median type in your Looker project, your database dialect must also support it. The following table shows which dialects support the median type in the latest release of Looker:

Dialect Supported?
Actian Avalanche
No
Amazon Athena
Yes
Amazon Aurora MySQL
Yes
Amazon Redshift
Yes
Amazon Redshift 2.1+
Yes
Amazon Redshift Serverless 2.1+
Yes
Apache Druid
No
Apache Druid 0.13+
No
Apache Druid 0.18+
No
Apache Hive 2.3+
Yes
Apache Hive 3.1.2+
Yes
Apache Spark 3+
Yes
ClickHouse
Yes
Cloudera Impala 3.1+
No
Cloudera Impala 3.1+ with Native Driver
No
Cloudera Impala with Native Driver
No
DataVirtuality
No
Databricks
Yes
Denodo 7
No
Denodo 8 & 9
No
Dremio
No
Dremio 11+
No
Exasol
Yes
Google BigQuery Legacy SQL
Yes
Google BigQuery Standard SQL
Yes
Google Cloud PostgreSQL
Yes
Google Cloud SQL
Yes
Google Spanner
No
Greenplum
Yes
HyperSQL
No
IBM Netezza
No
MariaDB
Yes
Microsoft Azure PostgreSQL
Yes
Microsoft Azure SQL Database
No
Microsoft Azure Synapse Analytics
No
Microsoft SQL Server 2008+
No
Microsoft SQL Server 2012+
No
Microsoft SQL Server 2016
No
Microsoft SQL Server 2017+
No
MongoBI
No
MySQL
Yes
MySQL 8.0.12+
Yes
Oracle
Yes
Oracle ADWC
Yes
PostgreSQL 9.5+
Yes
PostgreSQL pre-9.5
Yes
PrestoDB
Yes
PrestoSQL
Yes
SAP HANA
No
SAP HANA 2+
No
SingleStore
No
SingleStore 7+
Yes
Snowflake
Yes
Teradata
No
Trino
Yes
Vector
No
Vertica
Yes

When there is a fanout involved in a query, Looker tries to convert the median into median_distinct. This is only successful in dialects that support median_distinct.

median_distinct

Use type: median_distinct when your join involves a fanout. It averages the nonrepeated values in a given field, based on the unique values defined by the sql_distinct_key parameter. If the measure does not have a sql_distinct_key parameter, then Looker tries to use the primary_key field.

Consider the result of a query joining the Order Item and Order tables:

Order Item ID Order ID Order Shipping
1 1 10
2 1 10
3 2 20
4 3 50
5 3 50
6 3 50

In this situation you can see that there are multiple rows for each order. This query involved a fanout because each order maps to several order items. The median_distinct takes this into consideration and finds the median between the distinct values 10, 20, and 50 so you would get a value of 20.

To get an accurate result, you can define for Looker how it should identify each unique entity (in this case, each unique order) by using the sql_distinct_key parameter. This will calculate the correct amount:

measure: median_shipping {
  type: median_distinct
  sql_distinct_key: ${order_id} ;;
  sql: ${order_shipping} ;;
}

Every unique value of sql_distinct_key must have just one corresponding value in the measure's sql parameter. In other words, the preceding example works because every row with an order_id of 1 has the same order_shipping of 10, and every row with an order_id of 2 has the same order_shipping of 20.

type: median_distinct fields can be formatted by using the value_format or value_format_name parameters.

Things to consider for median_distinct

The medium_distinct measure type is supported only for certain dialects. If median_distinct is not available for the dialect, Looker returns an error. Since the median can be considered the 50th percentile, the error states that the dialect does not support distinct percentiles.

Supported database dialects for median_distinct

For Looker to support the median_distinct type in your Looker project, your database dialect must also support it. The following table shows which dialects support the median_distinct type in the latest release of Looker:

Dialect Supported?
Actian Avalanche
No
Amazon Athena
No
Amazon Aurora MySQL
Yes
Amazon Redshift
No
Amazon Redshift 2.1+
No
Amazon Redshift Serverless 2.1+
No
Apache Druid
No
Apache Druid 0.13+
No
Apache Druid 0.18+
No
Apache Hive 2.3+
No
Apache Hive 3.1.2+
No
Apache Spark 3+
No
ClickHouse
No
Cloudera Impala 3.1+
No
Cloudera Impala 3.1+ with Native Driver
No
Cloudera Impala with Native Driver
No
DataVirtuality
No
Databricks
No
Denodo 7
No
Denodo 8 & 9
No
Dremio
No
Dremio 11+
No
Exasol
No
Google BigQuery Legacy SQL
Yes
Google BigQuery Standard SQL
Yes
Google Cloud PostgreSQL
Yes
Google Cloud SQL
Yes
Google Spanner
No
Greenplum
Yes
HyperSQL
No
IBM Netezza
No
MariaDB
Yes
Microsoft Azure PostgreSQL
Yes
Microsoft Azure SQL Database
No
Microsoft Azure Synapse Analytics
No
Microsoft SQL Server 2008+
No
Microsoft SQL Server 2012+
No
Microsoft SQL Server 2016
No
Microsoft SQL Server 2017+
No
MongoBI
No
MySQL
Yes
MySQL 8.0.12+
Yes
Oracle
No
Oracle ADWC
No
PostgreSQL 9.5+
Yes
PostgreSQL pre-9.5
Yes
PrestoDB
No
PrestoSQL
No
SAP HANA
No
SAP HANA 2+
No
SingleStore
No
SingleStore 7+
No
Snowflake
No
Teradata
No
Trino
No
Vector
No
Vertica
No

min

type: min finds the smallest value in a given field. It makes use of SQL's MIN function.

The sql parameter for measures of type: min can take any valid SQL expression that results in a numeric table column, LookML dimension, or combination of LookML dimensions.

Since measures of type: min are compatible only with numerical fields, you cannot use a measure of type: min to find a minimum date. Instead, you can use the MIN() function in the sql parameter of a measure of type: date to capture a minimum, just as you can use the MAX() function with a measure of type: date to capture a maximum date. This is shown previously on this page in the date section, which includes examples of using the MAX() function in the sql parameter to find a maximum date.

type: min fields can be formatted by using the value_format or value_format_name parameters.

For example, the following LookML creates a field called smallest_order by looking at the sales_price dimension, then displays it in a money format ($1,234.56):

measure: smallest_order {
  type: min
  sql: ${sales_price} ;;
  value_format_name: usd
}

You cannot use type: min measures for strings or dates, but you can manually add the MIN function to create such a field, like this:

measure: earliest_name_in_alphabet {
  type: string
  sql: MIN(${name}) ;;
}

number

type: number is used with numbers or integers. A measure of type: number does not perform any aggregation, and is meant to perform basic transformations on other measures. If you are defining a measure that is based on another measure, the new measure must be of type: number to avoid nested-aggregation errors.

The sql parameter for type: number measures can take any valid SQL expression that results in a number or an integer.

type: number fields can be formatted by using the value_format or value_format_name parameters.

For example, the following LookML creates a measure called total_gross_margin_percentage based on the total_sale_price and total_gross_margin aggregate measures, then displays it in a percentage format with two decimals (12.34%):

measure: total_sale_price {
  type: sum
  value_format_name: usd
  sql: ${sale_price} ;;
}

measure: total_gross_margin {
  type: sum
  value_format_name: usd
  sql: ${gross_margin} ;;
}

measure: total_gross_margin_percentage {
  type: number
  value_format_name: percent_2
  sql: ${total_gross_margin}/ NULLIF(${total_sale_price},0) ;;
}

This example also uses the NULLIF() SQL function to remove the possibility of division-by-zero errors.

Things to consider for type: number

There are several important things to keep in mind when using type: number measures:

  • A measure of type: number can perform arithmetic only on other measures, not on other dimensions.
  • Looker symmetric aggregates won't protect aggregate functions in the SQL of a measure type: number when computed across a join.
  • The filters parameter cannot be used with type: number measures, but the filters documentation explains a workaround.
  • type: number measures won't provide suggestions to users.

percent_of_previous

type: percent_of_previous calculates the percent difference between a cell and the previous cell in its column.

The sql parameter for type: percent_of_previous measures must reference another numeric measure.

type: percent_of_previous fields can be formatted by using the value_format or value_format_name parameters. However, the percentage formats of the value_format_name parameter don't work with type: percent_of_previous measures. These percentage formats multiply values by 100, which skews results of a percent of previous calculation.

This example LookML creates a count_growth measure that is based on the count measure:

measure: count_growth {
  type: percent_of_previous
  sql: ${count} ;;
}

Note that percent_of_previous values depend on sort order. If you change the sort, you must rerun the query to recalculate the percent_of_previous values. In cases where a query is pivoted, percent_of_previous runs across the row instead of down the column. You cannot change this behavior.

Additionally, percent_of_previous measures are calculated after data is returned from your database. This means that you shouldn't reference a percent_of_previous measure within another measure; since they might be calculated at different times, you may not get accurate results. It also means that percent_of_previous measures cannot be filtered on.

One application for this type of measure is period-over-period (PoP) analysis, which is a pattern of analysis that measures something in the present and compares it to the same measurement in a comparable period of time in the past. For more information about PoP, see the Looker Community articles How to do Period-over-Period Analysis and Methods for Period Over Period (PoP) Analysis in Looker.

percent_of_total

type: percent_of_total calculates a cell's portion of the column total. The percentage is calculated against the total of the rows returned by your query, and not the total of all possible rows. However, if the data returned by your query exceeds a row limit, the field's values will appear as nulls, since it needs the full results to calculate the percent of total.

The sql parameter for type: percent_of_total measures must reference another numeric measure.

type: percent_of_total fields can be formatted by using the value_format or value_format_name parameters. However, the percentage formats of the value_format_name parameter don't work with type: percent_of_total measures. These percentage formats multiply values by 100, which skews results of a percent_of_total calculation.

This example LookML creates a percent_of_total_gross_margin measure that is based on the total_gross_margin measure:

measure: percent_of_total_gross_margin {
  type: percent_of_total
  sql: ${total_gross_margin} ;;
}

In cases where a query is pivoted, percent_of_total runs across the row instead of down the column. If this is not what you want, add direction: "column" to the measure definition.

Additionally, percent_of_total measures are calculated after data is returned from your database. This means that you shouldn't reference a percent_of_total measure within another measure; since they might be calculated at different times, you may not get accurate results. It also means that percent_of_total measures cannot be filtered on.

percentile

type: percentile returns the value at the specified percentile of values in a given field. For example, specifying the 75th percentile will return the value that is greater than 75% of the other values in the dataset.

To identify the value to return, Looker calculates the total number of data values and multiplies the specified percentile times the total number of data values. Regardless of how the data is actually sorted, Looker identifies the data values' relative order in increasing value. The data value that Looker returns depends on whether the calculation results in an integer or not, as discussed in the following two sections.

If the calculated value is not an integer

Looker rounds the calculated value up and uses it to identify the data value to return. In this example set of 19 test scores, the 75th percentile would be identified by 19 * .75 = 14.25, which means that 75% of the values are in the first 14 data values -- below the 15th position. Thus, Looker returns the 15th data value (87) as being larger than 75% of the data values.

If the calculated value is an integer

In this slightly more complex case, Looker returns an average of the data value at that position and the following data value. To understand this, consider a set of 20 test scores: The 75th percentile would be identified by 20 * .75 = 15, which means that the data value at the 15th position is part of the 75th percentile, and we need to return a value that is higher than 75% of the data values. By returning the average of the values at the 15th position (82) and the 16th position (87), Looker ensures that 75%. That average (84.5) does not exist in the set of data values but would be larger than 75% of the data values.

Required and optional parameters

Use the percentile: keyword to specify the fractional value, meaning the percent of the data that should be below the returned value. For example, use percentile: 75 to specify the value at the 75th percentile in the order of data, or percentile: 10 to return the value at the 10th percentile. If you want to find the value at the 50th percentile, you can specify percentile: 50 or just use the median type.

The sql parameter for type: percentile measures can take any valid SQL expression that results in a numeric table column, LookML dimension, or combination of LookML dimensions.

type: percentile fields can be formatted by using the value_format or value_format_name parameters.

Example

For example, the following LookML creates a field called test_scores_75th_percentile which returns the value at the 75th percentile in the test_scores dimension:

measure: test_scores_75th_percentile {
  type: percentile
  percentile: 75
  sql: ${TABLE}.test_scores ;;
}

Things to consider for percentile

If you're using percentile for a field that is involved in a fanout, Looker will attempt to use percentile_distinct instead. If percentile_distinct is not available for the dialect, Looker returns an error. For more information, see the supported dialects for percentile_distinct.

Supported database dialects for percentile

For Looker to support the percentile type in your Looker project, your database dialect must also support it. The following table shows which dialects support the percentile type in the latest release of Looker:

Dialect Supported?
Actian Avalanche
No
Amazon Athena
Yes
Amazon Aurora MySQL
Yes
Amazon Redshift
Yes
Amazon Redshift 2.1+
Yes
Amazon Redshift Serverless 2.1+
Yes
Apache Druid
No
Apache Druid 0.13+
No
Apache Druid 0.18+
No
Apache Hive 2.3+
Yes
Apache Hive 3.1.2+
Yes
Apache Spark 3+
Yes
ClickHouse
Yes
Cloudera Impala 3.1+
No
Cloudera Impala 3.1+ with Native Driver
No
Cloudera Impala with Native Driver
No
DataVirtuality
No
Databricks
Yes
Denodo 7
No
Denodo 8 & 9
No
Dremio
No
Dremio 11+
No
Exasol
Yes
Google BigQuery Legacy SQL
Yes
Google BigQuery Standard SQL
Yes
Google Cloud PostgreSQL
Yes
Google Cloud SQL
Yes
Google Spanner
No
Greenplum
Yes
HyperSQL
No
IBM Netezza
No
MariaDB
Yes
Microsoft Azure PostgreSQL
Yes
Microsoft Azure SQL Database
No
Microsoft Azure Synapse Analytics
No
Microsoft SQL Server 2008+
No
Microsoft SQL Server 2012+
No
Microsoft SQL Server 2016
No
Microsoft SQL Server 2017+
No
MongoBI
No
MySQL
Yes
MySQL 8.0.12+
Yes
Oracle
Yes
Oracle ADWC
Yes
PostgreSQL 9.5+
Yes
PostgreSQL pre-9.5
Yes
PrestoDB
Yes
PrestoSQL
Yes
SAP HANA
No
SAP HANA 2+
No
SingleStore
No
SingleStore 7+
Yes
Snowflake
Yes
Teradata
No
Trino
Yes
Vector
No
Vertica
Yes

percentile_distinct

The type: percentile_distinct is a specialized form of percentile and should be used when your join involves a fanout. It uses the nonrepeated values in a given field, based on the unique values defined by the sql_distinct_key parameter. If the measure does not have a sql_distinct_key parameter, then Looker tries to use the primary_key field.

Consider the result of a query joining the Order Item and Order tables:

Order Item ID Order ID Order Shipping
1 1 10
2 1 10
3 2 20
4 3 50
5 3 50
6 3 50
7 4 70
8 4 70
9 5 110
10 5 110

In this situation you can see that there are multiple rows for each order. This query involved a fanout because each order maps to several order items. The percentile_distinct takes this into consideration and finds the percentile value using the distinct values 10, 20, 50, 70, and 110. The 25th percentile will return the second distinct value, or 20, while the 80th percentile will return the average of the fourth and fifth distinct values, or 90.

Required and optional parameters

Use the percentile: keyword to specify the fractional value. For example, use percentile: 75 to specify the value at the 75th percentile in the order of data, or percentile: 10 to return the value at the 10th percentile. If you are trying to find the value at the 50th percentile, you can use the median_distinct type instead.

To get an accurate result, specify how Looker should identify each unique entity (in this case, each unique order) by using the sql_distinct_key parameter.

Here's an example of using percentile_distinct to return the value at the 90th percentile:

measure: order_shipping_90th_percentile {
  type: percentile_distinct
  percentile: 90
  sql_distinct_key: ${order_id} ;;
  sql: ${order_shipping} ;;
}

Every unique value of sql_distinct_key must have just one corresponding value in the measure's sql parameter. In other words, the preceding example works because every row with order_id of 1 has the same order_shipping of 10, and every row with an order_id of 2 has the same order_shipping of 20.

type: percentile_distinct fields can be formatted by using the value_format or value_format_name parameters.

Things to consider for percentile_distinct

If percentile_distinct is not available for the dialect, Looker returns an error. For more information, see the supported dialects for percentile_distinct.

Supported database dialects for percentile_distinct

For Looker to support the percentile_distinct type in your Looker project, your database dialect must also support it. The following table shows which dialects support the percentile_distinct type in the latest release of Looker:

Dialect Supported?
Actian Avalanche
No
Amazon Athena
No
Amazon Aurora MySQL
Yes
Amazon Redshift
No
Amazon Redshift 2.1+
No
Amazon Redshift Serverless 2.1+
No
Apache Druid
No
Apache Druid 0.13+
No
Apache Druid 0.18+
No
Apache Hive 2.3+
No
Apache Hive 3.1.2+
No
Apache Spark 3+
No
ClickHouse
No
Cloudera Impala 3.1+
No
Cloudera Impala 3.1+ with Native Driver
No
Cloudera Impala with Native Driver
No
DataVirtuality
No
Databricks
No
Denodo 7
No
Denodo 8 & 9
No
Dremio
No
Dremio 11+
No
Exasol
No
Google BigQuery Legacy SQL
Yes
Google BigQuery Standard SQL
Yes
Google Cloud PostgreSQL
Yes
Google Cloud SQL
Yes
Google Spanner
No
Greenplum
Yes
HyperSQL
No
IBM Netezza
No
MariaDB
Yes
Microsoft Azure PostgreSQL
Yes
Microsoft Azure SQL Database
No
Microsoft Azure Synapse Analytics
No
Microsoft SQL Server 2008+
No
Microsoft SQL Server 2012+
No
Microsoft SQL Server 2016
No
Microsoft SQL Server 2017+
No
MongoBI
No
MySQL
Yes
MySQL 8.0.12+
Yes
Oracle
No
Oracle ADWC
No
PostgreSQL 9.5+
Yes
PostgreSQL pre-9.5
Yes
PrestoDB
No
PrestoSQL
No
SAP HANA
No
SAP HANA 2+
No
SingleStore
No
SingleStore 7+
No
Snowflake
No
Teradata
No
Trino
No
Vector
No
Vertica
No

period_over_period

For dialects that support period-over-period measures, you can create a LookML measure of type: period_over_period to create a period-over-period (PoP) measure. A PoP measure references an aggregation from an earlier time period.

Here is an example PoP measure that provides the previous month's order count:

  measure: orders_last_month {
    type: period_over_period
    based_on: orders.count
    based_on_time: orders.created_month
    period: month
    kind: previous
  }

Measures with type: period_over_period must also have the following subparameters:

See Period-over-period measures in Looker for more information and examples.

running_total

type: running_total calculates a cumulative sum of the cells along a column. It cannot be used to calculate sums along a row, unless the row has resulted from a pivot.

The sql parameter for type: running_total measures must reference another numeric measure.

type: running_total fields can be formatted by using the value_format or value_format_name parameters.

The following LookML example creates a cumulative_total_revenue measure that is based on the total_sale_price measure:

measure: cumulative_total_revenue {
  type: running_total
  sql: ${total_sale_price} ;;
  value_format_name: usd
}

Note that running_total values depend on sort order. If you change the sort, you must re-run the query to re-calculate the running_total values. In cases where a query is pivoted, running_total runs across the row instead of down the column. If this is not what you want, add direction: "column" to the measure definition.

Additionally, running_total measures are calculated after data is returned from your database. This means that you shouldn't reference a running_total measure within another measure; since they might be calculated at different times, you may not get accurate results. It also means that running_total measures cannot be filtered on.

string

type: string is used with fields that contain letters or special characters.

The sql parameter for type: string measures can take any valid SQL expression that results in a string. In practice, this type is rarely used, because most SQL aggregate functions don't return strings. One common exception is MySQL's GROUP_CONCAT function, although Looker provides type: list for that use case.

For example, the following LookML creates a field category_list by combining the unique values of a field called category:

measure: category_list {
  type: string
  sql: GROUP_CONCAT(${category}) ;;
}

In this example type: string could be omitted, because string is the default value for type.

sum

type: sum adds up the values in a given field. It is similar to SQL's SUM function. However, unlike with raw SQL, Looker will properly calculate sums even if your query's joins contain fanouts.

The sql parameter for type: sum measures can take any valid SQL expression that results in a numeric table column, LookML dimension, or combination of LookML dimensions.

type: sum fields can be formatted by using the value_format or value_format_name parameters.

For example, the following LookML creates a field called total_revenue by adding up the sales_price dimension, then displays it in a money format ($1,234.56):

measure: total_revenue {
  type: sum
  sql: ${sales_price} ;;
  value_format_name: usd
}

sum_distinct

type: sum_distinct is for use with denormalized datasets. It adds up the nonrepeated values in a given field, based on the unique values defined by the sql_distinct_key parameter.

This is an advanced concept which may be more clearly explained with an example. Consider a denormalized table like this:

Order Item ID Order ID Order Shipping
1 1 10.00
2 1 10.00
3 2 20.00
4 2 20.00
5 2 20.00

In this situation, you can see that there are multiple rows for each order. Consequently, if you added a type: sum measure for the order_shipping column, you would get a total of 80.00, even though the total shipping collected is actually 30.00.

 # Will NOT calculate the correct shipping amount
measure: total_shipping {
  type: sum
  sql: ${order_shipping} ;;
}

To get an accurate result, you can define for Looker how it should identify each unique entity (in this case, each unique order) by using the sql_distinct_key parameter. This will calculate the correct 30.00 amount:

 # Will calculate the correct shipping amount
measure: total_shipping {
  type: sum_distinct
  sql_distinct_key: ${order_id} ;;
  sql: ${order_shipping} ;;
}

Every unique value of sql_distinct_key must have just one corresponding value in sql. In other words, the preceding example works because every row with an order_id of 1 has the same order_shipping of 10.00, and every row with an order_id of 2 has the same order_shipping of 20.00.

type: sum_distinct fields can be formatted by using the value_format or value_format_name parameters.

yesno

type: yesno creates a field that indicates if something is true or false. The values appear as Yes and No in the Explore UI.

The sql parameter for a type: yesno measure takes a valid SQL expression that evaluates to TRUE or FALSE. If the condition evaluates to TRUE, Yes is displayed to the user; otherwise, No is displayed.

The SQL expression for type: yesno measures must include only aggregations, which means SQL aggregations or references to LookML measures. If you want to create a yesno field that includes a reference to a LookML dimension or a SQL expression that is not an aggregation, use a dimension with type: yesno, not a measure.

Similar to measures with type: number, a measure with type: yesno doesn't do any aggregations; it just references other aggregations.

For example, the following total_sale_price measure example is a sum of the total sale price of order items in an order. A second measure called is_large_total is type: yesno. The is_large_total measure has a sql parameter that evaluates whether the total_sale_price value is greater than $1,000.

measure: total_sale_price {
  type: sum
  value_format_name: usd
  sql: ${sale_price} ;;
  drill_fields: [detail*]
}
measure: is_large_total {
  description: "Is order total over $1000?"
  type: yesno
  sql: ${total_sale_price} > 1000 ;;
}

If you want to reference a type: yesno field in another field, you should treat the type: yesno field as a boolean (in other words, as if it contains a true or false value already). For example:

measure: is_large_total {
  description: "Is order total over $1000?"
  type: yesno
  sql: ${total_sale_price} > 1000 ;;
}
# This is correct:
measure: reward_points {
  type: number
  sql: CASE WHEN ${is_large_total} THEN 200 ELSE 100 END ;;
}
# This is NOT correct:
measure: reward_points {
  type: number
  sql: CASE WHEN ${is_large_total} = 'Yes' THEN 200 ELSE 100 END ;;
}
