使用 Webhook 建立執行要求

Dialogflow 中的 Webhook 執行要求可讓我們大幅控管代理程式流程。在本教學課程中，您需要使用 Webhook 驗證「Sequence」意圖中收集的英數字元序列。Webhook 會重複執行該意圖，以更易於管理的方式收集長序列。

使用內嵌編輯器建立 Webhook

Dialogflow 主控台內建內嵌編輯器，可讓您直接編寫 NodeJS 程式碼，然後部署至 Cloud Functions，以 Webhook 形式執行。

如要使用 Dialogflow 的內嵌編輯器建立 Webhook，請按照下列步驟操作：

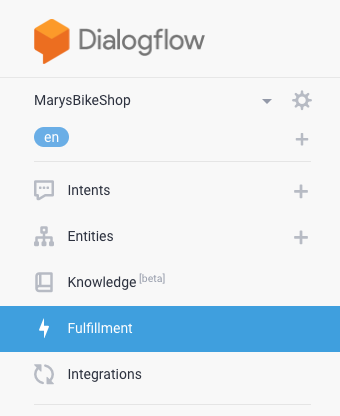

按一下導覽列上的「Fulfillment」(執行要求) 分頁標籤，前往執行要求頁面。
將內嵌編輯器的按鈕切換為「已啟用」。
刪除內嵌編輯器 package.json 分頁中的現有內容。

複製下列 JSON 內容，然後貼到內嵌編輯器的 package.json 分頁中：

{
  "name": "DialogflowFirebaseWebhook",
  "description": "Firebase Webhook dependencies for a Dialogflow agent.",
  "version": "0.0.1",
  "private": true,
  "license": "Apache Version 2.0",
  "author": "Google Inc.",
  "engines": {
    "node": "10"
  },
  "scripts": {
    "lint": "semistandard --fix \"**/*.js\"",
    "start": "firebase deploy --only functions",
    "deploy": "firebase deploy --only functions"
  },
  "dependencies": {
    "firebase-functions": "^2.0.2",
    "firebase-admin": "^5.13.1"
  }
}

刪除內嵌編輯器 index.js 分頁中的現有程式碼。

複製下列程式碼，然後貼到內嵌編輯器的「index.js」分頁：

/**
 * Copyright 2020 Google Inc. All Rights Reserved.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

'use strict';

const functions = require('firebase-functions');

// TODO: set this to the minimum valid length for your sequence.
// There's no logic in here to enforce this length, but once the
// user has said this many digits, the slot-filling prompt will
// also instruct the user to say "that's all" to end the slot-filling.
const MIN_SEQUENCE_LENGTH = 10;

exports.dialogflowFirebaseFulfillment = functions.https.onRequest((request, response) => {
  let dfRequest = request.body;
  let action = dfRequest.queryResult.action;
  switch (action) {
    case 'handle-sequence':
      handleSequence(dfRequest, response);
      break;
    case 'validate-sequence':
      validateSequence(dfRequest, response);
      break;
    default:
      response.json({
        fulfillmentText: `Webhook for action "${action}" not implemented.`
      });
  }
});

////
// Helper functions

/* Send an SSML response.
 * @param request: Dialogflow WebhookRequest JSON with camelCase keys.
 *     See https://cloud.google.com/dialogflow/es/docs/reference/common-types#webhookrequest
 * @param response: Express JS response object
 * @param ssml: SSML string.
 * @example: sendSSML(request, response, 'hello')
 *     Will call response.json() with SSML payload '<speak>hello</speak>'
 */
function sendSSML(request, response, ssml) {
  ssml = `<speak>${ssml}</speak>`;

  if (request.originalDetectIntentRequest.source == 'GOOGLE_TELEPHONY') {
    // Dialogflow Phone Gateway Response
    // see https://cloud.google.com/dialogflow/es/docs/reference/rpc/google.cloud.dialogflow.v2beta1#google.cloud.dialogflow.v2beta1.Intent.Message.TelephonySynthesizeSpeech
    response.json({
      fulfillmentMessages: [{
        platform: 'TELEPHONY',
        telephonySynthesizeSpeech: {ssml: ssml}
      }]
    });
  }
  else {
    // Some CCAI telephony partners accept SSML in a plain text response.
    // Check your specific integration and customize the payload here.
    response.json({
      fulfillmentText: ssml
    });
  }
}

/* Extract an output context from the incoming WebhookRequest.
 * @param request: Dialogflow WebhookRequest JSON with camelCase keys.
 *     See https://cloud.google.com/dialogflow/es/docs/reference/common-types#webhookrequest
 * @param name: A string
 * @return: The context object if found, or undefined
 * @see: https://cloud.google.com/dialogflow/es/docs/reference/rpc/google.cloud.dialogflow.v2#google.cloud.dialogflow.v2.Context
 *     and note this webhook uses JSON camelCase instead of RPC snake_case.
 * @example:
 *     // Modify an existing output content
 *     let context = getOutputContext(request, 'some-context');
 *     context.lifespanCount = 5;
 *     context.parameters.some_parameter = 'new value';
 *     response.json({
 *       fulfillmentText: 'new value set',
 *       outputContexts: [context]
 *     });
 */
function getOutputContext(request, name) {
  return request.queryResult.outputContexts.find(
      context => context.name.endsWith(`/contexts/${name}`)
  );
}

////
// Action handler functions

/*
 * Fulfillment function for:
 *     actions: handle-sequence
 *     intents: "Sequence", "Sequence - Edit"
 * @param request: Dialogflow WebhookRequest JSON with camelCase keys.
 *     See https://cloud.google.com/dialogflow/es/docs/reference/common-types#webhookrequest
 * @param response: Express JS response object
 */
function handleSequence(request, response) {
  let parameters = request.queryResult.parameters;
  let isSlotFilling = !request.queryResult.allRequiredParamsPresent;
  let isEditing = getOutputContext(request, 'editing-sequence');
  console.log(request.queryResult.action + ': ' + JSON.stringify(parameters));

  if (isSlotFilling) {
    // Prompt the user for the sequence

    let verbatim = `<prosody rate="slow"><say-as interpret-as="verbatim">${parameters.existing_sequence}</say-as></prosody>`;

    if (!parameters.existing_sequence && !parameters.new_sequence) {
      // Initial prompt
      response.json({
        fulfillmentText: "What is your sequence? Please pause after a few characters so I can confirm as we go."
      });
    }
    else if (!isEditing) {
      // Confirm what the system heard with the user. We customize the response
      // according to how many sequences we've heard to make the prompts less
      // verbose.
      if (!parameters.previous_sequence) {
        // after the first input
        sendSSML(request, response,
            `Say "no" to correct me at any time. Otherwise, what comes after ${verbatim}`);
      }
      else if (parameters.existing_sequence.length < MIN_SEQUENCE_LENGTH) {
        // we know there are more characters to go
        sendSSML(request, response,
            `${verbatim} What's next?`);
      }
      else {
        // we might have all we need
        sendSSML(request, response,
            `${verbatim} What's next? Or say "that's all".`);
      }
    }
    else {
      // User just said "no"
      sendSSML(request, response,
          `Let's try again. What comes after ${verbatim}`);
    }
  }
  else {
    // Slot filling is complete.

    // Construct the full sequence.
    let sequence = (parameters.existing_sequence || '') + (parameters.new_sequence || '');

    // Trigger the follow up event to get back into slot filling for the
    // next sequence.
    response.json({
      followupEventInput: {
        name: 'continue-sequence',
        parameters: {
          existing_sequence: sequence,
          previous_sequence: parameters.existing_sequence || ''
        }
      }
    });

    // TODO: CHALLENGE: consider validating the sequence here.
    // The user has already confirmed existing_sequence, so if you find a unique
    // record in your database with this existing_sequence prefix, you could send
    // a followUpEventInput like 'validated-sequence' to skip to the next part
    // of the flow. You could either create a new intent for this event, or
    // reuse the "Sequence - done" intent. If you reuse the "done" intent, you
    // could add another parameter "assumed_sequence" with value
    // "#validated-sequence.sequence", then modify the validateSequence function
    // below to customize the response for this case.
  }
}

/*
 * Fulfillment function for:
 *     action: validate-sequence
 *     intents: "Sequence - Done"
 * @param request: Dialogflow WebhookRequest JSON with camelCase keys.
 *     See https://cloud.google.com/dialogflow/es/docs/reference/common-types#webhookrequest
 * @param response: Express JS response object
 */
function validateSequence(request, response) {
  let parameters = request.queryResult.parameters;
  // TODO: add logic to validate the sequence and customize your response
  let verbatim = `<say-as interpret-as="verbatim">${parameters.sequence}</say-as>`;
  sendSSML(request, response, `Thank you. Your sequence is ${verbatim}`);
}

按一下「部署」。

現在您應該可以呼叫代理程式，測試整合狀況。如果尚未設定，現在是透過合作夥伴設定一鍵電話整合服務的好時機，或是設定 Dialogflow Phone Gateway，透過電話測試代理程式。

瞭解程式碼

做為 Webhook 的進入點，每次觸發 Webhook 時，系統都會呼叫此處的 dialogflowFirebaseFulfillment 函式。每次提出要求時，Dialogflow 都會傳送您在 Dialogflow 主控台中為意圖指定的「動作」名稱。程式碼會使用這個動作名稱，判斷要呼叫哪個 Webhook 函式：handleSequence 或 validateSequence。

處理序列

handleSequence 是本教學課程的核心函式。負責序列填空的所有環節，包括：

工作階段首次進入意圖時，說出初始指令。
在提示下一組之前，先重複序列。
告知使用者如何修正機器人。
辨識何時有足夠的數字可組成有效序列，並告知使用者如何完成輸入 (請參閱程式碼中的 `MIN_SEQUENCE_LENGTH`)。
循環填寫空位，收集多個部分序列。
將部分序列串連成一個長序列。

驗證序列

validateSequence 是您要新增資料儲存庫連線的位置，以便驗證最終序列，並根據該資料向使用者傳回自訂訊息。舉例來說，如果您要建構訂單查詢代理程式，可以在這裡自訂回覆內容，例如：

Thank you. Your order ${verbatim} will arrive on ${lookup.date} and will ${lookup.require_signature ? '' : 'not'} require a signature.

其中 lookup 是您在該訂單的資料儲存庫中找到的物件。

輔助函式

這個範例不會使用任何 Dialogflow 專用的依附元件。請改為參閱 WebhookRequest 參考資料，瞭解 request.body 中預期的內容，並參閱 WebhookResponse 參考資料，瞭解 response.json({...}) 中應回覆的內容。

程式碼包含兩個輔助函式，可簡化下列作業：

將字串傳遞至 sendSSML，為目前平台傳送適當的回應 JSON。
將背景資訊名稱傳遞至 getOutputContext，從要求中尋找有效的 Dialogflow 背景資訊。

進一步改善

這應該有助於您開始使用 Webhook 處理進階用途。您設計的代理程式可以在使用者說出序列時，循環提示序列，並在過程中確保虛擬代理能正確聽到使用者的聲音。

以下提供幾項建議，進一步提升使用體驗：

變更部分 Webhook 回覆，使其符合品牌風格。舉例來說，您可以編輯程式碼，將一般「你的序號是什麼？...」提示改為「你的訂單編號是什麼？請改為使用「你可以在 ... 找到」。
考慮在「Sequence - Done」意圖中新增另一個輸出背景資訊，然後在該輸入背景資訊下建立一些新意圖，讓使用者詢問訂單的後續問題。
如要進一步深入瞭解這個用途，請查看上述程式碼範例中的 TODO: CHALLENGE，瞭解如何為使用者提供更優質的體驗。

建立序列流程意圖
