Secure data exchange with ingress and egress rules

This document describes common use cases for secure data exchange and example configurations to allow access between clients and resources separated by service perimeters.

For an overview of ingress and egress rules, see Ingress and egress rules.

For instructions about how to configure ingress and egress rule policies, see Configuring ingress and egress policies.

Configuration examples of secure data exchange use cases

This section contains example use cases on exchanging data securely across service perimeters.

• Access a Google Cloud resource outside the perimeter
• Share data by using Pub/Sub between two organizations that use VPC Service Controls
• Share anonymized PHI data with partner organization
• Grant access to a third-party Compute Engine disk image
• Read a BigQuery dataset by allowing private access from a VPC network outside the perimeter
• Load into a Cloud Storage bucket (write) by allowing private access from a VPC network outside the perimeter
• Share logs in a separate perimeter by allowing projects from multiple perimeters to share logs

Access a Google Cloud resource outside the perimeter

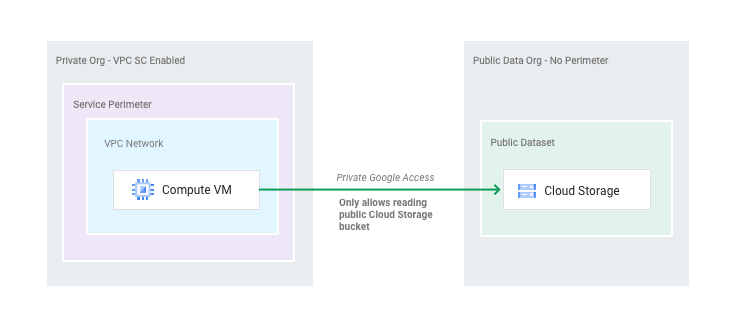

The following diagram shows a Compute Engine resource inside a service perimeter that requires access to a Cloud Storage resource, which is outside the perimeter:

Assume that you have defined the following perimeter:

name: accessPolicies/222/servicePerimeters/Example
status:
  resources:
  - projects/111
  restrictedServices:
  - bigquery.googleapis.com
  - containerregistry.googleapis.com
  - storage.googleapis.com
title: Example

You need to grant read access to a Cloud Storage bucket in project 999, which is in a different organization. You then define the following egress rule in a file and save the file as gcs.yaml:

echo """
- egressTo:
    operations:
      - serviceName: storage.googleapis.com
        methodSelectors:
        - method: google.storage.objects.get
    resources:
    - projects/999
  egressFrom:
    identityType: ANY_IDENTITY
""" > gcs.yaml

Apply the egress rule by running the following command:

gcloud beta access-context-manager perimeters update Example --set-egress-policies=gcs.yaml

For more information about the gcloud access-context-manager perimeters update command, see gcloud access-context-manager perimeters update.

Share data by using Pub/Sub between two organizations that use VPC Service Controls

The following diagram shows two organizations, Org1 and Org2, which use VPC Service Controls and share data by using a Pub/Sub topic:

Assume that you have defined the following perimeters:

# Org 1 Perimeter Definition
name: accessPolicies/222/servicePerimeters/Example1
status:
  resources:
  - projects/111
  restrictedServices:
  - pubsub.googleapis.com
title: Example1

# Org 2 Perimeter Definition
name: accessPolicies/333/servicePerimeters/Example2
status:
  resources:
  - projects/222
  restrictedServices:
  - pubsub.googleapis.com
title: Example2

To enable data exchange, Org1 must define the following egress rule that allows the subscription and save the file as org1egress.yaml:

# Org1: Org1's perimeter must allow a Pub/Sub subscription to project 222.

echo """
- egressTo:
    operations:
    - serviceName: pubsub.googleapis.com
      methodSelectors:
      - method: Subscriber.CreateSubscription
    resources:
    - projects/222
  egressFrom:
    identityType: ANY_IDENTITY
""" > org1egress.yaml

Org2 must define a corresponding ingress rule allowing the subscription and save the file as org2ingress.yaml.

# Org 2: Org2's perimeter must allow a Pub/Sub subscription from network
project 111 in Org1.

echo """
- ingressFrom:
    identityType: ANY_IDENTITY
    sources:
    - resource: projects/111
  ingressTo:
    operations:
    - serviceName: pubsub.googleapis.com
      methodSelectors:
      - method: Subscriber.CreateSubscription
    resources:
    - \"*\"
""" > org2ingress.yaml

Apply the ingress and egress rules by running the following commands:

gcloud beta access-context-manager perimeters update Example2 1--set-egress-policies=org1egress.yaml

gcloud beta access-context-manager perimeters update Example1 1--set-ingress-policies=org2ingress.yaml

Share anonymized PHI data with a partner organization

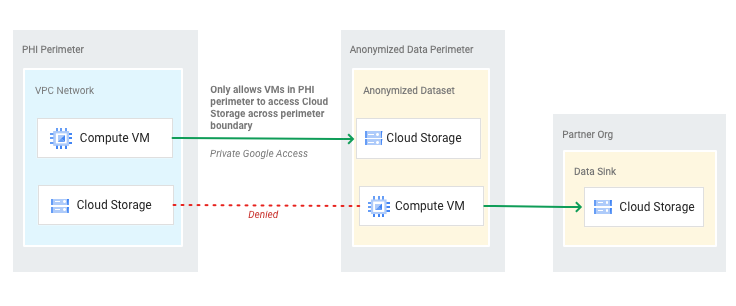

The following diagram shows a perimeter around a Protected Health Information (PHI) data segment, a second perimeter around an anonymized data segment, and a separate partner organization. The PHI segment is able to manipulate the data in the anonymized data segment and the data from the anonymized data segment is shared with the partner organization.

You want to define ingress and egress rules that enable sharing anonymized data with the partner organization and allow your PHI segment to manipulate the data in the anonymized data segment.

Assume that you have defined the following perimeters:

# PhiPerimeter
name: accessPolicies/222/servicePerimeters/PhiPerimeter
status:
  resources:
  - projects/111
  restrictedServices:
  - storage.googleapis.com
  - bigquery.googleapis.com
  vpcAccessibleServices:
    enableRestriction: true
    allowedServices:
    - RESTRICTED_SERVICES
title: PhiPerimeter

# AnonPerimeter
name: accessPolicies/222/servicePerimeters/AnonPerimeter
status:
  resources:
  - projects/222
  restrictedServices:
  - storage.googleapis.com
  vpcAccessibleServices:
    enableRestriction: true
    allowedServices:
    - RESTRICTED_SERVICES
title: AnonPerimeter

You can also assume that the partner organization project is 999. You can define the following ingress and egress rules:

# Anon Perimeter

echo """
- ingressFrom:
    identityType: ANY_IDENTITY
    sources:
    - resource: projects/111
  ingressTo:
    operations:
    - serviceName: storage.googleapis.com
      methodSelectors:
      - method: google.storage.Write
      - method: google.storage.objects.create
    resources:
    - \"*\"
""" > anoningress.yaml

echo """
- egressTo:
    operations:
    - serviceName: storage.googleapis.com
      methodSelectors:
      - method: google.storage.Write
      - method: google.storage.objects.create
    resources:
    - projects/999
  egressFrom:
    identityType: ANY_IDENTITY
""" > anonegress.yaml

# PHI Perimeter

echo """
- egressTo:
    operations:
    - serviceName: storage.googleapis.com
      methodSelectors:
      - method: \"*\"
    resources:
    - projects/222
  egressFrom:
    identityType: ANY_IDENTITY
""" > phiegress.yaml

Apply the ingress and egress rules by running the following commands:

gcloud beta access-context-manager perimeters update AnonPerimeter --set-ingress-policies=anoningress.yaml --set-egress-policies=anonegress.yaml

gcloud beta access-context-manager perimeters update PhiPerimeter --set-egress-policies=phiegress.yaml

Grant access to a third-party Compute Engine disk image

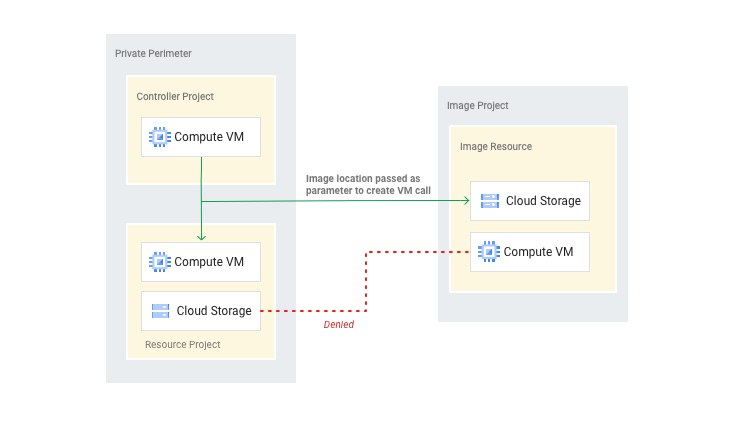

The following diagram shows a Compute Engine resource in a service perimeter that requires access to a Compute Engine disk image in a third-party image project that is outside the perimeter:

Assume that you have defined the following perimeter:

name: accessPolicies/222/servicePerimeters/Example
status:
  resources:
  - projects/111
  - projects/222
  restrictedServices:
  - compute.googleapis.com
  - containerregistry.googleapis.com
title: Example

You now need to grant read access to disk images in project 999, which is in a different organization. You then define the following egress rule in a file and save the file as compute.yaml:

echo """
- egressTo:
    operations:
    - serviceName: compute.googleapis.com
      methodSelectors:
      - method: InstancesService.Insert
    resources:
    - projects/999
  egressFrom:
    identityType: ANY_IDENTITY
""" > compute.yaml

Apply the egress rule by running the following command:

gcloud beta access-context-manager perimeters update Example --set-egress-policies=compute.yaml

Read a BigQuery dataset by allowing private access from a VPC network outside the perimeter

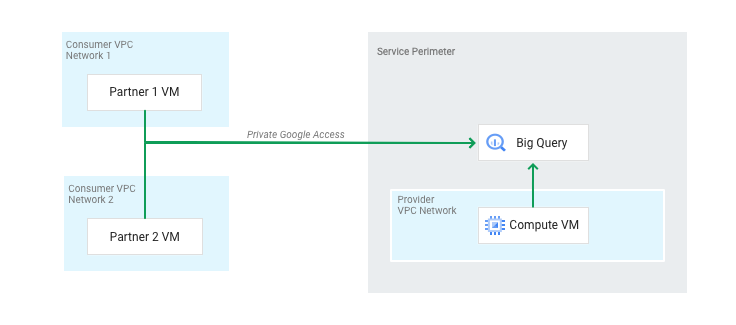

The following diagram shows multiple partner VPC networks outside the perimeter that need to read from a BigQuery resource inside a perimeter:

You can assume that you use the same perimeter as example 1:

name: accessPolicies/222/servicePerimeters/Example
status:
  resources:
  - projects/111
  restrictedServices:
  - bigquery.googleapis.com
  - containerregistry.googleapis.com
title: Example

Your goal is to allow read access from a VPC network outside the perimeter of various partners. Define the following ingress rule in a file and save the file as partneringress.yaml:

echo """
- ingressFrom:
    identityType: ANY_IDENTITY
    sources:
    - resource: projects/888
    - resource: projects/999
  ingressTo:
    operations:
    - serviceName: bigquery.googleapis.com
      methodSelectors:
      - permission: bigquery.datasets.get
      - permission: bigquery.tables.list
      - permission: bigquery.tables.get
      - permission: bigquery.tables.getData
      - permission: bigquery.jobs.create
    resources:
    - \"*\"

""" > partneringress.yaml

Apply the ingress rule by running the following command:

gcloud beta access-context-manager perimeters update Example --set-ingress-policies=partneringress.yaml

For more flexibility and control, BigQuery uses - permission: methodSelectors rather than the - method: methodSelectors that is used by most services. A single BigQuery method (RunQuery) can operate in different ways on several different resources, and aligning with the permissions model enables more flexibility and control.

Load into a Cloud Storage bucket (write) by allowing private access from a VPC network outside the perimeter

You can assume that you use same perimeter as example 1:

name: accessPolicies/222/servicePerimeters/Example
status:
  resources:
  - projects/111
  restrictedServices:
  - storage.googleapis.com
  - containerregistry.googleapis.com
title: Example

Your goal is to allow access from a VPC network outside the perimeter to enable a partner to write data to the bucket inside the perimeter. You define an ingress rule and save the file as partneringress.yaml:

echo """
- ingressFrom:
    identityType: ANY_IDENTITY
    sources:
    - resource: projects/222
  ingressTo:
    operations:
    - serviceName: storage.googleapis.com
      methodSelectors:
      - method: google.storage.objects.create
    resources:
    - \"*\"
""" > partneringress.yaml

Apply the ingress rule by running the following command:

gcloud beta access-context-manager perimeters update Example --set-ingress-policies=partneringress.yaml

Share logs in a separate perimeter by allowing projects from multiple perimeters to share logs

In this use case, assume that an enterprise has a shared project for collection of log data from across their Google Cloud deployment. The enterprise needs to be able to log data from multiple different VPC Service Controls perimeters into the shared logs project, which is in its own perimeter. The logs project should not access any resources other than the logs.

Assume that you have defined the following three perimeters:

# Sensitive 1
name: accessPolicies/222/servicePerimeters/Sensitive1
status:
  resources:
  - projects/111
  restrictedServices:
  - bigquery.googleapis.com
  - containerregistry.googleapis.com
  - logging.googleapis.com
  vpcAccessibleServices:
    enableRestriction: true
    allowedServices:
    - RESTRICTED_SERVICES
title: Sensitive Data 1

# Sensitive 2
name: accessPolicies/222/servicePerimeters/Sensitive2
status:
  resources:
  - projects/222
  restrictedServices:
  - bigquery.googleapis.com
  - containerregistry.googleapis.com
  - logging.googleapis.com
  vpcAccessibleServices:
    enableRestriction: true
    allowedServices:
    - RESTRICTED_SERVICES
title: Sensitive Data 2

#Logs
name: accessPolicies/222/servicePerimeters/Logs
status:
  resources:
  - projects/777
  restrictedServices:
  - logging.googleapis.com
  vpcAccessibleServices:
    enableRestriction: true
    allowedServices:
    - RESTRICTED_SERVICES
title: Logs Perimeter

To allow Sensitive1 and Sensitive2 to write logs to Logs perimeter, define the following egress rule in a file and save the file as logsegress.yaml:

echo """
- egressTo:
    operations:
    - serviceName: logging.googleapis.com
      methodSelectors:
      - method: LoggingServiceV2.WriteLogEntries
      - method: LoggingService.WriteLogEntries
    resources:
    - projects/777
  egressFrom:
    identityType: ANY_IDENTITY
""" > logsegress.yaml

Apply the egress rules by running the following commands:

gcloud beta access-context-manager perimeters update Sensitive1 --set-egress-policies=logsegress.yaml

gcloud beta access-context-manager perimeters update Sensitive2 --set-egress-policies=logsegress.yaml

A similar configuration can be specified for any other sensitive data perimeter that needs to write to the logs perimeter.
