Memory revisions

Memory Bank automatically maintains a version history of your memories through memory revision resources. Each time a memory is created or modified, a new immutable revision is saved, providing transparency into how information evolves and what was extracted at each step.

This document explains the lifecycle of memories and their revisions, and describes operations such as listing, getting, and rolling back revisions.

For more information about generating memories, see Generate memories.

Lifecycle of a memory and its revisions

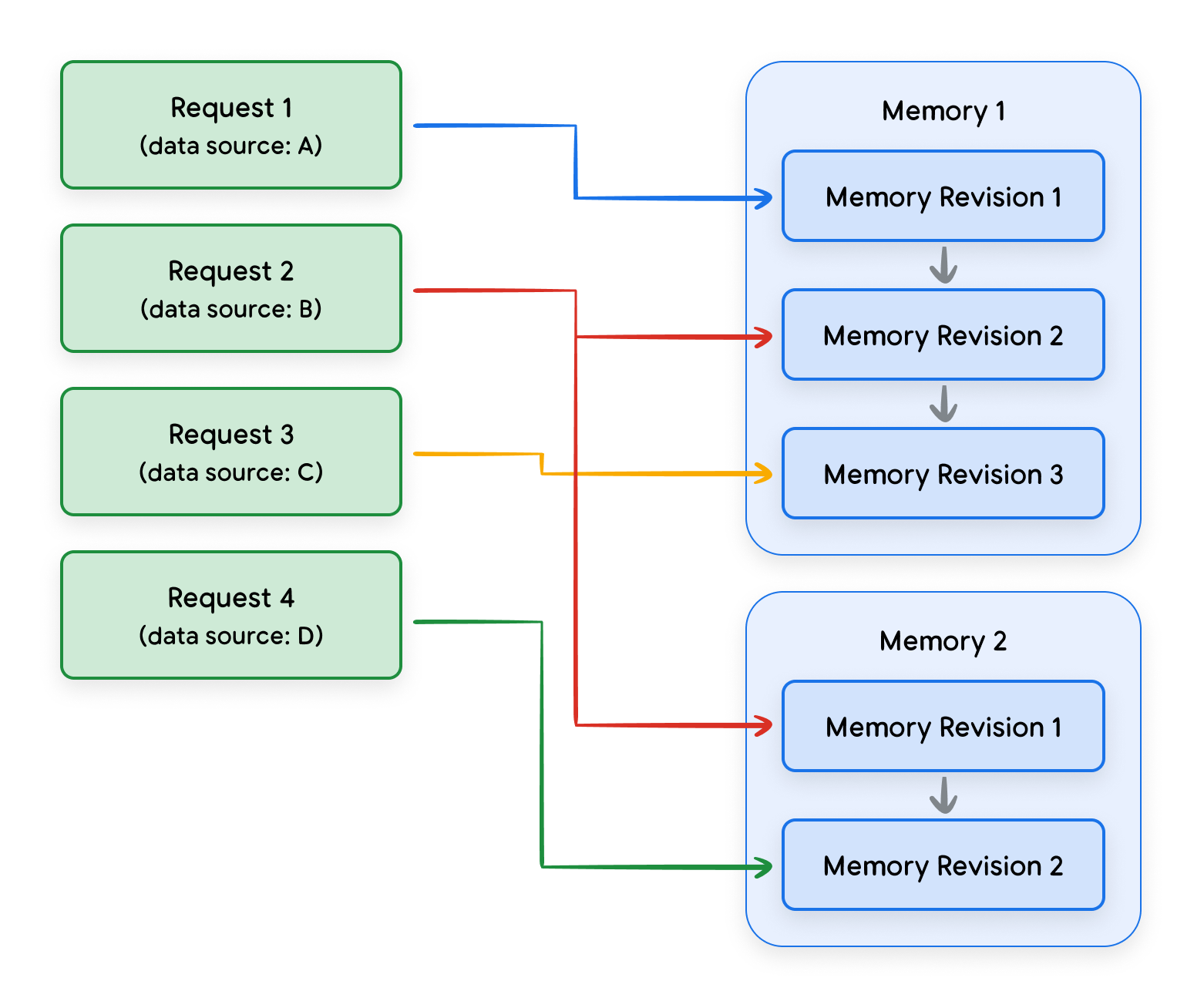

Data sources and memory revisions

Memories can be created, updated, or deleted either directly (using CreateMemory, UpdateMemory, or DeleteMemory, respectively) or dynamically (using GenerateMemories). Memory revision resources provide a complete version history of a memory resource across all mutation operations. A new, immutable revision is automatically saved each time that the memory is created or modified. This gives you transparency into how a memory has evolved and (for memory generation) what specific information was extracted and consolidated at each step.

Every memory resource has one or more associated child memory revision resources:

Memory resources always reflect the current, consolidated state of the information. A single memory can reflect derived data from multiple requests and data sources.

Memory(
    create_time=datetime.datetime(...),
    fact='This is my current memory content after consolidation',
    name='projects/.../locations/.../reasoningEngines/../memories/...',
    scope={
      'my_scope_key': 'my_scope_value'
    },
    topics=[
      MemoryTopicId(
        managed_memory_topic=<ManagedTopicEnum.USER_PERSONAL_INFO: 'USER_PERSONAL_INFO'>
      ),
    ],
    update_time=datetime.datetime(...)
)

MemoryRevisions resources represent the historical states of the parent memory. Each revision is a snapshot of the memory at a mutation event. If a memory was mutated using GenerateMemories, the revision also includes the information that was extracted from the data source (extracted_memories) before it was consolidated with the memory's existing content.
```
MemoryRevision(
    create_time=datetime.datetime(...),
    expire_time=datetime.datetime(...),
    extracted_memories=[
      IntermediateExtractedMemory(
        fact='This information was extracted from my data source'
      ),
    ],
    fact='This is my current memory content after consolidation',
    name='projects/.../locations/.../reasoningEngines/.../memories/.../revisions/...'
)
```
Memory revisions are enabled by default. To disable memory revisions, see Disabling memory revisions.

Memory creation

Memories can either be created directly using CreateMemory or dynamically using GenerateMemories. With memory generation, a memory is created if there are no existing memories that cover similar information for the same scope:

# Direct creation using CreateMemory
client.agent_engines.memories.create(name=agent_engine_name, ...)

# Dynamic creation using GenerateMemory
client.agent_engines.memories.generate_memories(name=agent_engine_name, ...)

When a memory is created, a single Memory resource and a child MemoryRevision are created:

client.agent_engines.memories.get(name=memory_name)
"""
Memory(
  name="projects/123/locations/us-central1/reasoningEngines/456/memories/789",
  fact="This is my original fact.",
  ...
)
"""

list(client.agent_engines.memories.revisions.list(name=memory_name))
"""
[
  MemoryRevision(
    name="projects/123/locations/us-central1/reasoningEngines/456/memories/789/revision/123",
    fact="This is my original fact",
    ...
  )
]
"""

Memory update

Memories can either be updated directly using UpdateMemory or dynamically using GenerateMemories. With memory generation, memories are dynamically updated when the consolidation process decides that the new information is duplicative, complementary, or contradictory to all existing memories for the same scope.

# Direct update using UpdateMemory
client.agent_engines.memories.update(name=memory_name, ...)

# Dynamic update using GenerateMemories
client.agent_engines.memories.generate_memories(name=agent_engine_name, ...)

When a memory is updated, the existing Memory resource is updated, and a new child MemoryRevision is created.

client.agent_engines.memories.get(name=memory_name)
"""
Memory(
  name="projects/123/locations/us-central1/reasoningEngines/456/memories/789",
  fact="This is my updated fact.",
  ...
)
"""

list(client.agent_engines.memories.revisions.list(name=memory_name))
"""
[
  MemoryRevision(
    name="projects/123/locations/us-central1/reasoningEngines/456/memories/789/revision/456",
    fact="This is my updated fact",
    ...
  ),
  MemoryRevision(
    name="projects/123/locations/us-central1/reasoningEngines/456/memories/789/revision/123",
    fact="This is my original fact",
    ...
  )
]
"""

Memory deletion

Memories can either be directly directly using DeleteMemory or dynamically using GenerateMemories. With memory generation, memories are dynamically deleted when the consolidation process decides that the new information invalidates the existing information for the same scope.

# Direct deletion using UpdateMemory
client.agent_engines.memories.delete(name=memory_name, ...)

# Dynamic delete using GenerateMemories
client.agent_engines.memories.generate_memories(name=agent_engine_name, ...)

When a memory is deleted, the existing Memory resource is deleted, and a new child MemoryRevision is created. The fact in the latest memory revision is empty because it reflects a deletion mutation.

client.agent_engines.memories.get(name=memory_name)
"""
404 Not Found.
"""

list(client.agent_engines.memories.revisions.list(name=memory_name))
"""
[
  MemoryRevision(
    name="projects/123/locations/us-central1/reasoningEngines/456/memories/789/revision/789",
    fact="",
    ...
  ),
  MemoryRevision(
    name="projects/123/locations/us-central1/reasoningEngines/456/memories/789/revision/456",
    fact="This is my updated fact",
    ...
  ),
  MemoryRevision(
    name="projects/123/locations/us-central1/reasoningEngines/456/memories/789/revision/123",
    fact="This is my original fact",
    ...
  )
]
"""

The child memory revisions are only accessible for up to 48 hours after the parent memory's deletion. During this recovery window, you can continue to inspect your memory revisions, and you can recover your memory by rolling it back to a previous revision.

Memory revision operations

This section describes how you can inspect memory revisions and roll back a memory to a previous revision.

List revisions

Use ListMemoryRevisions to return all memory revisions belonging to a memory.

list(client.agent_engines.memories.revisions.list(name=MEMORY_NAME))

Replace the following:

MEMORY_NAME: Resource name of the memory in the format: projects/.../locations/.../reasoningEngines/.../memories/...

When generating memories, you can provide revision labels which are applied to the affiliated revisions. Labels are arbitrary key-value pairs. For example, you can label revisions with an ID of the data source used to generate the memory and then filter revisions by this label:

response = client.agent_engines.memories.generate(
    ...,
    config={
        "revision_labels": {
            "data_source": "321"
        }
    }
)

list(client.agent_engines.memories.revisions.list(
    name=MEMORY_NAME,
    config={
      "filter": "labels.data_source=\"321\""
    }
))
"""
[
  MemoryRevision(
    name="projects/123/locations/us-central1/reasoningEngines/456/memories/789/revision/123",
    labels={
      "data_source": "123"
    }
    ...
  )
]
"""

Get a revision

Use GetMemoryRevision to fetch an individual memory revision.

client.agent_engines.memories.revisions.get(name=MEMORY_REVISION_NAME)

Replace the following:

MEMORY_REVISION_NAME: Resource name of the memory revision to fetch in the format: projects/.../locations/.../reasoningEngines/.../memories/.../revisions/...

Roll back a memory

Use RollbackMemory to roll a memory back to a previous revision.

client.agent_engines.memories.rollback(
    name=name=MEMORY_NAME,
    target_revision_id=REVISION_ID
)

Replace the following:

MEMORY_NAME: Resource name of the memory to update in the format: projects/.../locations/.../reasoningEngines/.../memories/...
REVISION_ID: ID of the revision that should be rolled back to. This is the last segment of the memory revision resource name, like 789 in projects/MyProject/locations/us-central1/reasoningEngines/123/memories/456/revisions/789.

If you want to undo a change to a memory made by GenerateMemories, roll back the memory to its revision before the change. The memory generation response includes a reference to the previous revision (previous_revision) for each updated or deleted memory:

operation = client.agent_engines.memories.generate(
  ...
)

# Rollback the first generated memory to the previous revision.
client.agent_engines.memories.rollback(
    name=operation.response.generated_memories[0].memory.name,
    target_revision_id=operation.response.generated_memories[0].previous_revision
)

Disabling memory revisions

Memory revisions are enabled by default. You can disable memory revisions either for all requests to your Memory Bank instance or for each individual request. If memory revisions are disabled, a memory revision isn't created when the memory is mutated.

You can disable memory revisions for all requests to your Memory Bank instance when you set up the instance:

client.agent_engines.create(
  config={
    "context_spec": {
      "memory_bank_config": {
        "disable_memory_revisions": True
      }
    }
  }
)

You can disable memory revisions on a request level when you send the request:

Generate

client.agent_engines.memories.generate(
  ...,
  "config": {
    "disable_memory_revisions": True
  }
)

Create

client.agent_engines.memories.create(
  ...,
  "config": {
    "disable_memory_revisions": True
  }
)

Update

client.agent_engines.memories.update(
  ...,
  "config": {
    "disable_memory_revisions": True
  }
)

Revision expiration

Memory revisions are not persisted forever. You must either set the revisions' expiration or use the default expiration. The default time to live (TTL) is 365 days. You can configure the expiration either for all requests to your Memory Bank instance or for each individual request. Once a memory revision has expired, it is not available for inspection or rollbacks.

You can configure TTL for all requests to your Memory Bank instance when you set up the instance:

client.agent_engines.create(
  config={
    "context_spec": {
      "memory_bank_config": {
        "ttl_config": {
          # Persist memory revisions for 30 days after they're created.
          "revision_ttl": f"{30 * 60 * 60 * 24}s"
        }
      }
    }
  }
)

To configure TTL for each memory revision on a request level, include revision_expire_time or revision_ttl in your request:

TTL

config = {
    # Persist memory revisions for 30 days after they're created.
    "revision_ttl": f"{30 * 60 * 60 * 24}s"
}

client.agent_engines.memories.create(
  ...,
  config=config
)

client.agent_engines.memories.update(
  ...,
  config=config
)

client.agent_engines.memories.generate(
  ...,
  config=config
)

Expiration

import datetime

config = {
    "revision_expire_time": datetime.datetime.now(tz=datetime.timezone.utc) + datetime.timedelta(weeks=3)
}

client.agent_engines.memories.create(
  ...,
  config=config
)

client.agent_engines.memories.update(
  ...,
  config=config
)

client.agent_engines.memories.generate(
  ...,
  config=config
)
