Alur kerja menggunakan Managed Airflow

Tujuan:

1. Membuat template alur kerja Managed Service untuk Apache Spark yang menjalankan tugas Spark PI
2. Membuat DAG Apache Airflow yang Managed Airflow akan digunakan untuk memulai alur kerja pada waktu tertentu.

Dalam dokumen ini, Anda akan menggunakan komponen Google Cloud yang dapat ditagih berikut Google Cloud:

• Managed Service for Apache Spark
• Compute Engine
• Managed Airflow

Untuk membuat perkiraan biaya berdasarkan proyeksi penggunaan Anda, gunakan kalkulator harga.

Pengguna baru mungkin memenuhi syarat untuk mendapatkan uji coba gratis. Google Cloud

Sebelum memulai

Menyiapkan project

Login ke akun Google Cloud Anda. Jika Anda baru menggunakan Google Cloud, buat akun untuk mengevaluasi performa produk kami dalam skenario dunia nyata. Pelanggan baru juga mendapatkan kredit gratis senilai $300 untuk menjalankan, menguji, dan men-deploy workload.

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Roles required to select or create a project

• Select a project: Selecting a project doesn't require a specific IAM role—you can select any project that you've been granted a role on.
• Create a project: To create a project, you need the Project Creator role (roles/resourcemanager.projectCreator), which contains the resourcemanager.projects.create permission. Learn how to grant roles.

Note: If you don't plan to keep the resources that you create in this procedure, create a project instead of selecting an existing project. After you finish these steps, you can delete the project, removing all resources associated with the project.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

Enable the Dataproc, Compute Engine, and Managed Airflow APIs.

Roles required to enable APIs

To enable APIs, you need the Service Usage Admin IAM role (roles/serviceusage.serviceUsageAdmin), which contains the serviceusage.services.enable permission. Learn how to grant roles.

Enable the APIs

Instal Google Cloud CLI.

Jika Anda menggunakan penyedia identitas (IdP) eksternal, Anda harus login ke gcloud CLI dengan identitas gabungan Anda terlebih dahulu.

Untuk melakukan inisialisasi gcloud CLI, jalankan perintah berikut:

gcloud init

In the Google Cloud console, on the project selector page, select or create a Google Cloud project.

Roles required to select or create a project

• Select a project: Selecting a project doesn't require a specific IAM role—you can select any project that you've been granted a role on.
• Create a project: To create a project, you need the Project Creator role (roles/resourcemanager.projectCreator), which contains the resourcemanager.projects.create permission. Learn how to grant roles.

Note: If you don't plan to keep the resources that you create in this procedure, create a project instead of selecting an existing project. After you finish these steps, you can delete the project, removing all resources associated with the project.

Go to project selector

Verify that billing is enabled for your Google Cloud project.

Enable the Dataproc, Compute Engine, and Managed Airflow APIs.

Roles required to enable APIs

To enable APIs, you need the Service Usage Admin IAM role (roles/serviceusage.serviceUsageAdmin), which contains the serviceusage.services.enable permission. Learn how to grant roles.

Enable the APIs

Instal Google Cloud CLI.

Jika Anda menggunakan penyedia identitas (IdP) eksternal, Anda harus login ke gcloud CLI dengan identitas gabungan Anda terlebih dahulu.

Untuk melakukan inisialisasi gcloud CLI, jalankan perintah berikut:

gcloud init

Membuat template alur kerja Managed Service untuk Apache Spark

Salin dan jalankan perintah berikut di jendela terminal lokal atau di Cloud Shell untuk membuat dan menentukan template alur kerja.

1. Buat template alur kerja sparkpi.

   gcloud dataproc workflow-templates create sparkpi \
       --region=us-central1


2. Tambahkan tugas spark ke template alur kerja sparkpi. Flag step-id "compute" mengidentifikasi tugas SparkPi.

   gcloud dataproc workflow-templates add-job spark \
       --workflow-template=sparkpi \
       --step-id=compute \
       --class=org.apache.spark.examples.SparkPi \
       --jars=file:///usr/lib/spark/examples/jars/spark-examples.jar \
       --region=us-central1 \
       -- 1000


3. Gunakan cluster node tunggal terkelola untuk menjalankan alur kerja. Managed Service untuk Apache Spark akan membuat cluster, menjalankan alur kerja di cluster tersebut, lalu menghapus cluster saat alur kerja selesai.

   gcloud dataproc workflow-templates set-managed-cluster sparkpi \
       --cluster-name=sparkpi \
       --single-node \
       --region=us-central1


4. Konfirmasi pembuatan template alur kerja.

   Konsol

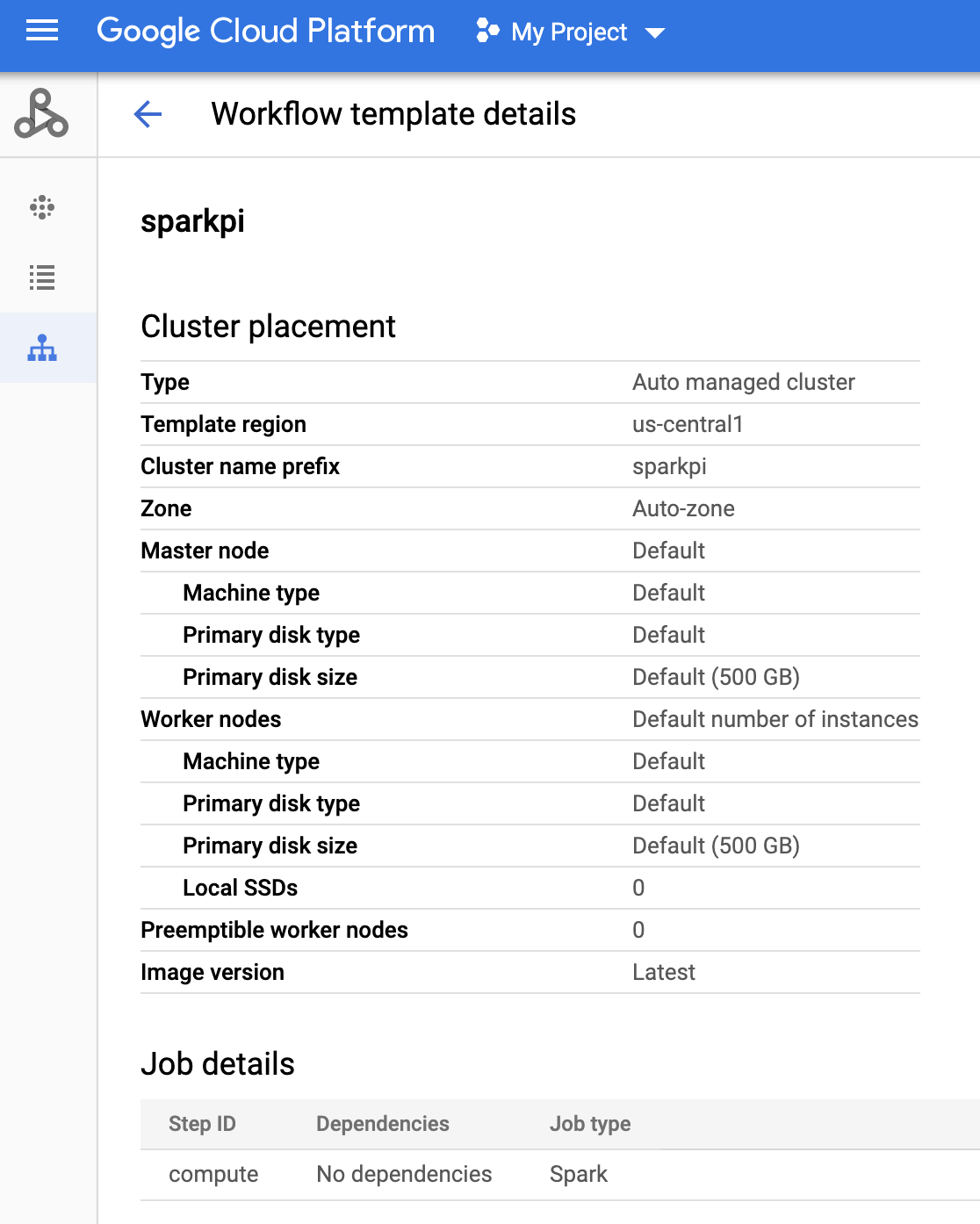

   Klik nama sparkpi di halaman Alur Kerja Managed Service untuk Apache Spark di Google Cloud konsol untuk membuka halaman Detail template alur kerja. Klik nama template alur kerja Anda untuk mengonfirmasi atribut template sparkpi.



   Perintah gcloud

   Jalankan perintah berikut:

   gcloud dataproc workflow-templates describe sparkpi --region=us-central1


Membuat dan mengupload DAG ke Cloud Storage

1. Buat atau gunakan lingkungan Managed Airflow yang ada.
2. Menetapkan variabel lingkungan.

   UI Airflow

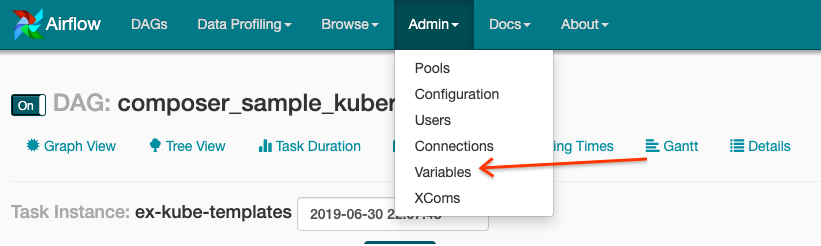

   1. Di toolbar, klik Admin > Variables.

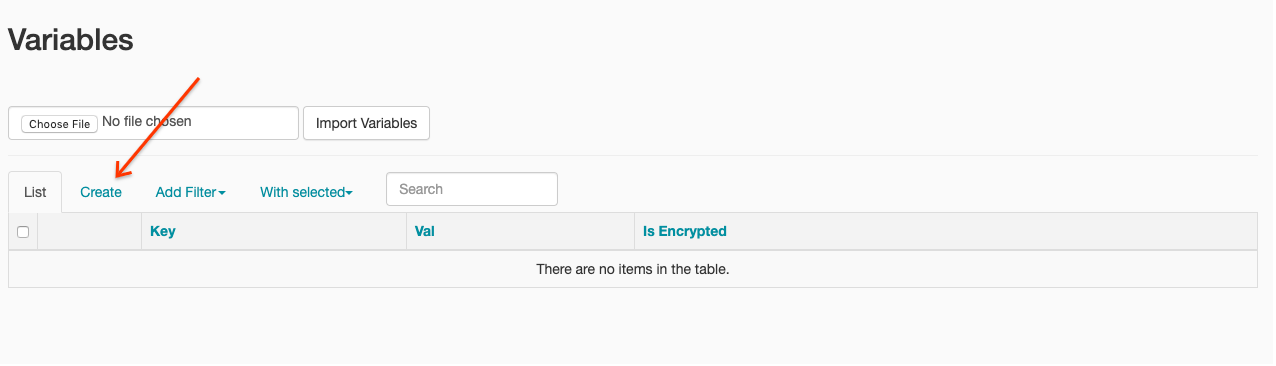

   2. Klik Create.
   3. Masukkan informasi berikut:
      • Kunci:project_id
      • Nilai: PROJECT_ID — Google Cloud Project ID Anda
   4. Klik Save.

   Perintah gcloud

   Masukkan perintah berikut:

   • ENVIRONMENT adalah nama lingkungan Managed Airflow
   • LOCATION adalah region tempat lingkungan Managed Airflow berada
   • PROJECT_ID adalah Project ID untuk project yang berisi lingkungan Managed Airflow

       gcloud composer environments run ENVIRONMENT --location LOCATION variables set -- project_id PROJECT_ID


3. Salin kode DAG berikut secara lokal ke dalam file berjudul "composer-dataproc-dag.py", yang menggunakan DataprocInstantiateWorkflowTemplateOperator.

   Airflow 2


   """Example Airflow DAG that kicks off a Cloud Dataproc Template that runs a
   Spark Pi Job.

   This DAG relies on an Airflow variable
   https://airflow.apache.org/docs/apache-airflow/stable/concepts/variables.html
   * project_id - Google Cloud Project ID to use for the Cloud Dataproc Template.
   """

   import datetime

   from airflow import models
   from airflow.providers.google.cloud.operators.dataproc import (
       DataprocInstantiateWorkflowTemplateOperator,
   )
   from airflow.utils.dates import days_ago

   project_id = "{{var.value.project_id}}"


   default_args = {
       # Tell airflow to start one day ago, so that it runs as soon as you upload it
       "start_date": days_ago(1),
       "project_id": project_id,
   }

   # Define a DAG (directed acyclic graph) of tasks.
   # Any task you create within the context manager is automatically added to the
   # DAG object.
   with models.DAG(
       # The id you will see in the DAG airflow page
       "dataproc_workflow_dag",
       default_args=default_args,
       # The interval with which to schedule the DAG
       schedule_interval=datetime.timedelta(days=1),  # Override to match your needs
   ) as dag:
       start_template_job = DataprocInstantiateWorkflowTemplateOperator(
           # The task id of your job
           task_id="dataproc_workflow_dag",
           # The template id of your workflow
           template_id="sparkpi",
           project_id=project_id,
           # The region for the template
           region="us-central1",
       )


   Airflow 1


   """Example Airflow DAG that kicks off a Cloud Dataproc Template that runs a
   Spark Pi Job.

   This DAG relies on an Airflow variable
   https://airflow.apache.org/docs/apache-airflow/stable/concepts/variables.html
   * project_id - Google Cloud Project ID to use for the Cloud Dataproc Template.
   """

   import datetime

   from airflow import models
   from airflow.contrib.operators import dataproc_operator
   from airflow.utils.dates import days_ago

   project_id = "{{var.value.project_id}}"


   default_args = {
       # Tell airflow to start one day ago, so that it runs as soon as you upload it
       "start_date": days_ago(1),
       "project_id": project_id,
   }

   # Define a DAG (directed acyclic graph) of tasks.
   # Any task you create within the context manager is automatically added to the
   # DAG object.
   with models.DAG(
       # The id you will see in the DAG airflow page
       "dataproc_workflow_dag",
       default_args=default_args,
       # The interval with which to schedule the DAG
       schedule_interval=datetime.timedelta(days=1),  # Override to match your needs
   ) as dag:
       start_template_job = dataproc_operator.DataprocWorkflowTemplateInstantiateOperator(
           # The task id of your job
           task_id="dataproc_workflow_dag",
           # The template id of your workflow
           template_id="sparkpi",
           project_id=project_id,
           # The region for the template
           # For more info on regions where Dataflow is available see:
           # https://cloud.google.com/dataflow/docs/resources/locations
           region="us-central1",
       )

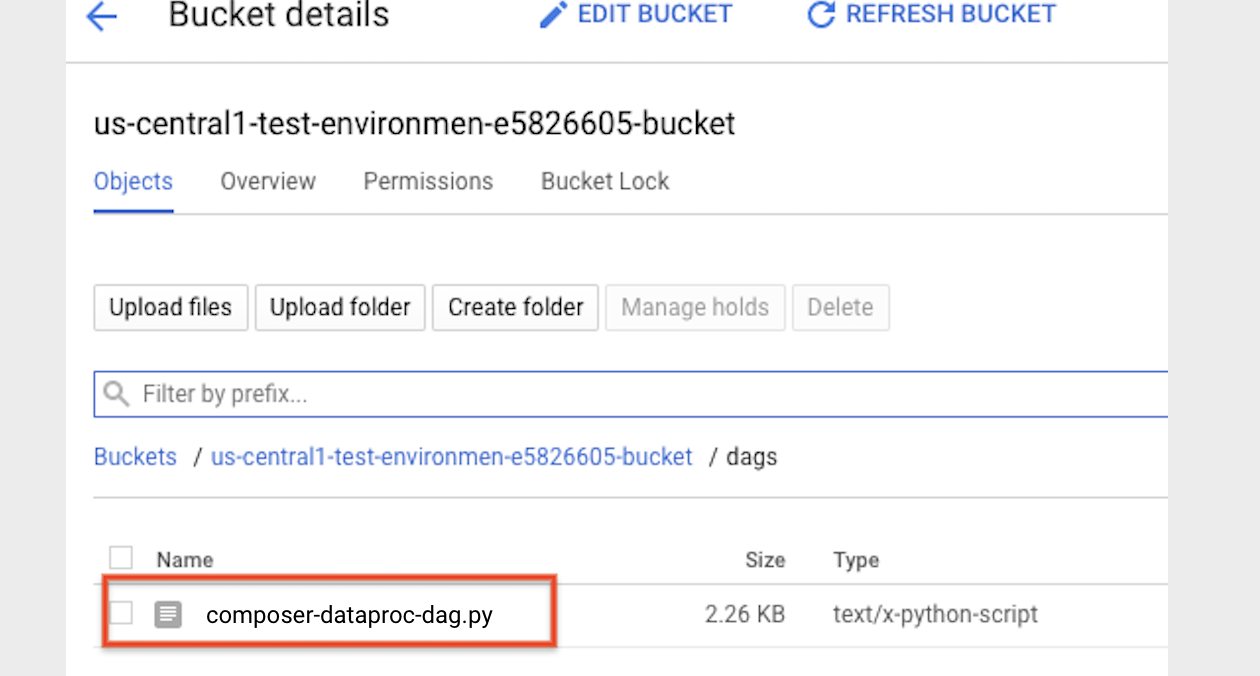

4. Upload DAG ke folder lingkungan Anda di Cloud Storage. Setelah upload berhasil diselesaikan, klik link DAGs Folder di halaman Lingkungan Managed Airflow.


Melihat status tugas

UI Airflow

1. Buka antarmuka web Airflow.
2. Di halaman DAG, klik nama DAG (misalnya, dataproc_workflow_dag).
3. Di halaman Detail DAG, klik Graph View.
4. Periksa status:

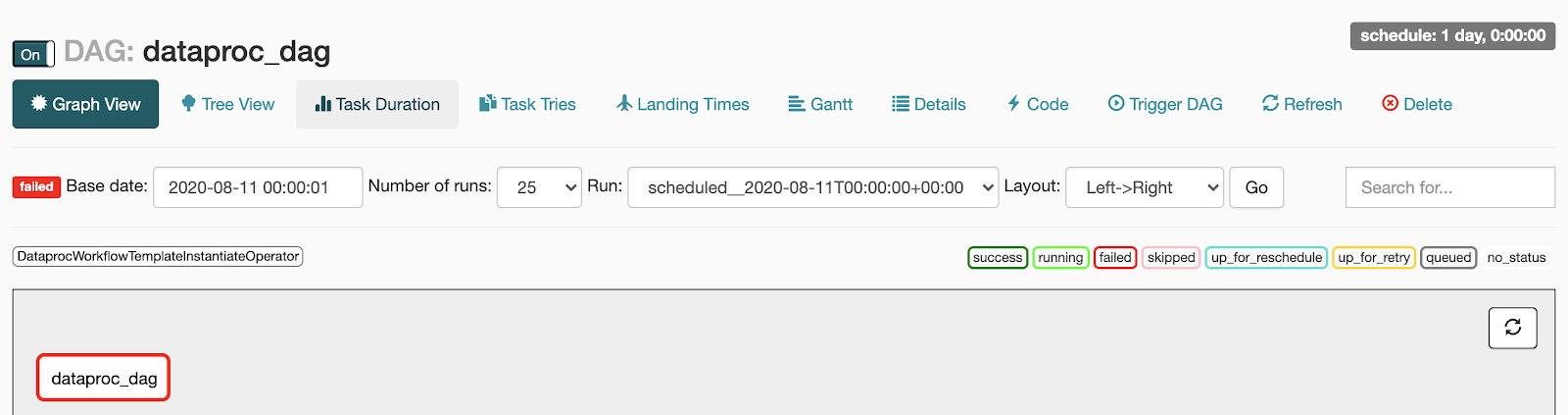

   • Gagal: Tugas memiliki kotak merah di sekitarnya. Anda juga dapat mengarahkan kursor ke tugas dan mencari State: Failed.

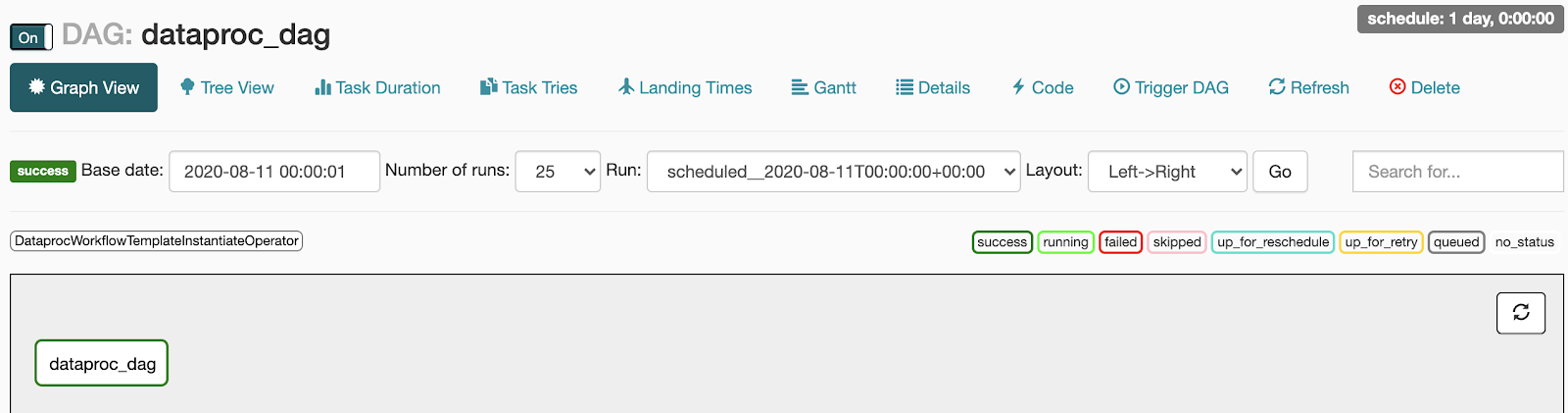

   • Berhasil: Tugas memiliki kotak hijau di sekitarnya. Anda juga dapat mengarahkan kursor ke tugas dan memeriksa State: Success.

Konsol

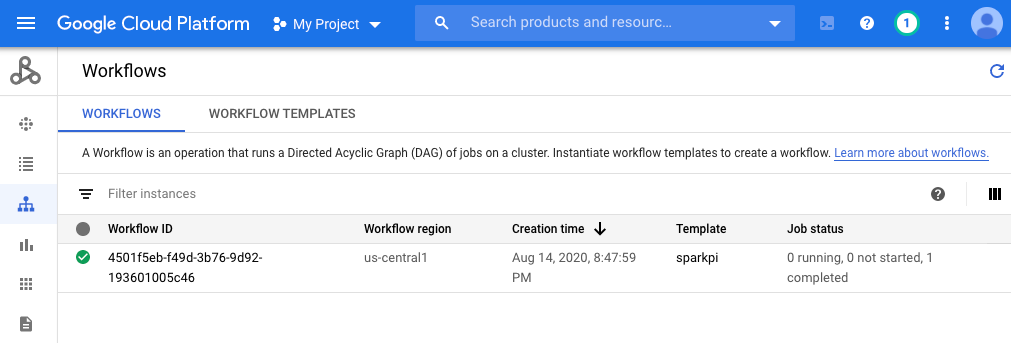

Klik tab Alur Kerja untuk melihat status alur kerja.

Perintah gcloud

gcloud dataproc operations list \
    --region=us-central1 \
    --filter="labels.goog-dataproc-workflow-template-id=sparkpi"


Pembersihan

Agar akun Google Cloud Anda tidak dikenai biaya, Anda dapat menghapus resource yang digunakan dalam tutorial ini:

1. Hapus lingkungan Managed Airflow.

2. Hapus template alur kerja.

Langkah berikutnya

• Lihat Ringkasan template alur kerja Managed Service untuk Apache Spark.
• Lihat Solusi penjadwalan alur kerja.
