软件包生命周期
本页介绍了 Manufacturing Data Engine (MDE) 的软件包生命周期。
上传新的配置软件包
您可以使用 REST 端点或通过 MDE 网页界面上传新的 MDE 配置软件包，只需提供一个 *.zip 文件即可。
REST
使用以下信息执行 REST API 请求：
- 方法：POST。
- 端点：
/configuration/v1/configuration-packages。 - 请求正文：
multiform data with key=”packageArchive”, value=configuration-package-zip file。 - 响应代码：200 OK。
响应正文 (JSON)：
{ "id": "4adaecc2-54b9-482b-90d6-380f5d4b2be6", "name": "basic-configuration", "provider": "google", "latestStatus": "ACTIVATED", "status": [ { "code": "NOT_LOADED", "updatedTime": "1742566718210", "messages": [] }, { "code": "VALIDATED", "updatedTime": "1742566718210", "messages": [ { "severity": "INFO", "message": "Successfully validated all message classes in the package" }, { "severity": "INFO", "message": "Successfully validated all parsers in the package" }, { "severity": "INFO", "message": "Successfully validated all types in the package" } ] }, { "code": "LOADED", "updatedTime": "1742566718696", "messages": [ { "severity": "INFO", "message": "Successfully applied all message classes in the package" }, { "severity": "INFO", "message": "Successfully applied all types in the package" }, { "severity": "INFO", "message": "Successfully applied all parsers in the package" } ] }, { "code": "ACTIVATED", "updatedTime": "1742566718792", "messages": [ { "severity": "INFO", "message": "Successfully activated all ingestion-specification, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all message classes, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all buckets, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all metadata instance, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all types, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all parsers, if there is any, in the package" } ] } ] }
控制台

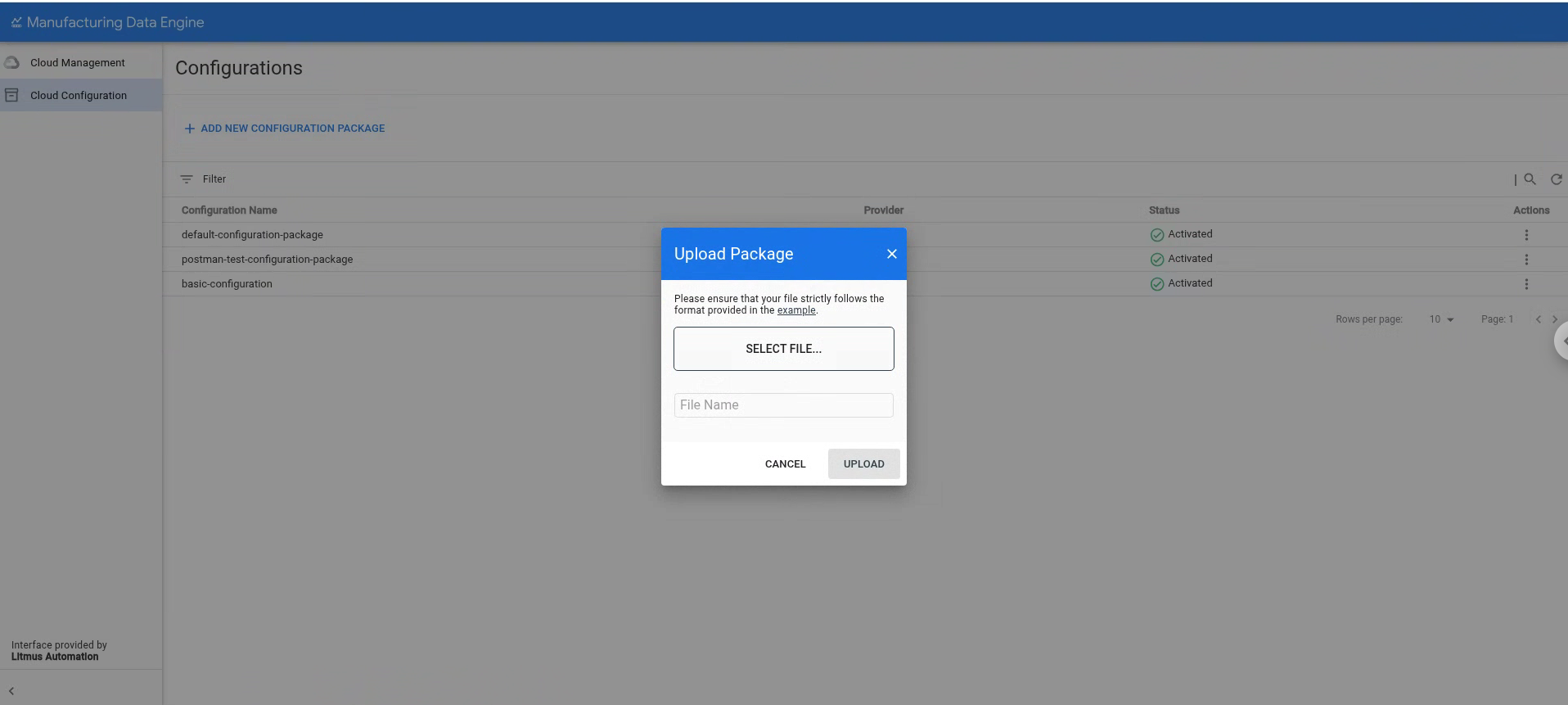

- 点击 Cloud 配置 。
- 点击添加新配置软件包 。
- 选择要上传到控制台的文件。
- 点击上传 。
上传软件包后，MDE 将通过运行以下阶段来处理该软件包：
验证：在此阶段，MDE 会验证 软件包的内容，确保所有文件的语法正确且 位于正确的位置。如果此阶段成功完成，则 MDE 会继续执行下一阶段。
加载：在此阶段，MDE 会尝试加载软件包中指定的配置，并将其与当前环境配置合并。它会检查所有依赖项，并确保与现有配置没有命名冲突。此阶段是原子性的，这意味着软件包要么成功加载，要么完全回滚。如果加载成功，则 MDE 将继续执行下一阶段。
激活：在此阶段，MDE 会激活配置 并使其对环境中的其他用户可见。它还会触发创建作为软件包配置一部分所需的任何基础架构元素（例如，激活类型）。
MDE v1.5.0 不支持更新已 部署或已激活的软件包。如果需要修复验证或加载阶段中的任何错误，您可以再次上传同一软件包，只要该软件包未处于活跃状态即可。将软件包设置为活跃状态后，您将无法再次上传同一软件包，也无法上传包含名称冲突的配置实体的软件包。
列出现有配置软件包
您可以使用 REST 端点或通过 MDE 网页界面列出 MDE 的现有配置软件包。
REST
使用以下信息执行 REST API 请求：
- 方法：GET。
- 端点：
/configuration/v1/configuration-packages。 - 响应代码：200 OK。
响应正文 (JSON)：
{ "configurationPackages": [ { "id": "0505ed17-ad20-458d-9128-d44783704acb", "name": "default-configuration-package", "provider": "google", "latestStatus": "ACTIVATED", "status": [ { "code": "NOT_LOADED", "updatedTime": "1742501535249", "messages": [] }, { "code": "VALIDATED", "updatedTime": "1742501535249", "messages": [ { "severity": "INFO", "message": "Successfully validated all buckets in the package" }, { "severity": "INFO", "message": "Successfully validated all message classes in the package" }, { "severity": "INFO", "message": "Successfully validated all metadata-instances in the package" }, { "severity": "INFO", "message": "Successfully validated all parsers in the package" }, { "severity": "INFO", "message": "Successfully validated all types in the package" } ] }, { "code": "LOADED", "updatedTime": "1742501536740", "messages": [ { "severity": "INFO", "message": "Successfully applied all message classes in the package" }, { "severity": "INFO", "message": "Successfully applied all buckets in the package" }, { "severity": "INFO", "message": "Successfully validated all metadata-instances in the package" }, { "severity": "INFO", "message": "Successfully applied all types in the package" }, { "severity": "INFO", "message": "Successfully applied all parsers in the package" } ] }, { "code": "ACTIVATED", "updatedTime": "1742501537289", "messages": [ { "severity": "INFO", "message": "Successfully activated all ingestion-specification, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all message classes, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all buckets, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all metadata instance, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all types, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all parsers, if there is any, in the package" } ] } ] }, { "id": "4adaecc2-54b9-482b-90d6-380f5d4b2be6", "name": "basic-configuration", "provider": "google", "latestStatus": "ACTIVATED", "status": [ { "code": "NOT_LOADED", "updatedTime": "1742566718210", "messages": [] }, { "code": "VALIDATED", "updatedTime": "1742566718210", "messages": [ { "severity": "INFO", "message": "Successfully validated all message classes in the package" }, { "severity": "INFO", "message": "Successfully validated all parsers in the package" }, { "severity": "INFO", "message": "Successfully validated all types in the package" } ] }, { "code": "LOADED", "updatedTime": "1742566718696", "messages": [ { "severity": "INFO", "message": "Successfully applied all message classes in the package" }, { "severity": "INFO", "message": "Successfully applied all types in the package" }, { "severity": "INFO", "message": "Successfully applied all parsers in the package" } ] }, { "code": "ACTIVATED", "updatedTime": "1742566718792", "messages": [ { "severity": "INFO", "message": "Successfully activated all ingestion-specification, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all message classes, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all buckets, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all metadata instance, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all types, if there is any, in the package" }, { "severity": "INFO", "message": "Successfully activated all parsers, if there is any, in the package" } ] } ] } ], "nextPageToken": "" }
控制台

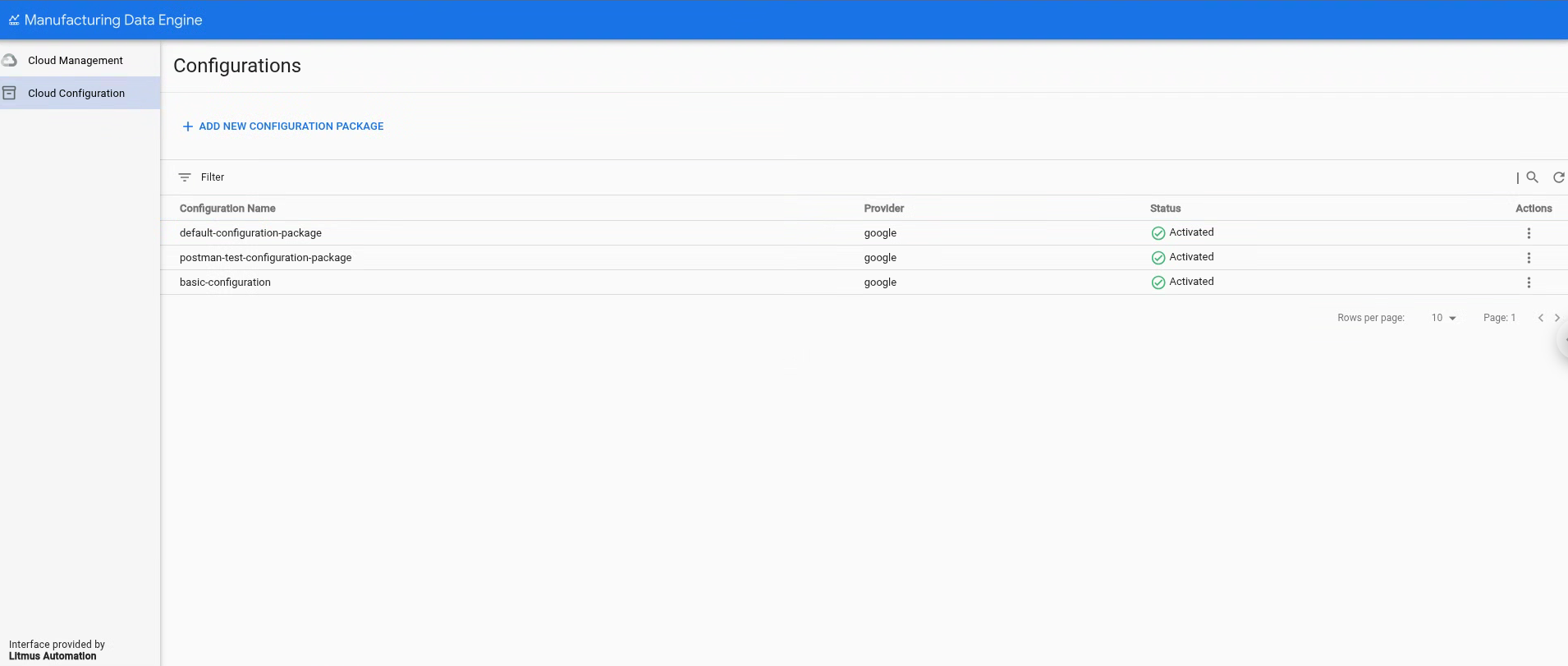

您可以在配置 页面上的 Cloud 配置 部分中看到现有配置软件包 的列表。
删除现有配置软件包
从 v1.5.0 开始，MDE 支持一个环境标志，该标志可以 将环境更改为 开发模式， 让您可以删除配置实体和删除配置软件包。 设置此模式后，您可以使用 REST 端点或 MDE 网页界面删除按钮删除已激活的软件包。
REST
使用以下信息执行 REST API 请求：
- 方法：DELETE
- 端点:
/configuration/v1/configuration-packages/$PACKAGE-ID - 响应代码: 200 OK
- 响应正文 (JSON)：
{
"id": "87e160db-8ff9-403a-a873-e6674f6ac3cb",
"name": "postman-test-configuration-package",
"provider": "google",
"latestStatus": "DELETED",
"status": [
{
"code": "NOT_LOADED",
"updatedTime": "1742550114832",
"messages": []
},
{
"code": "VALIDATED",
"updatedTime": "1742550114832",
"messages": [
{
"severity": "INFO",
"message": "Successfully validated all buckets in the package"
},
{
"severity": "INFO",
"message": "Successfully validated all ingestion-specifications in the package"
},
{
"severity": "INFO",
"message": "Successfully validated all message classes in the package"
},
{
"severity": "INFO",
"message": "Successfully validated all metadata-instances in the package"
},
{
"severity": "INFO",
"message": "Successfully validated all parsers in the package"
},
{
"severity": "INFO",
"message": "Successfully validated all types in the package"
}
]
},
{
"code": "LOADED",
"updatedTime": "1742550115241",
"messages": [
{
"severity": "INFO",
"message": "Successfully applied all ingestion-specification in the package"
},
{
"severity": "INFO",
"message": "Successfully applied all message classes in the package"
},
{
"severity": "INFO",
"message": "Successfully applied all buckets in the package"
},
{
"severity": "INFO",
"message": "Successfully validated all metadata-instances in the package"
},
{
"severity": "INFO",
"message": "Successfully applied all types in the package"
},
{
"severity": "INFO",
"message": "Successfully applied all parsers in the package"
}
]
},
{
"code": "ACTIVATED",
"updatedTime": "1742550115327",
"messages": [
{
"severity": "INFO",
"message": "Successfully activated all ingestion-specification, if there is any, in the package"
},
{
"severity": "INFO",
"message": "Successfully activated all message classes, if there is any, in the package"
},
{
"severity": "INFO",
"message": "Successfully activated all buckets, if there is any, in the package"
},
{
"severity": "INFO",
"message": "Successfully activated all metadata instance, if there is any, in the package"
},
{
"severity": "INFO",
"message": "Successfully activated all types, if there is any, in the package"
},
{
"severity": "INFO",
"message": "Successfully activated all parsers, if there is any, in the package"
}
]
},
{
"code": "DELETED",
"updatedTime": "1742567553260",
"messages": [
{
"severity": "INFO",
"message": "Successfully deleted all parsers, if there is any, in the package"
},
{
"severity": "INFO",
"message": "Successfully deleted all message classes, if there is any, in the package"
},
{
"severity": "INFO",
"message": "Successfully deleted all types, if there is any, in the package"
},
{
"severity": "INFO",
"message": "Successfully activated all metadata instance, if there is any, in the package"
},
{
"severity": "INFO",
"message": "Successfully deleted all buckets, if there is any, in the package"
},
{
"severity": "INFO",
"message": "Successfully deleted all ingestion-specification, if there is any, in the package"
}
]
}
]
}
控制台

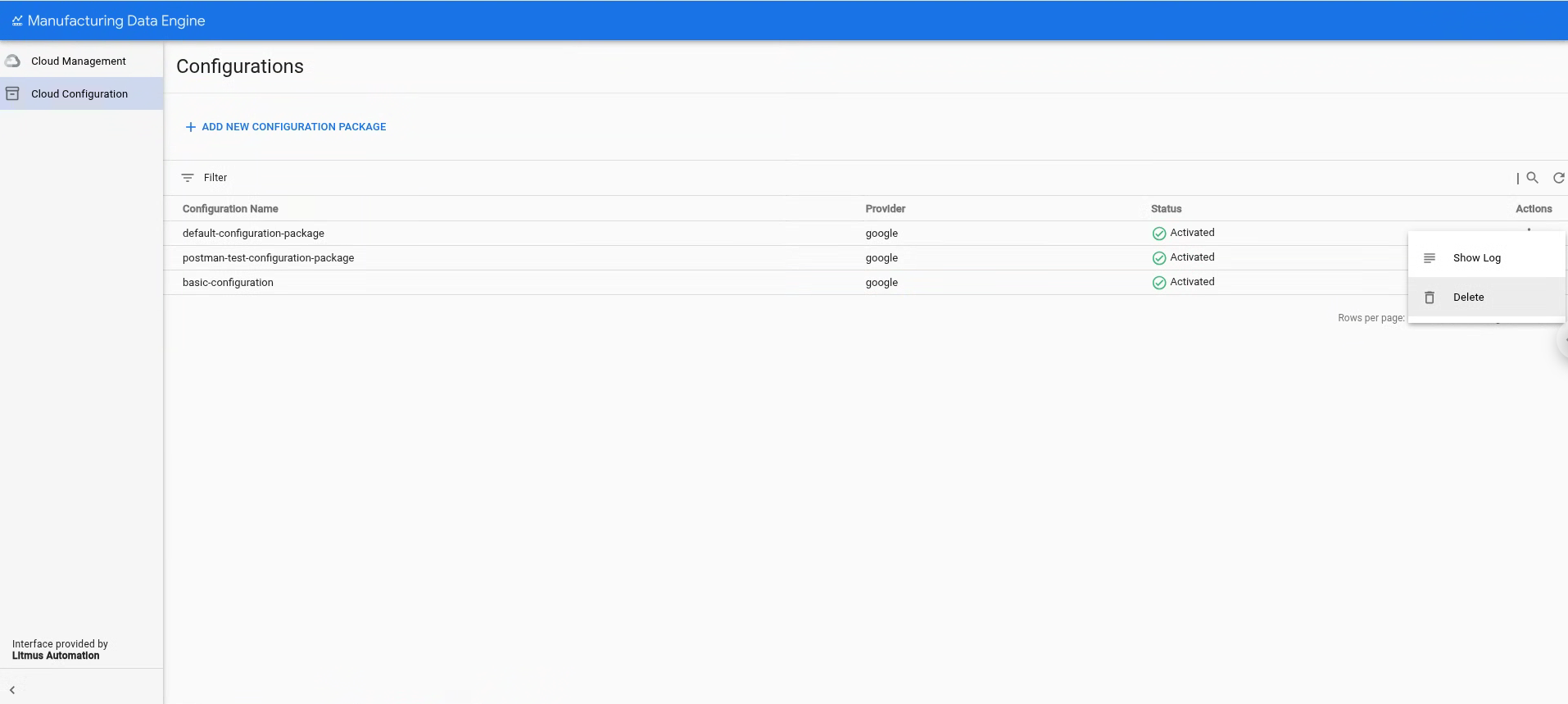

- 点击 Cloud 配置 。
- 选择要删除的配置软件包。
- 点击操作 。
点击删除 。

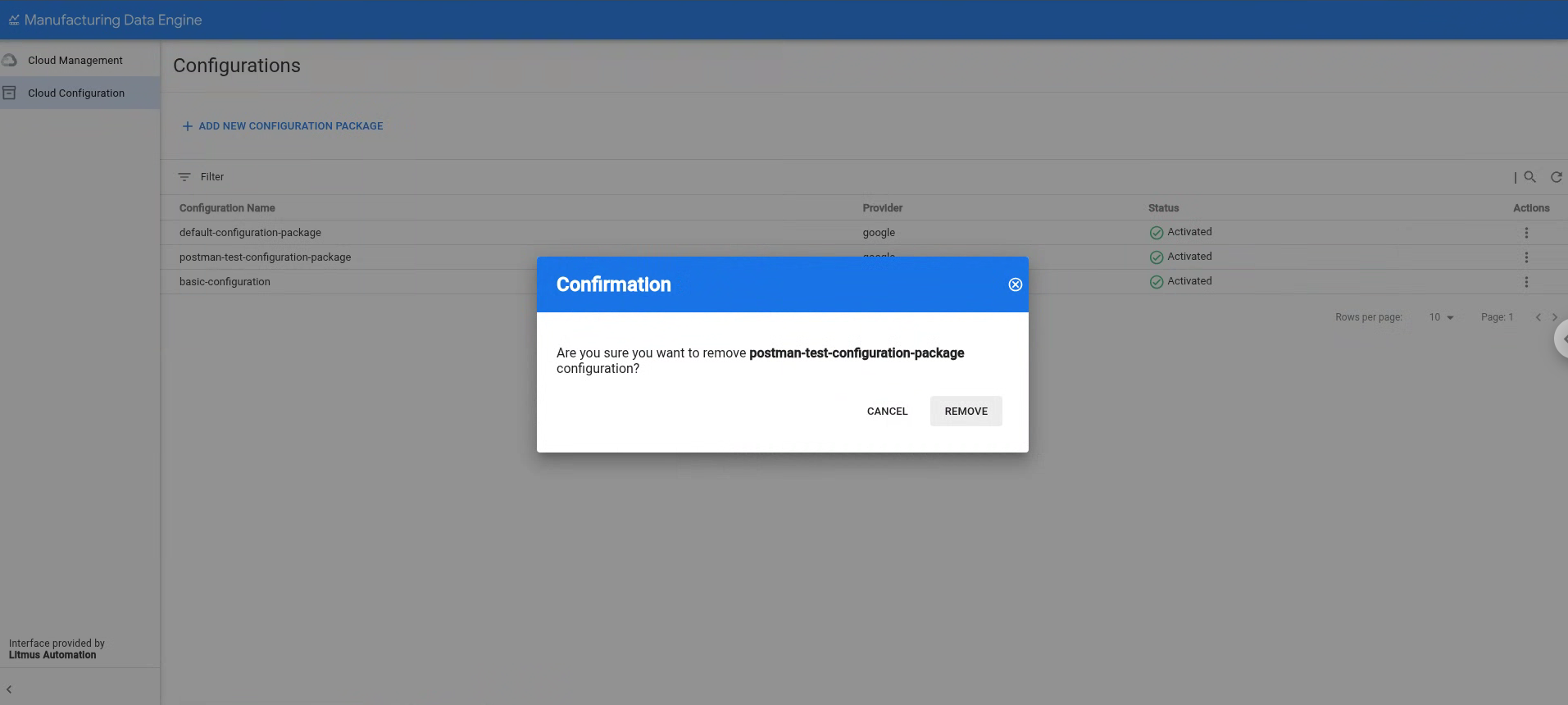

点击移除 ，确认您确定要删除所选的配置软件包。
